module 2 modal analysis
Module 2Modal Analysis

A. Define modal analysis and its purpose.

B. Discuss associated concepts, terminology, and mode extraction methods.

C. Learn how to do a modal analysis in ANSYS.

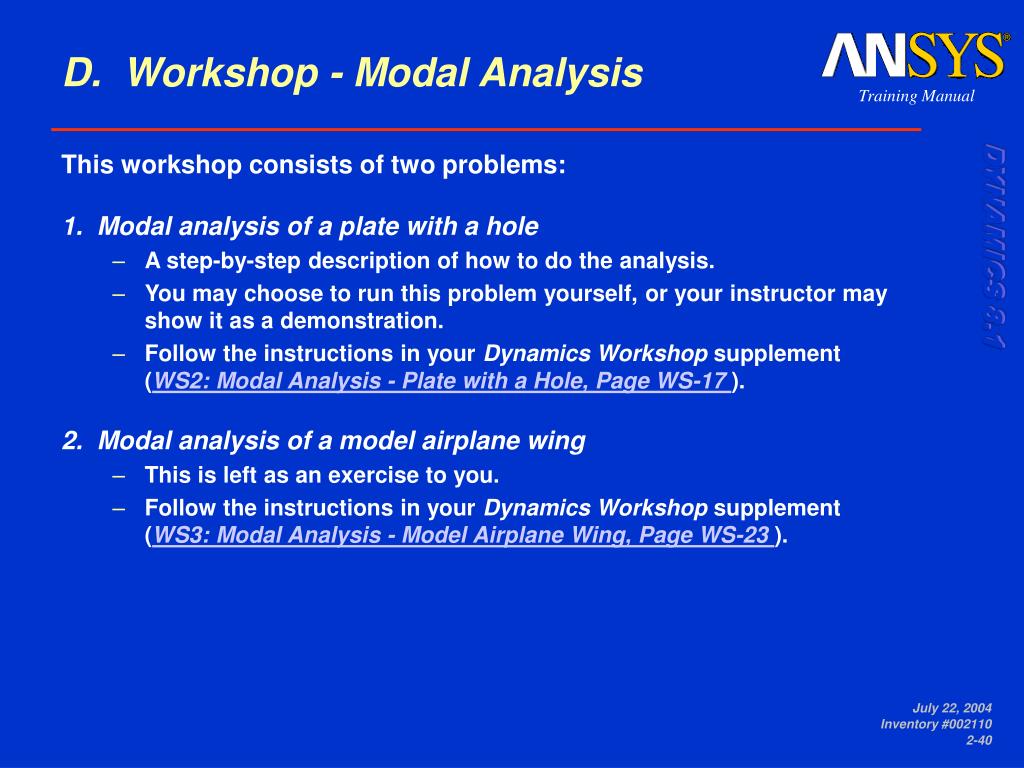

D. Work on one or two modal analysis exercises.

July 22, 2004

Inventory #002110

2-2

modal analysis a definition purpose
Modal AnalysisA. Definition & Purpose

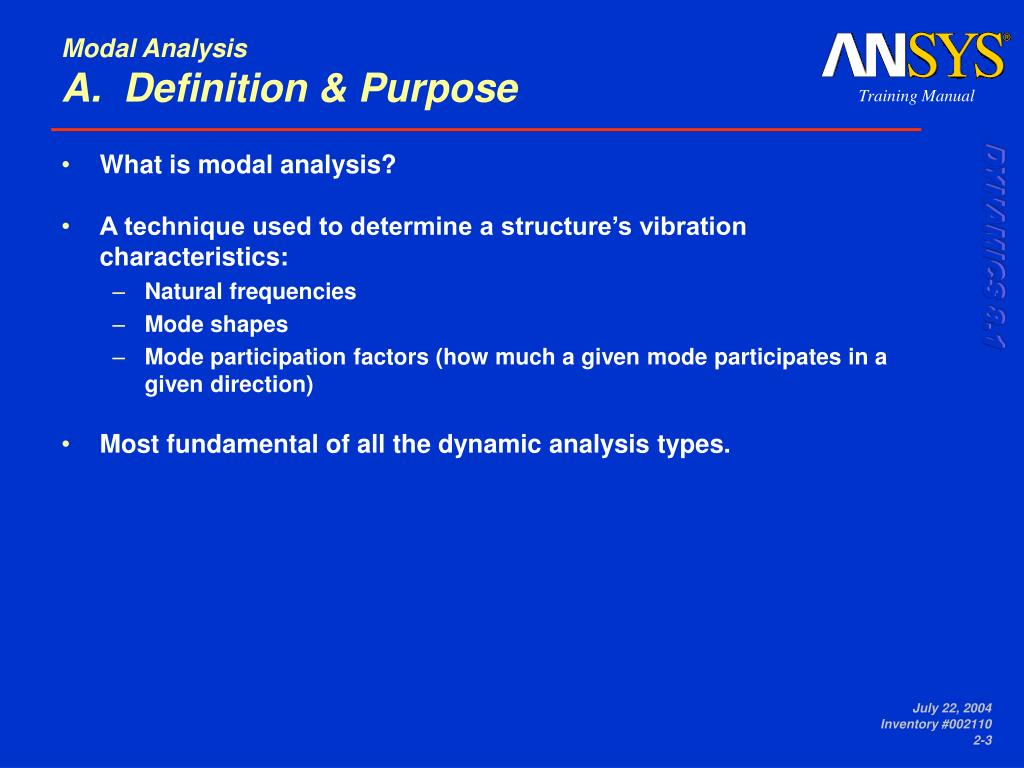

  • What is modal analysis?
  • A technique used to determine a structure’s vibration characteristics:
    • Natural frequencies
    • Mode shapes
    • Mode participation factors (how much a given mode participates in a given direction)
  • Most fundamental of all the dynamic analysis types.

July 22, 2004

Inventory #002110

2-3

modal analysis definition purpose
Modal Analysis… Definition & Purpose

Benefits of modal analysis

  • Allows the design to avoid resonant vibrations or to vibrate at a specified frequency(speakers, for example).
  • Gives engineers an idea of how the design will respond to different types of dynamic loads.
  • Helps in calculating solution controls (time steps, etc.) for other dynamic analyses.

Recommendation: Because a structure’s vibration characteristics determine how it responds to any type of dynamic load, always perform a modal analysis first before trying any other dynamic analysis.

July 22, 2004

Inventory #002110

2-4

modal analysis b terminology concepts
Modal AnalysisB. Terminology & Concepts

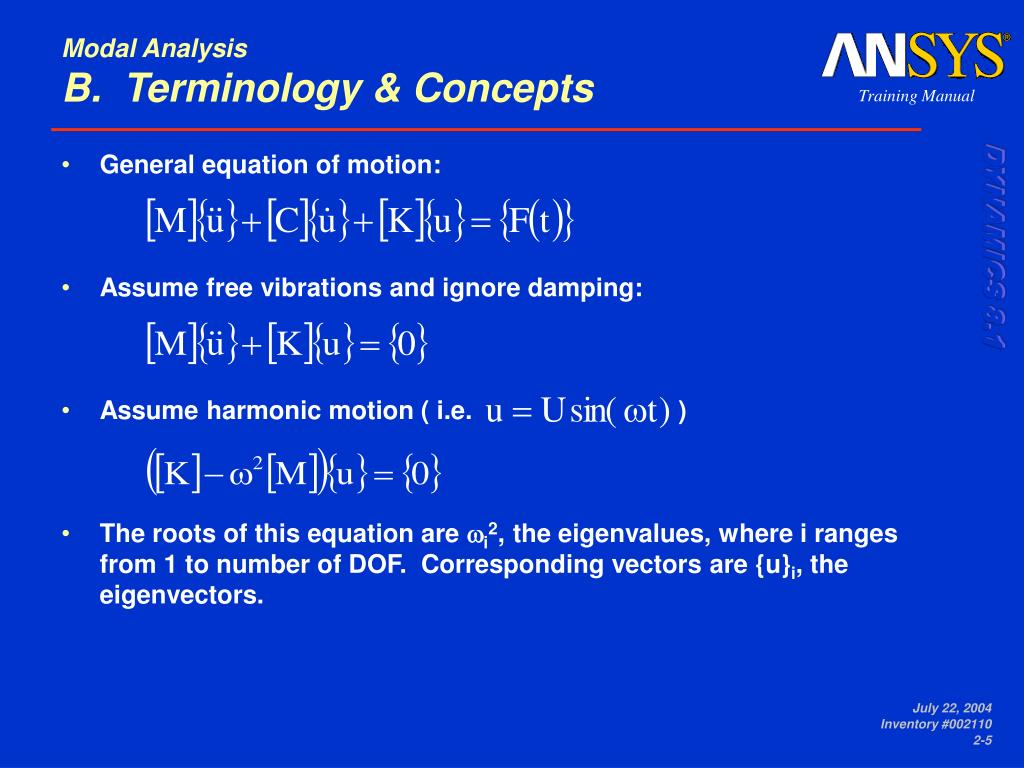

  • General equation of motion:
  • Assume free vibrations and ignore damping:
  • Assume harmonic motion ( i.e. )
  • The roots of this equation are i2, the eigenvalues, where i ranges from 1 to number of DOF. Corresponding vectors are {u}i, the eigenvectors.

July 22, 2004

Inventory #002110

2-5

modal analysis terminology concepts
Modal Analysis… Terminology & Concepts
  • The square roots of the eigenvalues are wi , the structure’s natural circular frequencies (radians/sec). Natural frequencies fi are then calculated as fi = wi/2p (cycles/sec). It is the natural frequencies fi that are input by the user and output by ANSYS.
  • The eigenvectors {u}i represent the mode shapes - the shape assumed by the structure when vibrating at frequency fi.

July 22, 2004

Inventory #002110

2-6

modal analysis terminology concepts cont
Modal Analysis… Terminology & Concepts (cont.)
  • Mode Extraction is the term used to describe the calculation of eigenvalues and eigenvectors.
  • Mode Expansion has a dual meaning. For the reduced method, mode expansion means calculating the full mode shapes from the reduced mode shapes. For all other methods, mode expansion simply means writing mode shapes to the results file.

July 22, 2004

Inventory #002110

2-7

modal analysis terminology concepts mode extraction methods

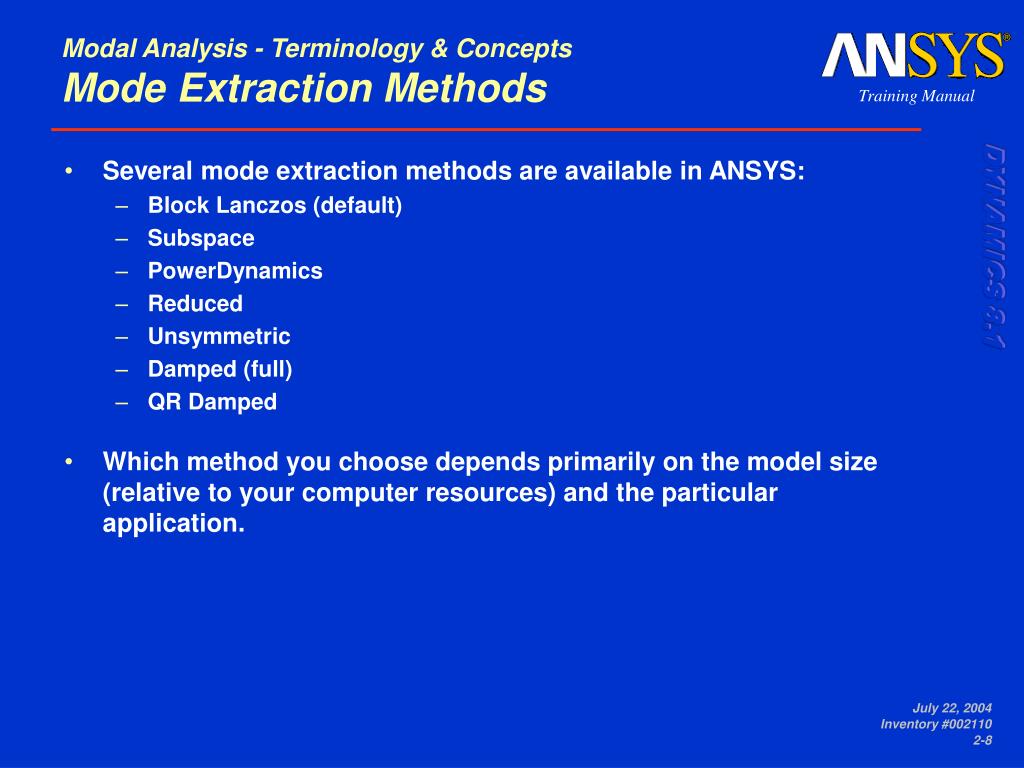

Modal Analysis - Terminology & ConceptsMode Extraction Methods
  • Several mode extraction methods are available in ANSYS:
    • Block Lanczos (default)
    • Subspace
    • PowerDynamics
    • Reduced
    • Unsymmetric
    • Damped (full)
    • QR Damped
  • Which method you choose depends primarily on the model size (relative to your computer resources) and the particular application.

July 22, 2004

Inventory #002110

2-8

modal analysis terminology concepts mode extraction methods block lanczos

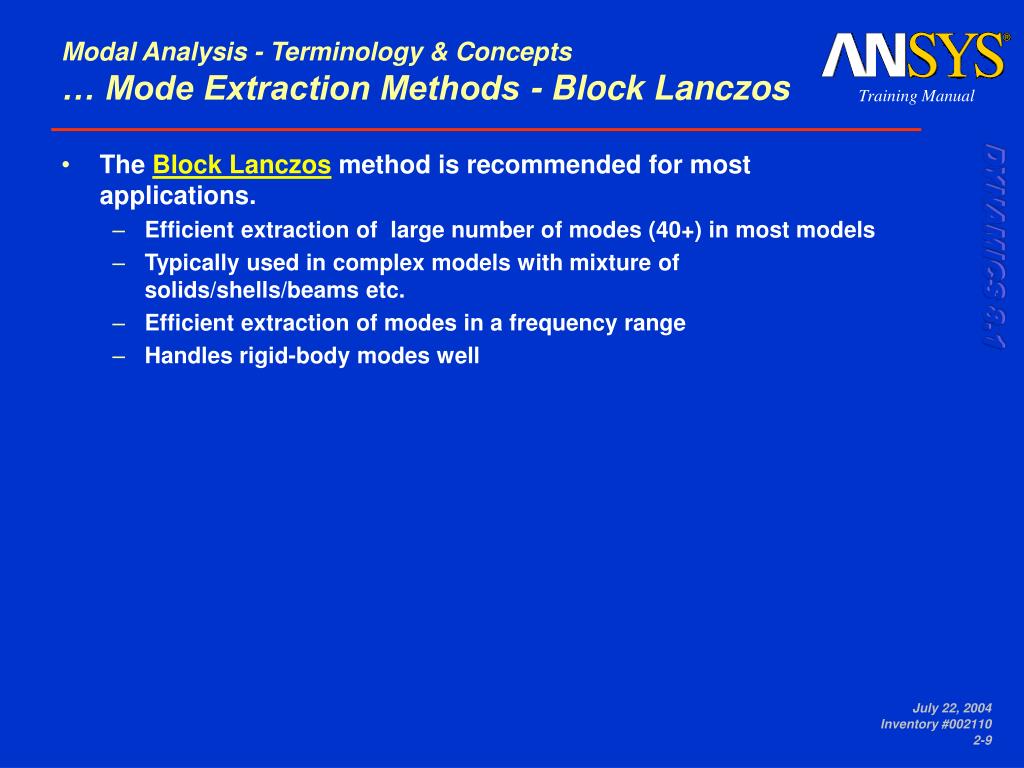

Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Block Lanczos
  • The Block Lanczos method is recommended for most applications.
    • Efficient extraction of large number of modes (40+) in most models
    • Typically used in complex models with mixture of solids/shells/beams etc.
    • Efficient extraction of modes in a frequency range
    • Handles rigid-body modes well

July 22, 2004

Inventory #002110

2-9

modal analysis terminology concepts mode extraction methods subspace

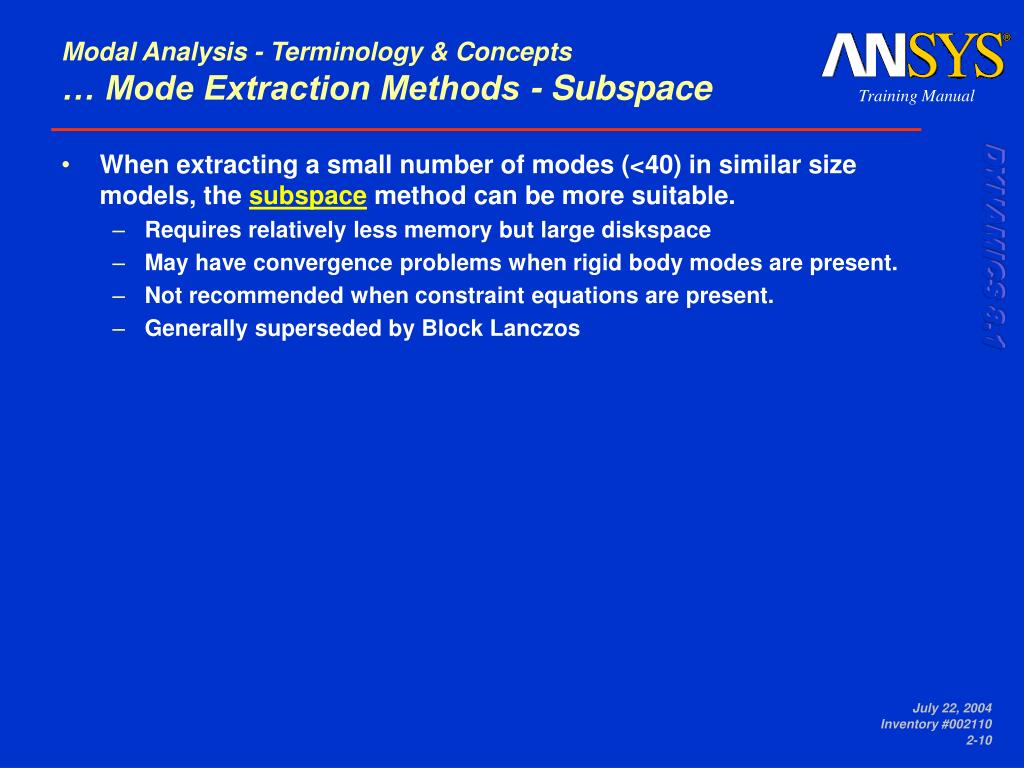

Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Subspace
  • When extracting a small number of modes (<40) in similar size models, the subspace method can be more suitable.
    • Requires relatively less memory but large diskspace
    • May have convergence problems when rigid body modes are present.
    • Not recommended when constraint equations are present.
    • Generally superseded by Block Lanczos

July 22, 2004

Inventory #002110

2-10

modal analysis terminology concepts mode extraction methods powerdynamics
Modal Analysis - Terminology & Concepts… Mode Extraction Methods - PowerDynamics
  • For large (100K+ DOF) models and a small number of modes (< 20), use the PowerDynamics method. It can be significantly faster than Block Lanczos or Subspace, but:
    • Requires large amount of memory.
    • May not converge with poorly shaped elements or an ill-conditioned matrix.
    • May miss modes (No Sturm sequence check)
    • Recommended only as a last resort for large models.

July 22, 2004

Inventory #002110

2-11

modal analysis terminology concepts mode extraction methods reduced

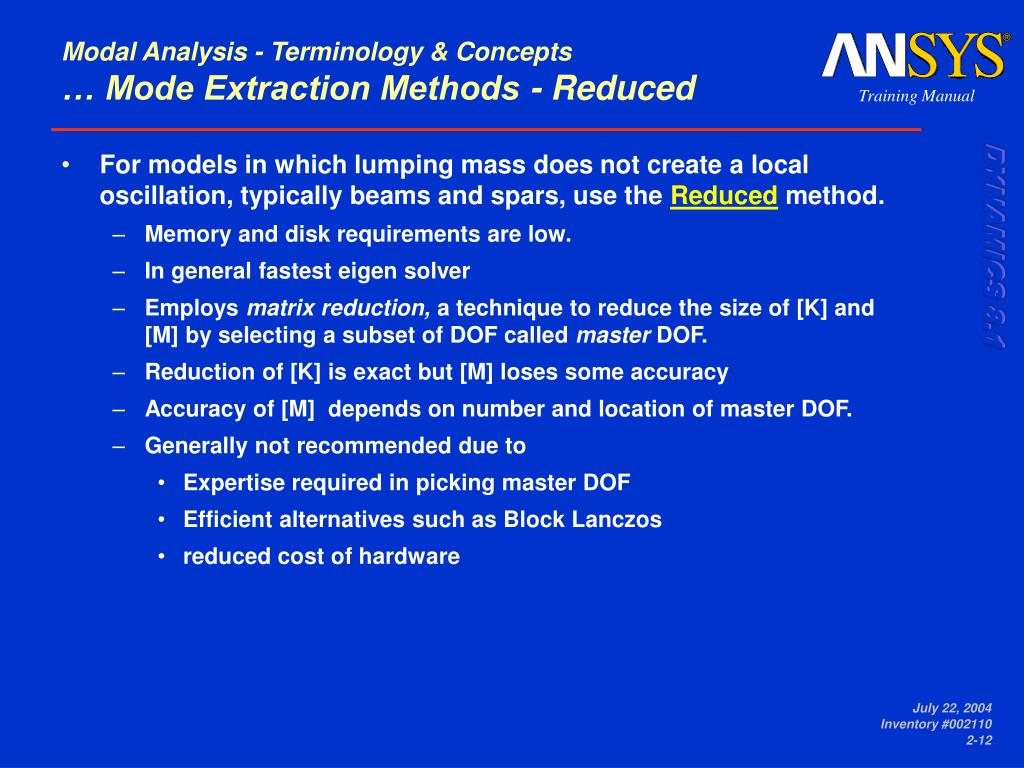

Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Reduced
  • For models in which lumping mass does not create a local oscillation, typically beams and spars, use the Reduced method.
    • Memory and disk requirements are low.
    • In general fastest eigen solver
    • Employs matrix reduction, a technique to reduce the size of [K] and [M] by selecting a subset of DOF called master DOF.
    • Reduction of [K] is exact but [M] loses some accuracy
    • Accuracy of [M] depends on number and location of master DOF.
    • Generally not recommended due to
      • Expertise required in picking master DOF
      • Efficient alternatives such as Block Lanczos
      • reduced cost of hardware

July 22, 2004

Inventory #002110

2-12

modal analysis terminology concepts mode extraction methods unsymmetric
Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Unsymmetric
  • The unsymmetric method is used for acoustics (with structural coupling) and other such applications with unsymmetric [K] and [M].
    • Calculates complex eigenvalues and eigenvectors:
      • Real part is the natural frequency.
      • Imaginary part indicates stability - negative means stable, positive means unstable.

July 22, 2004

Inventory #002110

2-13

modal analysis terminology concepts mode extraction methods damped
Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Damped
  • Damping is normally ignored in a modal analysis, but if its effects are significant, the Damped method is used.
    • Typical application is rotor dynamics, where gyroscopic damping effects are important.
    • Two ANSYS elements, BEAM4 and PIPE16, allow gyroscopic effects to be specified in the form of real constant SPIN (rotational speed, radians/time).
    • Calculates complex eigenvalues and eigenvectors:
      • Imaginary part is the natural frequency.
      • Real part indicates stability - negative means stable, positive means unstable.

July 22, 2004

Inventory #002110

2-14

modal analysis terminology concepts mode extraction methods q r damped

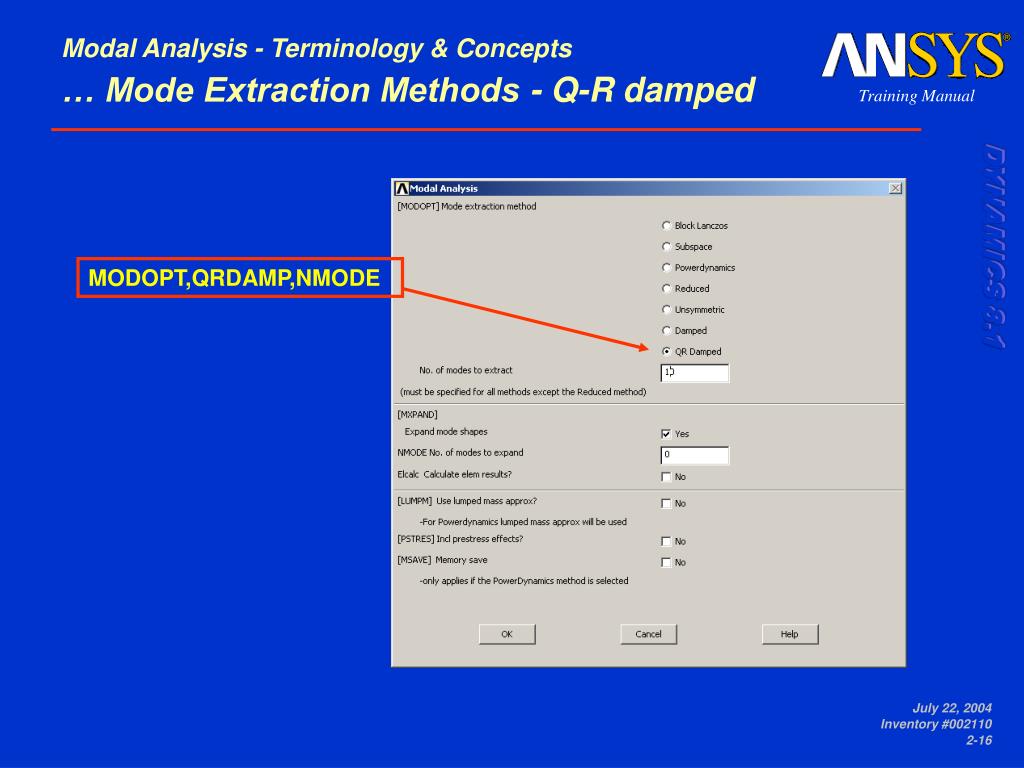

Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Q-R damped
  • A second mode extraction method that considers damping effects is the Q-R Damped method.
    • Faster and more stable than the existing Damped Solver
    • Works with poorly conditioned models
    • All forms of damping allowed including damper elements
    • Combines the best features of the real eigensolution method (Block Lanczos) and the Complex Hessenberg method (QR Algorithm)
    • Outputs complex eigenvalues ( frequency and stability) and damping ratio of each mode
    • Supports the use of a material dependent damping ratio [MP,DMPR] in a subsequent mode superposition harmonic analysis

July 22, 2004

Inventory #002110

2-15

modal analysis terminology concepts mode extraction methods q r damped16
Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Q-R damped

MODOPT,QRDAMP,NMODE

July 22, 2004

Inventory #002110

2-16

modal analysis terminology concepts mode extraction methods q r damped17
Modal Analysis - Terminology & Concepts… Mode Extraction Methods - Q-R damped

Comparison Demonstrating the Superior Solution Performance of the QR Damped Mode Extraction Method

July 22, 2004

Inventory #002110

2-17

modal analysis terminology concepts summary for symmetric undamped solvers

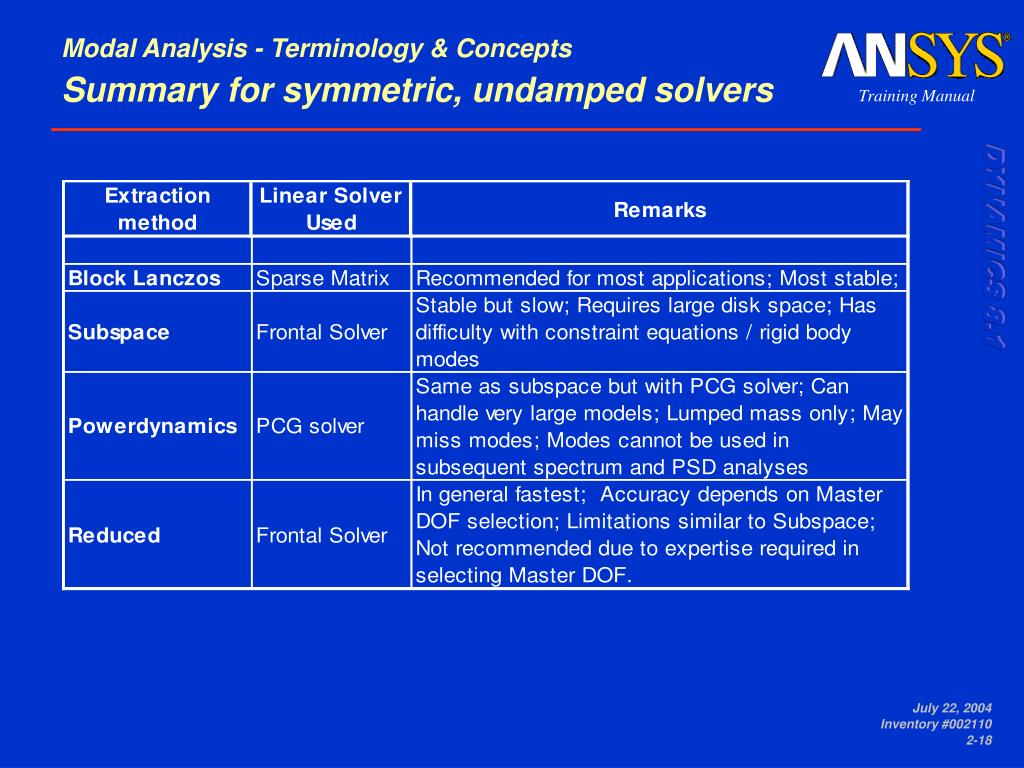

Modal Analysis - Terminology & ConceptsSummary for symmetric, undamped solvers

July 22, 2004

Inventory #002110

2-18

modal analysis c procedure
Modal AnalysisC. Procedure

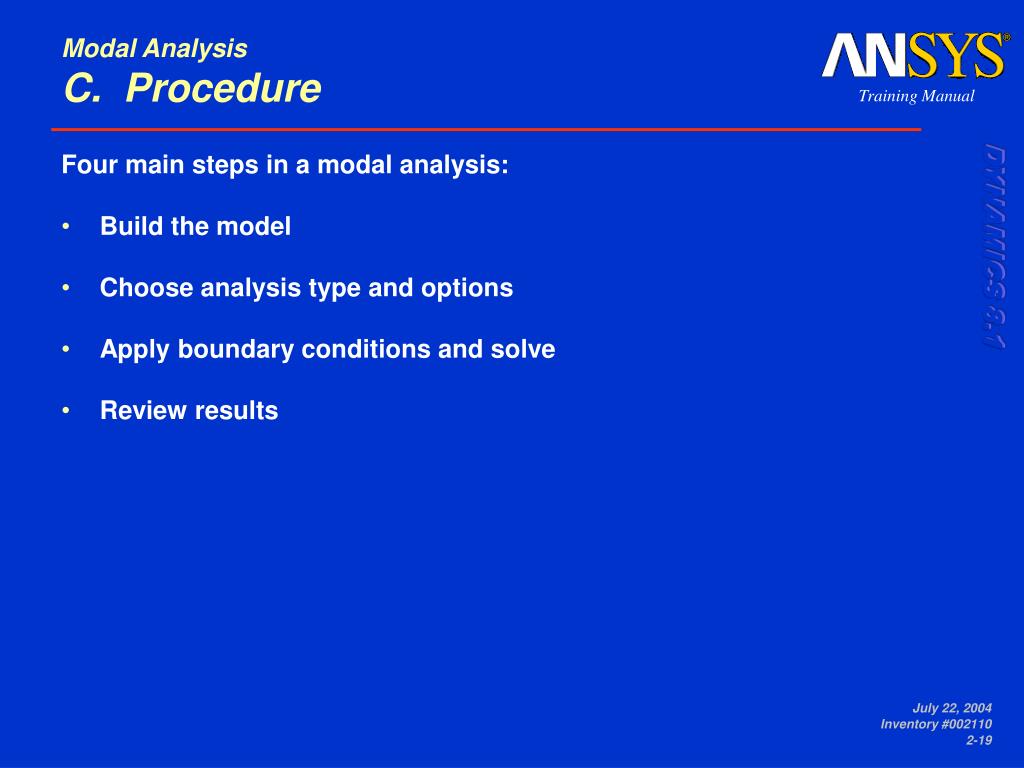

Four main steps in a modal analysis:

  • Build the model
  • Choose analysis type and options
  • Apply boundary conditions and solve

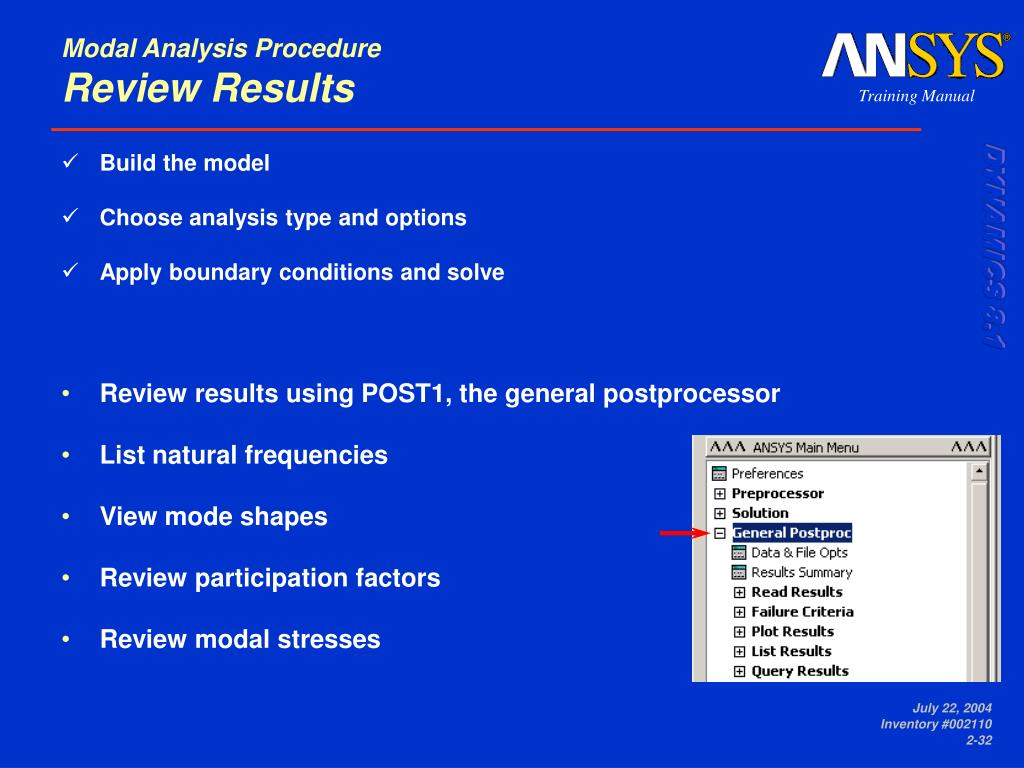

  • Review results

July 22, 2004

Inventory #002110

2-19

modal analysis procedure build the model
Modal Analysis ProcedureBuild the Model
  • Remember density!
  • Linear elements and materials only. Nonlinearities are ignored.
  • See also Modeling Considerations in Module 1.

July 22, 2004

Inventory #002110

2-20

modal analysis procedure choose analysis type options

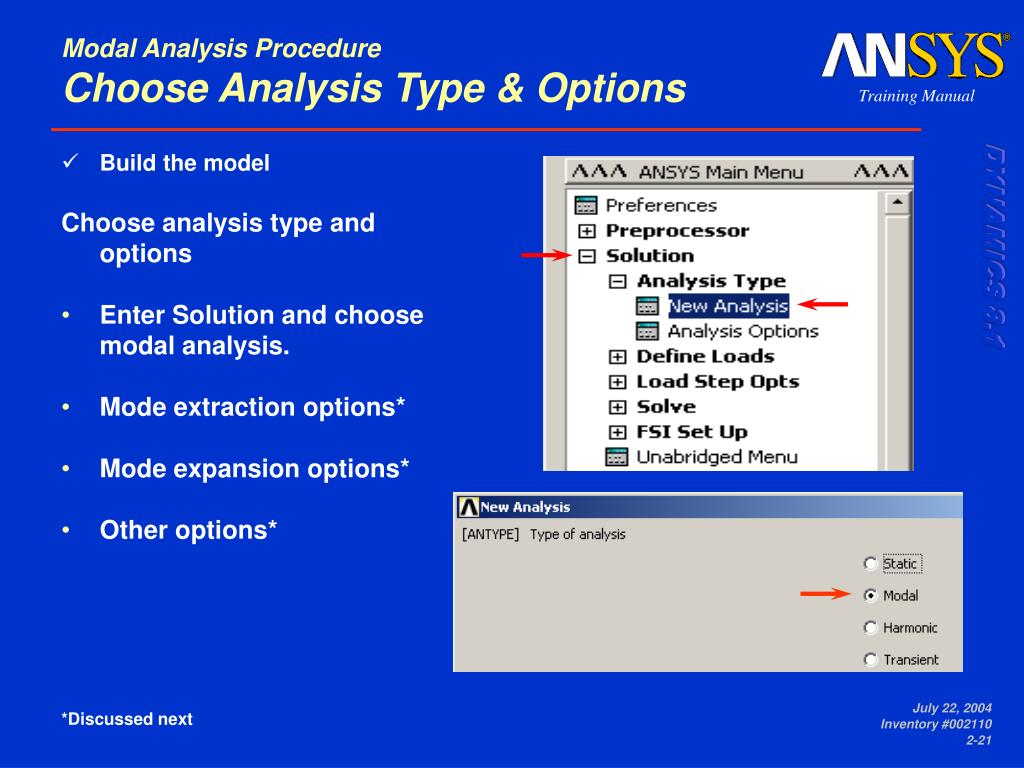

Modal Analysis ProcedureChoose Analysis Type & Options
  • Build the model

Choose analysis type and options

  • Enter Solution and choose modal analysis.
  • Mode extraction options*
  • Mode expansion options*
  • Other options*

*Discussed next

July 22, 2004

Inventory #002110

2-21

modal analysis procedure choose analysis type options22
Modal Analysis Procedure… Choose Analysis Type & Options

Mode extraction options

  • Method: Block Lanczos recommended for most applications.
  • Number of modes: Must be specified (except Reduced method).
  • Frequency range: Defaults to entire range, but can be limited to a desired range (FREQB to FREQE). Specification of a frequency range requires additional factorizations and it is typically faster to simply request a number of modes which will overlap the desired range.
  • Normalization:Discussed next.

defaults to 1e8

July 22, 2004

Inventory #002110

2-22

modal analysis procedure choose analysis type options23
Modal Analysis Procedure… Choose Analysis Type & Options

Normalization of mode shapes:

  • Only the shape of the DOF solution has real meaning. It is therefore customary to normalize them for numerical efficiency or user convenience.
  • Modes are normalized either to the mass matrix or to a unit matrix (unity).
    • Normalization to mass matrix is the default, and is required for a spectrum analysis or if a subsequent mode superposition analysis is planned.
    • Choose normalization to unity when you want to easily compare relative values of displacements throughout the structure.
      • Modes normalized to unity cannot be used in subsequent mode superposition analyses (transient, harmonic, spectrum or random vibration)

July 22, 2004

Inventory #002110

2-23

modal analysis procedure choose analysis type options24
Modal Analysis Procedure… Choose Analysis Type & Options

Mode expansion:

  • You need to expand mode shapes if you want to do any of the following:
    • Have element stresses calculated.
    • Do a subsequent spectrum or mode superposition analysis.

July 22, 2004

Inventory #002110

2-24

modal analysis procedure choose analysis type options25
Modal Analysis Procedure… Choose Analysis Type & Options

Mode expansion (continued):

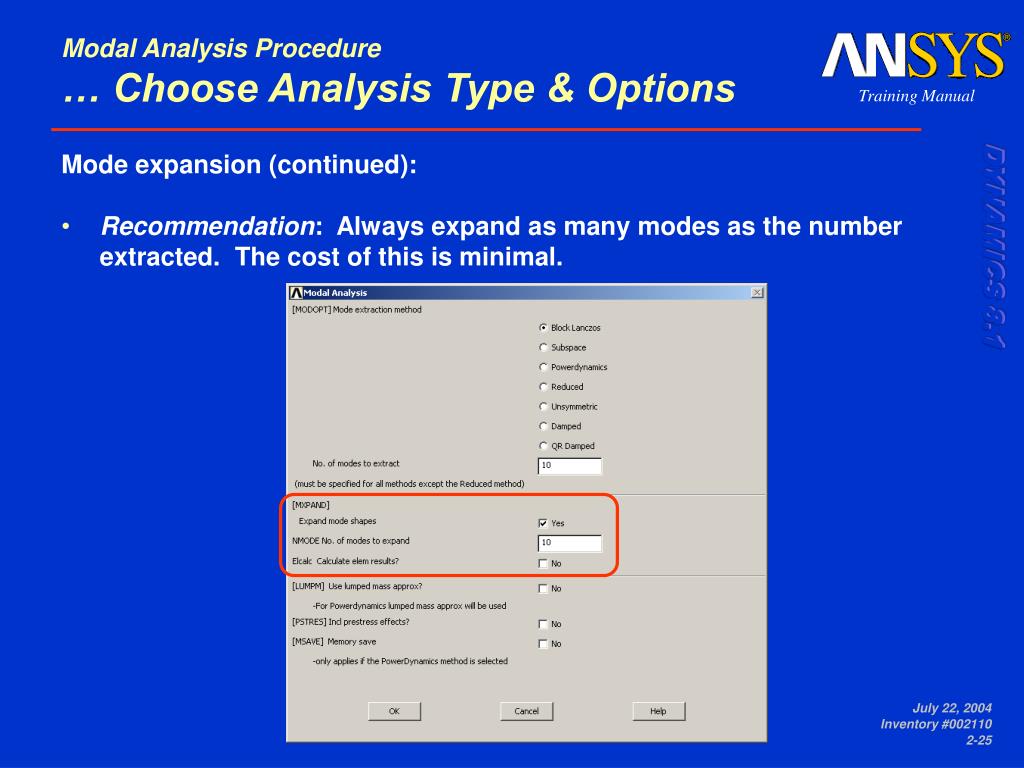

  • Recommendation: Always expand as many modes as the number extracted. The cost of this is minimal.

July 22, 2004

Inventory #002110

2-25

modal analysis procedure choose analysis type options26
Modal Analysis Procedure… Choose Analysis Type & Options

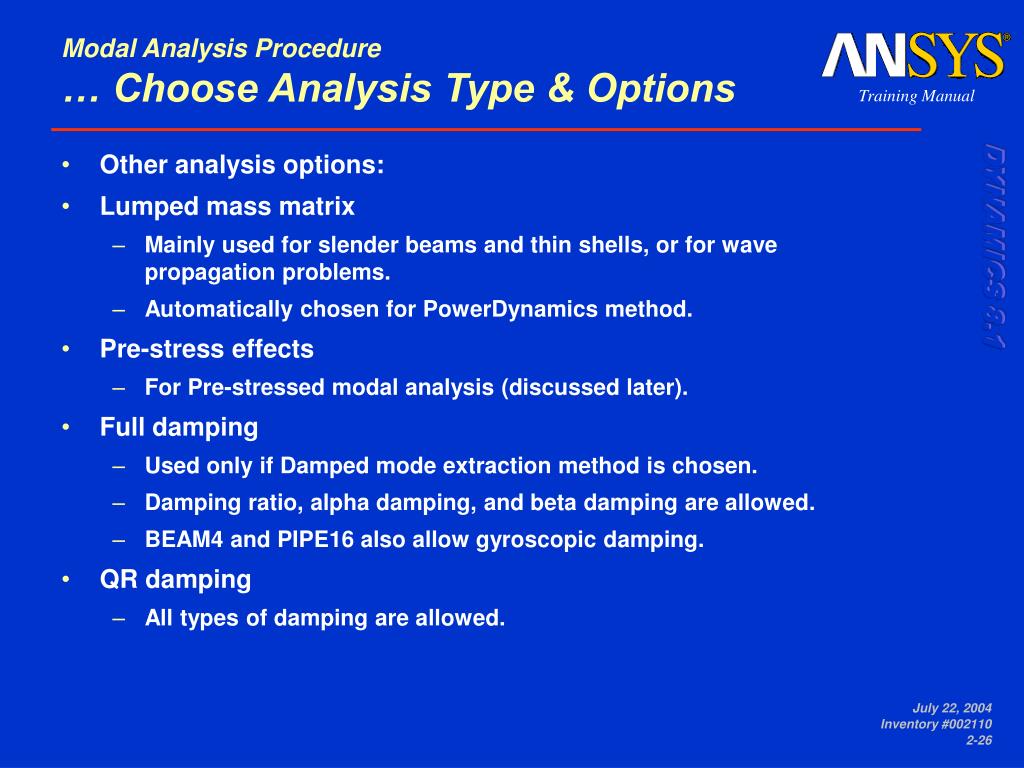

  • Other analysis options:
  • Lumped mass matrix
    • Mainly used for slender beams and thin shells, or for wave propagation problems.
    • Automatically chosen for PowerDynamics method.
  • Pre-stress effects
    • For Pre-stressed modal analysis (discussed later).
  • Full damping
    • Used only if Damped mode extraction method is chosen.
    • Damping ratio, alpha damping, and beta damping are allowed.
    • BEAM4 and PIPE16 also allow gyroscopic damping.
  • QR damping
    • All types of damping are allowed.

July 22, 2004

Inventory #002110

2-26

modal analysis procedure apply bc s and solve
Modal Analysis ProcedureApply BC’s and Solve
  • Build the model
  • Choose analysis type and options

Apply boundary conditions and solve

  • Displacement constraints: Discussed next.
  • External loads: Ignored since free vibrations are assumed. However, ANSYS creates a load vector which you can use in a subsequent mode superposition analysis.
  • Solve: Discussed next.

July 22, 2004

Inventory #002110

2-27

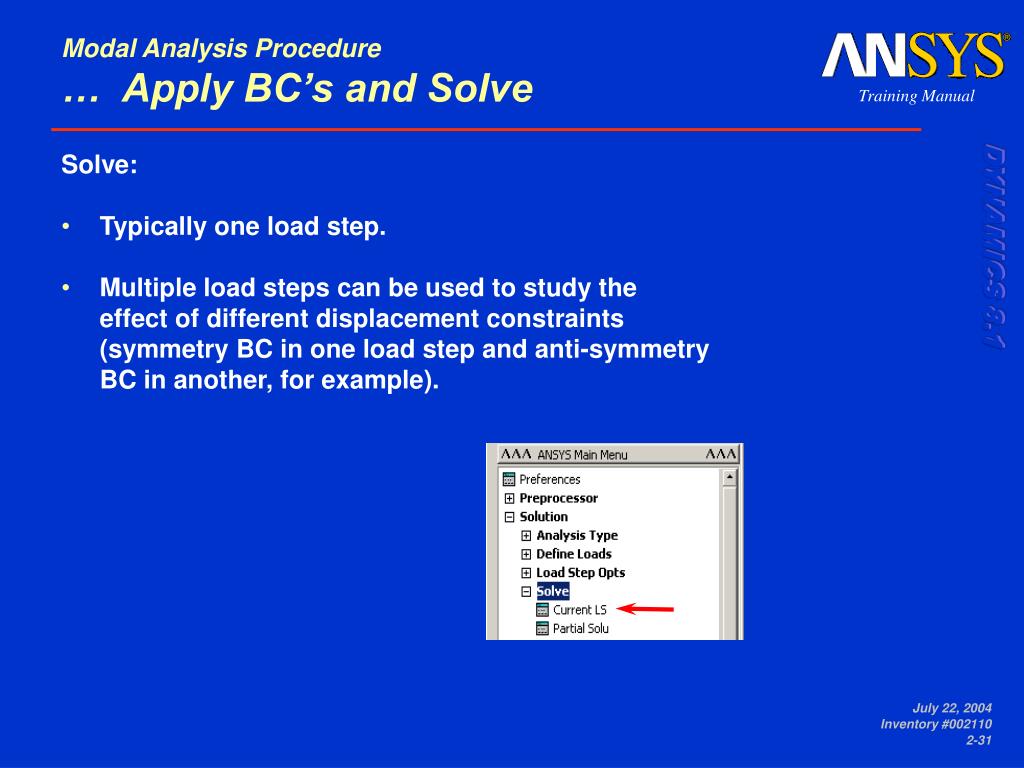

modal analysis procedure apply bc s and solve28

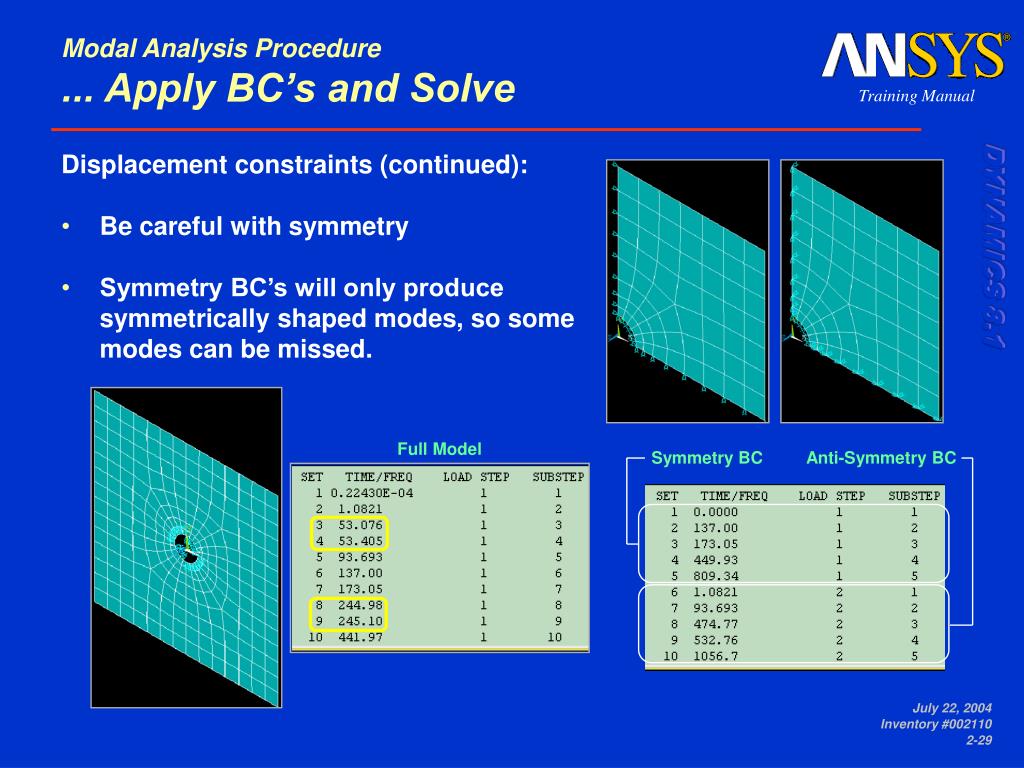

Modal Analysis Procedure… Apply BC’s and Solve

Displacement constraints:

  • Apply as necessary, to simulate actual fixity.
  • Rigid body modes will be calculated in directions not constrained.
  • Non-zero displacements are not allowed.

July 22, 2004

Inventory #002110

2-28

modal analysis procedure apply bc s and solve29

Symmetry BC

Anti-Symmetry BC

Modal Analysis Procedure... Apply BC’s and Solve

Displacement constraints (continued):

  • Be careful with symmetry
  • Symmetry BC’s will only produce symmetrically shaped modes, so some modes can be missed.

Full Model

July 22, 2004

Inventory #002110

2-29

modal analysis procedure apply bc s and solve30
Modal Analysis Procedure… Apply BC’s and Solve

Displacement constraints (continued):

For the plate-with-hole model, the lowest non-zero mode for the full and the quarter-symmetry case is shown below. The 53-Hz mode was missed by the anti-symmetry case because ROTX is non-zero along the symmetry boundaries.

July 22, 2004

Inventory #002110

2-30

modal analysis procedure apply bc s and solve31
Modal Analysis Procedure… Apply BC’s and Solve

Solve:

  • Typically one load step.
  • Multiple load steps can be used to study the effect of different displacement constraints (symmetry BC in one load step and anti-symmetry BC in another, for example).

July 22, 2004

Inventory #002110

2-31

modal analysis procedure review results
Modal Analysis ProcedureReview Results
  • Build the model
  • Choose analysis type and options
  • Apply boundary conditions and solve
  • Review results using POST1, the general postprocessor
  • List natural frequencies
  • View mode shapes
  • Review participation factors
  • Review modal stresses

July 22, 2004

Inventory #002110

2-32

modal analysis procedure review results33
Modal Analysis Procedure… Review Results

Listing natural frequencies:

  • Choose “Read Results > By Pick” in the General Postproc menu.
  • Notice that each mode is stored in a separate substep.

July 22, 2004

Inventory #002110

2-33

modal analysis procedure review results34
Modal Analysis Procedure… Review Results

Viewing mode shapes:

  • First read in results for the desired mode using First Set, Next Set, or By Load Step.
  • Then plot the deformed shape: General Postproc > Plot Results > Deformed Shape…
  • Notice that the graphics legend shows mode number (SUB = ) and the frequency (FREQ = ).

July 22, 2004

Inventory #002110

2-34

modal analysis procedure review results35
Modal Analysis Procedure… Review Results

Viewing mode shapes (continued):

  • You can also animate the mode shape: Utility Menu > PlotCtrls > Animate > Mode Shape...

July 22, 2004

Inventory #002110

2-35

modal analysis procedure review results36
Modal Analysis Procedure… Review Results

Participation Factors:

  • Calculated for each mode in global translation and rotation directions
  • High value in a direction indicates that the mode will be excited by forces in that direction
  • Values are relative based on a unit displacement spectrum
  • The final participation factor value (ROTZ) can be retrieved into a parameter using *GET command. A spectrum analysis with a specified direction (SED,0,1,0) could be used to obtain other values
  • Also printed out (to the output file) is the effective mass. Ideally the sum of the effective masses in each direction should equal total mass of structure
  • Effective Mass = (participation factor)2

July 22, 2004

Inventory #002110

2-36

modal analysis procedure review results37
Modal Analysis Procedure… Review Results

Modal stresses:

  • Available if element stress calculation is activated when choosing analysis options.
  • Stress values have no real meaning, however these can be used to highlight hot spots
  • If mode shapes are normalized to unity, you can compare stresses at different points for a given mode shape

July 22, 2004

Inventory #002110

2-37

modal analysis procedure review results38
Modal Analysis Procedure… Review Results

Mode shapes normalized to unity

July 22, 2004

Inventory #002110

2-38

modal analysis procedure
Modal AnalysisProcedure
  • Build the model
  • Choose analysis type and options
  • Apply boundary conditions and solve
  • Review results

July 22, 2004

Inventory #002110

2-39

d workshop modal analysis
D. Workshop - Modal Analysis

This workshop consists of two problems:

1. Modal analysis of a plate with a hole

  • A step-by-step description of how to do the analysis.
  • You may choose to run this problem yourself, or your instructor may show it as a demonstration.
  • Follow the instructions in your Dynamics Workshop supplement (WS2: Modal Analysis - Plate with a Hole, Page WS-17 ).

2. Modal analysis of a model airplane wing

  • This is left as an exercise to you.
  • Follow the instructions in your Dynamics Workshop supplement (WS3: Modal Analysis - Model Airplane Wing, Page WS-23 ).

July 22, 2004

Inventory #002110

2-40
