Presentation Transcript
igneous minerals

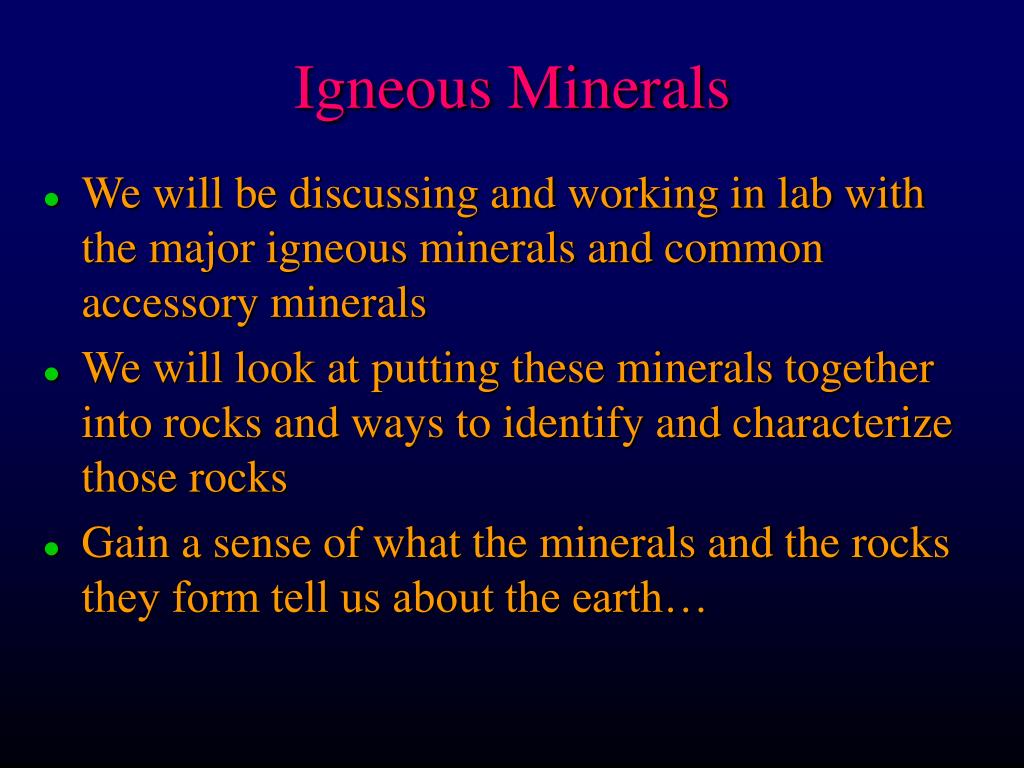

Igneous Minerals
  • We will be discussing and working in lab with the major igneous minerals and common accessory minerals
  • We will look at putting these minerals together into rocks and ways to identify and characterize those rocks
  • Gain a sense of what the minerals and the rocks they form tell us about the earth…
magma
Magma
  • Differntiate magma based on it’s chemical composition  felsic vs. mafic
melt composition freezing t

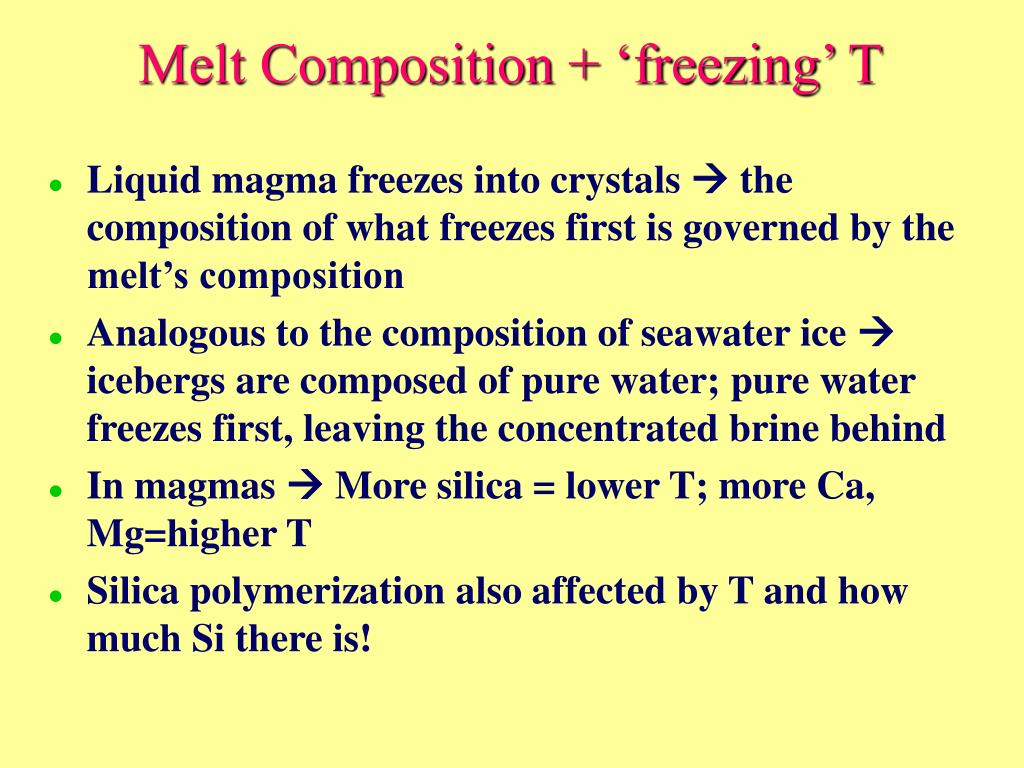

Melt Composition + ‘freezing’ T
  • Liquid magma freezes into crystals  the composition of what freezes first is governed by the melt’s composition
  • Analogous to the composition of seawater ice  icebergs are composed of pure water; pure water freezes first, leaving the concentrated brine behind
  • In magmas  More silica = lower T; more Ca, Mg=higher T
  • Silica polymerization also affected by T and how much Si there is!
back to silicate structures
Back to silicate structures:

nesosilicates

phyllosilicates

sorosilicates

inosilicates

cyclosilictaes

tectosilicates

slide13

Liquid hot

MAGMA

Mg2+

Na+

Ca2+

Fe2+

O2-

O2-

O2-

O2-

O2-

O2-

Si4+

O2-

Si4+

O2-

O2-

Si4+

O2-

  • Discontinous series – Structures change, harder to re-equilibrate
  • Continuous Series  plag re-equilibrates quicker and if not is a continuum in composition rather than a change in mineral as T decreases

rock

Mg2+

Fe2+

cooling

Mg2+

mineral structures

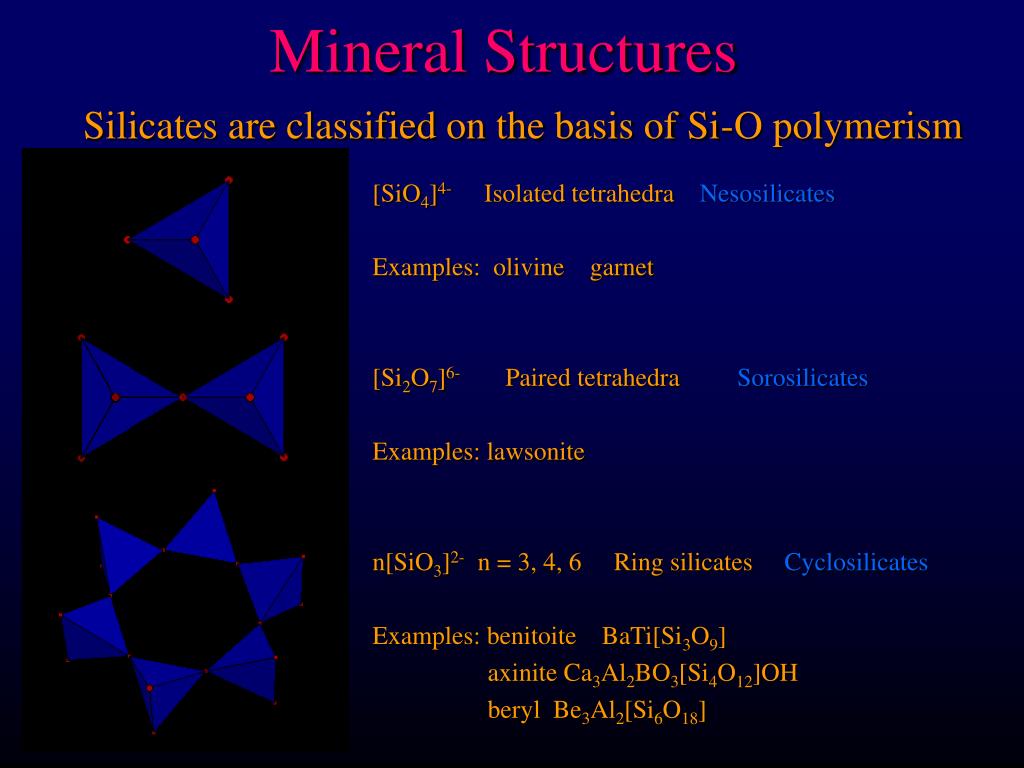

Mineral Structures

[SiO4]4- Isolated tetrahedra Nesosilicates

Examples: olivine garnet

[Si2O7]6- Paired tetrahedra Sorosilicates

Examples: lawsonite

n[SiO3]2- n = 3, 4, 6 Ring silicates Cyclosilicates

Examples: benitoite BaTi[Si3O9]

axinite Ca3Al2BO3[Si4O12]OH

beryl Be3Al2[Si6O18]

Silicates are classified on the basis of Si-O polymerism

mineral structures15

Mineral Structures

Chain Silicates – single and double

[SiO3]2- single chains Inosilicates [Si4O11]4- Double tetrahedra

pryoxenes pyroxenoids amphiboles

mineral structures16

Mineral Structures

Sheet Silicates – aka Phyllosilicates

[Si2O5]2- Sheets of tetrahedra Phyllosilicates

micas talc clay minerals serpentine

mineral structures17

Mineral Structures

Framework silicates – aka Tectosilicates

low-quartz

[SiO2] 3-D frameworks of tetrahedra: fully polymerized Tectosilicates

quartz feldspars feldspathoids zeolites

characterizing minerals

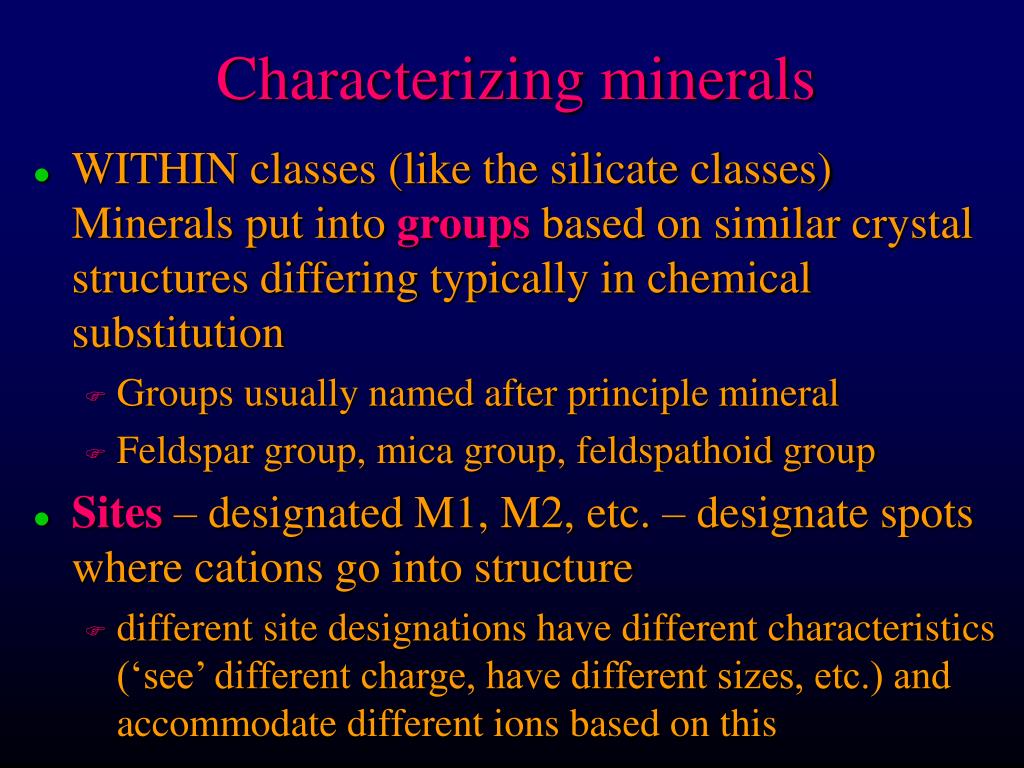

Characterizing minerals
  • WITHIN classes (like the silicate classes) Minerals put into groupsbased on similar crystal structures differing typically in chemical substitution
    • Groups usually named after principle mineral
    • Feldspar group, mica group, feldspathoid group
  • Sites – designated M1, M2, etc. – designate spots where cations go into structure
    • different site designations have different characteristics (‘see’ different charge, have different sizes, etc.) and accommodate different ions based on this
equilibrium
Equilibrium
  • Need a description of a mineral’s equilibrium with it’s surroundings
  • For igneous minerals, this equilibrium is with the melt (magma) it forms from or is a representation of the Temperature and Pressure of formation
salty ice cube experiment
Salty Ice cube experiment
  • Thought experiment: Put pure H2O ice cube into salty water, let it sit for a certain time and look at the distribution of salt inside the ice cube
  • When the ice cube reaches a point where the concentration of salt is the same through the whole ice cube it has reached equilibium
