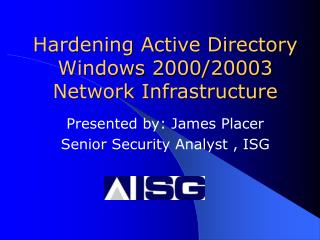

  1. Hardening Active DirectoryWindows 2000/20003Network Infrastructure Presented by: James Placer Senior Security Analyst , ISG

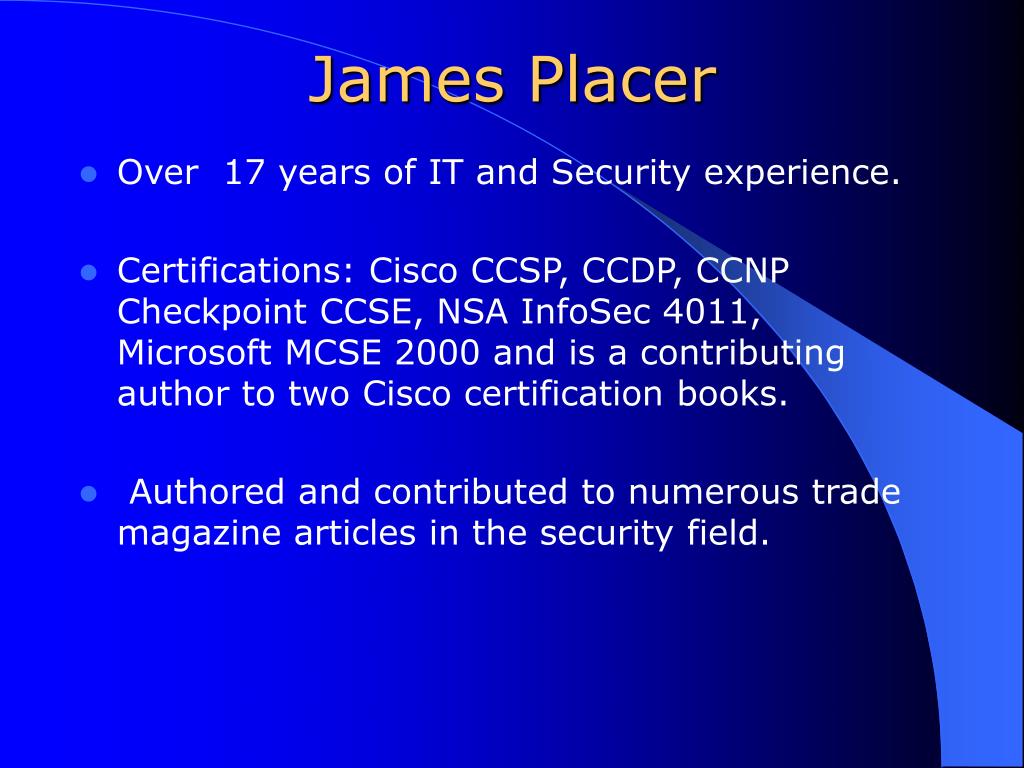

  2. James Placer • Over 17 years of IT and Security experience. • Certifications: Cisco CCSP, CCDP, CCNP Checkpoint CCSE, NSA InfoSec 4011, Microsoft MCSE 2000 and is a contributing author to two Cisco certification books. • Authored and contributed to numerous trade magazine articles in the security field.

  3. Agenda • Current State of Network Security • Security Policy Development • Security Application • Architecture and Security • Configuring AD • Hardening Servers and Clients • Questions

  4. Cert Coordination Center Statistics

  5. TechnicalKnowledge Required Threat Capabilities:More Dangerous & Easier To Use Internet Worms Packet Forging/ Spoofing High Stealth Diagnostics DDOS Sweepers Back Doors Sophistication of Hacker Tools Sniffers Exploiting Known Vulnerabilities Disabling Audits Self Replicating Code Password Cracking Password Guessing Low 1980 1990 2000

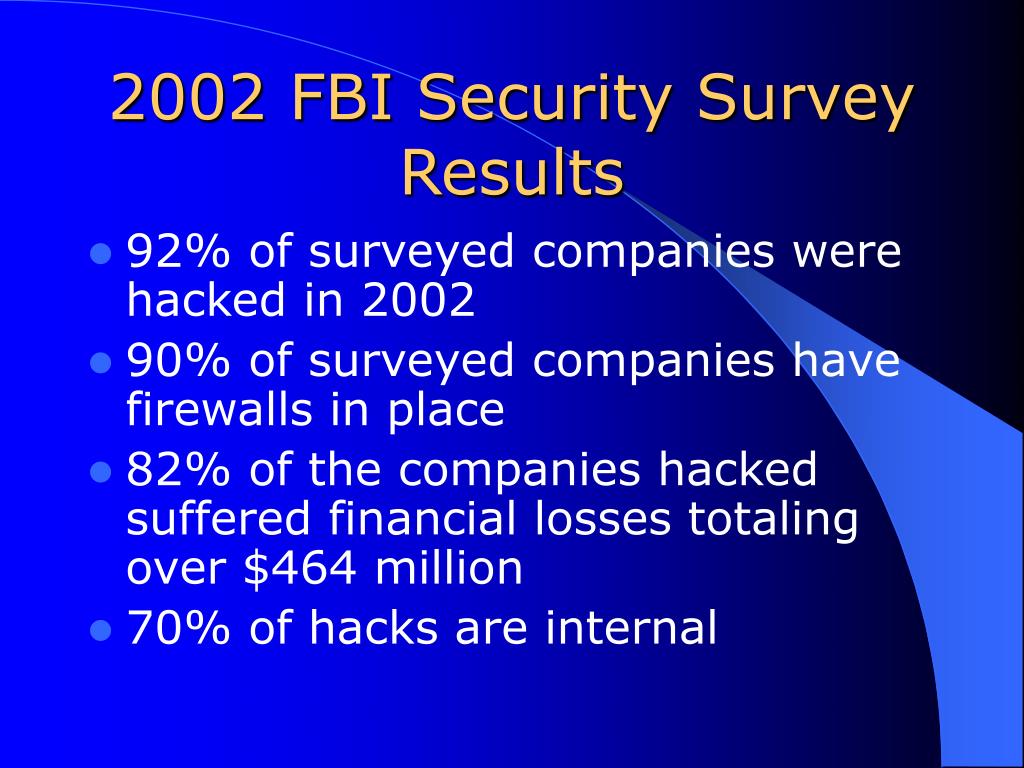

  6. 2002 FBI Security Survey Results • 92% of surveyed companies were hacked in 2002 • 90% of surveyed companies have firewalls in place • 82% of the companies hacked suffered financial losses totaling over $464 million • 70% of hacks are internal

  7. 65+% Vulnerable Internal Exploitation Dial-In Exploitation External Exploitation 75% Vulnerable (95+% Vulnerable Externally with Secondary Exploitation) 100% Vulnerable Vulnerabilities to Network Attack Internet

  8. Security Policy Development 70% of companies who reported that they were hacked also stated that they lacked a current security policy, and that the lack of a security policy was the primary contributor.

  9. W5 • WHAT do you need to protect? • WHO needs access to it? • WHY do they need access? • From WHERE do they need access to it? • WHEN do they need access?

  10. State and Federal Statutes affecting Security • Feingold / California Break Law • - Expect federal statute in eight months • Sarbanes Oxley Act • Gramm Leach Bliley Act • HIPAA • FDA 21CFR11 • ISO 17999

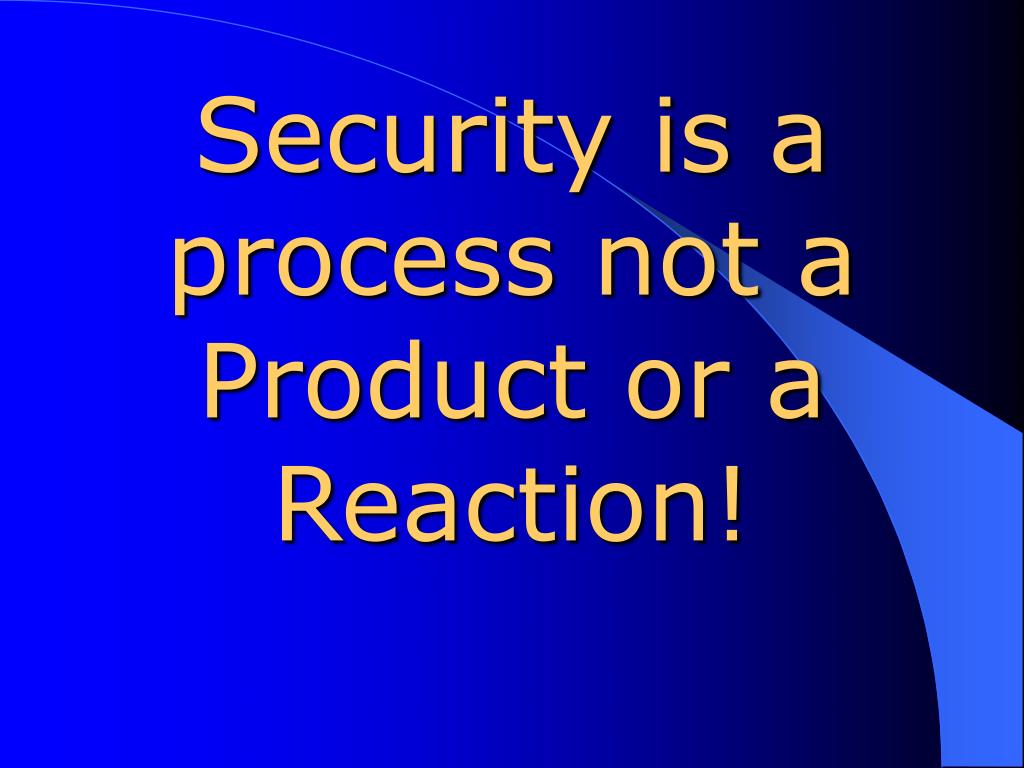

  11. Security is a process not a Product or a Reaction!

  12. Security Policy Application • Appropriate Design and Architecture • Appropriate Monitoring and Accountability • Appropriate Change Management • Appropriate Technology • Appropriate User Awareness Training

  13. Architecture Is Fundamental to Security • Domain Controllers • Authentication Servers • Web Servers • File and Print Servers • Bastion Hosts, IAS servers, etc

  14. Ultimate Architecture Goal • One Service • One System • One Appropriately Secured System • Practically speaking. May not be possible • More Services lead to More Vulnerabilities

  15. Architecture Steps • Define Physical Architecture • Define Server Roles • Define Server Services • Define Security Levels Required • Define Physical Security Guidelines

  16. Determine Appropriate Security Level

  17. Windows Security • Windows 2003 / 2000 is Common Criteria Certified • Extreme levels of security are possible but compatibility and performance will be degraded • Level of Hardening is a business decision based or business requirements.

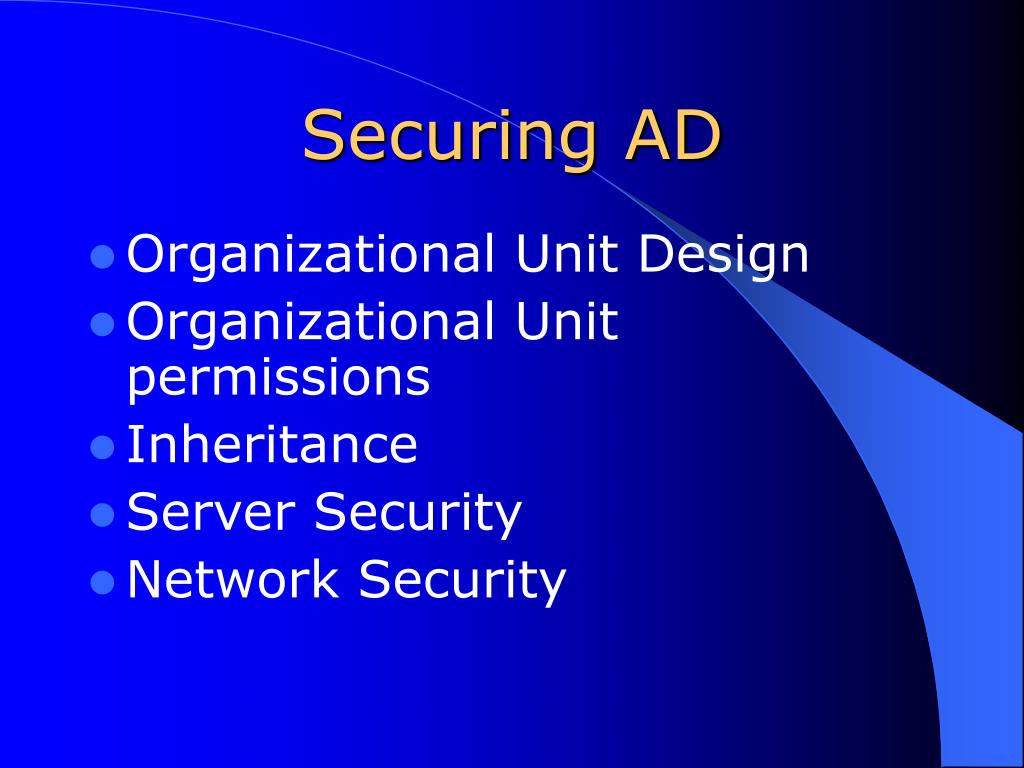

  18. Securing AD • Organizational Unit Design • Organizational Unit permissions • Inheritance • Server Security • Network Security

  19. Windows Policy Precedent

  20. Define OU’s for all Functional Server Groups Include Administration and Infrastructure

  21. Apply OU Policies • 2003 ships with extensive default OU policies. • Store on single Domain Controller • Member Servers, Domain Controllers, File Servers, print Servers • Infrastructure, IIS, Bastion, Etc

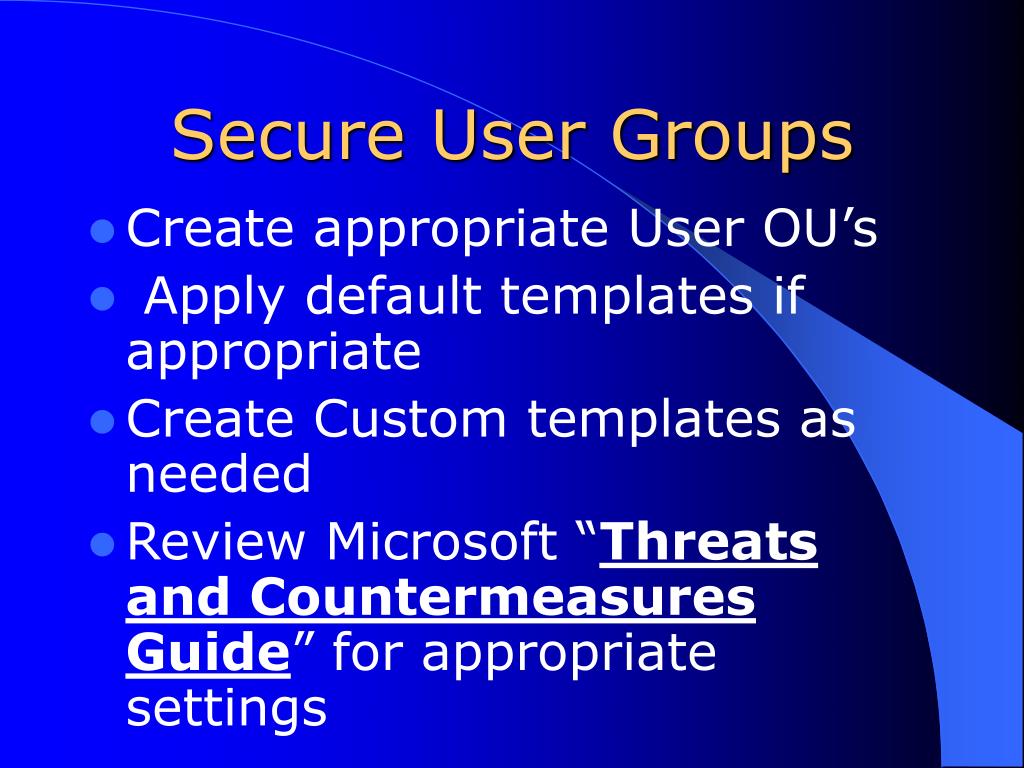

  22. Secure User Groups • Create appropriate User OU’s • Apply default templates if appropriate • Create Custom templates as needed • Review Microsoft “Threats and Countermeasures Guide” for appropriate settings

  23. Hardening Servers • Windows 2003 / 2000 is Common Criteria Certified • Extreme levels of security are possible but compatibility and performance will be degraded • Level of Hardening is a business decision based or business requirements.

  24. Hardening Servers Cont. • Configurations beyond the default hardening settings in the MMC settings • May involve third party products, ie IPS systems. • Determine what level of service is acceptable.

  25. Bastion Hosts • Externally accessible Servers, IE Web, DNS • High Attack Probability • Must be Tightly Controlled

  26. Bastion Hosts cont. • DELETE, not disable, any extra services • Use DEPENDS from the resource kit to determine dependencies • Should be one service to one server • Not published or integrated into AD, No internal access ideally.

  27. Bastion Hosts cont. • Rename all accounts • Create dummy administrator account with no rights for logging • USE EFS if possible • Use IP security and log. • Enable local logon only. • Lock down further as appropriate. • Scan for vulnerabilities regularly, ie.Languard, Nessus, NMAP

  28. Internal Server Hardening • Security rests on 6 items • 1.Secure the system • 2. Secure the database • 3. Securing the replication • 4. Securing normal access methods • 5. Securing the objects • 6. Audit • Scan for changes. ie. Tripwire • Scan for vulnerabilities regularly, ie.Languard, Nessus, NMAP, MCC

  29. Internal Server Hardening cont. • USE EFS WHERE POSSIBLE • USE XCACLES and MCC Audit TO VERIFY FILE PERMISSIONS AND RIGHTS • Use root forest controller as NTP server • Use Ipsec filtering • Tighten the system drive • Audit the critical operations such as policy data and critical file access • Block access to ports that can be used to access the AD if not required.

  30. Internal Server Hardening cont. • Install service packs and hotfixes • Remove OS2 and Posix registry values • Delete associated files • Enable DNS scavenging and do it rigorously • Clean up anonymous registry access • Tighten the system drive • Use NTLM v2 only for authentication • Test and retest ( Tripwire for baseline, languard, nmap, nessus, MBSA, MCC) • .

  31. Client Hardening • Eliminate Win 9X from environment • Use NTFS / EFS exclusively on hard drives • Use NTLM v2 authentication only. • Disable file and print sharing • Do not allow local administrative rights! • Pay attention to remote VPN clients! • Scan network frequently • Use internal client IPS if available

  32. Tools and References • NSA Server Security Guides http://nsa2.www.conxion.com/win2k/ • Microsoft “Threats and Countermeasures Guide” “Windows Server 2003 Security Guide” “ Windows 2000 Common Criteria Guide” Windows 2000 / 2003 resource kit • www.Nessus.orgVulnerability Scanner

  33. Tools and References cont. • www.Languard.com vulnerabiltiy and device scanner. • NMAP • Fport from Foundstone.com • Tripwire. File integrity checker. Commercial but excellent product

  34. Q&A Contact Information: Email: jplacer@goisg.com Phone: (616) 393 7250
