Medical-Refrigerator-LMR-A20

Medical Refrigerator is a refrigerator with 1015 L capacity and high precision microprocessor temperature controlled system.capacity 1015 L<br>Cabinet type Upright Controller type Microprocessor Capacity: 1015 L Microprocessor temperature control system with display accuracy of 0.1 u00b0C R290 refrigerant Temperature range 2 u00b0C to 8 u00b0C

Anika27
Download Presentation

Medical-Refrigerator-LMR-A20

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

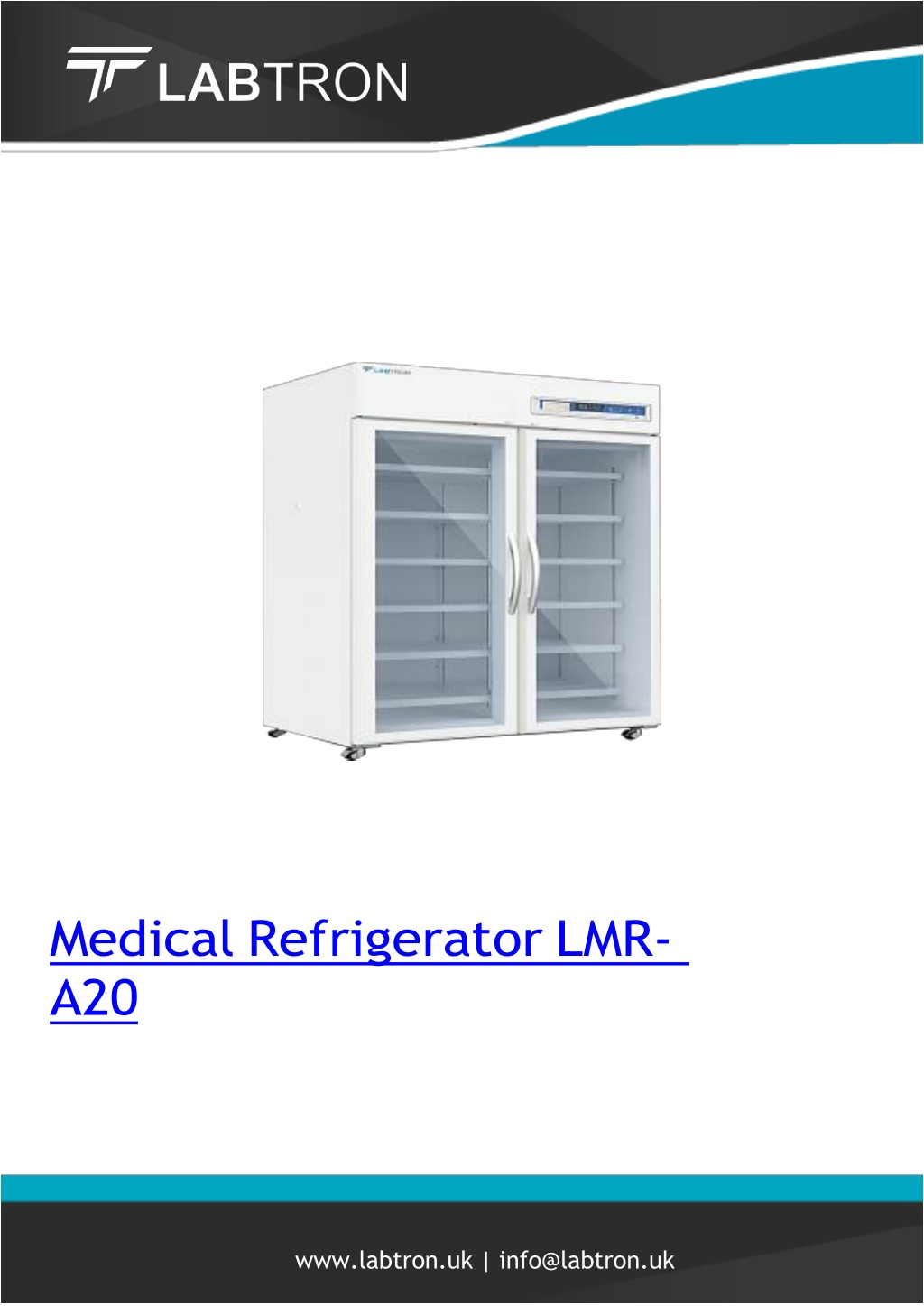

  1. Medical Refrigerator LMR- A20 www.labtron.uk | info@labtron.uk

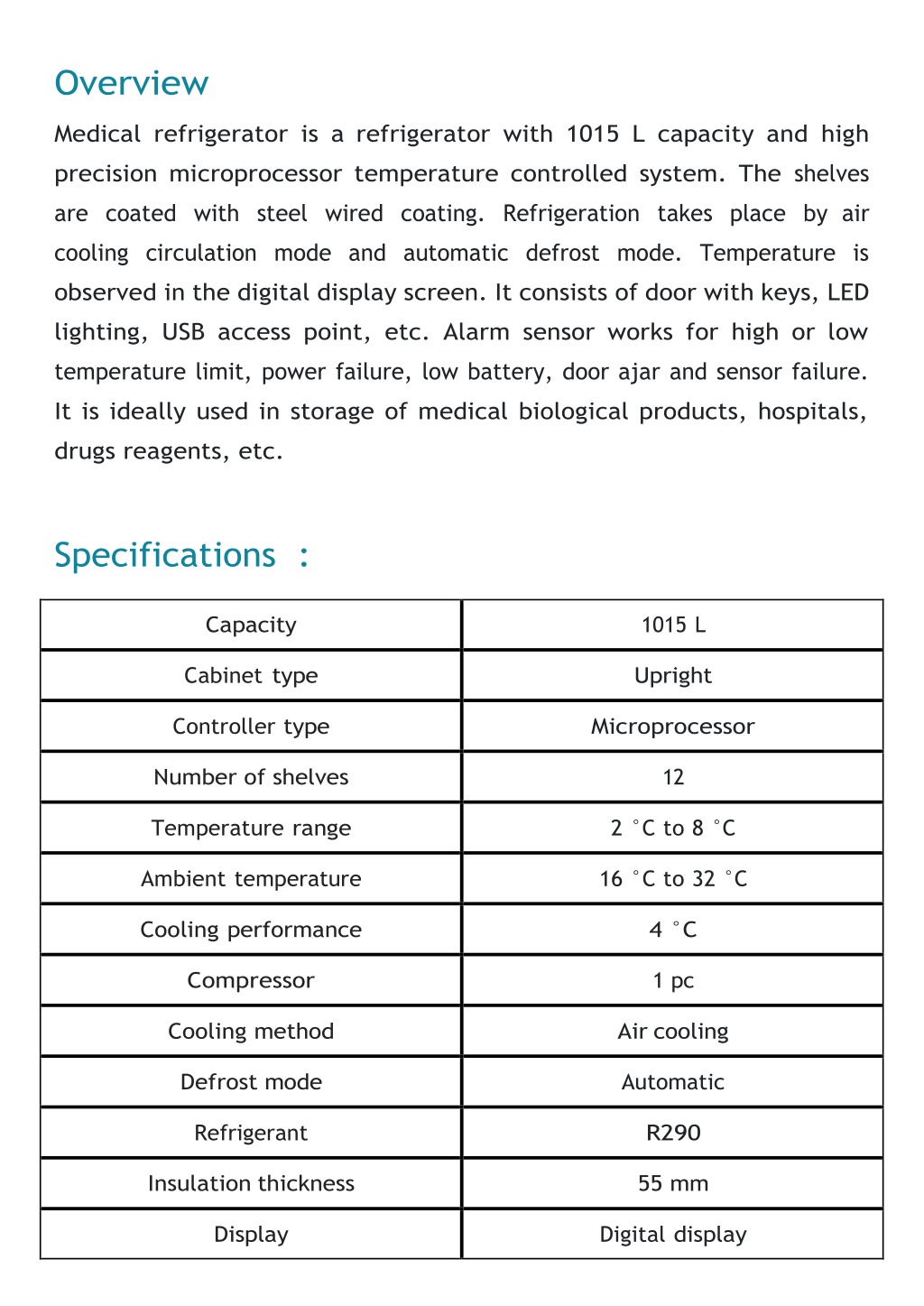

  2. Overview Medical refrigerator is a refrigerator with 1015 L capacity and high precision microprocessor temperature controlled system. The shelves are coated with steel wired coating. Refrigeration takes place by air cooling circulation mode and automatic defrost mode. Temperature is observed in the digital display screen. It consists of door with keys, LED lighting, USB access point, etc. Alarm sensor works for high or low temperature limit, power failure, low battery, door ajar and sensor failure. It is ideally used in storage of medical biological products, hospitals, drugs reagents, etc. Specifications: Capacity 1015 L Cabinet type Upright Controller type Microprocessor Number of shelves 12 Temperature range 2 °C to 8 °C Ambient temperature 16 °C to 32 °C Cooling performance 4 °C Compressor 1 pc Cooling method Air cooling Defrost mode Automatic Refrigerant R290 Insulation thickness 55 mm Display Digital display

  3. Lighting LED External material Carbon steel spraying Internal material 304 stainless steel Output USB AC 220 V, 50 Hz AC 220 V, 60 Hz AC 110 V, 60 Hz Power supply Rated power 700 W Input power 796 W Rated current 3.62 A Power consumption 9.33 kWh/ 24 hrs External dimensions (W × D × H) 1180 × 900 × 1990 mm Internal dimensions (W × D × H) 1070 × 670 × 1515 mm Packing dimensions (W × D × H) 1256 × 931 × 2115 mm Net weight 223 kg Gross weight 262 kg Features: -Capacity: 1015 L -Microprocessor temperature control system with display accuracy of 0.1 °C -R290 refrigerant -Automaticdefrostmode -Air cooling method -Equipped with different alarm access port -Built- in multiple audible and visual alarm security system

  4. -Output: USB export interface and printer (optional) -Equipped with PVC coated steel shelves -Consists of testing port for cabinet temperature measurement Applications: Widely used for storage of biological products, vaccines, drugs, reagents in industries like pharmaceutical industries, hospitals, clinical diagnosis, chemical industries, centers for disease prevention and control. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
