Presentation Transcript
graph based hierarchical conceptual clustering

GRAPH-BASED HIERARCHICAL CONCEPTUAL CLUSTERING

by

Istvan Jonyer,

Lawrence B. Holder and

Diane J. Cook

The University of Texas at Arlington

outline

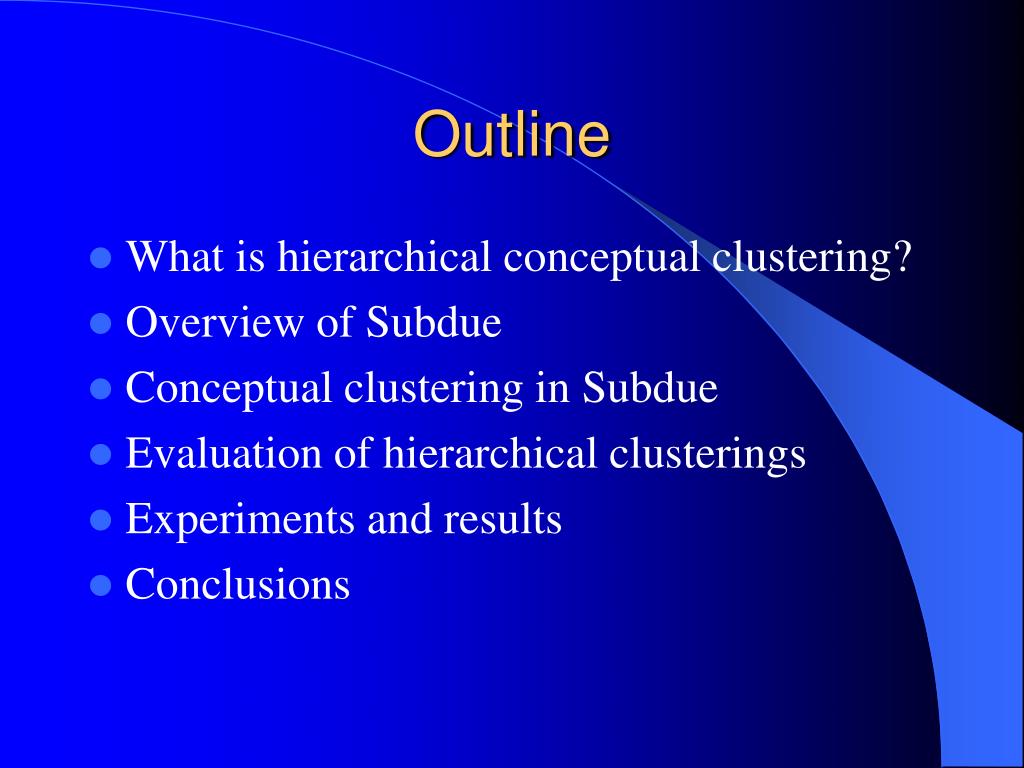

Outline
  • What is hierarchical conceptual clustering?
  • Overview of Subdue
  • Conceptual clustering in Subdue
  • Evaluation of hierarchical clusterings
  • Experiments and results
  • Conclusions
what is hierarchical conceptual clustering
What is hierarchical conceptual clustering?
  • Unsupervised concept learning
  • Generating hierarchies to explain data
  • Applications
    • Hypothesis generation and testing
    • Prediction based on groups
    • Finding taxonomies
example hierarchical conceptual clustering
Animals

HeartChamber: four

BodyTemp: regulated

Fertilization: internal

BodyTemp: unregulated

Name: mammal

BodyCover: hair

Name: bird

BodyCover: feathers

Name: reptile

BodyCover: cornified-skin

HeartChamber: imperfect-four

Fertilization: internal

Fertilization: external

Name: amphibian

BodyCover: moist-skin

HeartChamber: three

Name: fish

BodyCover: scales

HeartChamber: two

Example hierarchical conceptualclustering
the problem
The Problem
  • Hierarchical conceptual clustering in discrete-valued structural databases
  • Existing systems:
    • Continuous-valued
    • Discrete but unstructured
    • We can do better! (Field under explored)
related work
Related Work
  • Cobweb
  • Labyrinth
  • AutoClass
  • Snob
  • In Euclidian space: Chameleon, Cure
  • Unsupervised learning algorithms
the solution
The Solution
  • Take Subdue and extend it!
overview of subdue
E

e

A

A

g

a

a

d

B

D

D

B

b

b

c

c

f

C

C

F

Overview of Subdue
  • Data mining in graph representations of structural databases
overview of subdue10
A

a

D

B

b

c

C

Overview of Subdue
  • Iteratively searching for best substructure by MDL heuristic
overview of subdue11
E

e

g

d

S

S

f

F

Overview of Subdue
  • Compress using best substructure
overview of subdue12
Overview of Subdue
  • Fuzzy match
    • Inexact matching of subgraphs
    • Applications:
      • Defining fuzzy concepts
      • Evaluation of clusterings
conceptual clustering with subdue
Conceptual Clustering with Subdue
  • Use Subdue to identify clusters
    • The best subgraph in an iteration defines a cluster
  • When to stop within an iteration?
    • Use –limit option
    • Use –size option
    • Use first minimum heuristic (new)
the first minimum heuristic
The First Minimum Heuristic
  • Use subgraph at first local minimum
    • Detect it using –prune2 option
the first minimum heuristic15

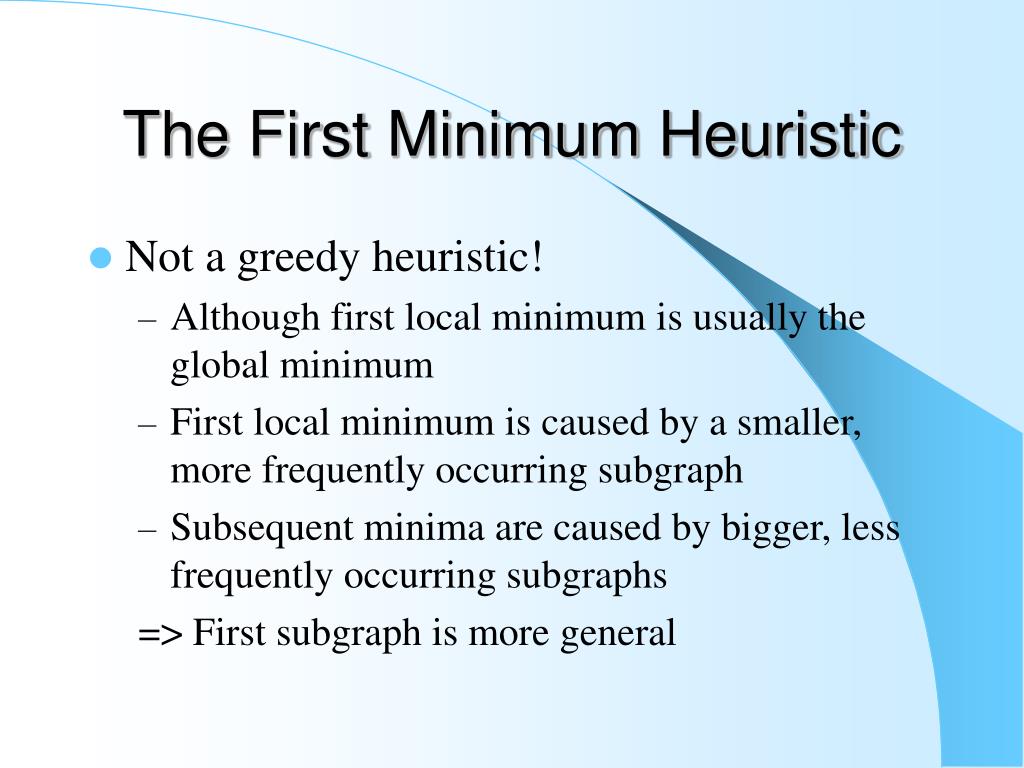

The First Minimum Heuristic
  • Not a greedy heuristic!
    • Although first local minimum is usually the global minimum
    • First local minimum is caused by a smaller, more frequently occurring subgraph
    • Subsequent minima are caused by bigger, less frequently occurring subgraphs

=> First subgraph is more general

the first minimum heuristic16
The First Minimum Heuristic

A multi-minimum search space:

lattice vs tree
Lattice vs. Tree
  • Previous work defined classification trees
    • Inadequate in structured domains
  • Better hierarchical description: classification lattice
    • A cluster can have more than one parent
    • A parent can be at any level (not only one level above)
hierarchical clustering in subdue
Hierarchical Clustering in Subdue
  • Subdue can compress by a subgraph after each iteration
  • Subsequent clusters may be defined in terms of previously defined clusters
  • This results in a hierarchy
evaluation of clusterings

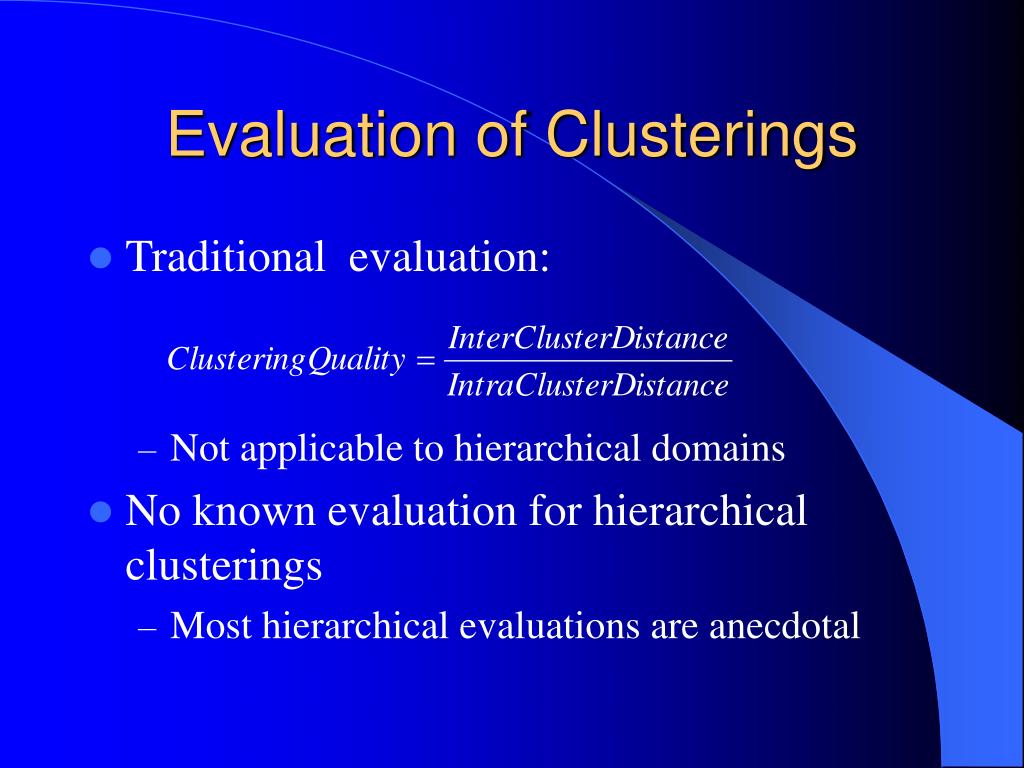

Evaluation of Clusterings
  • Traditional evaluation:
    • Not applicable to hierarchical domains
  • No known evaluation for hierarchical clusterings
    • Most hierarchical evaluations are anecdotal
new evaluation heuristic for hierarchical clusterings

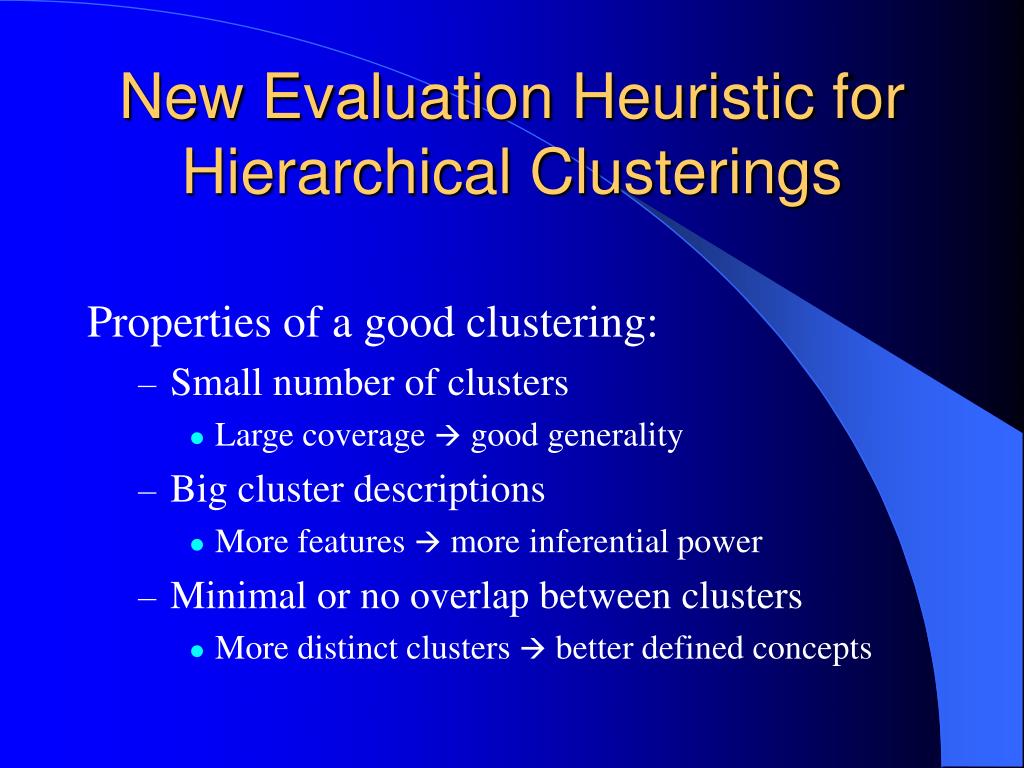

New Evaluation Heuristic for Hierarchical Clusterings

Properties of a good clustering:

  • Small number of clusters
    • Large coverage  good generality
  • Big cluster descriptions
    • More features  more inferential power
  • Minimal or no overlap between clusters
    • More distinct clusters  better defined concepts
new evaluation heuristic for hierarchical clusterings23
New Evaluation Heuristic for Hierarchical Clusterings

Big clusters: bigger distance between disjoint clusters

Overlap: less overlap bigger distance

Few clusters: averaging comparisons

experiments and results
Experiments and Results
  • Validation in an artificial domain
  • Validation in unstructured domains
  • Comparison to existing systems
  • Real world applications
the animal domain
Name

Body Cover

Heart Chamber

Body Temp.

Fertilization

mammal

hair

four

regulated

internal

bird

feathers

four

regulated

internal

reptile

cornified-skin

imperfect-four

unregulated

internal

mammal

Name

four

hair

BodyCover

amphibian

moist-skin

three

unregulated

external

HeartChamber

animal

Fertilization

BodyTemp

regulated

internal

fish

scales

two

unregulated

external

The Animal Domain
hierarchical clustering of the animal domain
Animals

HeartChamber: four

BodyTemp: regulated

Fertilization: internal

BodyTemp: unregulated

Name: mammal

BodyCover: hair

Name: bird

BodyCover: feathers

Name: reptile

BodyCover: cornified-skin

HeartChamber: imperfect-four

Fertilization: internal

Fertilization: external

Name: amphibian

BodyCover: moist-skin

HeartChamber: three

Name: fish

BodyCover: scales

HeartChamber: two

Hierarchical Clustering of the Animal Domain
hierarchical clustering of the animal domain by cobweb
animals

amphibian/fish

mammal/bird

reptile

fish

amphibian

mammal

bird

Hierarchical Clustering of the Animal Domain by Cobweb
comparison of subdue and cobweb
Comparison of Subdue and Cobweb
  • Quality of Subdue’s lattice (tree): 2.60
  • Quality of Cobweb’s tree: 1.74
  • Therefore Subdue is better
  • Reasons for a higher score:
    • Better generalization resulting in less clusters
    • Eliminating overlap between (reptile) and (amphibian/fish)
chemical application clustering of a dna sequence30
DNA

O

|

O == P — OH

C — N

C — C

C — C

\

O

C

\

N — C

\

C

O

|

O == P — OH

|

O

|

CH2

O

\

C

/ \

C — C N — C

/ \

O C

Chemical Application: Clustering of a DNA sequence

Coverage

  • 61%
  • 68%
  • 71%
conclusions
Conclusions
  • Goal of hierarchical conceptual clustering of structured databases was achieved
  • Synthesized classification lattice
  • Developed new evaluation heuristic for hierarchical clusterings
  • Good performance in comparison to other systems, even in unstructured domains
future work
Future Work
  • More experiments on real-world domains
  • Comparison to other systems
  • Incorporation of evaluation tool into Subdue
