Presentation Transcript
Network security contd l.jpg

Network Security (contd.)

Bijendra Jain

(bnj@cse.iitd.ernet.in)

Tutorial on Network Security: Sep 2003


Lecture 5 ipsec l.jpg

Lecture 5: IPSec

Tutorial on Network Security: Sep 2003


Ipsec ip security l.jpg
IPSec: IP Security

  • An IETF standard

    • IPSec architecture and related standards published as refer RFC 1825 thru RFC 1829

  • Adrresses security issues arising from

    • authentication and confidentiality

    • connecting a remote host to a server

    • Interconnecting two LANs using a public network

  • Applications:

    • wide-area networking of branch offices using Internet

    • Interconnecting supplier/distributor extranets to enterprise network

    • Telecommuting

    • E-commerce

  • Implemented in clients, servers or in routers

Tutorial on Network Security: Sep 2003


Ipsec scenario l.jpg

Public Network

Enterprise LAN#1

Enterprise LAN#2

PC

PC

PC

Router

Router

Server

IPSec Scenario

Tutorial on Network Security: Sep 2003

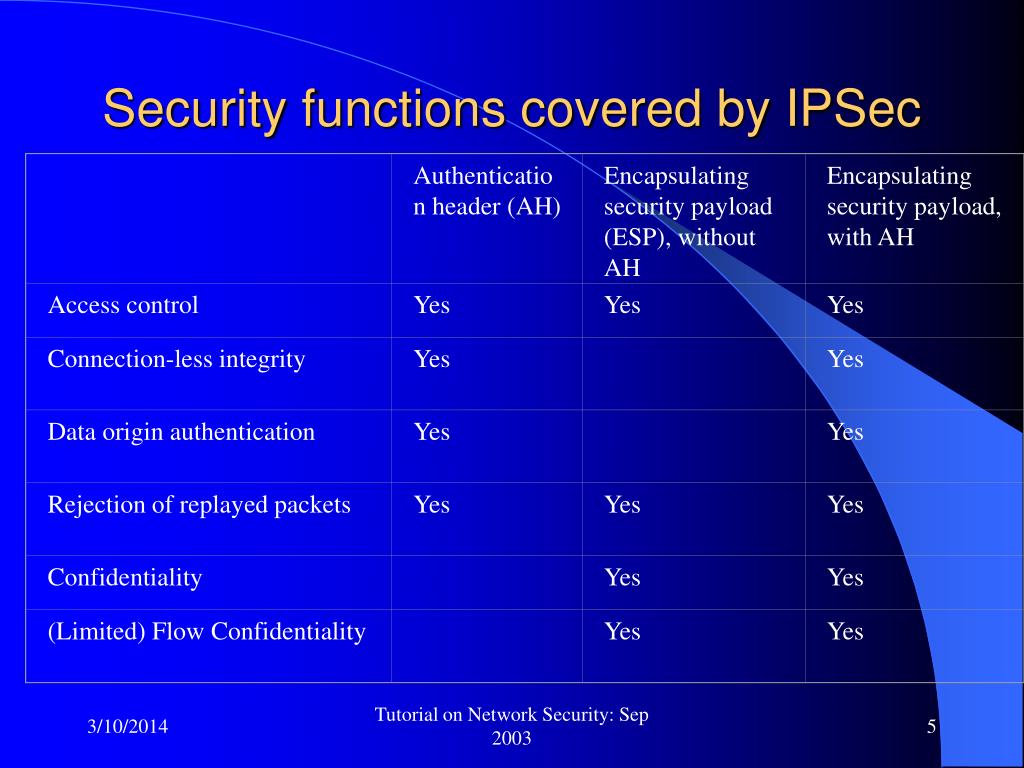

Security functions covered by ipsec l.jpg

Authentication header (AH)

Encapsulating security payload (ESP), without AH

Encapsulating security payload, with AH

Access control

Yes

Yes

Yes

Connection-less integrity

Yes

Yes

Data origin authentication

Yes

Yes

Rejection of replayed packets

Yes

Yes

Yes

Confidentiality

Yes

Yes

(Limited) Flow Confidentiality

Yes

Yes

Security functions covered by IPSec

Tutorial on Network Security: Sep 2003


Modes in ipsec l.jpg
Modes in IPSec

  • Transport Mode

    • The payload in an IP packet is secured

      • E.g. TCP, UDP, ICMP headers, data

  • Tunnel Mode

    • The complete IP packet

      • including its header is secured

Tutorial on Network Security: Sep 2003

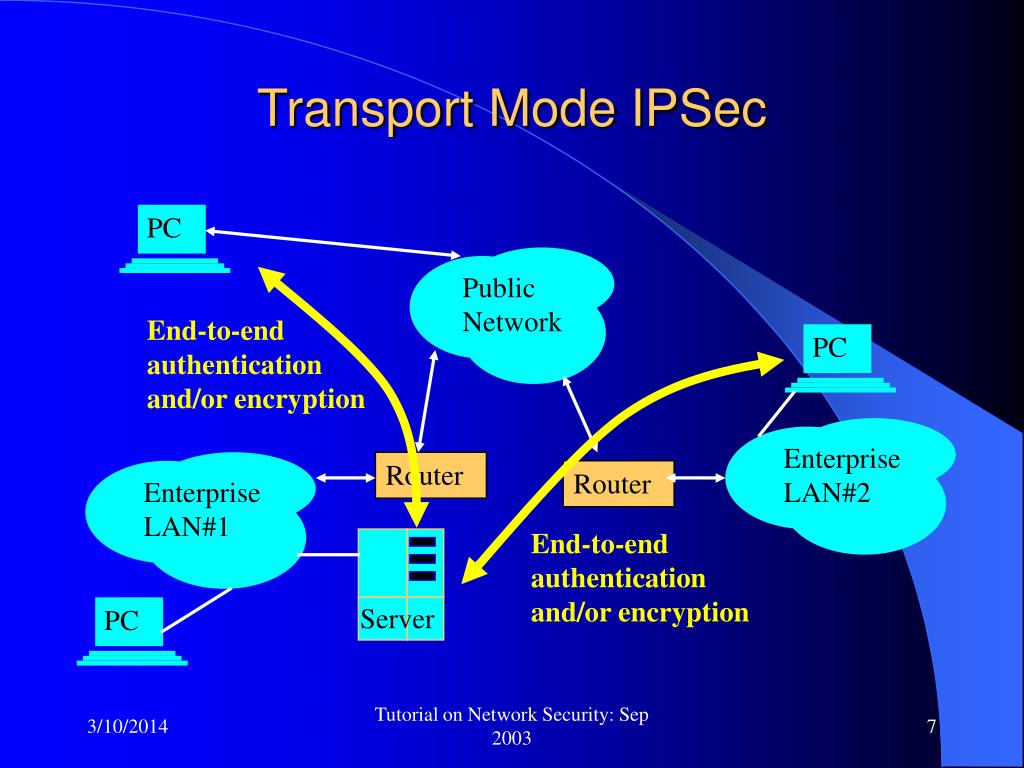

Transport mode ipsec l.jpg

Public Network

Enterprise LAN#1

Enterprise LAN#2

End-to-end authentication and/or encryption

PC

PC

PC

Router

Router

End-to-end authentication and/or encryption

Server

Transport Mode IPSec

Tutorial on Network Security: Sep 2003


Tunnel mode ipsec l.jpg

Public Network

Enterprise LAN#1

Enterprise LAN#2

End-system to ROUTER authentication and/or encryption

PC

PC

Router

Router

Router-to-router authentication and/or encryption

Server

PC

Tunnel Mode IPSec

Tutorial on Network Security: Sep 2003


Transport vs tunnel modes l.jpg
Transport vs. Tunnel modes

  • ?

Tutorial on Network Security: Sep 2003


Ipsec tunnel mode l.jpg

Public Network

Enterprise LAN

Enterprise LAN

Enterprise LAN

Enterprise LAN

Router

Router

Router

Router

IPSec Tunnel mode

  • Advantages:

    • Only routers need to implement IPSec functions

    • Implement VPN (Virtual private network)

Tutorial on Network Security: Sep 2003


Ipsec authentication header l.jpg

Original IP hdr

TCP header

TCP data

Original IP hdr

TCP header

TCP data

Authen. hdr

Original IP hdr

TCP header

TCP data

Authen. hdr

NEW IP hdr

IPSec: Authentication Header

  • Original IP packet

  • Encoded packet in “transport mode”?

  • Encoded packet in “tunnel mode”?

Tutorial on Network Security: Sep 2003


Ipsec packet format for ah l.jpg

Original/new IP header

Reserved (16 bits)

Payload length

Next header

Identifier (32 bits)

Sequence number (32 bits)

AH (variable length, default 96 bits)

Based on: MD5, or SHA-1

Covers TCP/UDP/ICMP header, data and portions of “non-mutable” IP headers

Payload (IP or TCP packet)

IPSec: packet format for AH

Tutorial on Network Security: Sep 2003

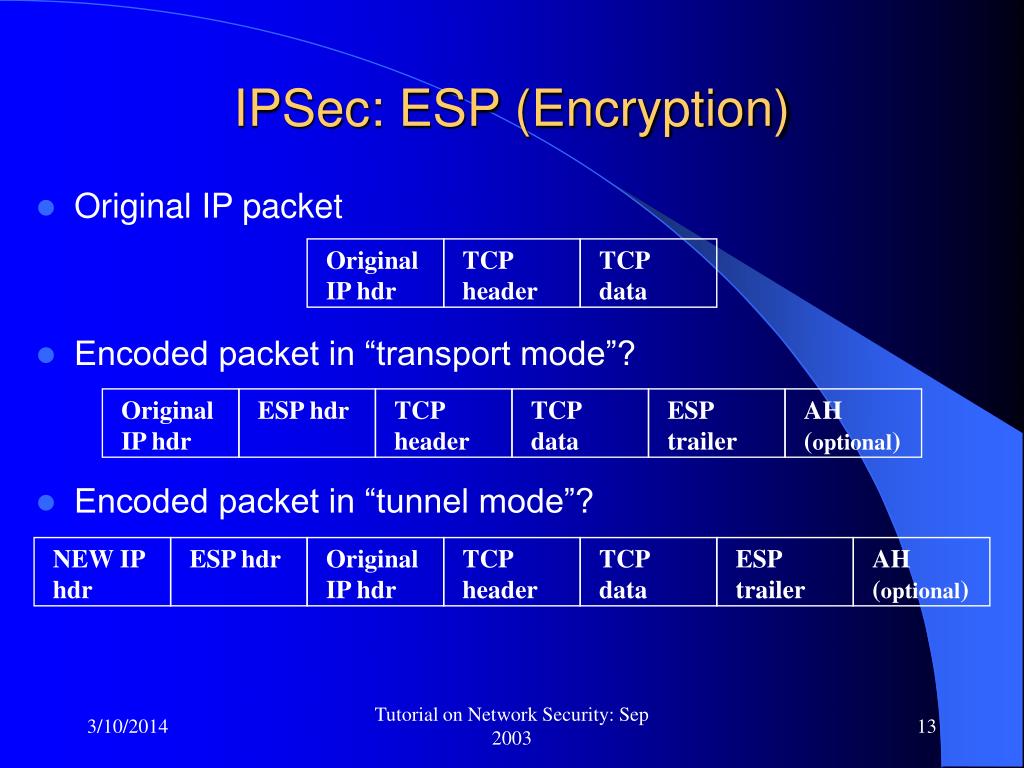

Ipsec esp encryption l.jpg

ESP hdr

TCP data

Original IP hdr

TCP header

TCP data

Original IP hdr

TCP header

ESP trailer

AH (optional)

AH (optional)

Original IP hdr

TCP header

TCP data

ESP hdr

NEW IP hdr

ESP trailer

IPSec: ESP (Encryption)

  • Original IP packet

  • Encoded packet in “transport mode”?

  • Encoded packet in “tunnel mode”?

Tutorial on Network Security: Sep 2003


Ipsec packet format for esp l.jpg

Original/new IP header

Identifier (32 bits)

Sequence number (32 bits)

Payload (TCP, or IP packet with padding, pad length, next header), suitably encrypted using 3DES, RC5 or …

Authentication Header based on MD5, etc.

authenticated

encrypted

Pad length, …

IPSec: packet format for ESP

Tutorial on Network Security: Sep 2003


Combining security functions l.jpg

Public Network

Enterprise LAN

Enterprise LAN

PC

Server

Combining security functions

  • Authentication with confidentiality

    • ESP, with AH

  • An AH inside a ESP (both in transport mode)

Router

Router

Tutorial on Network Security: Sep 2003


Combining security functions16 l.jpg

Public Network

Enterprise LAN

Enterprise LAN

PC

Router

Server

Router

Combining security functions

  • An AH inside a ESP (both in transport mode), and all this within a ESP tunnel across the routers

Tutorial on Network Security: Sep 2003


Key exchange l.jpg
Key exchange

  • Key generation and exchange using some “physical means”

  • Automated generation of keys

    • Oakley key determination and exchange

      • Based on Diffie-Hellman key generation algorithm

      • Oakley key exchanged protocol

Tutorial on Network Security: Sep 2003


Diffie hellman key generation l.jpg
Diffie-Hellman key generation

  • A distributed key generation scheme

  • Given q - a large prime number

    a – a primitive root of q

    (1 <= ak mod q < q, and distinct for all 1 <= k < q)

  • A:

    • picks XA (keeps it secret),

    • computes and sends YA  aXA mod q to B

  • B:

    • picks XB (keeps it secret),

    • computes and sends YB  aXB mod q A

  • A and B compute the secret shared key aXA XB

    YBXA orYAXB

Tutorial on Network Security: Sep 2003


Diffie hellman key generation19 l.jpg
Diffie-Hellman key generation

  • Man-in-the-middle attack

    • Assumes ability to intercept, and spoof

XA, A2B

XE, A2B

A

B

E

XE, B2A

XB, B2A

aXA*XE

aXB*XE

Tutorial on Network Security: Sep 2003


Diffie hellman key generation20 l.jpg
Diffie-Hellman key generation

  • Issues with the algorithm:

    • What is the value of q, a?

      • Make available several sets, and let the parties negotiate

    • Man-in-the-middle attack

      • Use some form of authentication

    • Denial of service attack, arises from address-spoofing

      • Use cookies:

    • Replay attacks

      • Use nonces

Tutorial on Network Security: Sep 2003


Cookies l.jpg
Cookies

  • Cookies:

    A requests B’s attention

    B responds with a “cookie” (a random number), K

    A must return K in its subsequent messages

  • Characteristics of cookies:

    • Should depend upon data specific to B

    • Should use some secret information

    • Cookie generation and verification must be fast

    • B should not have to save the cookie

  • Example method used:

    • Hash sender/receiver IP address TCP port nos. and a secret value

Tutorial on Network Security: Sep 2003


Oakley key exchange l.jpg
Oakley Key exchange

Tutorial on Network Security: Sep 2003

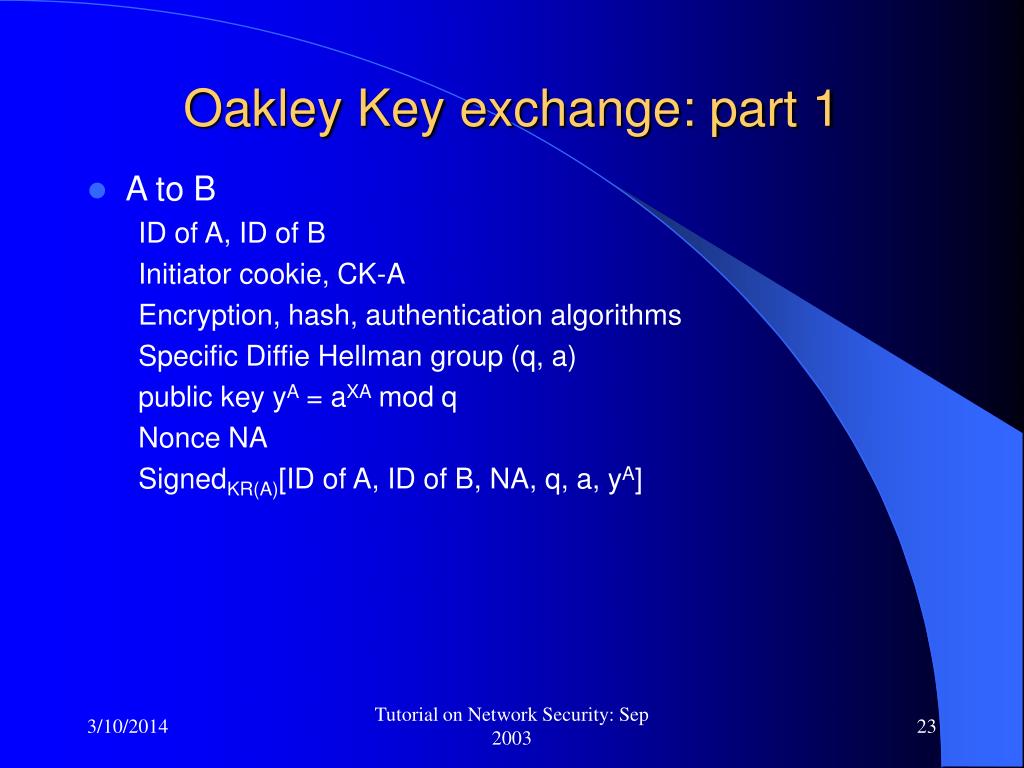

Oakley key exchange part 1 l.jpg
Oakley Key exchange: part 1

  • A to B

    ID of A, ID of B

    Initiator cookie, CK-A

    Encryption, hash, authentication algorithms

    Specific Diffie Hellman group (q, a)

    public key yA = aXA mod q

    Nonce NA

    SignedKR(A)[ID of A, ID of B, NA, q, a, yA]

Tutorial on Network Security: Sep 2003

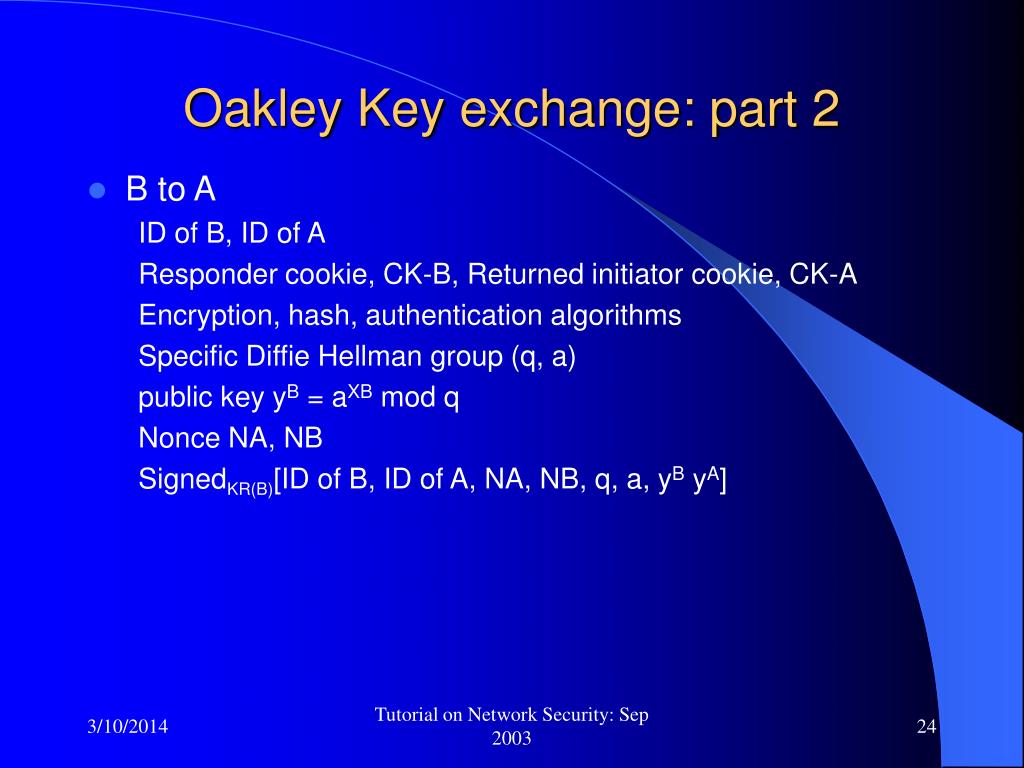

Oakley key exchange part 2 l.jpg
Oakley Key exchange: part 2

  • B to A

    ID of B, ID of A

    Responder cookie, CK-B, Returned initiator cookie, CK-A

    Encryption, hash, authentication algorithms

    Specific Diffie Hellman group (q, a)

    public key yB = aXB mod q

    Nonce NA, NB

    SignedKR(B)[ID of B, ID of A, NA, NB, q, a, yB yA]

Tutorial on Network Security: Sep 2003


Oakley key exchange part 3 l.jpg
Oakley Key exchange: part 3

  • A to B

    ID of A, ID of B

    Returned cookie, CK-B, initiator cookie, CK-A

    Encryption, hash, authentication algorithms

    Specific Diffie Hellman group (q, a)

    public key yA = aXA mod q

    Nonce NA, NB

    SignedKR(A)[ID of A, ID of B, NA, NB, q, a, yB yA]

Tutorial on Network Security: Sep 2003


Thanks l.jpg
Thanks

Tutorial on Network Security: Sep 2003
