I.C.T Smart solder paste cabinet

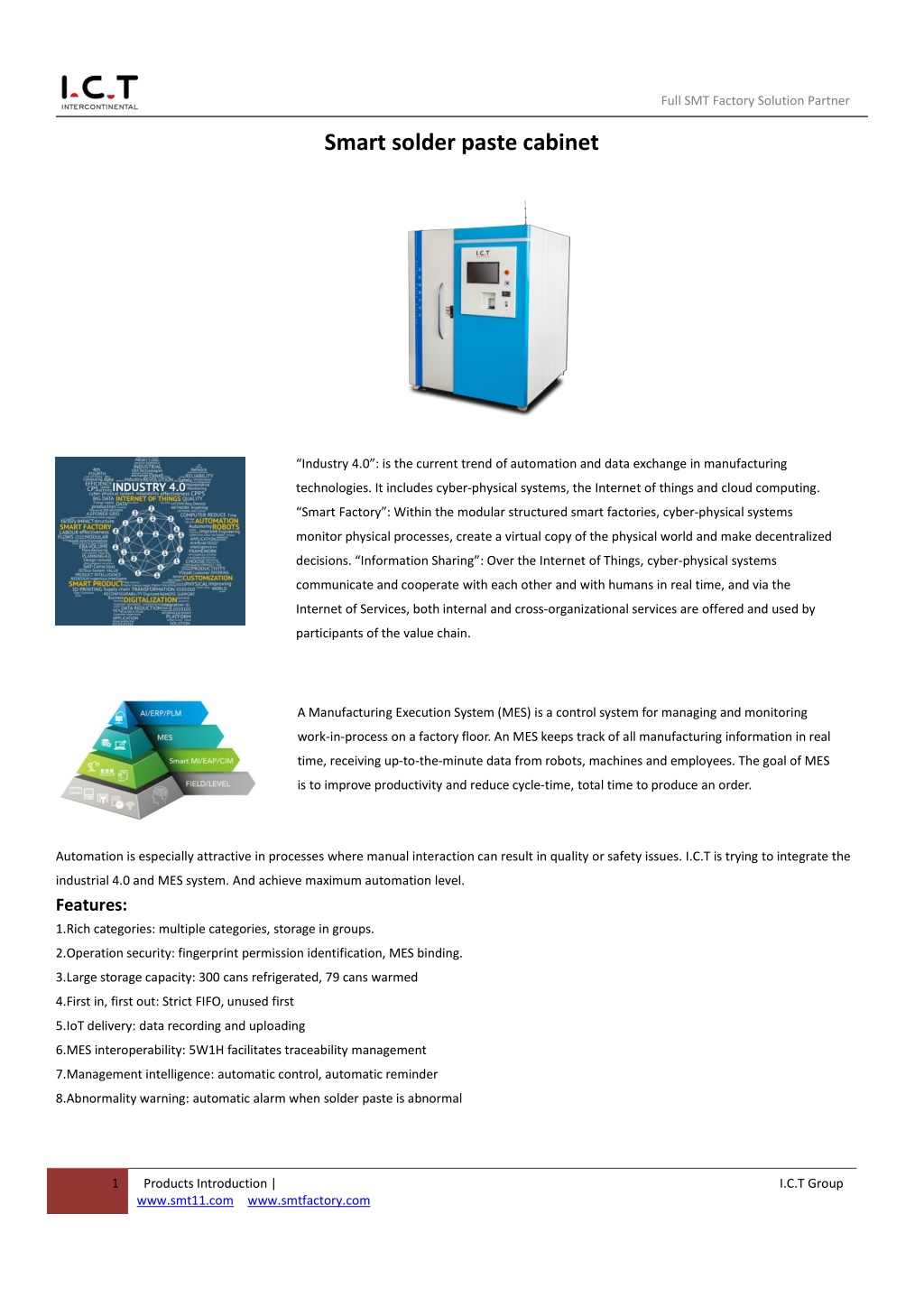

1. Full SMT Factory Solution Partner Smart solder paste cabinet “Industry 4.0”: is the current trend of automation and data exchange in manufacturing technologies. It includes cyber-physical systems, the Internet of things and cloud computing. “Smart Factory”: Within the modular structured smart factories, cyber-physical systems monitor physical processes, create a virtual copy of the physical world and make decentralized decisions. “Information Sharing”: Over the Internet of Things, cyber-physical systems communicate and cooperate with each other and with humans in real time, and via the Internet of Services, both internal and cross-organizational services are offered and used by participants of the value chain. A Manufacturing Execution System (MES) is a control system for managing and monitoring work-in-process on a factory floor. An MES keeps track of all manufacturing information in real time, receiving up-to-the-minute data from robots, machines and employees. The goal of MES is to improve productivity and reduce cycle-time, total time to produce an order. Automation is especially attractive in processes where manual interaction can result in quality or safety issues. I.C.T is trying to integrate the industrial 4.0 and MES system. And achieve maximum automation level. Features: 1.Rich categories: multiple categories, storage in groups. 2.Operation security: fingerprint permission identification, MES binding. 3.Large storage capacity: 300 cans refrigerated, 79 cans warmed 4.First in, first out: Strict FIFO, unused first 5.IoT delivery: data recording and uploading 6.MES interoperability: 5W1H facilitates traceability management 7.Management intelligence: automatic control, automatic reminder 8.Abnormality warning: automatic alarm when solder paste is abnormal 1 Products Introduction | www.smt11.com I.C.T Group www.smtfactory.com

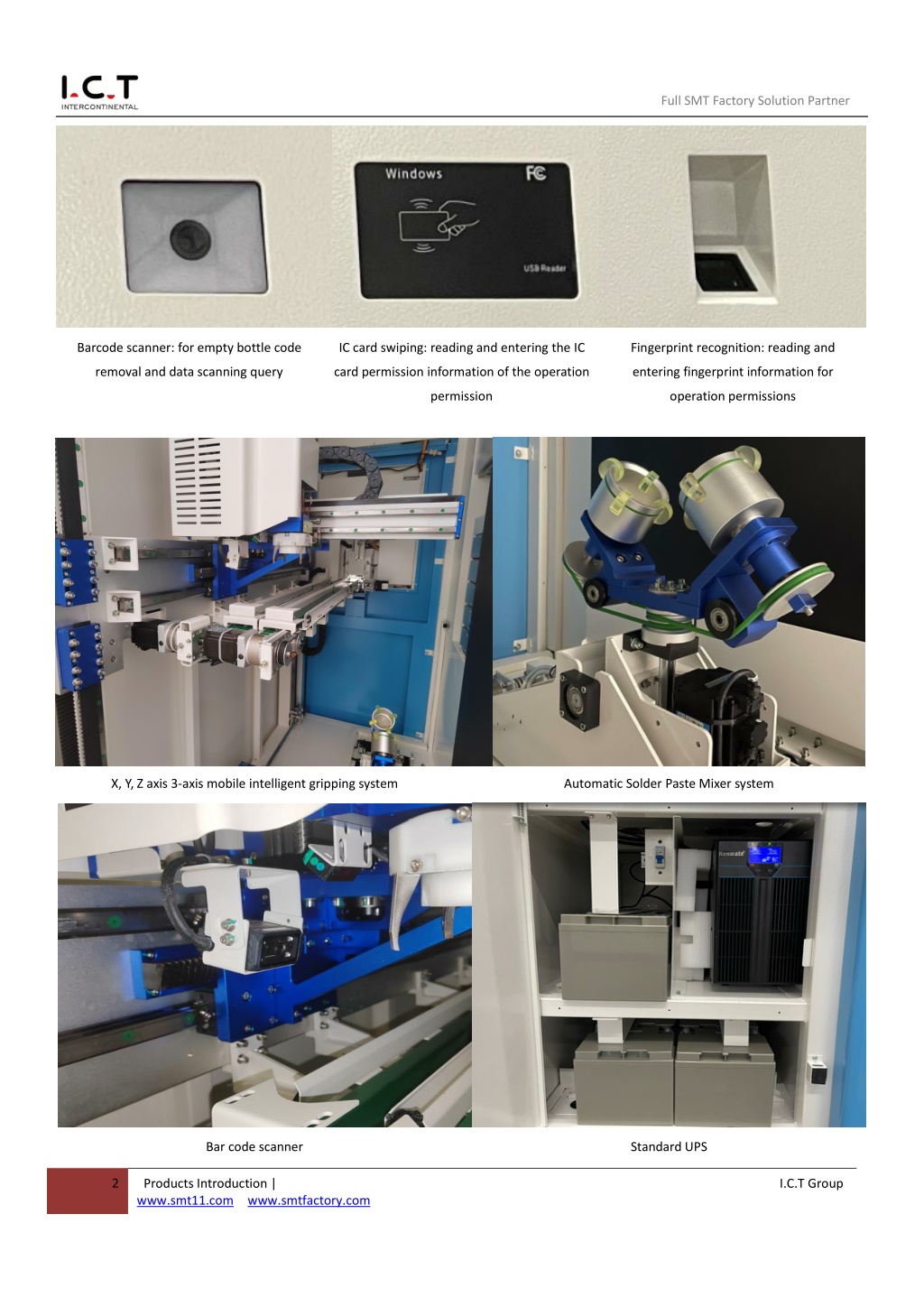

2. Full SMT Factory Solution Partner Barcode scanner: for empty bottle code IC card swiping: reading and entering the IC Fingerprint recognition: reading and removal and data scanning query card permission information of the operation entering fingerprint information for permission operation permissions X, Y, Z axis 3-axis mobile intelligent gripping system Automatic Solder Paste Mixer system Bar code scanner Standard UPS 2 Products Introduction | www.smt11.com I.C.T Group www.smtfactory.com

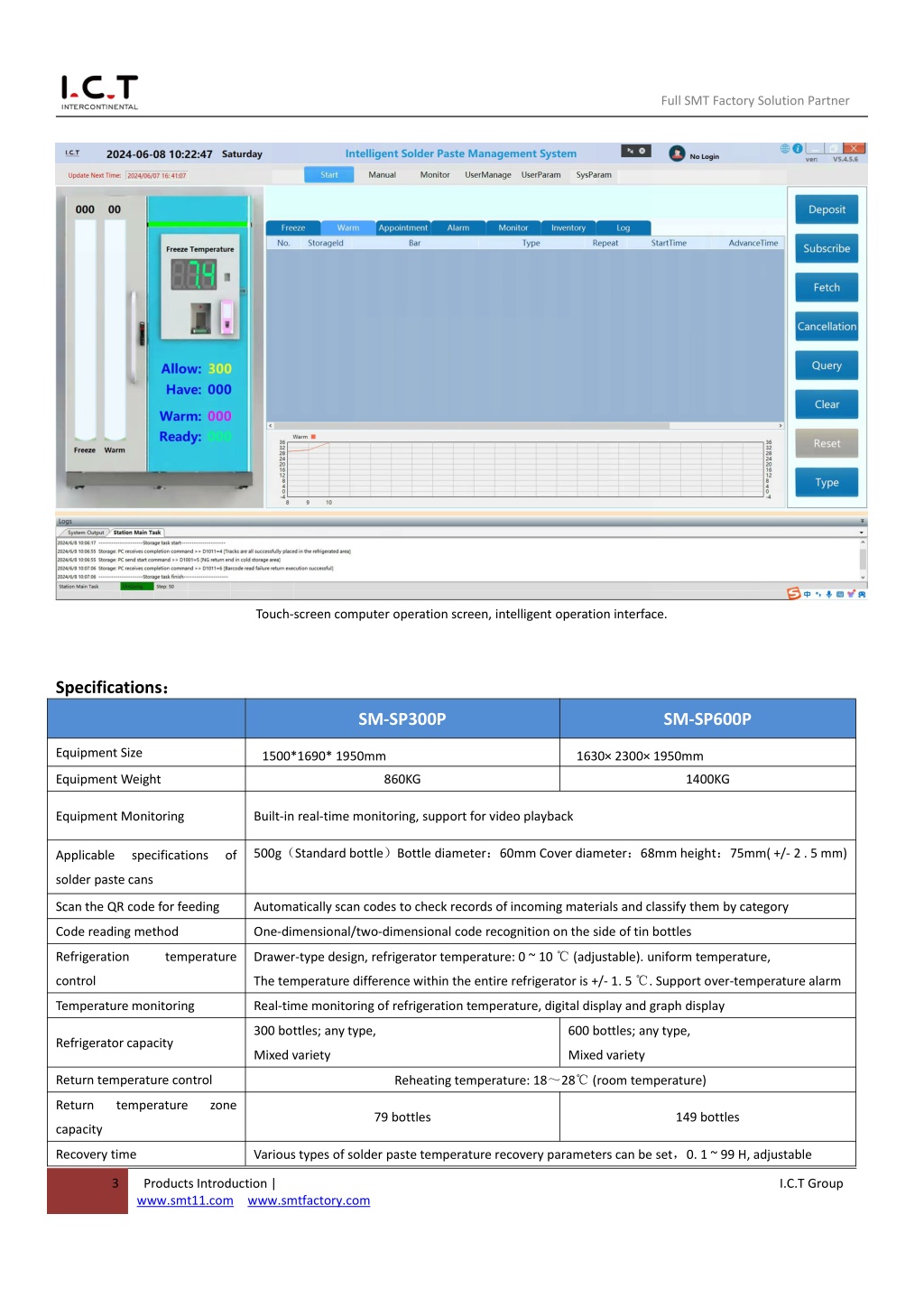

3. Full SMT Factory Solution Partner Touch-screen computer operation screen, intelligent operation interface. Specifications： ： SM-SP300P SM-SP600P Equipment Size 1500*1690* 1950mm 1630× 2300× 1950mm Equipment Weight 860KG 1400KG Equipment Monitoring Built-in real-time monitoring, support for video playback 500g（Standard bottle）Bottle diameter：60mm Cover diameter：68mm height：75mm( +/- 2 . 5 mm) Applicable specifications of solder paste cans Scan the QR code for feeding Automatically scan codes to check records of incoming materials and classify them by category Code reading method One-dimensional/two-dimensional code recognition on the side of tin bottles Drawer-type design, refrigerator temperature: 0 ~ 10 ℃ (adjustable). uniform temperature, Refrigeration temperature The temperature difference within the entire refrigerator is +/- 1. 5 ℃. Support over-temperature alarm control Temperature monitoring Real-time monitoring of refrigeration temperature, digital display and graph display 300 bottles; any type, 600 bottles; any type, Refrigerator capacity Mixed variety Mixed variety Reheating temperature: 18～28℃ (room temperature) Return temperature control Return temperature zone 79 bottles 149 bottles capacity Various types of solder paste temperature recovery parameters can be set，0. 1 ~ 99 H, adjustable Recovery time 3 Products Introduction | www.smt11.com I.C.T Group www.smtfactory.com

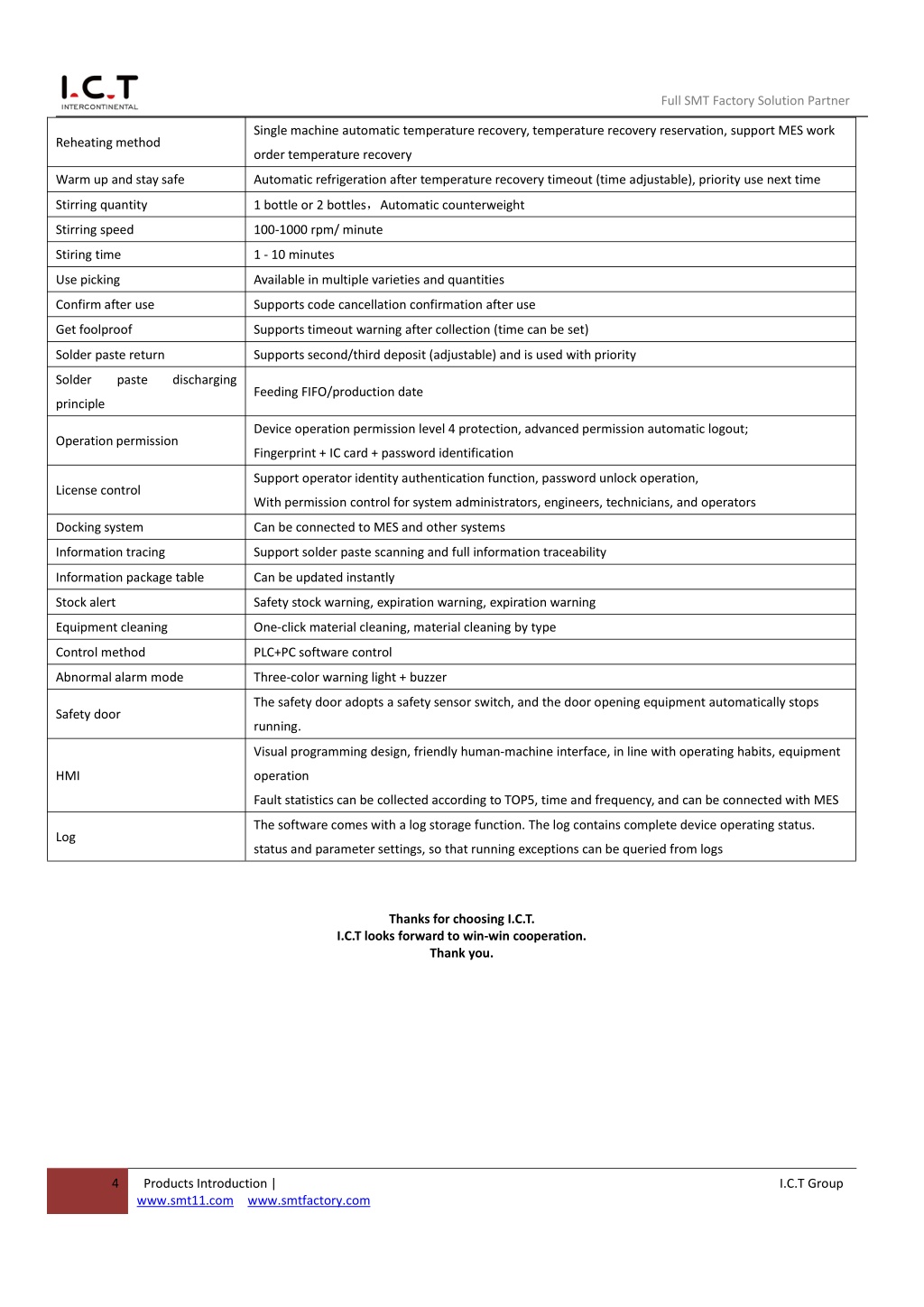

4. Full SMT Factory Solution Partner Single machine automatic temperature recovery, temperature recovery reservation, support MES work Reheating method order temperature recovery Warm up and stay safe Automatic refrigeration after temperature recovery timeout (time adjustable), priority use next time 1 bottle or 2 bottles，Automatic counterweight Stirring quantity Stirring speed 100-1000 rpm/ minute Stiring time 1 - 10 minutes Use picking Available in multiple varieties and quantities Confirm after use Supports code cancellation confirmation after use Get foolproof Supports timeout warning after collection (time can be set) Solder paste return Supports second/third deposit (adjustable) and is used with priority Solder paste discharging Feeding FIFO/production date principle Device operation permission level 4 protection, advanced permission automatic logout; Operation permission Fingerprint + IC card + password identification Support operator identity authentication function, password unlock operation, License control With permission control for system administrators, engineers, technicians, and operators Docking system Can be connected to MES and other systems Information tracing Support solder paste scanning and full information traceability Information package table Can be updated instantly Stock alert Safety stock warning, expiration warning, expiration warning Equipment cleaning One-click material cleaning, material cleaning by type Control method PLC+PC software control Abnormal alarm mode Three-color warning light + buzzer The safety door adopts a safety sensor switch, and the door opening equipment automatically stops Safety door running. Visual programming design, friendly human-machine interface, in line with operating habits, equipment HMI operation Fault statistics can be collected according to TOP5, time and frequency, and can be connected with MES The software comes with a log storage function. The log contains complete device operating status. Log status and parameter settings, so that running exceptions can be queried from logs Thanks for choosing I.C.T. I.C.T looks forward to win-win cooperation. Thank you. 4 Products Introduction | www.smt11.com I.C.T Group www.smtfactory.com
