I.C.T Desktop PCBA Coating Machine V1.3

I.C.T selective coating machine is the new benchmark for simple and efficient PCBA coating. Its easy program making, fast line change settings and high repeatability bring the best results in all directions. It matches different applications and meets various needs. It is widely used in the<br>fields of drive power, industrial control, LED, automotive electronics, communication, instrumentation, consumer electronics, electronic appliances, military, medical boil, etc.<br><br><br>For more information, pls contact with us by www.smtfactory.com or info@smt11.com

AngelWang
Download Presentation

I.C.T Desktop PCBA Coating Machine V1.3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

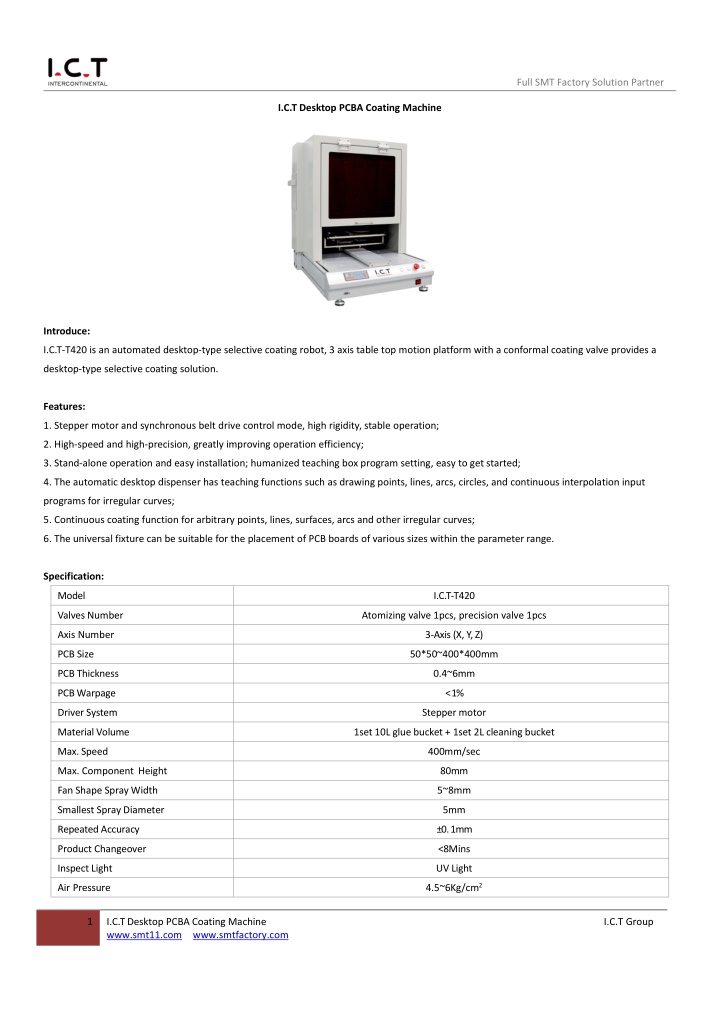

  1. Full SMT Factory Solution Partner I.C.TDesktop PCBA Coating Machine Introduce: I.C.T-T420 is an automated desktop-type selective coating robot, 3 axis table top motion platform with a conformal coating valve provides a desktop-type selective coating solution. Features: 1. Stepper motor and synchronous belt drive control mode, high rigidity, stable operation; 2. High-speed and high-precision, greatly improving operation efficiency; 3. Stand-alone operation and easy installation; humanized teaching box program setting, easy to get started; 4. The automatic desktop dispenser has teaching functions such as drawing points, lines, arcs, circles, and continuous interpolation input programs for irregular curves; 5. Continuous coating function for arbitrary points, lines, surfaces, arcs and other irregular curves; 6. The universal fixture can be suitable for the placement of PCB boards of various sizes within the parameter range. Specification: Model I.C.T-T420 Valves Number Atomizing valve 1pcs, precision valve 1pcs Axis Number 3-Axis(X,Y,Z) PCB Size 50*50~400*400mm PCBThickness 0.4~6mm PCBWarpage <1% DriverSystem Steppermotor MaterialVolume 1set 10L glue bucket+ 1set 2L cleaning bucket Max.Speed 400mm/sec Max. Component Height 80mm Fan Shape SprayWidth 5~8mm Smallest Spray Diameter 5mm RepeatedAccuracy ±0.1mm Product Changeover <8Mins InspectLight UVLight 4.5~6Kg/cm2 Air Pressure 1 I.C.TDesktop PCBA Coating Machine www.smt11.com I.C.T Group www.smtfactory.com

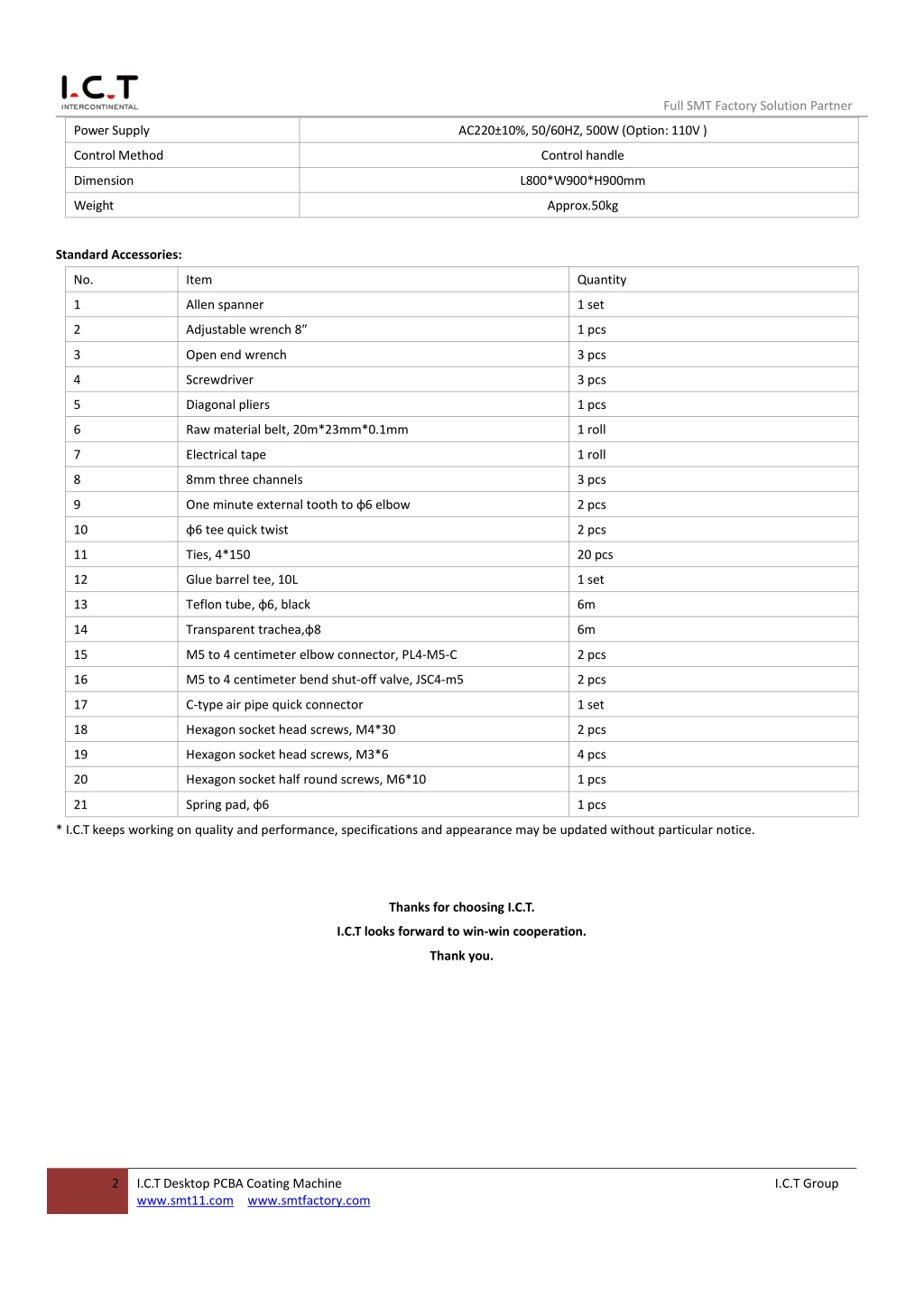

  2. Full SMT Factory Solution Partner PowerSupply AC220±10%,50/60HZ, 500W (Option:110V ) ControlMethod Control handle Dimension L800*W900*H900mm Weight Approx.50kg Standard Accessories: No. Item Quantity 1 Allen spanner 1 set 2 Adjustable wrench 8″ 1 pcs 3 Open end wrench 3 pcs 4 Screwdriver 3 pcs 5 Diagonal pliers 1 pcs 6 Raw material belt, 20m*23mm*0.1mm 1 roll 7 Electrical tape 1 roll 8 8mm three channels 3 pcs 9 One minute external tooth to φ6 elbow 2 pcs 10 φ6 tee quick twist 2 pcs 11 Ties, 4*150 20 pcs 12 Glue barrel tee, 10L 1 set 13 Teflon tube, φ6, black 6m 14 Transparent trachea,φ8 6m 15 M5 to 4 centimeter elbow connector, PL4-M5-C 2 pcs 16 M5 to 4 centimeter bend shut-off valve, JSC4-m5 2 pcs 17 C-type air pipe quick connector 1 set 18 Hexagon socket head screws, M4*30 2 pcs 19 Hexagon socket head screws, M3*6 4 pcs 20 Hexagon socket half round screws, M6*10 1 pcs 21 Spring pad, φ6 1 pcs * I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. Thanks for choosing I.C.T. I.C.T looks forward to win-win cooperation. Thank you. 2 I.C.TDesktop PCBA Coating Machine www.smt11.com I.C.T Group www.smtfactory.com
