I.C.T AGV

I.C.T AGV for smart factory with high quality.<br><br>For more information, pls contact with us by www.smtfactory.com or info@smt11.com<br>

AngelWang
Download Presentation

I.C.T AGV

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

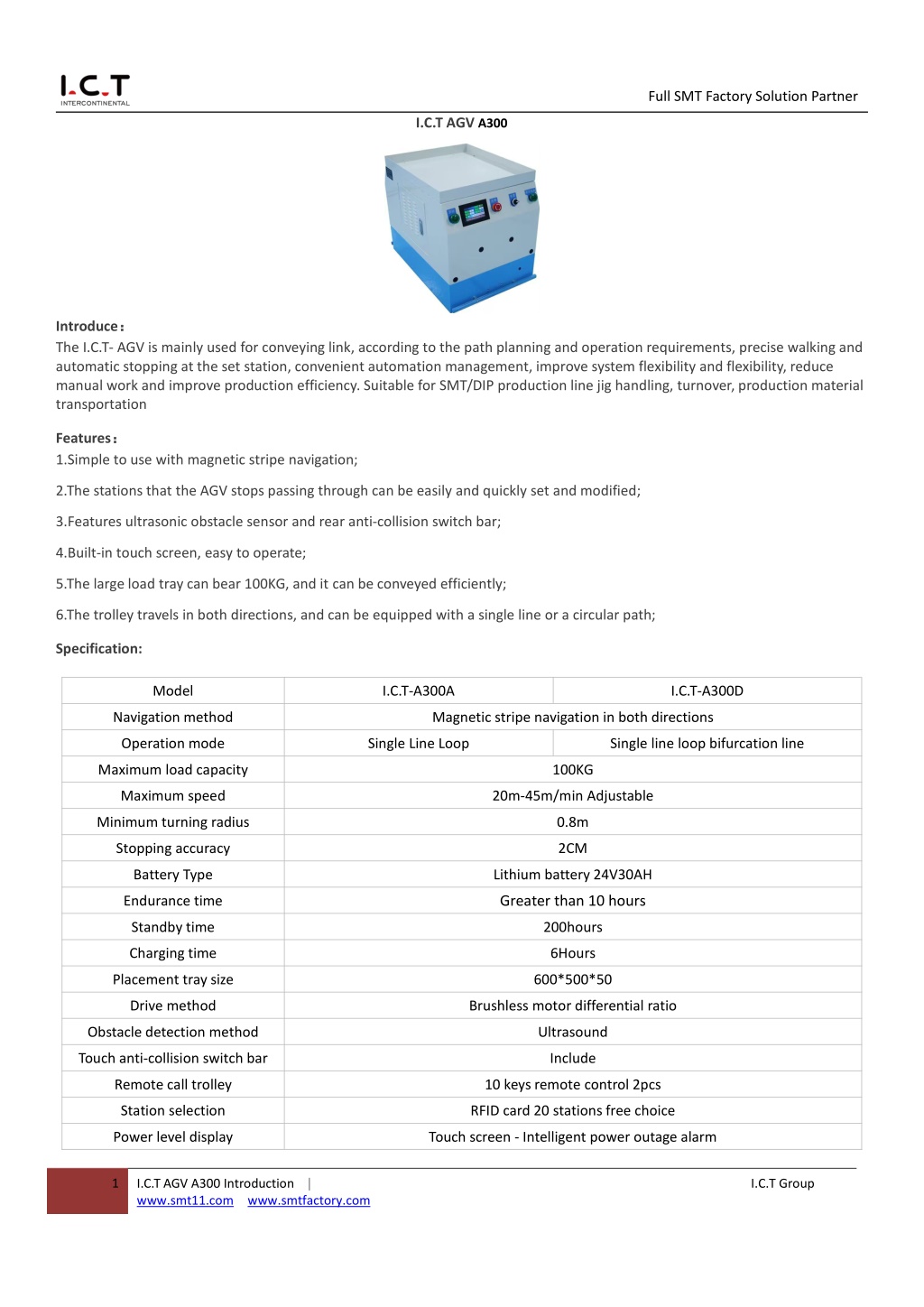

  1. Full SMT Factory Solution Partner I.C.T AGV A300 Introduce： The I.C.T- AGV is mainly used for conveying link, according to the path planning and operation requirements, precise walking and automatic stopping at the set station, convenient automation management, improve system flexibility and flexibility, reduce manual work and improve production efficiency. Suitable for SMT/DIP production line jig handling, turnover, production material transportation ： Features： 1.Simple to use with magnetic stripe navigation; ： 2.The stations that the AGV stops passing through can be easily and quickly set and modified; 3.Features ultrasonic obstacle sensor and rear anti-collision switch bar; 4.Built-in touch screen, easy to operate; 5.The large load tray can bear 100KG, and it can be conveyed efficiently; 6.The trolley travels in both directions, and can be equipped with a single line or a circular path; Specification: Model I.C.T-A300A I.C.T-A300D Navigation method Magnetic stripe navigation in both directions Operation mode Single Line Loop Single line loop bifurcation line Maximum load capacity 100KG Maximum speed 20m-45m/min Adjustable Minimum turning radius 0.8m Stopping accuracy 2CM Battery Type Lithium battery 24V30AH Greater than 10 hours Endurance time Standby time 200hours Charging time 6Hours Placement tray size 600*500*50 Drive method Brushless motor differential ratio Obstacle detection method Ultrasound Touch anti-collision switch bar Include Remote call trolley 10 keys remote control 2pcs Station selection RFID card 20 stations free choice Power level display Touch screen - Intelligent power outage alarm | 1 I.C.TAGV A300 Introduction www.smt11.com I.C.T Group www.smtfactory.com

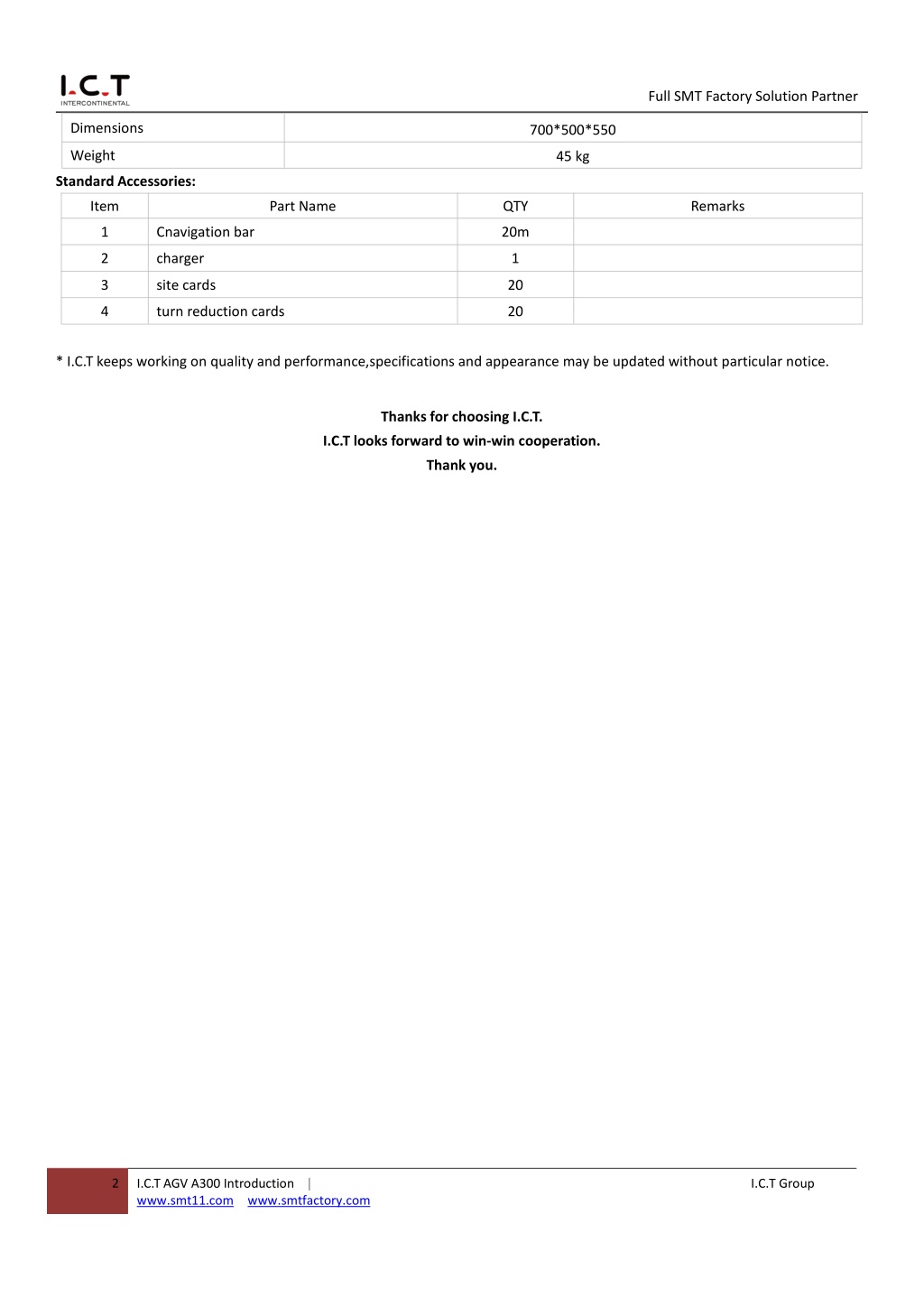

  2. Full SMT Factory Solution Partner Dimensions 700*500*550 Weight 45 kg Standard Accessories: Item Part Name QTY Remarks 1 Cnavigation bar 20m 2 charger 1 3 site cards 20 4 turn reduction cards 20 * I.C.T keeps working on quality and performance,specifications and appearance may be updated without particular notice. Thanks for choosing I.C.T. I.C.T looks forward to win-win cooperation. Thank you. | 2 I.C.TAGV A300 Introduction www.smt11.com I.C.T Group www.smtfactory.com
