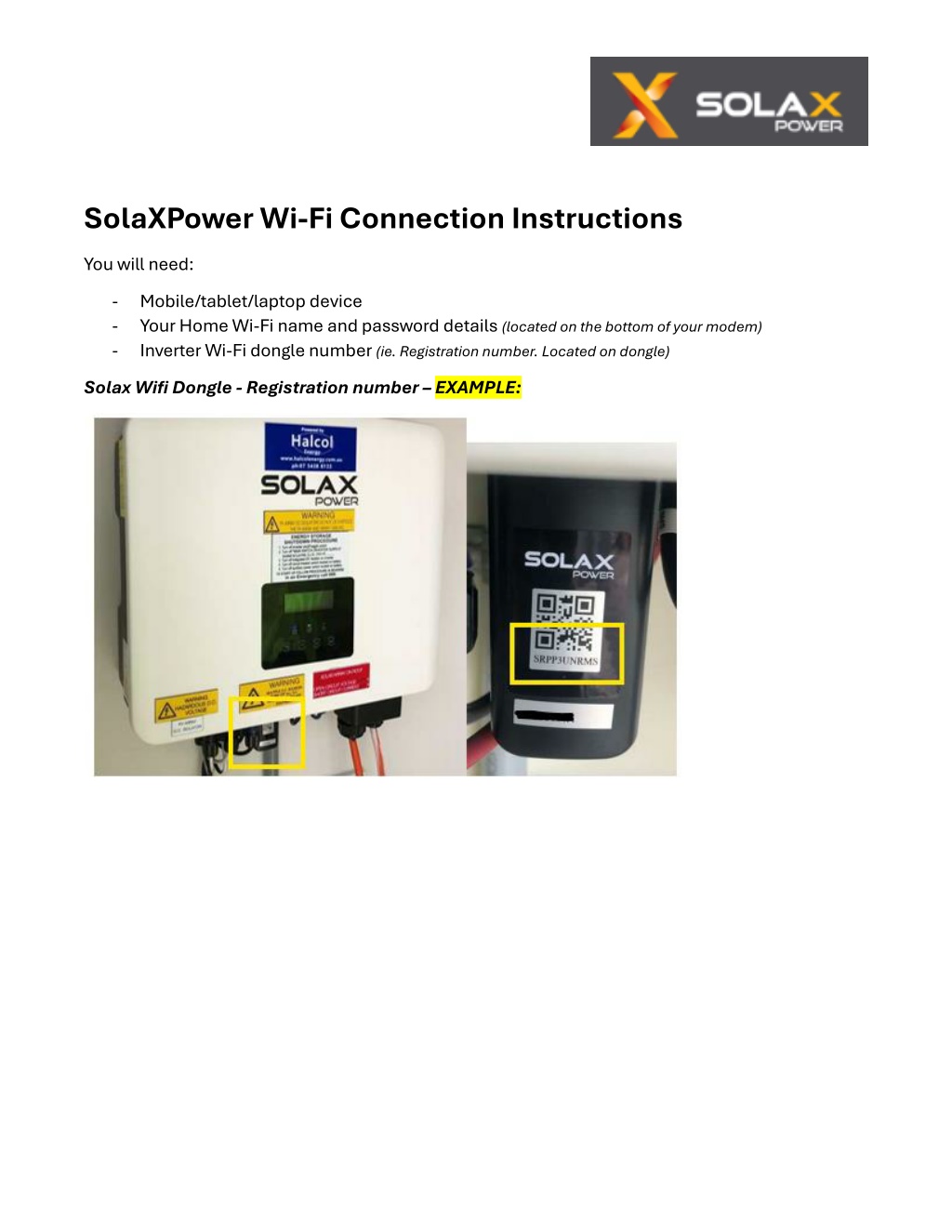

  1. SolaXPower Wi-Fi Connection Instructions You will need: -Mobile/tablet/laptop device -Your Home Wi-Fi name and password details (located on the bottom of your modem) -Inverter Wi-Fi dongle number (ie. Registration number. Located on dongle) Solax Wifi Dongle - Registration number – EXAMPLE:

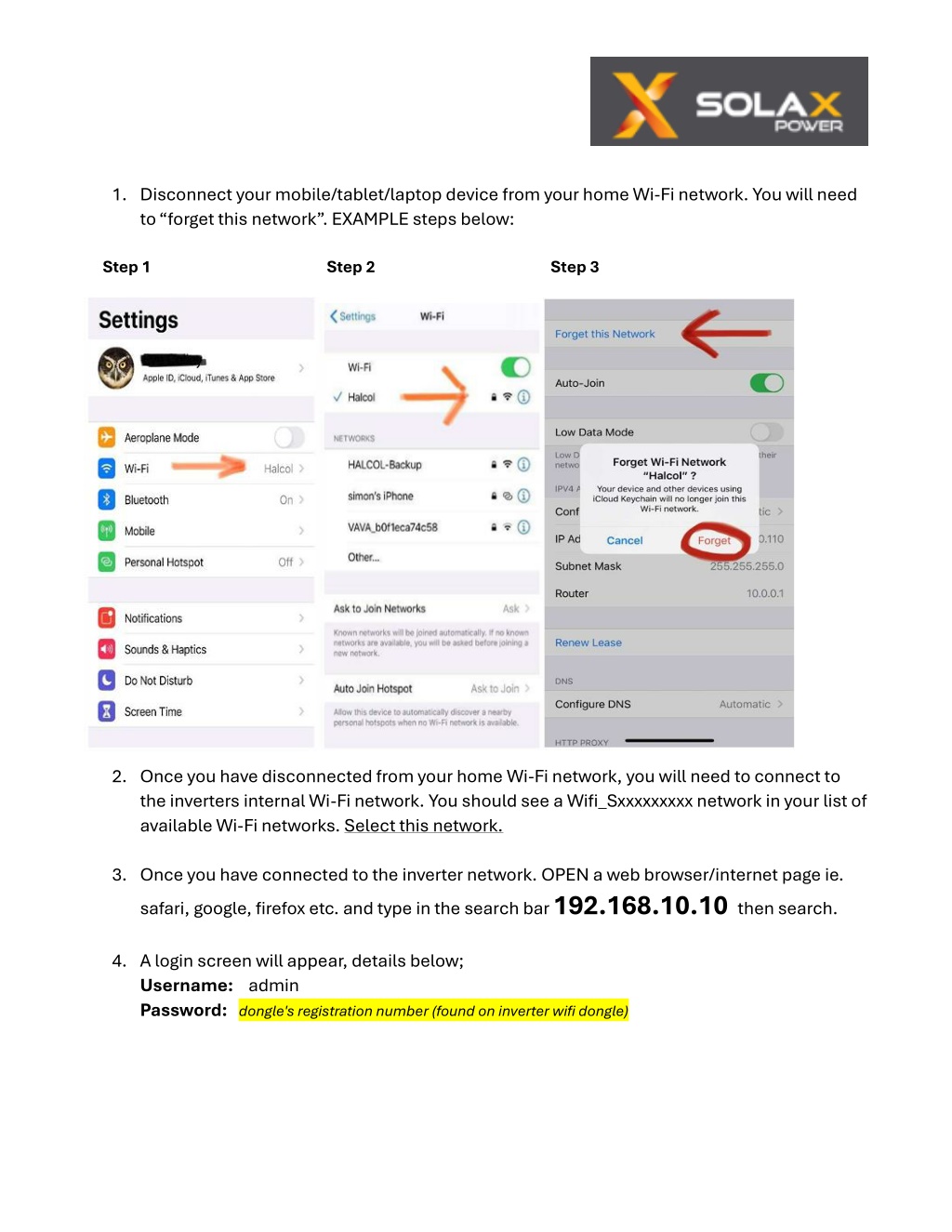

  2. 1.Disconnect your mobile/tablet/laptop device from your home Wi-Fi network. You will need to “forget this network”. EXAMPLE steps below: Step 1 Step 2 Step 3 2.Once you have disconnected from your home Wi-Fi network, you will need to connect to the inverters internal Wi-Fi network. You should see a Wifi_Sxxxxxxxxx network in your list of available Wi-Fi networks. Select this network. 3.Once you have connected to the inverter network. OPEN a web browser/internet page ie. safari, google, firefox etc. and type in the search bar 192.168.10.10 then search. 4.A login screen will appear, details below; Username: admin Password:dongle's registration number (found on inverter wifi dongle)

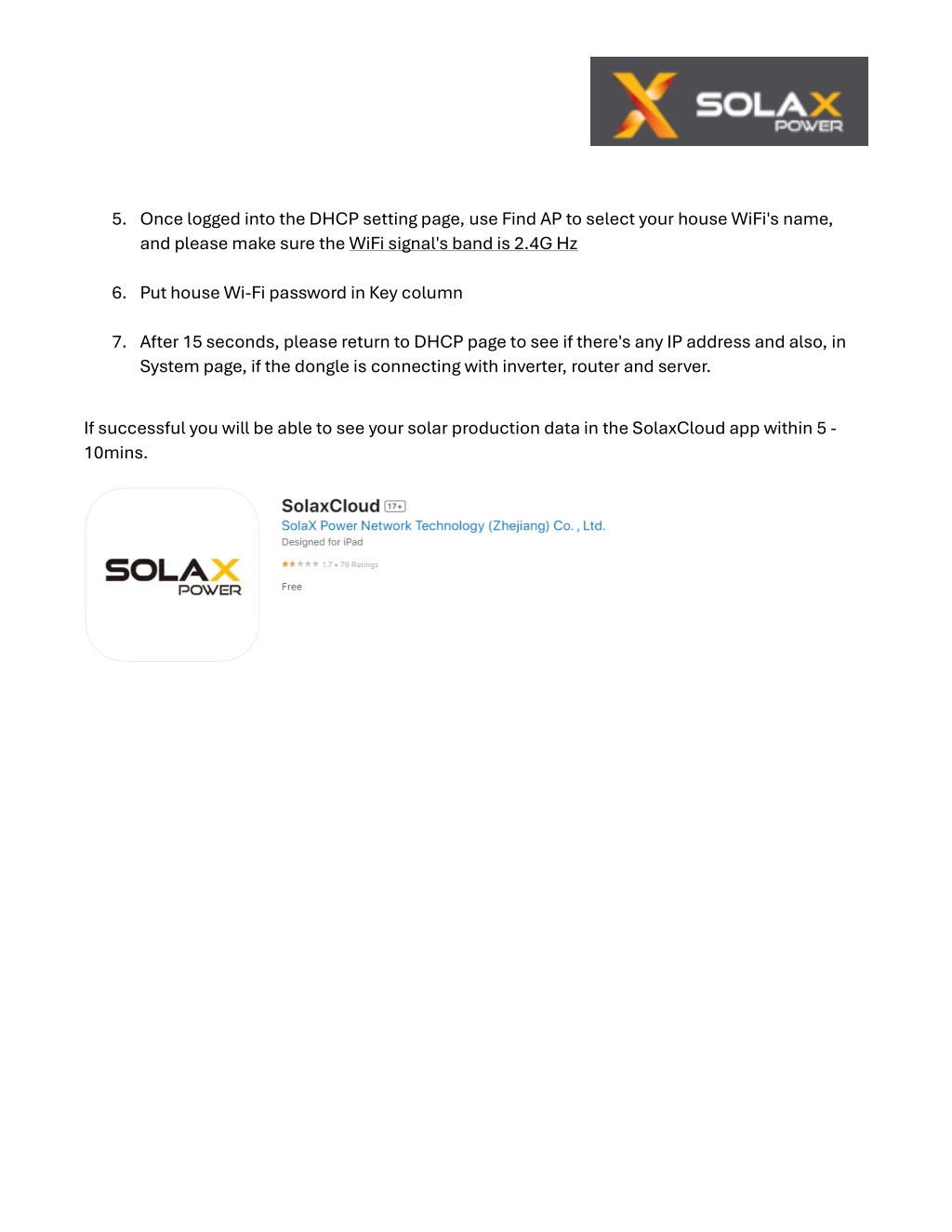

  3. 5.Once logged into the DHCP setting page, use Find AP to select your house WiFi's name, and please make sure the WiFi signal's band is 2.4G Hz 6.Put house Wi-Fi password in Key column 7.After 15 seconds, please return to DHCP page to see if there's any IP address and also, in System page, if the dongle is connecting with inverter, router and server. If successful you will be able to see your solar production data in the SolaxCloud app within 5 - 10mins.
