SMA Inverter Lights Meaning Guide

Understand SMA inverter light indicatorsu2014green for good, red for faults, and blue for internet connection. Includes details for older and newer models.

Andrew56
Download Presentation

SMA Inverter Lights Meaning Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

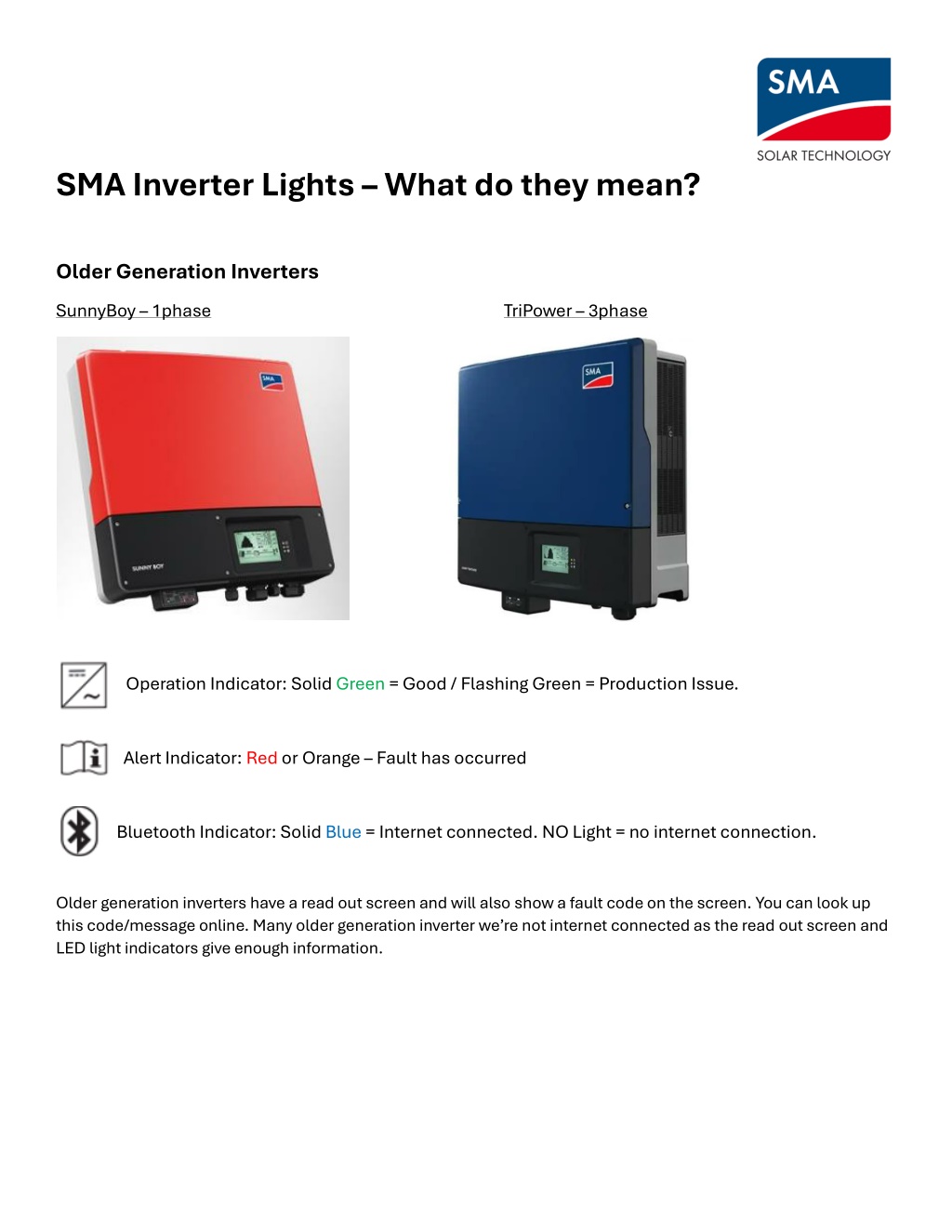

  1. SMA Inverter Lights – What do they mean? Older Generation Inverters SunnyBoy – 1phase TriPower – 3phase Operation Indicator: Solid Green = Good / Flashing Green = Production Issue. Alert Indicator: Red or Orange – Fault has occurred Bluetooth Indicator: Solid Blue = Internet connected. NO Light = no internet connection. Older generation inverters have a read out screen and will also show a fault code on the screen. You can look up this code/message online. Many older generation inverter we’re not internet connected as the read out screen and LED light indicators give enough information.

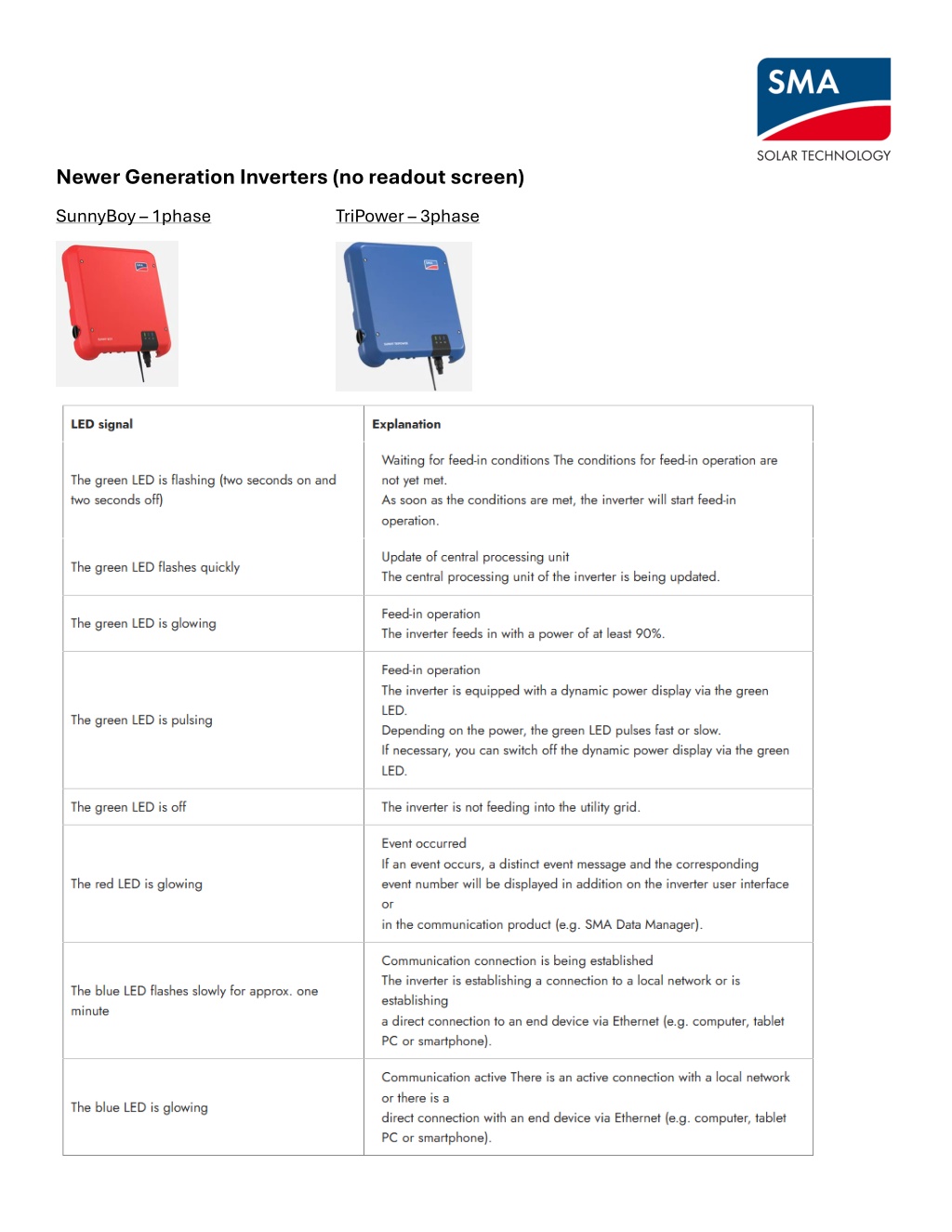

  2. Newer Generation Inverters (no readout screen) SunnyBoy – 1phase TriPower – 3phase
