  1. All About Reversible USB Type C Connectors

  2. From smartphones to laptops to Bluetooth speakers, you can find a USB connector in most of the handheld electronic devices you come across today.

  3. These are used for both power and signal transmissions, like charging a device to transferring data and media as well as to offer a universal cable interface.

  4. Unique Features of USBs • Unique Design • Easy to Mate and Unmate • Small and Robust • Application and Design Flexibility • Suitable for Miniature and Sleek Devices

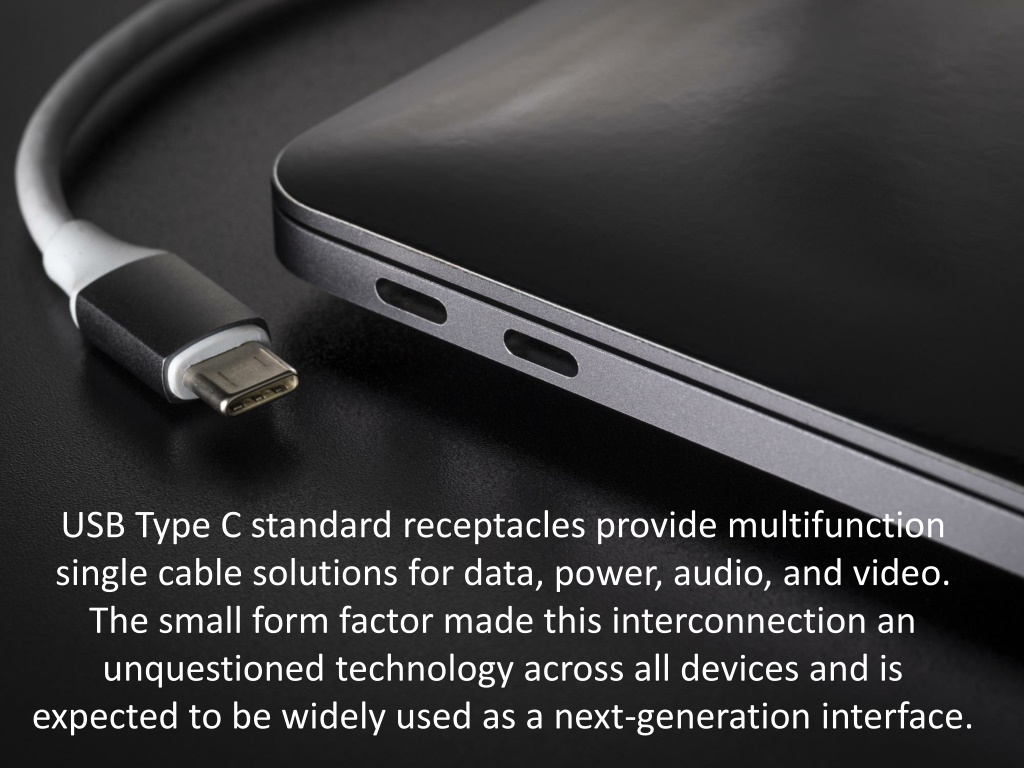

  5. USB Type C standard receptacles provide multifunction single cable solutions for data, power, audio, and video. The small form factor made this interconnection an unquestioned technology across all devices and is expected to be widely used as a next-generation interface.

  6. How is USB Type C Different from Other USB Connector Types? • USB type C connectors : • Are reversible • Are bi-diversional • Can both deliver and accept power • Can also handle data and power transmission simultaneously

  7. Benefits of USB Type C • USB type C connectors are expected to replace its earlier version, and standards like Thunderbolt and DisplayPort • Physical size, of Micro USB connectors, but gives much-enhanced performance • Supports a variety of protocols like HDMI, VGA, DisplayPort, and others from a single USB port through different adapters

  8. The speed and performance of a USB connector are not only determined by its form factor types, but also the interface versions. • USB Type C 3.0 SuperSpeed Connectors are faster when compared to USB type C 2.0 interface.

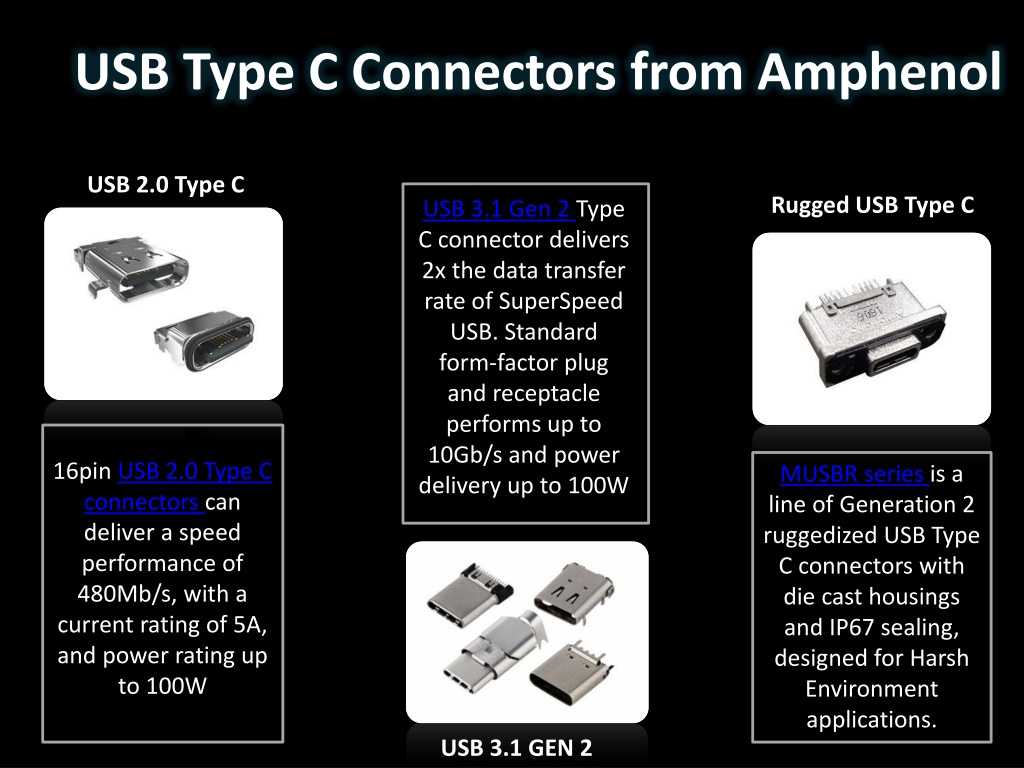

  9. USB Type C Connectors from Amphenol USB 2.0 Type C  Rugged USB Type C USB 3.1 Gen 2 Type C connector delivers 2x the data transfer rate of SuperSpeed USB. Standard form-factor plug and receptacle performs up to 10Gb/s and power delivery up to 100W 16pin USB 2.0 Type C connectors can deliver a speed performance of 480Mb/s, with a current rating of 5A, and power rating up to 100W MUSBR series is a line of Generation 2 ruggedized USB Type C connectors with die cast housings and IP67 sealing, designed for Harsh Environment applications. USB 3.1 GEN 2

  10. Check out Amphenol’s Range of USB connectorsNow!

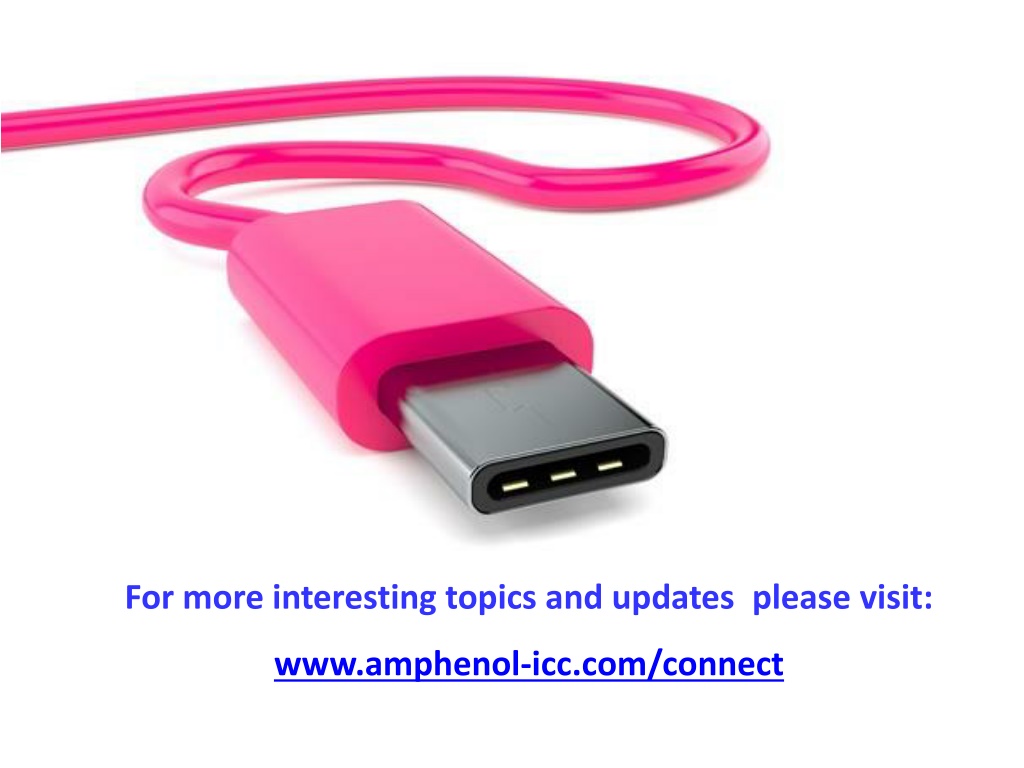

  11. For more interesting topics and updates please visit: www.amphenol-icc.com/connect
