Essential Things You Need to Know About Honeycomb Aluminium Sheet

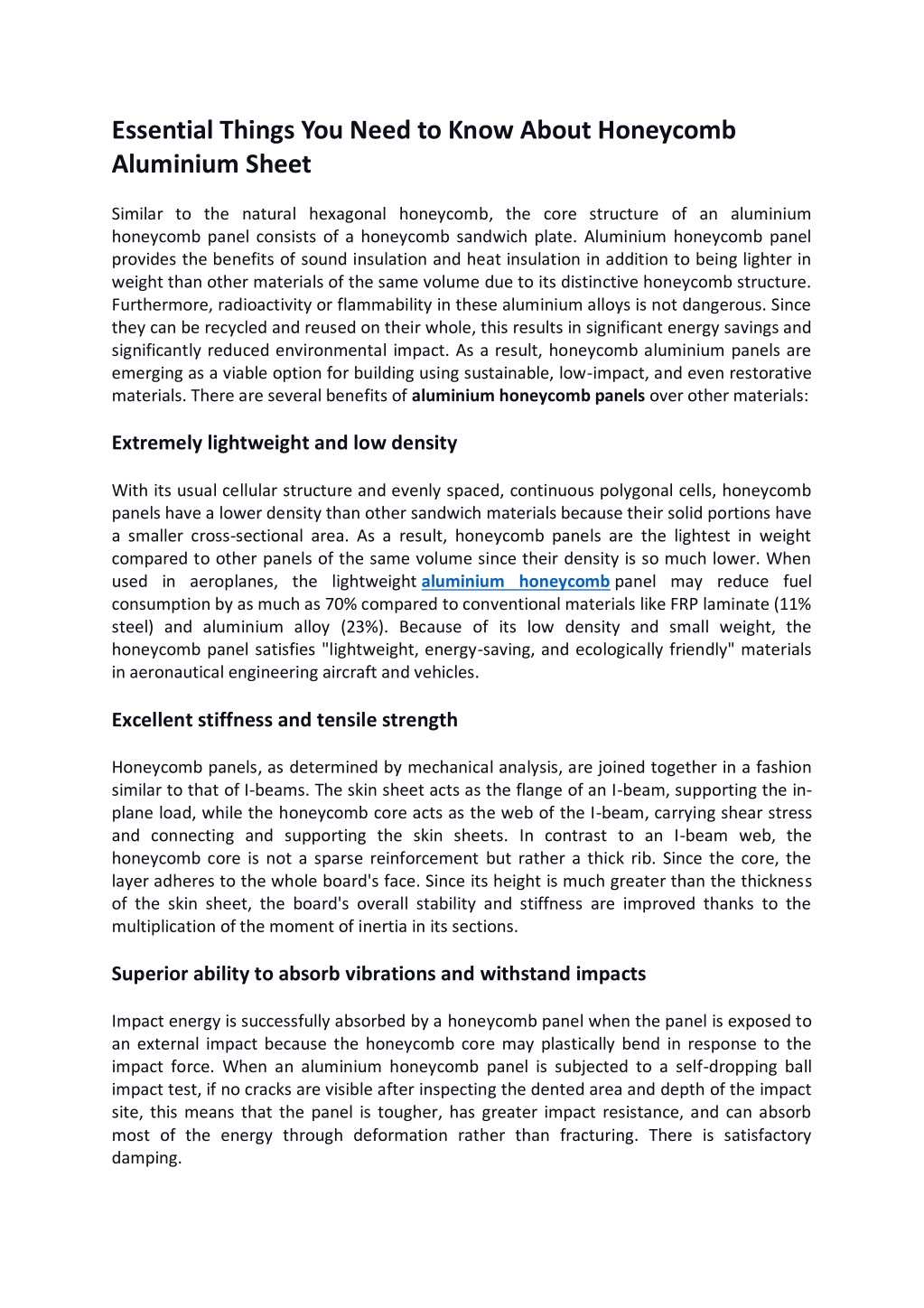

1. Essential Things You Need to Know About Honeycomb Aluminium Sheet Similar to the natural hexagonal honeycomb, the core structure of an aluminium honeycomb panel consists of a honeycomb sandwich plate. Aluminium honeycomb panel provides the benefits of sound insulation and heat insulation in addition to being lighter in weight than other materials of the same volume due to its distinctive honeycomb structure. Furthermore, radioactivity or flammability in these aluminium alloys is not dangerous. Since they can be recycled and reused on their whole, this results in significant energy savings and significantly reduced environmental impact. As a result, honeycomb aluminium panels are emerging as a viable option for building using sustainable, low-impact, and even restorative materials. There are several benefits of aluminium honeycomb panels over other materials: Extremely lightweight and low density With its usual cellular structure and evenly spaced, continuous polygonal cells, honeycomb panels have a lower density than other sandwich materials because their solid portions have a smaller cross-sectional area. As a result, honeycomb panels are the lightest in weight compared to other panels of the same volume since their density is so much lower. When used in aeroplanes, the lightweight aluminium honeycomb panel may reduce fuel consumption by as much as 70% compared to conventional materials like FRP laminate (11% steel) and aluminium alloy (23%). Because of its low density and small weight, the honeycomb panel satisfies "lightweight, energy-saving, and ecologically friendly" materials in aeronautical engineering aircraft and vehicles. Excellent stiffness and tensile strength Honeycomb panels, as determined by mechanical analysis, are joined together in a fashion similar to that of I-beams. The skin sheet acts as the flange of an I-beam, supporting the in- plane load, while the honeycomb core acts as the web of the I-beam, carrying shear stress and connecting and supporting the skin sheets. In contrast to an I-beam web, the honeycomb core is not a sparse reinforcement but rather a thick rib. Since the core, the layer adheres to the whole board's face. Since its height is much greater than the thickness of the skin sheet, the board's overall stability and stiffness are improved thanks to the multiplication of the moment of inertia in its sections. Superior ability to absorb vibrations and withstand impacts Impact energy is successfully absorbed by a honeycomb panel when the panel is exposed to an external impact because the honeycomb core may plastically bend in response to the impact force. When an aluminium honeycomb panel is subjected to a self-dropping ball impact test, if no cracks are visible after inspecting the dented area and depth of the impact site, this means that the panel is tougher, has greater impact resistance, and can absorb most of the energy through deformation rather than fracturing. There is satisfactory damping.

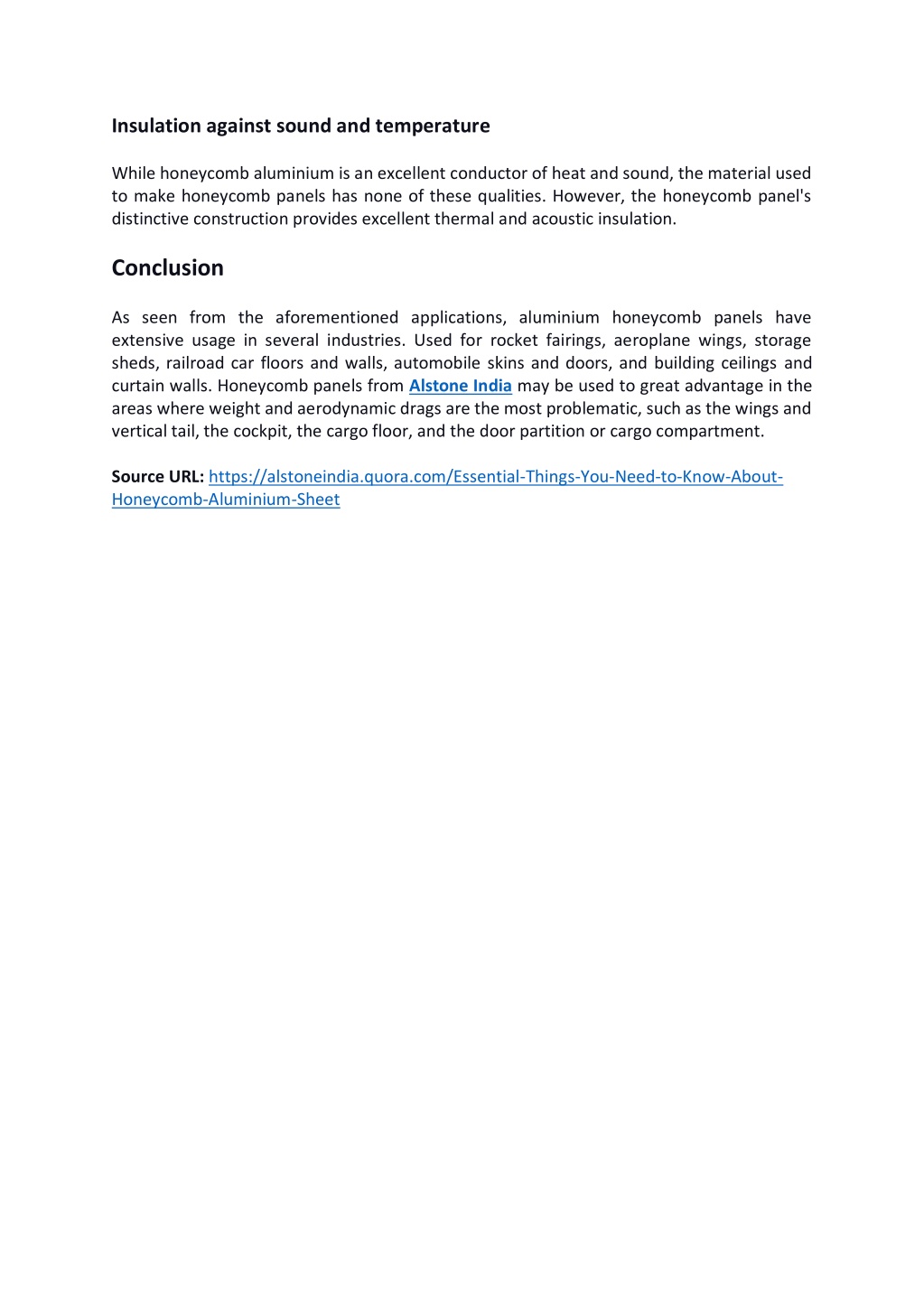

2. Insulation against sound and temperature While honeycomb aluminium is an excellent conductor of heat and sound, the material used to make honeycomb panels has none of these qualities. However, the honeycomb panel's distinctive construction provides excellent thermal and acoustic insulation. Conclusion As seen from the aforementioned applications, aluminium honeycomb panels have extensive usage in several industries. Used for rocket fairings, aeroplane wings, storage sheds, railroad car floors and walls, automobile skins and doors, and building ceilings and curtain walls. Honeycomb panels from Alstone India may be used to great advantage in the areas where weight and aerodynamic drags are the most problematic, such as the wings and vertical tail, the cockpit, the cargo floor, and the door partition or cargo compartment. Source URL: https://alstoneindia.quora.com/Essential-Things-You-Need-to-Know-About- Honeycomb-Aluminium-Sheet
