Existent Gum Tester

<br><br>Labtron is fabricated with heating bath and air compressor to be more accurate and meet the industrial requirements. The instrument is designed and made as per ASTM D381-12 u00e2u20acu0153Test Methods for Existent Gum of Vehicle Gasoline and Aviation Fuels (Jet Evaporation Methods)u00e2u20acu009d.<br>

Aliza16
Download Presentation

Existent Gum Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

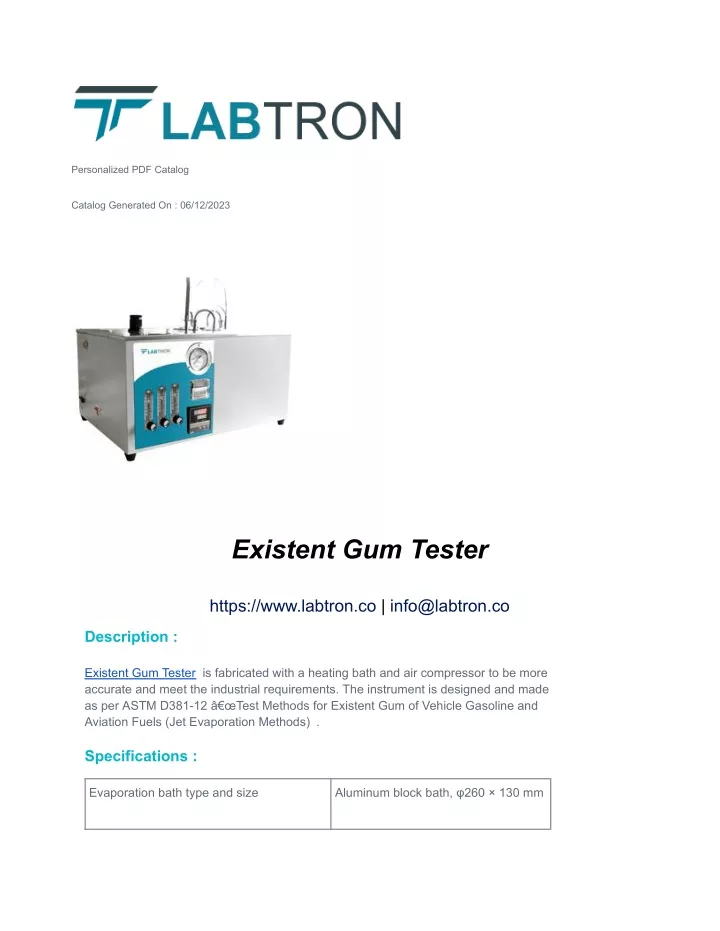

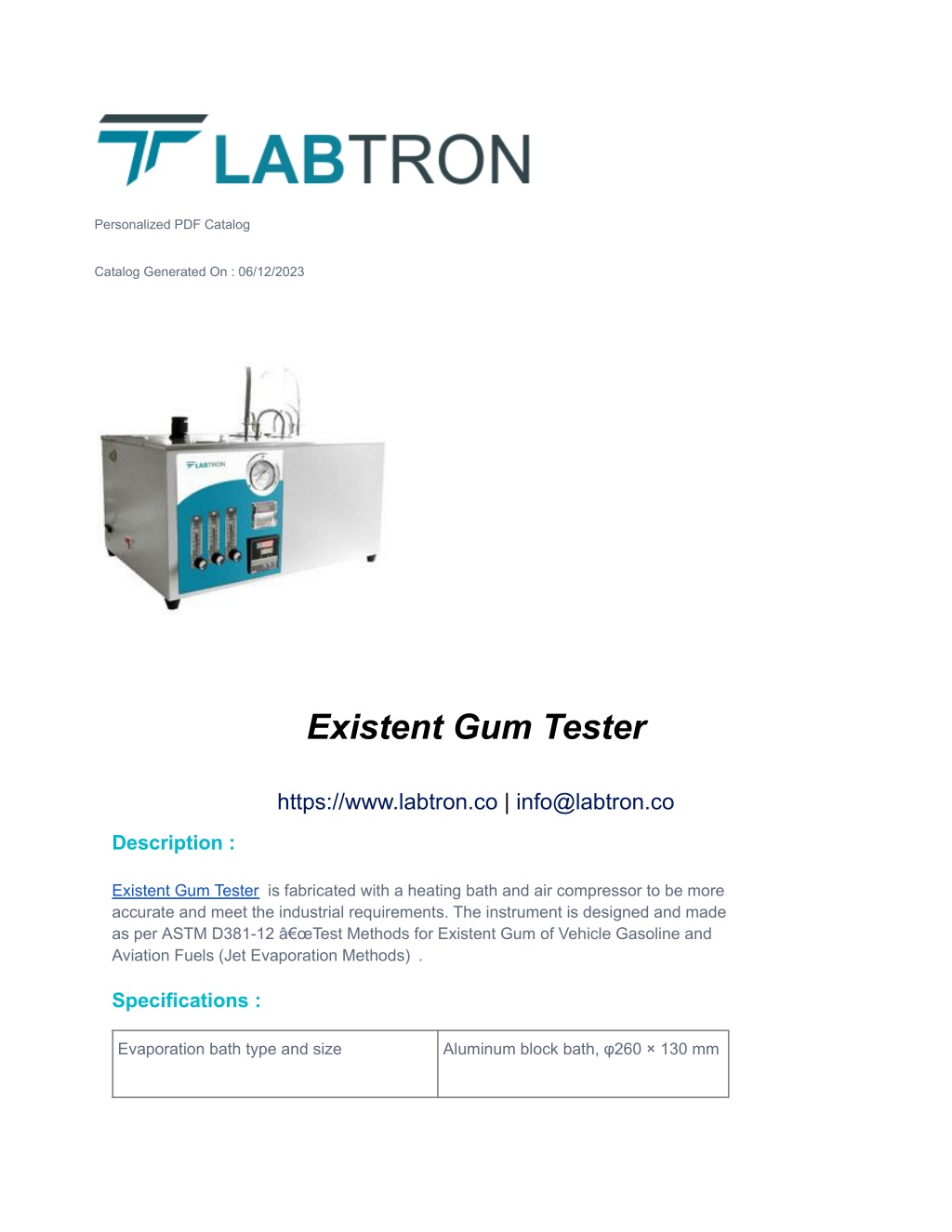

  1. Personalized PDF Catalog Catalog Generated On : 06/12/2023 Existent Gum Tester https://www.labtron.co | info@labtron.co Description : Existent Gum Tester is fabricated with a heating bath and air compressor to be more accurate and meet the industrial requirements. The instrument is designed and made as per ASTM D381-12 “Test Methods for Existent Gum of Vehicle Gasoline and Aviation Fuels (Jet Evaporation Methods). Specifications : Evaporation bath type and size Aluminum block bath, φ260 × 130 mm

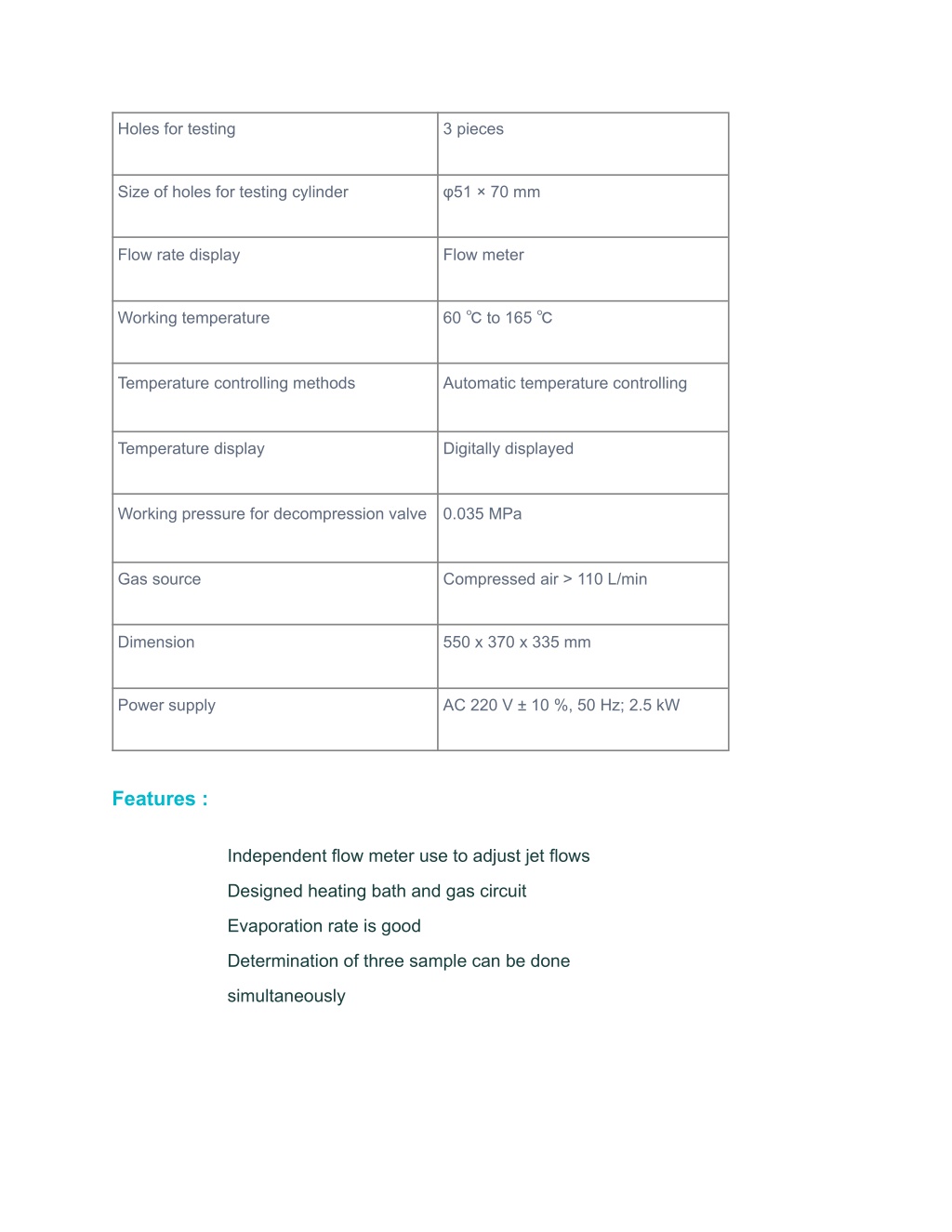

  2. Holes for testing 3 pieces Size of holes for testing cylinder φ51 × 70 mm Flow rate display Flow meter Working temperature 60 ℃ to 165 ℃ Temperature controlling methods Automatic temperature controlling Temperature display Digitally displayed Working pressure for decompression valve 0.035 MPa Gas source Compressed air > 110 L/min Dimension 550 x 370 x 335 mm Power supply AC 220 V ± 10 %, 50 Hz; 2.5 kW Features : Independent flow meter use to adjust jet flows Designed heating bath and gas circuit Evaporation rate is good Determination of three sample can be done simultaneously

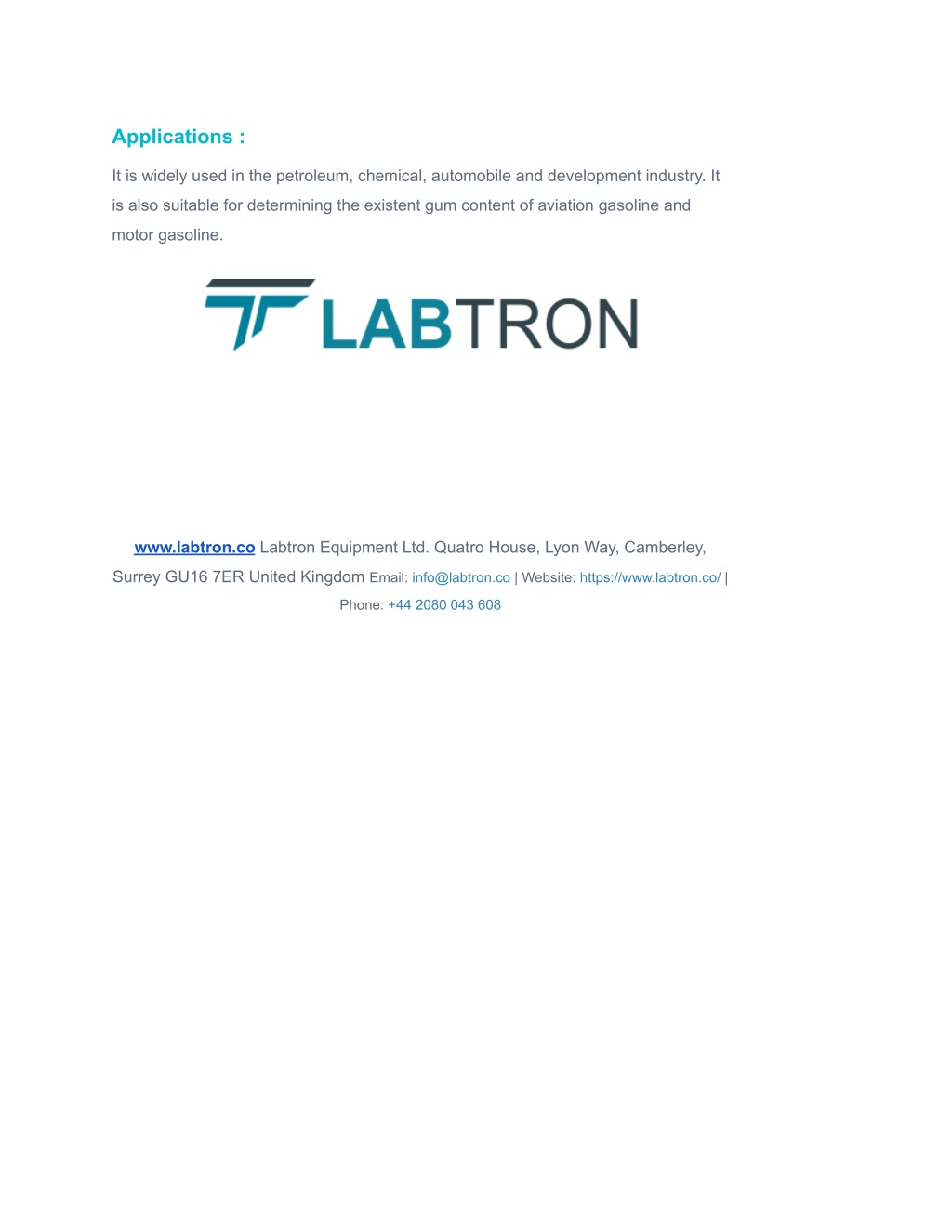

  3. Applications : It is widely used in the petroleum, chemical, automobile and development industry. It is also suitable for determining the existent gum content of aviation gasoline and motor gasoline. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
