About Optical Diffusers and Apollo Optical Systems

When a diffuser offers Lambertian reflectance, the apparent brightness of the light is the same to the observer, no matter which way they look at it. In Gaussian shaped scattering, or in other angularly tuned distributions, the light can appear brighter or less bright depending on the angle the observer is looking from. To know more visit our website: https://www.apollooptical.com/about-optical-diffusers-and-apollo-optical-systems/

Alex76
Download Presentation

About Optical Diffusers and Apollo Optical Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

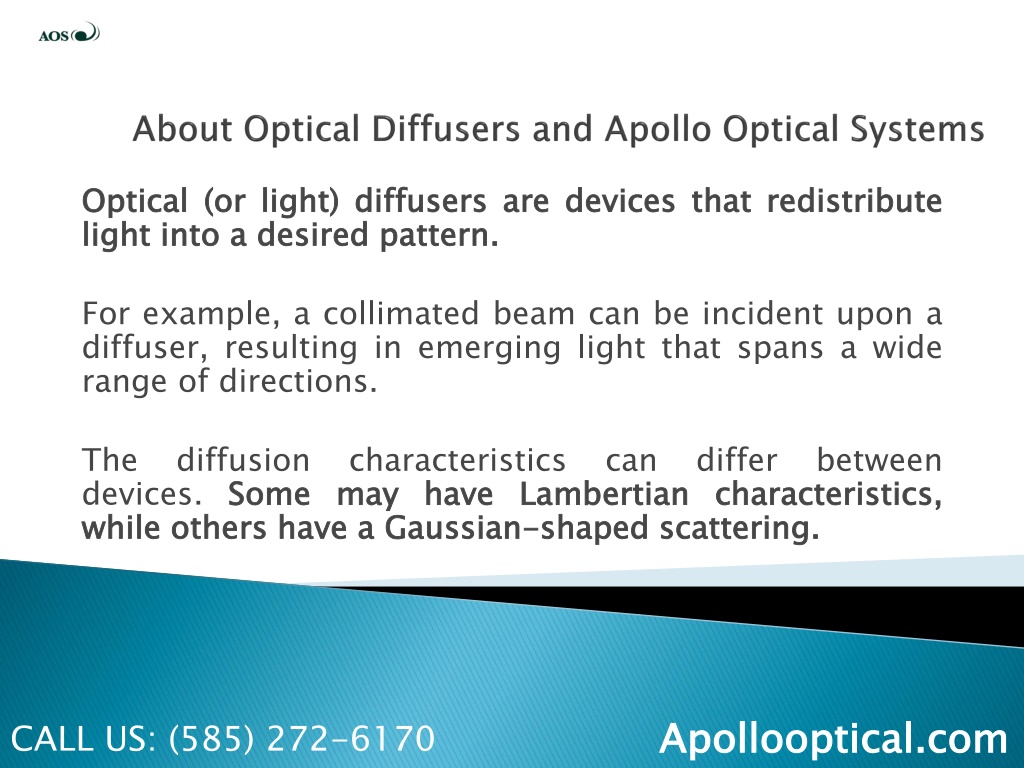

  1. About Optical Diffusers and Apollo Optical Systems Optical (or light) diffusers are devices that redistribute light into a desired pattern. For example, a collimated beam can be incident upon a diffuser, resulting in emerging light that spans a wide range of directions. The diffusion characteristics can differ between devices. Some may have Lambertian characteristics, while others have a Gaussian-shaped scattering. Apollooptical.com CALL US: (585) 272-6170

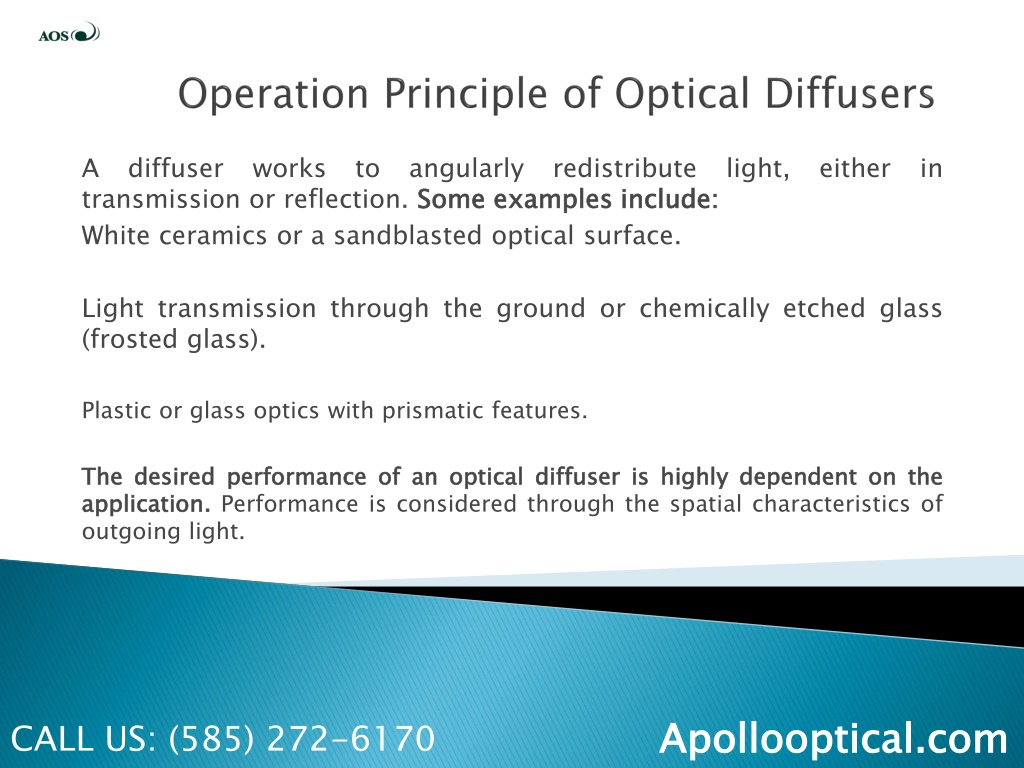

  2. Operation Principle of Optical Diffusers A diffuser works to angularly redistribute light, either in transmission or reflection. Some examples include: White ceramics or a sandblasted optical surface. Light transmission through the ground or chemically etched glass (frosted glass). Plastic or glass optics with prismatic features. The desired performance of an optical diffuser is highly dependent on the application. Performance is considered through the spatial characteristics of outgoing light. Apollooptical.com CALL US: (585) 272-6170

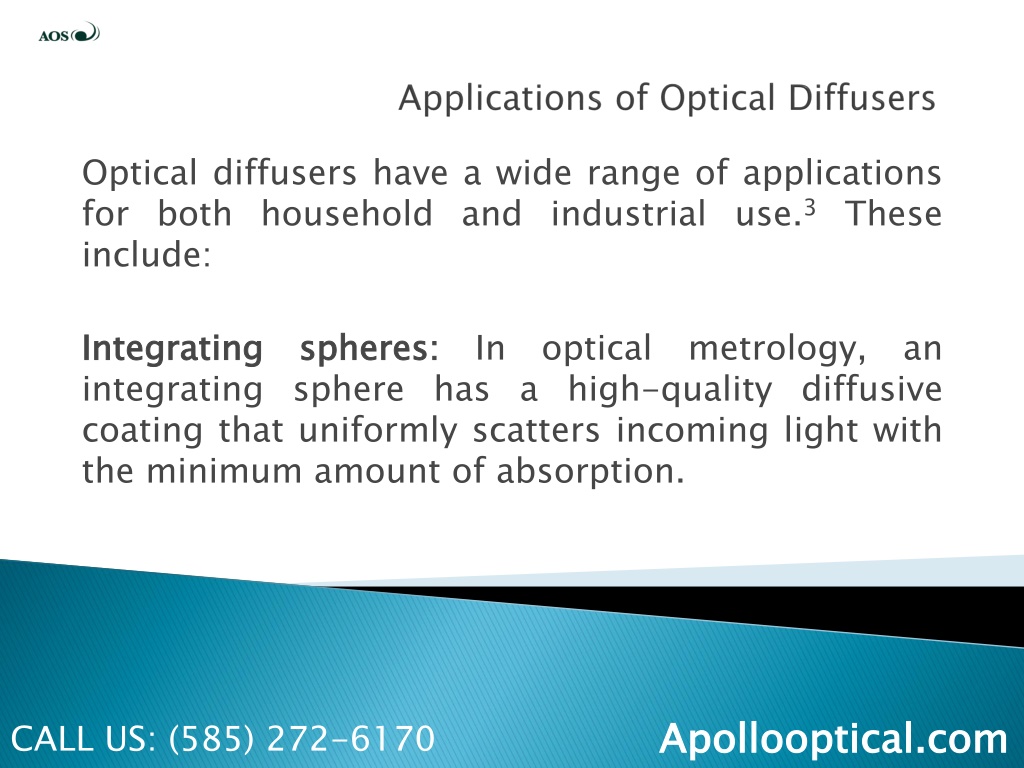

  3. Applications of Optical Diffusers Optical diffusers have a wide range of applications for both household and industrial use.3 These include: Integrating spheres: In optical metrology, an integrating sphere has a high-quality diffusive coating that uniformly scatters incoming light with the minimum amount of absorption. Apollooptical.com CALL US: (585) 272-6170

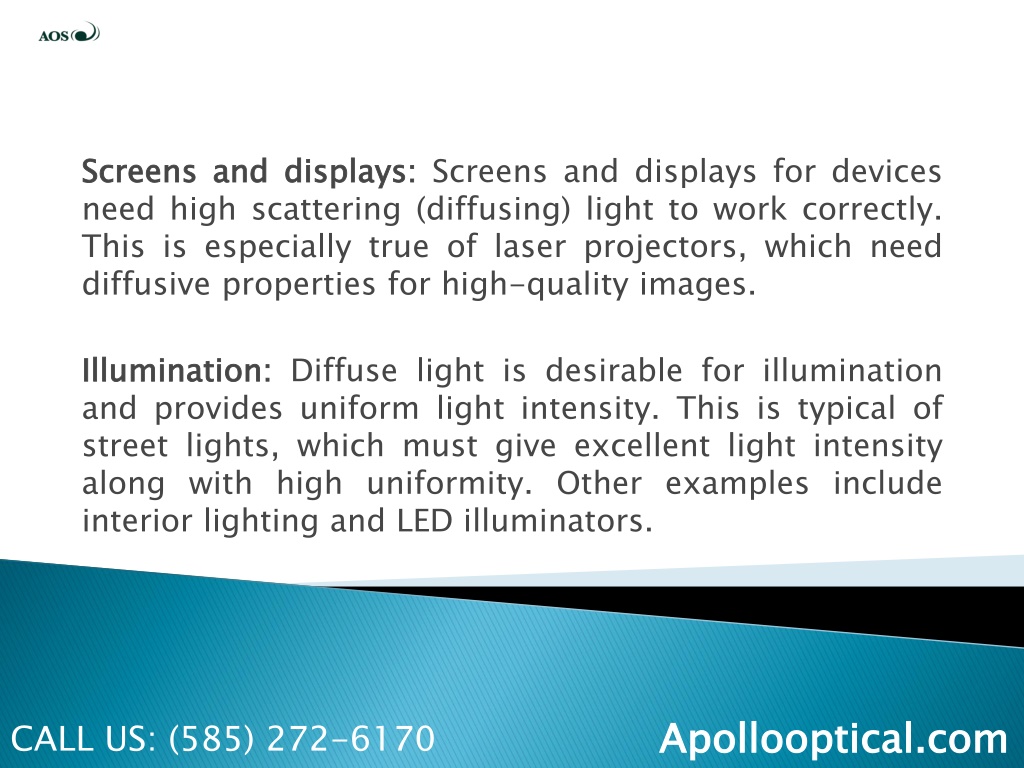

  4. Screens and displays: Screens and displays for devices need high scattering (diffusing) light to work correctly. This is especially true of laser projectors, which need diffusive properties for high-quality images. Illumination: Diffuse light is desirable for illumination and provides uniform light intensity. This is typical of street lights, which must give excellent light intensity along with high uniformity. Other examples include interior lighting and LED illuminators. Apollooptical.com CALL US: (585) 272-6170

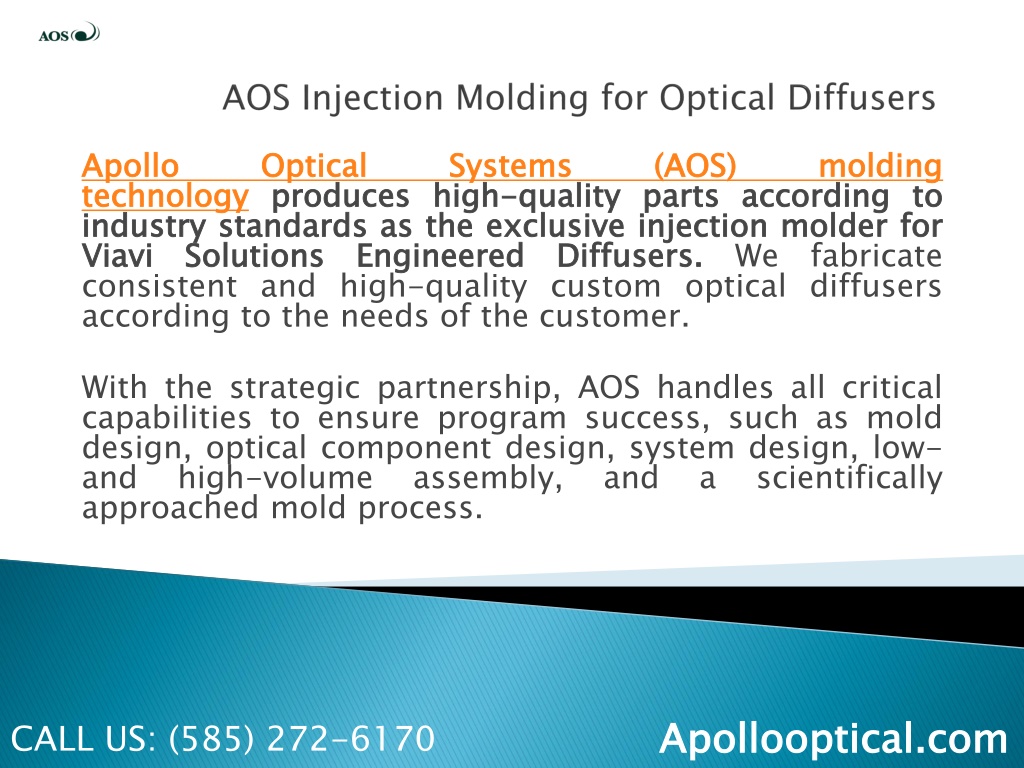

  5. AOS Injection Molding for Optical Diffusers Apollo Optical Systems (AOS) molding technology produces high-quality parts according to industry standards as the exclusive injection molder for Viavi Solutions Engineered Diffusers. We fabricate consistent and high-quality custom optical diffusers according to the needs of the customer. With the strategic partnership, AOS handles all critical capabilities to ensure program success, such as mold design, optical component design, system design, low- and high-volume assembly, and a scientifically approached mold process. Apollooptical.com CALL US: (585) 272-6170

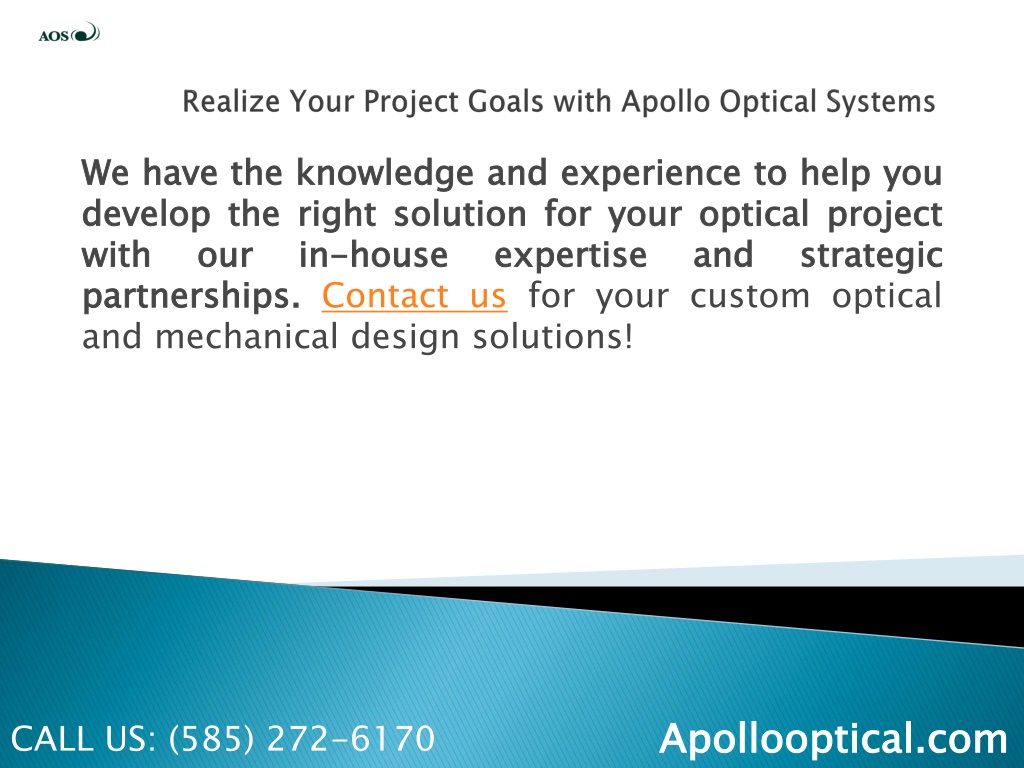

  6. Realize Your Project Goals with Apollo Optical Systems We have the knowledge and experience to help you develop the right solution for your optical project with our in-house expertise and strategic partnerships.Contact us for your custom optical and mechanical design solutions! Apollooptical.com CALL US: (585) 272-6170

  7. thank you for visit us Apollooptical.com CALL US: (585) 272-6170
