transistor definitions

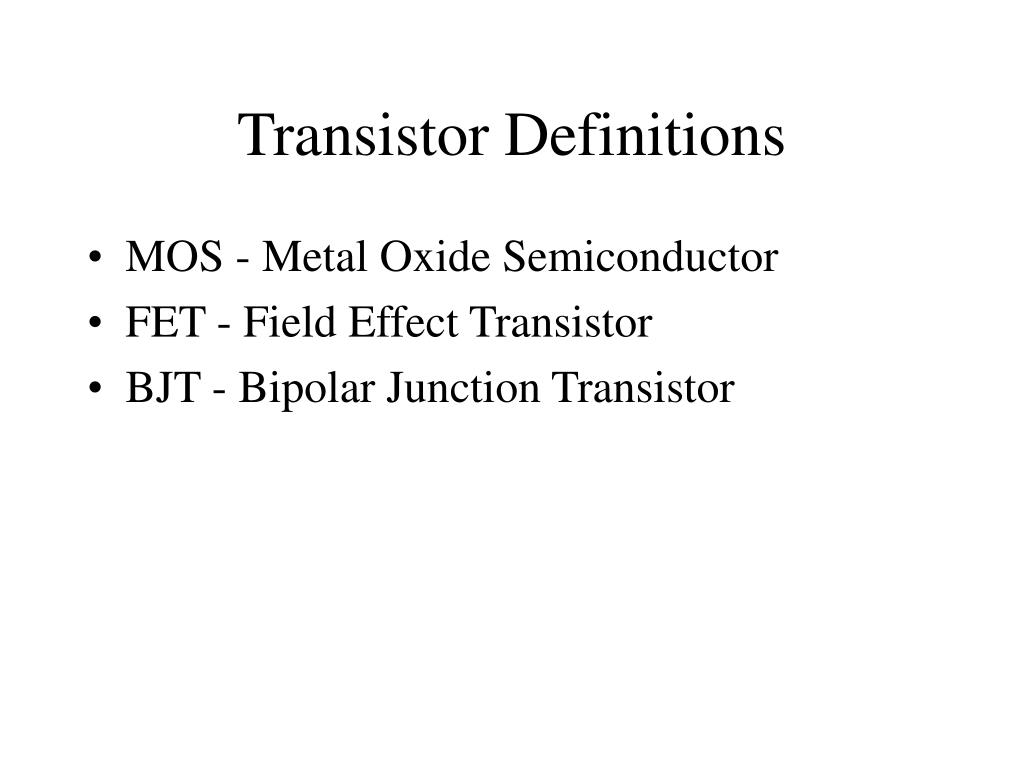

Transistor Definitions
  • MOS - Metal Oxide Semiconductor
  • FET - Field Effect Transistor
  • BJT - Bipolar Junction Transistor

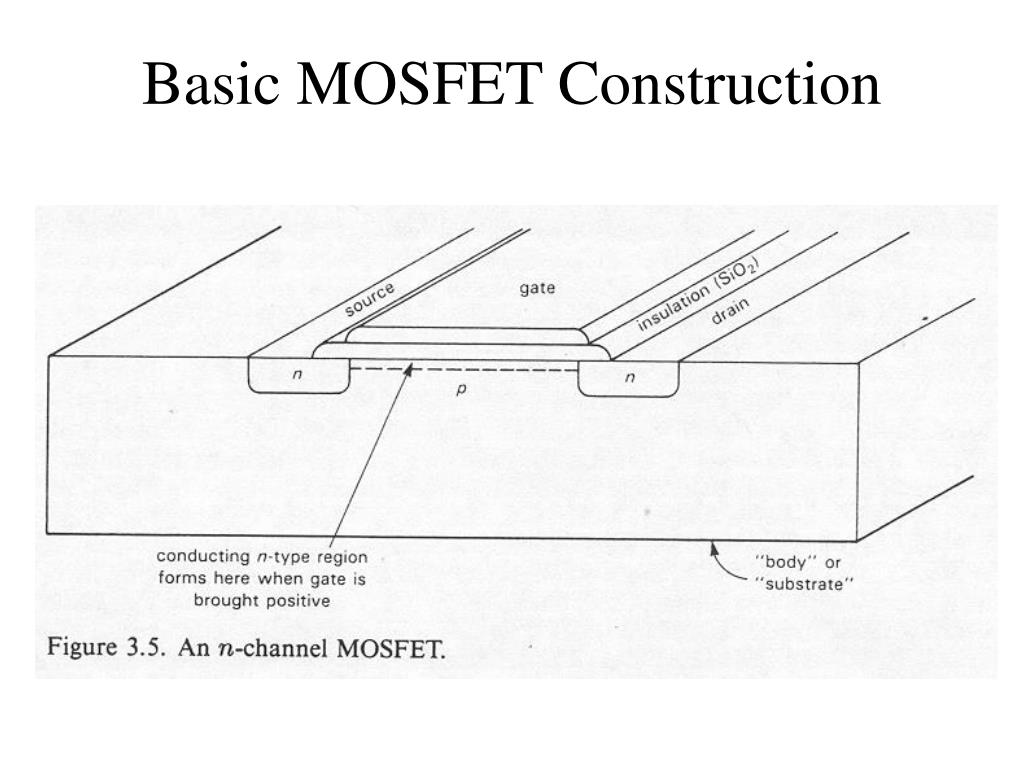

mosfet and bjt

drain

collector

body

base

gate

source

emitter

npn bipolar transistor

n-channel MOSFET

MOSFET and BJT
bjt symbols

collector

collector

base

base

emitter

emitter

BJT Symbols

pnp bipolar transistor

npn bipolar transistor

mosfet symbols

drain

drain

gate

body

gate

body

source

A circle is sometimes

used on the gate terminal

to show active low input

source

or

or

drain

drain

body

body

gate

gate

source

source

A. n-channel MOSFET

B. p-channel MOSFET

MOSFET Symbols
basic cmos logic technology
Basic CMOS Logic Technology
  • Based on the fundamental inverter circuit
  • Transistors (two) are enhancement-mode MOSFETs
    • N-channel with its source grounded
    • P-channel with its source connected to +V
  • Input: gates connected together
  • Output: drains connected
cmos inverter

VDD

p

A

Y = A'

n

GND

CMOS Inverter
cmos inverter operation
CMOS Inverter - Operation

Since the gate is essentially an open circuit it draws no current, and the output voltage will be equal to either ground or to the power supply voltage, depending on which transistor is conducting.

When input A is grounded (logic 0), the N-channel MOSFET is unbiased, and therefore has no channel enhanced within itself. It is an open circuit, and therefore leaves the output line disconnected from ground. At the same time, the P-channel MOSFET is forward biased, so it has a channel enhanced within itself, connecting the output line to the +Vsupply. This pulls the output up to +V (logic 1).

When input A is at +V (logic 1), the P-channel MOSFET is off and the N-channel MOSFET is on, thus pulling the output down to ground (logic 0). Thus, this circuit correctly performs logic inversion, and at the same time provides active pull-up and pull-down, according to the output state.

cmos 2 input nor operation

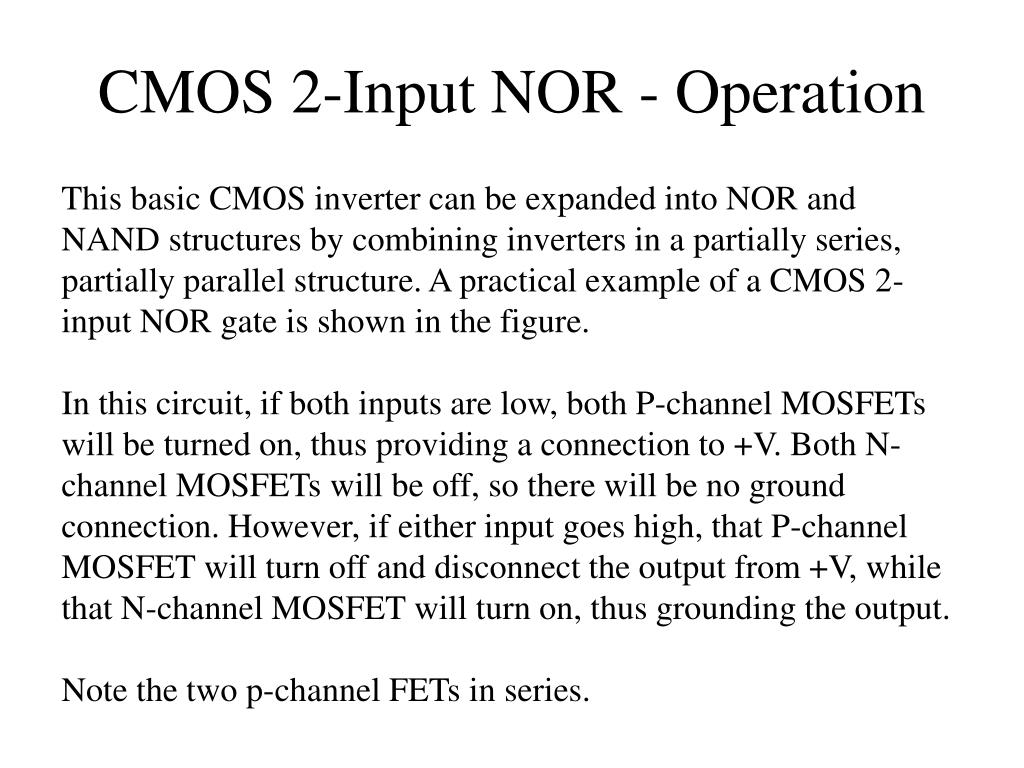

CMOS 2-Input NOR - Operation

This basic CMOS inverter can be expanded into NOR and NAND structures by combining inverters in a partially series, partially parallel structure. A practical example of a CMOS 2-input NOR gate is shown in the figure.

In this circuit, if both inputs are low, both P-channel MOSFETs will be turned on, thus providing a connection to +V. Both N-channel MOSFETs will be off, so there will be no ground connection. However, if either input goes high, that P-channel MOSFET will turn off and disconnect the output from +V, while that N-channel MOSFET will turn on, thus grounding the output.

Note the two p-channel FETs in series.

cmos 2 input nand

+V

+V

A

B

Y = A • B

CMOS 2-Input NAND
cmos 2 input nand operation
CMOS 2-Input NAND - Operation

A two-input NAND gate: a logic 0 at either input will force the output to logic 1; both inputs at logic 1 will force the output to go to logic 0.

Note the two n-channel FETs in series and the two p-channel FETs in parallel.

The pull-up and pull-down resistances at the output are never the same, and can change significantly as the inputs change state, even if the output does not change logic states. The result is uneven and unpredictable rise and fall times for the output signal. This problem was addressed, and was solved with the buffered, or B-series CMOS gates.

cmos 2 input nand buffered16
CMOS 2-Input NAND: Buffered

The technique here is to follow the actual NAND gate with a pair of inverters. Thus, the output will always be driven by a single transistor, either P-channel or N-channel. Since they are as closely matched as possible, the output resistance of the gate will always be the same, and signal behavior is therefore more predictable. Typically, the p-channel transistor is approximately twice as wide as the n-channel transistor, because of the difference in conductivity between electronics and holes.

Note that we have not gone into all of the details of CMOS gate construction here. For example, to avoid damage caused by static electricity, different manufacturers developed a number of input protection circuits, to prevent input voltages from becoming too high. However, these protection circuits do not affect the logical behavior of the gates, so we will not go into the details here. This is not strictly true for most CMOS devices for applications that are power-switched; special inputs are required for power-off isolation between circuits.

decoder fundamentals

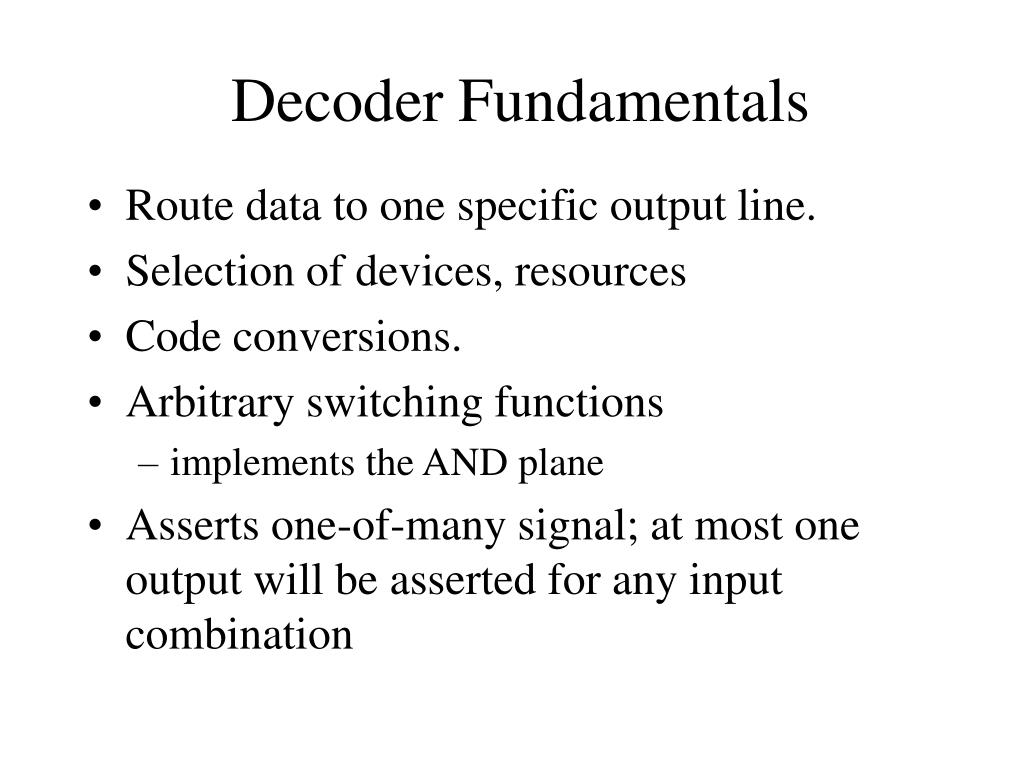

Decoder Fundamentals
  • Route data to one specific output line.
  • Selection of devices, resources
  • Code conversions.
  • Arbitrary switching functions
    • implements the AND plane
  • Asserts one-of-many signal; at most one output will be asserted for any input combination

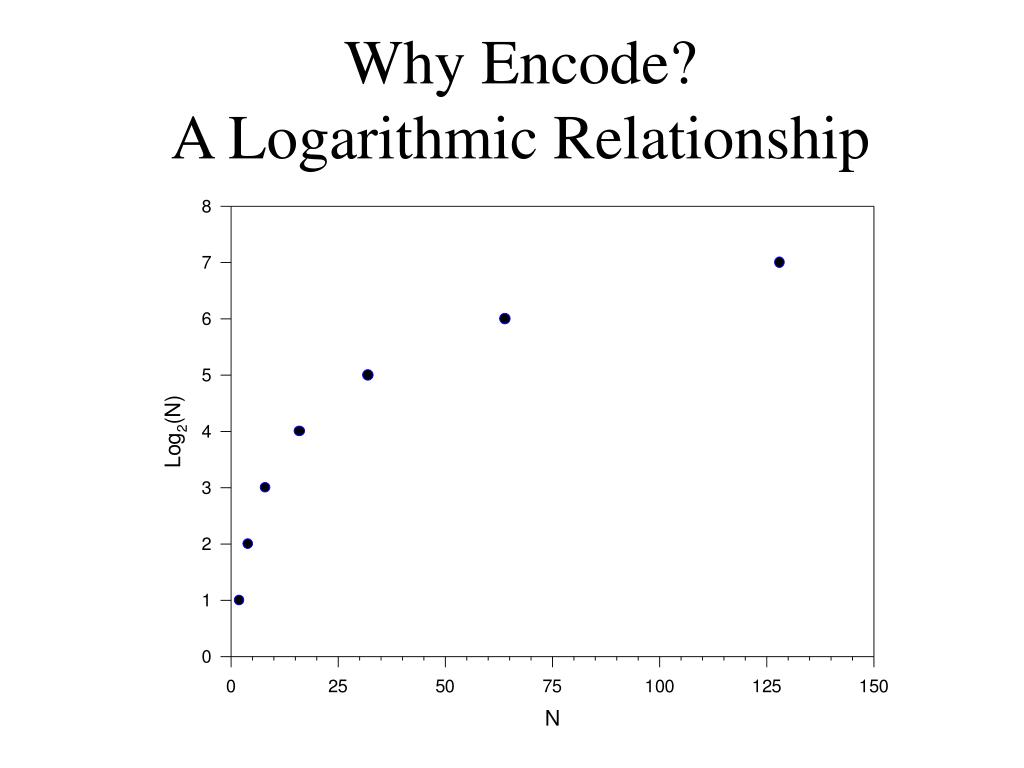

encoding
Encoding

Binary

Decimal Unencoded Encoded

0 0001 00

1 0010 01

2 0100 10

3 1000 11

Note: Finite state machines may be unencoded ("one-hot")

or binary encoded. If the all 0's state is used, then

one less bit is needed and it is called modified

one-hot coding.

2 4 decoder

A

B

1 1

1 0

0 1

00

Y

Y

Y

Y

E Q 3

E Q 2

E Q 1

E Q 0

AND 2

A

B

AND 2 A

A

B

AND 2 A

D 0

A

B

AND 2 B

D 1

2:4 Decoder

What happens when the inputs goes from 01 to 10?

2 4 decoder with enable

A

B

C

A

B

C

A

B

C

A

B

C

1 1

1 0

0 1

00

Y

Y

Y

Y

E Q 3

E Q 2

E Q 1

E Q 0

AND 3

AND 3 A

AND 3 A

D 0

D 1

ENABLE

AND 3 B

2:4 Decoder with Enable

1 1

1 0

0 1

00

static hazard

A

B

A

B

A

S

B

Y X1

Y X2

A

B

Y

Y

Static Hazard

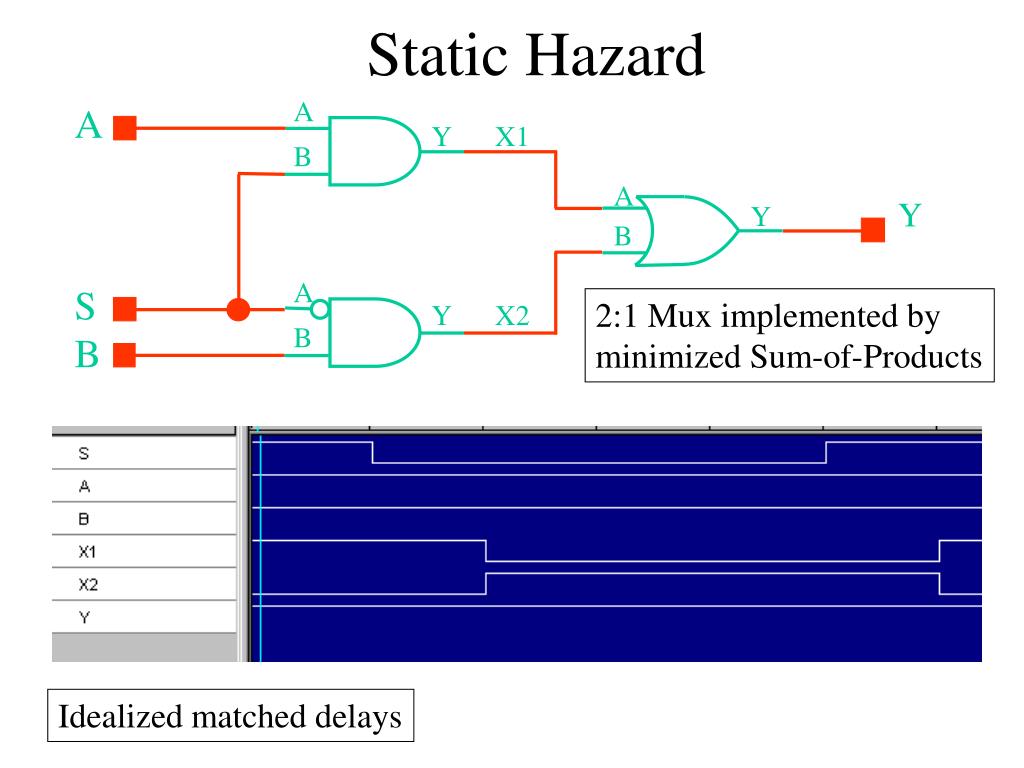

2:1 Mux implemented by

minimized Sum-of-Products

Idealized matched delays

static hazard25

A

S

B

A

B

A

B

Y X1

Y X2

AND 2

A

B

Y

Y

OR 2

YS D

A

BUFF

AND 2 A

Static Hazard

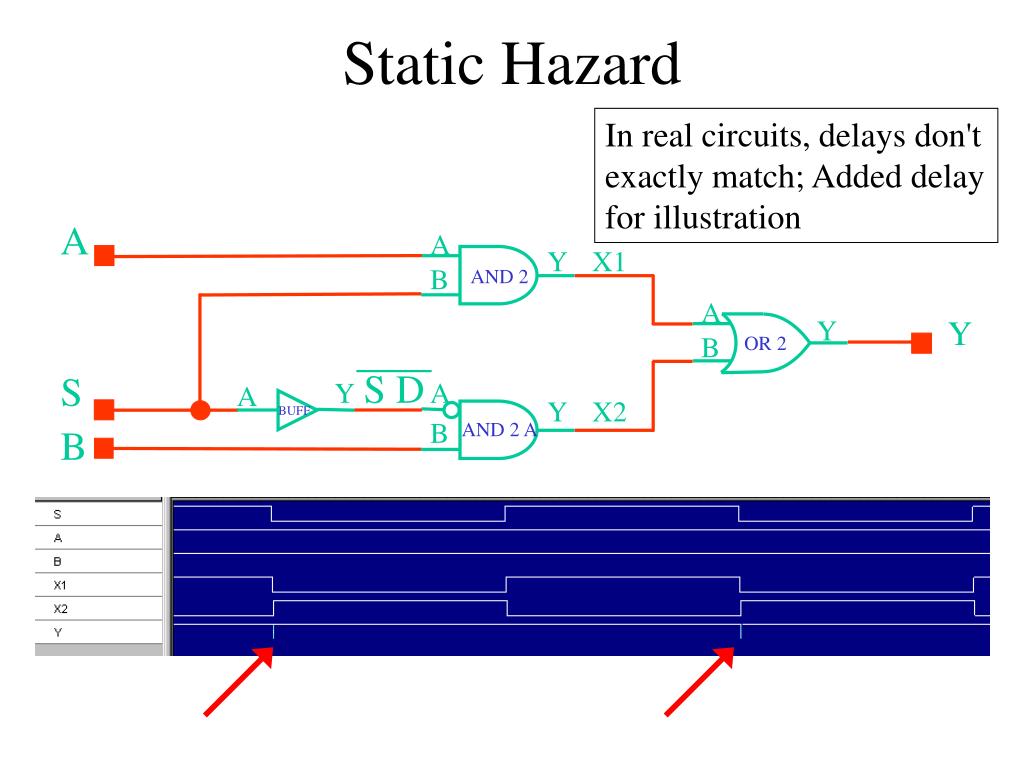

In real circuits, delays don't

exactly match; Added delay

for illustration

static hazard26

We now have a "glitch."

Static Hazard

Same waveform, zoomed in.

static hazard27
Static Hazard

A B

1 1

1 0

0 1

0 0

0

1

1

0

S=0

S=1

1

0

1

0

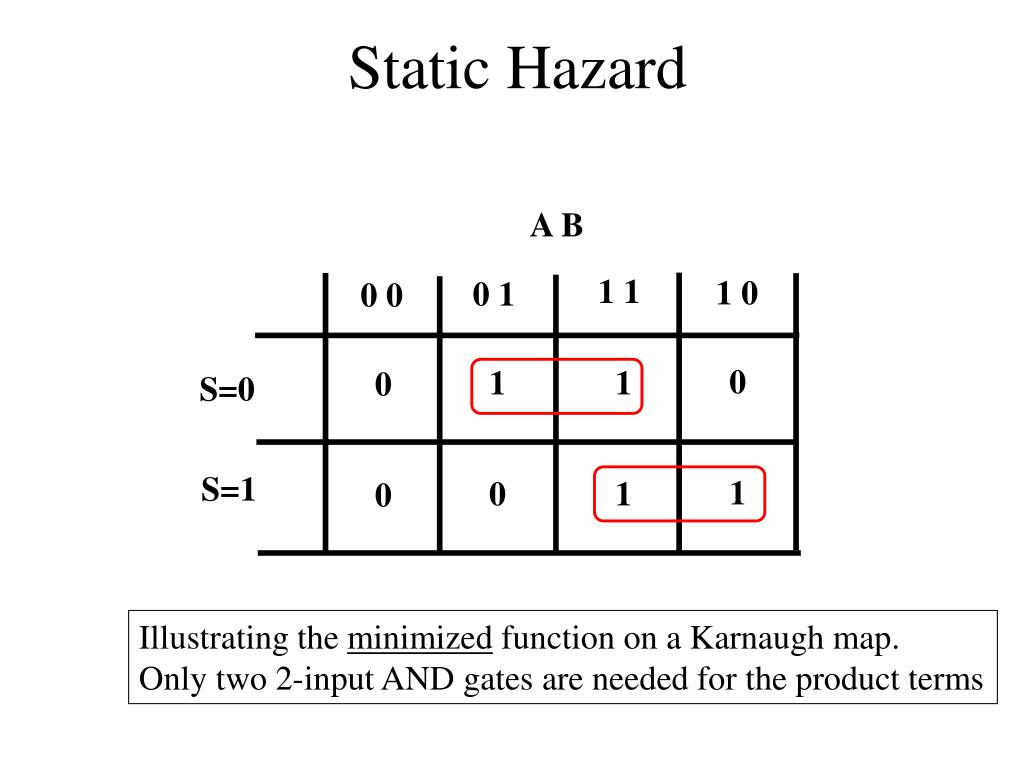

Illustrating the minimized function on a Karnaugh map.

Only two 2-input AND gates are needed for the product terms

static hazard28
Static Hazard

A B

1 1

1 0

0 1

0 0

0

1

1

0

0

S

1

1

0

1

0

The blue oval shows the redundant term used to cover the

transition between product terms.

static hazard29

A

S

B

A

B

A

B

A

B

Y X1

Y X2

Y X3

AND 2

A

B

C

Y

Y

OR 3

YS D

A

BUFF

AND 2 A

AND 2

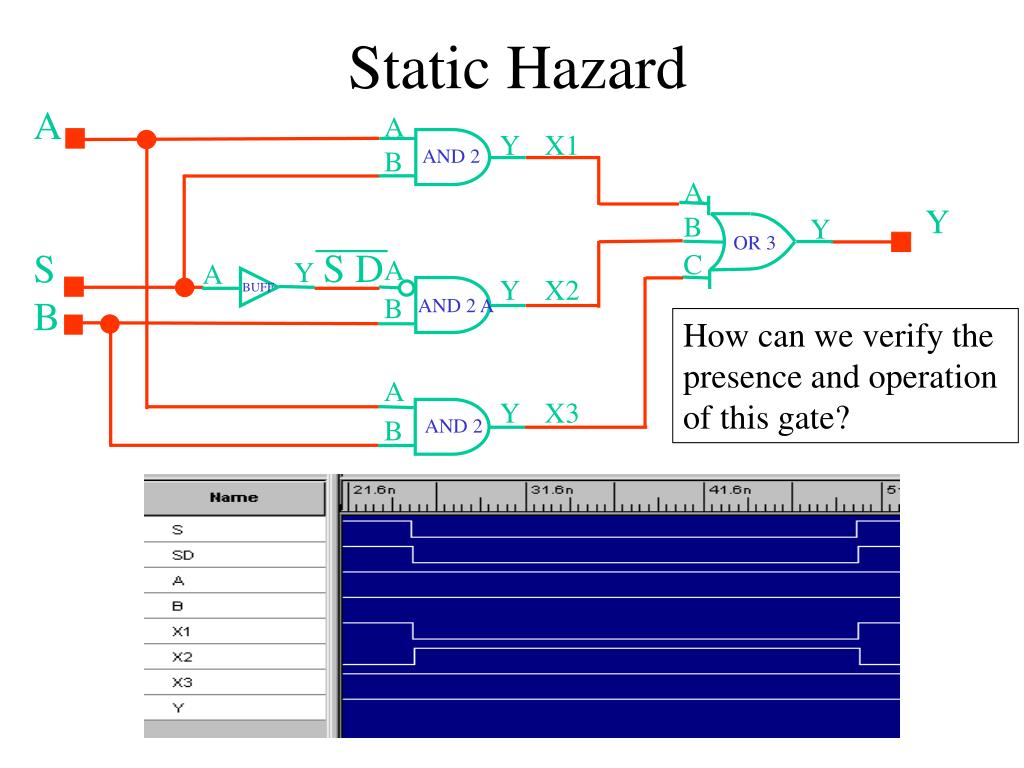

Static Hazard

How can we verify the

presence and operation

of this gate?

static hazard30

0000 0

0001 1

0010 2

0011 3

0100 4

0101 5

0110 6

0111 7

1000 8

1001 9

1010 10

1011 11

1100 12

1101 13

1110 14

1111 15

0000 16

A

B

C

D

D Q

DFC1B

CLR

D Q

DFC1B

CLR

D Q

DFC1B

CLR

D Q

DFC1B

CLR

Y

TCNT

AND 4

CLK

CLK

CLK

CLK

CLDCK

ACLR

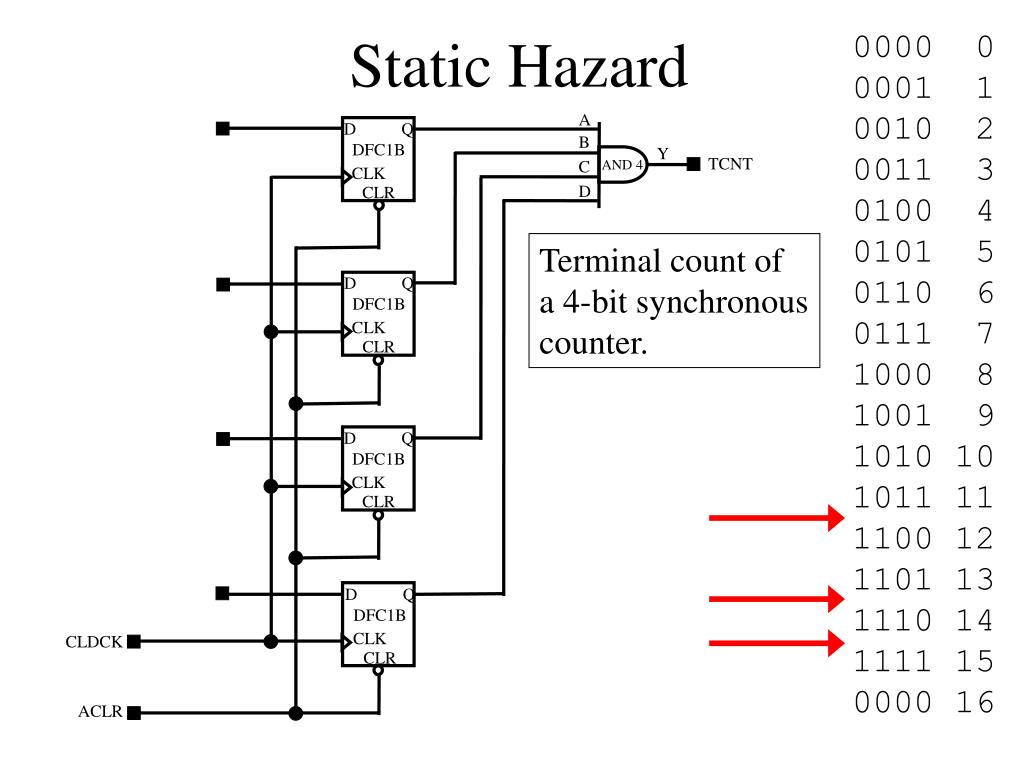

Static Hazard

Terminal count of

a 4-bit synchronous

counter.

static hazard flight design example

D Q

DF1

D Q

DF1

D Q

DF1

D Q

DF1

CLK

CLK

CLK

CLK

VCC

Y

S1 S0

D0

D1

D2

D3

Y

A Y

Y

GND

Static HazardFlight Design Example

TMR Triplet Majority Voter

High-skew buffer

static hazard flight design example32
Static HazardFlight Design Example

Care is needed when using TMR circuits. First, the output of the voter may be susceptible to a logic hazard “glitch.” This is not a problem if the TMR is feeding the input of another synchronous input. However, the TMR output should never feed asynchronous inputs such as flip-flop clocks, clears, sets, read/write inputs, etc.

“Design Techniques for Radiation-Hardened FPGAs”

Actel Corporation, September 1997

-- based on “SEU Hardening of Field Programmable Gate Arrays (FPGAs) for Space

Applications and Device Characterization,” R. Katz, R. Barto, et. al., IEEE Transactions

on Nuclear Science, Dec. 1994.

static hazard33
Static Hazard

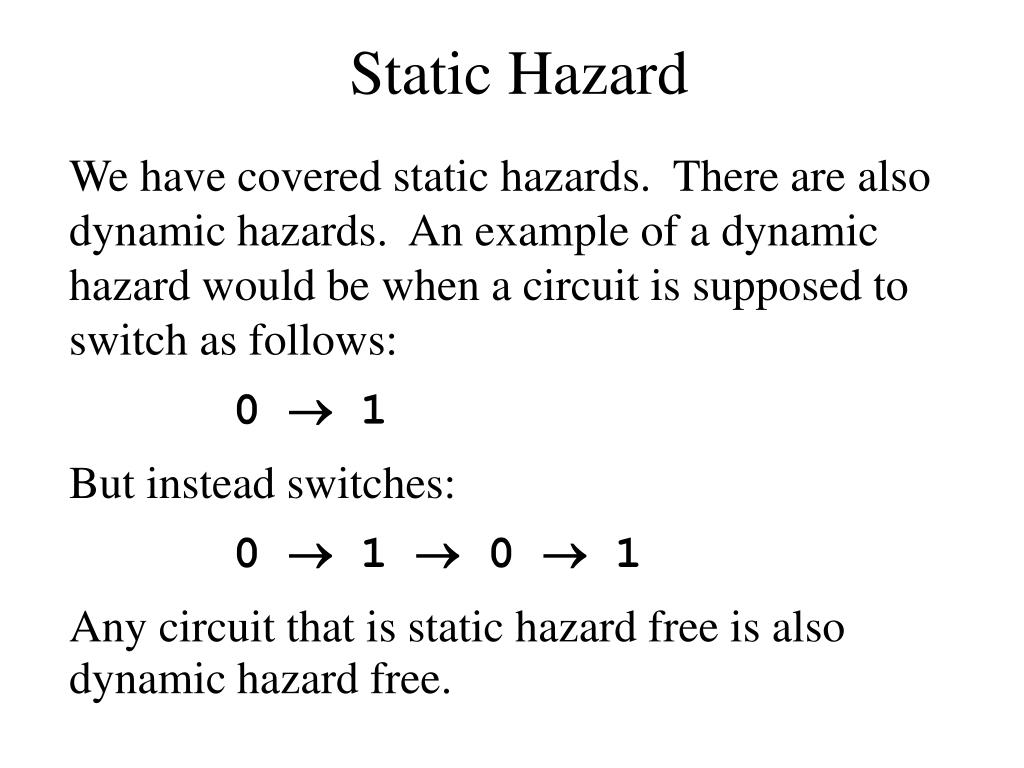

We have covered static hazards. There are also dynamic hazards. An example of a dynamic hazard would be when a circuit is supposed to switch as follows:

0  1

But instead switches:

0  1  0  1

Any circuit that is static hazard free is also dynamic hazard free.

common output stage definitions

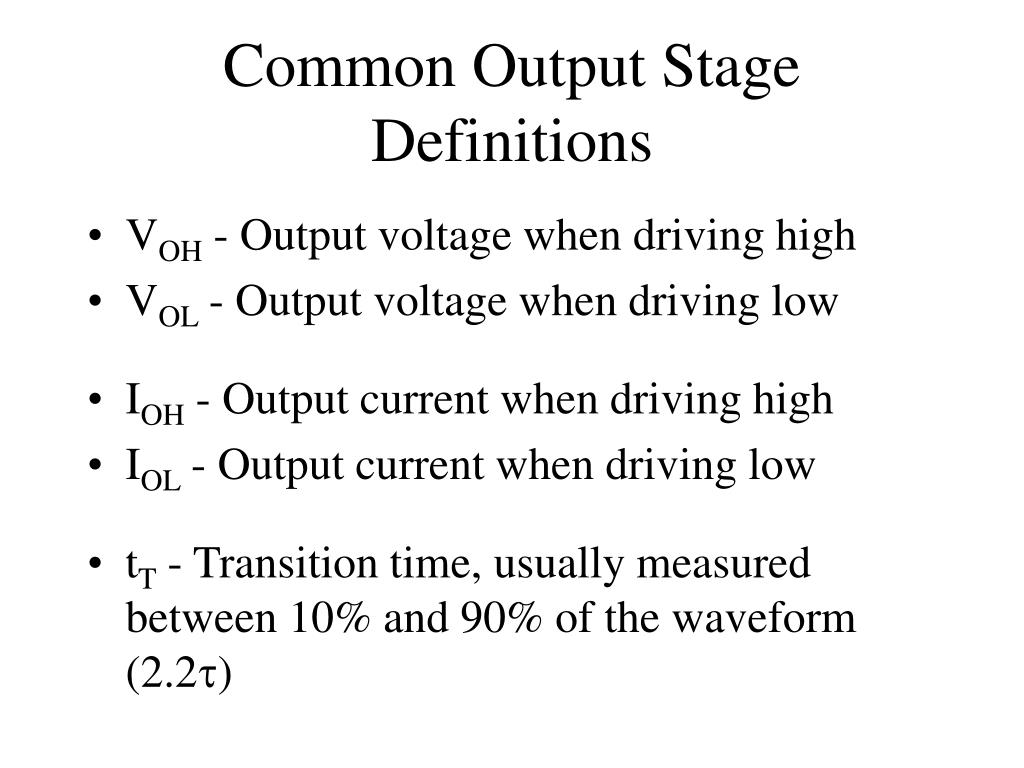

Common Output Stage Definitions
  • VOH - Output voltage when driving high
  • VOL - Output voltage when driving low
  • IOH - Output current when driving high
  • IOL - Output current when driving low
  • tT - Transition time, usually measured between 10% and 90% of the waveform (2.2)
v oh test configuration
VOH Test Configuration

VCC

Output Stage

+

Programmable

Load

i

-

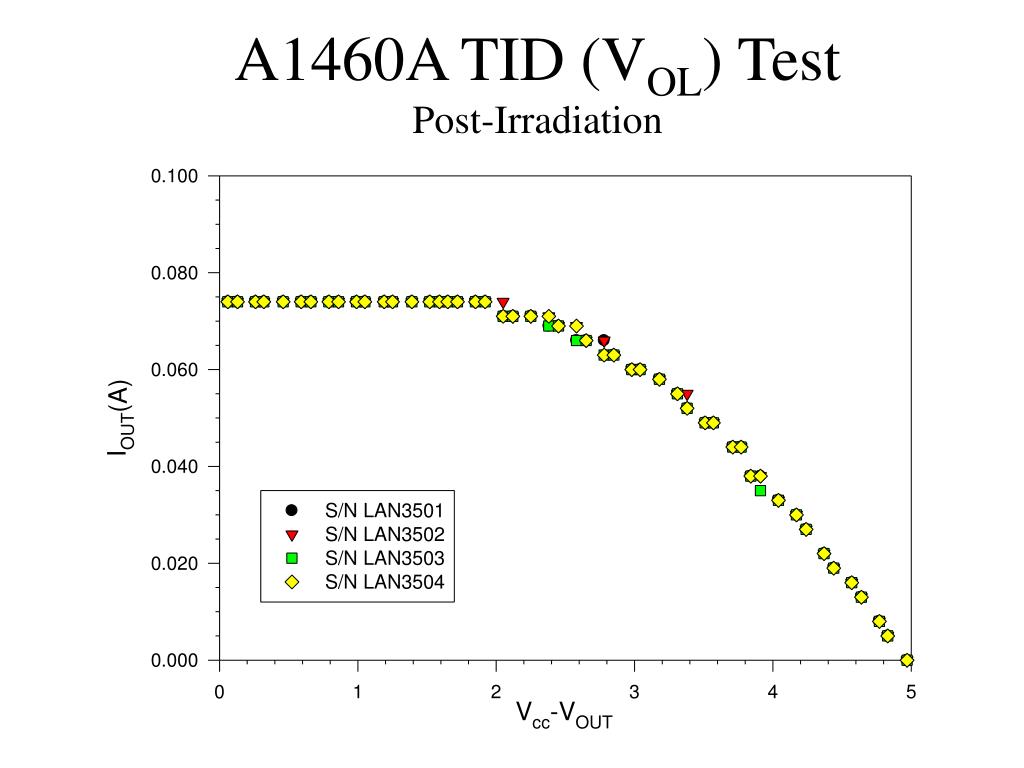

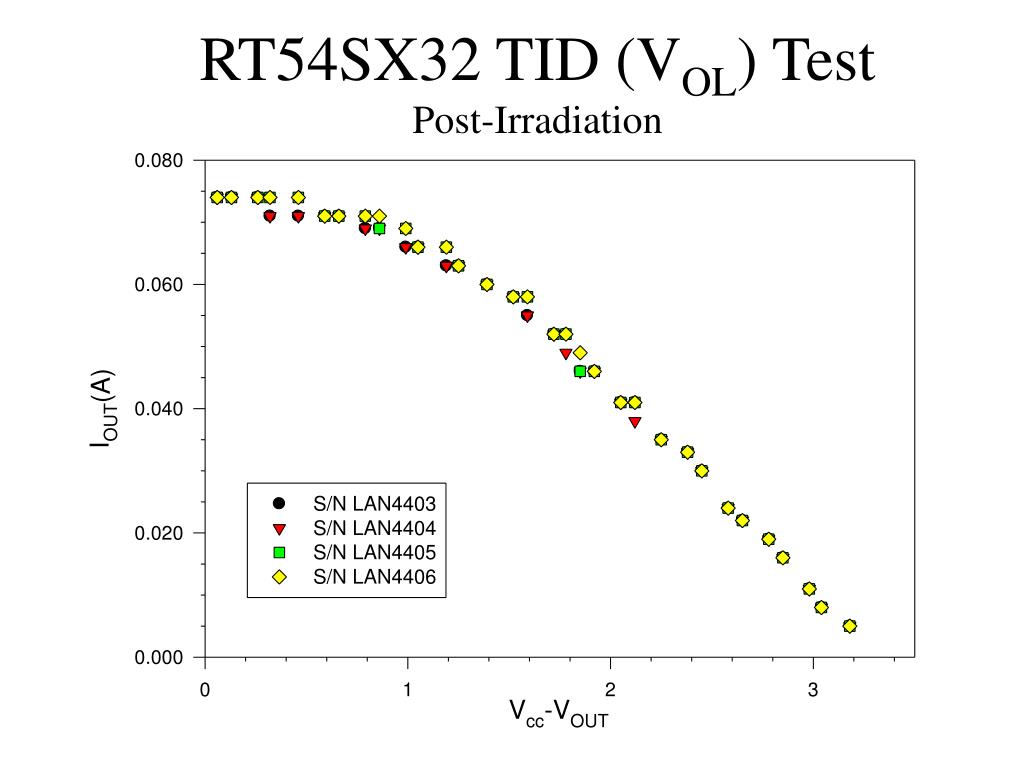

v ol test configuration

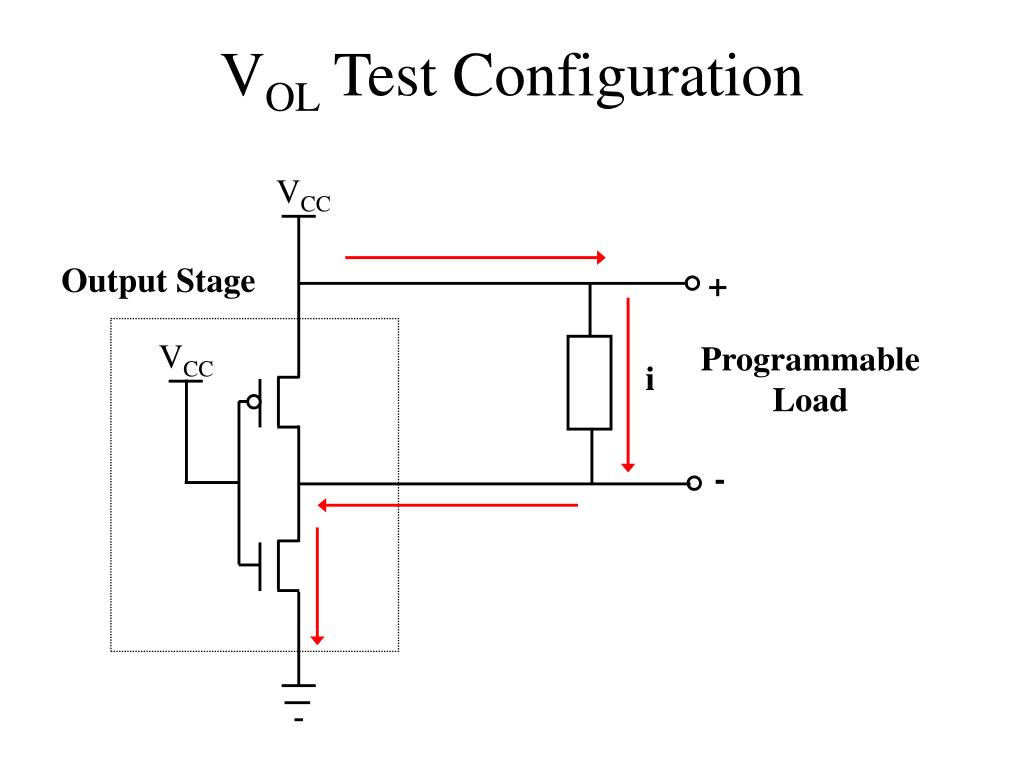

VOL Test Configuration

VCC

Output Stage

+

VCC

Programmable

Load

i

-

common interface levels

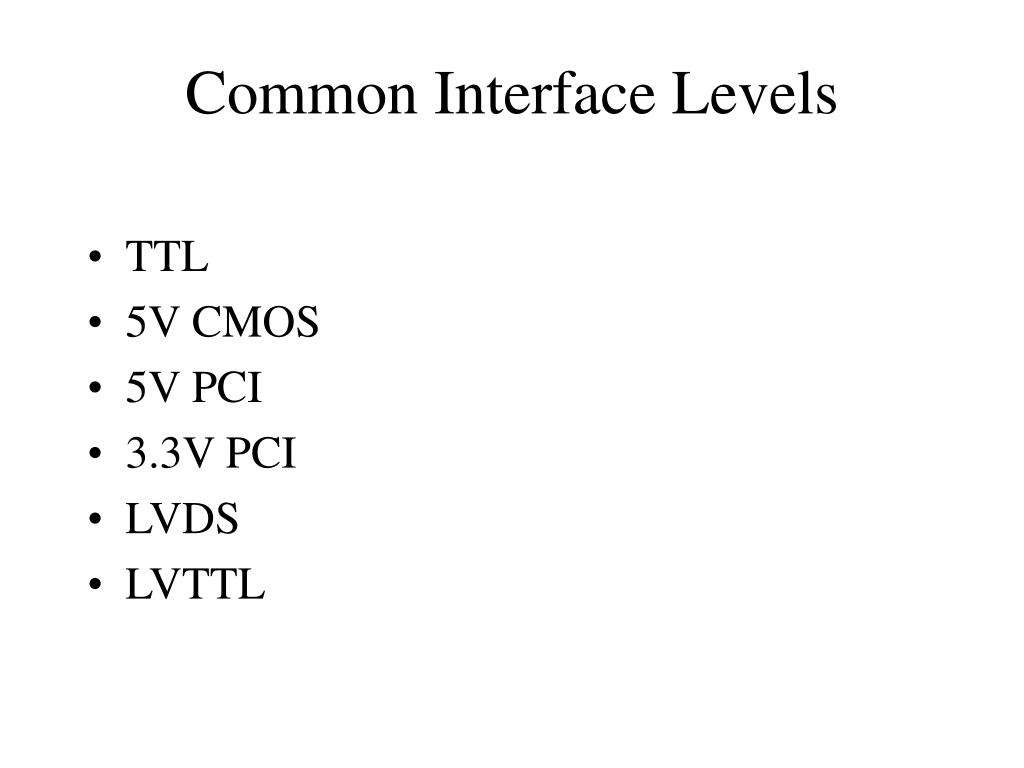

Common Interface Levels
  • TTL
  • 5V CMOS
  • 5V PCI
  • 3.3V PCI
  • LVDS
  • LVTTL
ttl voltage specification

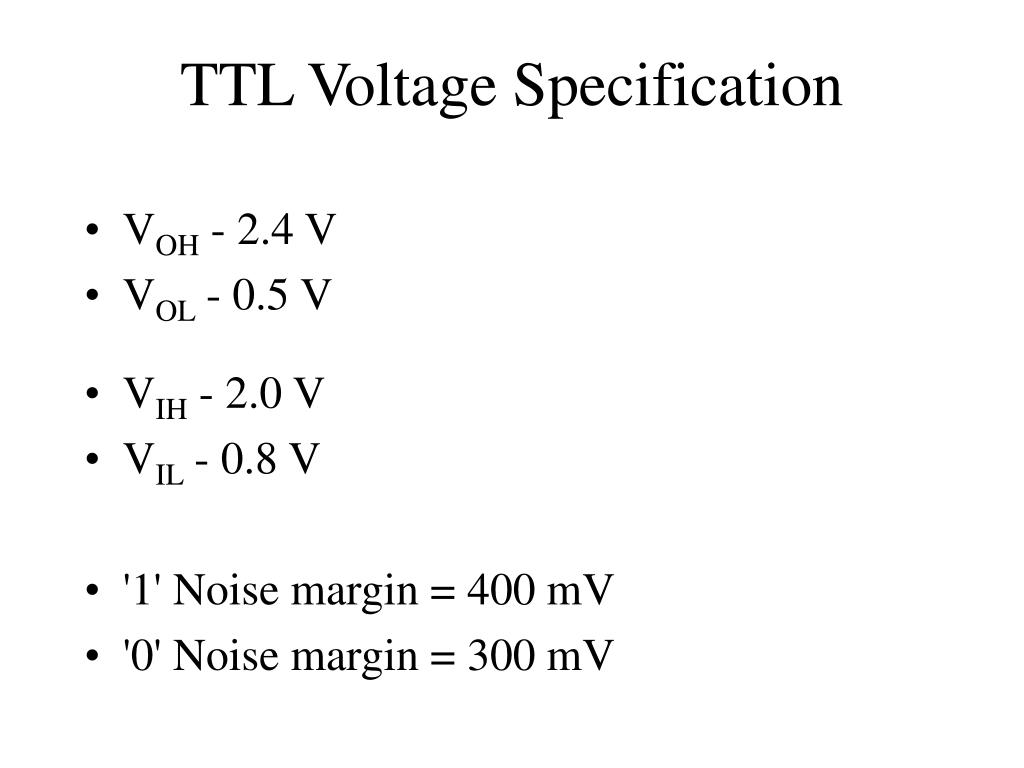

TTL Voltage Specification
  • VOH - 2.4 V
  • VOL - 0.5 V
  • VIH - 2.0 V
  • VIL - 0.8 V
  • '1' Noise margin = 400 mV
  • '0' Noise margin = 300 mV
5v cmos voltages
5V CMOS Voltages
  • VOH - ~VDD (no DC load)
  • VOL - ~GND (No DC load)
  • VIH - 70% VDD
  • VIL - 30% VDD
  • '1' Noise margin = ~30% VDD
  • '0' Noise margin =~30% VDD
