Presentation Transcript
the obermeier software opc snmp agent 3 0

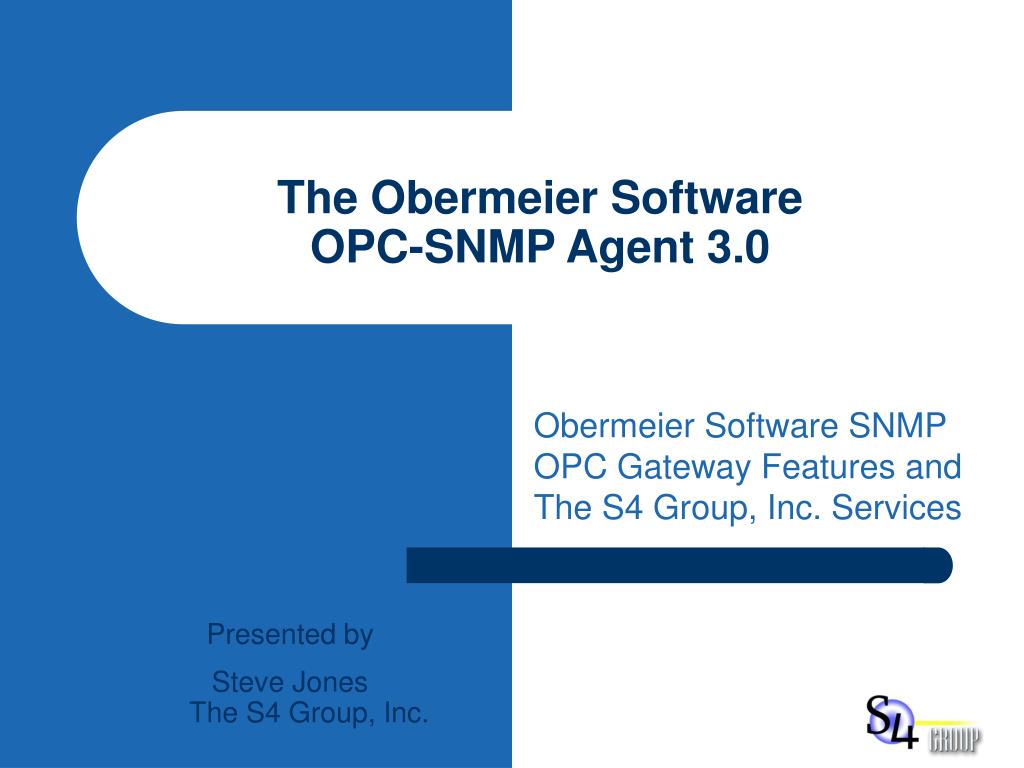

The Obermeier Software OPC-SNMP Agent 3.0

Obermeier Software SNMP OPC Gateway Features and The S4 Group, Inc. Services

Presented by

Steve Jones The S4 Group, Inc.

integrated enterprise management concept
Integrated Enterprise Management Concept

The OPC-SNMP Agent is enabling middleware

  • Integrating Industrial Control, Process Control, or Building Automation with Network / Systems Management, and Business Processes

Single Point of Administration

Integrated Enterprise Management

ERP /

Back Office

Systems

Automation

System(OPC-based)

Network /

Systems

Management

Reducing Costs!

Increasing Reliability!

Enhancing Business Performance!

The S4 Group, Inc. / SNMP OPC Agent

opc snmp agent 3 0 highlights
OPC-SNMP Agent 3.0 Highlights
  • The SNMP OPC Gateway is a family of products
  • Each has it’s own documentation and user interface.
  • Documentation and error messages are improved
  • Installation and administration are greatly simplified
  • Configuration file import and export is via spreadsheet
  • The OPC-SNMP Agent is a full featured SNMP agent supporting Get, Set, and Trap operations

The S4 Group, Inc. / SNMP OPC Agent

opc snmp agent 3 0 features
OPC-SNMP Agent 3.0 Features
  • SNMP Get requests are mapped to OPC Process Point Reads
  • SNMP Set requests are mapped to OPC Process Point Writes
  • OPC Process Point threshold exceptions are mapped to SNMP Traps
  • Custom OEM versions can support OPC Alarm and Event mapping to SNMP Traps

The S4 Group, Inc. / SNMP OPC Agent

process point threshold monitoring
Process Point Threshold Monitoring
  • The Agent monitors configured Process Points for thresholds and creates SNMP Traps
  • The SNMP Variable OID sent with the Trap enables the SNMP Manager to monitor the OPC Process Point in Alarm
  • A standard SNMP MIB allows the SNMP Manager to handle Traps as an array of Process Points in rows with attributes in columns
  • Facilitates the implementation and operation of vendor specific Plug-Ins for SNMP Managers like HP OpenView, IBM Tivoli, or CA Unicenter

The S4 Group, Inc. / SNMP OPC Agent

operations center integration concept
Operations Center Integration Concept

Other SNMP-Devices

Operations

Center

Any commercially available Enterprise Management Software

SNMP

Remote Sites

SNMP-OPC

Server

OPC-SNMP Agent

SNMP

SNMP

SNMP

OPC

Automation

Application

Network Switch / Router

The S4 Group, Inc. / SNMP OPC Agent

flexibility in meeting customer needs
Flexibility in Meeting Customer Needs

The new distribution and licensing structure facilitates either centralized or distributed installations depending on the customer requirements.

The OPC-SNMP Agent base product can threshold monitor 50 OPC Process Points.

Agent expansion options are available in 50 unit increments

The S4 Group, Inc. / SNMP OPC Agent

custom snmp agent 3 0
Custom SNMP Agent 3.0

Automation

Application

A & E / TRAP

Automation

Application

Network /

SystemsManagement

READ / GET

WRITE / SET

OPC DA

PPT THRESHOLD / TRAP

OPC A&E

OPC

SNMP

  • OEM Versions of the Obermeier Software SNMP OPC Agent 3.0 are available for special applications
  • Contains all the standard Agent product features

In this sample OEM application support was added for an OPC A&E Server Interface to publish OPC Alarms and Events as SNMP Traps

Contact The S4 Group, Inc. to discuss specific needs

OEM SNMP

Agent

The S4 Group, Inc. / SNMP OPC Agent

product availability

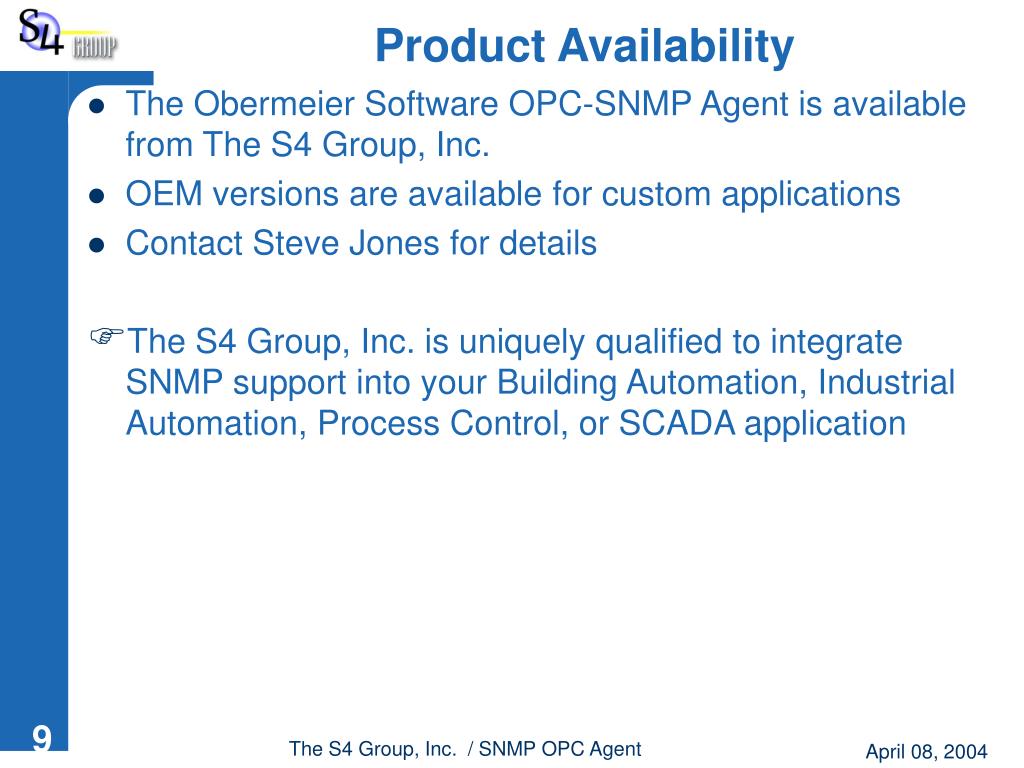

Product Availability
  • The Obermeier Software OPC-SNMP Agent is available from The S4 Group, Inc.
  • OEM versions are available for custom applications
  • Contact Steve Jones for details
  • The S4 Group, Inc. is uniquely qualified to integrate SNMP support into your Building Automation, Industrial Automation, Process Control, or SCADA application

The S4 Group, Inc. / SNMP OPC Agent

the s4 group inc services
The S4 Group, Inc. Services
  • Management Consulting
  • Process Reengineering
  • Network Services
  • System Architectural Design
  • System Integration and Testing
  • Product testing and evaluation in our systems Lab
  • Iconics System Integrator Program Services
  • Custom applications with Obermeier SNMP OPC Gateway products

.... And many more

The S4 Group, Inc. / SNMP OPC Agent

the s4 group inc company profile
The S4 Group, Inc. Company Profile
  • The S4 Group, Inc was founded by Steven E. Jones after years of experience with telecommunications carriers, networking vendors, and system integration companies in both the government and commercial sectors.
    • The early years of his career were in the telecommunications industry with Bell Laboratories, Siemens Corporation, and TRT Telecommunications designing and developing industry specific applications.
    • More recent experience was in senior management positions with system integration companies providing IT facilities management, and Network integration, management, and outsourcing services.
  • Before forming S4 Mr. Jones held multiple positions with Johnson Controls, Inc. Controls Group.
    • As Manager, Architecture and Planning for the IT Communications team he played a key role in the design, implementation, operations, and management of the corporation-wide WAN.
    • As Controls Group Representative for the Global Telecommunications and Connectivity team he influenced corporation-wide networking and telecommunications standards
    • As a senior member of their System Integration Services group he focused on developing enterprise solutions and integrating the Metasys® Building Automation System into customers’ IT environments, network infrastructure, and management platforms.
    • In this capacity, he led the effort to SNMP enable the Johnson Controls Metasys ® BAS.
  • S4 is vendor agnostic and will not enter into exclusive or anti-competitive relationships.
  • We will actively seek out and establish strategic partnerships where combining the joint skills of both organizations are more beneficial to our customers than either organization could deliver on their own.
  • S4 understands that in order to be successful with these goals we need to very carefully manage proprietary and partner company confidential information using the same degree of diligence as if they were originated by S4.

The S4 Group, Inc. / SNMP OPC Agent

the logical choice
The Logical Choice

Obermeier SNMP OPC Gateway Products

and

The S4 Group, Inc. Integration Services

A complete SNMP Integration Solution

for Automation Systems Needs.

For additional information please contact:

The S4 Group, Inc.

(801) 621 1970

(414) 828 0166

sejones@thes4group.com

http://www.thes4group.com

The S4 Group, Inc. / SNMP OPC Agent
