Rubber Tips are a line of replaceable Pick Up Tools that can cater to a wide range of different applications. One of the main benefits its ability to absorb the impact that the Pick and Place process may have on the die or device. Read more : https://oricus-semicon.com/

Ainsley2
Download Presentation

Rubber Tips - Oricus Semicon

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rubber Tips Our Rubber Tip Designs www.oricus-semicon.com

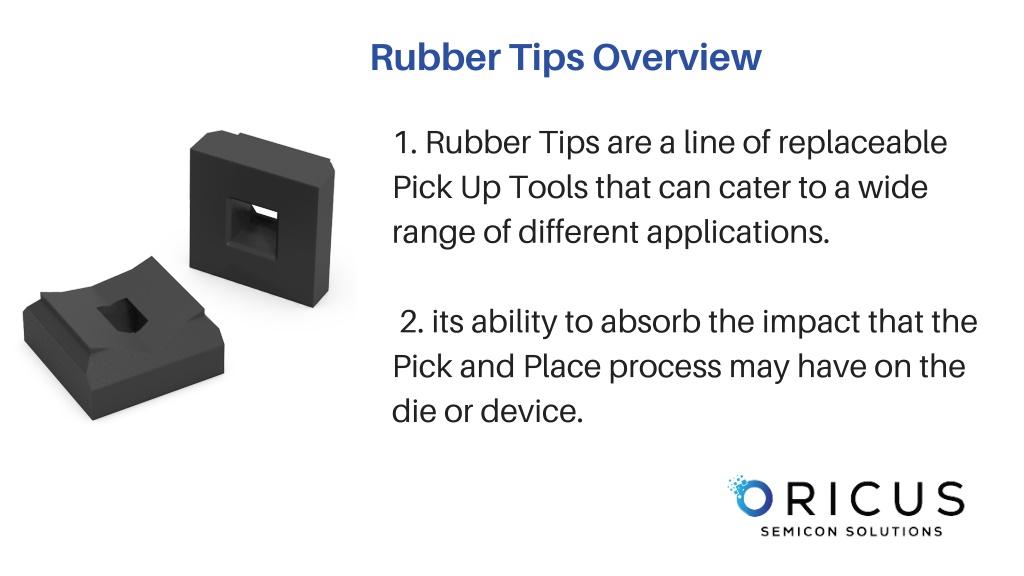

  2. Rubber Tips Overview 1.RubberTipsarealineofreplaceable PickUpToolsthatcancatertoawide rangeofdifferentapplications. 2.itsabilitytoabsorbtheimpactthatthe PickandPlaceprocessmayhaveonthe dieordevice.

  3. Our Rubber Tip Designs FlatTips VacuumReliefTips GrooveTips MatrixTips SideContactTips 1. 2. 3. 4. 5.

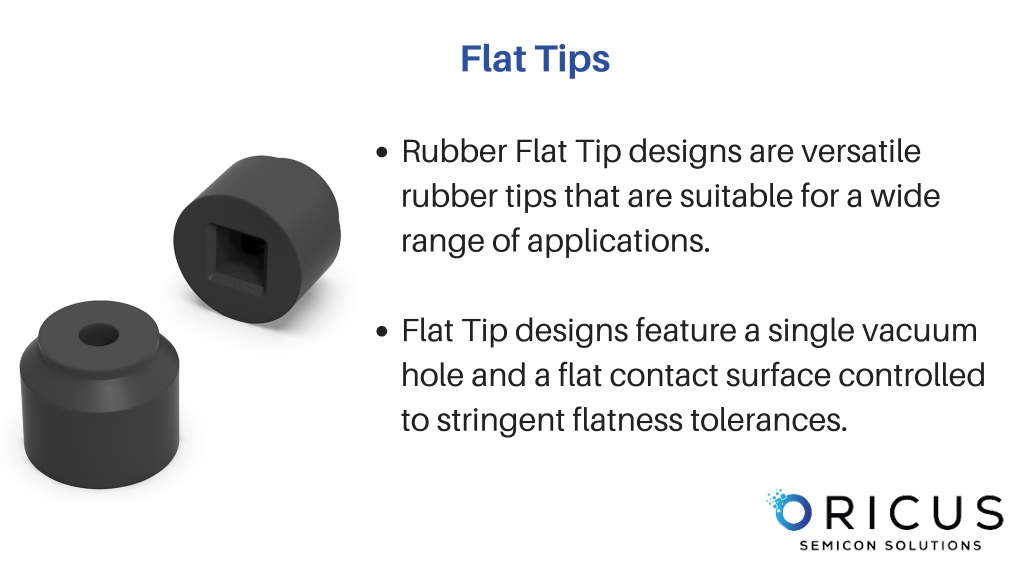

  4. Flat Tips RubberFlatTipdesignsareversatile rubbertipsthataresuitableforawide rangeofapplications. FlatTipdesignsfeatureasinglevacuum holeandaflatcontactsurfacecontrolled tostringentflatnesstolerances.

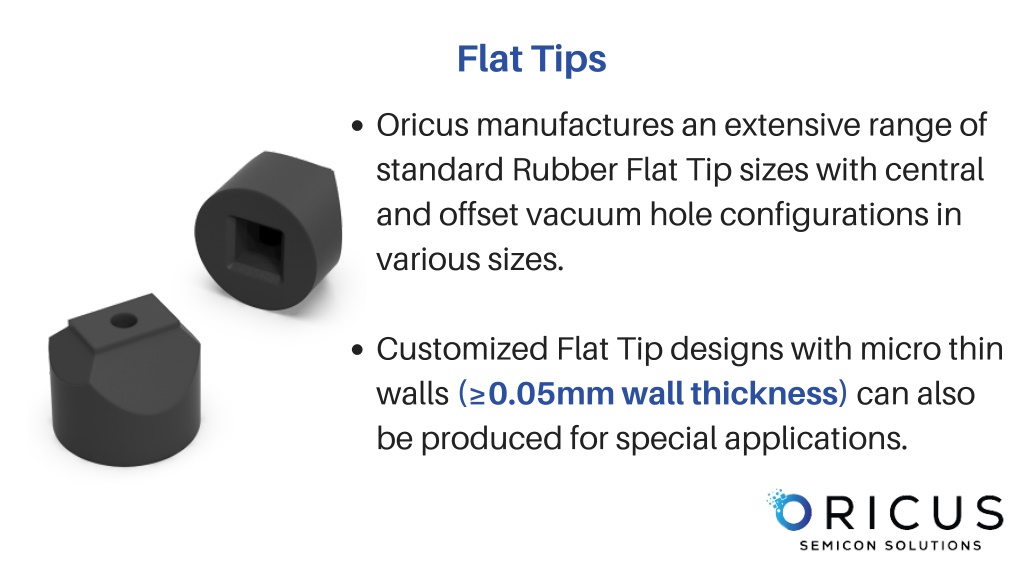

  5. Flat Tips Oricusmanufacturesanextensiverangeof standardRubberFlatTipsizeswithcentral andoffsetvacuumholeconfigurationsin varioussizes. CustomizedFlatTipdesignswithmicrothin walls(≥0.05mm wall thickness)canalso beproducedforspecialapplications.

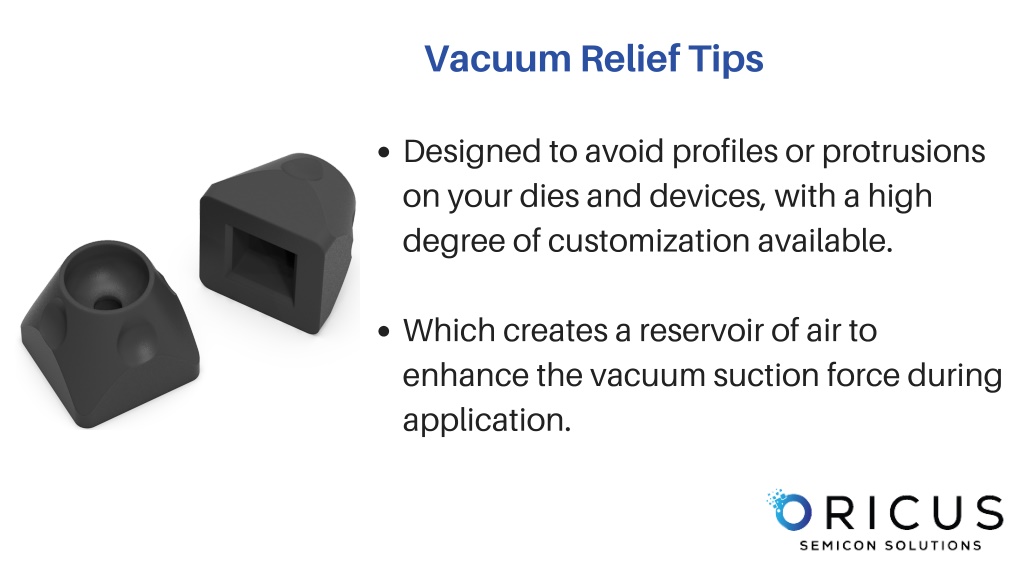

  6. Vacuum Relief Tips Designedtoavoidprofilesorprotrusions onyourdiesanddevices,withahigh degreeofcustomizationavailable. Whichcreatesareservoirofairto enhancethevacuumsuctionforceduring application.

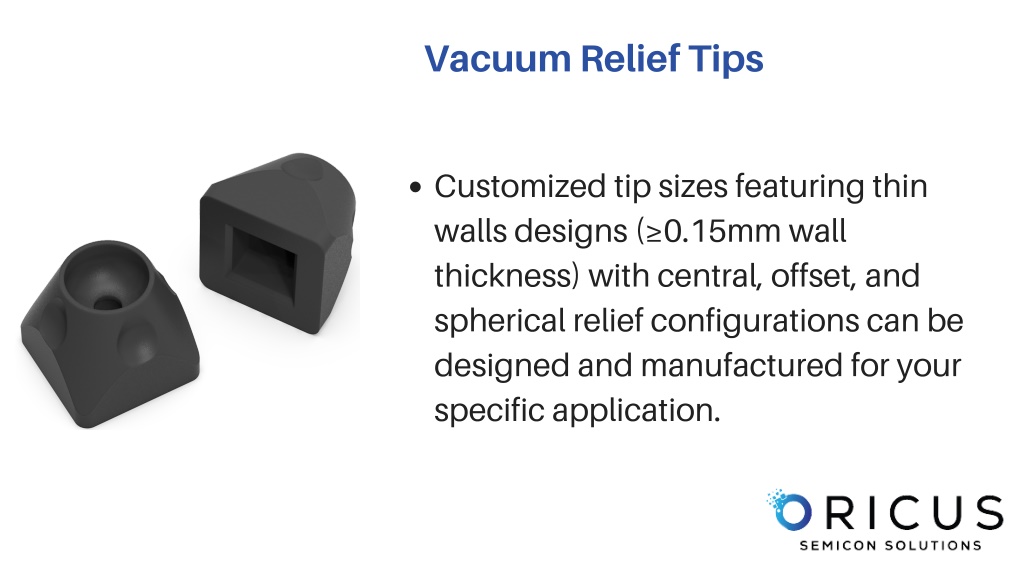

  7. Vacuum Relief Tips Customizedtipsizesfeaturingthin wallsdesigns (≥0.15mmwall thickness) withcentral,offset,and sphericalreliefconfigurationscanbe designedandmanufacturedforyour specificapplication.

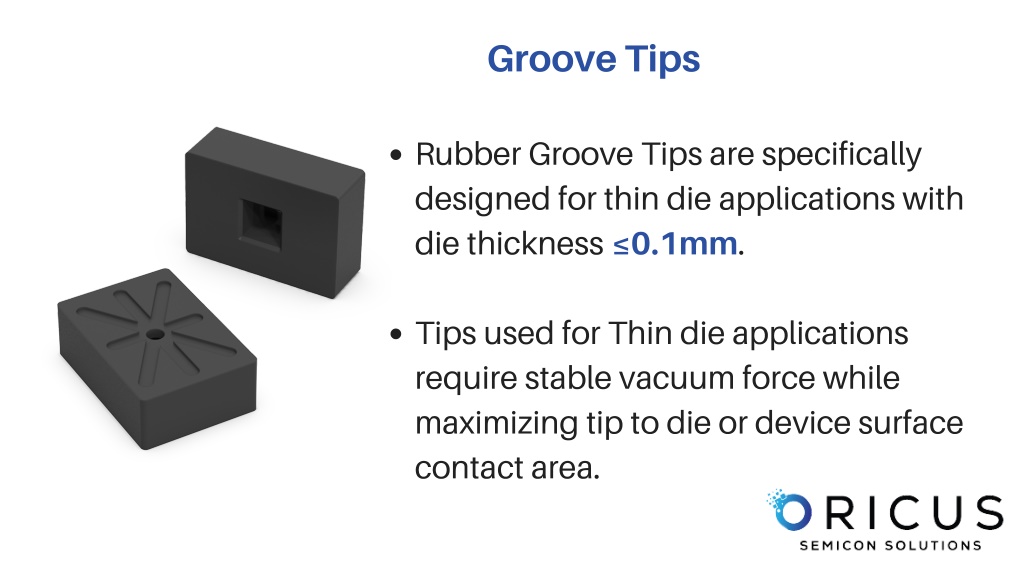

  8. Groove Tips RubberGrooveTipsarespecifically designedforthindieapplicationswith diethickness≤0.1mm. TipsusedforThindieapplications requirestablevacuumforcewhile maximizingtiptodieordevicesurface contactarea.

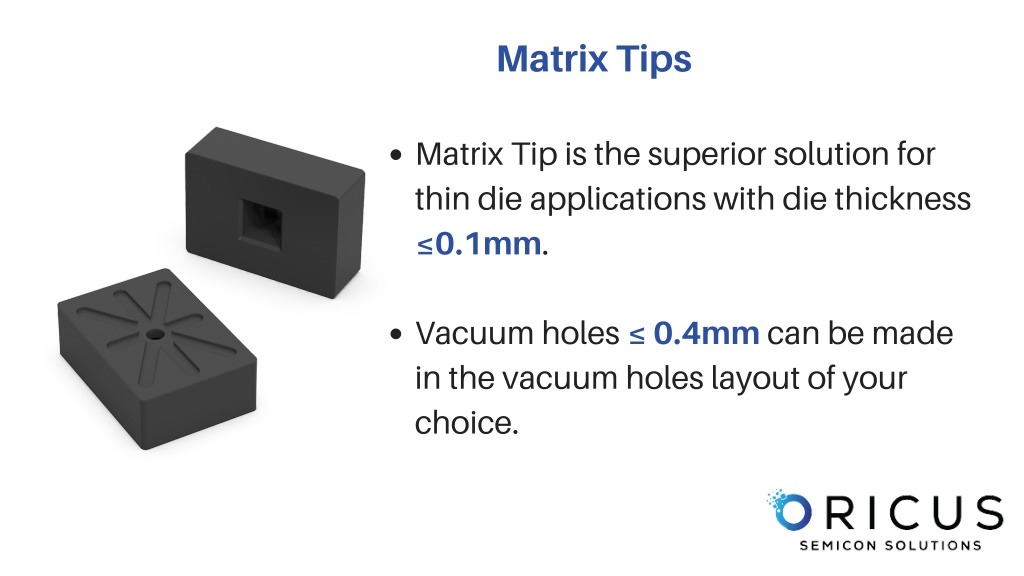

  9. Matrix Tips MatrixTipisthesuperiorsolutionfor thindieapplicationswithdiethickness ≤0.1mm. Vacuumholes≤ 0.4mmcanbemade inthevacuumholeslayoutofyour choice.

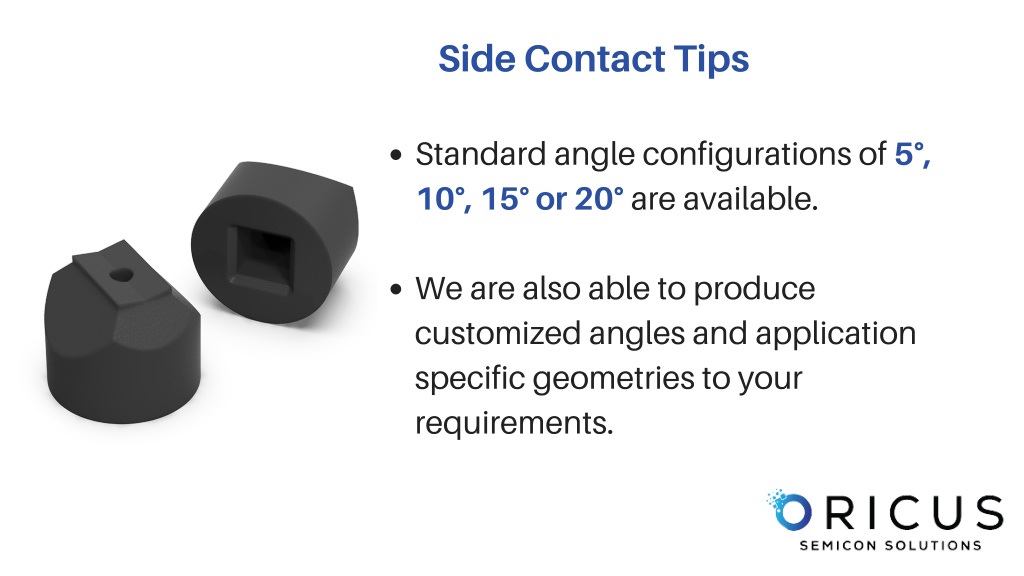

  10. Side Contact Tips Standardangleconfigurationsof5°, 10°, 15° or 20°areavailable. Wearealsoabletoproduce customizedanglesandapplication specificgeometriestoyour requirements.
