Understanding Right Angle Couplers: A Comprehensive Guide

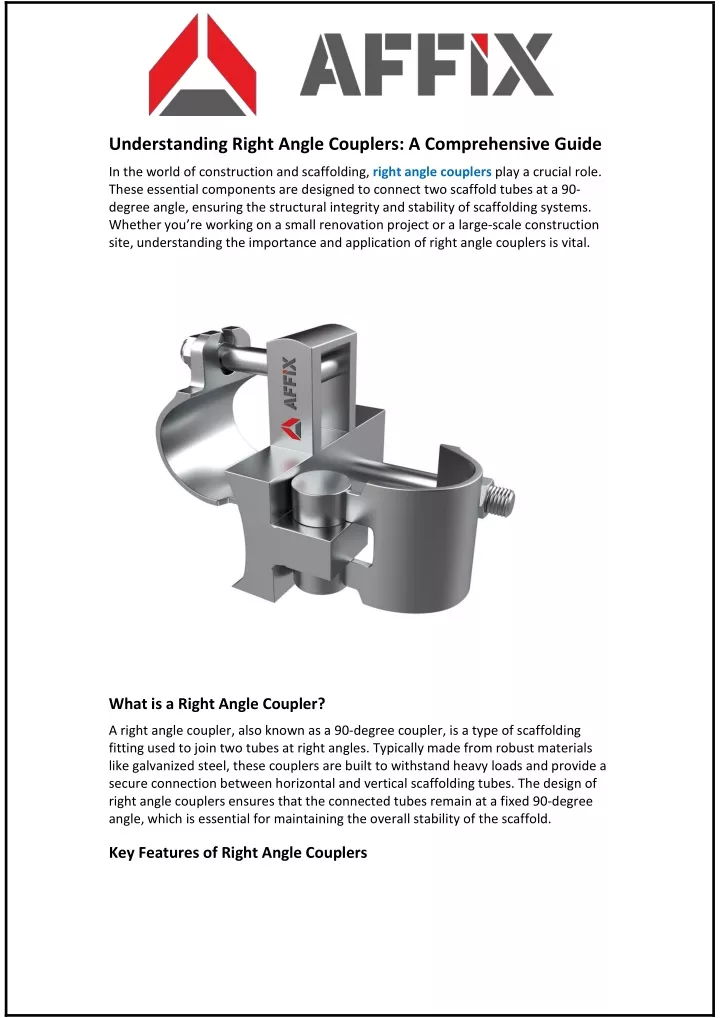

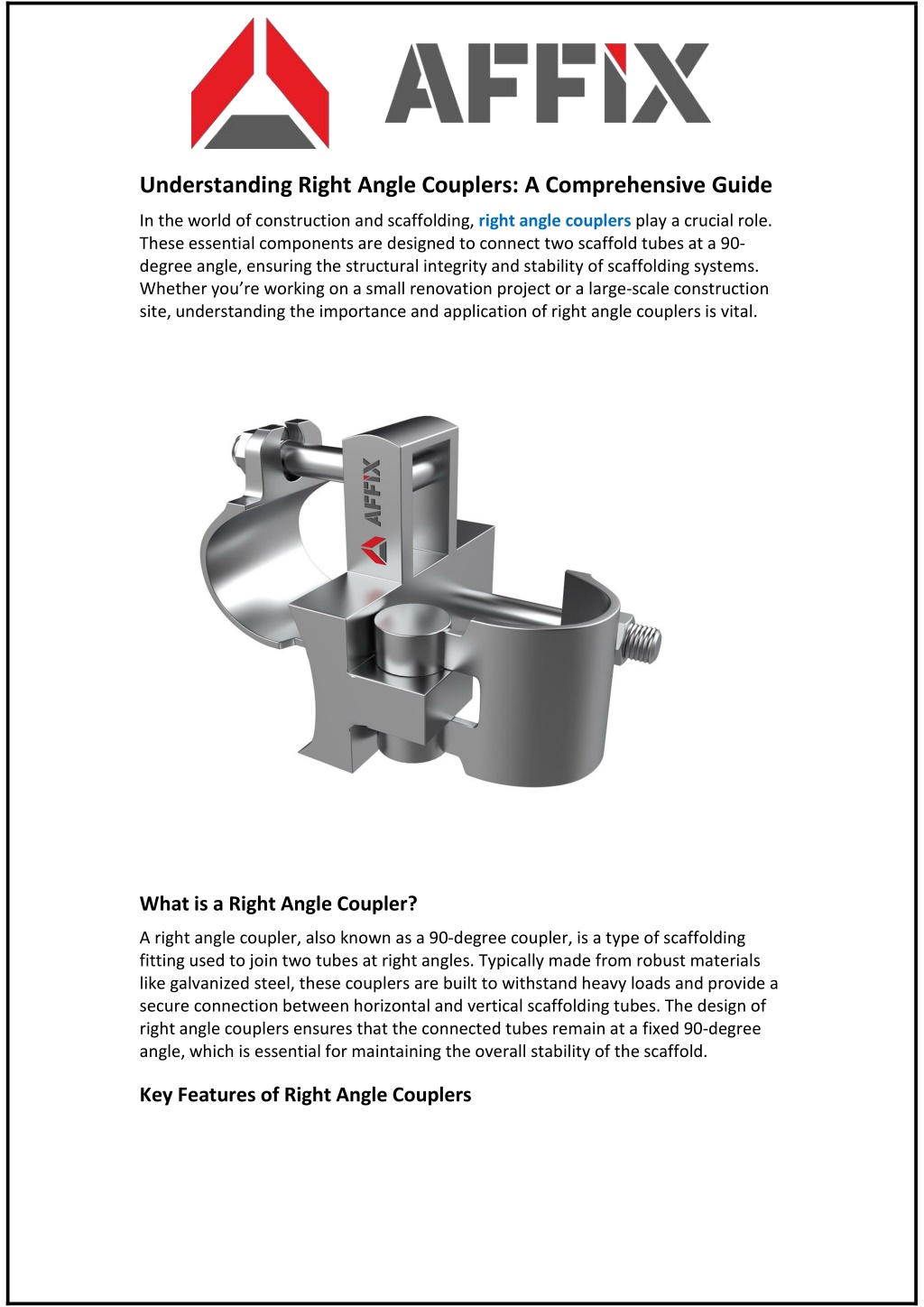

1. Understanding Right Angle Couplers: A Comprehensive Guide In the world of construction and scaffolding, right angle couplers play a crucial role. These essential components are designed to connect two scaffold tubes at a 90- degree angle, ensuring the structural integrity and stability of scaffolding systems. Whether you’re working on a small renovation project or a large-scale construction site, understanding the importance and application of right angle couplers is vital. What is a Right Angle Coupler? A right angle coupler, also known as a 90-degree coupler, is a type of scaffolding fitting used to join two tubes at right angles. Typically made from robust materials like galvanized steel, these couplers are built to withstand heavy loads and provide a secure connection between horizontal and vertical scaffolding tubes. The design of right angle couplers ensures that the connected tubes remain at a fixed 90-degree angle, which is essential for maintaining the overall stability of the scaffold. Key Features of Right Angle Couplers

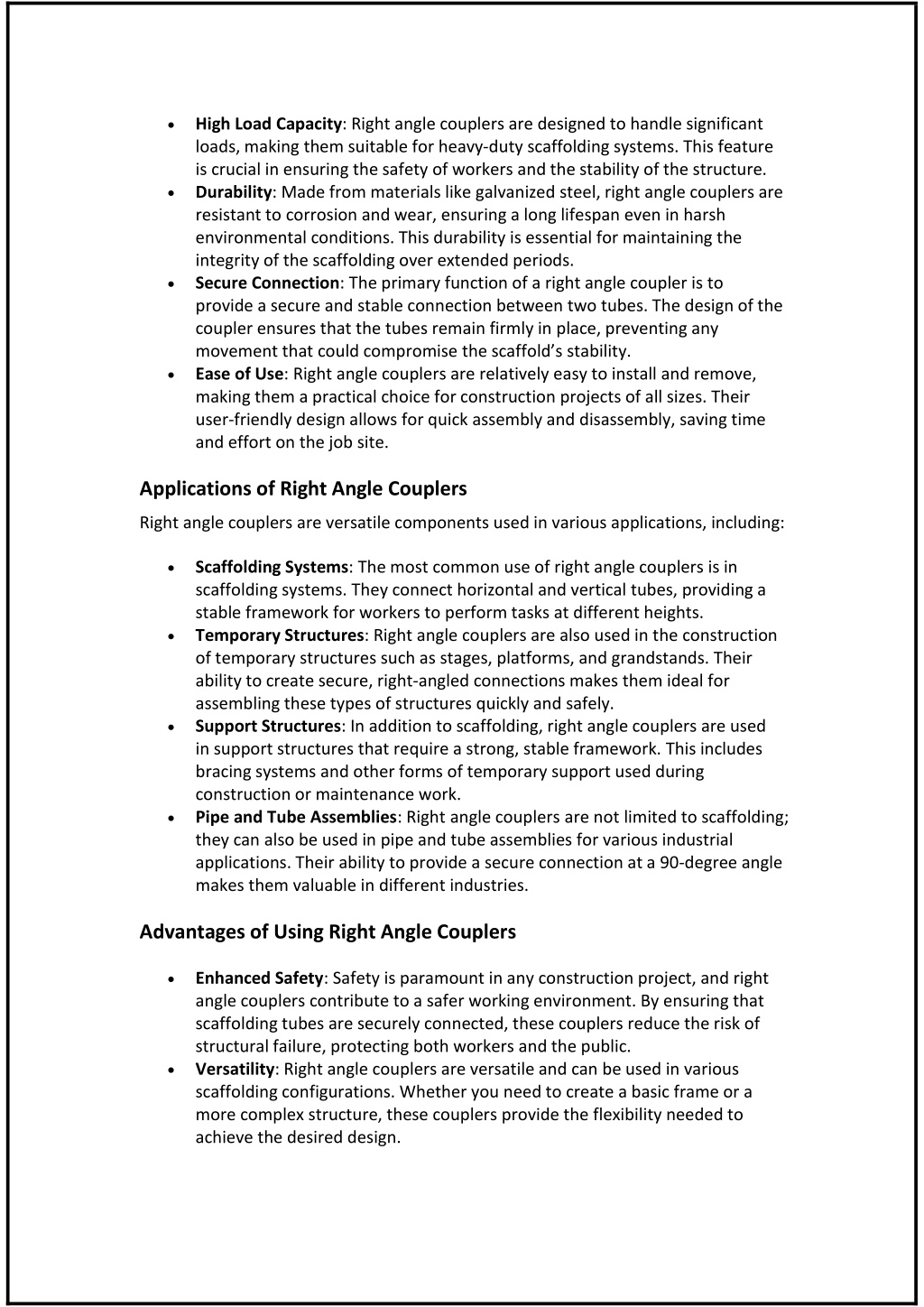

2.  High Load Capacity: Right angle couplers are designed to handle significant loads, making them suitable for heavy-duty scaffolding systems. This feature is crucial in ensuring the safety of workers and the stability of the structure. Durability: Made from materials like galvanized steel, right angle couplers are resistant to corrosion and wear, ensuring a long lifespan even in harsh environmental conditions. This durability is essential for maintaining the integrity of the scaffolding over extended periods. Secure Connection: The primary function of a right angle coupler is to provide a secure and stable connection between two tubes. The design of the coupler ensures that the tubes remain firmly in place, preventing any movement that could compromise the scaffold’s stability. Ease of Use: Right angle couplers are relatively easy to install and remove, making them a practical choice for construction projects of all sizes. Their user-friendly design allows for quick assembly and disassembly, saving time and effort on the job site.    Applications of Right Angle Couplers Right angle couplers are versatile components used in various applications, including:  Scaffolding Systems: The most common use of right angle couplers is in scaffolding systems. They connect horizontal and vertical tubes, providing a stable framework for workers to perform tasks at different heights. Temporary Structures: Right angle couplers are also used in the construction of temporary structures such as stages, platforms, and grandstands. Their ability to create secure, right-angled connections makes them ideal for assembling these types of structures quickly and safely. Support Structures: In addition to scaffolding, right angle couplers are used in support structures that require a strong, stable framework. This includes bracing systems and other forms of temporary support used during construction or maintenance work. Pipe and Tube Assemblies: Right angle couplers are not limited to scaffolding; they can also be used in pipe and tube assemblies for various industrial applications. Their ability to provide a secure connection at a 90-degree angle makes them valuable in different industries.    Advantages of Using Right Angle Couplers  Enhanced Safety: Safety is paramount in any construction project, and right angle couplers contribute to a safer working environment. By ensuring that scaffolding tubes are securely connected, these couplers reduce the risk of structural failure, protecting both workers and the public. Versatility: Right angle couplers are versatile and can be used in various scaffolding configurations. Whether you need to create a basic frame or a more complex structure, these couplers provide the flexibility needed to achieve the desired design. 

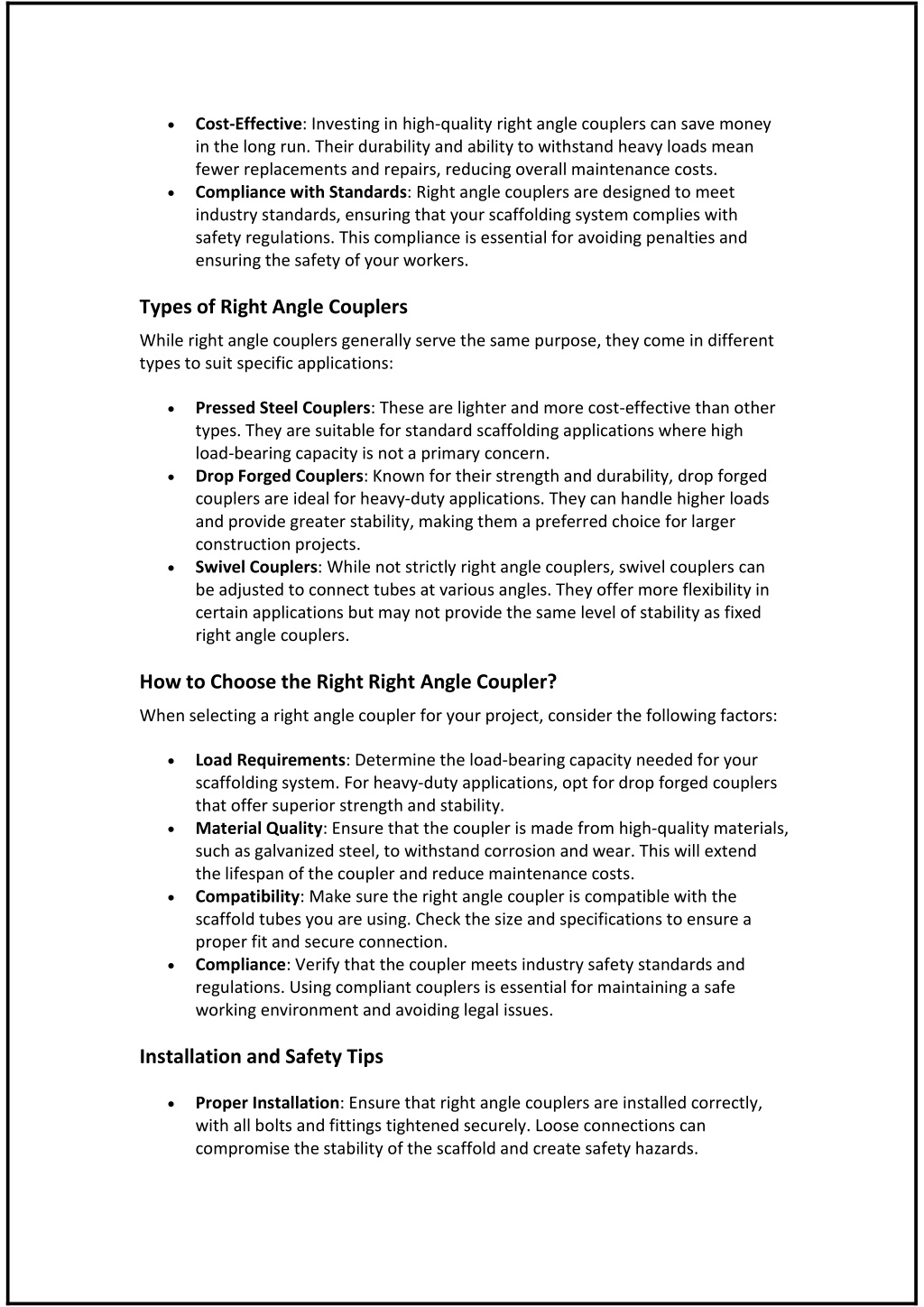

3.  Cost-Effective: Investing in high-quality right angle couplers can save money in the long run. Their durability and ability to withstand heavy loads mean fewer replacements and repairs, reducing overall maintenance costs. Compliance with Standards: Right angle couplers are designed to meet industry standards, ensuring that your scaffolding system complies with safety regulations. This compliance is essential for avoiding penalties and ensuring the safety of your workers.  Types of Right Angle Couplers While right angle couplers generally serve the same purpose, they come in different types to suit specific applications:  Pressed Steel Couplers: These are lighter and more cost-effective than other types. They are suitable for standard scaffolding applications where high load-bearing capacity is not a primary concern. Drop Forged Couplers: Known for their strength and durability, drop forged couplers are ideal for heavy-duty applications. They can handle higher loads and provide greater stability, making them a preferred choice for larger construction projects. Swivel Couplers: While not strictly right angle couplers, swivel couplers can be adjusted to connect tubes at various angles. They offer more flexibility in certain applications but may not provide the same level of stability as fixed right angle couplers.   How to Choose the Right Right Angle Coupler? When selecting a right angle coupler for your project, consider the following factors:  Load Requirements: Determine the load-bearing capacity needed for your scaffolding system. For heavy-duty applications, opt for drop forged couplers that offer superior strength and stability. Material Quality: Ensure that the coupler is made from high-quality materials, such as galvanized steel, to withstand corrosion and wear. This will extend the lifespan of the coupler and reduce maintenance costs. Compatibility: Make sure the right angle coupler is compatible with the scaffold tubes you are using. Check the size and specifications to ensure a proper fit and secure connection. Compliance: Verify that the coupler meets industry safety standards and regulations. Using compliant couplers is essential for maintaining a safe working environment and avoiding legal issues.    Installation and Safety Tips  Proper Installation: Ensure that right angle couplers are installed correctly, with all bolts and fittings tightened securely. Loose connections can compromise the stability of the scaffold and create safety hazards.

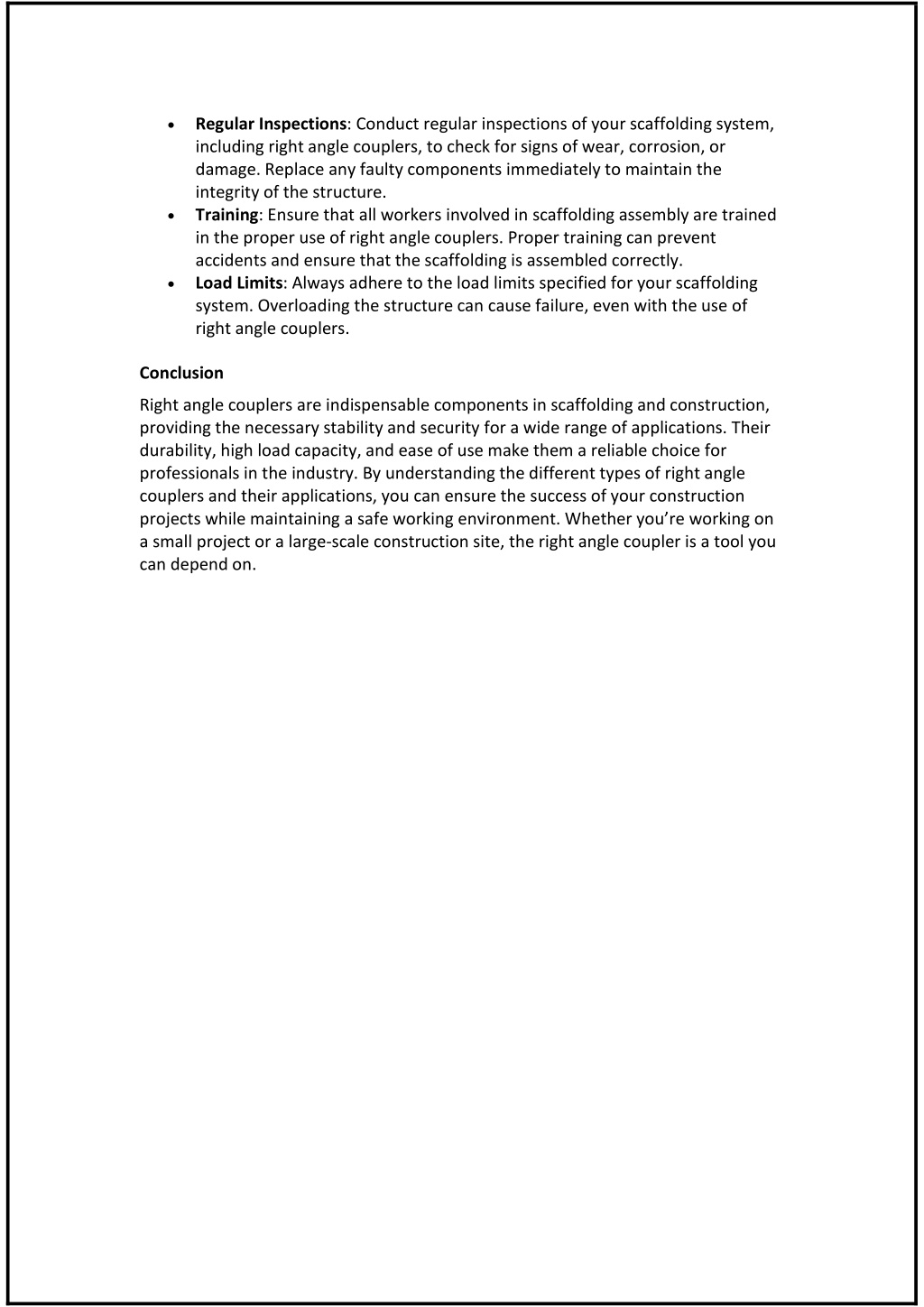

4.  Regular Inspections: Conduct regular inspections of your scaffolding system, including right angle couplers, to check for signs of wear, corrosion, or damage. Replace any faulty components immediately to maintain the integrity of the structure. Training: Ensure that all workers involved in scaffolding assembly are trained in the proper use of right angle couplers. Proper training can prevent accidents and ensure that the scaffolding is assembled correctly. Load Limits: Always adhere to the load limits specified for your scaffolding system. Overloading the structure can cause failure, even with the use of right angle couplers.   Conclusion Right angle couplers are indispensable components in scaffolding and construction, providing the necessary stability and security for a wide range of applications. Their durability, high load capacity, and ease of use make them a reliable choice for professionals in the industry. By understanding the different types of right angle couplers and their applications, you can ensure the success of your construction projects while maintaining a safe working environment. Whether you’re working on a small project or a large-scale construction site, the right angle coupler is a tool you can depend on.
