Hire Access Platforms

AerialPlatForms is one of the best leading loading platform systems for hire. We provide Cherry Picker Hire, Boom Lift Hire, Scissor Lift Hire, Telehandlers & more. for more information contact us.<br>

AerialPlatformsLtd
Download Presentation

Hire Access Platforms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AERIAL PLATFORMS LTD

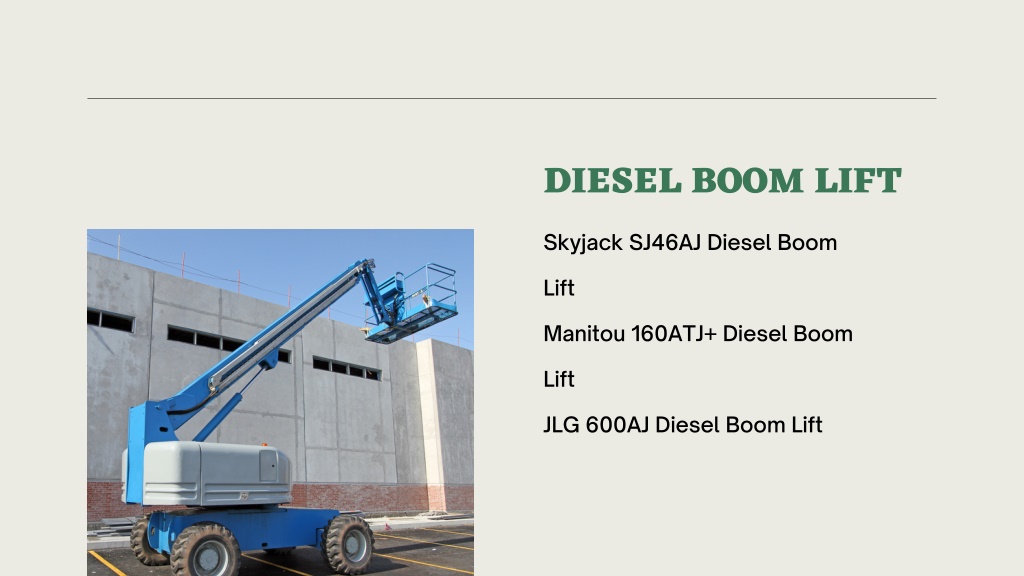

  2. DIESEL BOOM LIFT Skyjack SJ46AJ Diesel Boom Lift Manitou 160ATJ+ Diesel Boom Lift JLG 600AJ Diesel Boom Lift

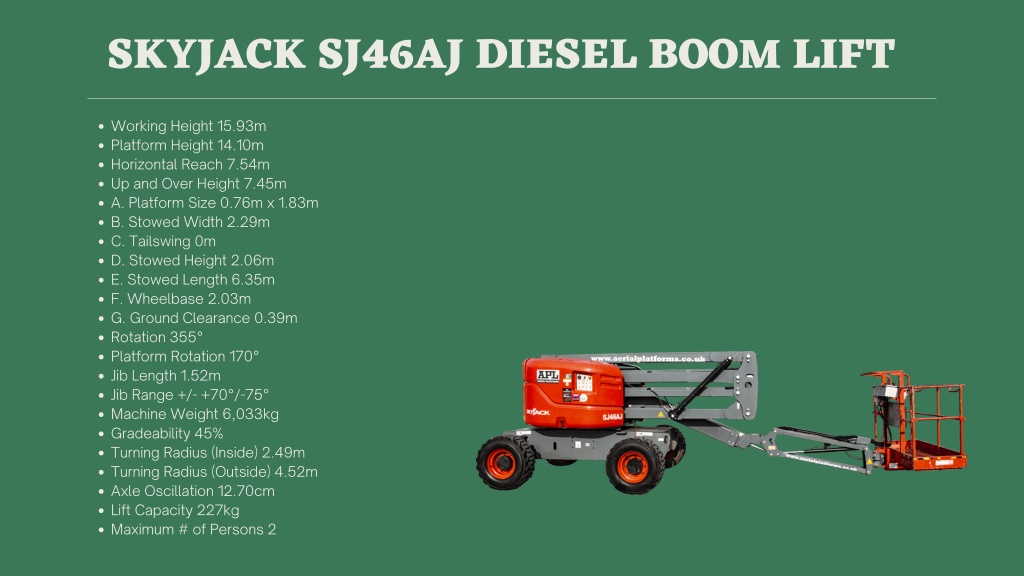

  3. SKYJACK SJ46AJ DIESEL BOOM LIFT Working Height 15.93m Platform Height 14.10m Horizontal Reach 7.54m Up and Over Height 7.45m A. Platform Size 0.76m x 1.83m B. Stowed Width 2.29m C. Tailswing 0m D. Stowed Height 2.06m E. Stowed Length 6.35m F. Wheelbase 2.03m G. Ground Clearance 0.39m Rotation 355° Platform Rotation 170° Jib Length 1.52m Jib Range +/-+70°/-75° Machine Weight 6,033kg Gradeability 45% Turning Radius (Inside) 2.49m Turning Radius (Outside) 4.52m Axle Oscillation 12.70cm Lift Capacity 227kg Maximum # of Persons 2

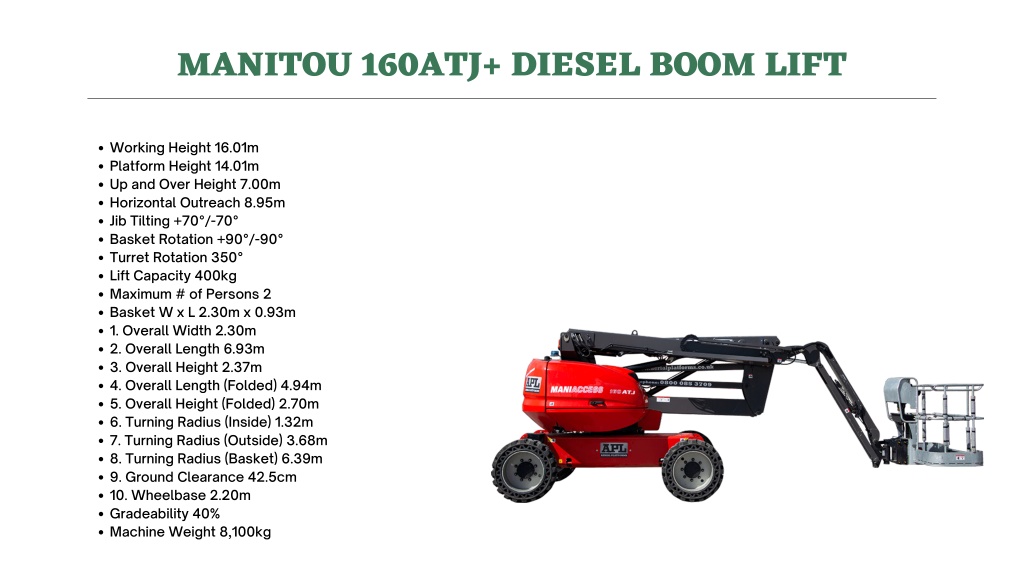

  4. MANITOU 160ATJ+ DIESEL BOOM LIFT Working Height 16.01m Platform Height 14.01m Up and Over Height 7.00m Horizontal Outreach 8.95m Jib Tilting +70°/-70° Basket Rotation +90°/-90° Turret Rotation 350° Lift Capacity 400kg Maximum # of Persons 2 Basket W x L 2.30m x 0.93m 1. Overall Width 2.30m 2. Overall Length 6.93m 3. Overall Height 2.37m 4. Overall Length (Folded) 4.94m 5. Overall Height (Folded) 2.70m 6. Turning Radius (Inside) 1.32m 7. Turning Radius (Outside) 3.68m 8. Turning Radius (Basket) 6.39m 9. Ground Clearance 42.5cm 10. Wheelbase 2.20m Gradeability 40% Machine Weight 8,100kg

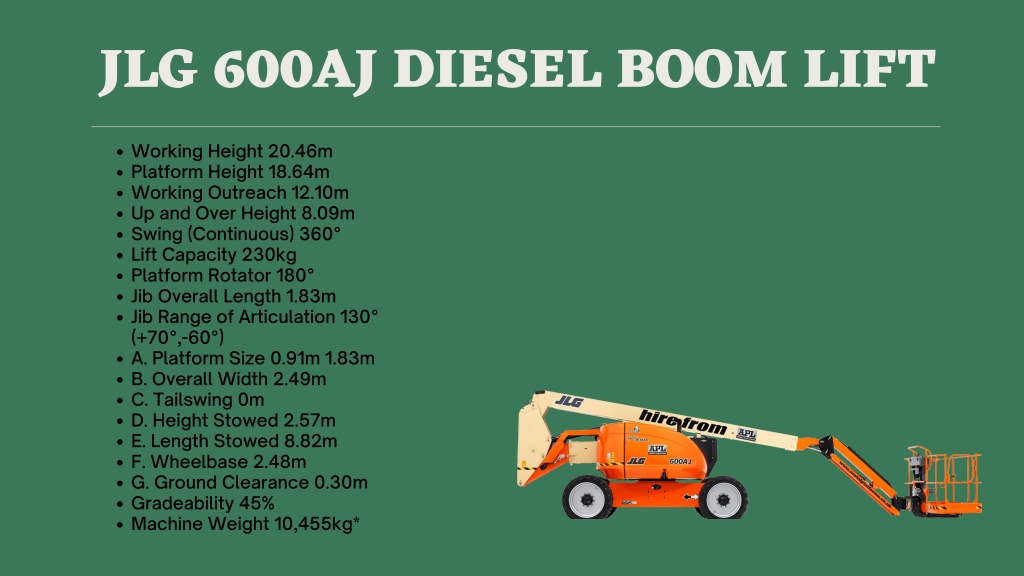

  5. JLG 600AJ DIESEL BOOM LIFT Working Height 20.46m Platform Height 18.64m Working Outreach 12.10m Up and Over Height 8.09m Swing (Continuous) 360° Lift Capacity 230kg Platform Rotator 180° Jib Overall Length 1.83m Jib Range of Articulation 130° (+70°,-60°) A. Platform Size 0.91m 1.83m B. Overall Width 2.49m C. Tailswing 0m D. Height Stowed 2.57m E. Length Stowed 8.82m F. Wheelbase 2.48m G. Ground Clearance 0.30m Gradeability 45% Machine Weight 10,455kg*

  6. CONTACT US Email: info@aerialplatforms.co.uk Address: Head Office Denebrook Court Greenfold Way, Leigh, Greater Manchester Website: www.aerialplatforms.co.uk/

  7. THANK YOU
