  1. About Us We’re recognized as one of the leading privately owned single source MEWP rental companies in the UK, dedicated to making powered access simple

  2. DIESEL SCISSOR LIFT OUR EQUIPMENT Skyjack SJ6832RT Diesel Scissor Lift Skyjack SJ8841RT Diesel Scissor Lift Skyjack SJ9241RT Diesel Scissor Lift

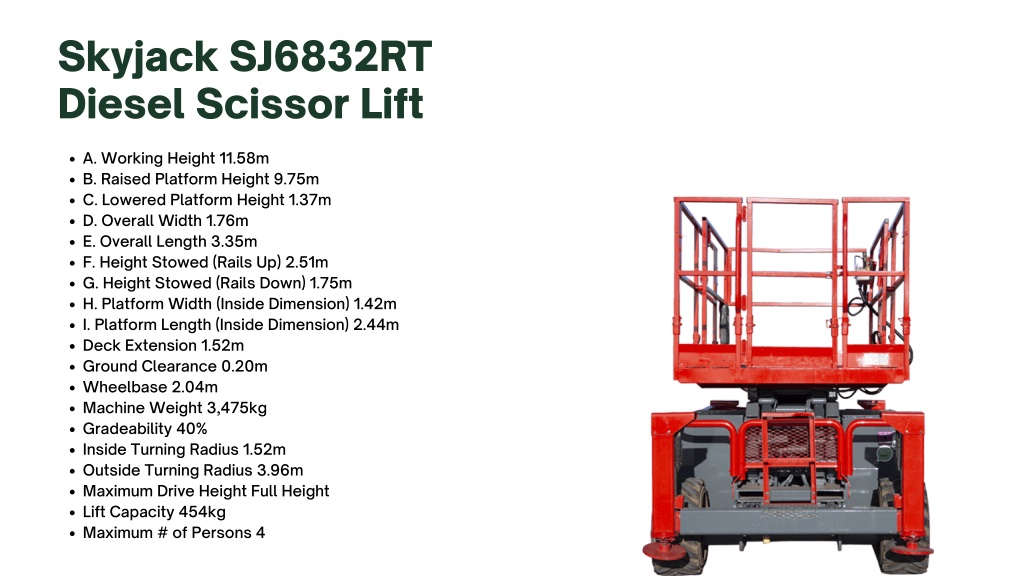

  3. Skyjack SJ6832RT Diesel Scissor Lift A. Working Height 11.58m B. Raised Platform Height 9.75m C. Lowered Platform Height 1.37m D. Overall Width 1.76m E. Overall Length 3.35m F. Height Stowed (Rails Up) 2.51m G. Height Stowed (Rails Down) 1.75m H. Platform Width (Inside Dimension) 1.42m I. Platform Length (Inside Dimension) 2.44m Deck Extension 1.52m Ground Clearance 0.20m Wheelbase 2.04m Machine Weight 3,475kg Gradeability 40% Inside Turning Radius 1.52m Outside Turning Radius 3.96m Maximum Drive Height Full Height Lift Capacity 454kg Maximum # of Persons 4

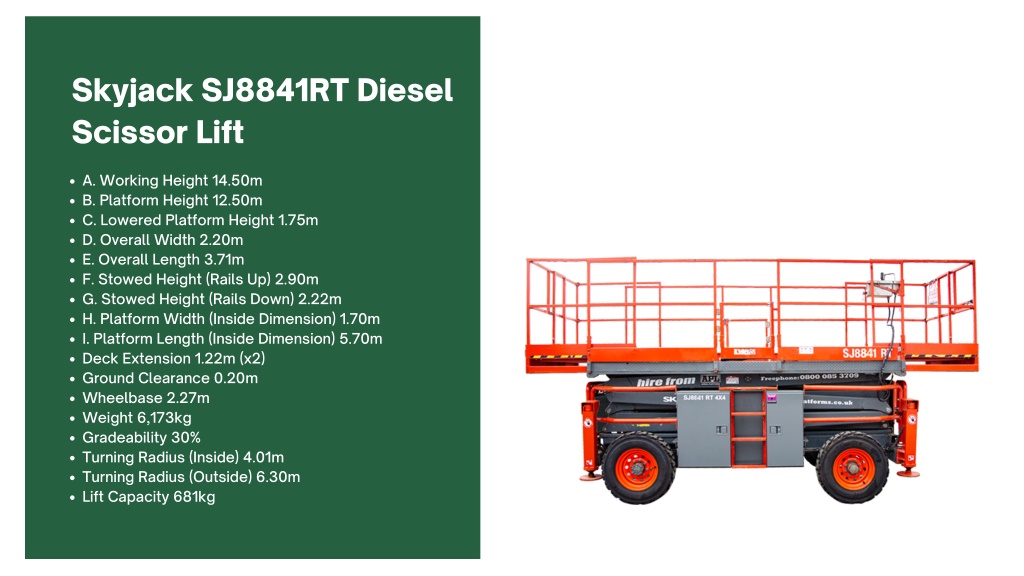

  4. Skyjack SJ8841RT Diesel Scissor Lift A. Working Height 14.50m B. Platform Height 12.50m C. Lowered Platform Height 1.75m D. Overall Width 2.20m E. Overall Length 3.71m F. Stowed Height (Rails Up) 2.90m G. Stowed Height (Rails Down) 2.22m H. Platform Width (Inside Dimension) 1.70m I. Platform Length (Inside Dimension) 5.70m Deck Extension 1.22m (x2) Ground Clearance 0.20m Wheelbase 2.27m Weight 6,173kg Gradeability 30% Turning Radius (Inside) 4.01m Turning Radius (Outside) 6.30m Lift Capacity 681kg

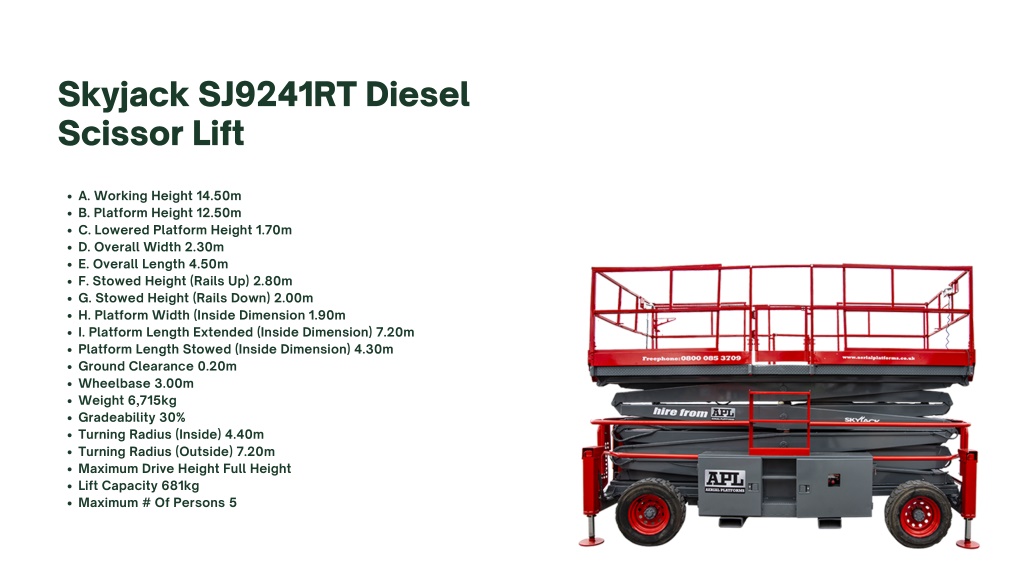

  5. Skyjack SJ9241RT Diesel Scissor Lift A. Working Height 14.50m B. Platform Height 12.50m C. Lowered Platform Height 1.70m D. Overall Width 2.30m E. Overall Length 4.50m F. Stowed Height (Rails Up) 2.80m G. Stowed Height (Rails Down) 2.00m H. Platform Width (Inside Dimension 1.90m I. Platform Length Extended (Inside Dimension) 7.20m Platform Length Stowed (Inside Dimension) 4.30m Ground Clearance 0.20m Wheelbase 3.00m Weight 6,715kg Gradeability 30% Turning Radius (Inside) 4.40m Turning Radius (Outside) 7.20m Maximum Drive Height Full Height Lift Capacity 681kg Maximum # Of Persons 5

  6. Contact Us Website www.aerialplatforms.co.uk/ Phone Number 08000853709, 01942601738 Email Address info@aerialplatforms.co.uk
