Hire Access Platforms

Looking for Hire Access Platforms in Greater Manchester, UK? Weu2019re recognized as one of the leading privately owned single source MEWP rental companies in the UK, dedicated to making powered access simple. We provide Cherry Picker Hire, Boom Lift Hire, Scissor Lift Hire, Telehandlers & more.

AerialPlatformsLtd
Download Presentation

Hire Access Platforms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Aerial Platforms Ltd

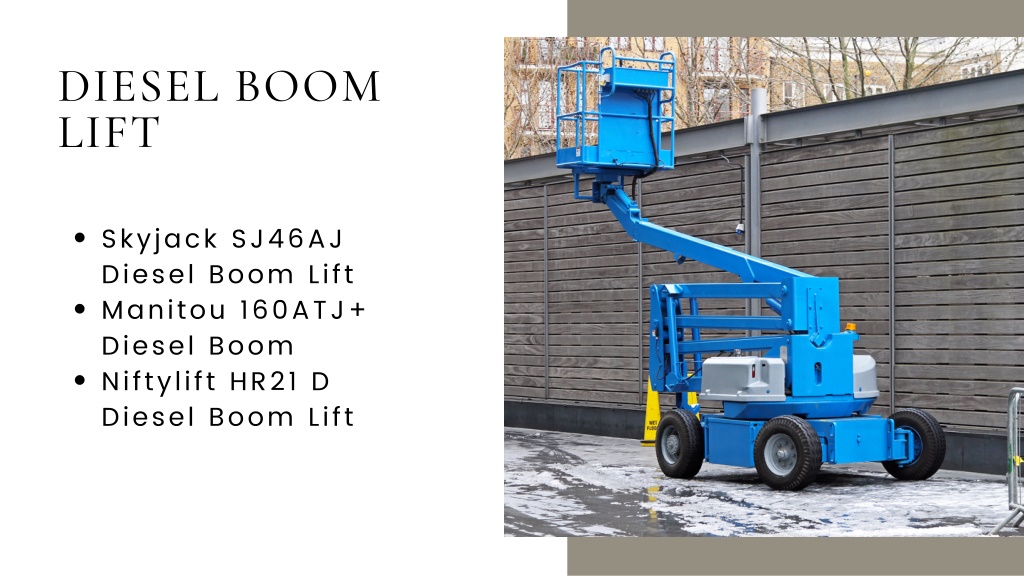

  2. DIESEL BOOM LIFT Skyjack SJ46AJ Diesel Boom Lift Manitou 160ATJ+ Diesel Boom Niftylift HR21 D Diesel Boom Lift

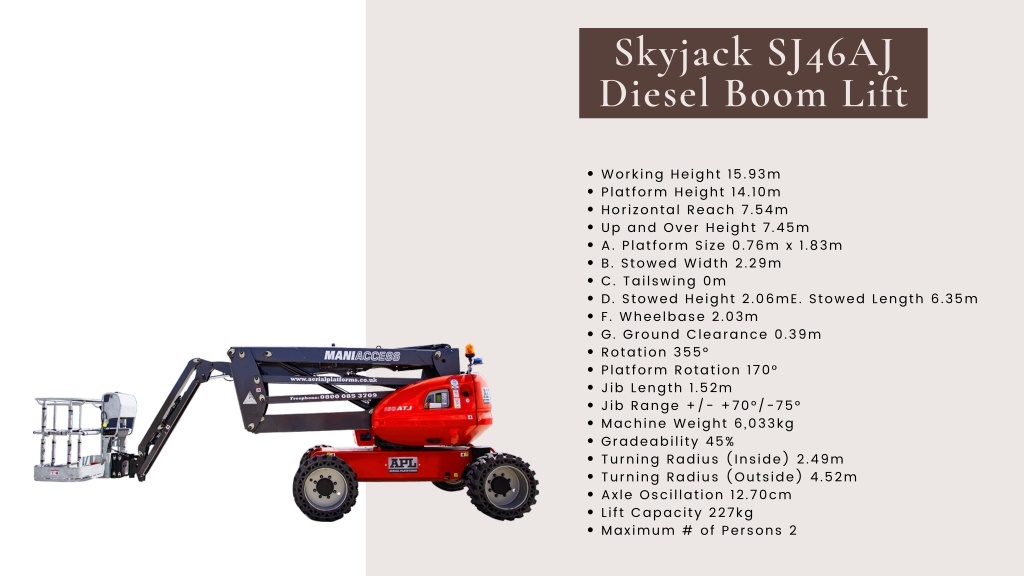

  3. Skyjack SJ46AJ Diesel Boom Lift Working Height 15.93m Platform Height 14.10m Horizontal Reach 7.54m Up and Over Height 7.45m A. Platform Size 0.76m x 1.83m B. Stowed Width 2.29m C. Tailswing 0m D. Stowed Height 2.06mE. Stowed Length 6.35m F. Wheelbase 2.03m G. Ground Clearance 0.39m Rotation 355° Platform Rotation 170° Jib Length 1.52m Jib Range +/- +70°/-75° Machine Weight 6,033kg Gradeability 45% Turning Radius (Inside) 2.49m Turning Radius (Outside) 4.52m Axle Oscillation 12.70cm Lift Capacity 227kg Maximum # of Persons 2

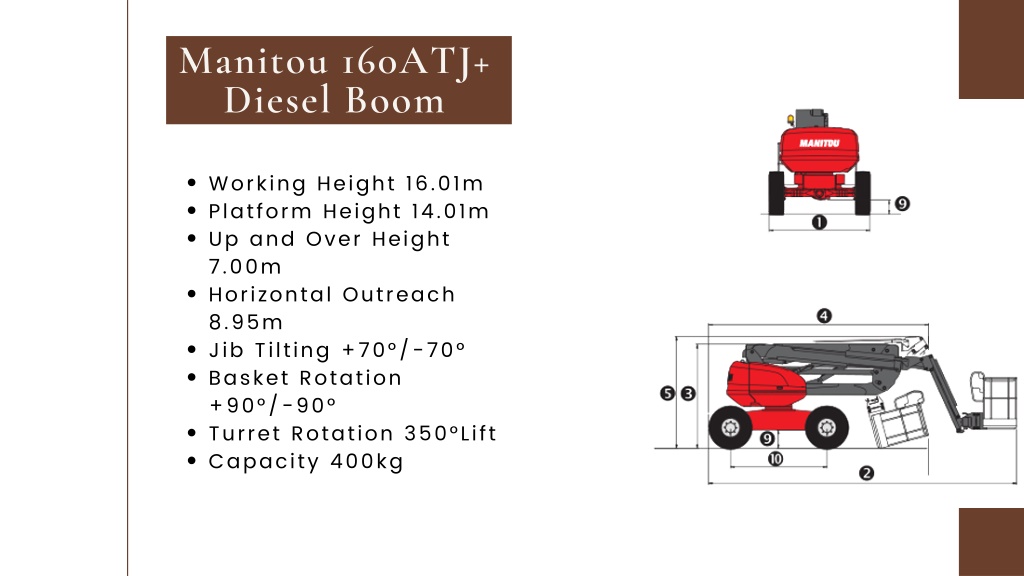

  4. Manitou 160ATJ+ Diesel Boom Working Height 16.01m Platform Height 14.01m Up and Over Height 7.00m Horizontal Outreach 8.95m Jib Tilting +70°/-70° Basket Rotation +90°/-90° Turret Rotation 350°Lift Capacity 400kg

  5. (A) Working Height 20.80m (B) Platform Height 18.80m (C) Horizontal Outreach 12.80m Platform Size 1.80m x 0.85mJib Articulation 150°Cage Rotation 100° (D) Height Stowed 2.15m (F) Width 2.27m (H) Length Stowed (Transport Position) 5.30m (J) Length Stowed 6.70m Turning Radius 4.00m Gradeability 45% Machine Weight 6,660kg* Niftylift HR21 D Diesel Boom Lift

  6. Contact Head Office Denebrook Court Greenfold Way, Leigh, Greater Manchester info@aerialplatforms.co.uk 08000853709 01942601738

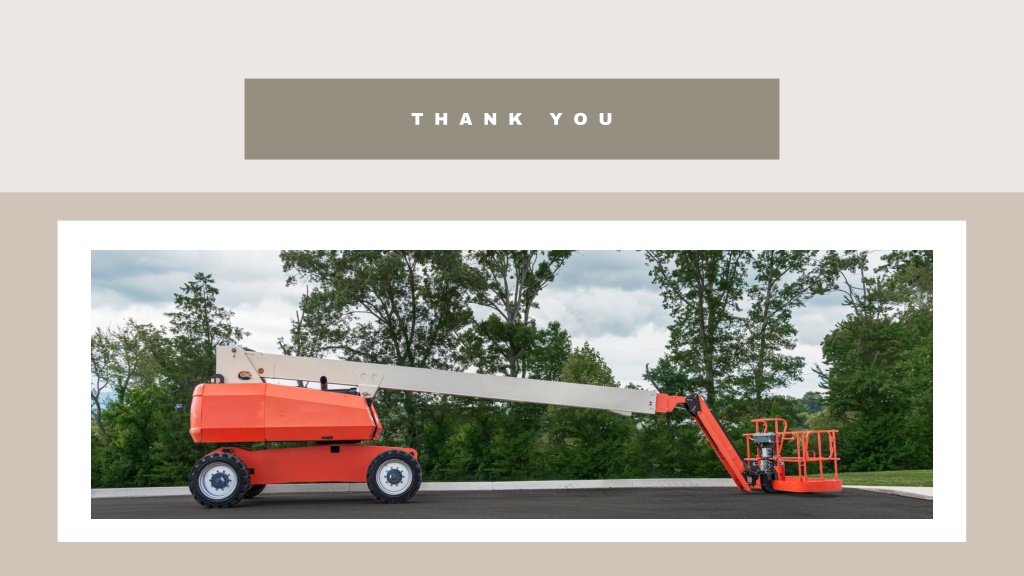

  7. T H A N K Y O U
