Optical Analysis

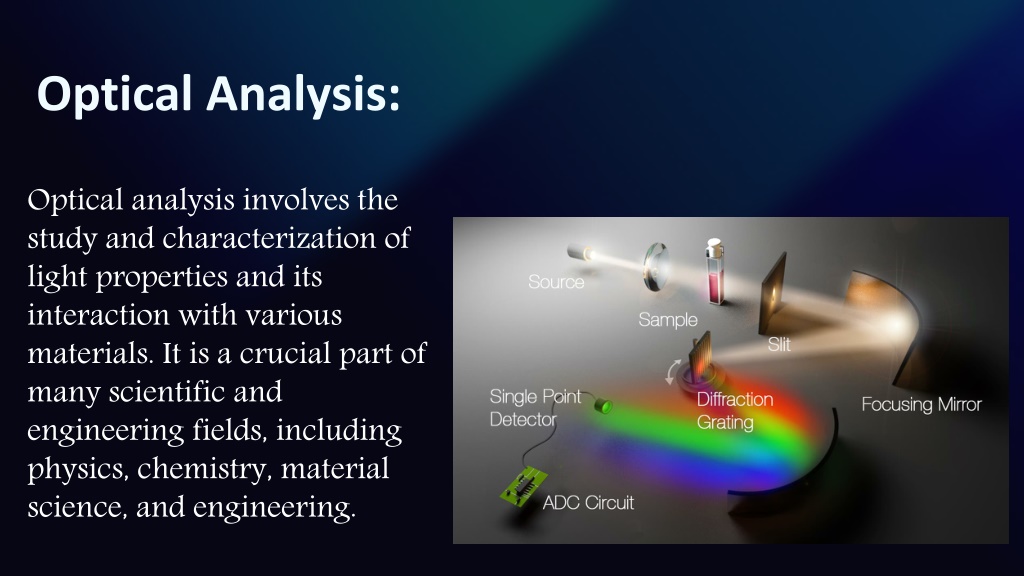

1. Optical Analysis: Optical analysis involves the study and characterization of light properties and its interaction with various materials. It is a crucial part of many scientific and engineering fields, including physics, chemistry, material science, and engineering.

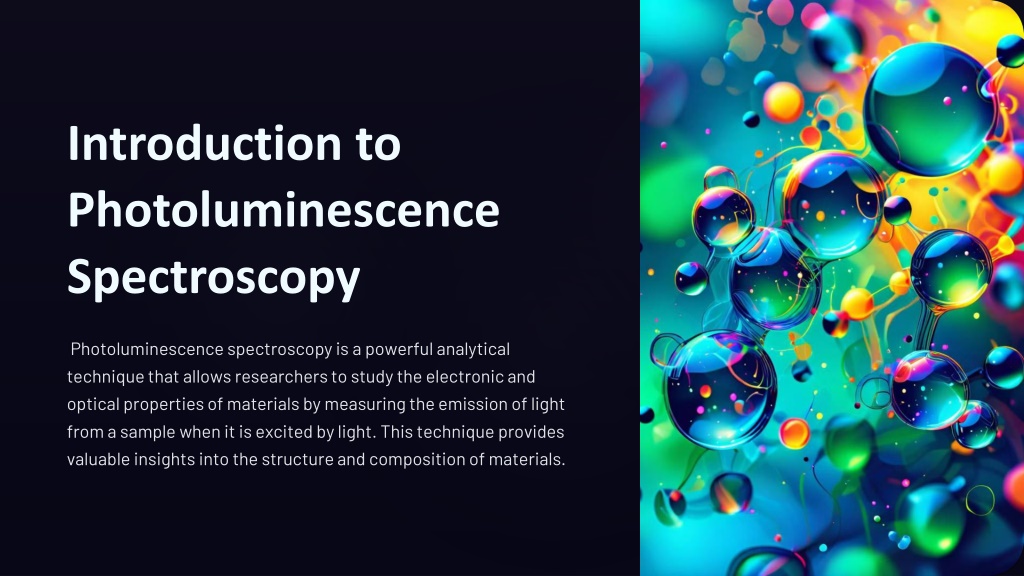

2. Introduction to Photoluminescence Spectroscopy Photoluminescence spectroscopy is a powerful analytical technique that allows researchers to study the electronic and optical properties of materials by measuring the emission of light from a sample when it is excited by light. This technique provides valuable insights into the structure and composition of materials.

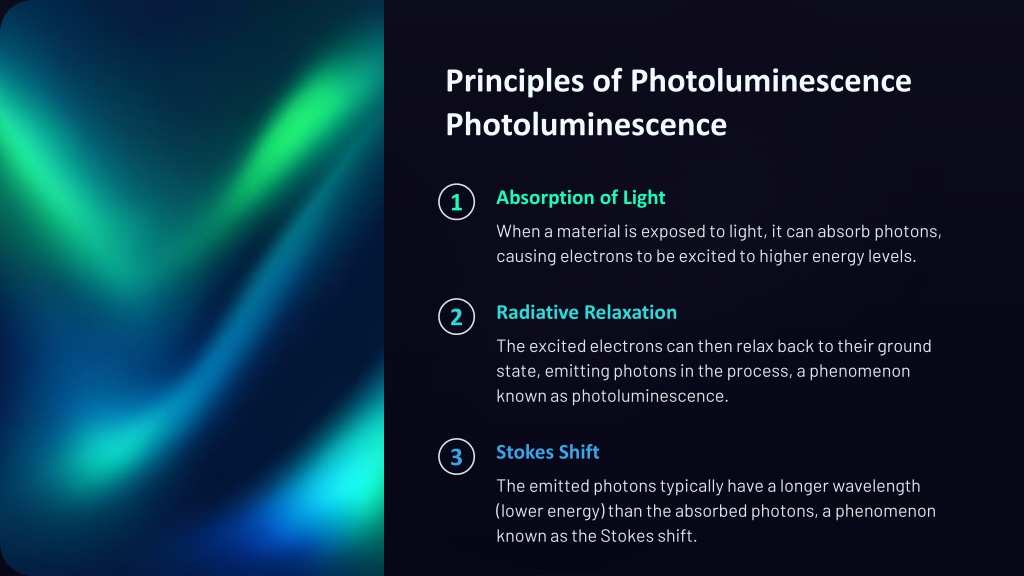

3. Principles of Photoluminescence Absorption of Light 1 When a material is exposed to light, it can absorb photons, causing electrons to be excited to higher energy levels. Radiative Relaxation 2 The excited electrons can then relax back to their ground state, emitting photons in the process, a phenomenon known as photoluminescence. Stokes Shift 3 The emitted photons typically have a longer wavelength (lower energy) than the absorbed photons, a phenomenon known as the Stokes shift.

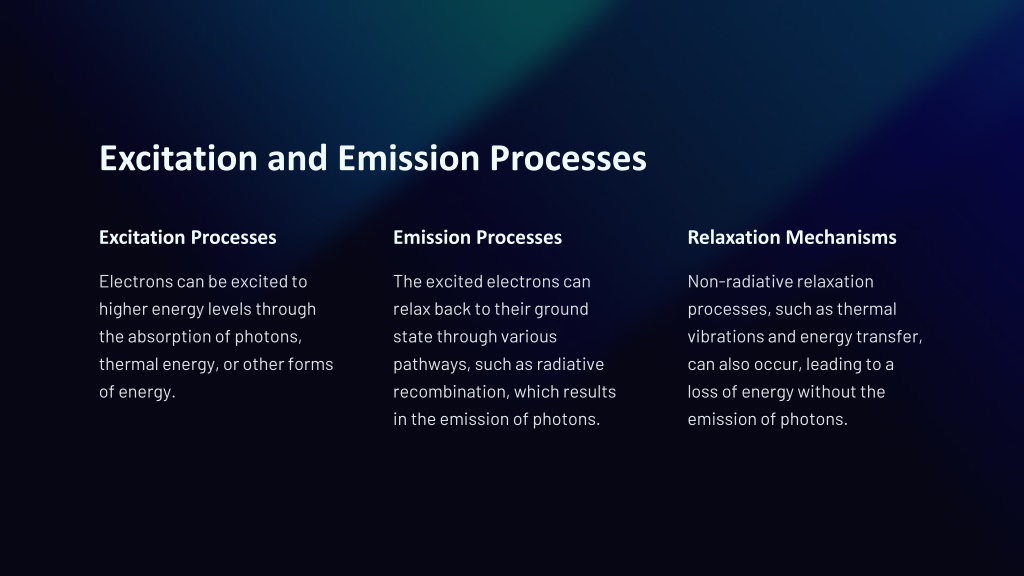

4. Excitation and Emission Processes Excitation Processes Emission Processes Relaxation Mechanisms Electrons can be excited to higher energy levels through the absorption of photons, thermal energy, or other forms of energy. The excited electrons can relax back to their ground state through various pathways, such as radiative recombination, which results in the emission of photons. Non-radiative relaxation processes, such as thermal vibrations and energy transfer, can also occur, leading to a loss of energy without the emission of photons.

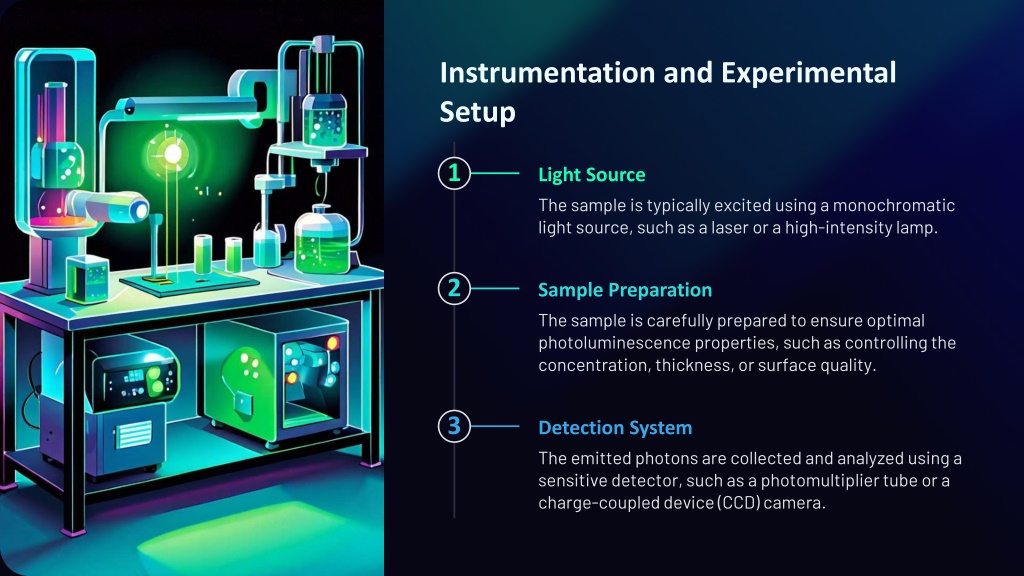

5. Instrumentation and Experimental Setup Light Source 1 The sample is typically excited using a monochromatic light source, such as a laser or a high-intensity lamp. Sample Preparation 2 The sample is carefully prepared to ensure optimal photoluminescence properties, such as controlling the concentration, thickness, or surface quality. Detection System 3 The emitted photons are collected and analyzed using a sensitive detector, such as a photomultiplier tube or a charge-coupled device (CCD) camera.

6. Absorption and Emission Spectra Absorption Spectrum Emission Spectrum The absorption spectrum reveals the energy levels of the material and the allowed electronic transitions. The emission spectrum provides information about the relaxation processes and the energy levels of the material.

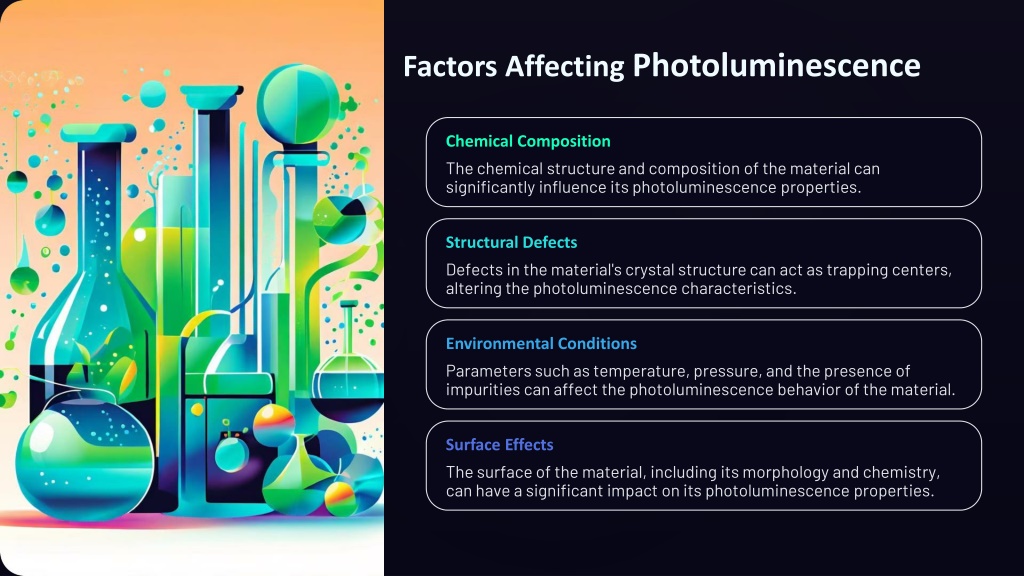

7. Factors Affecting Photoluminescence Chemical Composition The chemical structure and composition of the material can significantly influence its photoluminescence properties. Structural Defects Defects in the material's crystal structure can act as trapping centers, altering the photoluminescence characteristics. Environmental Conditions Parameters such as temperature, pressure, and the presence of impurities can affect the photoluminescence behavior of the material. Surface Effects The surface of the material, including its morphology and chemistry, can have a significant impact on its photoluminescence properties.

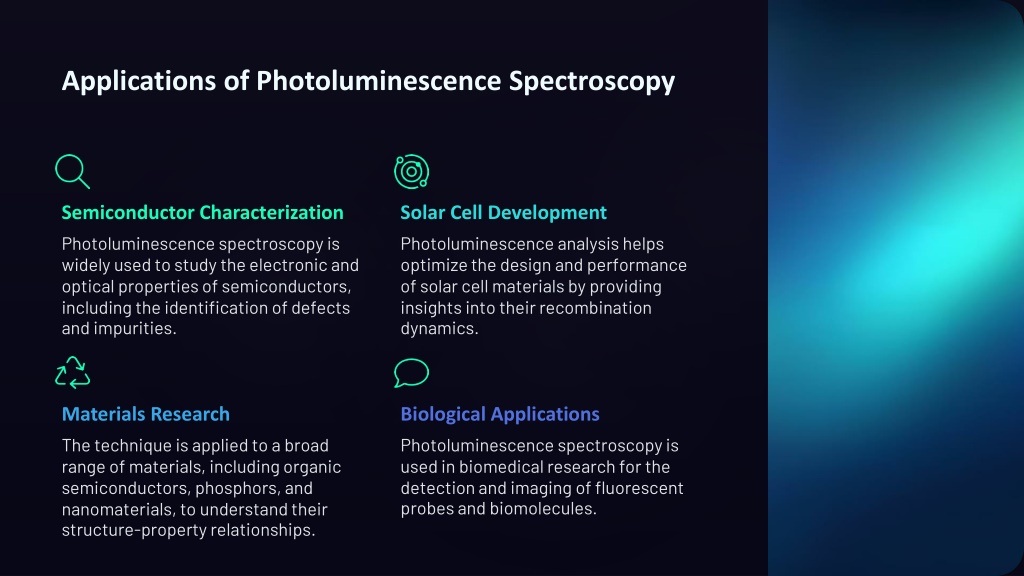

8. Applications of Photoluminescence Spectroscopy Semiconductor Characterization Solar Cell Development Photoluminescence spectroscopy is widely used to study the electronic and optical properties of semiconductors, including the identification of defects and impurities. Photoluminescence analysis helps optimize the design and performance of solar cell materials by providing insights into their recombination dynamics. Materials Research Biological Applications Photoluminescence spectroscopy is used in biomedical research for the detection and imaging of fluorescent probes and biomolecules. The technique is applied to a broad range of materials, including organic semiconductors, phosphors, and nanomaterials, to understand their structure-property relationships.

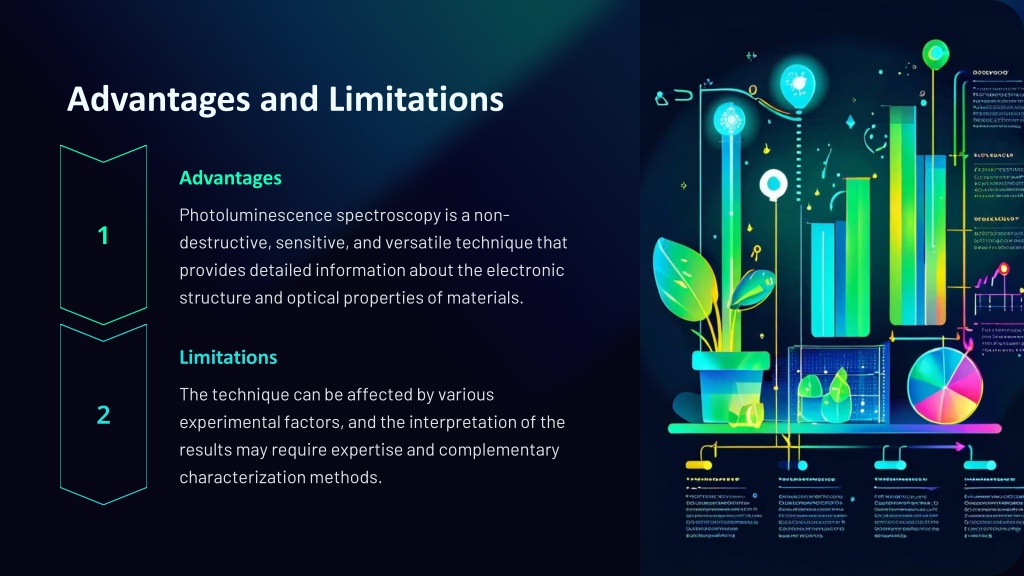

9. Advantages and Limitations Advantages Photoluminescence spectroscopy is a non-destructive, sensitive, and versatile technique that provides detailed information about the electronic structure and optical properties of materials. Limitations The technique can be affected by various experimental factors, and the interpretation of the results may require expertise and complementary characterization methods.

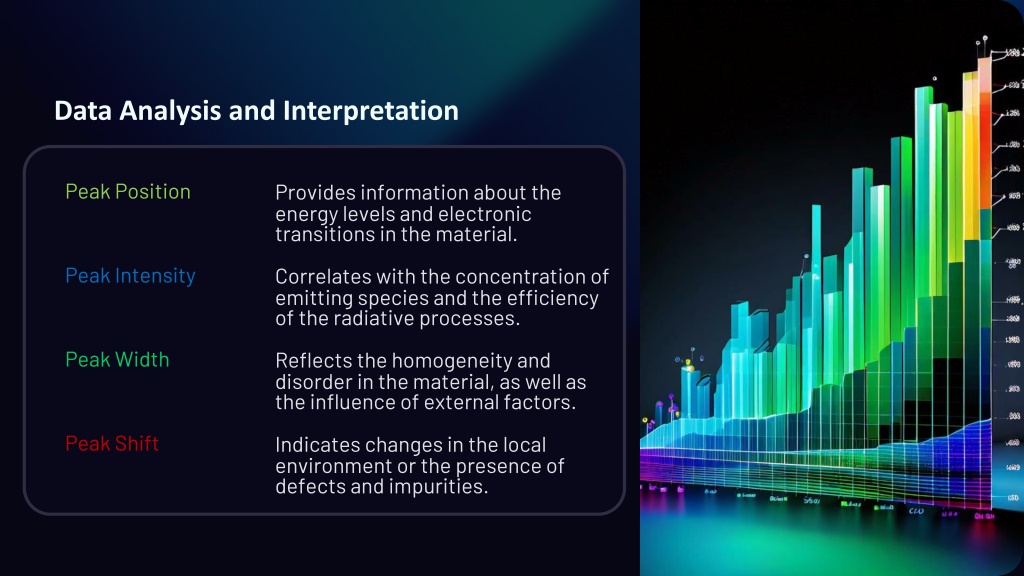

10. Data Analysis and Interpretation Provides information about the energy levels and electronic transitions in the material. Peak Position Peak Intensity Correlates with the concentration of emitting species and the efficiency of the radiative processes. Reflects the homogeneity and disorder in the material, as well as the influence of external factors. Peak Width Indicates changes in the local environment or the presence of defects and impurities. Peak Shift

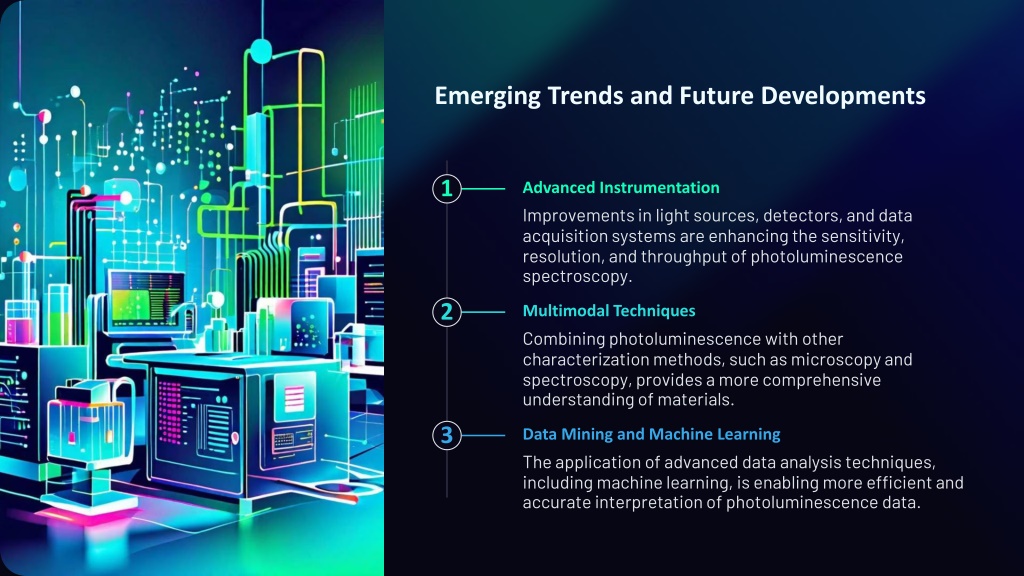

11. Emerging Trends and Future Developments Advanced Instrumentation 1 Improvements in light sources, detectors, and data acquisition systems are enhancing the sensitivity, resolution, and throughput of photoluminescence spectroscopy. Multimodal Techniques 2 Combining photoluminescence with other characterization methods, such as microscopy and spectroscopy, provides a more comprehensive understanding of materials. Data Mining and Machine Learning 3 The application of advanced data analysis techniques, including machine learning, is enabling more efficient and accurate interpretation of photoluminescence data.

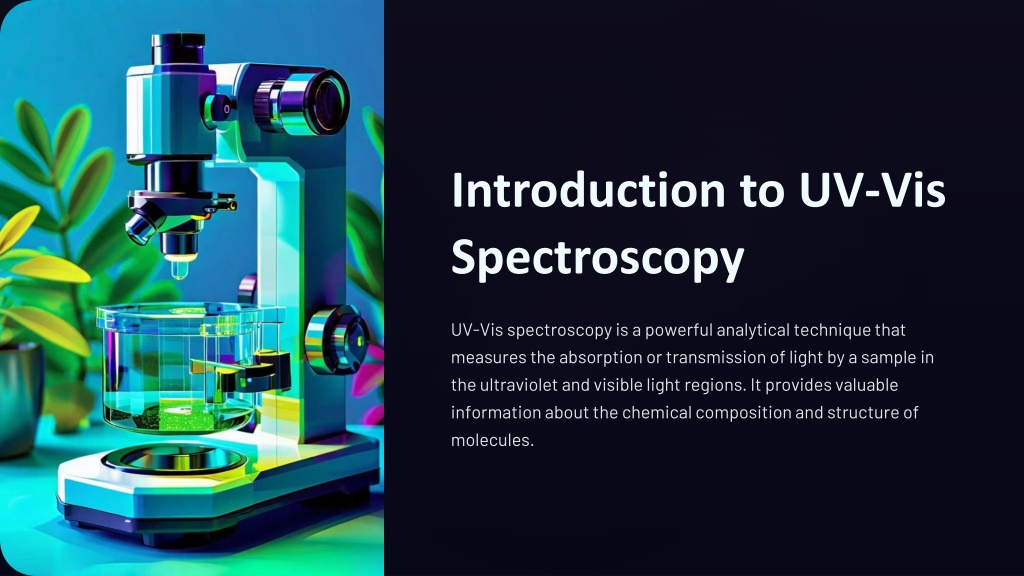

12. Introduction to UV-Vis Spectroscopy UV-Vis spectroscopy is a powerful analytical technique that measures the absorption or transmission of light by a sample in the ultraviolet and visible light regions. It provides valuable information about the chemical composition and structure of molecules.

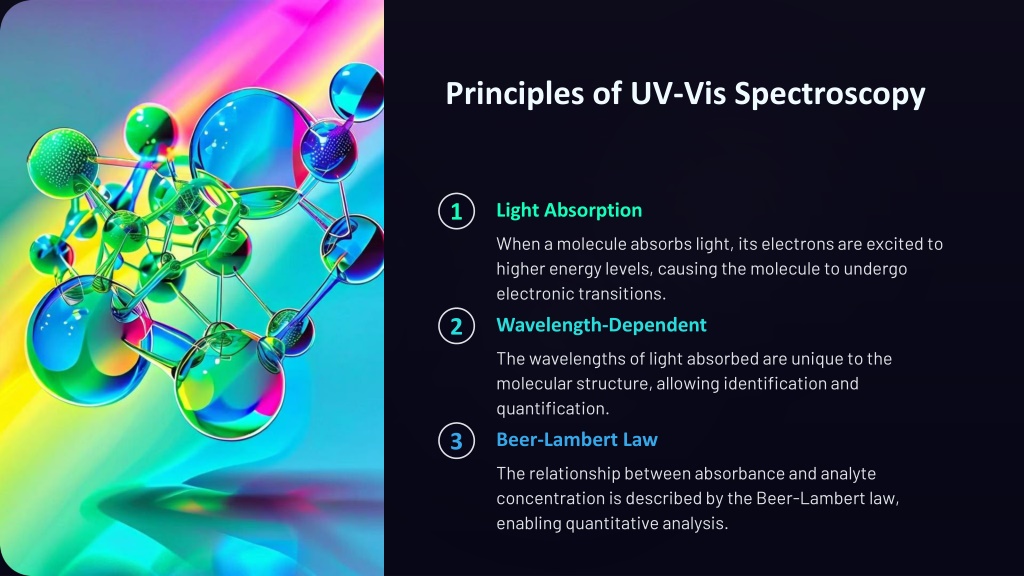

13. Principles of UV-Vis Spectroscopy Light Absorption 1 When a molecule absorbs light, its electrons are excited to higher energy levels, causing the molecule to undergo electronic transitions. Wavelength-Dependent 2 The wavelengths of light absorbed are unique to the molecular structure, allowing identification and quantification. Beer-Lambert Law 3 The relationship between absorbance and analyte concentration is described by the Beer-Lambert law, enabling quantitative analysis.

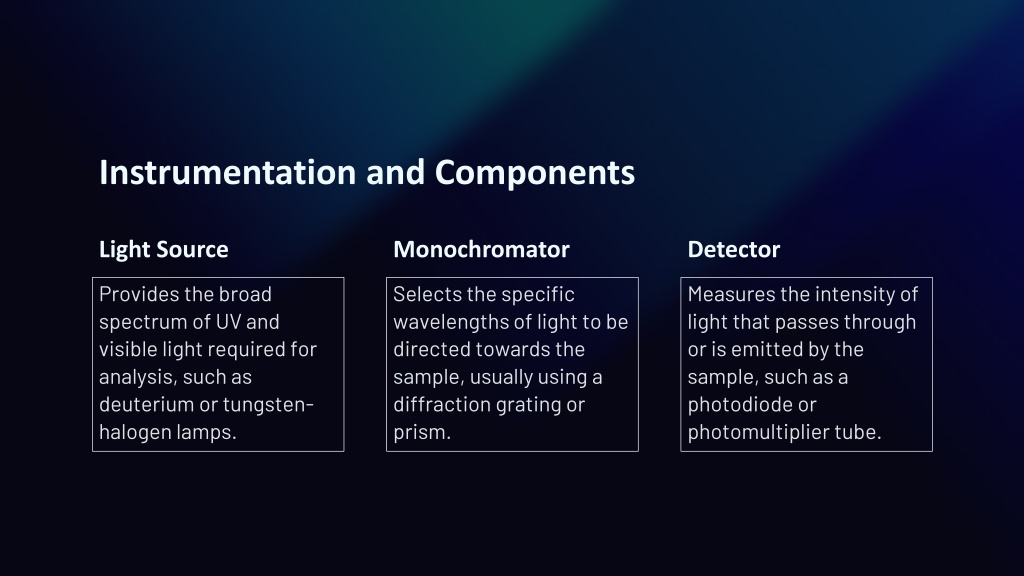

14. Instrumentation and Components Light Source Monochromator Detector Selects the specific wavelengths of light to be directed towards the sample, usually using a diffraction grating or prism. Measures the intensity of light that passes through or is emitted by the sample, such as a photodiode or photomultiplier tube. Provides the broad spectrum of UV and visible light required for analysis, such as deuterium or tungsten-halogen lamps.

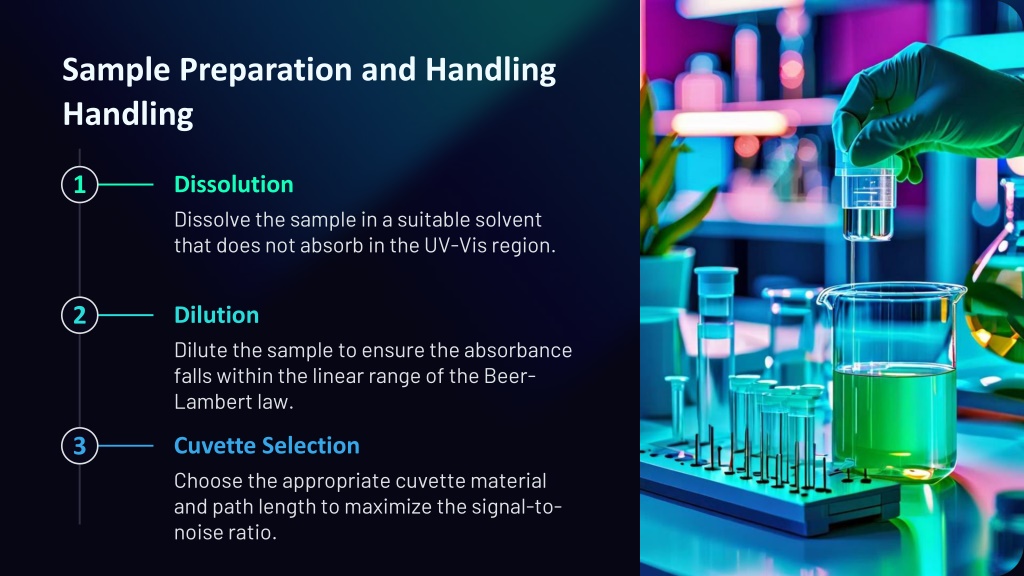

15. Sample Preparation and Handling Dissolution 1 Dissolve the sample in a suitable solvent that does not absorb in the UV-Vis region. Dilution 2 Dilute the sample to ensure the absorbance falls within the linear range of the Beer-Lambert law. Cuvette Selection 3 Choose the appropriate cuvette material and path length to maximize the signal-to-noise ratio.

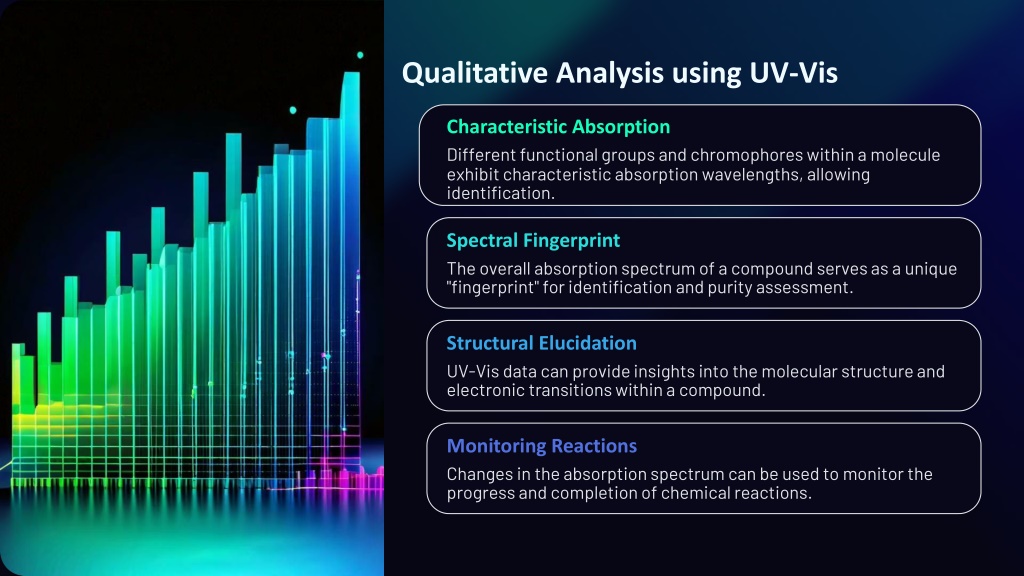

16. Qualitative Analysis using UV-Vis Characteristic Absorption Different functional groups and chromophores within a molecule exhibit characteristic absorption wavelengths, allowing identification. Spectral Fingerprint The overall absorption spectrum of a compound serves as a unique "fingerprint" for identification and purity assessment. Structural Elucidation UV-Vis data can provide insights into the molecular structure and electronic transitions within a compound. Monitoring Reactions Changes in the absorption spectrum can be used to monitor the progress and completion of chemical reactions.

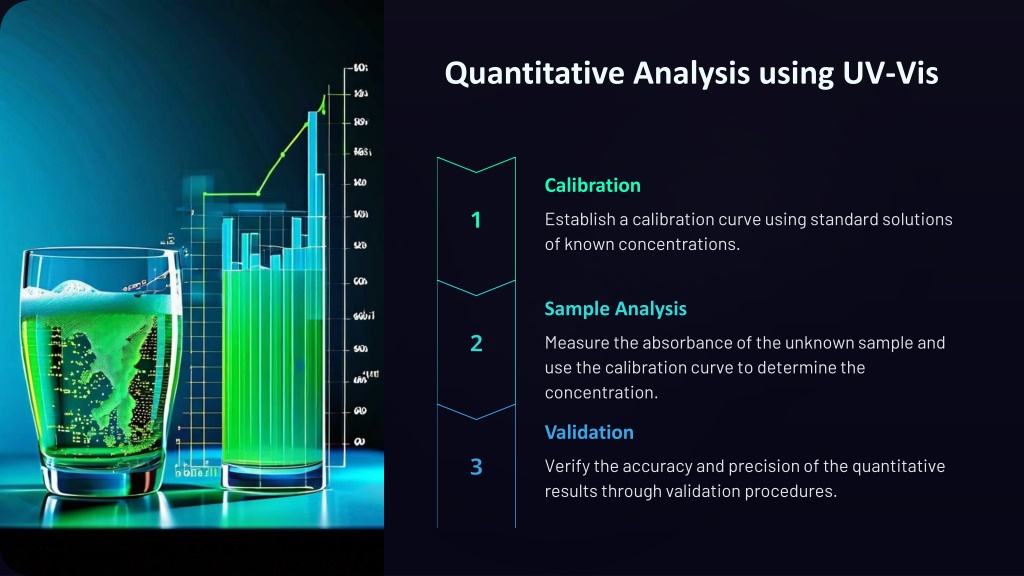

17. Quantitative Analysis using UV-Vis Calibration Establish a calibration curve using standard solutions of known concentrations. Sample Analysis Measure the absorbance of the unknown sample and use the calibration curve to determine the concentration. Validation Verify the accuracy and precision of the quantitative results through validation procedures.

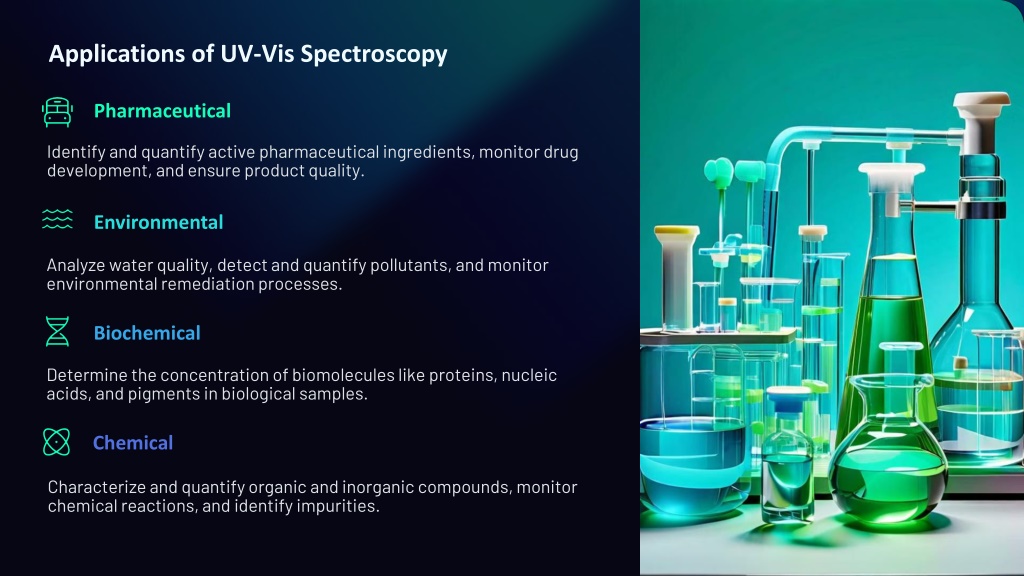

18. Applications of UV-Vis Spectroscopy Pharmaceutical Identify and quantify active pharmaceutical ingredients, monitor drug development, and ensure product quality. Environmental Analyze water quality, detect and quantify pollutants, and monitor environmental remediation processes. Biochemical Determine the concentration of biomolecules like proteins, nucleic acids, and pigments in biological samples. Chemical Characterize and quantify organic and inorganic compounds, monitor chemical reactions, and identify impurities.

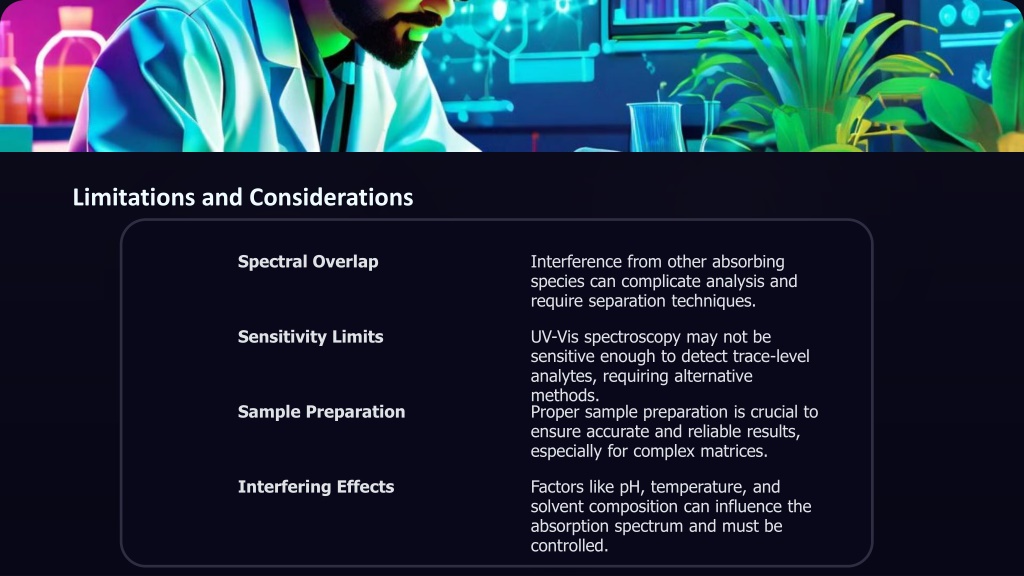

19. Limitations and Considerations Interference from other absorbing species can complicate analysis and require separation techniques. Spectral Overlap Sensitivity Limits UV-Vis spectroscopy may not be sensitive enough to detect trace-level analytes, requiring alternative methods. Proper sample preparation is crucial to ensure accurate and reliable results, especially for complex matrices. Sample Preparation Interfering Effects Factors like pH, temperature, and solvent composition can influence the absorption spectrum and must be controlled.

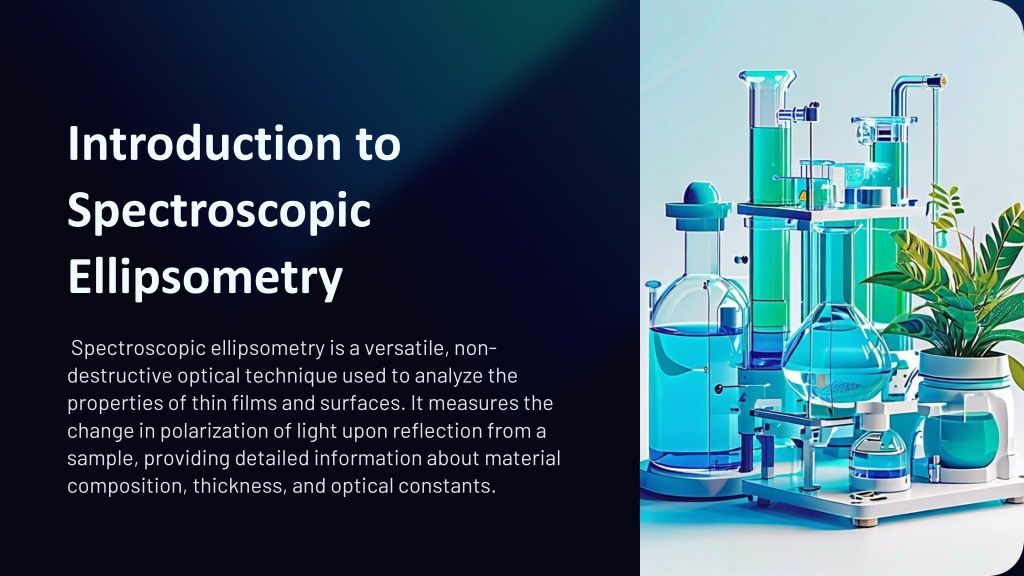

20. Introduction to Spectroscopic Ellipsometry Spectroscopic ellipsometry is a versatile, non-destructive optical technique used to analyze the properties of thin films and surfaces. It measures the change in polarization of light upon reflection from a sample, providing detailed information about material composition, thickness, and optical constants.

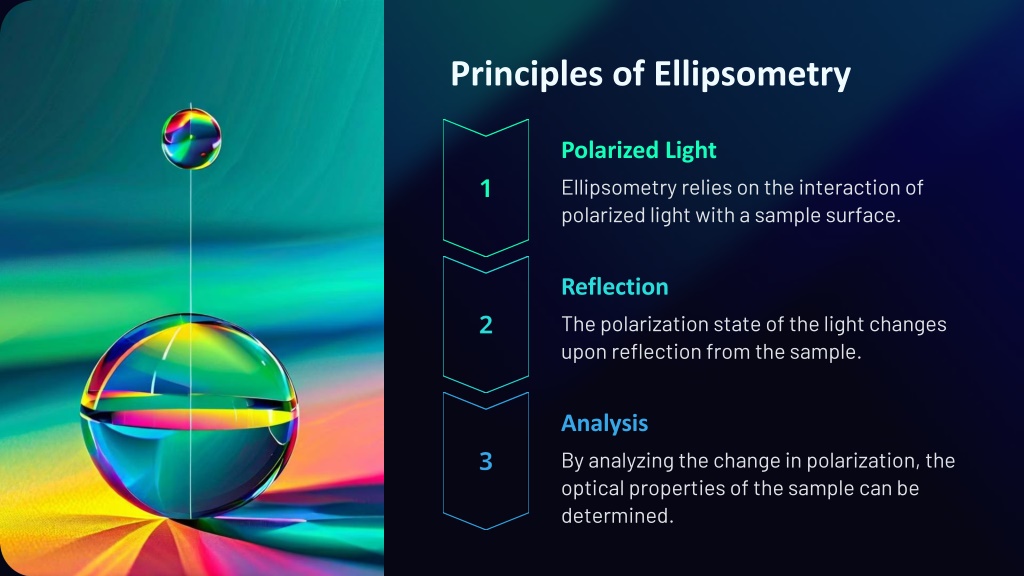

21. Principles of Ellipsometry Polarized Light Ellipsometry relies on the interaction of polarized light with a sample surface. Reflection The polarization state of the light changes upon reflection from the sample. Analysis By analyzing the change in polarization, the optical properties of the sample can be determined.

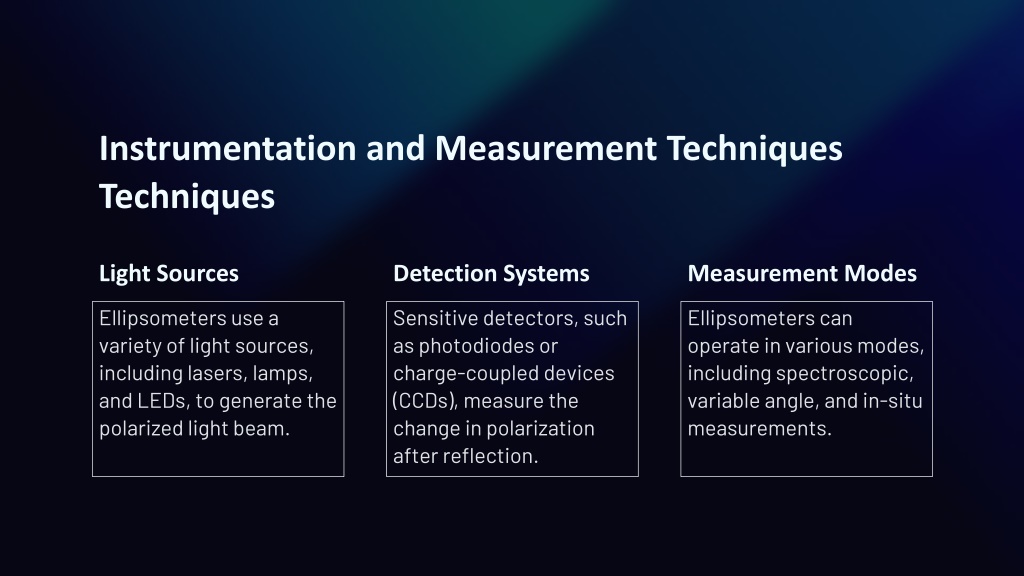

22. Instrumentation and Measurement Techniques Light Sources Detection Systems Measurement Modes Ellipsometers use a variety of light sources, including lasers, lamps, and LEDs, to generate the polarized light beam. Ellipsometers can operate in various modes, including spectroscopic, variable angle, and in-situ measurements. Sensitive detectors, such as photodiodes or charge-coupled devices (CCDs), measure the change in polarization after reflection.

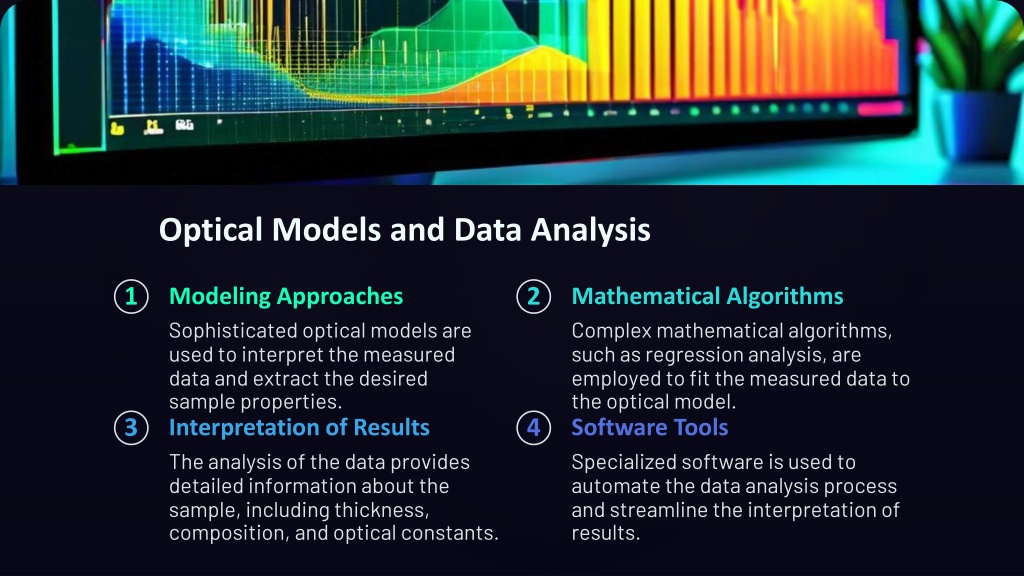

23. Optical Models and Data Analysis Modeling Approaches Mathematical Algorithms 1 2 Sophisticated optical models are used to interpret the measured data and extract the desired sample properties. Complex mathematical algorithms, such as regression analysis, are employed to fit the measured data to the optical model. Interpretation of Results Software Tools 3 4 The analysis of the data provides detailed information about the sample, including thickness, composition, and optical constants. Specialized software is used to automate the data analysis process and streamline the interpretation of results.

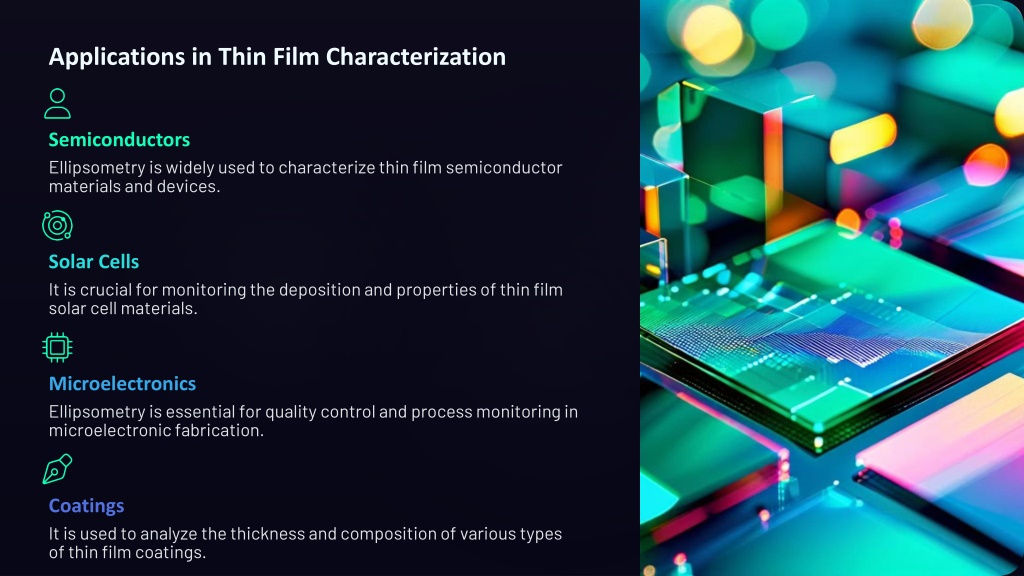

24. Applications in Thin Film Characterization Semiconductors Ellipsometry is widely used to characterize thin film semiconductor materials and devices. Solar Cells It is crucial for monitoring the deposition and properties of thin film solar cell materials. Microelectronics Ellipsometry is essential for quality control and process monitoring in microelectronic fabrication. Coatings It is used to analyze the thickness and composition of various types of thin film coatings.

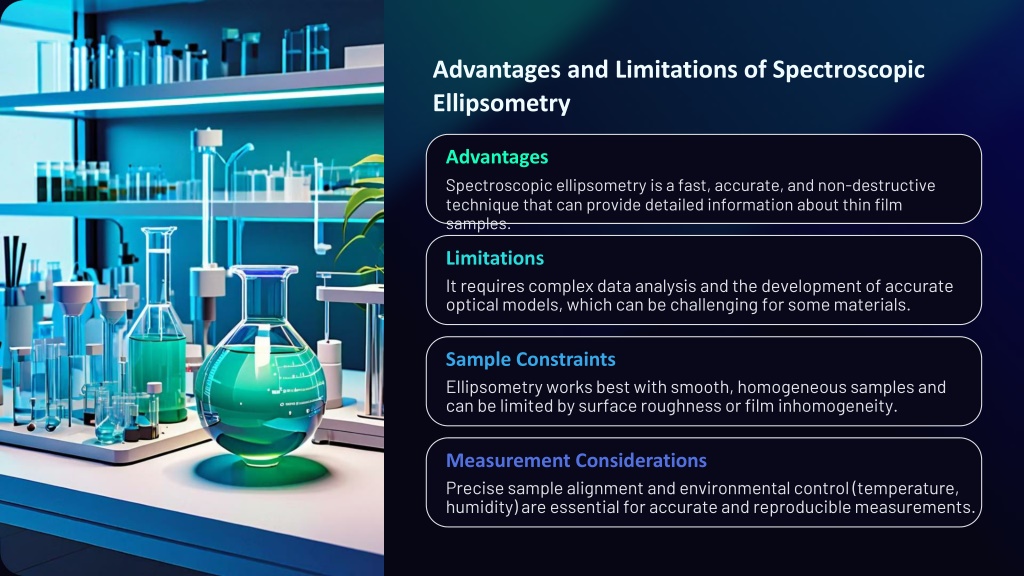

25. Advantages and Limitations of Spectroscopic Ellipsometry Advantages Spectroscopic ellipsometry is a fast, accurate, and non-destructive technique that can provide detailed information about thin film samples. Limitations It requires complex data analysis and the development of accurate optical models, which can be challenging for some materials. Sample Constraints Ellipsometry works best with smooth, homogeneous samples and can be limited by surface roughness or film inhomogeneity. Measurement Considerations Precise sample alignment and environmental control (temperature, humidity) are essential for accurate and reproducible measurements.

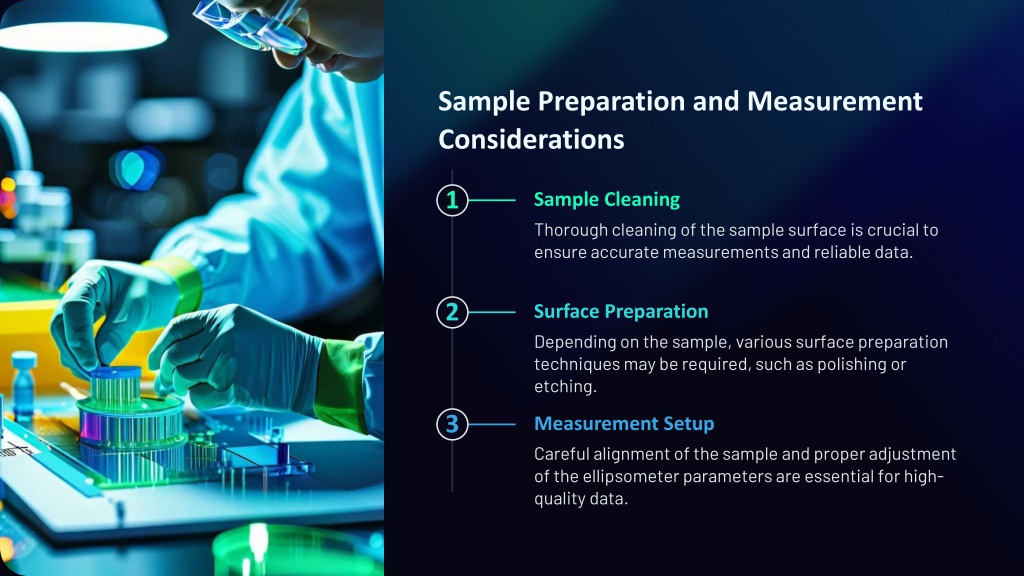

26. Sample Preparation and Measurement Considerations Sample Cleaning 1 Thorough cleaning of the sample surface is crucial to ensure accurate measurements and reliable data. Surface Preparation 2 Depending on the sample, various surface preparation techniques may be required, such as polishing or etching. Measurement Setup 3 Careful alignment of the sample and proper adjustment of the ellipsometer parameters are essential for high-quality data.

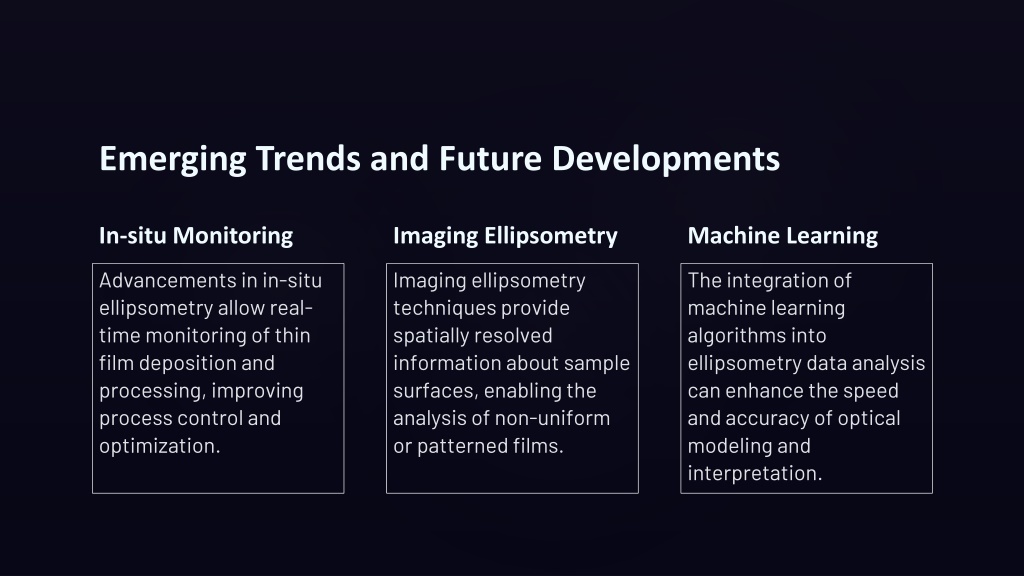

27. Emerging Trends and Future Developments In-situ Monitoring Imaging Ellipsometry Machine Learning The integration of machine learning algorithms into ellipsometry data analysis can enhance the speed and accuracy of optical modeling and interpretation. Advancements in in-situ ellipsometry allow real-time monitoring of thin film deposition and processing, improving process control and optimization. Imaging ellipsometry techniques provide spatially resolved information about sample surfaces, enabling the analysis of non-uniform or patterned films.
