VMC Controller Manufacturer

Accelus is a VMC controllers manufacturer that produces high-quality VMC controllers for Vertical Milling Machines, which are used to drill holes in flat objects. When three-axis work is performed on a single face, such as in-mold and die work, VMC technology is preferred.

Accelus
Download Presentation

VMC Controller Manufacturer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

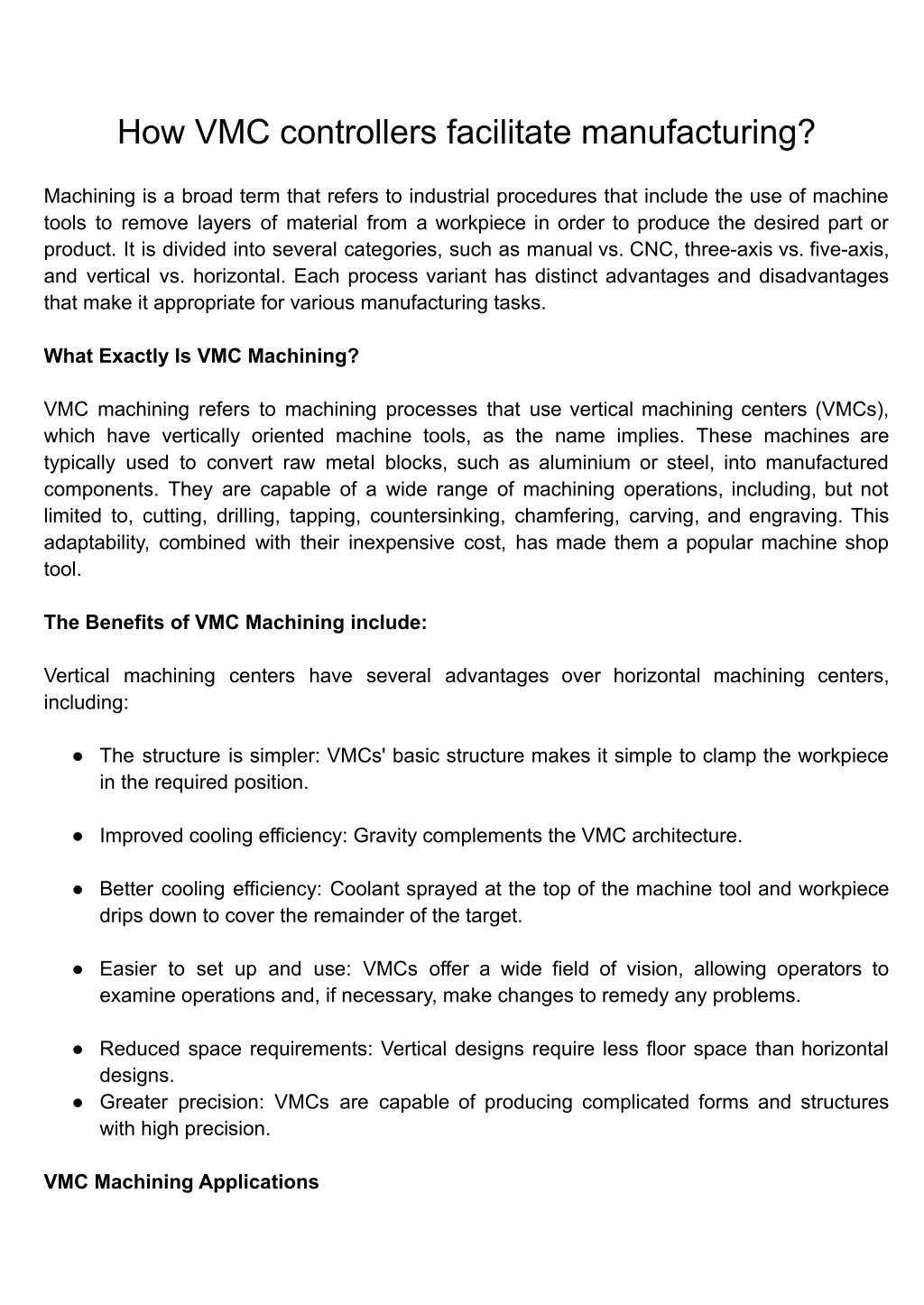

  1. How VMC controllers facilitate manufacturing? Machining is a broad term that refers to industrial procedures that include the use of machine tools to remove layers of material from a workpiece in order to produce the desired part or product. It is divided into several categories, such as manual vs. CNC, three-axis vs. five-axis, and vertical vs. horizontal. Each process variant has distinct advantages and disadvantages that make it appropriate for various manufacturing tasks. What Exactly Is VMC Machining? VMC machining refers to machining processes that use vertical machining centers (VMCs), which have vertically oriented machine tools, as the name implies. These machines are typically used to convert raw metal blocks, such as aluminium or steel, into manufactured components. They are capable of a wide range of machining operations, including, but not limited to, cutting, drilling, tapping, countersinking, chamfering, carving, and engraving. This adaptability, combined with their inexpensive cost, has made them a popular machine shop tool. The Benefits of VMC Machining include: Vertical machining centers have several advantages over horizontal machining centers, including: ● The structure is simpler: VMCs' basic structure makes it simple to clamp the workpiece in the required position. ● Improved cooling efficiency: Gravity complements the VMC architecture. ● Better cooling efficiency: Coolant sprayed at the top of the machine tool and workpiece drips down to cover the remainder of the target. ● Easier to set up and use: VMCs offer a wide field of vision, allowing operators to examine operations and, if necessary, make changes to remedy any problems. ● Reduced space requirements: Vertical designs require less floor space than horizontal designs. ● Greater precision: VMCs are capable of producing complicated forms and structures with high precision. VMC Machining Applications

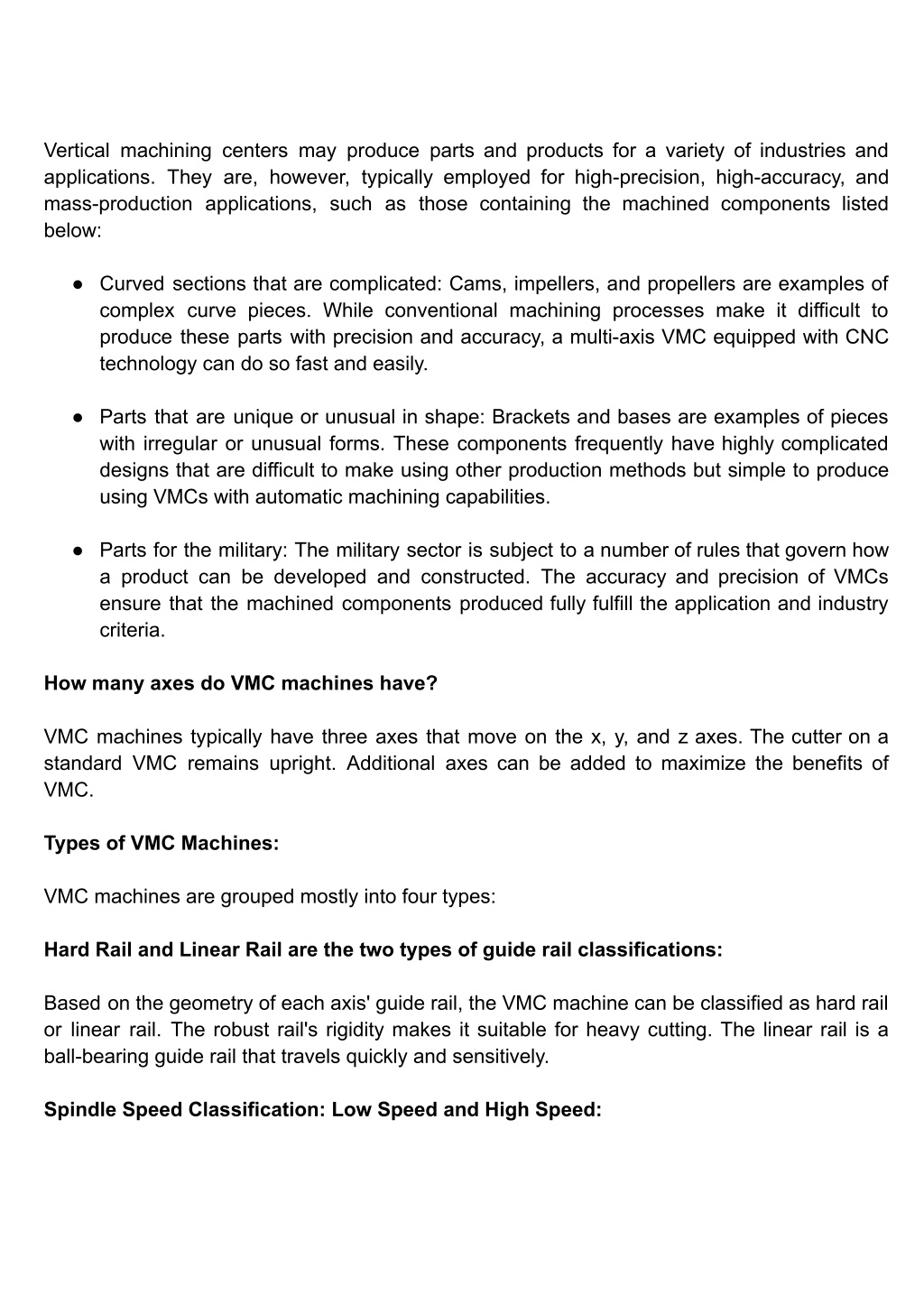

  2. Vertical machining centers may produce parts and products for a variety of industries and applications. They are, however, typically employed for high-precision, high-accuracy, and mass-production applications, such as those containing the machined components listed below: ● Curved sections that are complicated: Cams, impellers, and propellers are examples of complex curve pieces. While conventional machining processes make it difficult to produce these parts with precision and accuracy, a multi-axis VMC equipped with CNC technology can do so fast and easily. ● Parts that are unique or unusual in shape: Brackets and bases are examples of pieces with irregular or unusual forms. These components frequently have highly complicated designs that are difficult to make using other production methods but simple to produce using VMCs with automatic machining capabilities. ● Parts for the military: The military sector is subject to a number of rules that govern how a product can be developed and constructed. The accuracy and precision of VMCs ensure that the machined components produced fully fulfill the application and industry criteria. How many axes do VMC machines have? VMC machines typically have three axes that move on the x, y, and z axes. The cutter on a standard VMC remains upright. Additional axes can be added to maximize the benefits of VMC. Types of VMC Machines: VMC machines are grouped mostly into four types: Hard Rail and Linear Rail are the two types of guide rail classifications: Based on the geometry of each axis' guide rail, the VMC machine can be classified as hard rail or linear rail. The robust rail's rigidity makes it suitable for heavy cutting. The linear rail is a ball-bearing guide rail that travels quickly and sensitively. Spindle Speed Classification: Low Speed and High Speed:

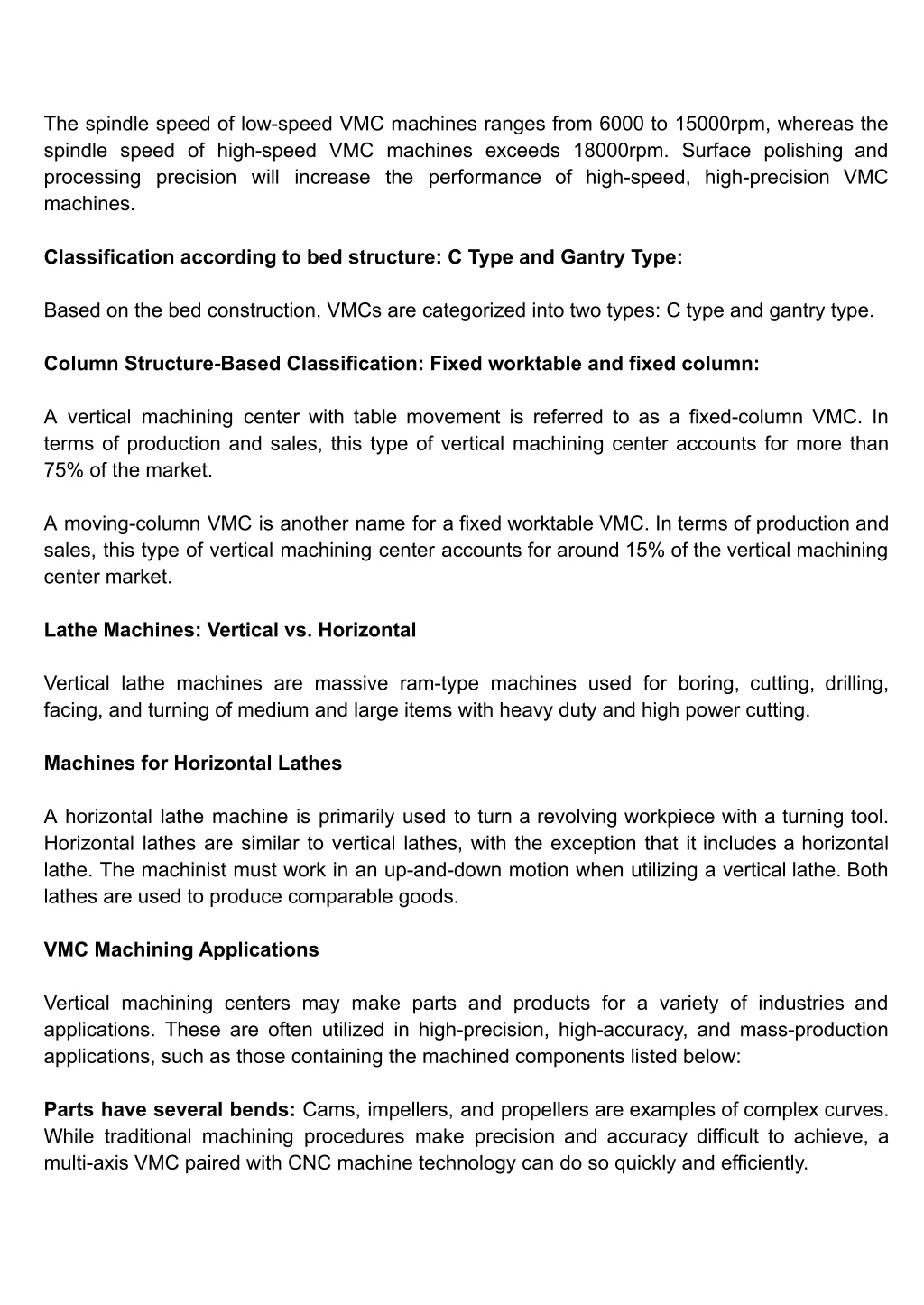

  3. The spindle speed of low-speed VMC machines ranges from 6000 to 15000rpm, whereas the spindle speed of high-speed VMC machines exceeds 18000rpm. Surface polishing and processing precision will increase the performance of high-speed, high-precision VMC machines. Classification according to bed structure: C Type and Gantry Type: Based on the bed construction, VMCs are categorized into two types: C type and gantry type. Column Structure-Based Classification: Fixed worktable and fixed column: A vertical machining center with table movement is referred to as a fixed-column VMC. In terms of production and sales, this type of vertical machining center accounts for more than 75% of the market. A moving-column VMC is another name for a fixed worktable VMC. In terms of production and sales, this type of vertical machining center accounts for around 15% of the vertical machining center market. Lathe Machines: Vertical vs. Horizontal Vertical lathe machines are massive ram-type machines used for boring, cutting, drilling, facing, and turning of medium and large items with heavy duty and high power cutting. Machines for Horizontal Lathes A horizontal lathe machine is primarily used to turn a revolving workpiece with a turning tool. Horizontal lathes are similar to vertical lathes, with the exception that it includes a horizontal lathe. The machinist must work in an up-and-down motion when utilizing a vertical lathe. Both lathes are used to produce comparable goods. VMC Machining Applications Vertical machining centers may make parts and products for a variety of industries and applications. These are often utilized in high-precision, high-accuracy, and mass-production applications, such as those containing the machined components listed below: Parts have several bends: Cams, impellers, and propellers are examples of complex curves. While traditional machining procedures make precision and accuracy difficult to achieve, a multi-axis VMC paired with CNC machine technology can do so quickly and efficiently.

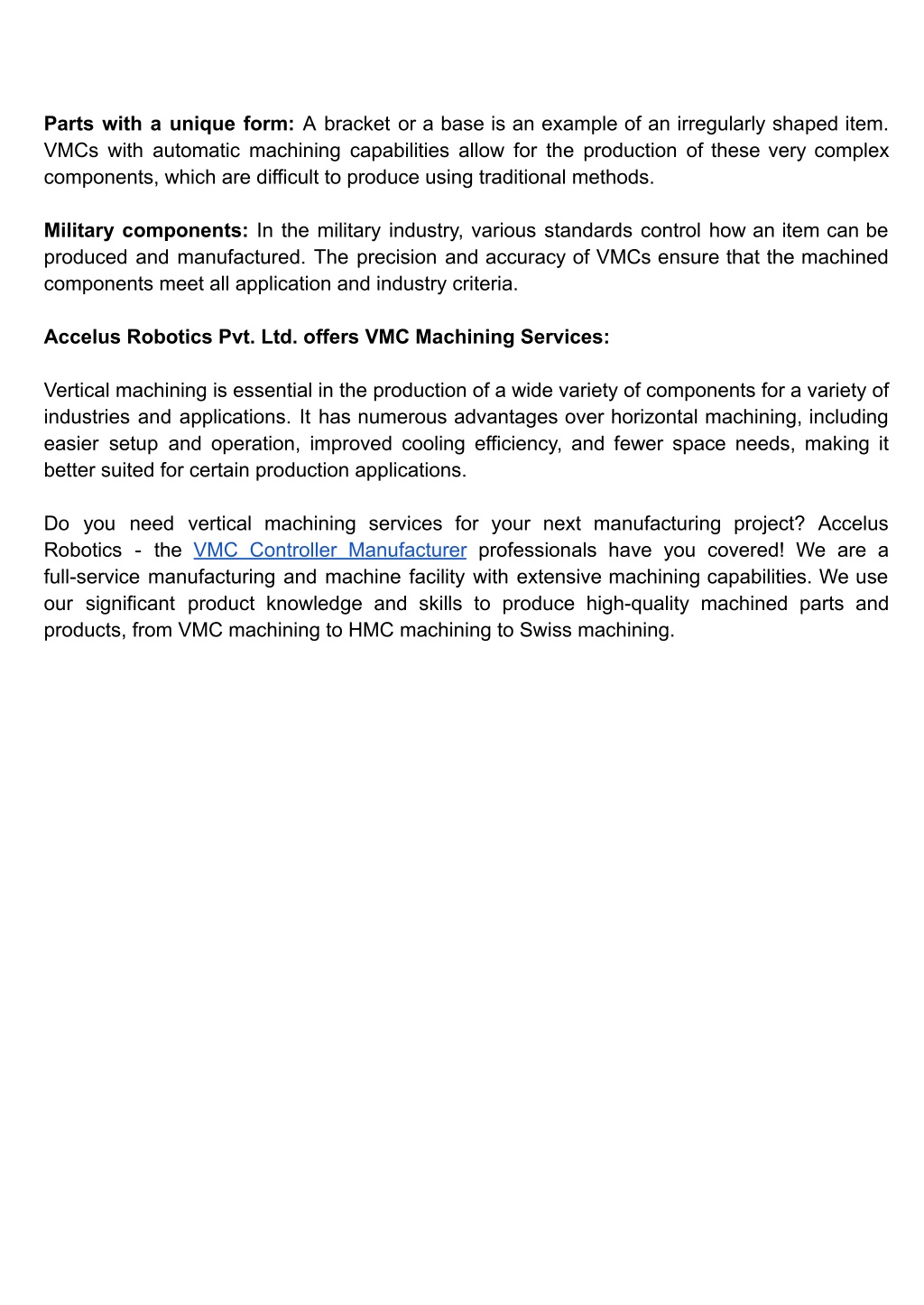

  4. Parts with a unique form: A bracket or a base is an example of an irregularly shaped item. VMCs with automatic machining capabilities allow for the production of these very complex components, which are difficult to produce using traditional methods. Military components: In the military industry, various standards control how an item can be produced and manufactured. The precision and accuracy of VMCs ensure that the machined components meet all application and industry criteria. Accelus Robotics Pvt. Ltd. offers VMC Machining Services: Vertical machining is essential in the production of a wide variety of components for a variety of industries and applications. It has numerous advantages over horizontal machining, including easier setup and operation, improved cooling efficiency, and fewer space needs, making it better suited for certain production applications. Do you need vertical machining services for your next manufacturing project? Accelus Robotics - the VMC Controller Manufacturer professionals have you covered! We are a full-service manufacturing and machine facility with extensive machining capabilities. We use our significant product knowledge and skills to produce high-quality machined parts and products, from VMC machining to HMC machining to Swiss machining.
