Conquer Space Constraints and Optimize Productivity with Articulated Forklifts

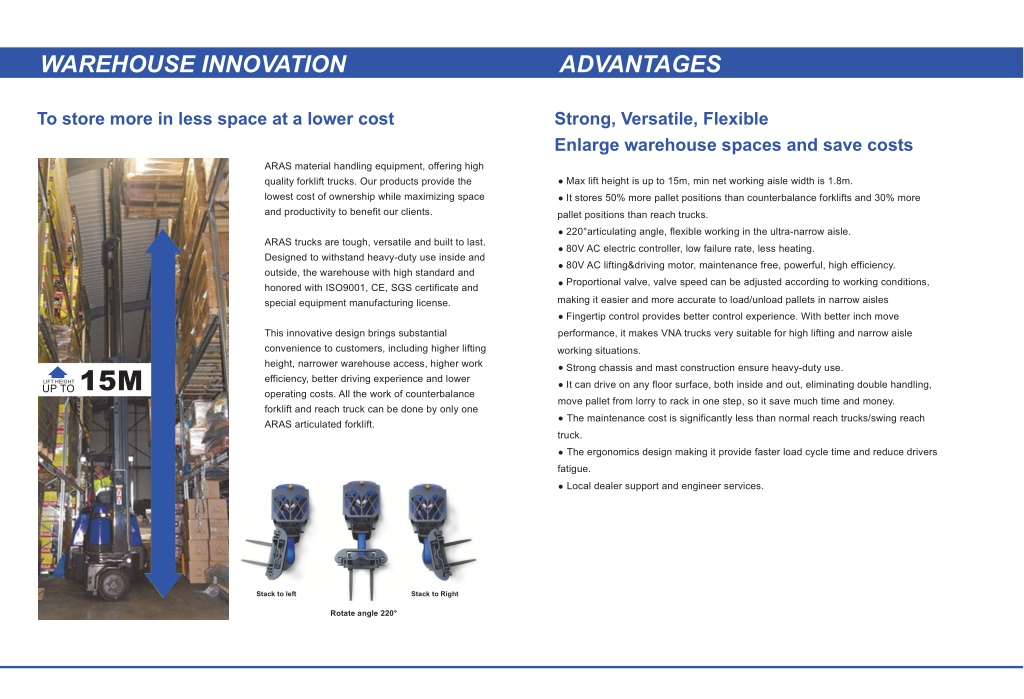

2. WAREHOUSE INNOVATION ADVANTAGES To store more in less space at a lower cost Strong, Versatile, Flexible Enlarge warehouse spaces and save costs ARAS material handling equipment, offering high quality forklift trucks. Our products provide the lowest cost of ownership while maximizing space and productivity to benefit our clients. Max lift height is up to 15m, min net working aisle width is 1.8m. It stores 50% more pallet positions than counterbalance forklifts and 30% more pallet positions than reach trucks. 220°articulating angle, flexible working in the ultra-narrow aisle. ARAS trucks are tough, versatile and built to last. Designed to withstand heavy-duty use inside and outside, the warehouse with high standard and honored with ISO9001, CE, SGS certificate and special equipment manufacturing license. 80V AC electric controller, low failure rate, less heating. 80V AC lifting&driving motor, maintenance free, powerful, high efficiency. Proportional valve, valve speed can be adjusted according to working conditions, making it easier and more accurate to load/unload pallets in narrow aisles Fingertip control provides better control experience. With better inch move performance, it makes VNA trucks very suitable for high lifting and narrow aisle This innovative design brings substantial convenience to customers, including higher lifting height, narrower warehouse access, higher work efficiency, better driving experience and lower operating costs. All the work of counterbalance forklift and reach truck can be done by only one ARAS articulated forklift. working situations. 15M Strong chassis and mast construction ensure heavy-duty use. LIFT HEIGHT It can drive on any floor surface, both inside and out, eliminating double handling, UP TO move pallet from lorry to rack in one step, so it save much time and money. The maintenance cost is significantly less than normal reach trucks/swing reach truck. The ergonomics design making it provide faster load cycle time and reduce drivers fatigue. Local dealer support and engineer services. Stack to left Stack to Right Rotate angle 220°

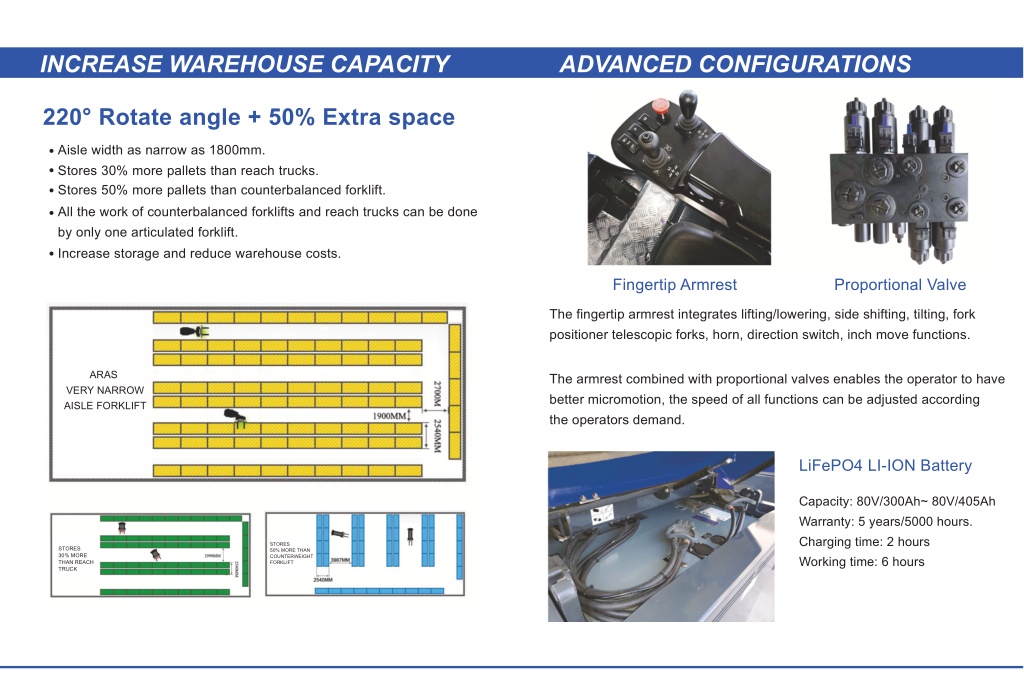

3. INCREASE WAREHOUSE CAPACITY ADVANCED CONFIGURATIONS 220° Rotate angle + 50% Extra space Aisle width as narrow as 1800mm. Stores 30% more pallets than reach trucks. Stores 50% more pallets than counterbalanced forklift. All the work of counterbalanced forklifts and reach trucks can be done by only one articulated forklift. Increase storage and reduce warehouse costs. Fingertip Armrest Proportional Valve The fingertip armrest integrates lifting/lowering, side shifting, tilting, fork positioner telescopic forks, horn, direction switch, inch move functions. ARAS The armrest combined with proportional valves enables the operator to have better micromotion, the speed of all functions can be adjusted according the operators demand. VERY NARROW AISLE FORKLIFT LiFePO4 LI-ION Battery Capacity: 80V/300Ah~ 80V/405Ah Warranty: 5 years/5000 hours. Charging time: 2 hours Working time: 6 hours STORES 50% MORE THAN COUNTERWEIGHT FORKLIFT STORES 30% MORE THAN REACH TRUCK

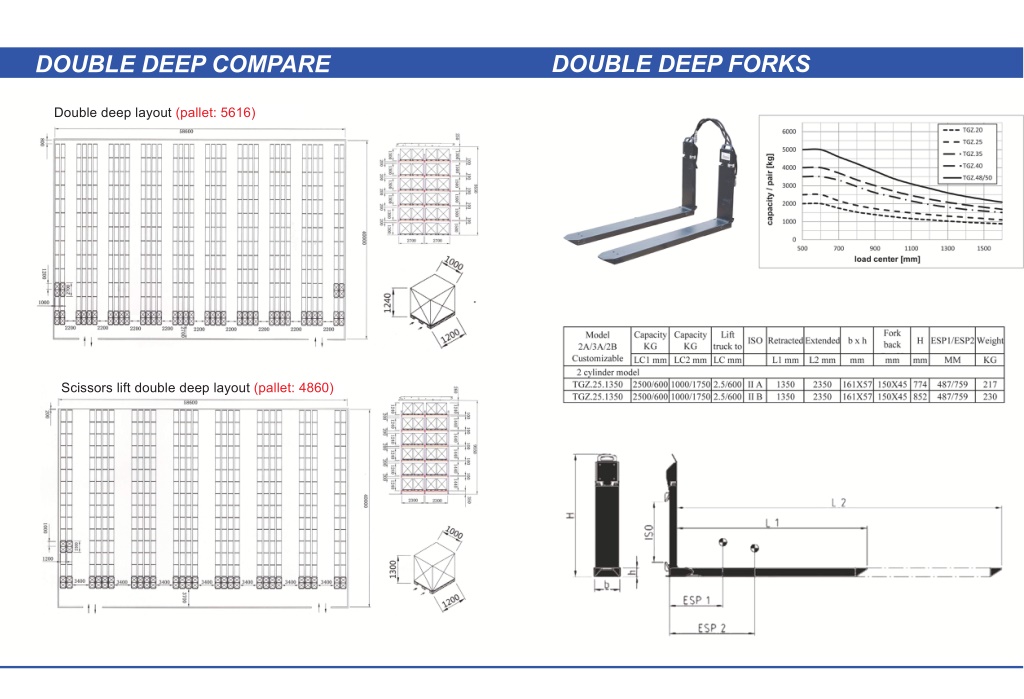

4. DOUBLE DEEP FORKS DOUBLE DEEP COMPARE Double deep layout (pallet: 5616) Scissors lift double deep layout (pallet: 4860)

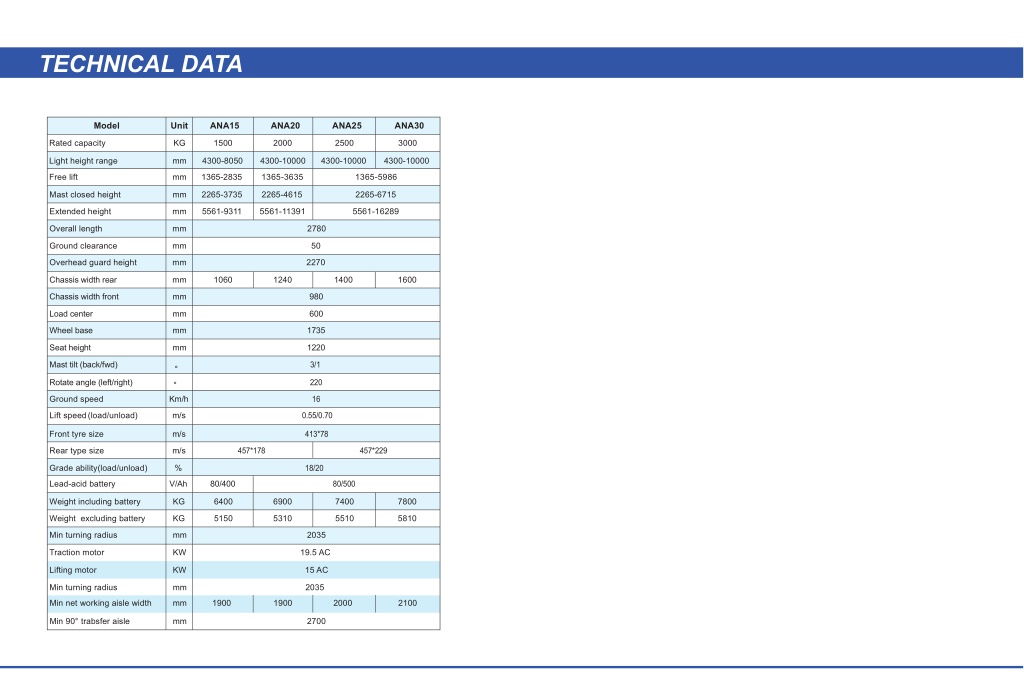

5. TECHNICAL DATA Model Unit ANA15 ANA20 ANA25 ANA30 Rated capacity KG 1500 2000 2500 3000 Light height range mm 4300-8050 4300-10000 4300-10000 4300-10000 Free lift mm 1365-2835 1365-3635 1365-5986 Mast closed height mm 2265-3735 2265-4615 2265-6715 Extended height mm 5561-9311 5561-11391 5561-16289 2780 Overall length mm Ground clearance mm 50 Overhead guard height mm 2270 mm 1060 1240 1400 1600 Chassis width rear Chassis width front mm 980 Load center mm 600 Wheel base mm 1735 Seat height mm 1220 3/1 Mast tilt (back/fwd) ° Rotate angle (left/right) 220 ° Ground speed Km/h 16 Lift speed (load/unload) m/s 0.55/0.70 Front tyre size m/s 413*78 Rear type size m/s 457*178 457*229 Grade ability(load/unload) % 18/20 V/Ah 80/400 Lead-acid battery 80/500 Weight including battery KG 6400 6900 7400 7800 5810 Weight excluding battery KG 5150 5310 5510 Min turning radius mm 2035 Traction motor KW 19.5 AC Lifting motor KW 15 AC Min turning radius mm 2035 Min net working aisle width mm 1900 1900 2000 2100 Min 90° trabsfer aisle mm 2700

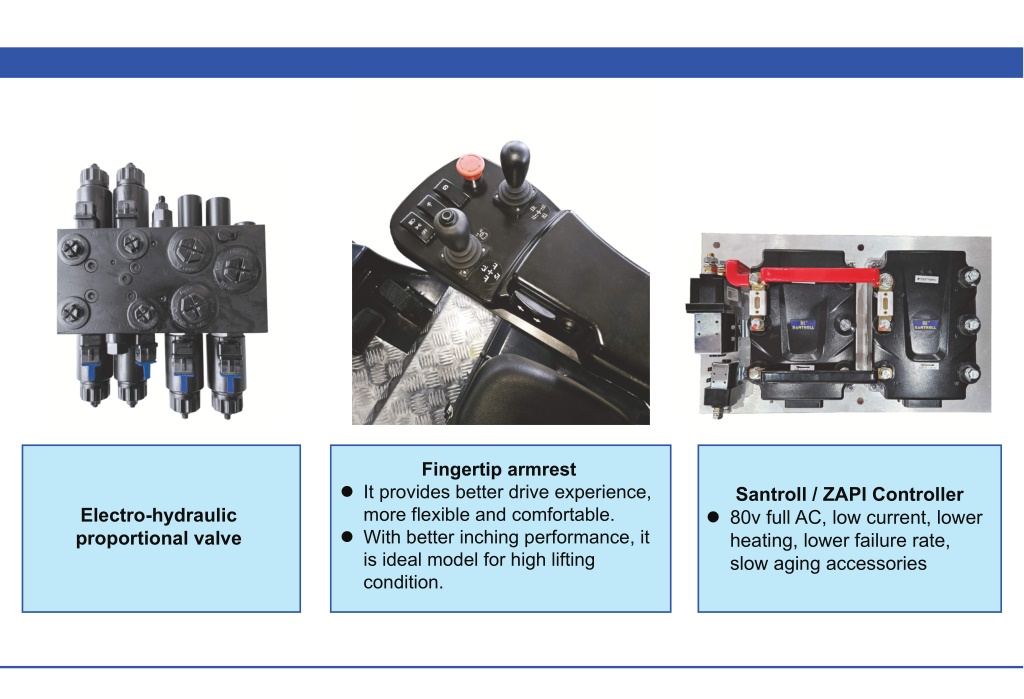

6. Fingertip armrest  It provides better drive experience, more flexible and comfortable.  With better inching performance, it is ideal model for high lifting condition. Santroll / ZAPI Controller  80v full AC, low current, lower heating, lower failure rate, slow aging accessories Electro-hydraulic proportional valve

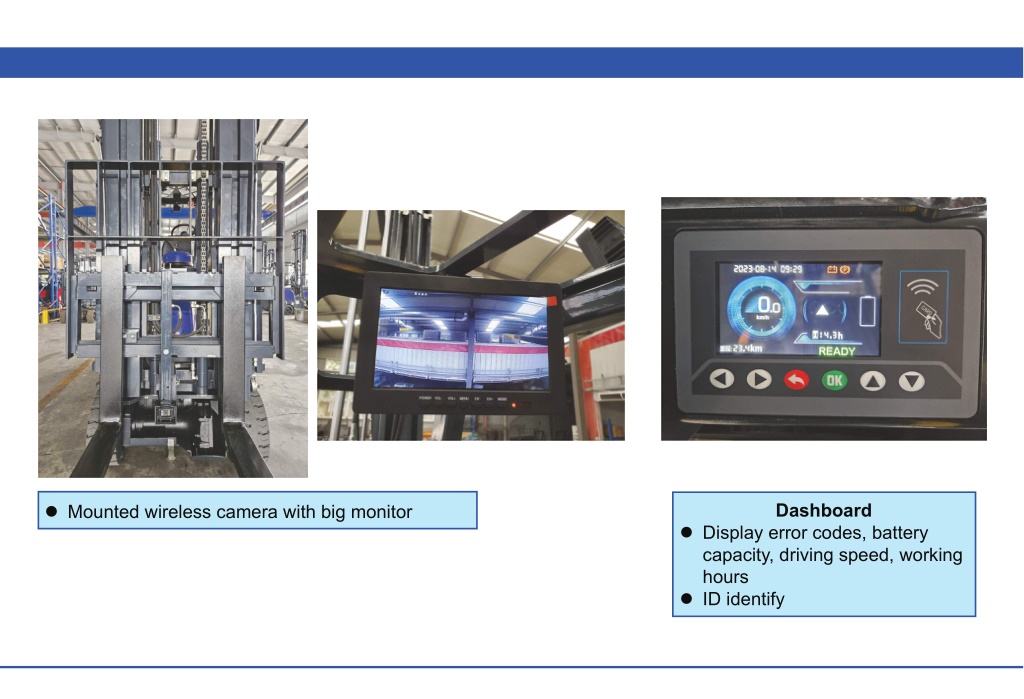

7. Dashboard  Mounted wireless camera with big monitor  Display error codes, battery capacity, driving speed, working hours  ID identify

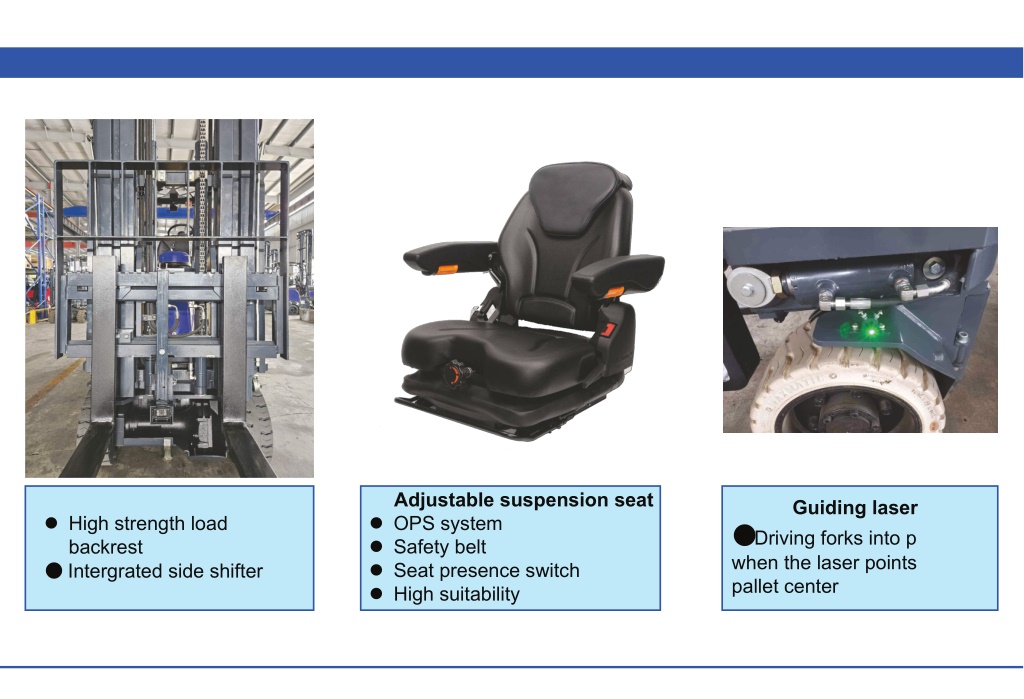

8. Adjustable suspension seat  OPS system  Safety belt  Seat presence switch  High suitability Guiding laser ● Driving forks into p when the laser points pallet center  High strength load backrest ● Intergrated side shifter

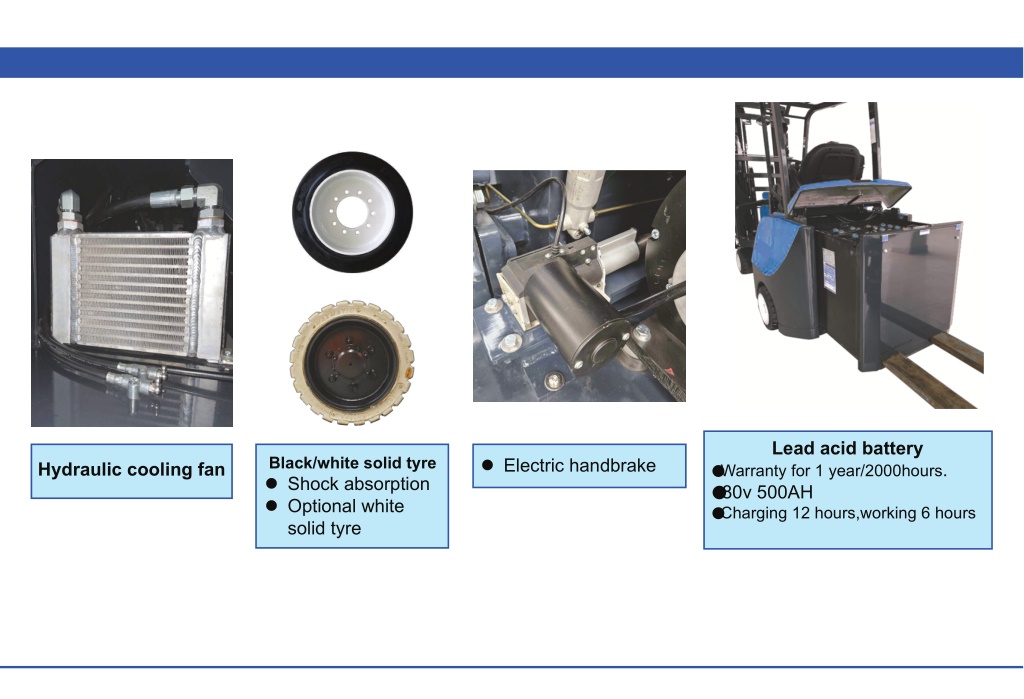

9. Lead acid battery ● Warranty for 1 year/2000hours. ● 80v 500AH ● Charging 12 hours,working 6 hours Black/white solid tyre  Shock absorption  Optional white solid tyre  Electric handbrake Hydraulic cooling fan
