ANS uPVC is a One-Stop Solution for All uPVC Hardware

At ANS Solution we aim to provide every uPVC fabricator with everything they need. ANS Solution is your one-stop solution for all your uPVC needs. We provide wide ranges of handles, hinges, rollers, espages, friction stays, and EPDM rubber gaskets.<br>

ANSSOLUTION
Download Presentation

ANS uPVC is a One-Stop Solution for All uPVC Hardware

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

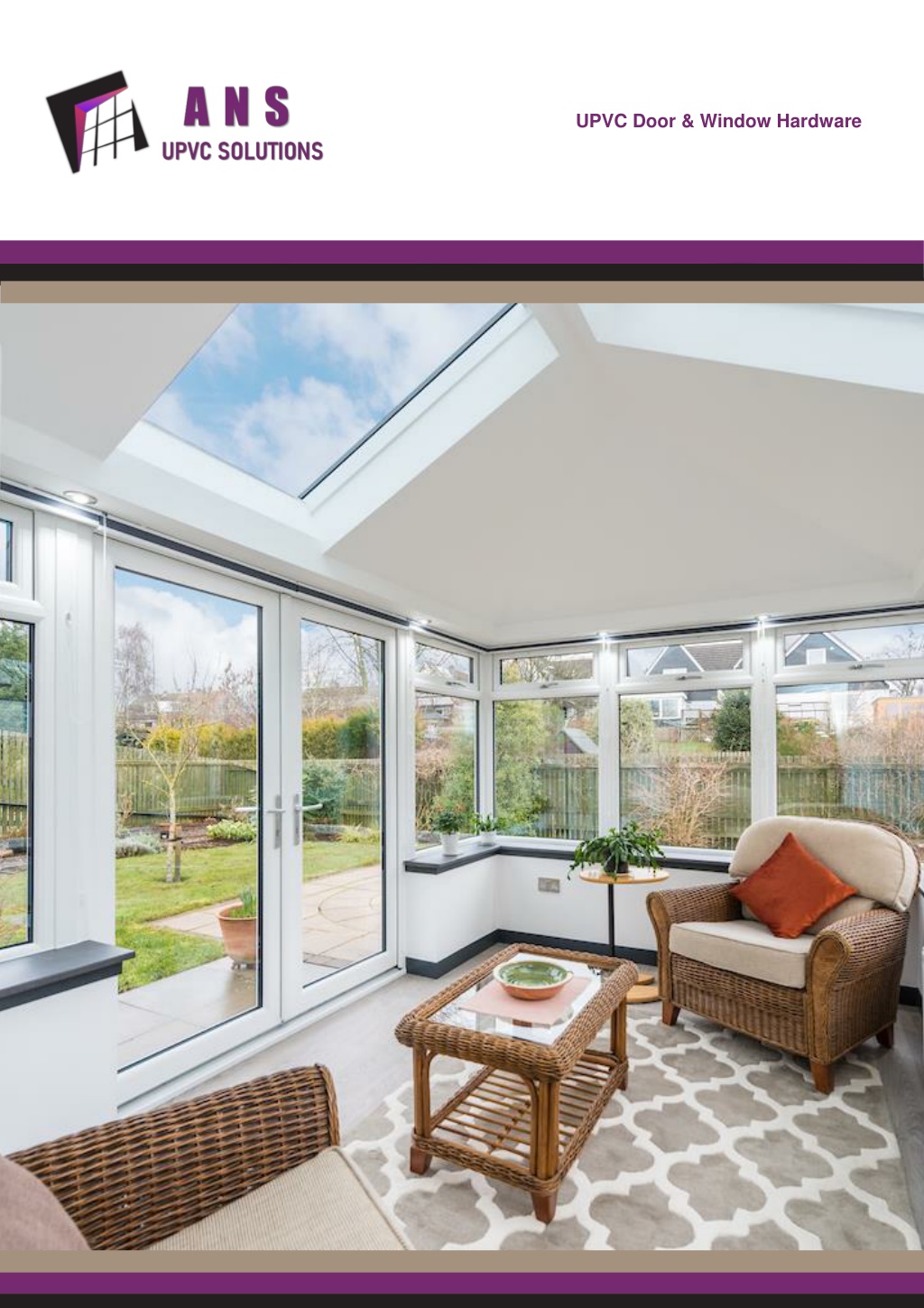

  1. UPVC Door & Window Hardware

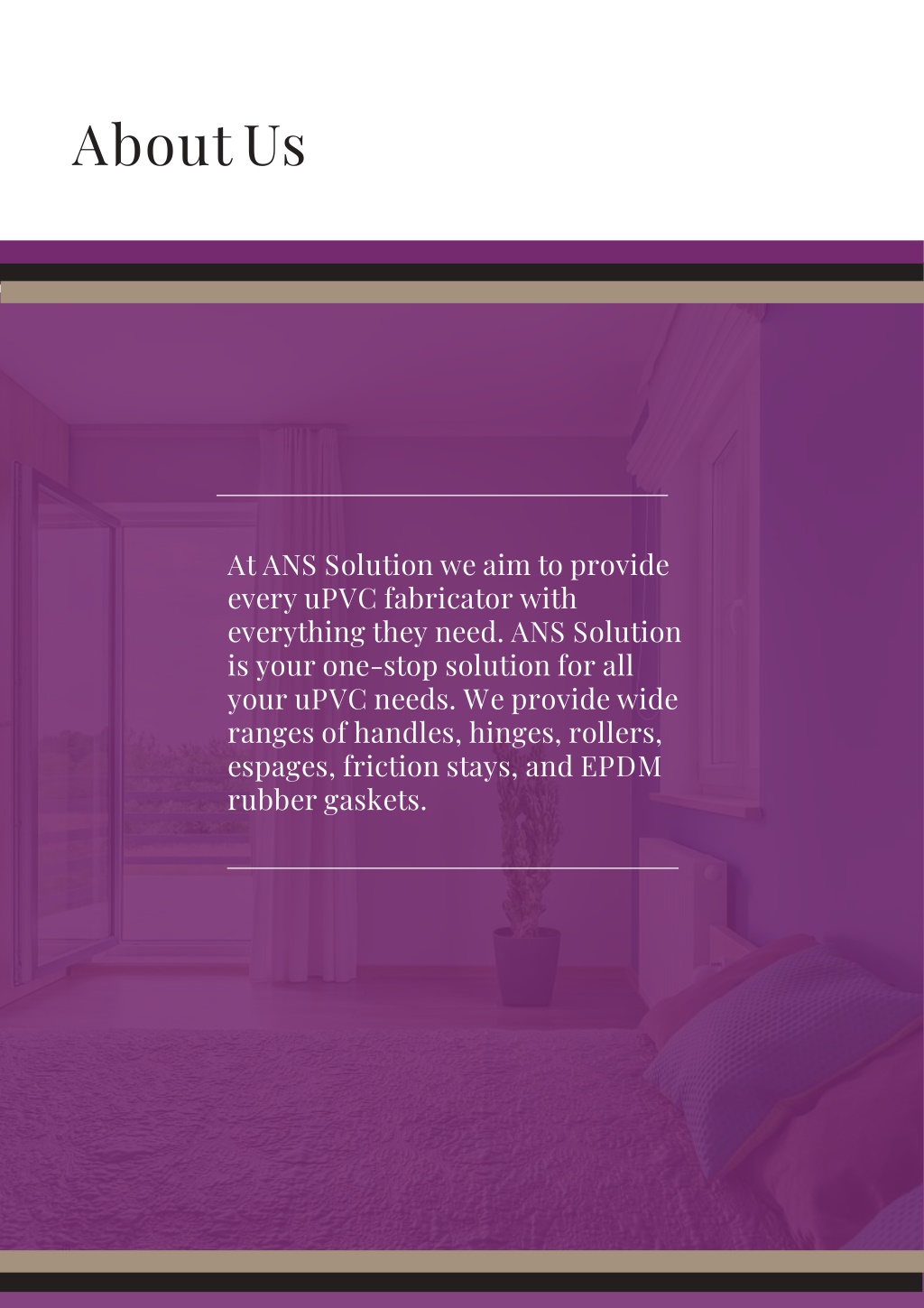

  2. AboutUs At ANS Solution we aim to provide every uPVC fabricator with everything they need. ANS Solution is your one-stop solution for all your uPVC needs. We provide wide ranges of handles, hinges, rollers, espages, friction stays, and EPDM rubber gaskets. iii

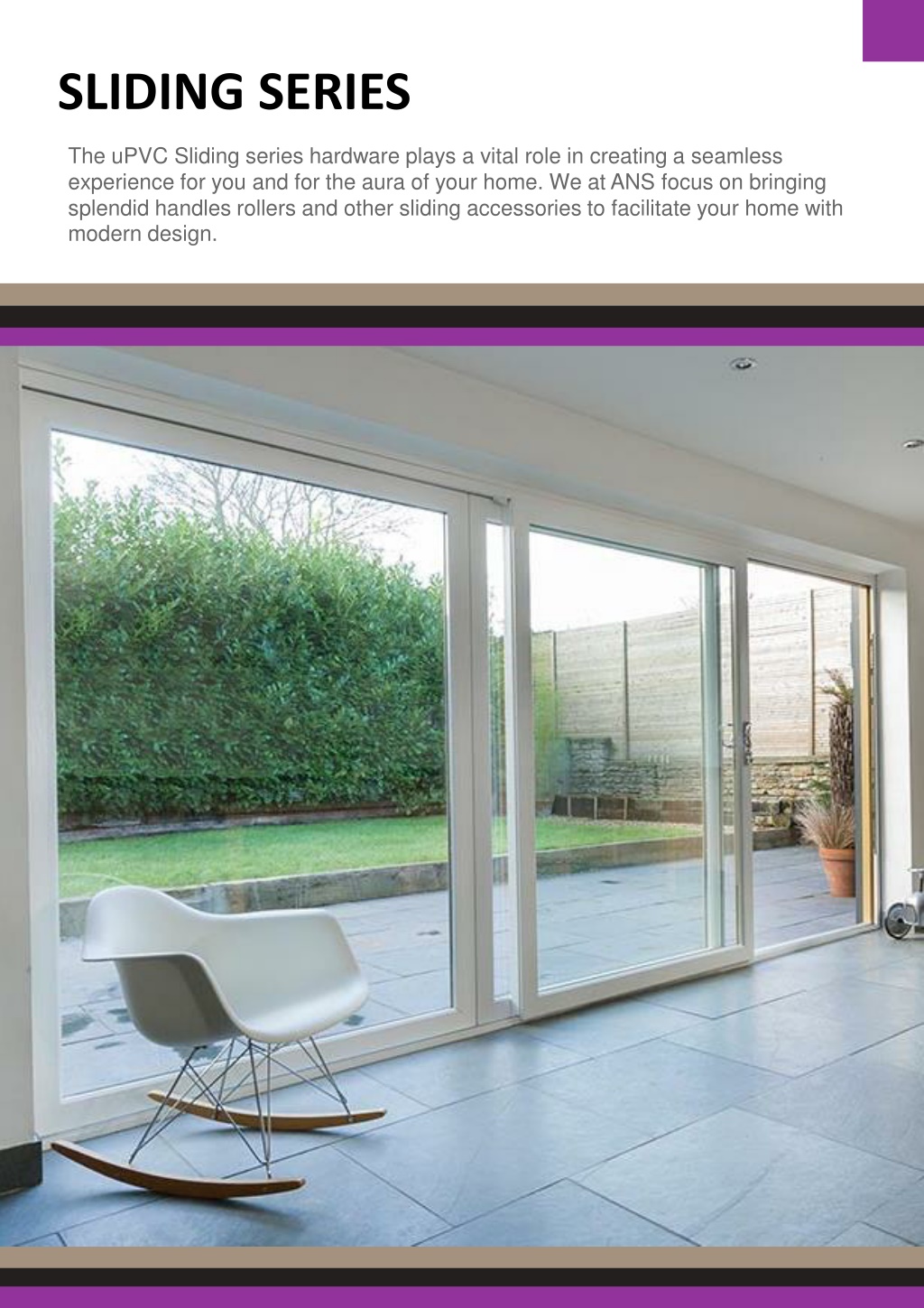

  3. SLIDING SERIES The uPVC Sliding series hardware plays a vital role in creating a seamless experience for you and for the aura of your home. We at ANS focus on bringing KFS-LD-NL splendid handles rollers and other sliding accessories to facilitate your home with modern design. 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: 2.0 Link Bar Thickness (mm): SideHung Load Capacity Range: Upto 22 kgs TopHung Load Capacity Range: Upto 40 kgs SS304 MaterialGrade: All dimensions are in mm KFS-LD-NL-EO Light Duty Friction Stay(Egress) 13.5 Stack Height(mm): 12,16 Size(in): 2.0 Link Bar Thickness (mm): Upto 22kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm 1

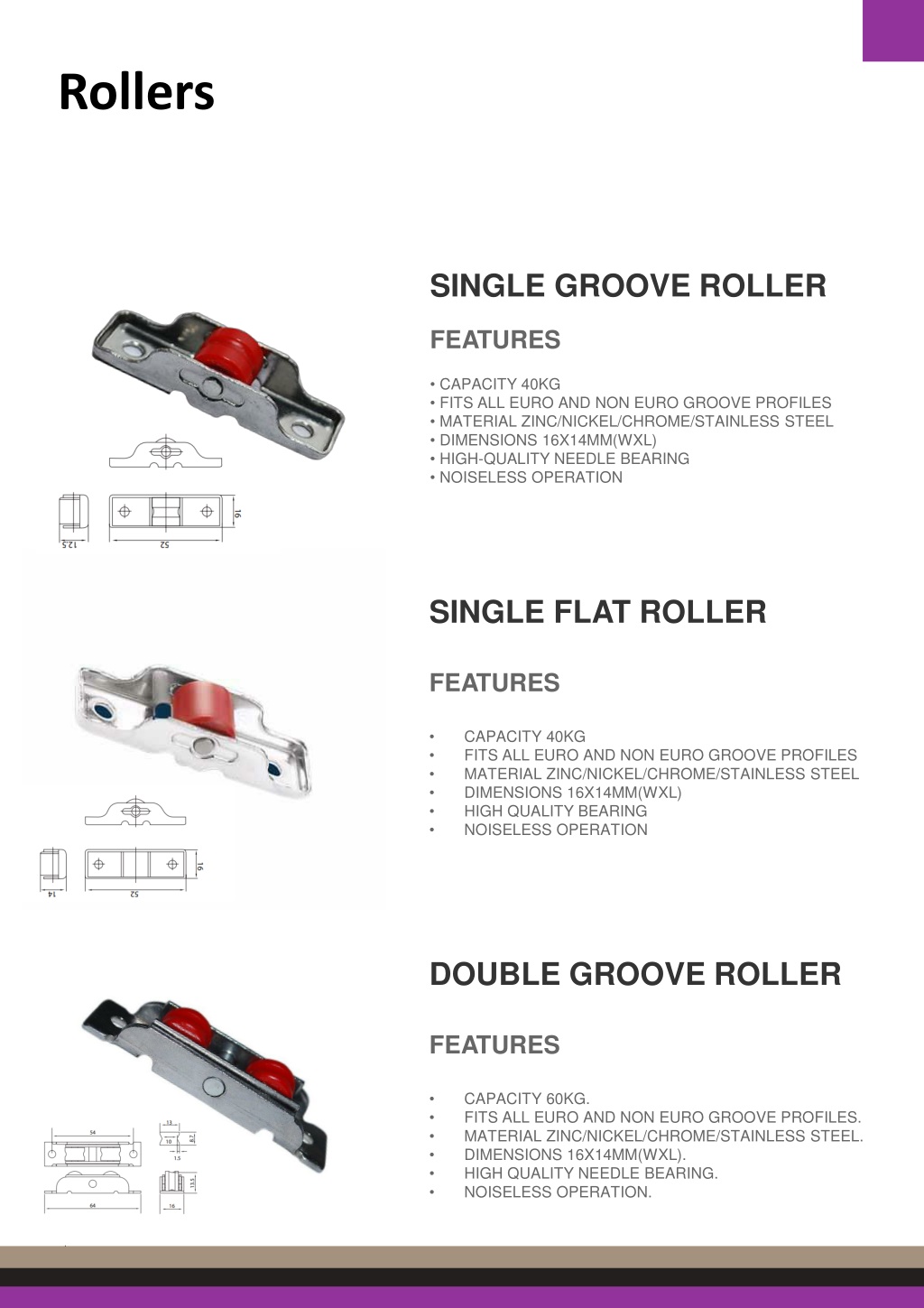

  4. Rollers SINGLE GROOVE ROLLER FEATURES • CAPACITY 40KG • FITS ALL EURO AND NON EURO GROOVE PROFILES • MATERIAL ZINC/NICKEL/CHROME/STAINLESS STEEL • DIMENSIONS 16X14MM(WXL) • HIGH-QUALITY NEEDLE BEARING • NOISELESS OPERATION SINGLE FLAT ROLLER FEATURES KFS-LD-NL-EO Light Duty Friction Stay(Egress) CAPACITY 40KG FITS ALL EURO AND NON EURO GROOVE PROFILES MATERIAL ZINC/NICKEL/CHROME/STAINLESS STEEL DIMENSIONS 16X14MM(WXL) HIGH QUALITY BEARING NOISELESS OPERATION • • • • • • DOUBLE GROOVE ROLLER FEATURES CAPACITY 60KG. FITS ALL EURO AND NON EURO GROOVE PROFILES. MATERIAL ZINC/NICKEL/CHROME/STAINLESS STEEL. DIMENSIONS 16X14MM(WXL). HIGH QUALITY NEEDLE BEARING. NOISELESS OPERATION. • • • • • • 1

  5. Rollers KFS-LD-NL Light Duty Friction Stay (EasyClean) ADJUSTABLE ROLLER NYLON FEATURES CAPACITY 90KG FOR TWO ROLLERS. COMPATIBLE WITH ALL STANDARD PROFILES. MATERIAL NYLON. DIMENSIONS 12X20X160MM (WXDXL). ADJUSTABLE TO 21 TO 27MM. • • • • • ADJUSTABLE ROLLER STEEL FEATURES CAPACITY 120KG FOR TWO ROLLERS. COMPATIBLE WITH ALL STANDARD PROFILES. MATERIAL GALVANIZED STEEL DIMENSIONS 12X20X160MM (WXDXL). ADJUSTABLE TO 21 TO 27MM. • • • • • ADJUSTABLE ROLLER FOUR WHEEL FEATURES CAPACITY 250KG FOR FOUR ROLLERS. COMPATIBLE WITH ALL STANDARD PROFILES. MATERIAL GALVANIZED STEEL ADJUSTABLE TO 21 TO 27MM. • • • • 1

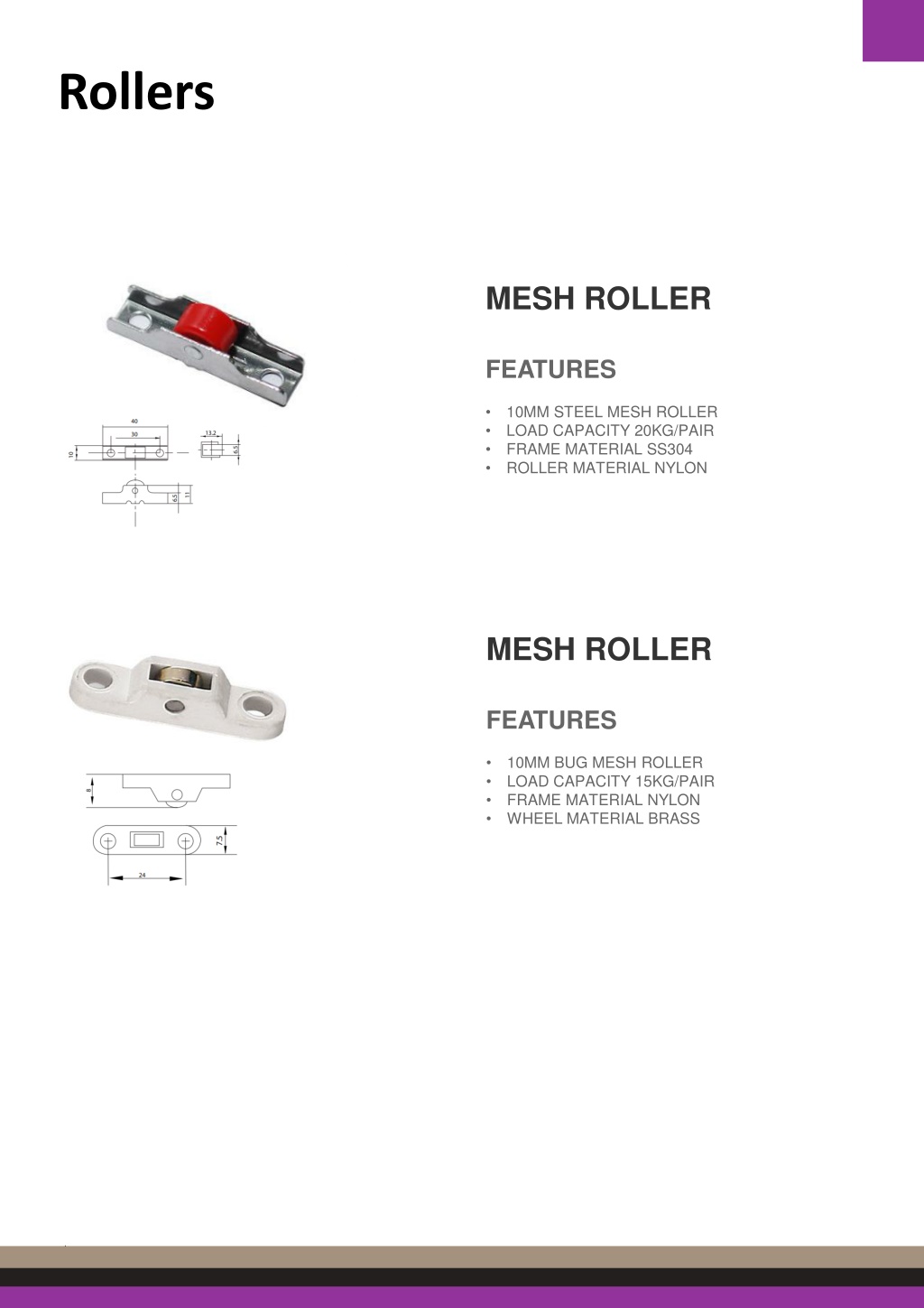

  6. Rollers KFS-LD-NL 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: Link Bar Thickness (mm): MESH ROLLER 2.0 SideHung Load Capacity Range: FEATURES Upto 22 kgs TopHung Load Capacity Range: 10MM STEEL MESH ROLLER LOAD CAPACITY 20KG/PAIR FRAME MATERIAL SS304 ROLLER MATERIAL NYLON • • • • Upto 40 kgs SS304 MaterialGrade: MESH ROLLER FEATURES KFS-LD-NL-EO 10MM BUG MESH ROLLER LOAD CAPACITY 15KG/PAIR FRAME MATERIAL NYLON WHEEL MATERIAL BRASS • • • • Light Duty Friction Stay(Egress) 1

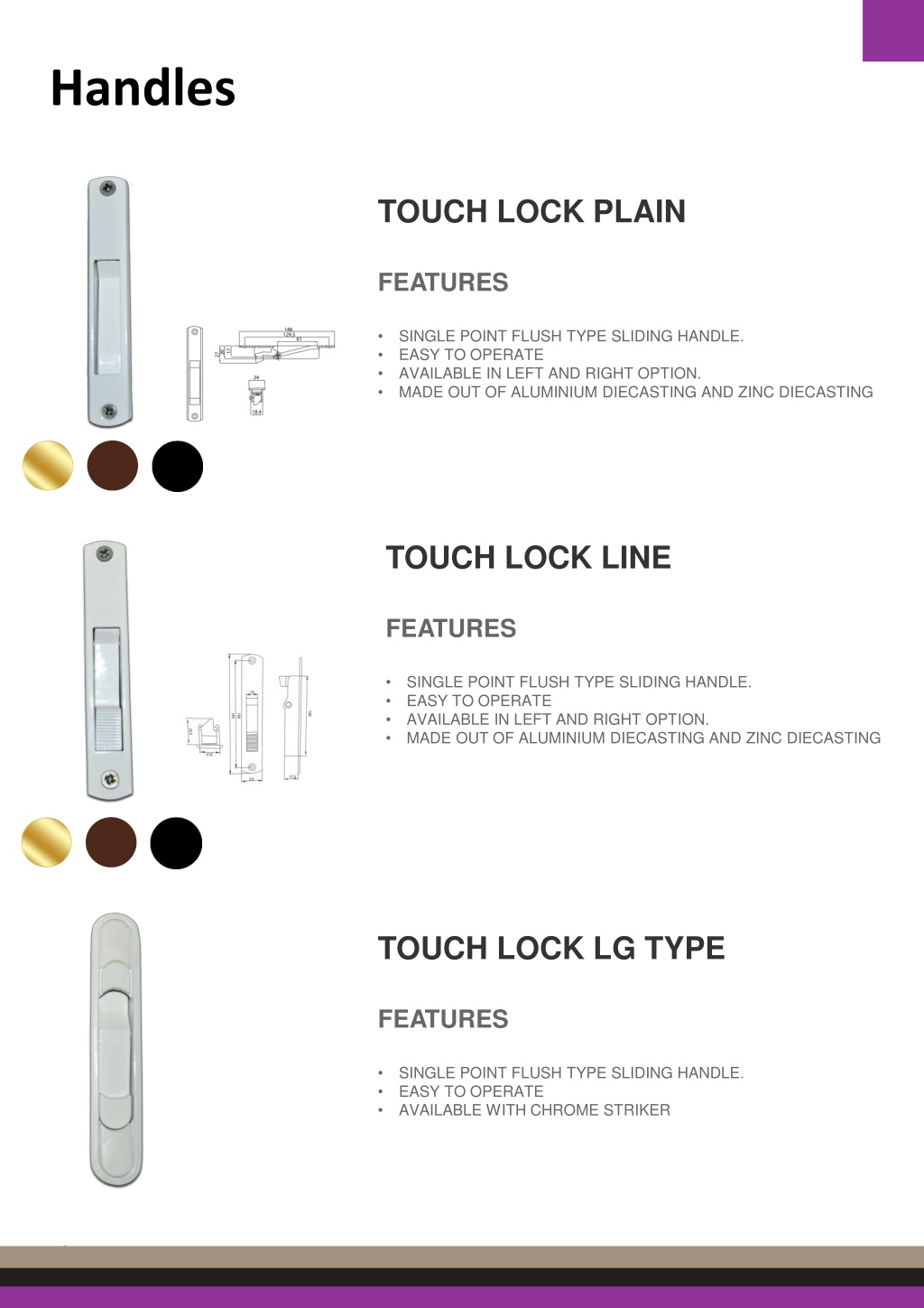

  7. Handles TOUCH LOCK PLAIN FEATURES SINGLE POINT FLUSH TYPE SLIDING HANDLE. EASY TO OPERATE AVAILABLE IN LEFT AND RIGHT OPTION. MADE OUT OF ALUMINIUM DIECASTING AND ZINC DIECASTING • • • • TOUCH LOCK LINE FEATURES SINGLE POINT FLUSH TYPE SLIDING HANDLE. EASY TO OPERATE AVAILABLE IN LEFT AND RIGHT OPTION. MADE OUT OF ALUMINIUM DIECASTING AND ZINC DIECASTING • • • • TOUCH LOCK LG TYPE FEATURES SINGLE POINT FLUSH TYPE SLIDING HANDLE. EASY TO OPERATE AVAILABLE WITH CHROME STRIKER • • • 1

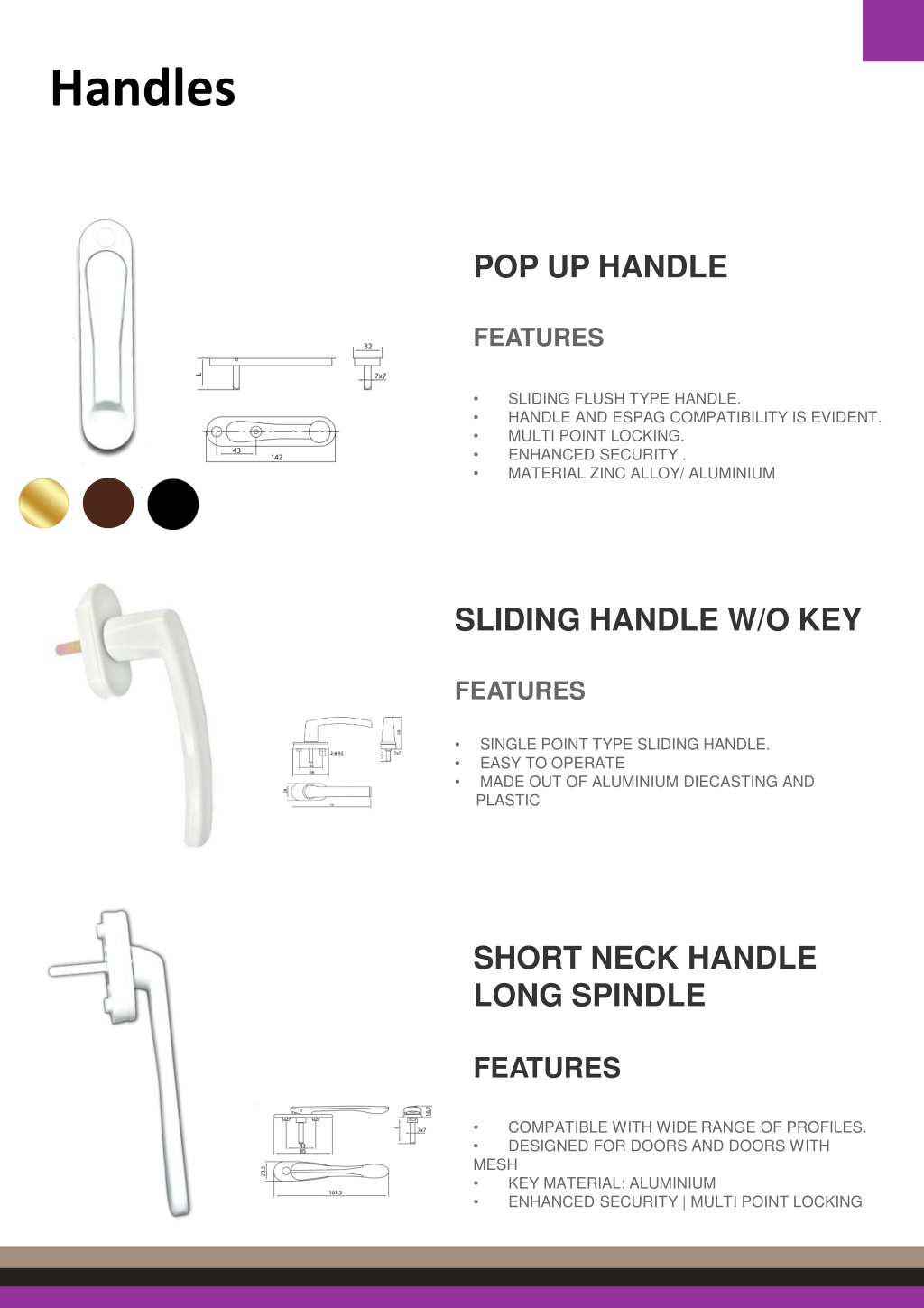

  8. Handles POP UP HANDLE FEATURES SLIDING FLUSH TYPE HANDLE. HANDLE AND ESPAG COMPATIBILITY IS EVIDENT. MULTI POINT LOCKING. ENHANCED SECURITY . MATERIAL ZINC ALLOY/ ALUMINIUM • • • • • SLIDING HANDLE W/O KEY FEATURES SINGLE POINT TYPE SLIDING HANDLE. EASY TO OPERATE MADE OUT OF ALUMINIUM DIECASTING AND PLASTIC • • • SHORT NECK HANDLE LONG SPINDLE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. DESIGNED FOR DOORS AND DOORS WITH • • MESH • • KEY MATERIAL: ALUMINIUM ENHANCED SECURITY | MULTI POINT LOCKING

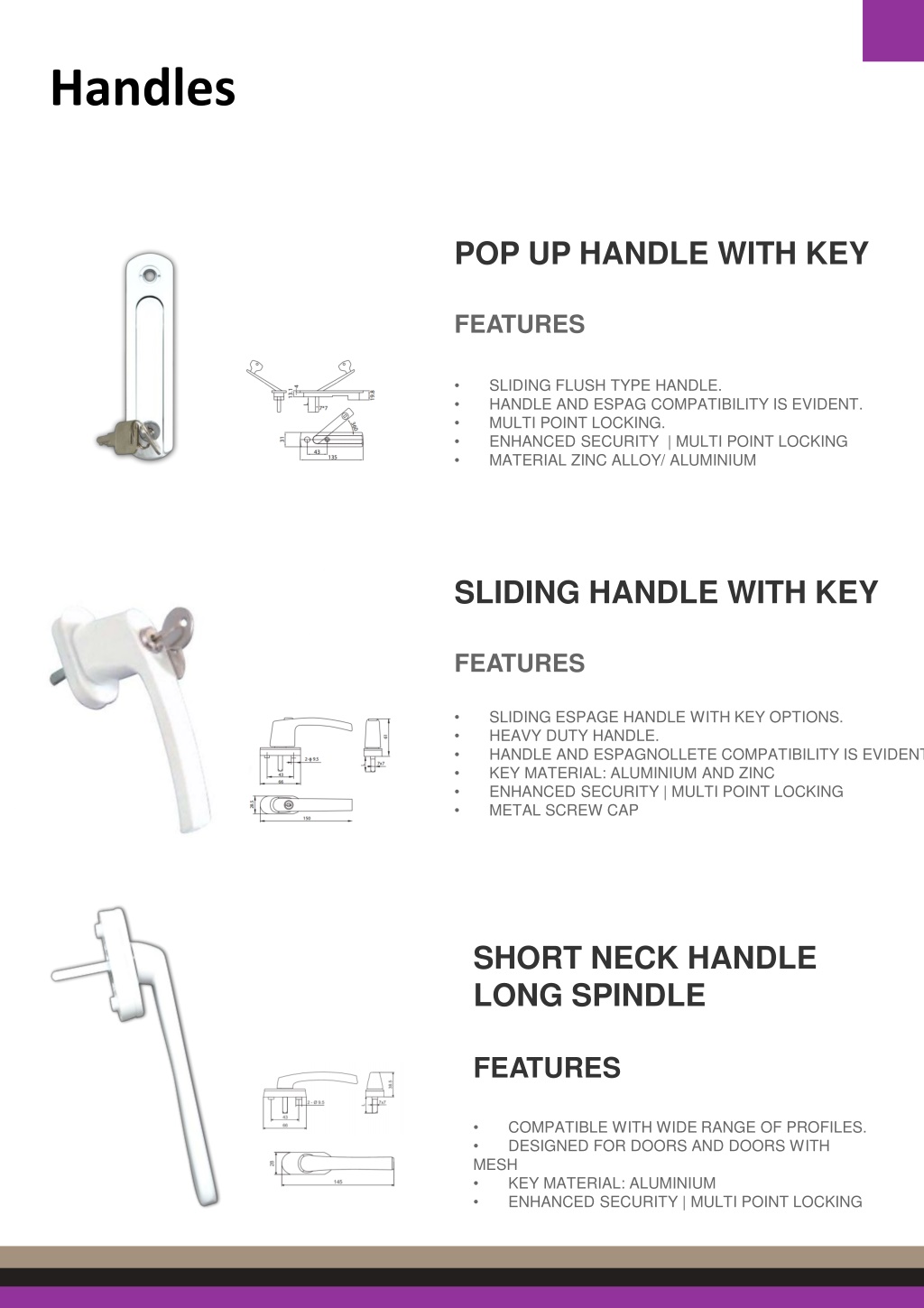

  9. Handles POP UP HANDLE WITH KEY FEATURES SLIDING FLUSH TYPE HANDLE. HANDLE AND ESPAG COMPATIBILITY IS EVIDENT. MULTI POINT LOCKING. ENHANCED SECURITY | MULTI POINT LOCKING MATERIAL ZINC ALLOY/ ALUMINIUM • • • • • SLIDING HANDLE WITH KEY FEATURES SLIDING ESPAGE HANDLE WITH KEY OPTIONS. HEAVY DUTY HANDLE. HANDLE AND ESPAGNOLLETE COMPATIBILITY IS EVIDENT KEY MATERIAL: ALUMINIUM AND ZINC ENHANCED SECURITY | MULTI POINT LOCKING METAL SCREW CAP • • • • • • SHORT NECK HANDLE LONG SPINDLE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. DESIGNED FOR DOORS AND DOORS WITH • • MESH • • KEY MATERIAL: ALUMINIUM ENHANCED SECURITY | MULTI POINT LOCKING

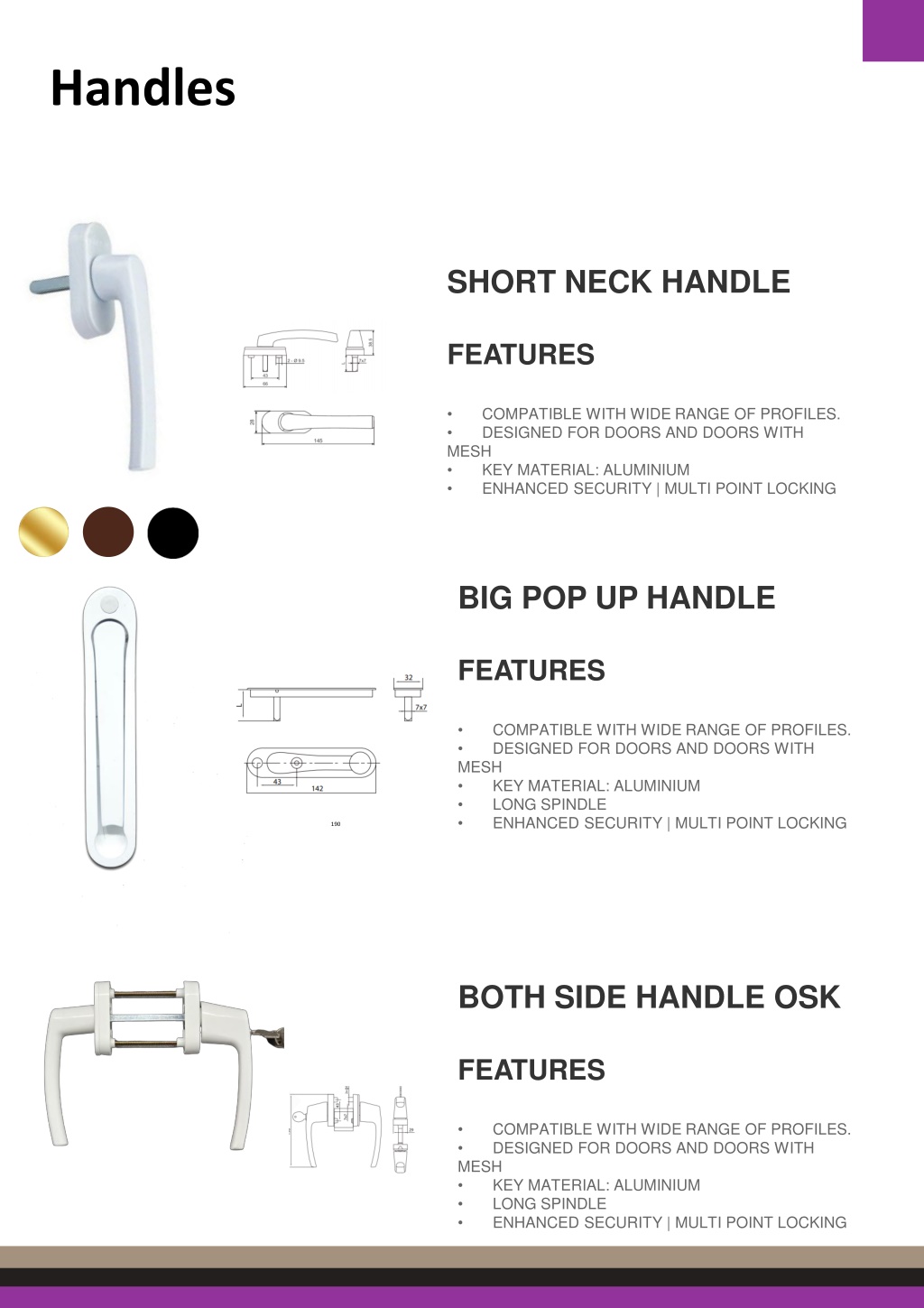

  10. Handles SHORT NECK HANDLE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. DESIGNED FOR DOORS AND DOORS WITH • • MESH • • KEY MATERIAL: ALUMINIUM ENHANCED SECURITY | MULTI POINT LOCKING BIG POP UP HANDLE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. DESIGNED FOR DOORS AND DOORS WITH • • MESH • • • KEY MATERIAL: ALUMINIUM LONG SPINDLE ENHANCED SECURITY | MULTI POINT LOCKING 190 BOTH SIDE HANDLE OSK FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. DESIGNED FOR DOORS AND DOORS WITH • • MESH • • • KEY MATERIAL: ALUMINIUM LONG SPINDLE ENHANCED SECURITY | MULTI POINT LOCKING

  11. Handle Set SLIDING D HANDLE SETS FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES COMES WITH 1800MM LOCKABLE ESPAG 62MM BSK/OSK CYLINDER ALSO AVAILABLE AS DUMMY HANDLE WITHOUT LOCKING • • • •

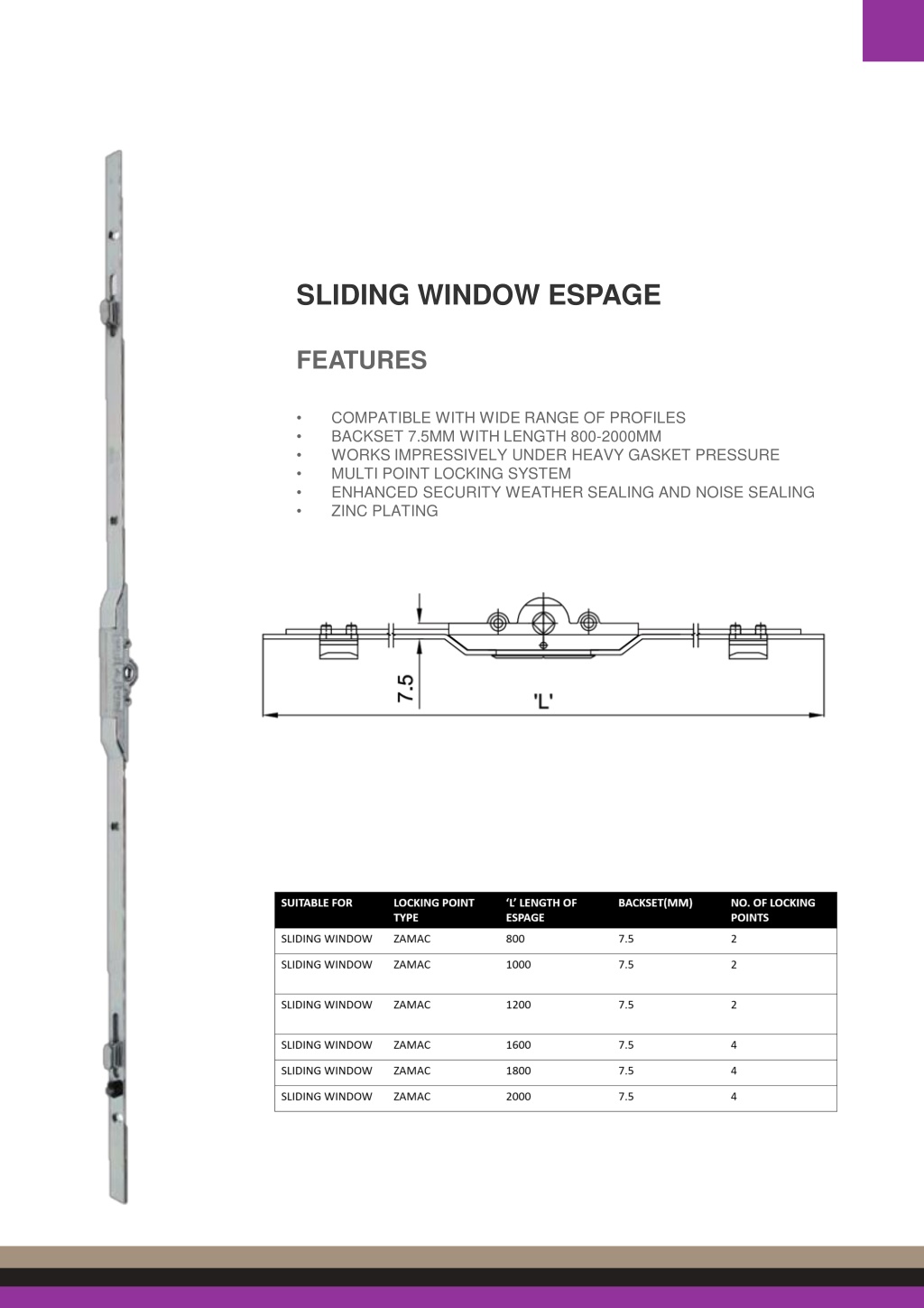

  12. SLIDING WINDOW ESPAGE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES BACKSET 7.5MM WITH LENGTH 800-2000MM WORKS IMPRESSIVELY UNDER HEAVY GASKET PRESSURE MULTI POINT LOCKING SYSTEM ENHANCED SECURITY WEATHER SEALING AND NOISE SEALING ZINC PLATING • • • • • •

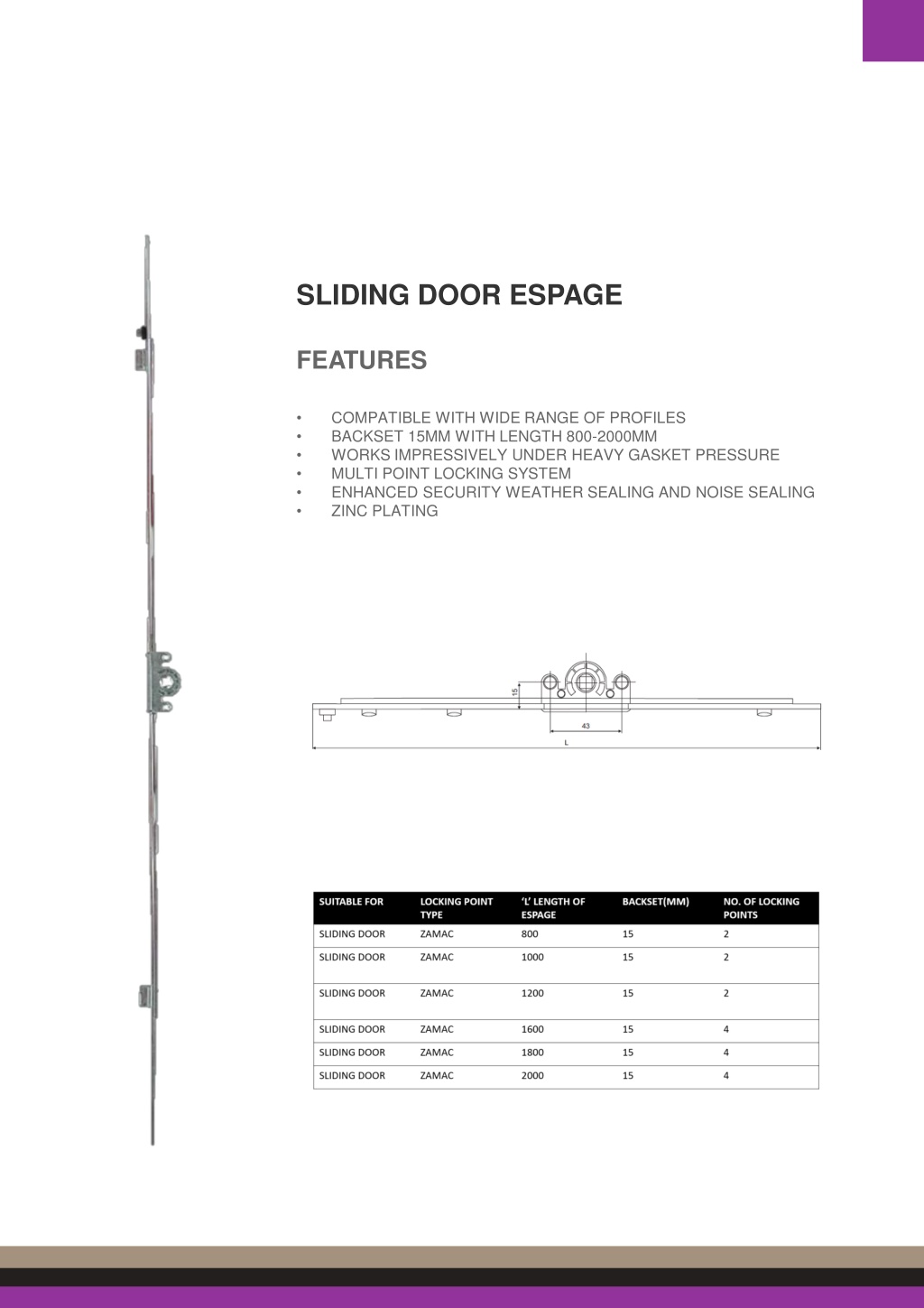

  13. SLIDING DOOR ESPAGE FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES BACKSET 15MM WITH LENGTH 800-2000MM WORKS IMPRESSIVELY UNDER HEAVY GASKET PRESSURE MULTI POINT LOCKING SYSTEM ENHANCED SECURITY WEATHER SEALING AND NOISE SEALING ZINC PLATING • • • • • •

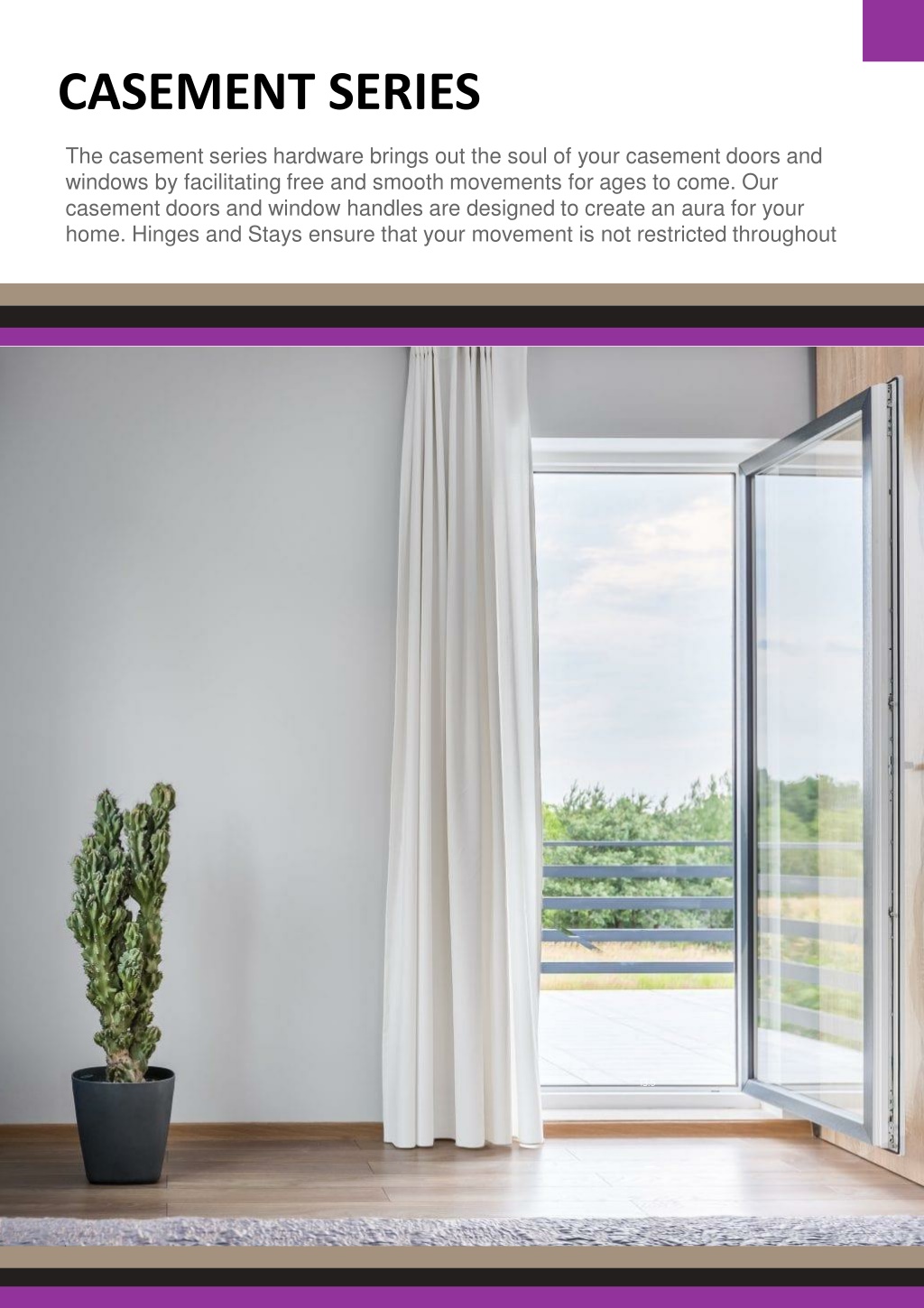

  14. CASEMENT SERIES The casement series hardware brings out the soul of your casement doors and windows by facilitating free and smooth movements for ages to come. Our KFS-LD-NL casement doors and window handles are designed to create an aura for your home. Hinges and Stays ensure that your movement is not restricted throughout 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: 2.0 Link Bar Thickness (mm): SideHung Load Capacity Range: Upto 22 kgs TopHung Load Capacity Range: Upto 40 kgs SS304 MaterialGrade: All dimensions are in mm KFS-LD-NL-EO Light Duty Friction Stay(Egress) 13.5 Stack Height(mm): 12,16 Size(in): 2.0 Link Bar Thickness (mm): Upto 22kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm 1

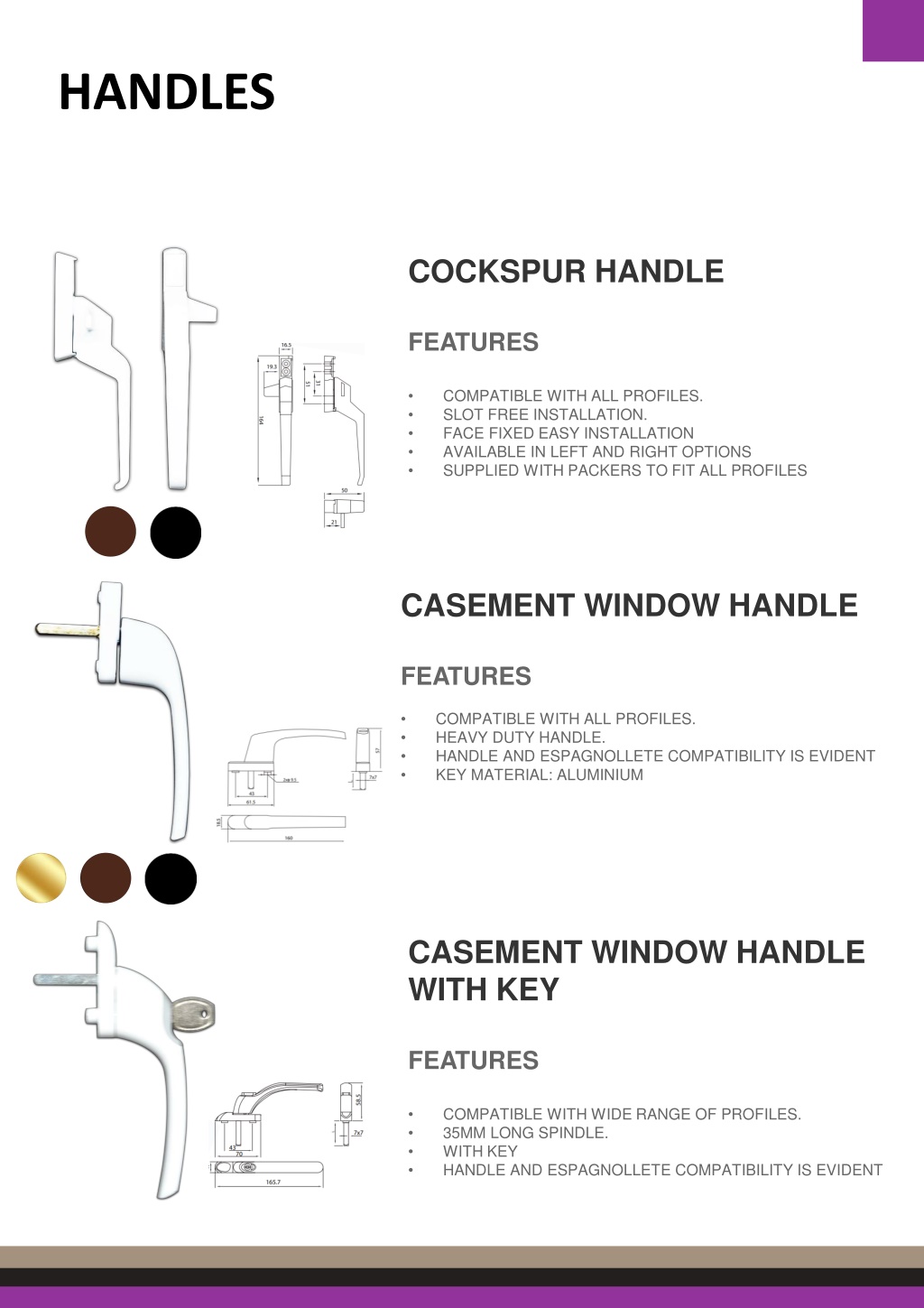

  15. HANDLES KFS-LD-NL Light Duty Friction Stay (EasyClean) COCKSPUR HANDLE FEATURES COMPATIBLE WITH ALL PROFILES. SLOT FREE INSTALLATION. FACE FIXED EASY INSTALLATION AVAILABLE IN LEFT AND RIGHT OPTIONS SUPPLIED WITH PACKERS TO FIT ALL PROFILES • • • • • CASEMENT WINDOW HANDLE FEATURES COMPATIBLE WITH ALL PROFILES. HEAVY DUTY HANDLE. HANDLE AND ESPAGNOLLETE COMPATIBILITY IS EVIDENT KEY MATERIAL: ALUMINIUM • • • • KFS-LD-NL-EO Light Duty Friction Stay(Egress) CASEMENT WINDOW HANDLE WITH KEY FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. 35MM LONG SPINDLE. WITH KEY HANDLE AND ESPAGNOLLETE COMPATIBILITY IS EVIDENT • • • •

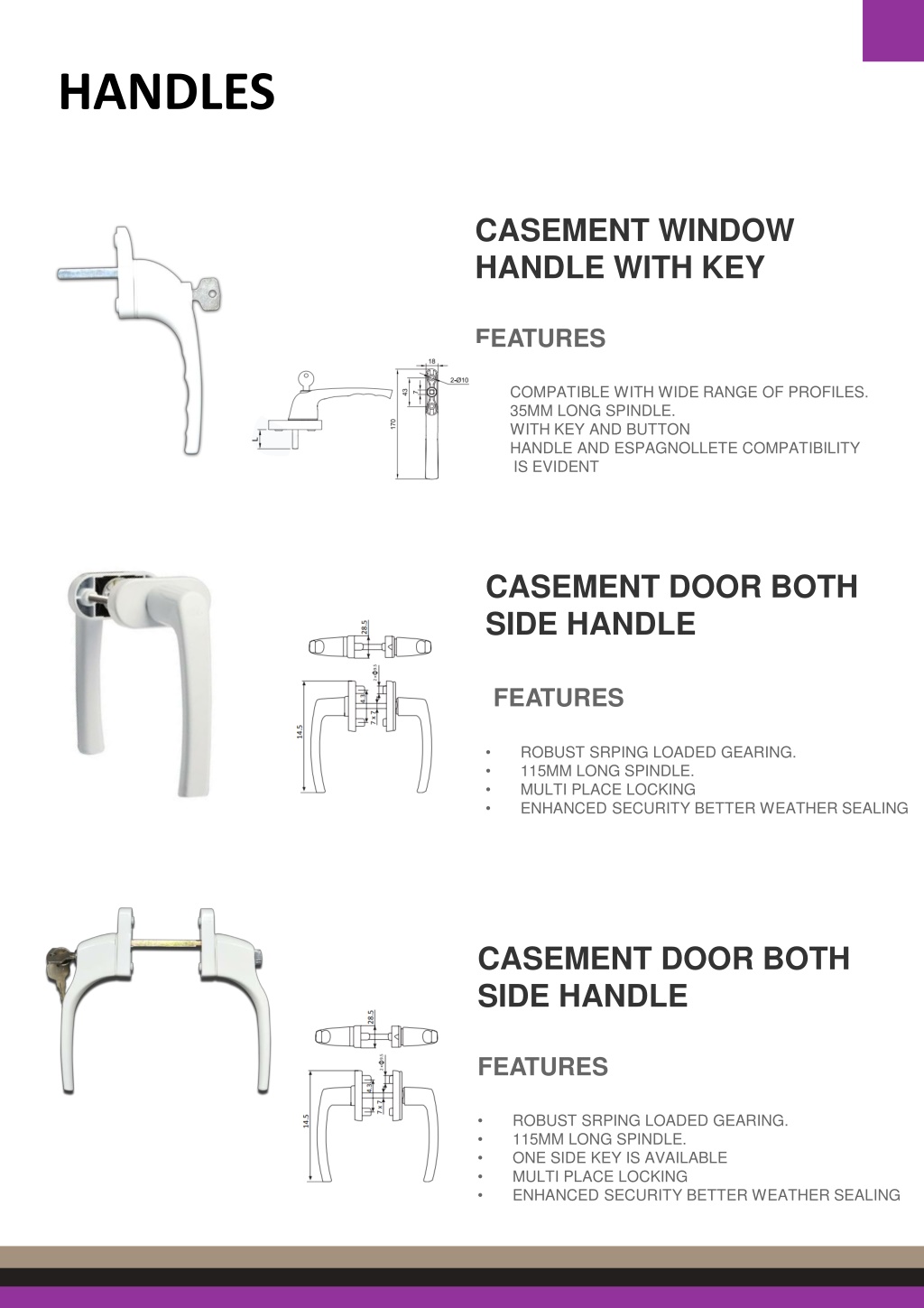

  16. HANDLES CASEMENT WINDOW HANDLE WITH KEY FEATURES COMPATIBLE WITH WIDE RANGE OF PROFILES. 35MM LONG SPINDLE. WITH KEY AND BUTTON HANDLE AND ESPAGNOLLETE COMPATIBILITY IS EVIDENT • • • • CASEMENT DOOR BOTH SIDE HANDLE FEATURES ROBUST SRPING LOADED GEARING. 115MM LONG SPINDLE. MULTI PLACE LOCKING ENHANCED SECURITY BETTER WEATHER SEALING • • • • CASEMENT DOOR BOTH SIDE HANDLE FEATURES ROBUST SRPING LOADED GEARING. 115MM LONG SPINDLE. ONE SIDE KEY IS AVAILABLE MULTI PLACE LOCKING ENHANCED SECURITY BETTER WEATHER SEALING • • • • •

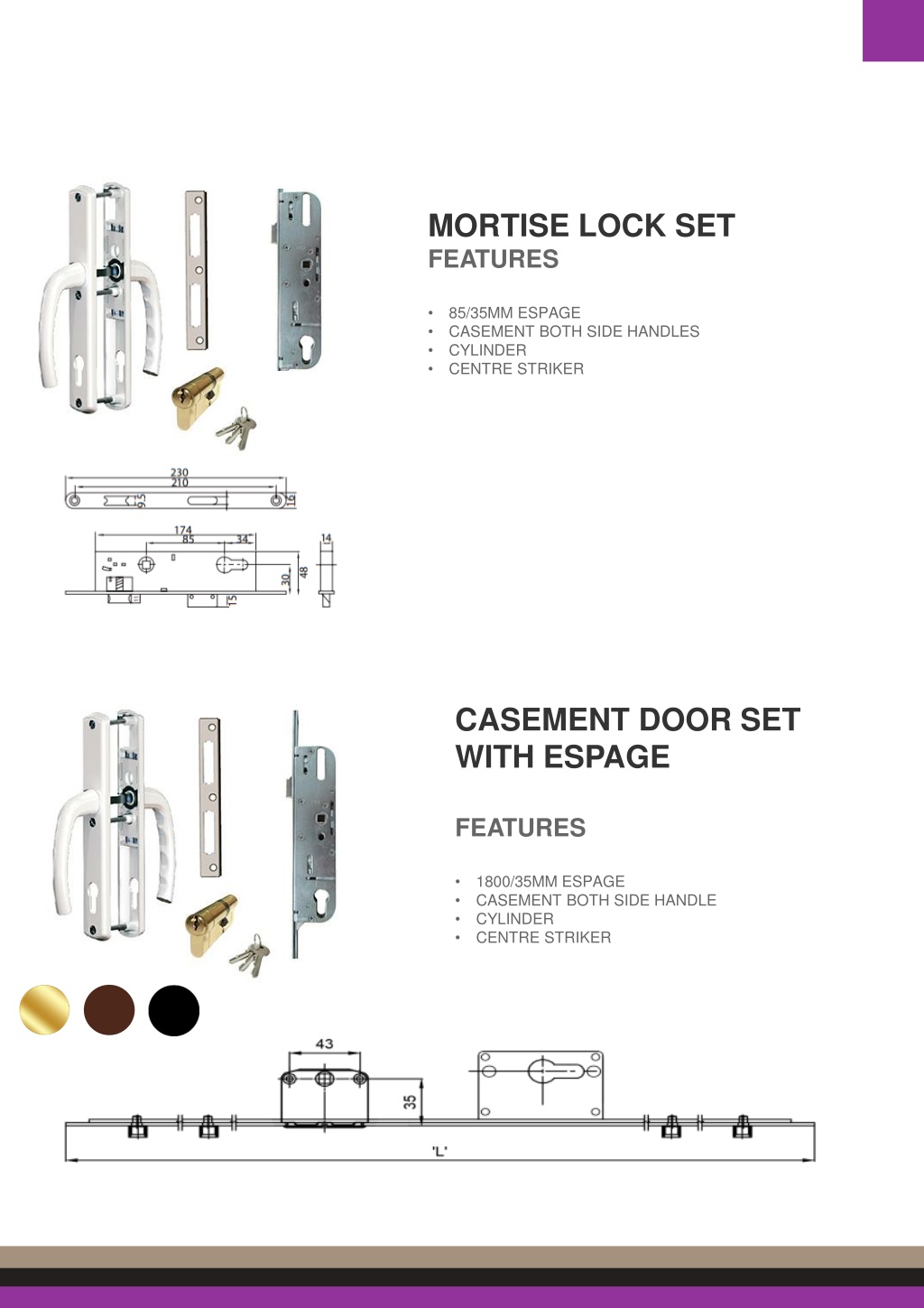

  17. MORTISE LOCK SET FEATURES 85/35MM ESPAGE CASEMENT BOTH SIDE HANDLES CYLINDER CENTRE STRIKER • • • • CASEMENT DOOR SET WITH ESPAGE FEATURES 1800/35MM ESPAGE CASEMENT BOTH SIDE HANDLE CYLINDER CENTRE STRIKER • • • •

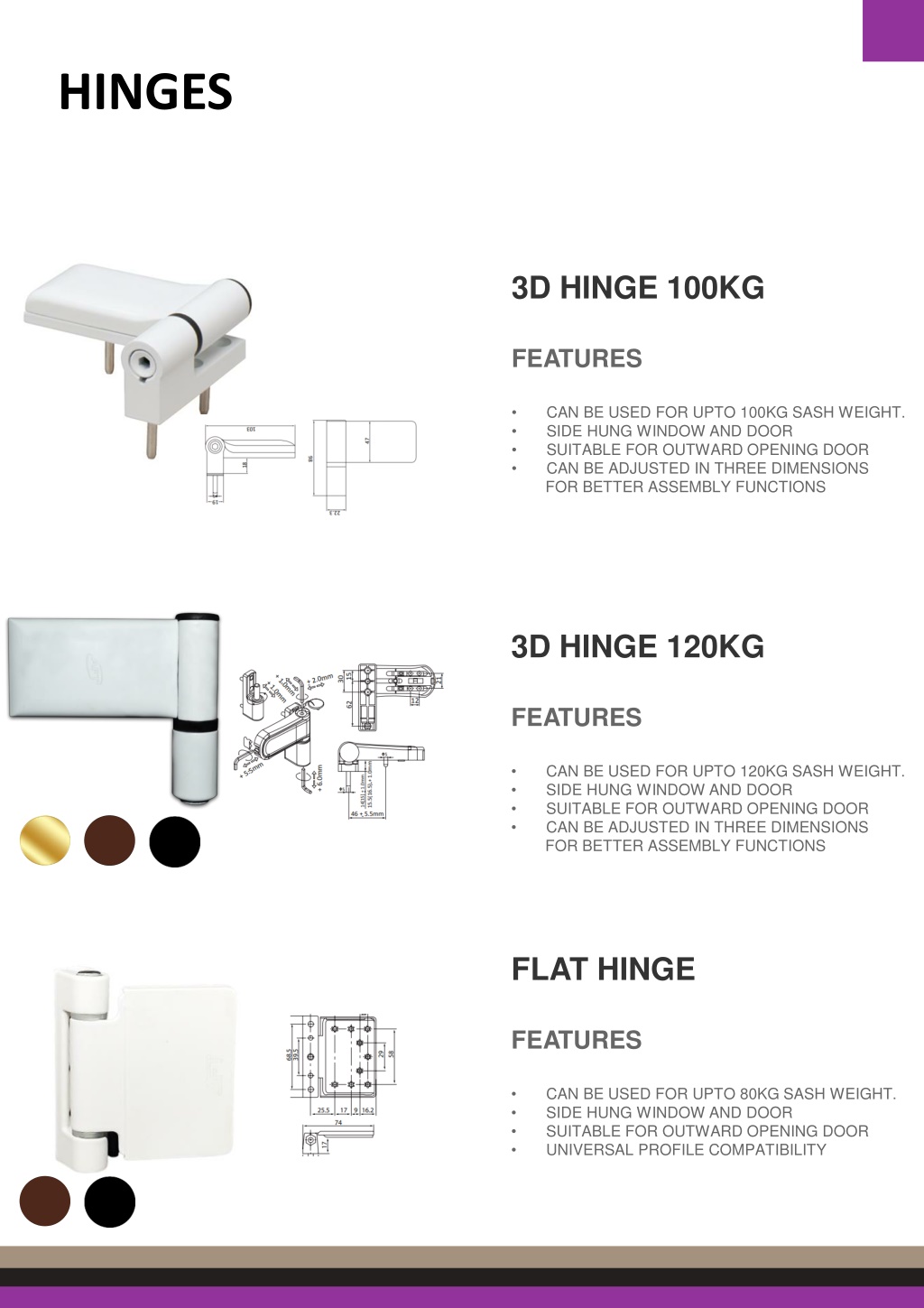

  18. HINGES 3D HINGE 100KG FEATURES CAN BE USED FOR UPTO 100KG SASH WEIGHT. SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR CAN BE ADJUSTED IN THREE DIMENSIONS FOR BETTER ASSEMBLY FUNCTIONS • • • • 3D HINGE 120KG FEATURES CAN BE USED FOR UPTO 120KG SASH WEIGHT. SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR CAN BE ADJUSTED IN THREE DIMENSIONS FOR BETTER ASSEMBLY FUNCTIONS • • • • FLAT HINGE FEATURES CAN BE USED FOR UPTO 80KG SASH WEIGHT. SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR UNIVERSAL PROFILE COMPATIBILITY • • • •

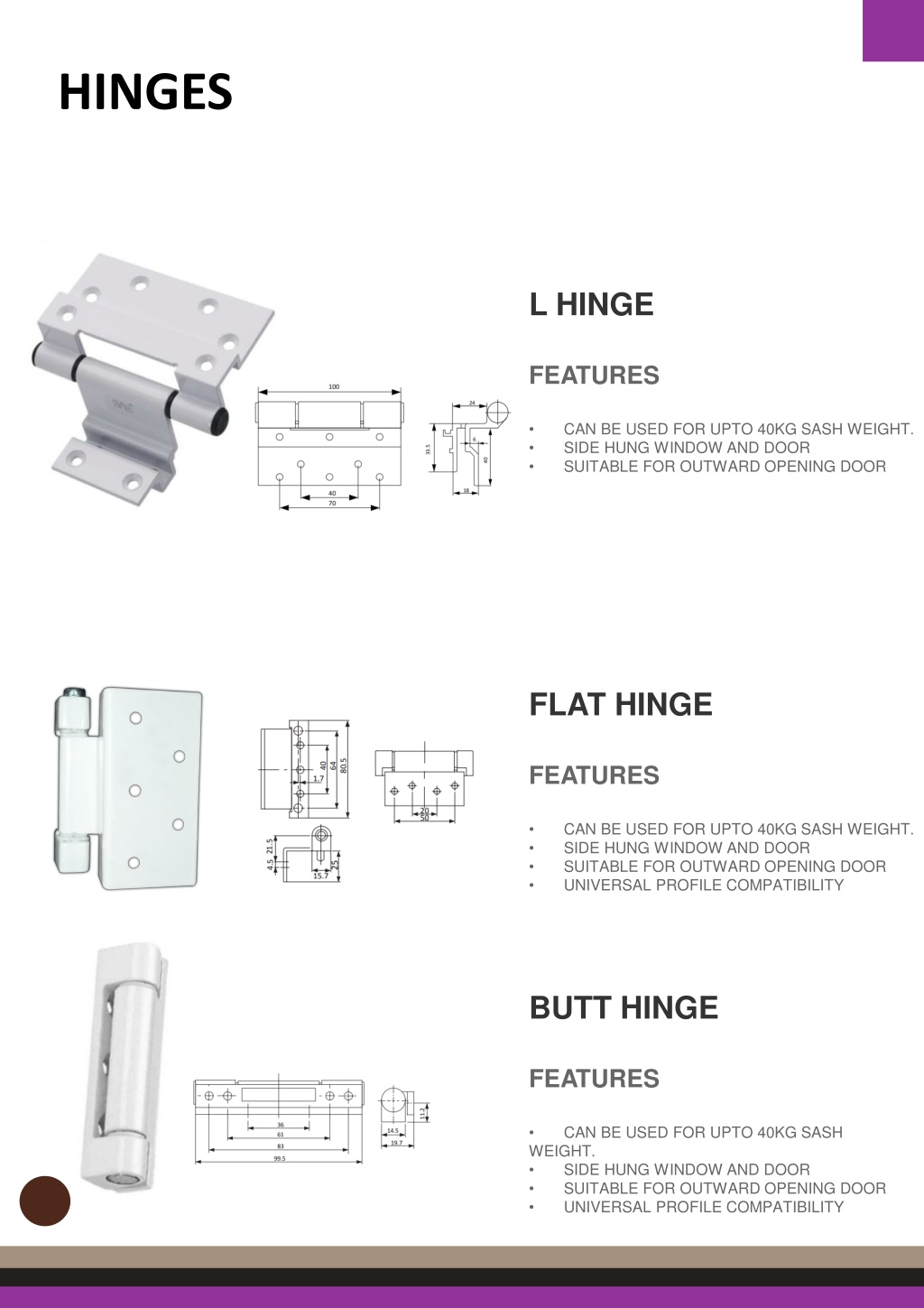

  19. HINGES L HINGE FEATURES CAN BE USED FOR UPTO 40KG SASH WEIGHT. SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR • • • FLAT HINGE FEATURES CAN BE USED FOR UPTO 40KG SASH WEIGHT. SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR UNIVERSAL PROFILE COMPATIBILITY • • • • BUTT HINGE FEATURES CAN BE USED FOR UPTO 40KG SASH • WEIGHT. • • • SIDE HUNG WINDOW AND DOOR SUITABLE FOR OUTWARD OPENING DOOR UNIVERSAL PROFILE COMPATIBILITY

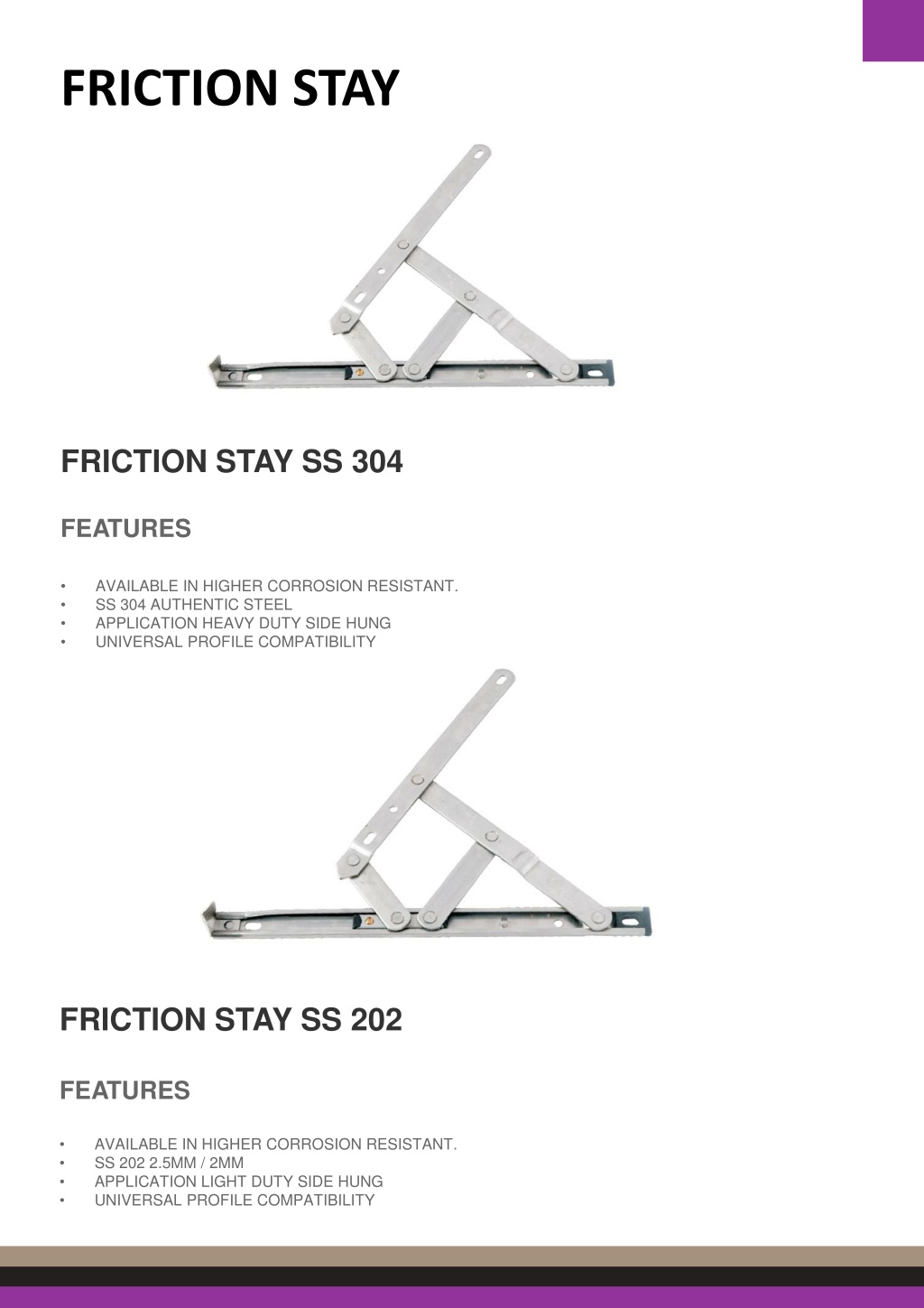

  20. FRICTION STAY FRICTION STAY SS 304 FEATURES AVAILABLE IN HIGHER CORROSION RESISTANT. SS 304 AUTHENTIC STEEL APPLICATION HEAVY DUTY SIDE HUNG UNIVERSAL PROFILE COMPATIBILITY • • • • FRICTION STAY SS 202 FEATURES AVAILABLE IN HIGHER CORROSION RESISTANT. SS 202 2.5MM / 2MM APPLICATION LIGHT DUTY SIDE HUNG UNIVERSAL PROFILE COMPATIBILITY • • • •

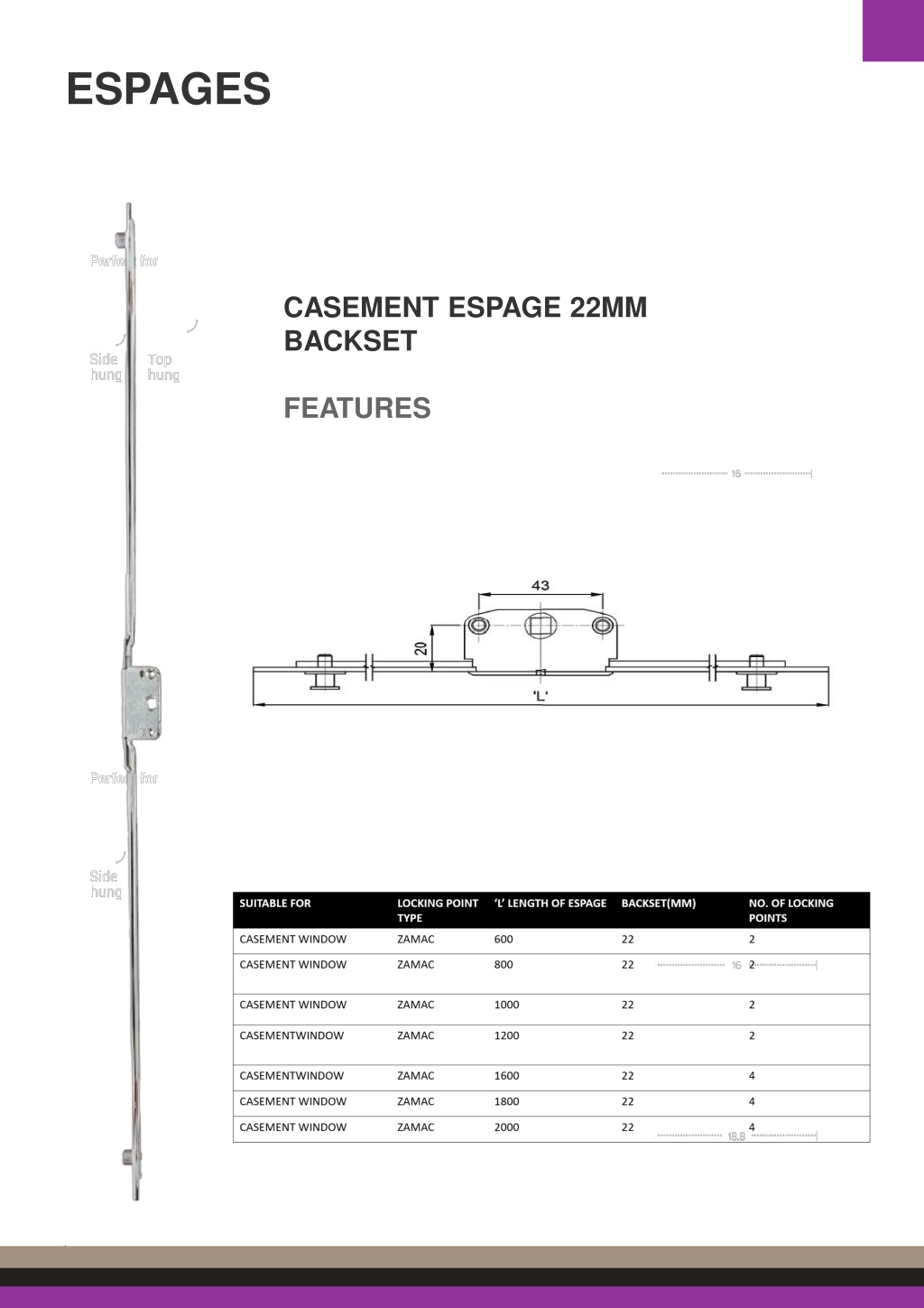

  21. ESPAGES KFS-LD-NL 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: 2.0 Link Bar Thickness (mm): CASEMENT ESPAGE 22MM BACKSET SideHung Load Capacity Range: Upto 22 kgs TopHung Load Capacity Range: Upto 40 kgs FEATURES SS304 MaterialGrade: All dimensions are in mm KFS-LD-NL-EO Light Duty Friction Stay(Egress) 13.5 Stack Height(mm): 12,16 Size(in): 2.0 Link Bar Thickness (mm): Upto 22kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm 1

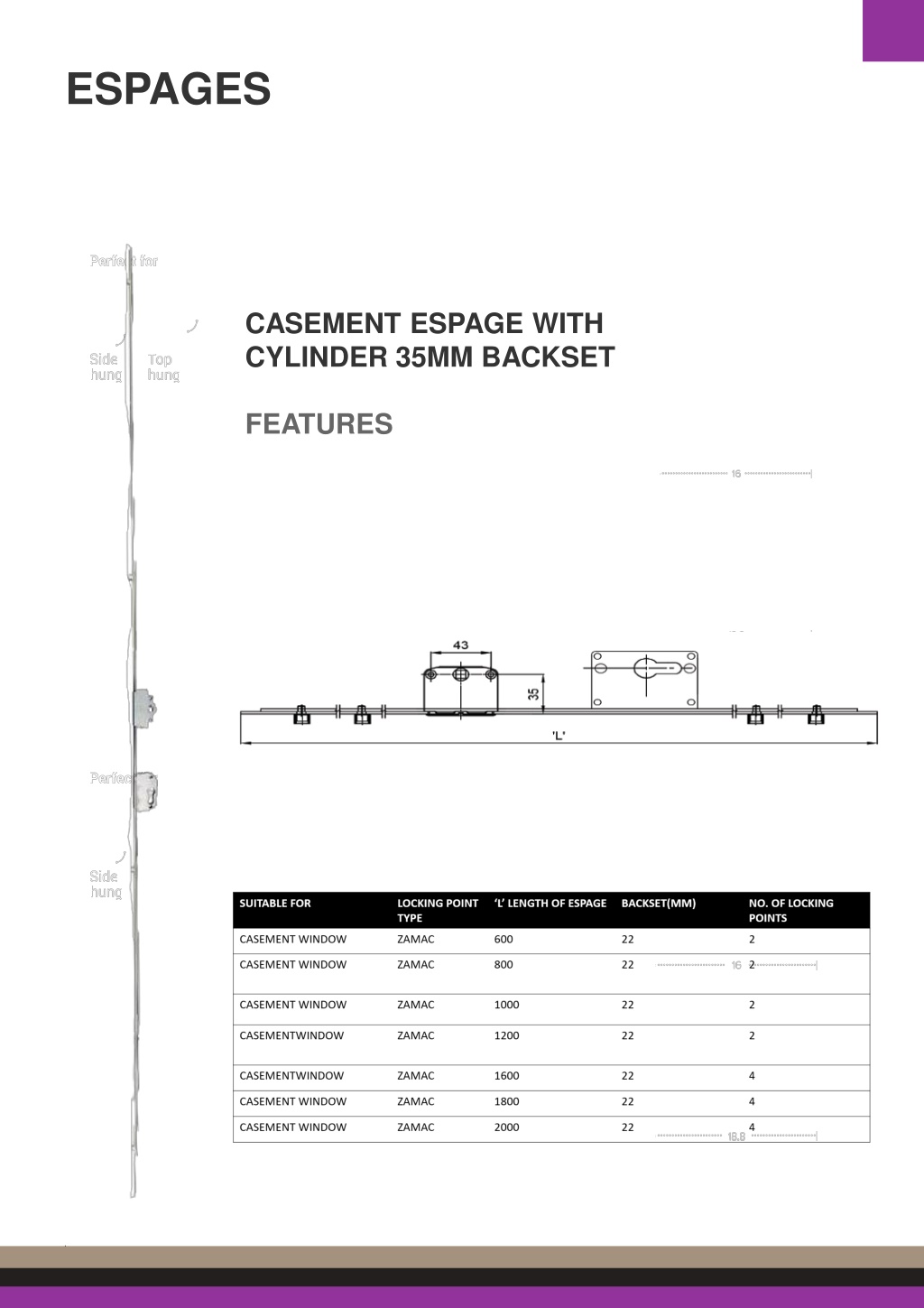

  22. ESPAGES KFS-LD-NL 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: 2.0 Link Bar Thickness (mm): SideHung Load Capacity Range: CASEMENT ESPAGE WITH CYLINDER 35MM BACKSET Upto 22 kgs TopHung Load Capacity Range: Upto 40 kgs FEATURES SS304 MaterialGrade: All dimensions are in mm KFS-LD-NL-EO Light Duty Friction Stay(Egress) 13.5 Stack Height(mm): 12,16 Size(in): 2.0 Link Bar Thickness (mm): Upto 22kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm 1

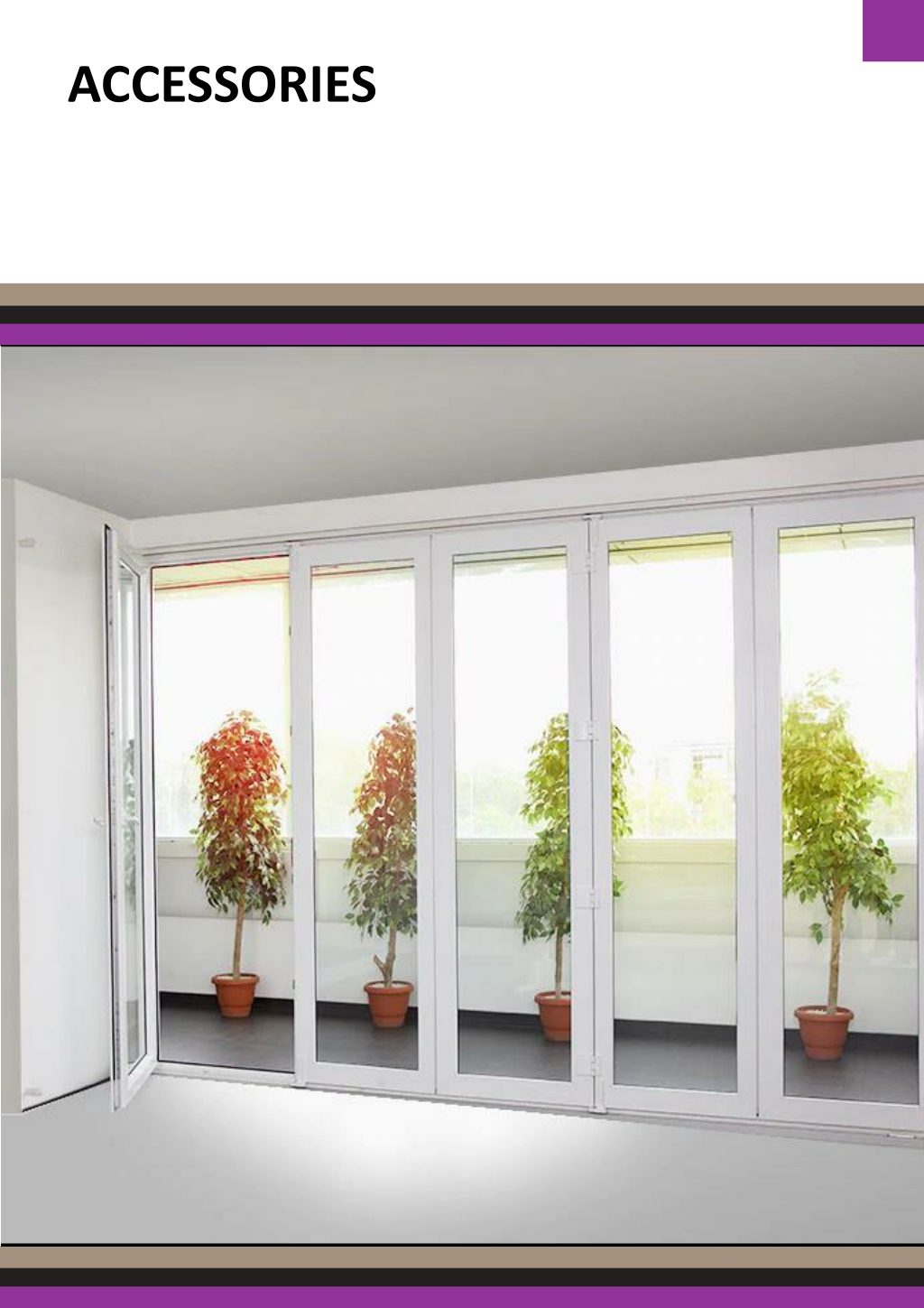

  23. ACCESSORIES

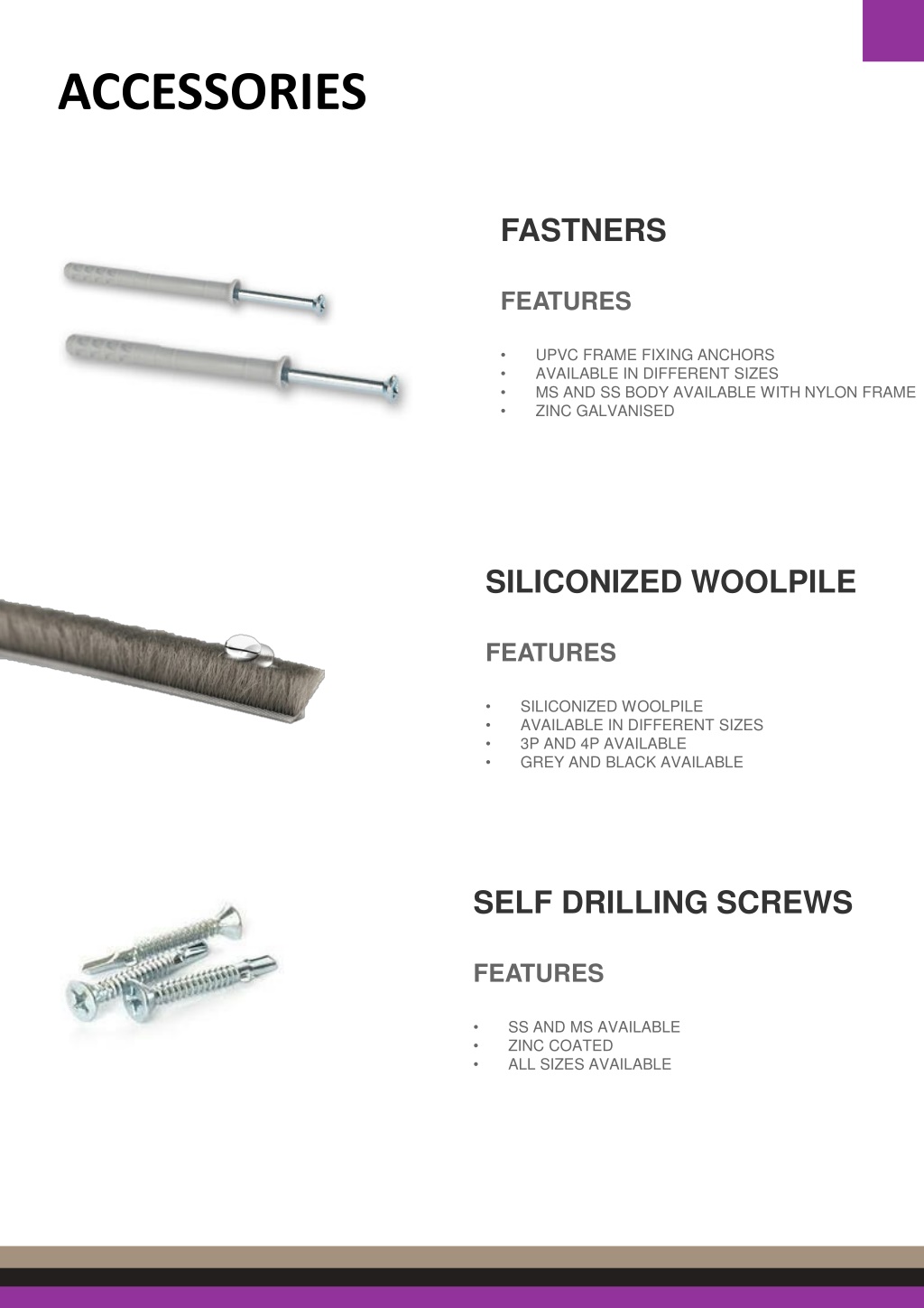

  24. ACCESSORIES FASTNERS FEATURES UPVC FRAME FIXING ANCHORS AVAILABLE IN DIFFERENT SIZES MS AND SS BODY AVAILABLE WITH NYLON FRAME ZINC GALVANISED • • • • SILICONIZED WOOLPILE FEATURES SILICONIZED WOOLPILE AVAILABLE IN DIFFERENT SIZES 3P AND 4P AVAILABLE GREY AND BLACK AVAILABLE • • • • SELF DRILLING SCREWS FEATURES SS AND MS AVAILABLE ZINC COATED ALL SIZES AVAILABLE • • •

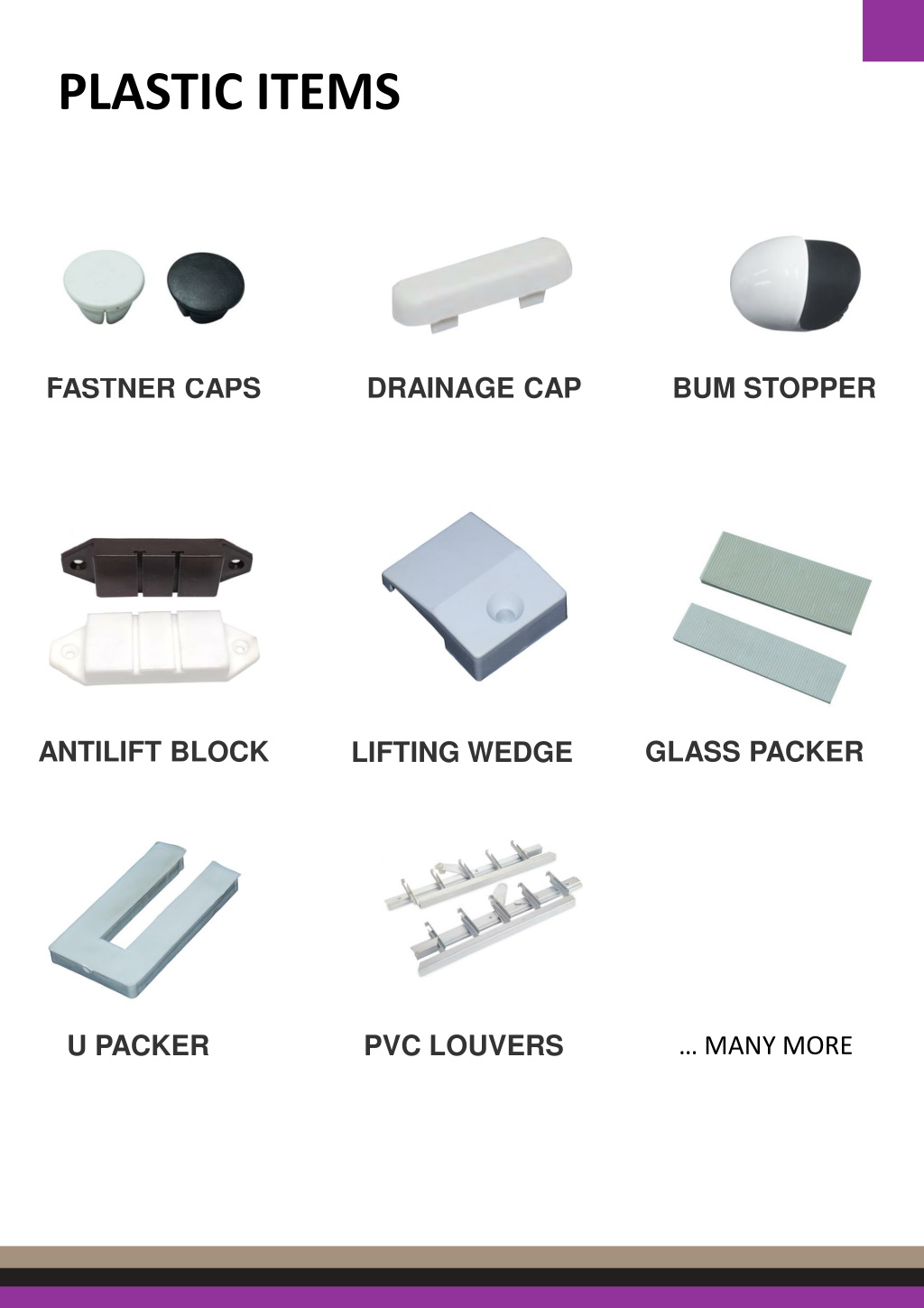

  25. PLASTIC ITEMS FASTNER CAPS BUM STOPPER DRAINAGE CAP ANTILIFT BLOCK GLASS PACKER LIFTING WEDGE U PACKER PVC LOUVERS … MANY MORE

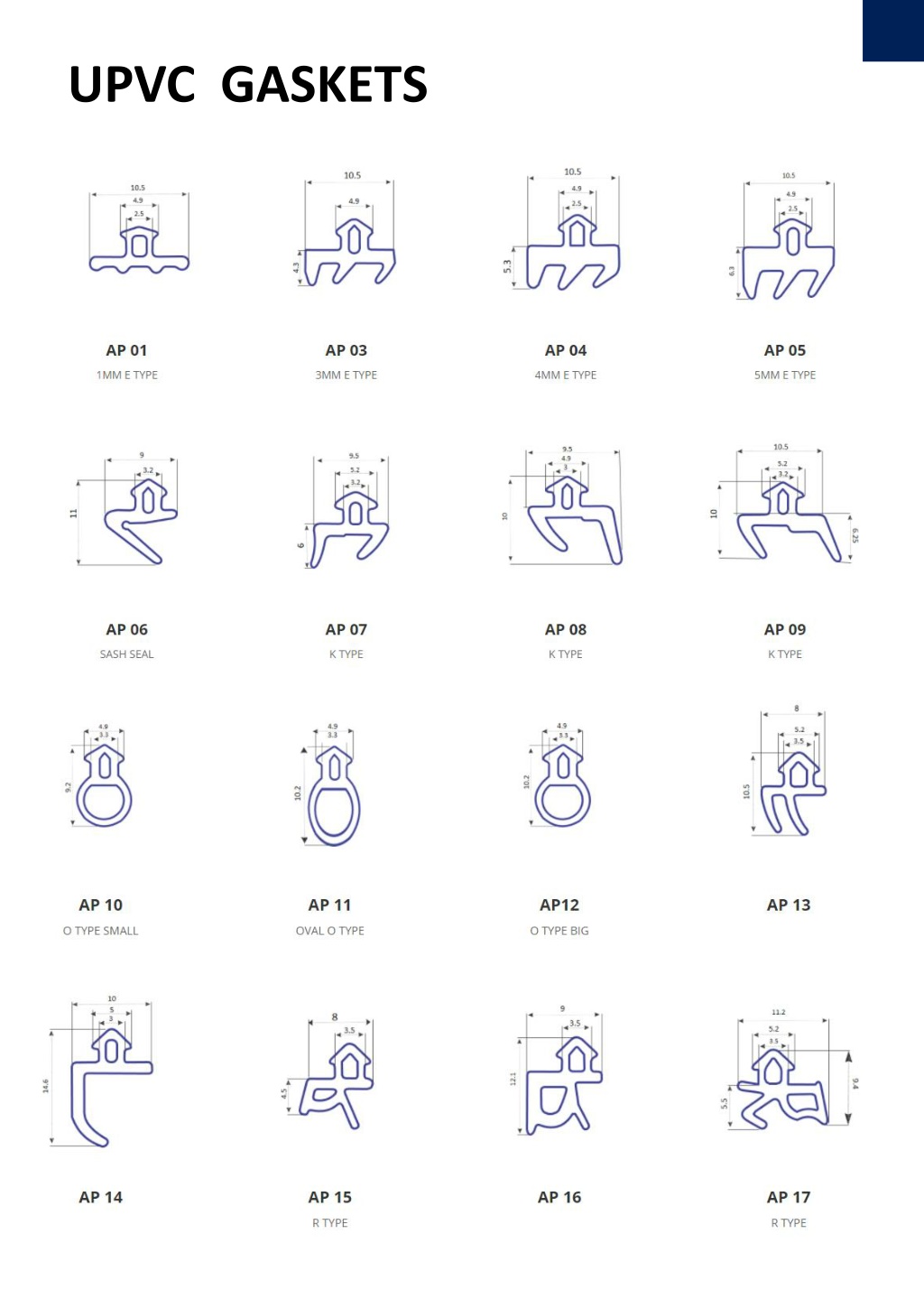

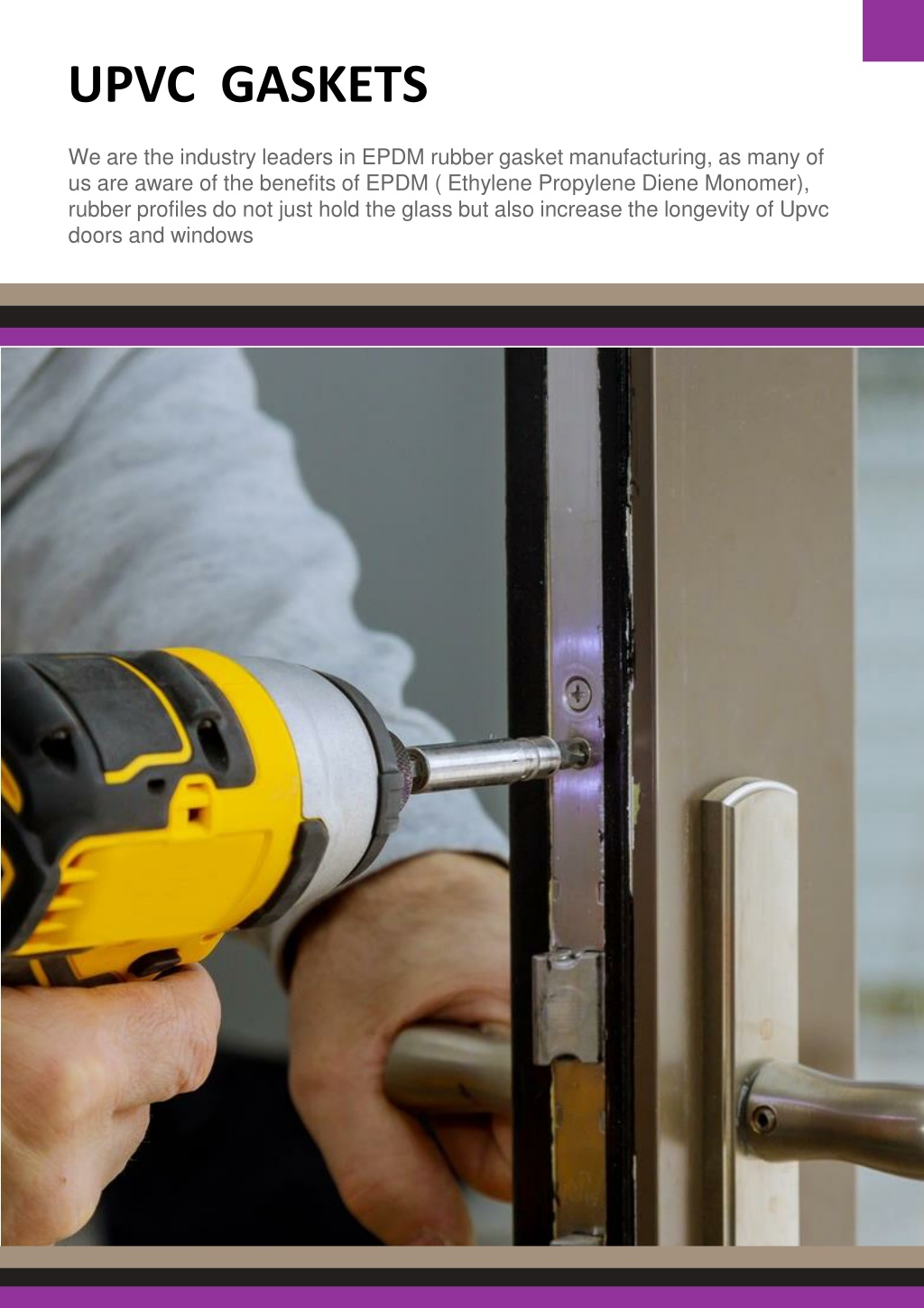

  26. UPVC GASKETS We are the industry leaders in EPDM rubber gasket manufacturing, as many of us are aware of the benefits of EPDM ( Ethylene Propylene Diene Monomer), KFS-LD-NL rubber profiles do not just hold the glass but also increase the longevity of Upvc doors and windows 13.5 Stack Height (mm): Light Duty Friction Stay (EasyClean) 8, 10, 12, 14, 16 16, 20, 24 Size (in) for SideHung: Size (in) for TopHung: 2.0 Link Bar Thickness (mm): SideHung Load Capacity Range: Upto 22 kgs TopHung Load Capacity Range: Upto 40 kgs SS304 MaterialGrade: 1

  27. UPVC GASKETS 16 Stack Height (mm): KFS-EHD Eurogroove Heavy Duty Friction Stay 10, 12, 14, 16, 18,20 18, 20 Size (in) for SideHung: Size (in) for TopHung: 2.5 Link Bar Thickness (mm): SideHung Load Capacity Range: Upto 28 kgs TopHung Load Capacity Range: Upto 28 kgs SS304 MaterialGrade: All dimensions are in mm 16 - 17 Stack Height(mm): KFS-HD Heavy Duty Friction Stay (EasyClean) 10, 12, 14,16 Size(in): 2.5 / 3.0 Link Bar Thickness (mm): Upto 40kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm

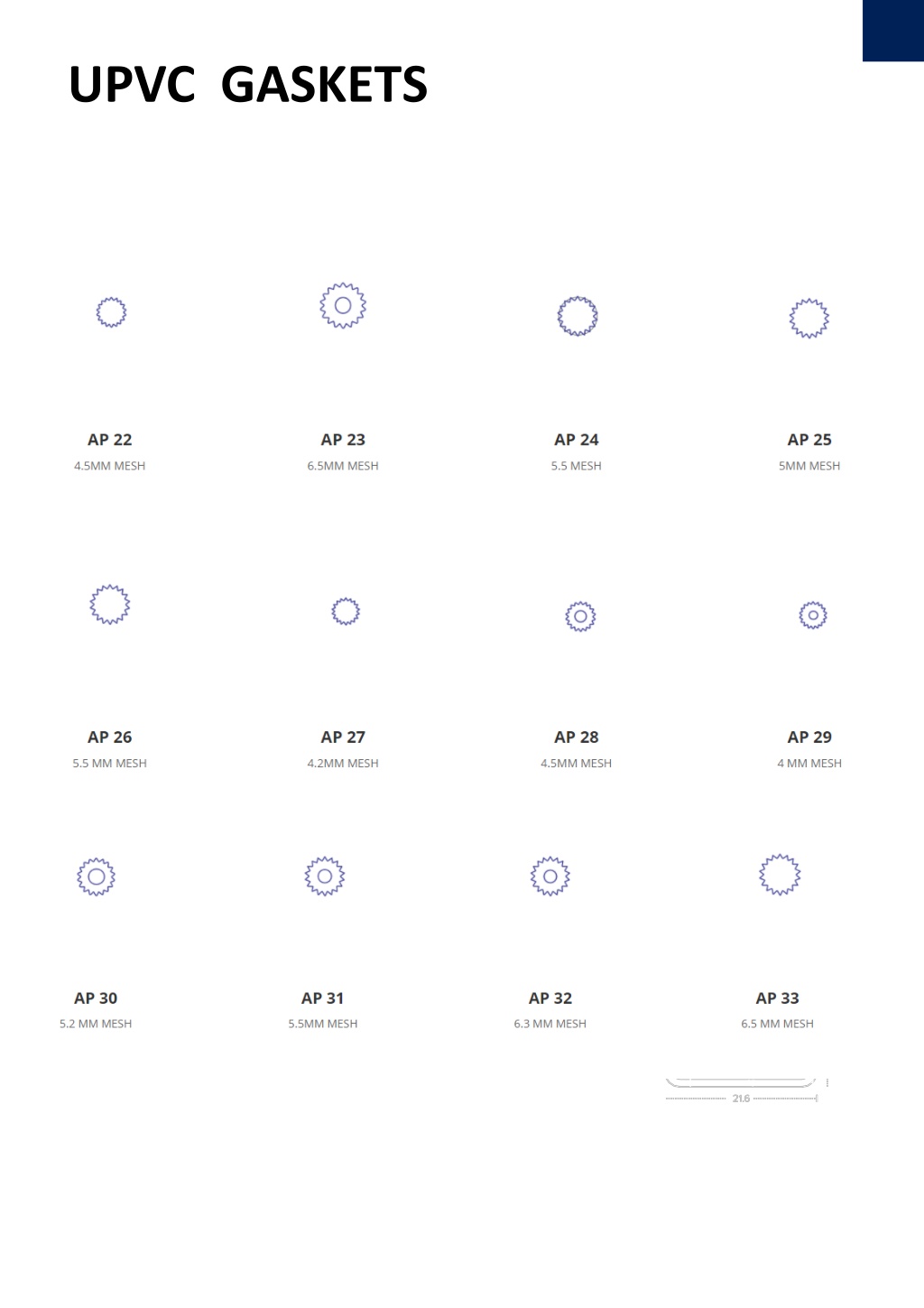

  28. UPVC GASKETS 16 Stack Height (mm): KFS-EHD Eurogroove Heavy Duty Friction Stay 10, 12, 14, 16, 18,20 18, 20 Size (in) for SideHung: Size (in) for TopHung: 2.5 Link Bar Thickness (mm): SideHung Load Capacity Range: Upto 28 kgs TopHung Load Capacity Range: Upto 28 kgs SS304 MaterialGrade: All dimensions are in mm 16 - 17 Stack Height(mm): KFS-HD Heavy Duty Friction Stay (EasyClean) 10, 12, 14,16 Size(in): 2.5 / 3.0 Link Bar Thickness (mm): Upto 40kgs Load Capacity Range: SS304 MaterialGrade: All dimensions are in mm

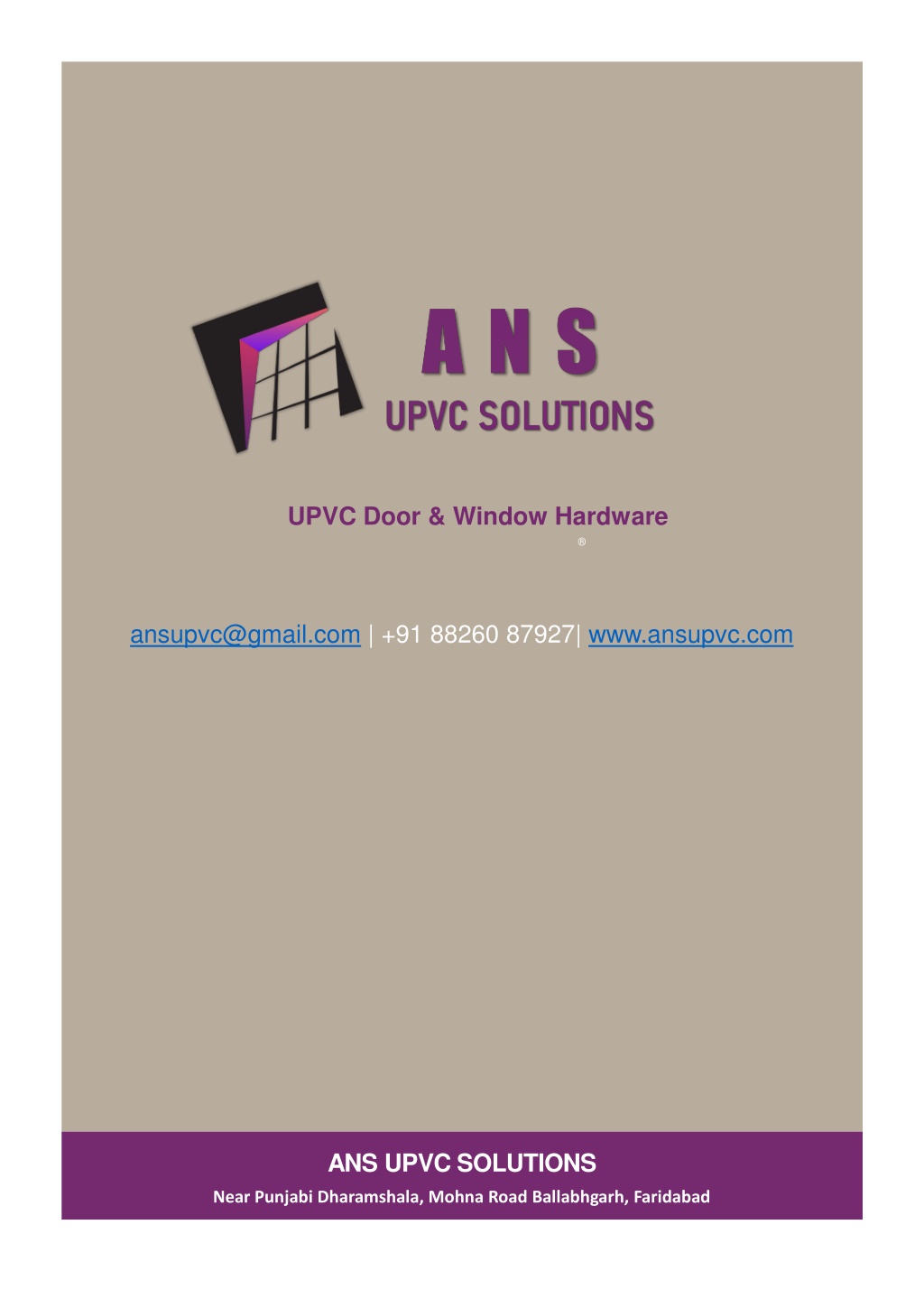

  29. UPVC Door & Window Hardware ansupvc@gmail.com | +91 88260 87927| www.ansupvc.com ANS UPVC SOLUTIONS Near Punjabi Dharamshala, Mohna Road Ballabhgarh, Faridabad
