  1. TYPES OF CHAIN DRIVES? WE HUGE RANGE OF ENGINEERING PRODUCTS, WE ALSO ENSURE THAT WE PROVIDE AN INCOMPARABLE LEVEL OF SERVICE TO EVERY CUSTOMER.

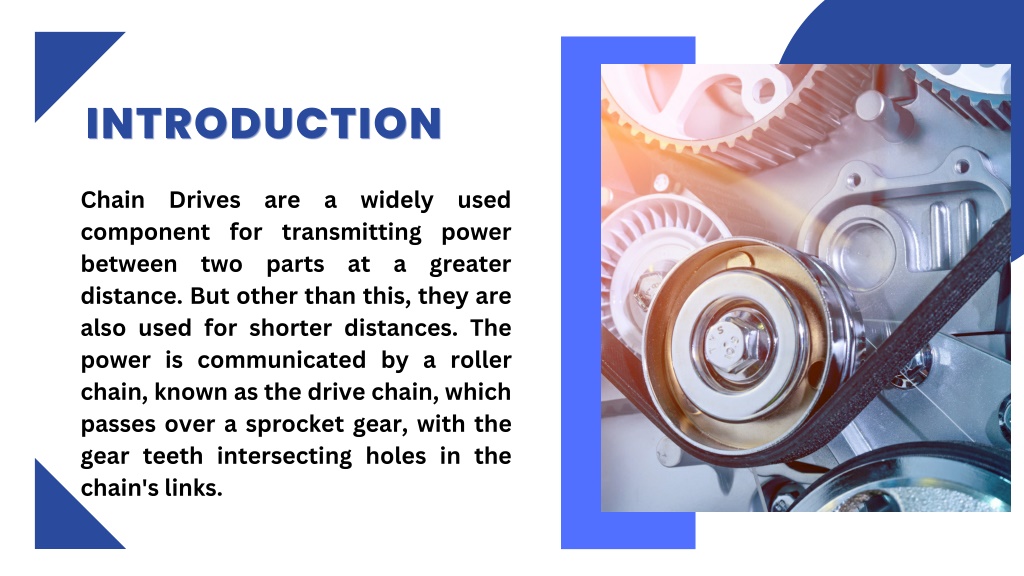

  2. INTRODUCTION INTRODUCTION INTRODUCTION Chain Drives are a widely used component for transmitting power between two parts at a greater distance. But other than this, they are also used for shorter distances. The power is communicated by a roller chain, known as the drive chain, which passes over a sprocket gear, with the gear teeth intersecting holes in the chain's links.

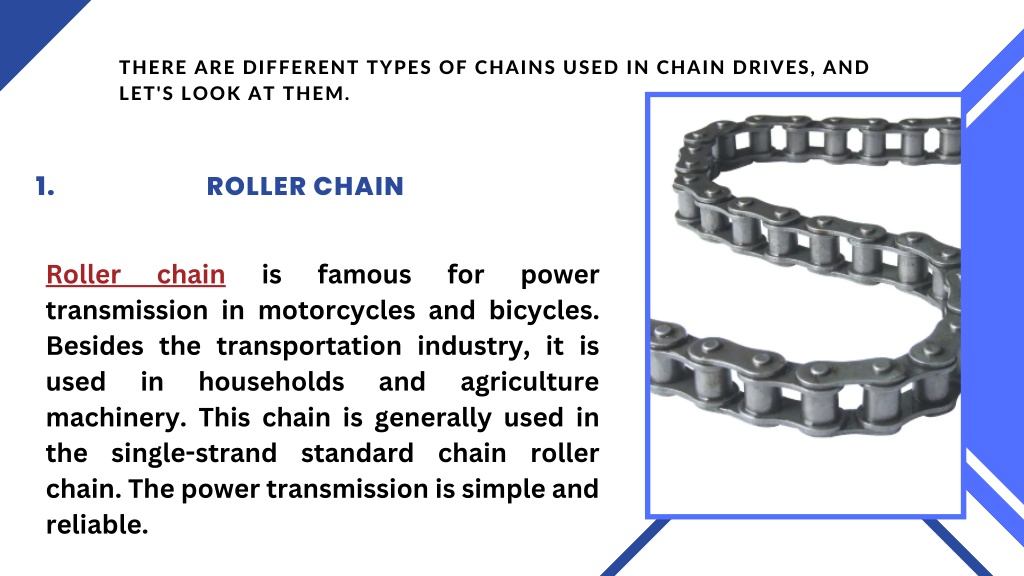

  3. THERE ARE DIFFERENT TYPES OF CHAINS USED IN CHAIN DRIVES, AND LET'S LOOK AT THEM. 1. ROLLER CHAIN Roller transmission in motorcycles and bicycles. Besides the transportation industry, it is used in households machinery. This chain is generally used in the single-strand standard chain roller chain. The power transmission is simple and reliable. chain is famous for power and agriculture

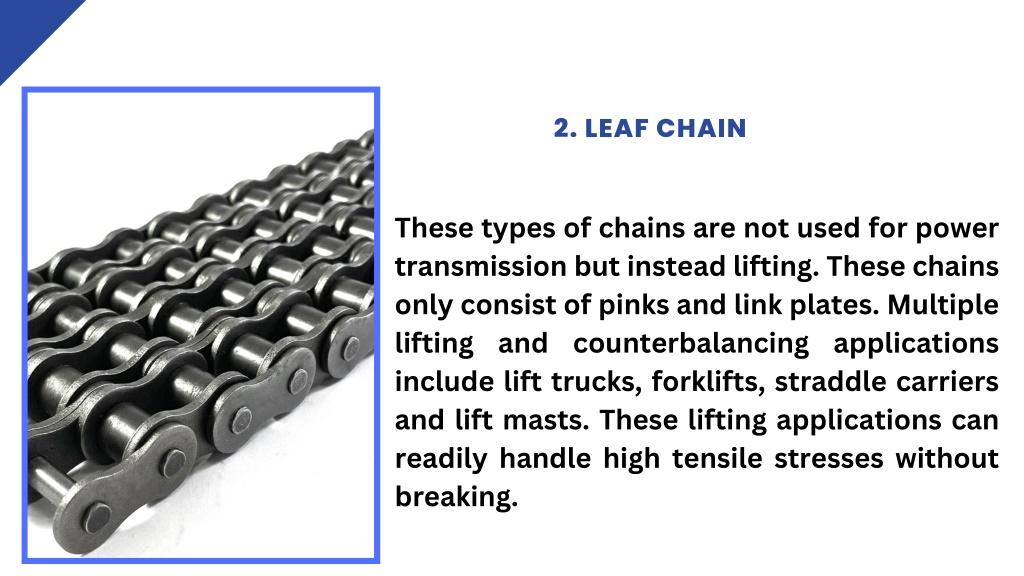

  4. 2. LEAF CHAIN These types of chains are not used for power transmission but instead lifting. These chains only consist of pinks and link plates. Multiple lifting and counterbalancing applications include lift trucks, forklifts, straddle carriers and lift masts. These lifting applications can readily handle high tensile stresses without breaking.

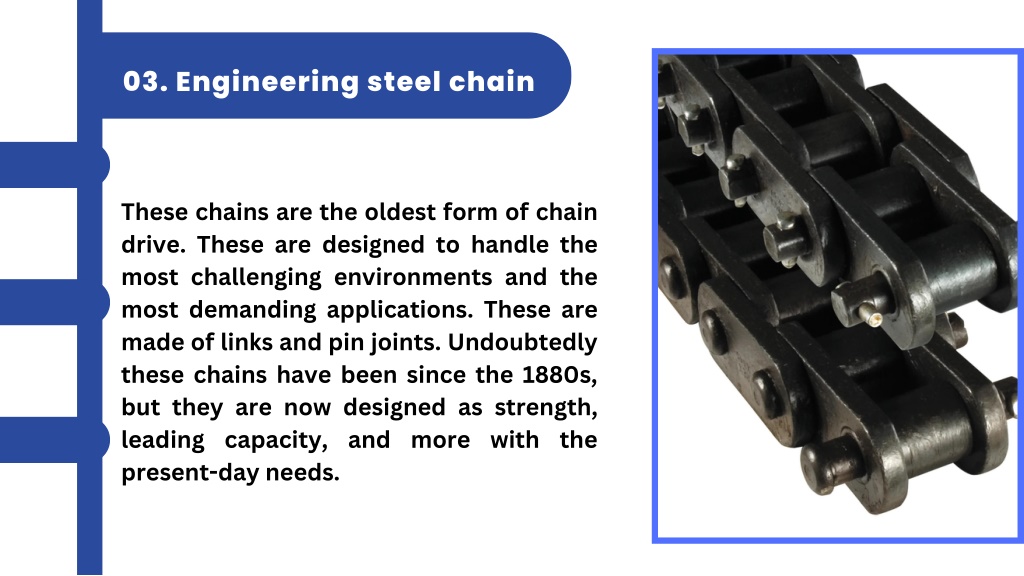

  5. 03. Engineering steel chain These chains are the oldest form of chain drive. These are designed to handle the most challenging environments and the most demanding applications. These are made of links and pin joints. Undoubtedly these chains have been since the 1880s, but they are now designed as strength, leading capacity, and more with the present-day needs.

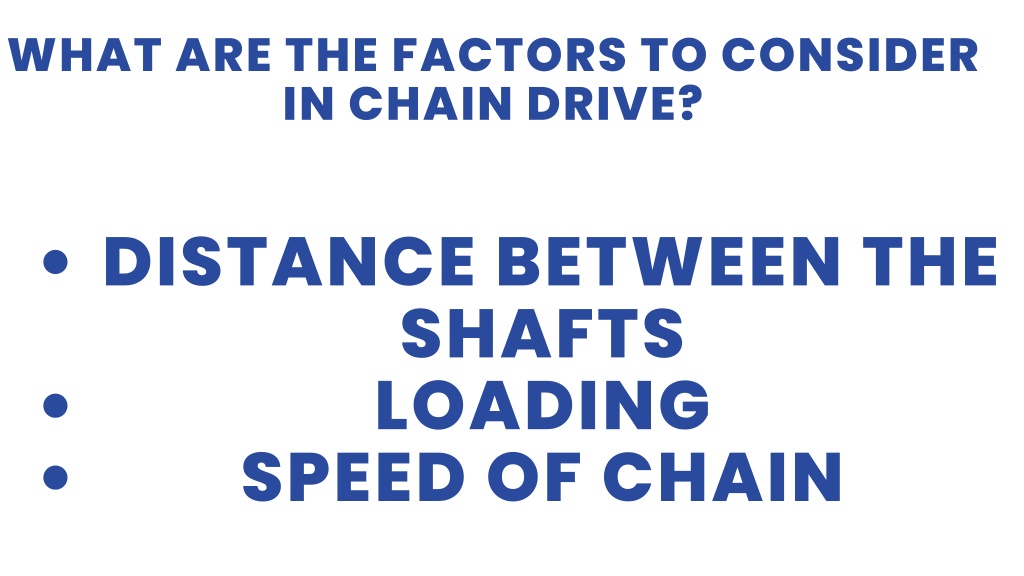

  6. WHAT ARE THE FACTORS TO CONSIDER IN CHAIN DRIVE? DISTANCE BETWEEN THE SHAFTS LOADING SPEED OF CHAIN

  7. THANK YOU 01204370453 info@bepltd.com www.bepltd.com Unit 5 Peaks Place Business Park, Rossini St, Bolton, BL1 8GJ, UK
