Different types Of Hydraulic Pumps

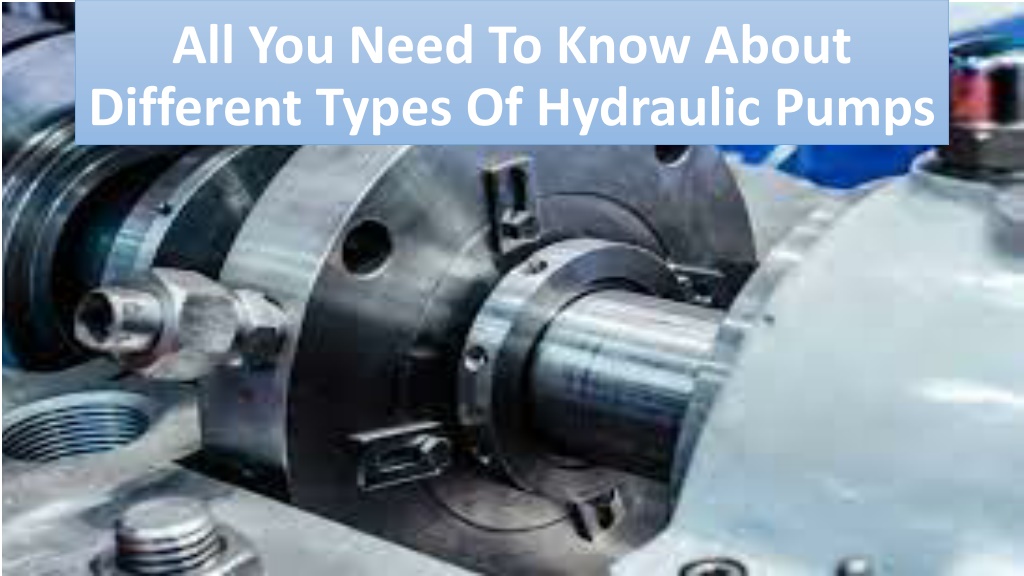

1. All You Need To Know About Different Types Of Hydraulic Pumps

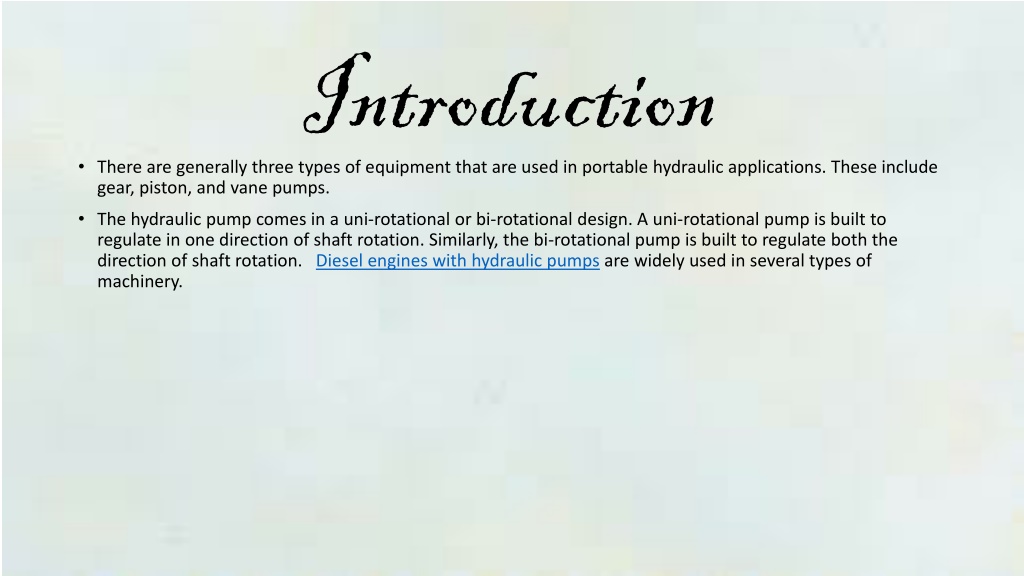

2. There are generally three types of equipment that are used in portable hydraulic applications. These include gear, piston, and vane pumps. • The hydraulic pump comes in a uni-rotational or bi-rotational design. A uni-rotational pump is built to regulate in one direction of shaft rotation. Similarly, the bi-rotational pump is built to regulate both the direction of shaft rotation.   Diesel engines with hydraulic pumps are widely used in several types of machinery.

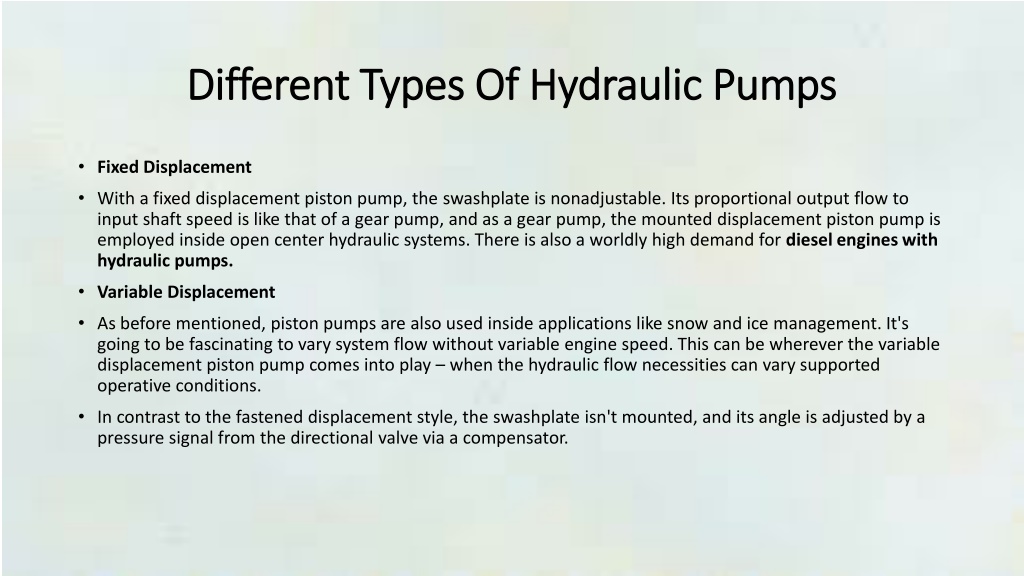

3. Different Types Of Hydraulic Pumps • Fixed Displacement • With a fixed displacement piston pump, the swashplate is nonadjustable. Its proportional output flow to input shaft speed is like that of a gear pump, and as a gear pump, the mounted displacement piston pump is employed inside open center hydraulic systems. There is also a worldly high demand for diesel engines with hydraulic pumps. • Variable Displacement • As before mentioned, piston pumps are also used inside applications like snow and ice management. It's going to be fascinating to vary system flow without variable engine speed. This can be wherever the variable displacement piston pump comes into play – when the hydraulic flow necessities can vary supported operative conditions.  • In contrast to the fastened displacement style, the swashplate isn't mounted, and its angle is adjusted by a pressure signal from the directional valve via a compensator.

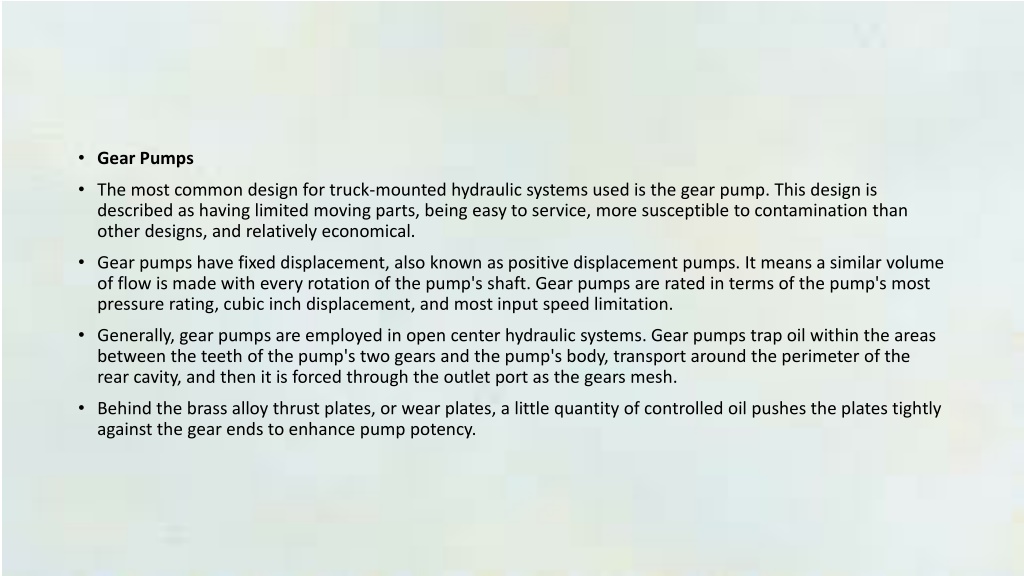

4. Gear Pumps • The most common design for truck-mounted hydraulic systems used is the gear pump. This design is described as having limited moving parts, being easy to service, more susceptible to contamination than other designs, and relatively economical.  • Gear pumps have fixed displacement, also known as positive displacement pumps. It means a similar volume of flow is made with every rotation of the pump's shaft. Gear pumps are rated in terms of the pump's most pressure rating, cubic inch displacement, and most input speed limitation.  • Generally, gear pumps are employed in open center hydraulic systems. Gear pumps trap oil within the areas between the teeth of the pump's two gears and the pump's body, transport around the perimeter of the rear cavity, and then it is forced through the outlet port as the gears mesh. • Behind the brass alloy thrust plates, or wear plates, a little quantity of controlled oil pushes the plates tightly against the gear ends to enhance pump potency.

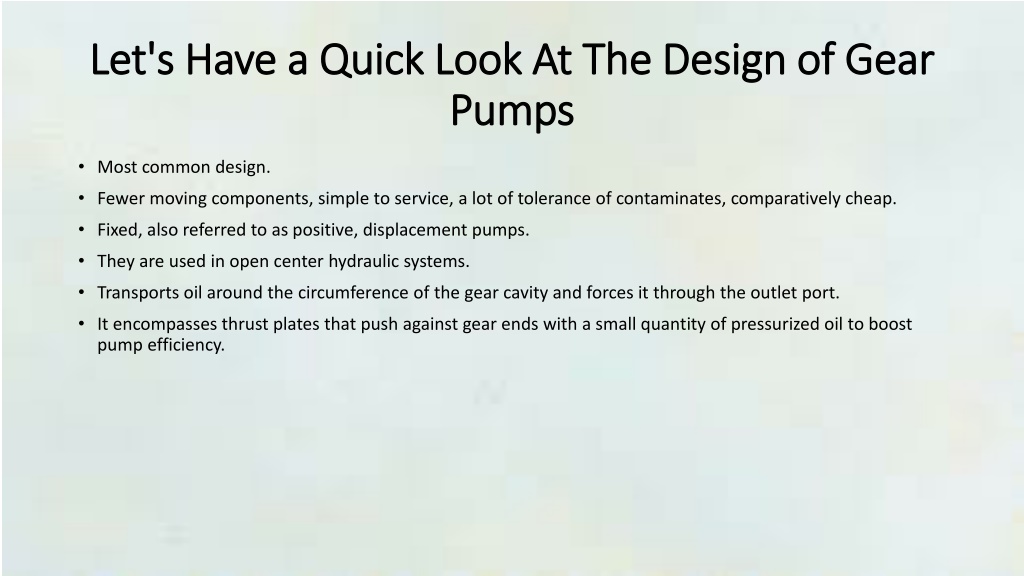

5. Let's Have a Quick Look At The Design of Gear Pumps • Most common design. • Fewer moving components, simple to service, a lot of tolerance of contaminates, comparatively cheap. • Fixed, also referred to as positive, displacement pumps. • They are used in open center hydraulic systems. • Transports oil around the circumference of the gear cavity and forces it through the outlet port. • It encompasses thrust plates that push against gear ends with a small quantity of pressurized oil to boost pump efficiency.

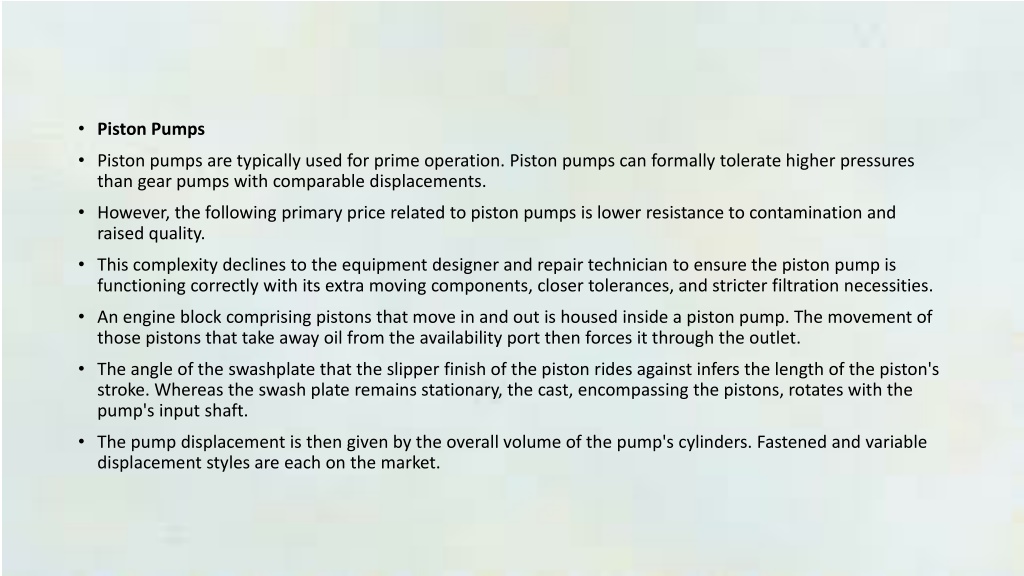

6. Piston Pumps • Piston pumps are typically used for prime operation. Piston pumps can formally tolerate higher pressures than gear pumps with comparable displacements.  • However, the following primary price related to piston pumps is lower resistance to contamination and raised quality.  • This complexity declines to the equipment designer and repair technician to ensure the piston pump is functioning correctly with its extra moving components, closer tolerances, and stricter filtration necessities.  • An engine block comprising pistons that move in and out is housed inside a piston pump. The movement of those pistons that take away oil from the availability port then forces it through the outlet.  • The angle of the swashplate that the slipper finish of the piston rides against infers the length of the piston's stroke. Whereas the swash plate remains stationary, the cast, encompassing the pistons, rotates with the pump's input shaft.  • The pump displacement is then given by the overall volume of the pump's cylinders. Fastened and variable displacement styles are each on the market.

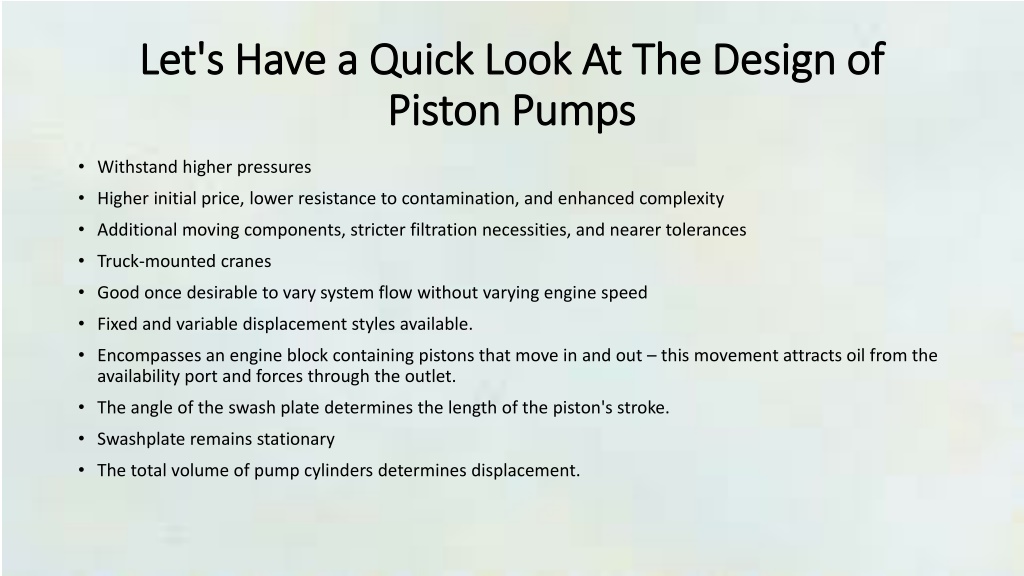

7. Let's Have a Quick Look At The Design of Piston Pumps • Withstand higher pressures • Higher initial price, lower resistance to contamination, and enhanced complexity • Additional moving components, stricter filtration necessities, and nearer tolerances • Truck-mounted cranes • Good once desirable to vary system flow without varying engine speed • Fixed and variable displacement styles available. • Encompasses an engine block containing pistons that move in and out – this movement attracts oil from the availability port and forces through the outlet. • The angle of the swash plate determines the length of the piston's stroke. • Swashplateremains stationary • The total volume of pump cylinders determines displacement.

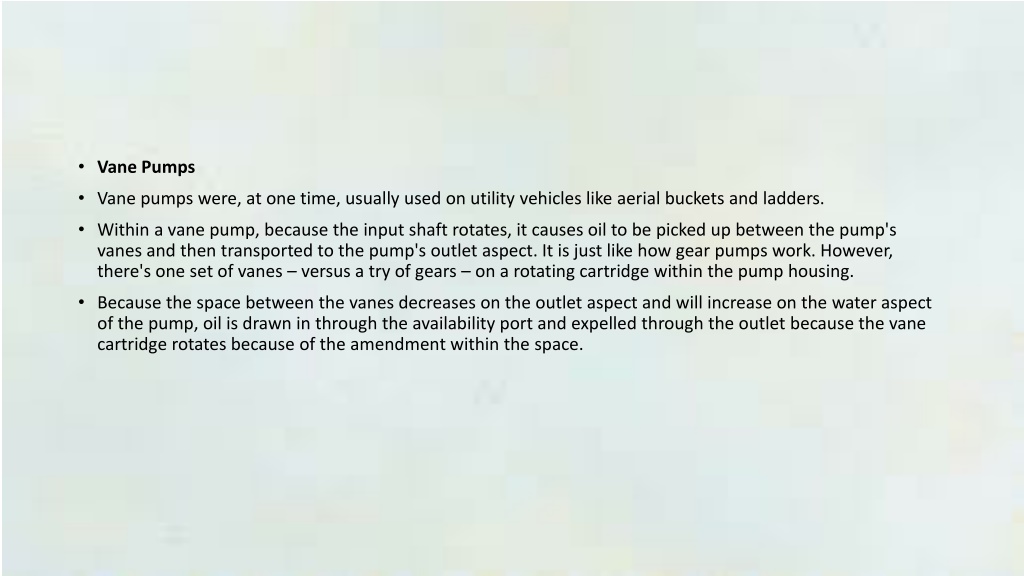

8. Vane Pumps • Vane pumps were, at one time, usually used on utility vehicles like aerial buckets and ladders. • Within a vane pump, because the input shaft rotates, it causes oil to be picked up between the pump's vanes and then transported to the pump's outlet aspect. It is just like how gear pumps work. However, there's one set of vanes – versus a try of gears – on a rotating cartridge within the pump housing.  • Because the space between the vanes decreases on the outlet aspect and will increase on the water aspect of the pump, oil is drawn in through the availability port and expelled through the outlet because the vane cartridge rotates because of the amendment within the space.

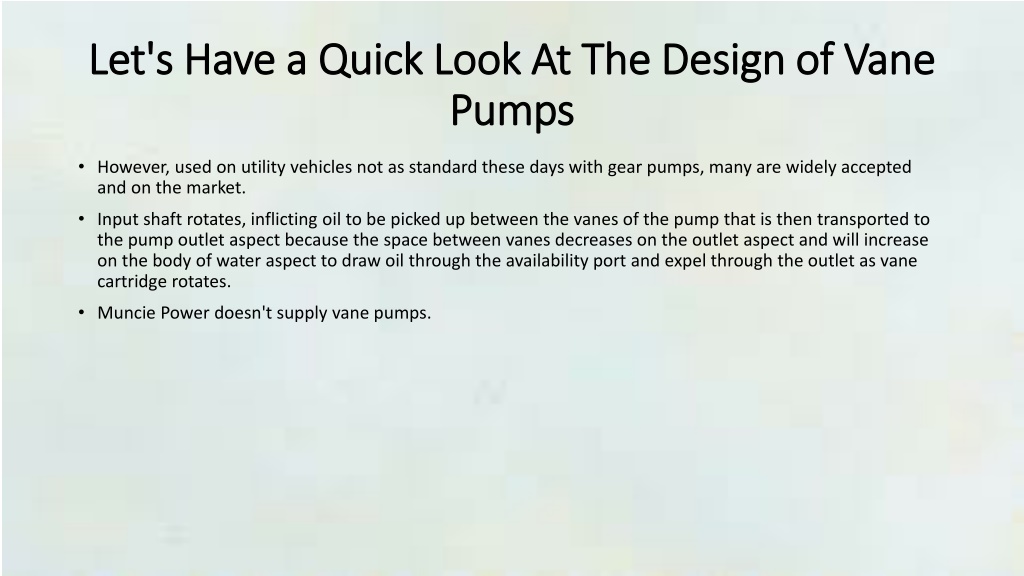

9. Let's Have a Quick Look At The Design of Vane Pumps • However, used on utility vehicles not as standard these days with gear pumps, many are widely accepted and on the market. • Input shaft rotates, inflicting oil to be picked up between the vanes of the pump that is then transported to the pump outlet aspect because the space between vanes decreases on the outlet aspect and will increase on the body of water aspect to draw oil through the availability port and expel through the outlet as vane cartridge rotates. • Muncie Power doesn't supply vane pumps.

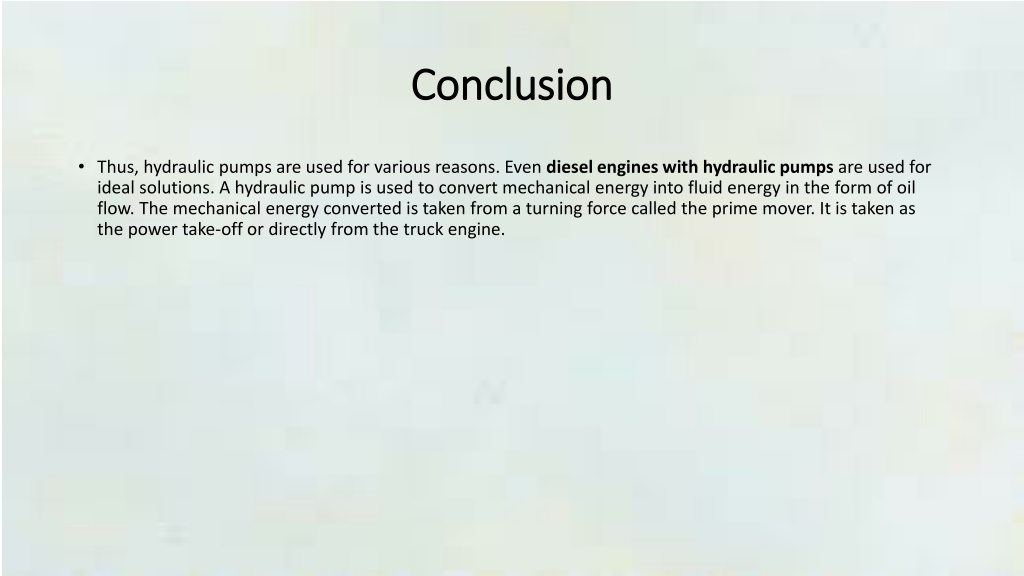

10. Conclusion • Thus, hydraulic pumps are used for various reasons. Even diesel engines with hydraulic pumps are used for ideal solutions. A hydraulic pump is used to convert mechanical energy into fluid energy in the form of oil flow. The mechanical energy converted is taken from a turning force called the prime mover. It is taken as the power take-off or directly from the truck engine.
