GeoSeeker

If you are looking for underground water resources or hidden cavities down to depths of 250m (820ft), the OKM GeoSeeker is the device of your choice. The OKM GeoSeeker is a professional geoelectric water and cavity detector that uses soil resistance measurement to determine cavities and water resources and visualize them in sensational 3D graphics. The GeoSeeker is a mobile, easy-to-use geoelectric detector, developed and produced in Germany. The geoelectric measuring method used by the GeoSeeker is based on the Schlumberger method, with which soil resistances are measured. Based on the soil resistance, the detector can detect underground water resources, water-bearing layers and groundwater levels as well as cavities, caves, tunnels, chambers and the like. locate.<br><br>https://geo-electronic.com/geoseeker/?locale=en

2685
Download Presentation

GeoSeeker

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. () What are you looking for? Home Water detectors GeoSeeker / / Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu. Akzeptieren Ablehnen Live Chat  Mehr erfahren ENG

  2. () GeoSeeker OKM SKU: OKM-GS What are you looking for? €10,050.74 (Ink. Tax) €8,446.00 (Ex. Tax) (No reviews yet) Write a review QUANTITY: 1 SHOPPING CART ADD TO WISHLIST PRODUCTS.DESCRIPTION OKM GeoSeeker If you are looking for underground water resources or hidden cavities down to depths of 250m (820ft), the OKM GeoSeeker is the device of your choice. The OKM GeoSeeker is a professional geoelectric water and cavity detector that uses soil resistance measurement to determine cavities and water resources and visualize them in sensational 3D graphics. The GeoSeeker is a mobile, easy-to-use geoelectric detector, developed and produced in Germany. The geoelectric measuring method used by the GeoSeeker is based on the Schlumberger method, with which soil resistances are measured. Based on the soil resistance, the detector can detect underground water resources, water-bearing layers and groundwater levels as well as cavities, caves, tunnels, chambers and the like. locate. Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu.  Mehr erfahren The electronic components of the GeoSeeker are controlled completely via a modern Android tablet PC. All commands and measurement results are transmitted via WiFi. The pre-installed software application provides the following measurement methods. Live Chat Akzeptieren Ablehnen ENG Active measurement (Accurate)

  3. When using this measurement, electricity is fed into the soil via two electrodes. Two further electrodes measure the resulting voltage drop at speci?c measuring points in order to determine the ?nal soil resistance. This measuring method is used to detect underground water resources, hidden cavities or barriers in the ground. In active measurements you can de?ne an individual depth range in which your measured values are determined. This sets a start and end depth between 5 m (16 feet) and 250 m (820 feet). () Active measurement (fast) What are you looking for? This type of measurement represents a quick version of the accurate measurement. Here, too, electrical current is fed into the ground in order to measure the voltage drop and to determine the speci?c ground resistance. Passive measurement During a passive measurement, the GeoSeeker only uses two electrodes to measure the naturally occurring voltage of the ground (no current is delivered into the ground). This mode is used to detect ?owing water underground. The GeoSeeker software application guides the user through the complete measurement with simple step-by-step instructions. You just follow the visual instructions until the measurement is ?nished. A graphical 3D representation is then calculated from the measured data and shown on the tablet PC display. Various color controls are available to optimize the graphic representation of underground water resources, water-bearing layers and groundwater levels (bluish) and also those of cavities, tunnels, chambers or barriers (reddish). The measurement electronics of the OKM GeoSeeker are installed in a waterproof and shock-resistant Peli case, ensuring that your equipment is always well protected and ready for transport. Available languages: German English French Spanish Italian Arabic Greek Turkish Chinese Pусский Dutch Farsi    Scope of delivery: In the following you will ?nd the entire scope of delivery including all optionally available accessories. The symbols used have the following meanings: Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu.  Mehr erfahren Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Akzeptieren Ablehnen √ x = included x times Χ = not included Live Chat ENG

  4. • = optionally available, only for an additional charge   () description AA Battery 1.5 V Android Tablet PC Controller electrode Holder for tablet PC Manual Controller charger Charger for Power Box Power Box Power pack including charger and travel adapter1 Tension cable drum (Ø 120 mm) Power cable drum (Ø 290 mm) Connection cable (2 m) Technical speci?cations: GeoSeeker 8 1 1 4 1 1 1 1 1 What are you looking for? 2 2 2 Controller (receiving unit) Dimensions (H x W x D): 130 x 270 x 110 mm Weight: 0.6kg Weight (with cable drums and batteries): 2.1 kg Power supply (8 AA batteries): 8-14 VDC Operating time (with charged batteries): min. 16 hours Charging time (with empty batteries): typically 3 hours, max. 5 hours Input (for charger): 12 VDC, 1.5 A. CPU: 80 MHz Cortex M3 ADC: 16 bit Communication with tablet PC: WLAN access point, 2.4 GHz band, channel 6, WPA2 Communication with Power Box: 2.4 GHz band, on-demand, proprietary Measuring range (differential): -1400 to +1400 mV Input resistance (static): approx. 12 MO Data sampling rate: 4096 Hz (64-fold oversampling of 512 measured values) Measuring time per measuring point: min. 16 seconds Power Box (transmitter unit) Dimensions (H x W x D): 230 x 550 x 360 mm Weight: 15.8 kg Weight (with electrodes): 18 kg Internal power supply: lead-gel batteries (2 x 12 V, 10 Ah) Output: max. 390 V, 0.5 A, 20 W. Operating time (min. Power): approx. 100 hours Operating time (medium power): approx. 40 hours Operating time (max. Power): approx. 8 hours Charging time: max. 8 hours Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu. Akzeptieren Ablehnen Live Chat  Mehr erfahren ENG

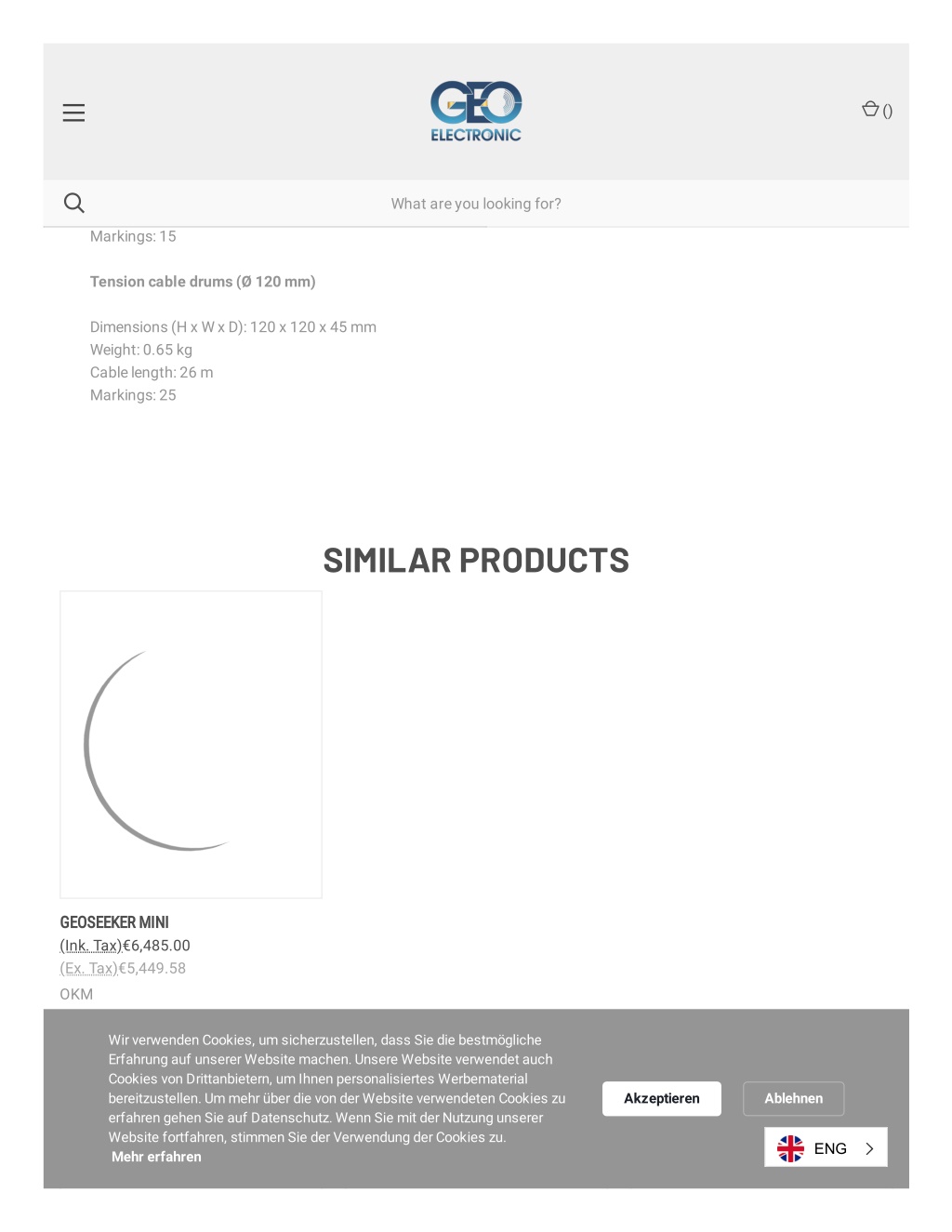

  5. Input (for charger): 24 VDC, 2 A Communication with controller: 2.4 GHz band, on-demand, proprietary () Electrodes Dimensions (H x W x D): 360 x 290 x 200 mm Weight: 6.5 kg Cable length: 255 m Markings: 15 What are you looking for? Tension cable drums (Ø 120 mm) Dimensions (H x W x D): 120 x 120 x 45 mm Weight: 0.65 kg Cable length: 26 m Markings: 25 SIMILAR PRODUCTS GEOSEEKER MINI (Ink. Tax)€6,485.00 (Ex. Tax)€5,449.58 OKM Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu. Akzeptieren Ablehnen CUSTOMERS ALSO VIEWED Live Chat  Mehr erfahren ENG

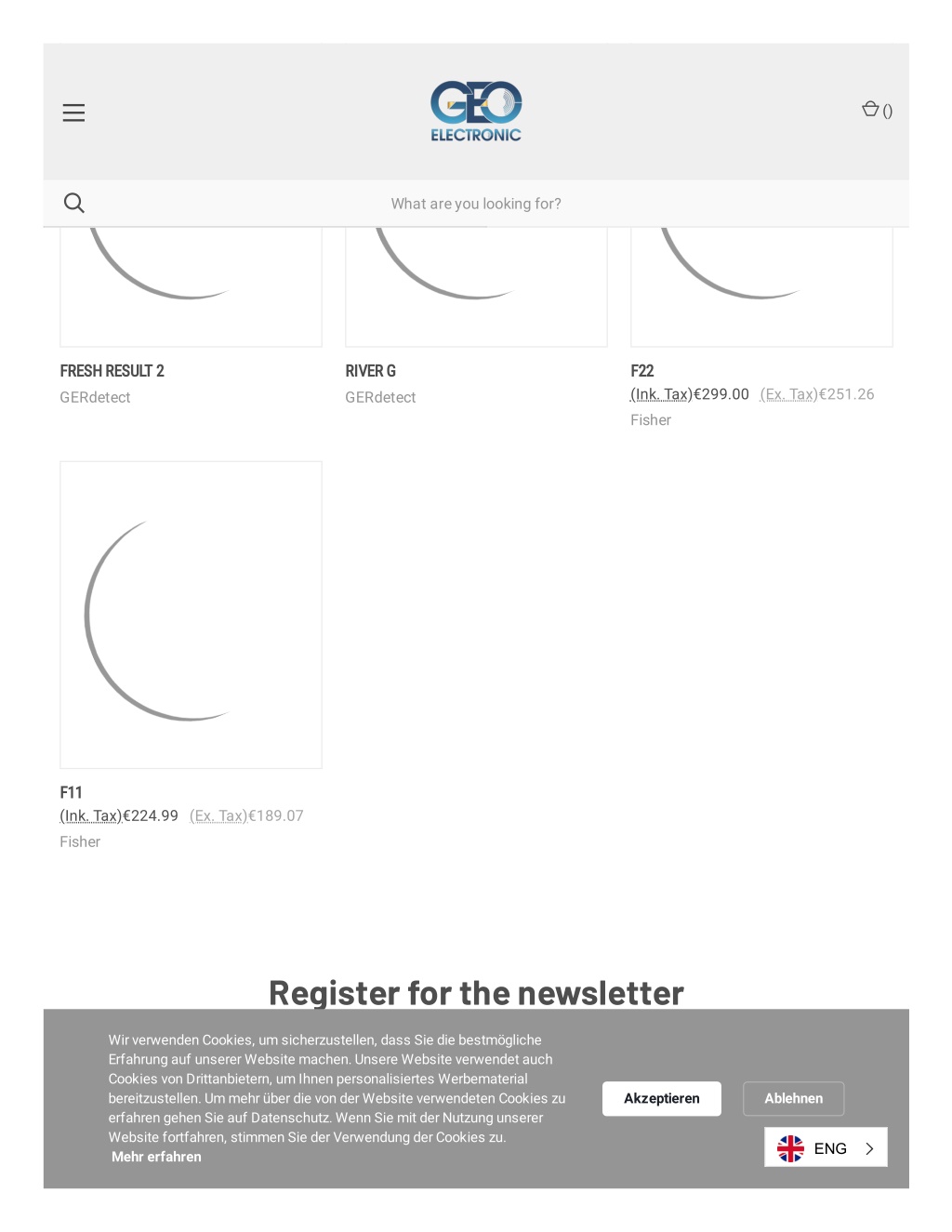

  6. () What are you looking for? FRESH RESULT 2 RIVER G F22 (Ink. Tax)€299.00 (Ex. Tax)€251.26 GERdetect GERdetect Fisher F11 (Ink. Tax)€224.99 (Ex. Tax)€189.07 Fisher Register for the newsletter Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Enter your email address Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu.  Mehr erfahren Akzeptieren Ablehnen LOG IN Live Chat ENG

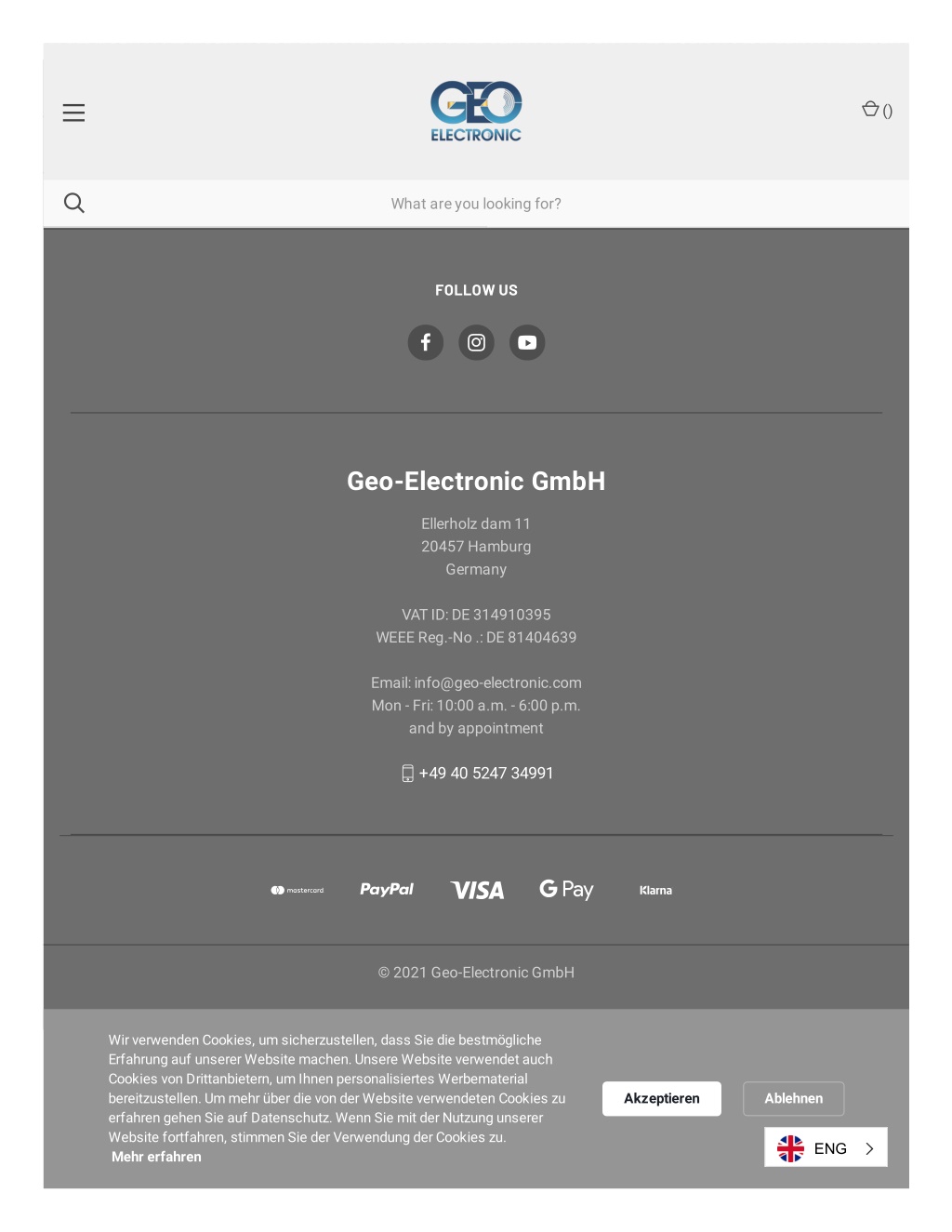

  7. CATEGORIES () INFORMATION BRANDS What are you looking for? FOLLOW US Geo-Electronic GmbH Ellerholz dam 11 20457 Hamburg Germany VAT ID: DE 314910395 WEEE Reg.-No .: DE 81404639 Email: info@geo-electronic.com Mon - Fri: 10:00 a.m. - 6:00 p.m. and by appointment +49 40 5247 34991 © 2021 Geo-Electronic GmbH Wir verwenden Cookies, um sicherzustellen, dass Sie die bestmögliche Erfahrung auf unserer Website machen. Unsere Website verwendet auch Cookies von Drittanbietern, um Ihnen personalisiertes Werbematerial bereitzustellen. Um mehr über die von der Website verwendeten Cookies zu erfahren gehen Sie auf Datenschutz. Wenn Sie mit der Nutzung unserer Website fortfahren, stimmen Sie der Verwendung der Cookies zu. Akzeptieren Ablehnen Live Chat  Mehr erfahren ENG
