Best Manufacturer of Latching Relay

Advanced Amorphous is the best manufacturer of Latching Relay. The metering relay is manufactured for the smart meter industry. These relays have high switching performance and low power consumption and only need to be energized during the switching process. For more details, please check out our website.<br>Visit now: https://advancedamorphous.com/latching-relay/<br>

25167
Download Presentation

Best Manufacturer of Latching Relay

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

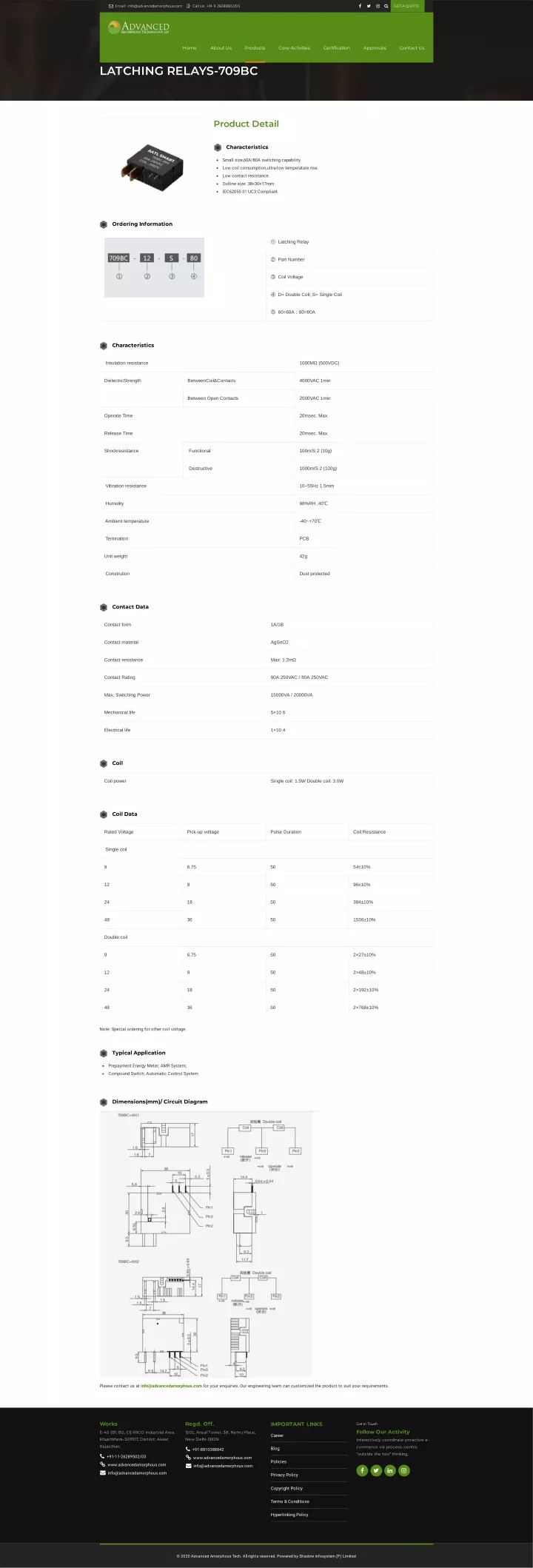

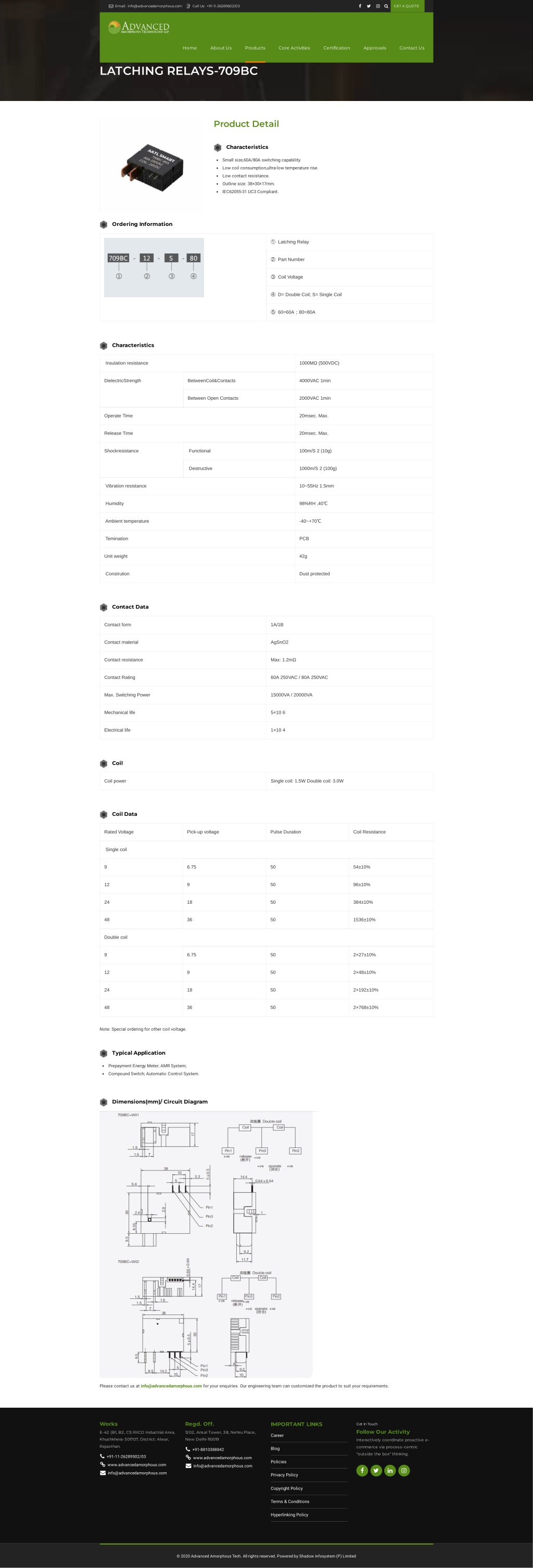

  1.      Email: info@advancedamorphous.com Call Us: +91-11-26289502/03 GET A QUOTE Home About Us Products Core Activities Certification Approvals Contact Us HOME LATCHING RELAYS-709BC Product Detail  Characteristics Small size,60A/80A switching capability. Low coil consumption,ultra-low temperature rise. Low contact resistance. Outline size: 38×30×17mm. IEC62055-31 UC3 Compliant.  Ordering Information ① Latching Relay ② Part Number ③ Coil Voltage ④ D= Double Coil; S= Single Coil ⑤ 60=60A；80=80A  Characteristics Insulation resistance 1000MΩ (500VDC) DielectricStrength BetweenCoil&Contacts 4000VAC 1min Between Open Contacts 2000VAC 1min Operate Time 20msec. Max. Release Time 20msec. Max. Shockresistance Functional 100m/S 2 (10g) Destructive 1000m/S 2 (100g) Vibration resistance 10~55Hz 1.5mm 98%RH ,40℃ Humidity -40~+70℃ Ambient temperature Temination PCB Unit weight 42g Constrution Dust protected  Contact Data Contact form 1A/1B Contact material AgSnO2 Contact resistance Max: 1.2mΩ Contact Rating 60A 250VAC / 80A 250VAC Max. Switching Power 15000VA / 20000VA Mechanical life 5×10 6 Electrical life 1×10 4  Coil Coil power Single coil: 1.5W Double coil: 3.0W  Coil Data Rated Voltage Pick-up voltage Pulse Duration Coil Resistance Single coil 9 6.75 50 54±10% 12 9 50 96±10% 24 18 50 384±10% 48 36 50 1536±10% Double coil 9 6.75 50 2×27±10% 12 9 50 2×48±10% 24 18 50 2×192±10% 48 36 50 2×768±10% Note: Special ordering for other coil voltage.  Typical Application Prepayment Energy Meter; AMR System; Compound Switch; Automatic Control System.  Dimensions(mm)/ Circuit Diagram Please contact us at info@advancedamorphous.com for your enquiries. Our engineering team can customized the product to suit your requirements. Works Regd. Off. IMPORTANT LINKS Get In Touch Follow Our Activity E-42 (B1, B2, C1) RIICO Industrial Area, 1202, Ansal Tower, 38, Nehru Place, Career Khushkhera-301707, District: Alwar, New Delhi-110019 Interactively coordinate proactive e- Rajasthan. commerce via process-centric Blog    +91-8810388842 “outside the box“ thinking.    +91-11-26289502/03 www.advancedamorphous.com Policies www.advancedamorphous.com info@advancedamorphous.com     info@advancedamorphous.com Privacy Policy Copyright Policy Terms & Conditions Hyperlinking Policy © 2020 Advanced Amorphous Tech. All rights reserved. Powered by Shadow infosystem (P) Limited
