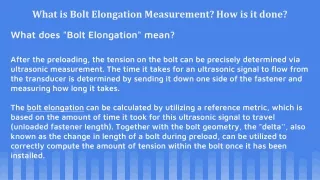

1. What is Bolt Elongation Measurement? How is it done? What does "Bolt Elongation" mean? After the preloading, the tension on the bolt can be precisely determined via ultrasonic measurement. The time it takes for an ultrasonic signal to flow from the transducer is determined by sending it down one side of the fastener and measuring how long it takes. The bolt elongation can be calculated by utilizing a reference metric, which is based on the amount of time it took for this ultrasonic signal to travel (unloaded fastener length). Together with the bolt geometry, the "delta'', also known as the change in length of a bolt during preload, can be utilized to correctly compute the amount of tension within the bolt once it has been installed.

2. Validation of bolt tightening with up to a 20% reduction in preload scatter can be accomplished through ultrasonic measurements. Ultrasonic bolt elongation measurement, as opposed to deflection validation, can also be used in application areas with blind holes because the sensor only requires access to one end of the fastener. Deflection validation can also be used in apps with blind holes. In addition, ultrasonic metrics can be used to measure residual potential output after application loading & ensure that bolts are within specification. This is possible if the unloaded length of the bolts is known before the preload.

3. Real-Time Incorporation within the process of bolt tightening operations: There are many advantages to establishing the bolt stretch before beginning any bolt tightening process. It improves efficiency and productivity on-site by cutting down the time spent on the bolting operations. Because plants suffer enormous losses during shutdowns, it is critical to use contemporary technologies that shorten the time required to finish bolting activities. TensionPro Sonar can determine which fasteners need to be tightened and which do not by measuring the elongation of the bolts. This allows the user to save time on tool transporting, setup, & operations, and it also results in cost savings related to personnel. The elongation of each bolt can be recorded, stored, and monitored at the plant thanks to the data recording feature of TensionPro. Based on this information, the plant can then decide whether or not to bolt the component.

4. What is Ultrasonic Measurement? To determine the bolt load, the device detects the bolt length. Bolts can be elongated or stretched when they are under stress. When the force applied is less than the specified deformation of the bolt, the stretch is equal to the bolt load. It is possible to compute a bolt's load by determining its elongation based on its physical parameters. Measurement of bolt elongation is done ultrasonically using the device

5. Understanding the Ultrasonic Bolt Elongation Measurement: The Bureau of Mines and Geotechnical Research investigated and adapted ultrasonic measurement systems for use with tensioned & untensioned assistance in the geotechnical & mining industries. This was done to solve the measurement problems associated with the perseverance of the stability & integrity of fasteners. These ultrasonic measurements offer a system that is simple to operate, high in accuracy, and low in cost on a per-bolt basis. It can determine the amount of load that is being placed on an established support system. The underlying idea is not complicated at all. Measuring the amount of time required for a sonic pulse or a collection of sonic waves to complete their journey via a bolt is possible. The travel time is impacted by the bolt stress & bolt strain, and its variation about axial bolt loads shifts linearly to a tiny percentage. A piezoelectric transducer attached to the bolt head is responsible for introducing the waves into the bolt.

6. This transducer also can detect the exchange waves that have been reflected back out from bolt close or another internal reflector, including a small-diameter hole drilled perpendicularly to the bolt axis. It is necessary to make modifications that have the potential to create zones of induced stress concentrations to accommodate strain gages or vibrating wires. These stress concentrations can produce erroneous testing results, particularly at low-stress levels. When working with ultrasonic devices, alterations of this kind are not required. To calculate the amount of load-induced at various points along the length of a bolt by the imposed end-loading conditions, it is necessary to measure the axial displacement of the bolt at each point along its length. The general loading characteristics of full- & partial-column resin-grouted bolts can be better comprehended with the help of this information because it can provide a clearer picture of those qualities.

7. Conclusion: The application of an ultrasonic approach offers several benefits over the standard procedures now used in the sector, including the following: The precision is relatively high, the measurement only takes a short amount of time, and a single person can measure with only a moderate amount of physical effort, the anchorage of the bolts is not affected, and you may measure either partial or full-column grouted bolts. This measurement reflects the actual state of the bolt and is not influenced in any way by the components of the bolting system, the application of force, or the installation technique. The degree of variability in the torque-tension relationship has little bearing on the accuracy of ultrasonic measurements. If the method is perfected to the point that it can be used in an industrial bolting setting, it has the potential to deliver more helpful bolt load data for research & mining practice. Content Sources :- ABSGroup
