Things to look for in Pipe Cutting & Bevelling Services _ Machines

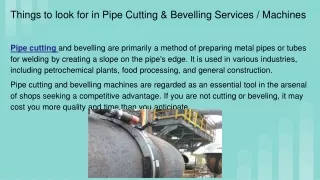

1. Things to look for in Pipe Cutting & Bevelling Services / Machines Pipe cuttingand bevelling are primarily a method of preparing metal pipes or tubes for welding by creating a slope on the pipe's edge. It is used in various industries, including petrochemical plants, food processing, and general construction. Pipe cutting and bevelling machines are regarded as an essential tool in the arsenal of shops seeking a competitive advantage. If you are not cutting or beveling, it may cost you more quality and time than you anticipate.

2. What Is Cold Pipe Cutting And Bevelling? Pipe cutting and bevelling is a method of cutting through a material without heat or a flame and the production of sparks. As a result, the process is the safest way to cut structures in hazardous environments. Cold cutting and bevelling are commonly specified in the oil and gas, materials processing, and petrochemical industries.

3. Pipe Cutting And Bevelling Machines Pipe cuttingand bevelling machines go by a variety of other names. Clamshell cutters, split frame cutters, clamshell lathes, and different variations of these words are commonly used.

4. Pipe cuttingand bevelling machines are circular in design, wrapping around the pipe in two halves connected by a hinge. When fully assembled, the machines operate by rotating a cutting tool around the pipe's circumference. The machines' primary functions are to make straight or beveled cuts in preparation for welding. There are three types: low profile, mid-size, and heavy-duty. They are available in sizes to accommodate all standard pipe diameters, including those as large as 177” in diameter. The machines are typically powered by a pneumatic,electric or hydraulic source. The two most important advantages of a cutting machine are convenience and safety. There are no sparks, flames, or airborne contaminants produced. Furthermore, no HAZ (heat-affected zone) is formed, which can alter the material's properties.

5. Things to look for in Pipe Cutting And Bevelling Machines / Services Pipe cutting and bevelling can be done in various ways, including hand grinding, flame-cutting, and machining, and there are numerous machines to choose from. When selecting a cutting and bevelling machine, keep in mind that an excellent cutting and bevelling machine is:

6. Lightweight • Efficient • Simple to use • It requires a glance to set up • operates at a high rate • Simple to modify • There are no health risks to the operator. • Has the ability to create cutting edges that are free of oxide. • High Cutting Capacity (Completes the task with minimum time) • Easy Handling (Automated Machines for Ergonomic Handling) • Parameters for selecting the right partner (Manpower Safety/ Workplace Safety/ Tool Safety) • Rental services is better than purchasing (Skilled & Experienced Engineering Workforce that would reduce material wastage and provide the best service in terms of the finish required) You should also think about what type of cutting machine is best suited for your application.

7. Factors That Will Affect The Quality Of Pipe Cutting Machine While deciding which cutting and bevelling machine to use for pipe, go by these following factors, which may be specified in the manufacturer's drawings or blueprint: Degree of the AngleDifferent angles are appropriate for various applications. For most cases of beveling pipe, the standard cutting machine has a 37.5° angle, but this is not the case for other metal applications

8. Length of the BevelThe length of the bevel (also known as the land) is the amount of material removed to allow the weld bead to be laid into the material. Accuracy is critical regardless of how it is measured. When welding, having a consistent length of bevel ensures easier operation. It reinforces and strengthens the weld simply because the integrity remains constant throughout the material being welded together. SpeedEveryone understands that time is money. The less time it takes to cut the pipe, the more money you make or save, so it is critical that you select a technique that can be completed in the shortest cycle time possible.

9. Heat Affected Zone (HAZ) If the term "heat-affected zone" (HAZ) appears in the weld specifications, you must avoid heating the material being welded together. This is because metal is created by combining varying levels of different alloys such as chromium, magnesium, and iron to create the structural characteristics of the metal required for a specific purpose. When heat is applied to this metal, the microstructural characteristics of the alloy composition can transform the material you purchased into a different metal. This means that working on the metal and thus heating it can eventually change and affect many other components of your operation.

10. Safe Bevelling When certain metals are heated, toxic fumes are released. If your employees do not use proper ventilation or masks, they may be exposed to a severe health risk. When working with a heat source, make sure you understand what metals are being used and keep an eye on the produced fumes. This crucial factor should never be overlooked or undervalued.

11. Bottom Line Using pneumatic or hydraulically powered machines to cut pipe. Cold cutting machines enable us to cut simultaneously and bevel pipe, resurface flange faces, and machine the inside diameter of a pipe with a counterbore or transition. If you want to find the best pipe cutting and bevelling machines, consider the above factors before making a decision. ABS Group specializes in cold pipe cuttingand beveling, which offers numerous advantages over traditional on-site machining. Content Sources :- ABSGroup
