An authentic Hydraulic bottom patch fitting

An authentic Hydraulic bottom patch fitting which accompanies a coordination with top patch fitting and standard top pivot. These hydraulic patches are ideal for workplaces, internal doors or external doors that might be shielded from extreme wind.<br>For more details: - https://taghardware.ca/storefronts-entrances/hydraulic-patch/hold-open/cfh100bss/<br>

11639
Download Presentation

An authentic Hydraulic bottom patch fitting

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

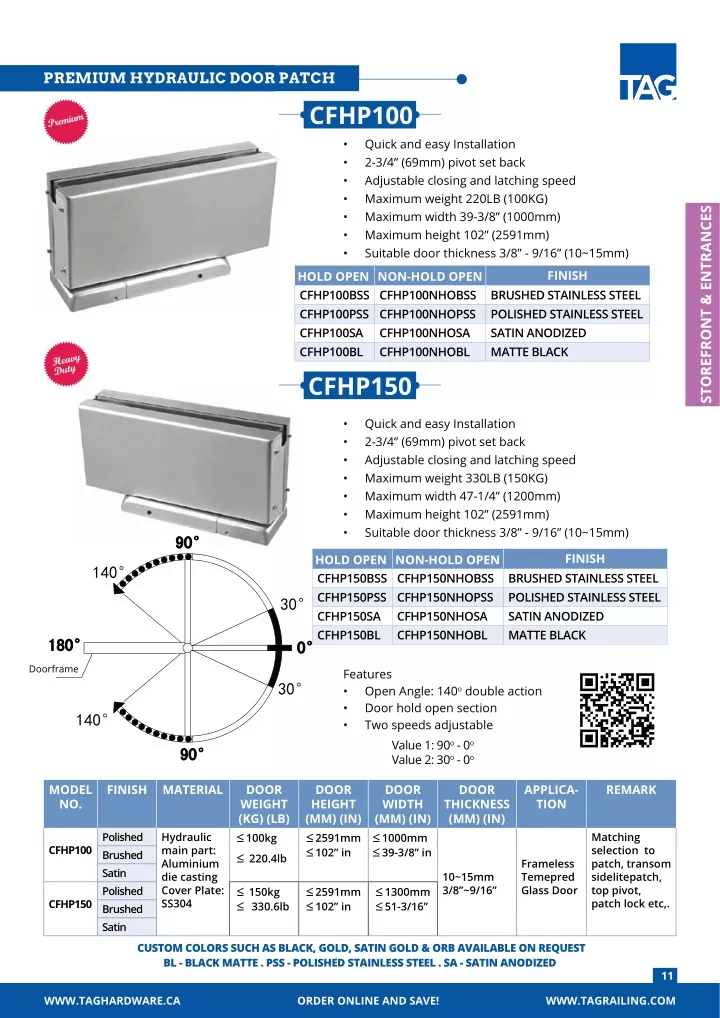

  1. PREMIUM HYDRAULIC DOOR PATCH CFHP100 • • • • • • • Premium Quick and easy Installation 2-3/4” (69mm) pivot set back Adjustable closing and latching speed Maximum weight 220LB (100KG) Maximum width 39-3/8” (1000mm) Maximum height 102” (2591mm) Suitable door thickness 3/8” - 9/16” (10~15mm) STOREFRONT & ENTRANCES FINISH HOLD OPEN NON-HOLD OPEN CFHP100BSS CFHP100NHOBSS CFHP100PSS CFHP100NHOPSS CFHP100SA CFHP100NHOSA CFHP100BL CFHP100NHOBL BRUSHED STAINLESS STEEL POLISHED STAINLESS STEEL SATIN ANODIZED MATTE BLACK Heavy Duty CFHP150 • • • • • • • Quick and easy Installation 2-3/4” (69mm) pivot set back Adjustable closing and latching speed Maximum weight 330LB (150KG) Maximum width 47-1/4” (1200mm) Maximum height 102” (2591mm) Suitable door thickness 3/8” - 9/16” (10~15mm) FINISH HOLD OPEN NON-HOLD OPEN CFHP150BSS CFHP150NHOBSS CFHP150PSS CFHP150NHOPSS CFHP150SA CFHP150NHOSA CFHP150BL CFHP150NHOBL BRUSHED STAINLESS STEEL POLISHED STAINLESS STEEL SATIN ANODIZED MATTE BLACK Features Open Angle: 140 • Door hold open section • Two speeds adjustable • Value 1: 90o - 0o Value 2: 30o - 0o o double action MODEL NO. FINISH MATERIAL DOOR WEIGHT (kG) (LB) 100kg 220.4lb DOOR HEIGHT (MM) (IN) 2591mm 102” in DOOR WIDTH (MM) (IN) 1000mm 39-3/8” in DOOR THICkNESS (MM) (IN) APPLICA- TION REMARk Matching selection to patch, transom sidelitepatch, top pivot, patch lock etc,. Polished Brushed Satin Polished Brushed Satin Hydraulic main part: Aluminium die casting Cover Plate: SS304 CFHP100 Frameless Temepred Glass Door 10~15mm 3/8”~9/16” 150kg 330.6lb 2591mm 102” in 1300mm 51-3/16” CFHP150 CUSTOM COLORS SUCH AS BLACK, GOLD, SATIN GOLD & ORB AVAILABLE ON REQUEST BL - BLACK MATTE . PSS - POLISHED STAINLESS STEEL . SA - SATIN ANODIZED 11 11 WWW.TAGHARDWARE.CA WWW.TAGHARDWARE.CA ORDER ONLINE AND SAVE! ORDER ONLINE AND SAVE! WWW.TAGRAILING.COM WWW.TAGRAILING.COM

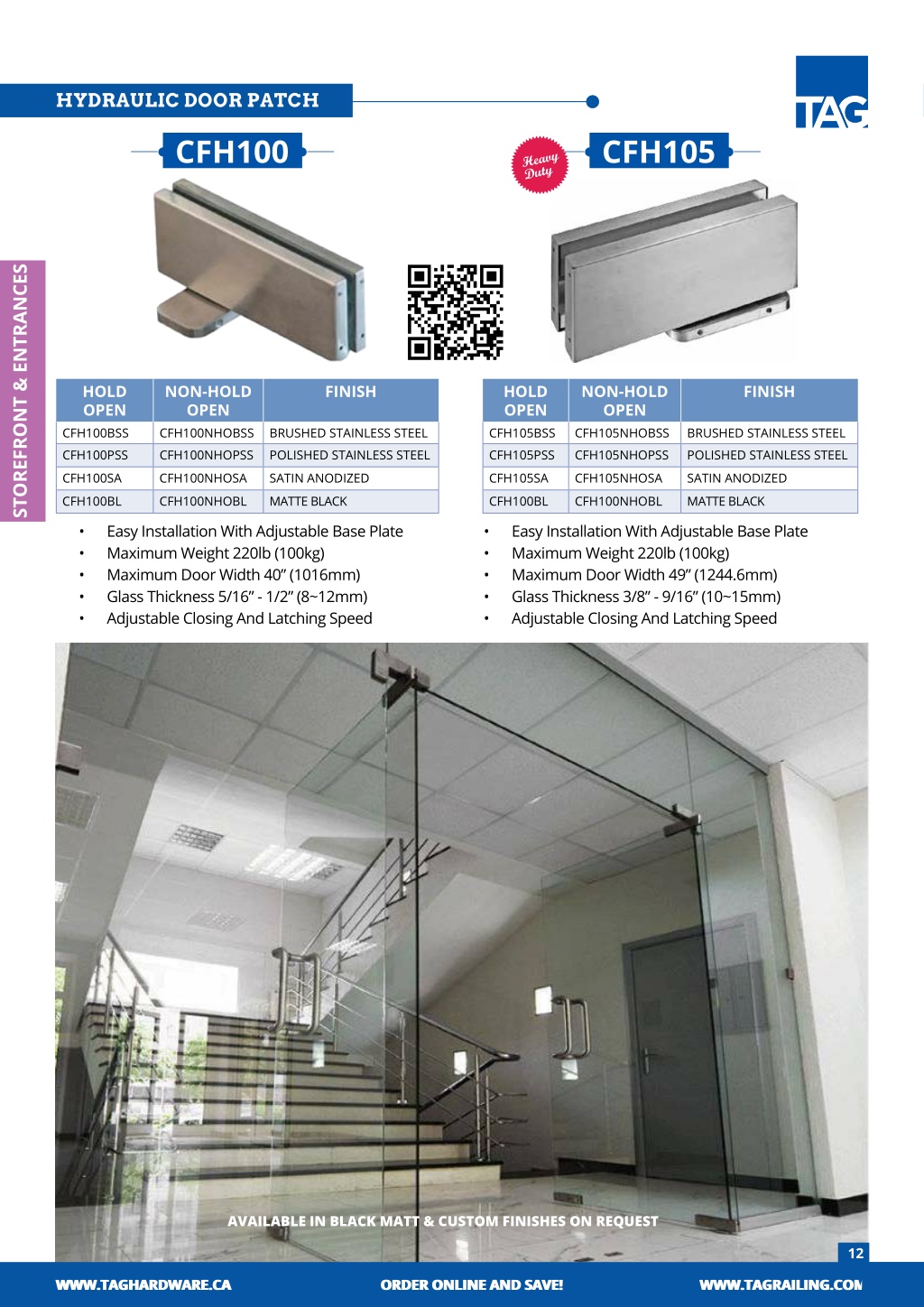

  2. HYDRAULIC DOOR PATCH CFH100 CFH105 Heavy Duty STOREFRONT & ENTRANCES HOLD OPEN CFH100BSS CFH100PSS CFH100SA CFH100BL NON-HOLD OPEN CFH100NHOBSS CFH100NHOPSS CFH100NHOSA CFH100NHOBL FINISH HOLD OPEN CFH105BSS CFH105PSS CFH105SA CFH100BL NON-HOLD OPEN CFH105NHOBSS CFH105NHOPSS CFH105NHOSA CFH100NHOBL FINISH BRUSHeD STAINLeSS STeeL POLISHeD STAINLeSS STeeL SATIN ANODIZeD MATTe BLACK BRUSHeD STAINLeSS STeeL POLISHeD STAINLeSS STeeL SATIN ANODIZeD MATTe BLACK • • • • • easy Installation With Adjustable Base Plate Maximum Weight 220lb (100kg) Maximum Door Width 40” (1016mm) Glass Thickness 5/16” - 1/2” (8~12mm) Adjustable Closing And Latching Speed • • • • • easy Installation With Adjustable Base Plate Maximum Weight 220lb (100kg) Maximum Door Width 49” (1244.6mm) Glass Thickness 3/8” - 9/16” (10~15mm) Adjustable Closing And Latching Speed AVAILABLE IN BLACK MATT & CUSTOM FINISHES ON REQUEST 12 12 WWW.TAGHARDWARE.CA WWW.TAGHARDWARE.CA ORDER ONLINE AND SAVE! ORDER ONLINE AND SAVE! WWW.TAGRAILING.COM WWW.TAGRAILING.COM
