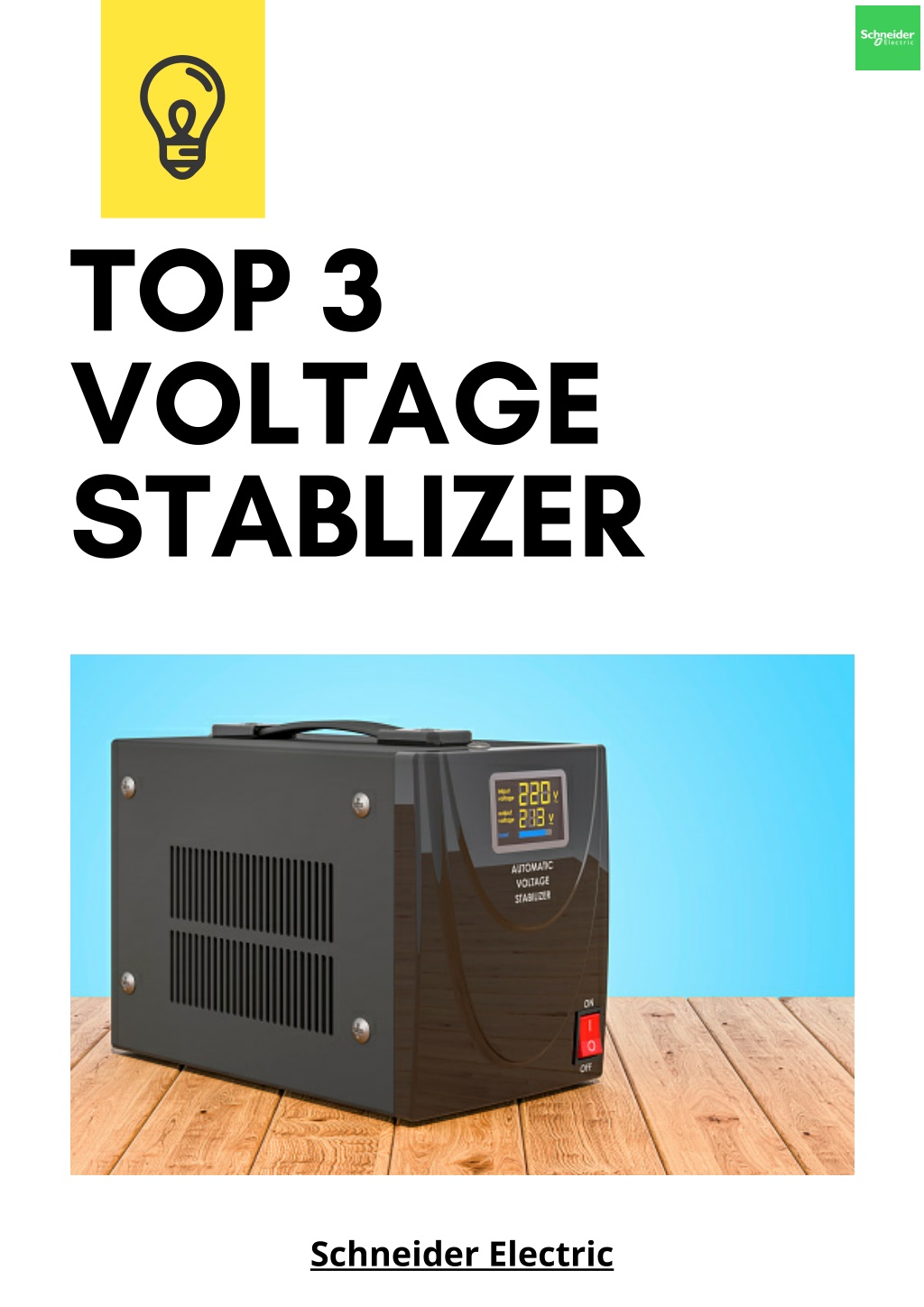

TOP 3 VOLTAGE STABLIZER We will help you bring out only the best in your brand Schneider Electric

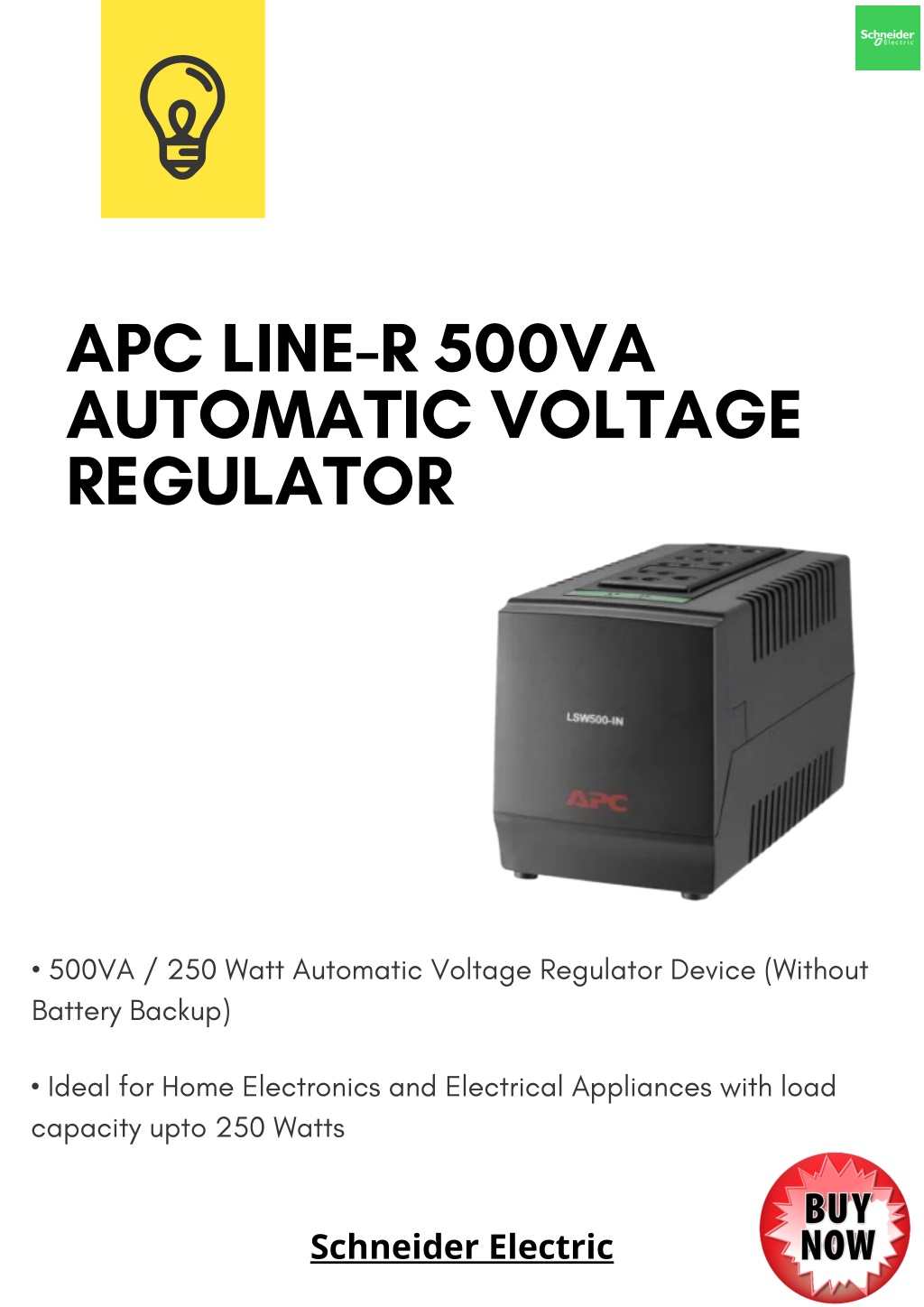

APC LINE-R 500VA AUTOMATIC VOLTAGE REGULATOR • 500VA / 250 Watt Automatic Voltage Regulator Device (Without Battery Backup) • Ideal for Home Electronics and Electrical Appliances with load capacity upto 250 Watts Schneider Electric

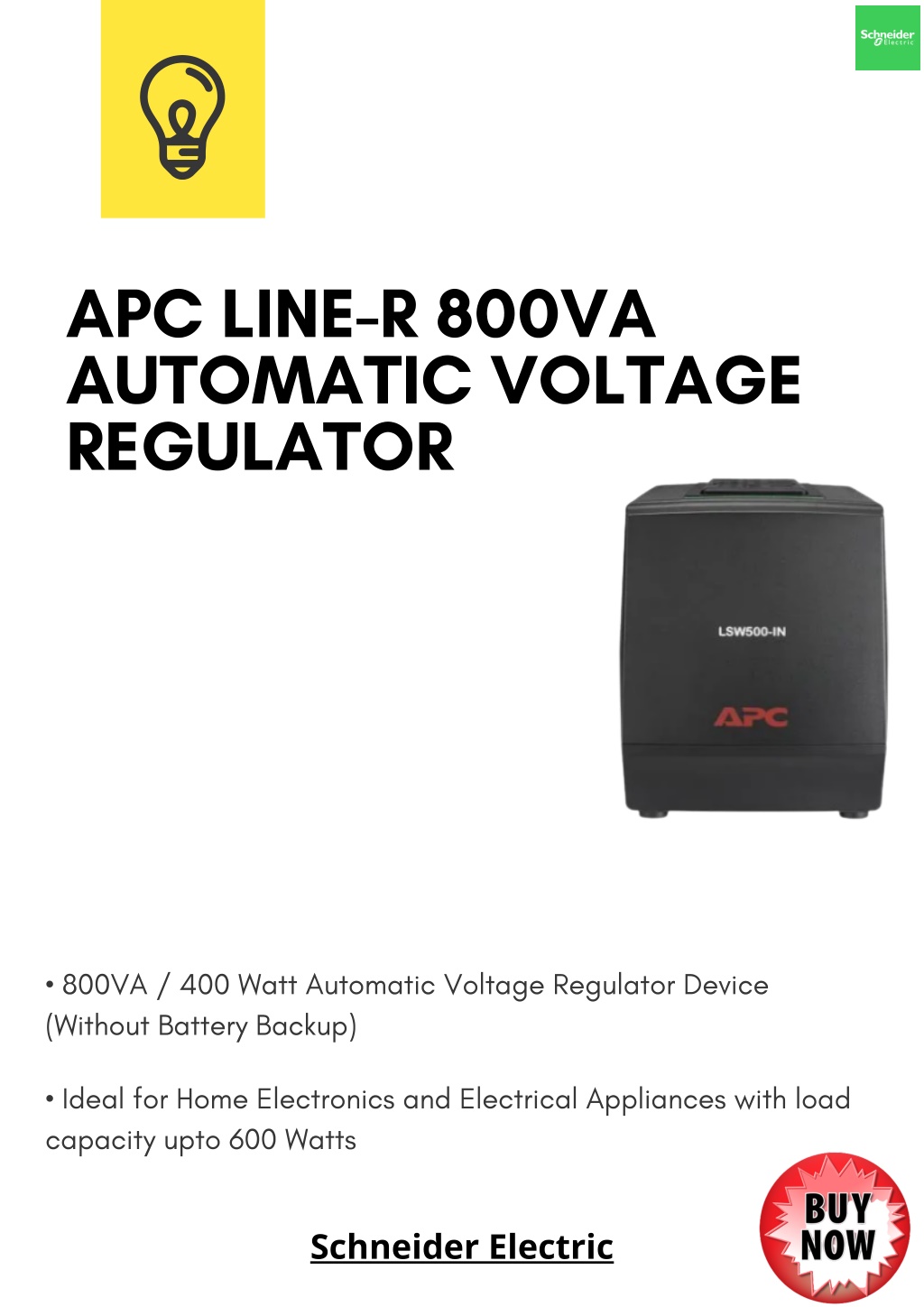

APC LINE-R 800VA AUTOMATIC VOLTAGE REGULATOR • 800VA / 400 Watt Automatic Voltage Regulator Device (Without Battery Backup) • Ideal for Home Electronics and Electrical Appliances with load capacity upto 600 Watts Schneider Electric

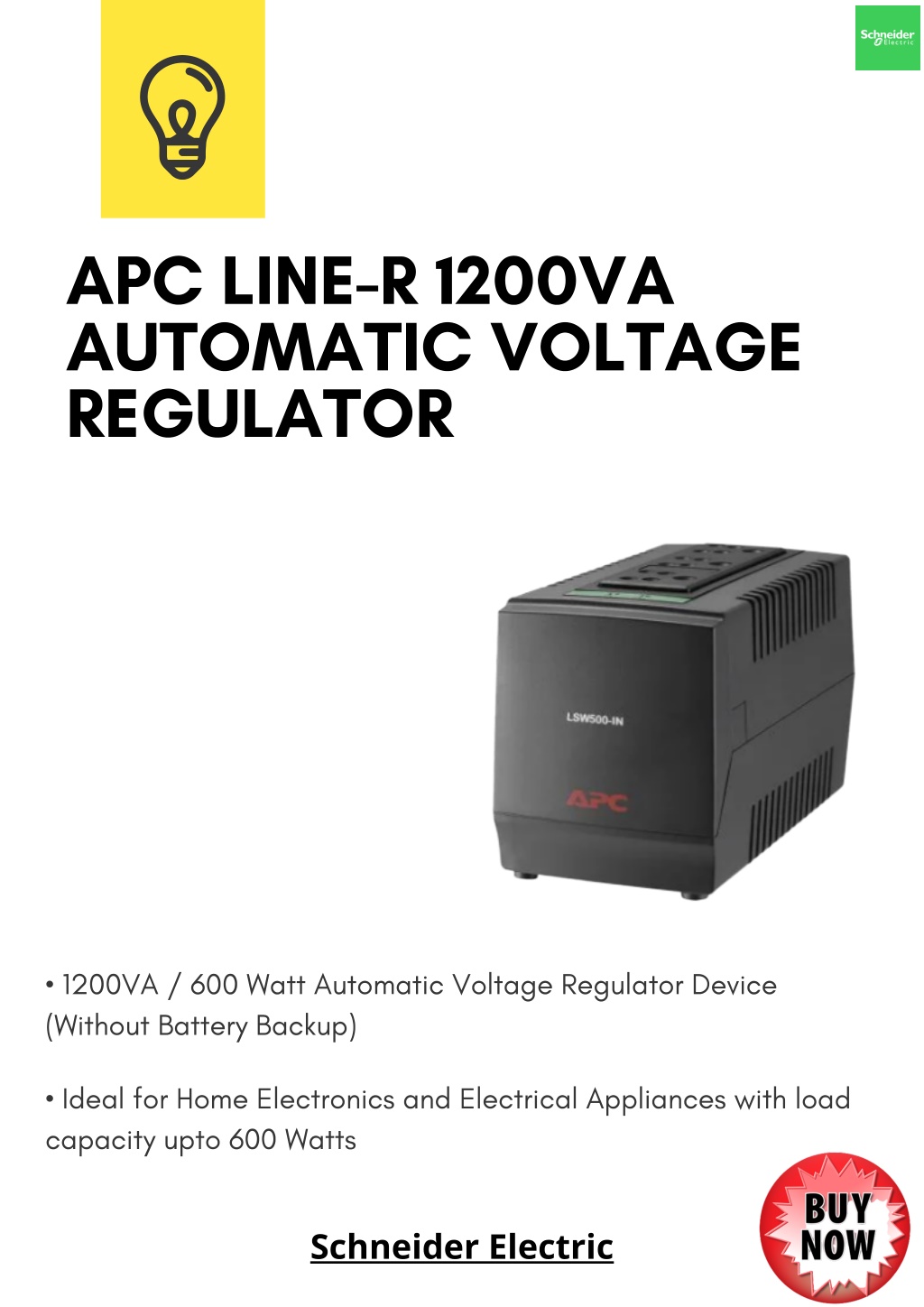

APC LINE-R 1200VA AUTOMATIC VOLTAGE REGULATOR • 1200VA / 600 Watt Automatic Voltage Regulator Device (Without Battery Backup) • Ideal for Home Electronics and Electrical Appliances with load capacity upto 600 Watts Schneider Electric
