  1. CAP4730: Computational Structures in Computer Graphics Blending

  2. Outline • Why do we want to blend? • What is blending? • Math behind blending • Blending in OpenGL

  3. Why do we want to blend? • We use triangles to describe surfaces • We always assumed opaque surfaces • How would we do transparent surfaces? • What are some types of transparent surfaces? • Windows • Saran Wrap • Plastic (like my cup) • Stained Glass • Water

  4. Blend Let’s recall what happens per pixel

  5. We would like to combine the two colors • Fragment or source - incoming color • Destination - existing color • How should we combine them? • We use the alpha channel to describe the combination of the source and destination. • ColorFinal = A*ColorSource + B*ColorDestination • Most APIs let you specify A and B • What does A and B mean qualitatively?

  6. Combining Colors • Usually we take the source alpha as a “percentage” of the incoming fragment. • Thus the equation becomes: • ColorFinal=AlphaSource*ColorSource+(1- AlphaSource)*ColorDestination • What is the “default” alpha values for no blending? • What does this mean about the order of objects? • Order DOES MATTER when you have alpha objects!

  7. Order Matters with Alpha!

  8. OpenGL • glColor4f(1,0,0,0.5); • You must have a framebuffer with alpha: • glutInitDisplayMode(GLUT_RGBA); • Assign colors at the vertices to be a certain alpha. • Other suggestions for combining colors: • Let’s write out the equation • A = 1, B = 1 • A = 1-AlphaSource , B = AlphaSource • A = AlphaSource , B = 1 • glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA); • glBlendFunc(GL_ONE, GL_ZERO);

  9. HUDs

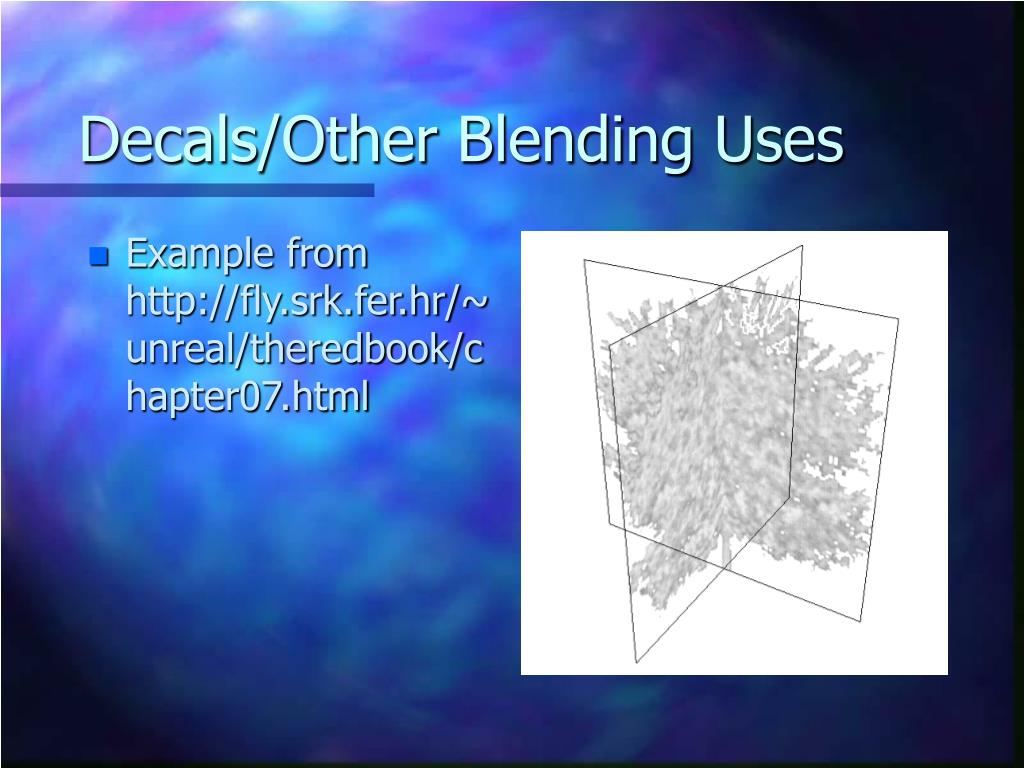

  10. Decals/Other Blending Uses • Example from http://fly.srk.fer.hr/~unreal/theredbook/chapter07.html
