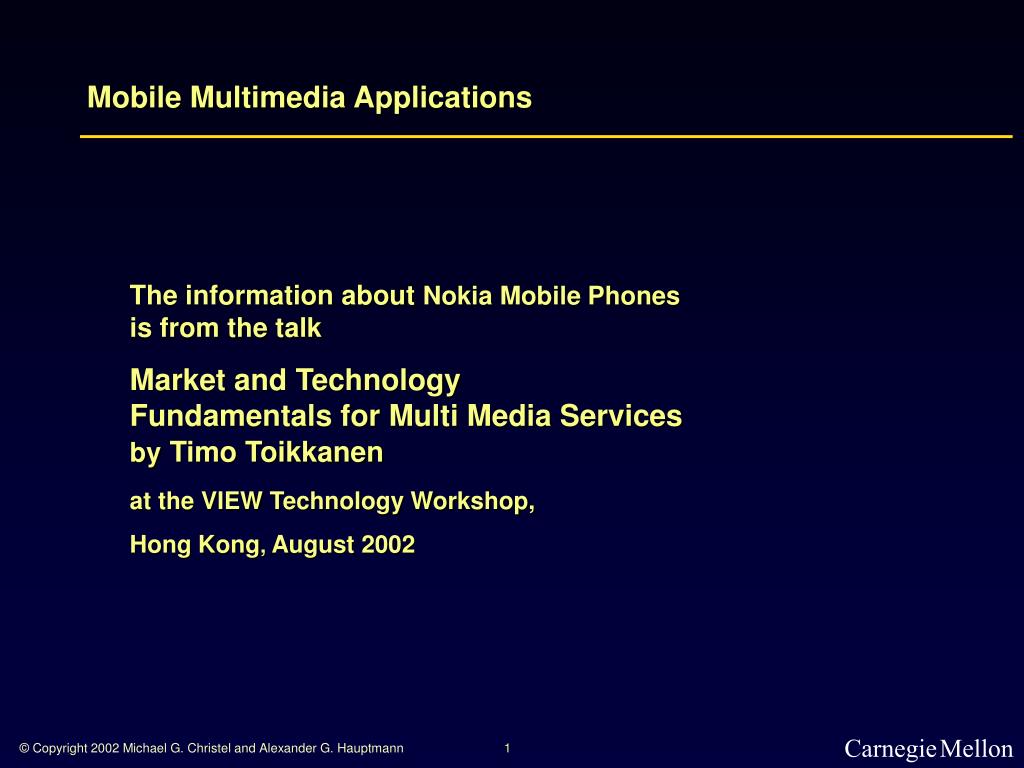

  1. Mobile Multimedia Applications The information about Nokia Mobile Phonesis from the talk Market and Technology Fundamentals for Multi Media ServicesbyTimo Toikkanenat the VIEW Technology Workshop, Hong Kong, August 2002

  2. Wireless Futures • Internet supports e-commerce • Wireless Internet will support m-commerce • Normal in a few years • M-commerce is facilitated by high-rate GSM-like service • GPRS/HSCSD (Hi Speed Circuit Switched Data) with a of bitrate 144kbps • Need higher bitrate (4G) to avoid the World Wide Wait • Mobile palmtop device will be dominant • Always internet linked, no distinction between mobile and fixed office

  3. 4G Networks? • Bandwidth of 100Mbit/s • Due 2006 – 2010 • But: Too many 3G standards now, slows development • Permanent internet connection (IPv6 address) while mobile • All digital, packet switched, with tight security • Extends 3G by >10x • Not backwards compatible • Enables full interactive video services

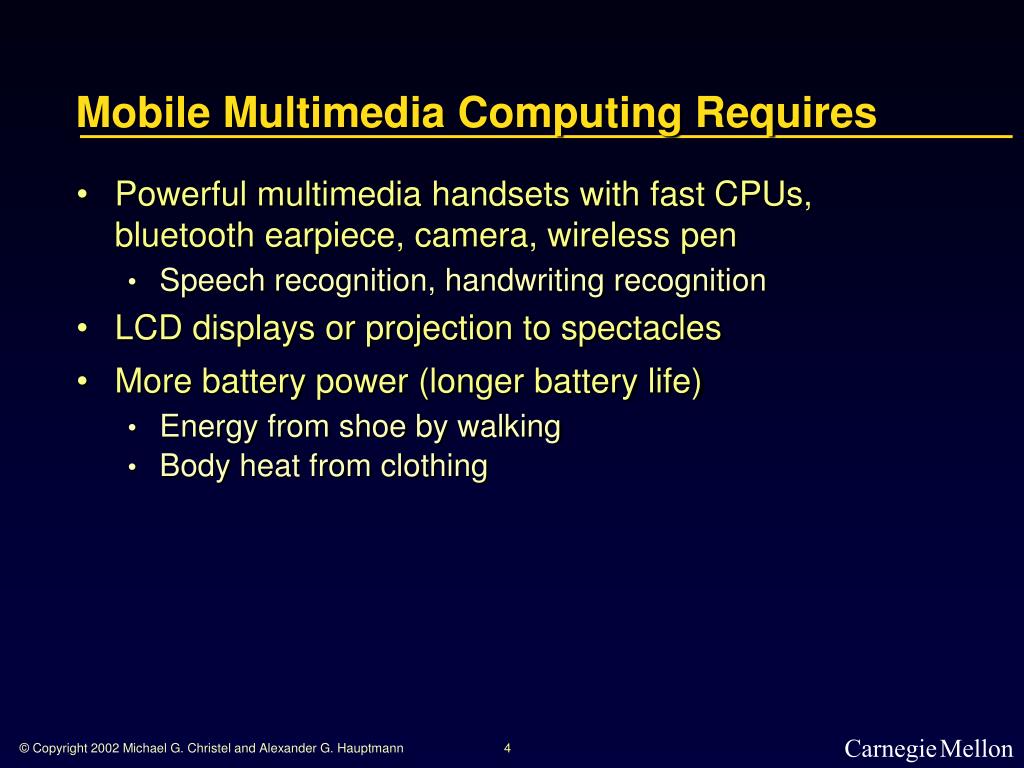

  4. Mobile Multimedia Computing Requires • Powerful multimedia handsets with fast CPUs, bluetooth earpiece, camera, wireless pen • Speech recognition, handwriting recognition • LCD displays or projection to spectacles • More battery power (longer battery life) • Energy from shoe by walking • Body heat from clothing

  5. Video for wireless multimedia • Quarter size video 10 fps encoded at 20 – 500 kbps requires transmission capacity of 2 - 50 voice conversations • Full size video at 30 fps requires 32 GSM channels • The World Wide Wait is coming!

  6. Wireless & Multimedia Video Transmission over wireless channels Video Compression for wireless channels Video Streaming over wireless channels Pre and Post Processing techniques for Error Resiliency & Error Concealment QoS (Quality of Service) in wireless multimedia Media-Processors in wireless applications and IP Networks

  7. Universal Access Any information Any network Any device

  8. What is 3G? 3G wireless technology is a global communication technology based on packet-based transmission of digitized voice, data, and video. It includes multiple competing wireless technologies like • Code Division Multiple Access (CDMA) 2000, • Universal Mobile Telecommunications Service (UMTS), and • wideband CDMA (WCDMA) are found. 3G is capable of delivering data transmission speeds of • 144K bit/sec inside a moving vehicle, • 384K bit/sec standing or walking, and • 2M bit/sec in a fixed location, using packet-based rather than circuit switched technology and permitting global roaming.

  9. All those Gs: 1G, 2G, 2.5G, 3G • 1G: First generation cellular phone technology, • analog, Advanced Mobile Phone Service (AMPS) • 2G: Second Generation digital technology, voice centric, • TDMA, CDMA, GSM • 2.5G: Second Generation with upgrades for speed, packet focus (e.g. GPRS layered on top of GSM) • Data rates from 56 up to 114 Kbps • 3G: Third generation, data centric, packet based optimized for high bandwidth, WCDMA and UMTS

  10. What 3G Networks mean to the Consumer • 3G is video conferencing in a taxi • 3G is singing karaoke in a bus • 3G is sending images straight from the field to headquarters for analysis • 3G is sharing your Japan vocation with your friends from Hong Kong • 3G is playing a multi-user role playing game on the bus to work • …

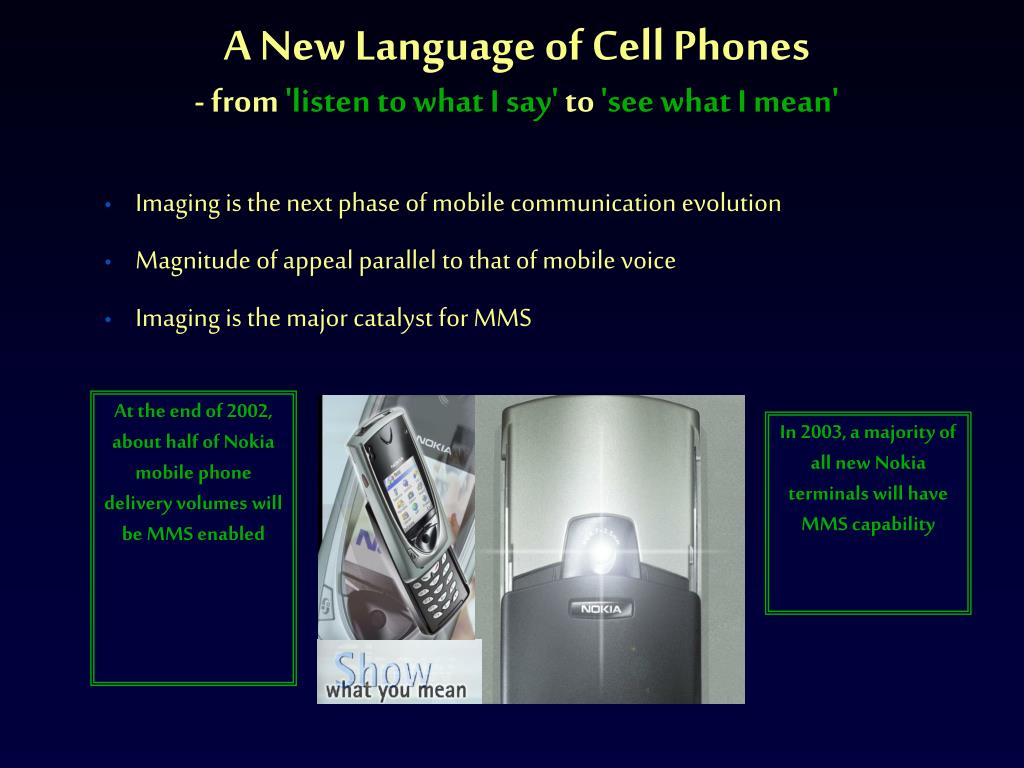

  11. A New Language of Cell Phones- from 'listen to what I say' to 'see what I mean' • Imaging is the next phase of mobile communication evolution • Magnitude of appeal parallel to that of mobile voice • Imaging is the major catalyst for MMS At the end of 2002, about half of Nokia mobile phone delivery volumes will be MMS enabled In 2003, a majority of all new Nokia terminals will have MMS capability

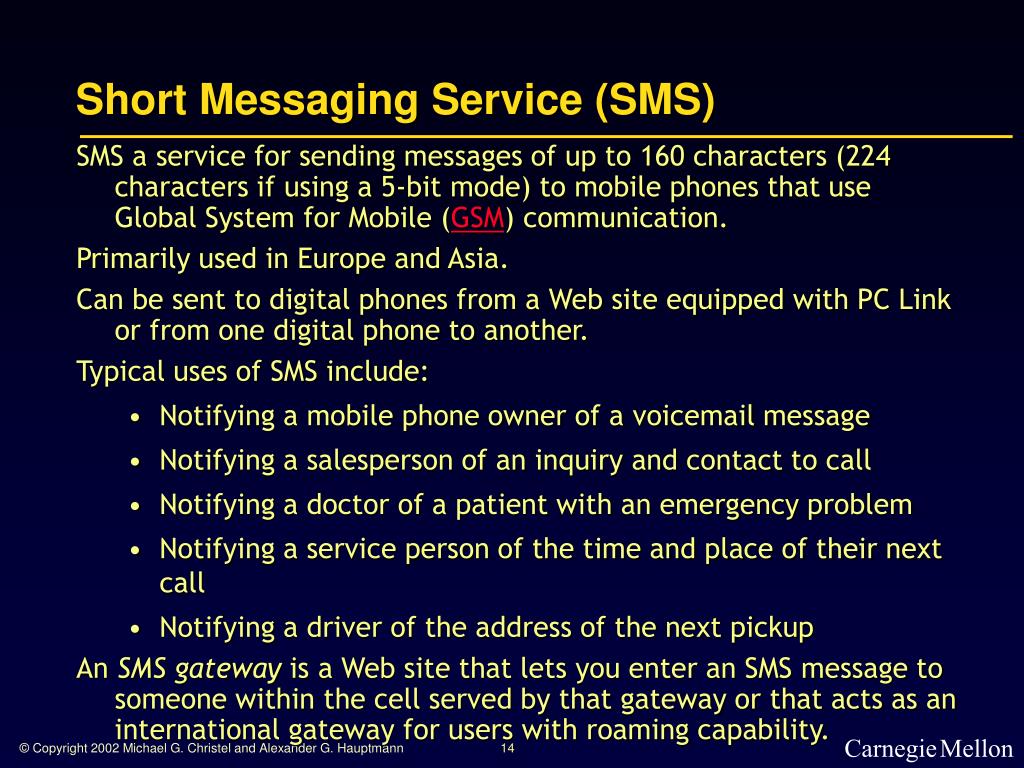

  12. Short Messaging Service (SMS) SMS a service for sending messages of up to 160 characters (224 characters if using a 5-bit mode) to mobile phones that use Global System for Mobile (GSM) communication. Primarily used in Europe and Asia. Can be sent to digital phones from a Web site equipped with PC Link or from one digital phone to another. Typical uses of SMS include: • Notifying a mobile phone owner of a voicemail message • Notifying a salesperson of an inquiry and contact to call • Notifying a doctor of a patient with an emergency problem • Notifying a service person of the time and place of their next call • Notifying a driver of the address of the next pickup An SMS gateway is a Web site that lets you enter an SMS message to someone within the cell served by that gateway or that acts as an international gateway for users with roaming capability.

  13. Multimedia Messaging Services Messaging interface Photo album MMS message MMS delivery All messaging services including SMS, MMS & e-mail collected under one application Pictures can be stored in the photo album MMS messaging can combine text, pictures and audio The address formats supported are global phone numbers and simple e-mail addresses

  14. Inter- operator delivery Convenient charging model Easeof Use Standardised service Penetration & legacy support Learning the SMS lessonWhat is needed for a fast mobile service growth Widespread adoption of a common and easy to use application • creates a big unified market • … and a platform • feeds its own growth • everyone profits

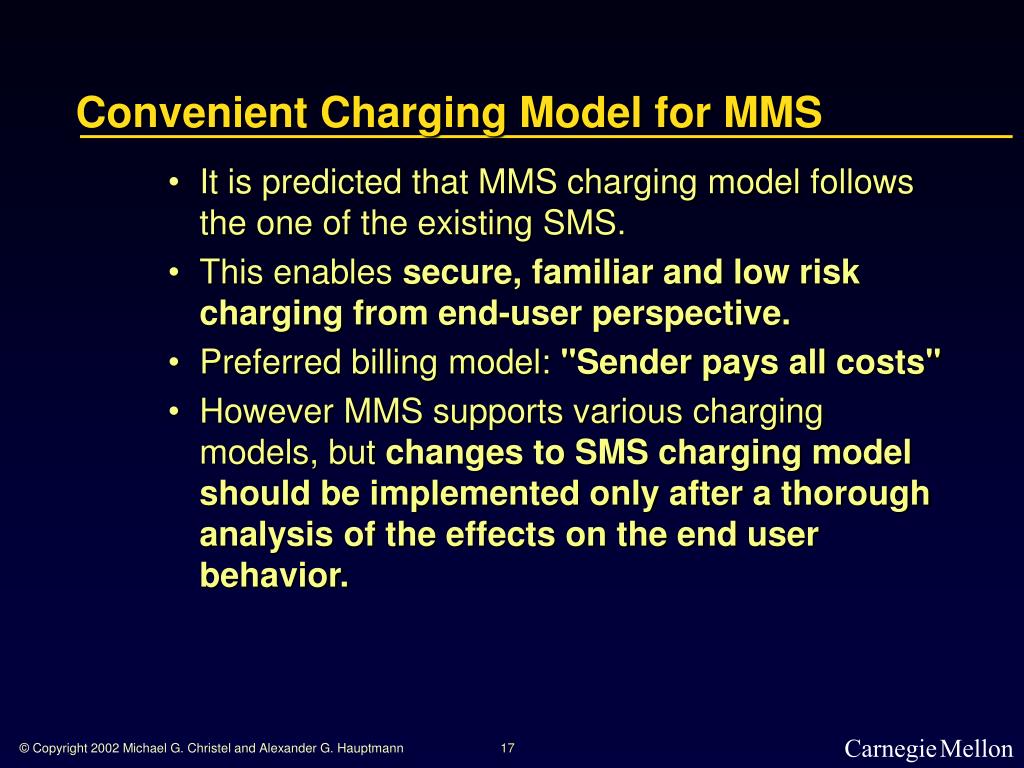

  15. Convenient Charging Model for MMS • It is predicted that MMS charging model follows the one of the existing SMS. • This enables secure, familiar and low risk charging from end-user perspective. • Preferred billing model: "Sender pays all costs" • However MMS supports various charging models, but changes to SMS charging model should be implemented only after a thorough analysis of the effects on the end user behavior.

  16. MMS Interoperability • Ensure MMS interoperability between terminals and network equipment from different manufacturers • Allow smooth take-off of MMS • Key tasks include • facilitation and co-ordination of MMS interoperability testing • problem solving and sharing of information regarding findings • In addition to following the complete specifications, agree on a minimum subset of features that MMS equipment will support

  17. Messaging Migration- from SMS to Mobile Multimedia

  18. MMS is capturing and sharing moments

  19. MMS is capturing and sharing moments

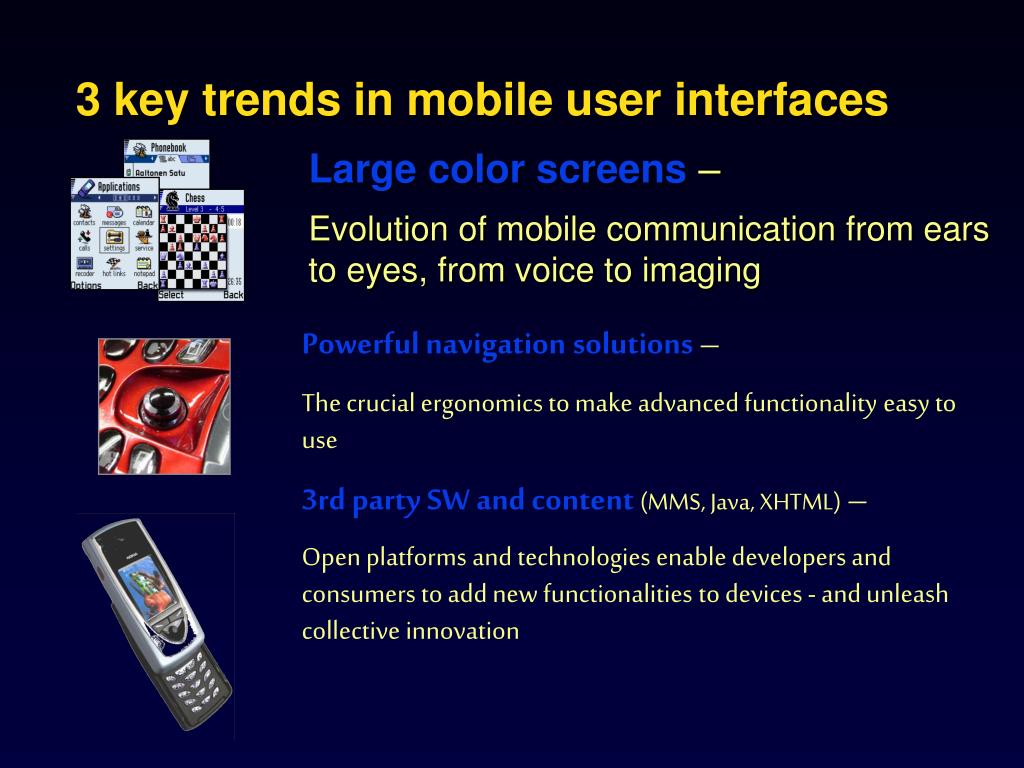

  20. 3 key trends in mobile user interfaces Large color screens – Evolution of mobile communication from ears to eyes, from voice to imaging Powerful navigation solutions – The crucial ergonomics to make advanced functionality easy to use 3rd party SW and content(MMS, Java, XHTML)– Open platforms and technologies enable developers and consumers to add new functionalities to devices - and unleash collective innovation

  21. Nokia User Interface seriesAll available during 2002 Series 30 Series 40 Series 60 Series 80 Cost driven platform Size driven colour platform One-hand operated feature Platform Two-hand operated feature platform 176 x 208 96 x 65 128 x 128 640 x 200 XHTML MIDP Java MMS Nokia OS XHTML MIDP Java MMS Nokia OS XHTML MIDP Java MMS Symbian OS HTML Personal Java MMS Symbian OS

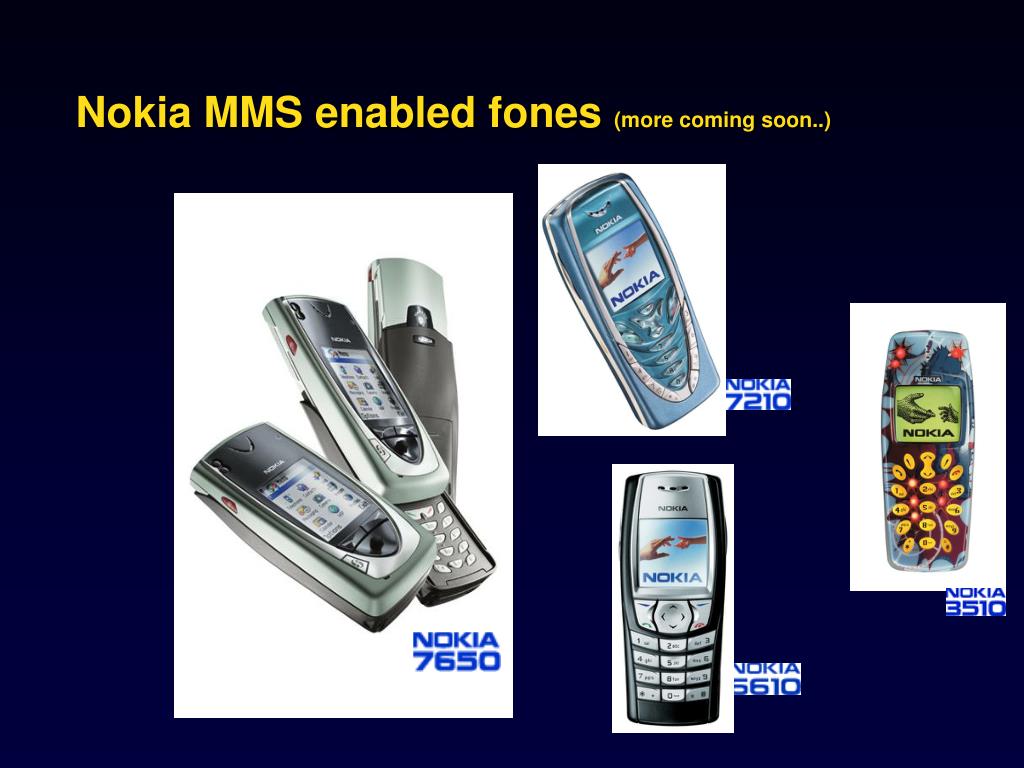

  22. Nokia MMS enabled fones (more coming soon..)

  23. Comparison of Nokia MMS Phones Low-tier Mid-tier High-tier
