Presentation Transcript

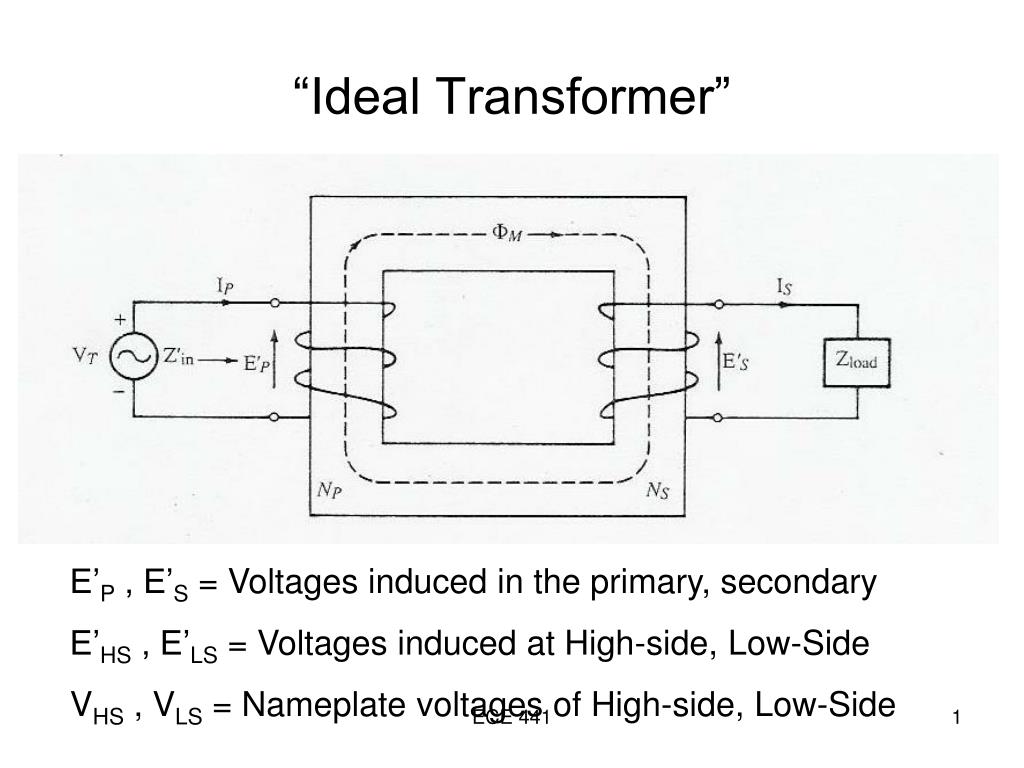

Ideal transformer

“Ideal Transformer”

E’P , E’S = Voltages induced in the primary, secondary

E’HS , E’LS = Voltages induced at High-side, Low-Side

VHS , VLS = Nameplate voltages of High-side, Low-Side

ECE 441

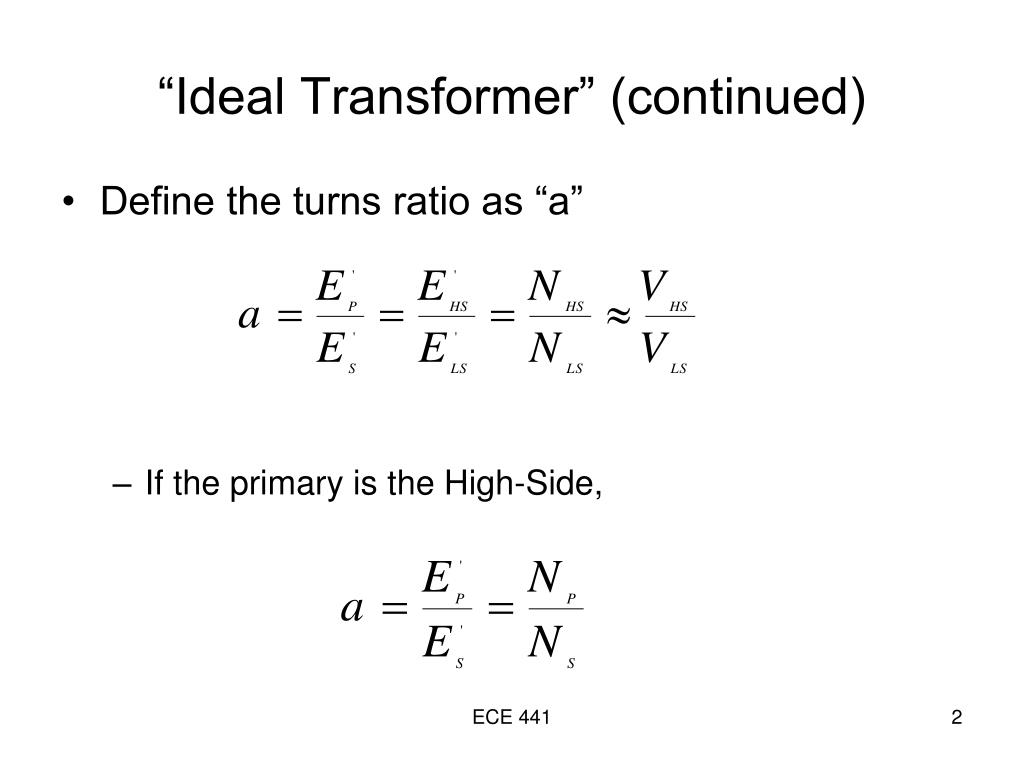

Ideal transformer continued

“Ideal Transformer” (continued)

  • Define the turns ratio as “a”

    • If the primary is the High-Side,

ECE 441

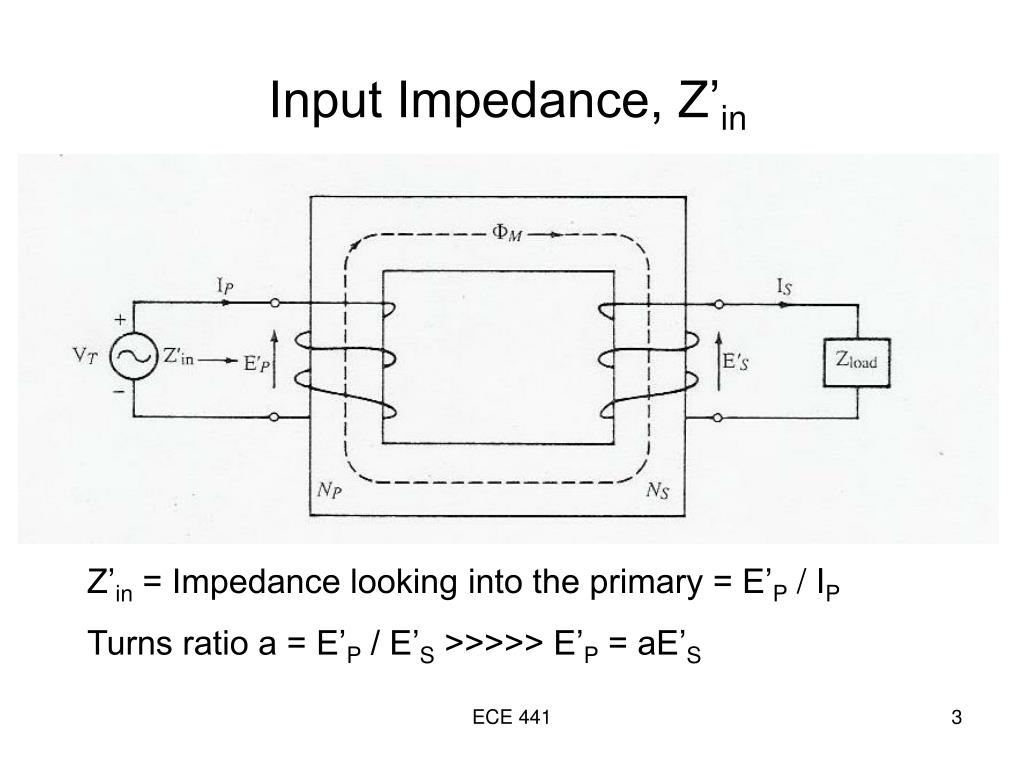

Input impedance z in

Input Impedance, Z’in

Z’in = Impedance looking into the primary = E’P / IP

Turns ratio a = E’P / E’S >>>>> E’P = aE’S

ECE 441


Input impedance z in continued

Input Impedance, Z’in (continued)

  • For an IDEAL transformer, VAin =VAout

  • E’PI*P = E’SI*S

  • I*P = E’SI*S / E’P = I*S / a

  • IP = IS / a

ECE 441


Real transformer

“Real” Transformer

EP = 4.44NPfΦP ES = 4.44NSfΦS

ΦP = ΦM + ΦlpΦS = ΦM – Φls

EP = E’P + Elp ES = E’S - Els

ECE 441


Ideal transformer

“Real” Transformer (continued)

KVL @ primaryVT = EP + IPRP = E’P+ Elp +IPRP

IP = Ife + IM + IP LOAD

ECE 441

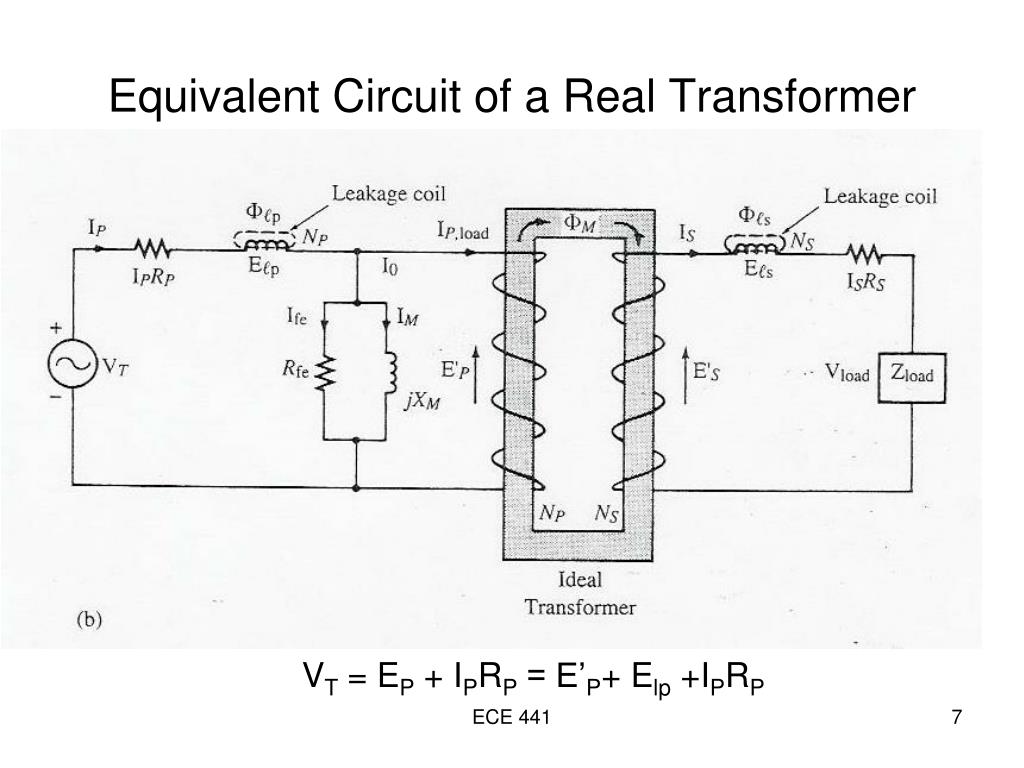

Equivalent circuit of a real transformer

Equivalent Circuit of a Real Transformer

VT = EP + IPRP = E’P+ Elp +IPRP

ECE 441


Ideal transformer

“Real” Transformer (continued)

KVL @ secondaryES = ISRS + VLOAD = E’S – Els

E’S = Els + ISRS + VLOAD

ECE 441

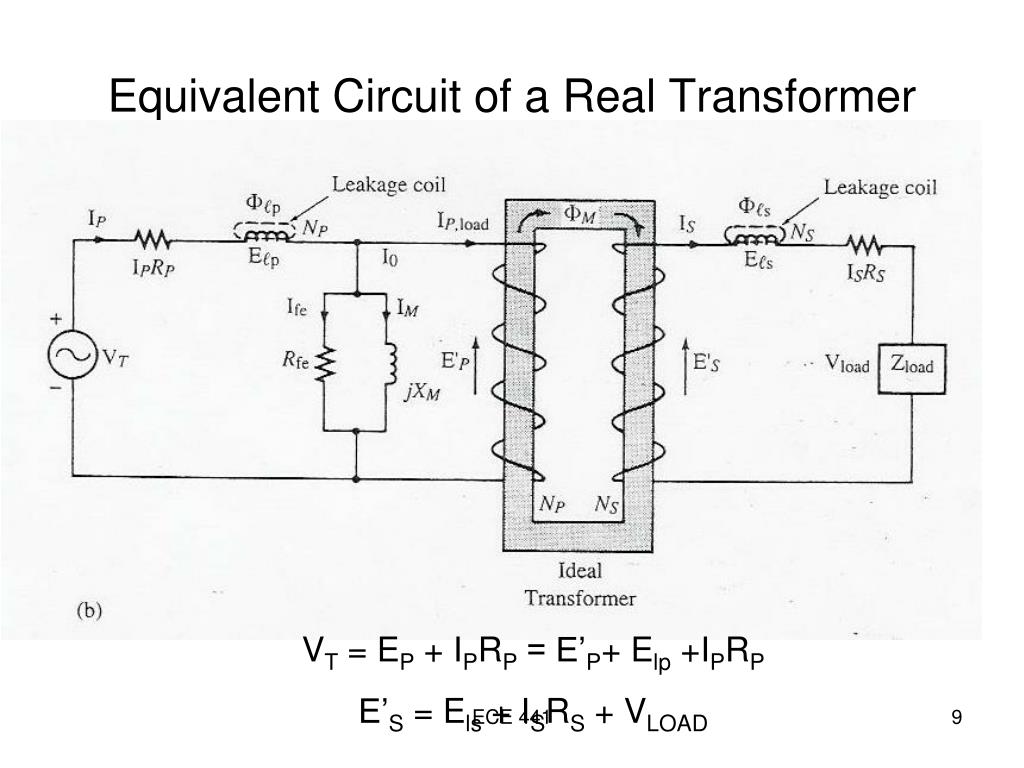

Equivalent circuit of a real transformer1

Equivalent Circuit of a Real Transformer

VT = EP + IPRP = E’P+ Elp +IPRP

E’S = Els + ISRS + VLOAD

ECE 441

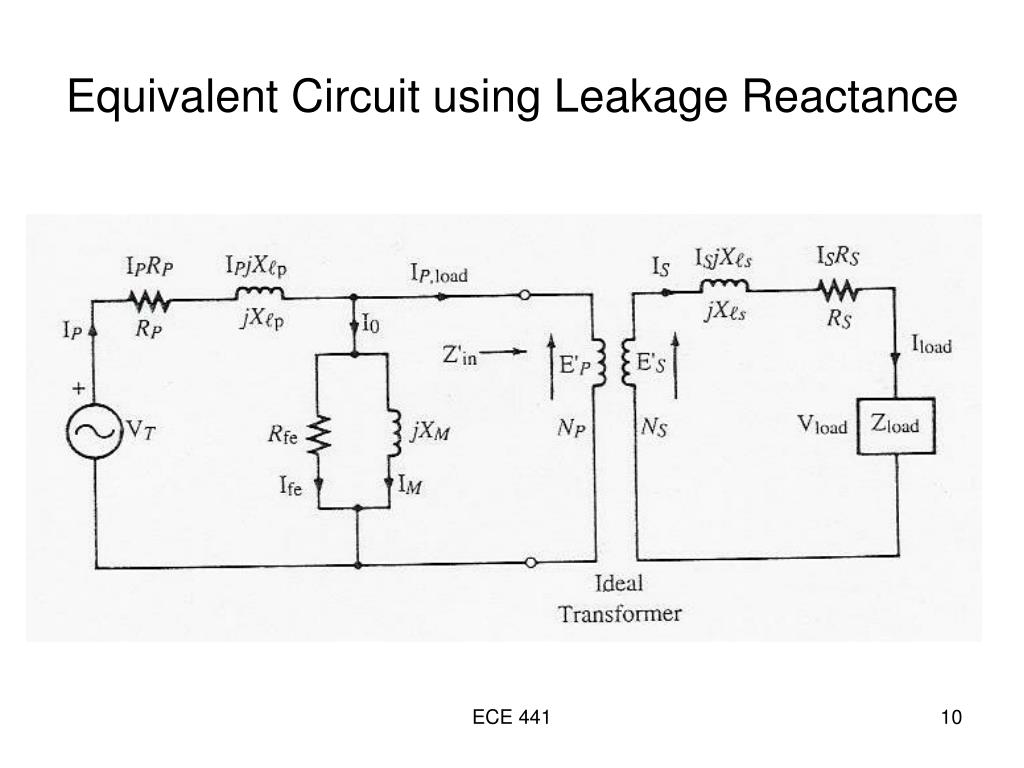

Equivalent circuit using leakage reactance

Equivalent Circuit using Leakage Reactance

ECE 441


Looking into the primary of the ideal transformer

Looking into the primary of the Ideal Transformer

Z’in = a2ZLOAD = a2(E’S / IS)

IS = E’S /(RS +jXls + ZLOAD) >>> E’S / IS = RS + jXls + ZLOAD

Z’in = a2RS + ja2Xls + a2ZLOAD

ECE 441

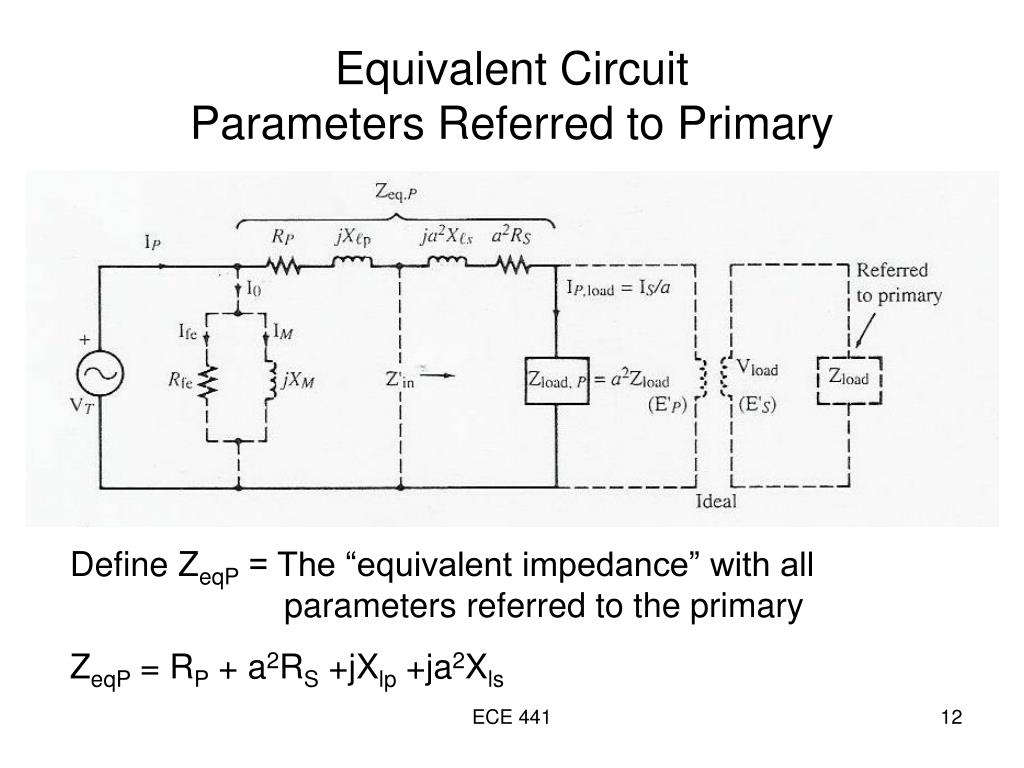

Equivalent circuit parameters referred to primary

Equivalent CircuitParameters Referred to Primary

Define ZeqP = The “equivalent impedance” with all parameters referred to the primary

ZeqP = RP + a2RS +jXlp +ja2Xls

ECE 441

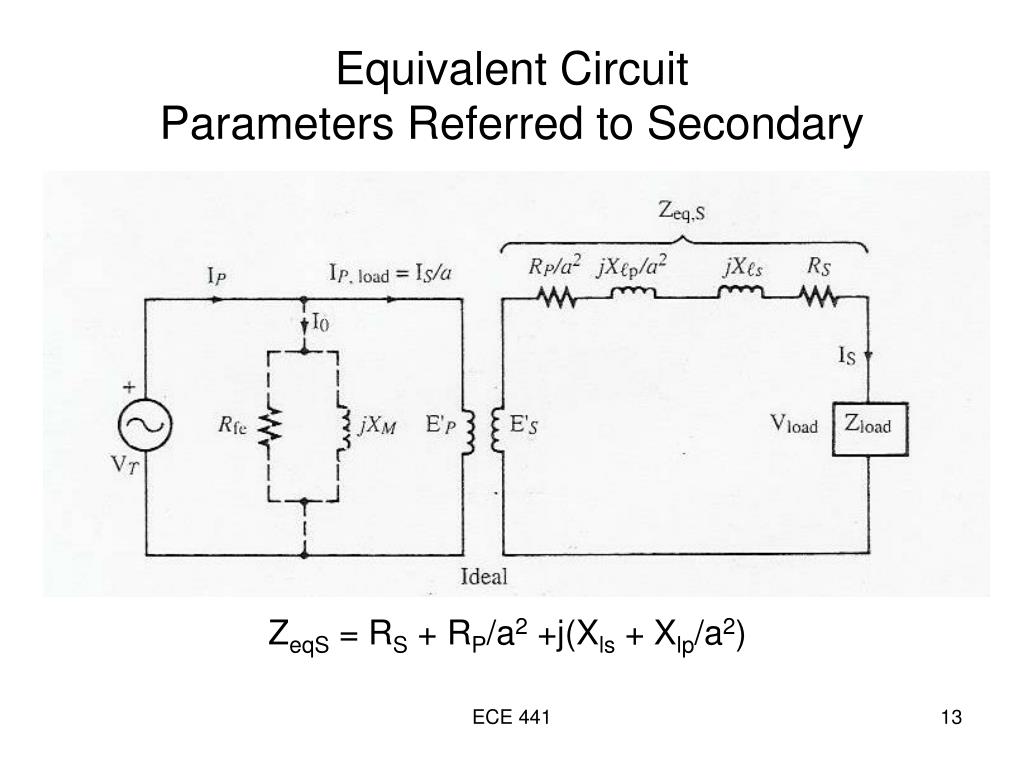

Equivalent circuit parameters referred to secondary

Equivalent CircuitParameters Referred to Secondary

ZeqS = RS + RP/a2 +j(Xls + Xlp/a2)

ECE 441
