  1. Parallel Processing (CS 667)Lecture 4: Shared Memory Programming with Pthreads* Jeremy R. Johnson *Some of this lecture was derived from Pthreads Programming by Nichols, Buttlar, and Farrell and POSIX Threads Programming Tutorial (computing.llnl.gov/tutorials/pthreads) by Blaise Barney Parallel Processing

  2. Introduction • Objective: To learn how to write parallel programs using threads (using the Pthreads library) and to understand the execution model of threads vs. processes. • Topics • Concurrent programming with UNIX Processes • Introduction to shared memory parallel programming with Pthreads • Threads • fork/join • race conditions • Synchronization • performance issues - synchronization overhead, contention and granularity, load balance, cache coherency and false sharing. • Introduction parallel program design paradigms • Data parallelism (static scheduling) • Task parallelism with workers • Divide and conquer parallelism (fork/join) Parallel Processing

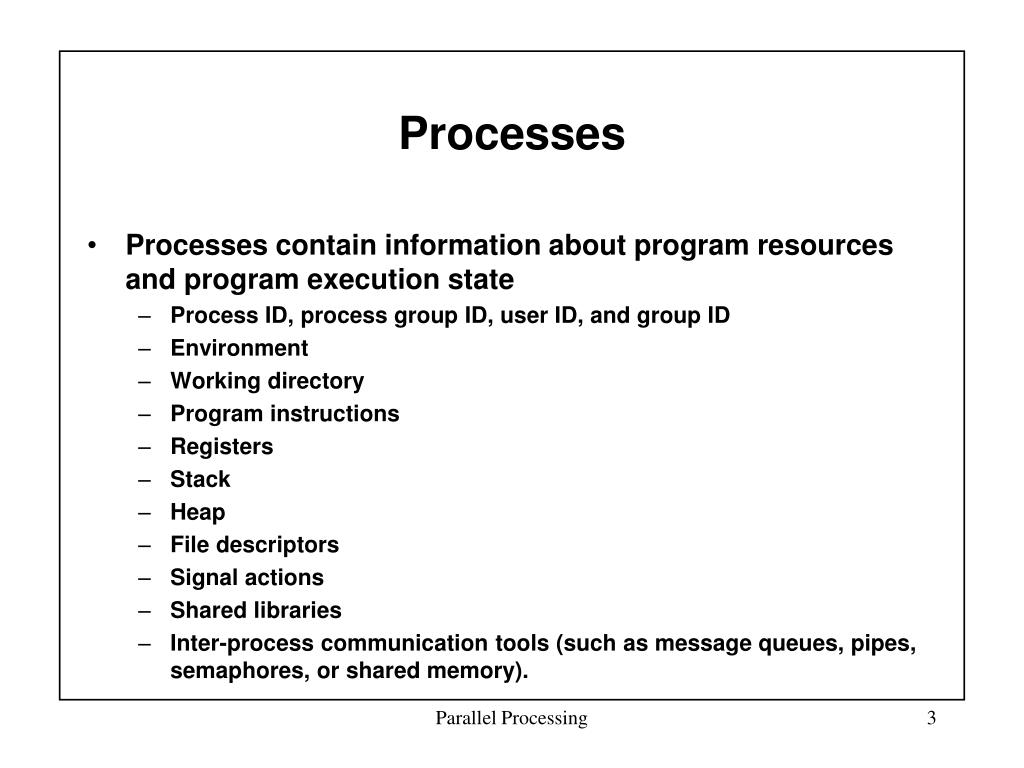

  3. Processes • Processes contain information about program resources and program execution state • Process ID, process group ID, user ID, and group ID • Environment • Working directory • Program instructions • Registers • Stack • Heap • File descriptors • Signal actions • Shared libraries • Inter-process communication tools (such as message queues, pipes, semaphores, or shared memory). Parallel Processing

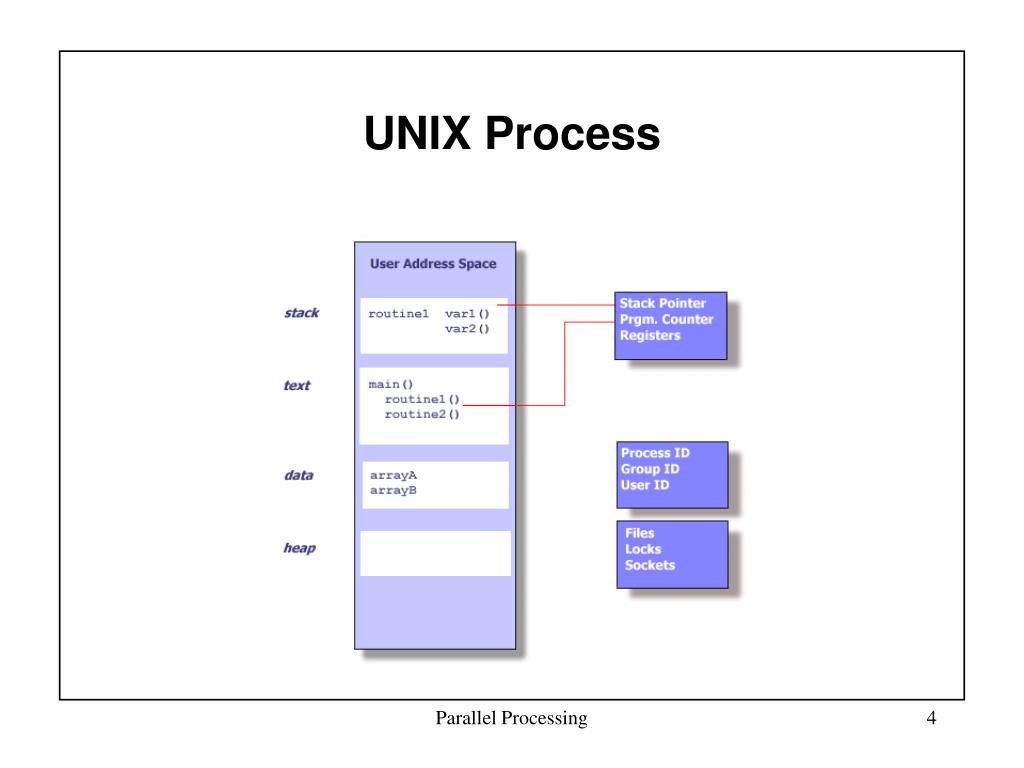

  4. UNIX Process Parallel Processing

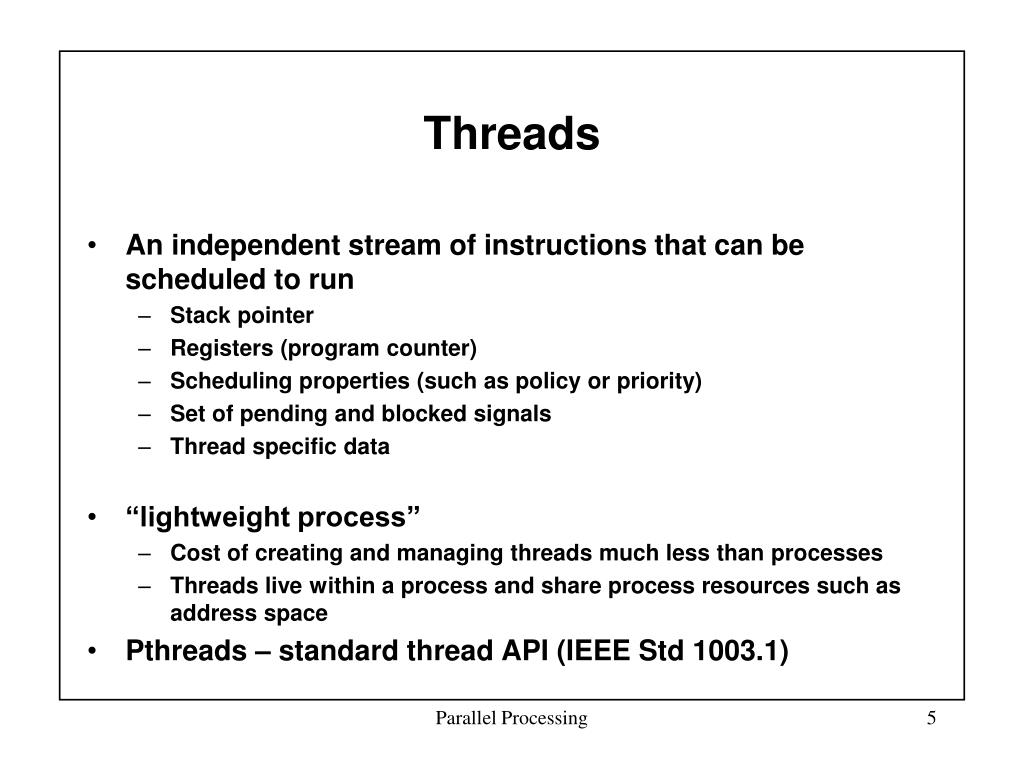

  5. Threads • An independent stream of instructions that can be scheduled to run • Stack pointer • Registers (program counter) • Scheduling properties (such as policy or priority) • Set of pending and blocked signals • Thread specific data • “lightweight process” • Cost of creating and managing threads much less than processes • Threads live within a process and share process resources such as address space • Pthreads – standard thread API (IEEE Std 1003.1) Parallel Processing

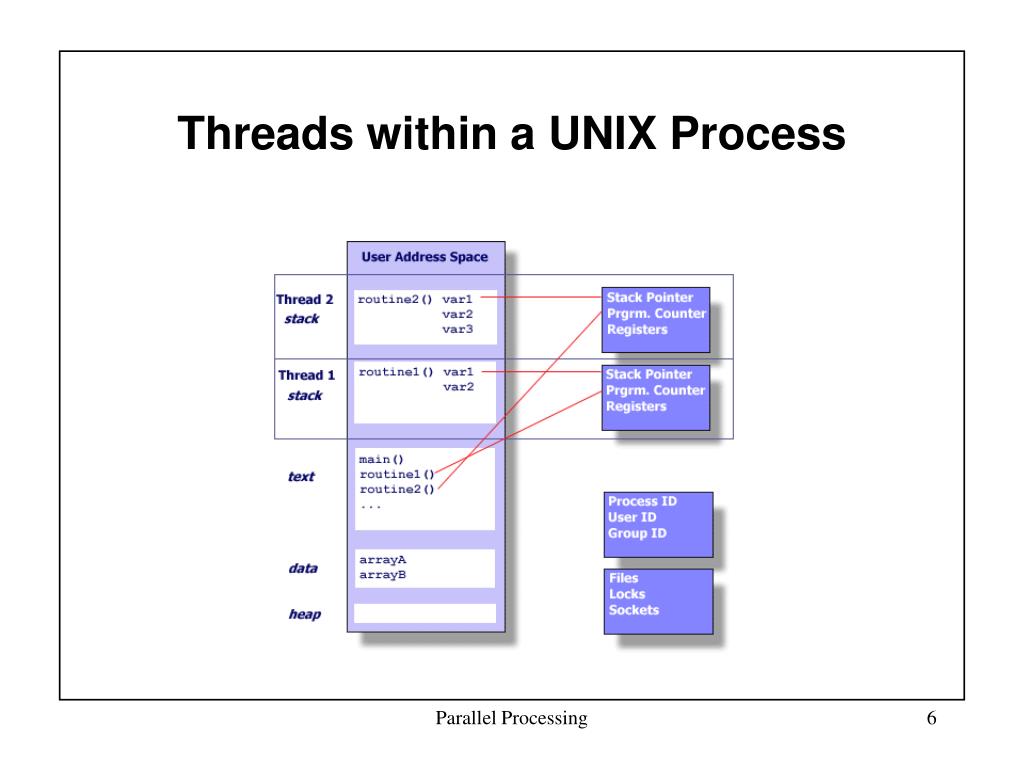

  6. Threads within a UNIX Process Parallel Processing

  7. Shared Memory Model • All threads have access to the same global, shared memory • All threads within a process share the same address space • Threads also have their own private data • Programmers are responsible for synchronizing access (protecting) globally shared data. Parallel Processing

  8. Simple Example void do_one_thing(int *); void do_another_thing(int *); void do_wrap_up(int, int); int r1 = 0, r2 = 0; extern int main(void) { do_one_thing(&r1); do_another_thing(&r2); do_wrap_up(r1, r2); return 0; } Parallel Processing

  9. Virtual Address Space SP PC GP0 GP1 … Registers do_another_thing() i j k -------------------------------------- main() Stack main() -------- do_one_thing() -------- do_another_thing() --------- Text PID UID GID Identity r1 r2 Open Files Locks Sockets … Data Resources Heap Parallel Processing

  10. Simple Example (Processes) int shared_mem_id, *shared_mem_ptr; int *r1p, *r2p; extern int main(void) { pid_t child1_pid, child2_pid; int status; /* initialize shared memory segment */ if ((shared_mem_id = shmget(IPC_PRIVATE, 2*sizeof(int), 0660)) == -1) perror("shmget"), exit(1); if ((shared_mem_ptr = (int *)shmat(shared_mem_id, (void *)0, 0)) == (void *)-1 ) perror("shmat failed"), exit(1); r1p = shared_mem_ptr; r2p = (shared_mem_ptr + 1); *r1p = 0; *r2p = 0; Parallel Processing

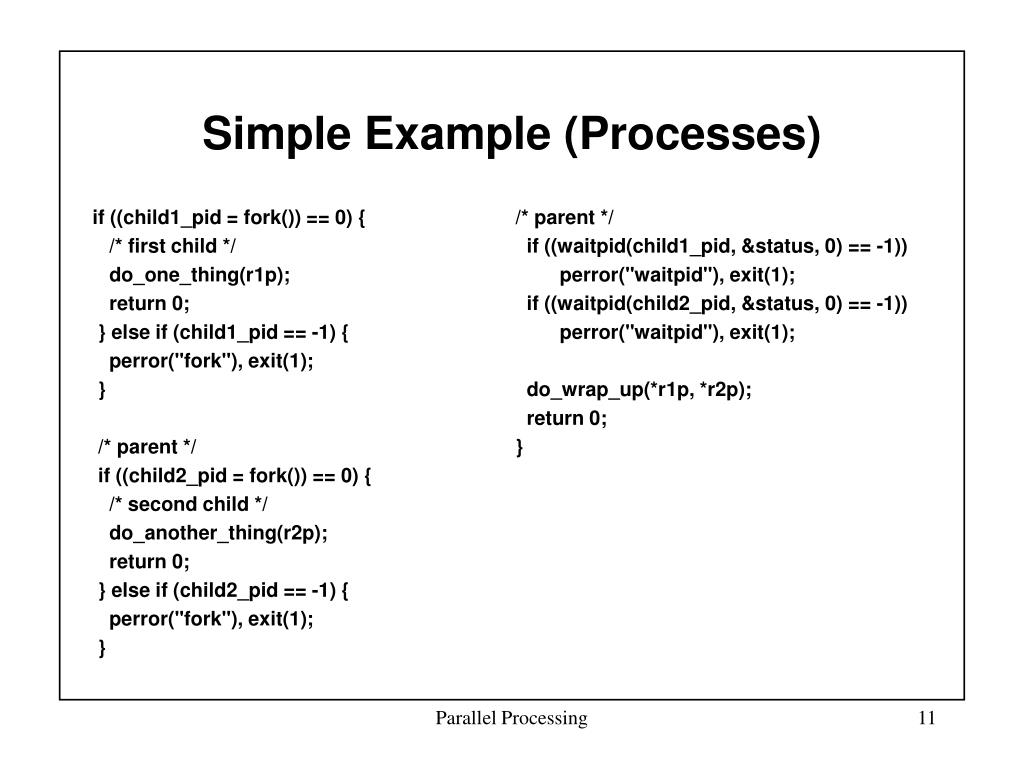

  11. Simple Example (Processes) /* parent */ if ((waitpid(child1_pid, &status, 0) == -1)) perror("waitpid"), exit(1); if ((waitpid(child2_pid, &status, 0) == -1)) perror("waitpid"), exit(1); do_wrap_up(*r1p, *r2p); return 0; } if ((child1_pid = fork()) == 0) { /* first child */ do_one_thing(r1p); return 0; } else if (child1_pid == -1) { perror("fork"), exit(1); } /* parent */ if ((child2_pid = fork()) == 0) { /* second child */ do_another_thing(r2p); return 0; } else if (child2_pid == -1) { perror("fork"), exit(1); } Parallel Processing

  12. Virtual Address Space SP PC GP0 GP1 … Registers Virtual Address Space do_one_thing() i j k --------------------------- main() Stack SP PC GP0 GP1 … Registers do_another_thing() i j k --------------------------- main() Stack main() -------- do_one_thing() -------- do_another_thing() --------- Text PID UID GID Identity main() -------- do_one_thing() -------- do_another_thing() --------- Text PID UID GID Identity Open Files Locks Sockets … Data Resources Heap Open Files Locks Sockets … Data Resources Heap Shared Memory Parallel Processing

  13. Simple Example (PThreads) if (pthread_join(thread1, NULL) != 0) perror("pthread_join"),exit(1); if (pthread_join(thread2, NULL) != 0) perror("pthread_join"),exit(1); do_wrap_up(r1, r2); return 0; } int r1 = 0, r2 = 0; extern int main(void) { pthread_t thread1, thread2; if (pthread_create(&thread1, NULL, do_one_thing, (void *) &r1) != 0) perror("pthread_create"), exit(1); if (pthread_create(&thread2, NULL, do_another_thing, (void *) &r2) != 0) perror("pthread_create"), exit(1); Parallel Processing

  14. Virtual Address Space SP PC GP0 GP1 … Registers do_another_thing() i j k -------------------------------------- main() Stack Thread 1 SP PC GP0 GP1 … Registers do_another_thing() i j k -------------------------------------- main() Stack Thread 2 main() -------- do_one_thing() -------- do_another_thing() -------- --------- PID UID GID Text Identity Open Files Locks Sockets … Resources r1 r2 Data Heap Parallel Processing

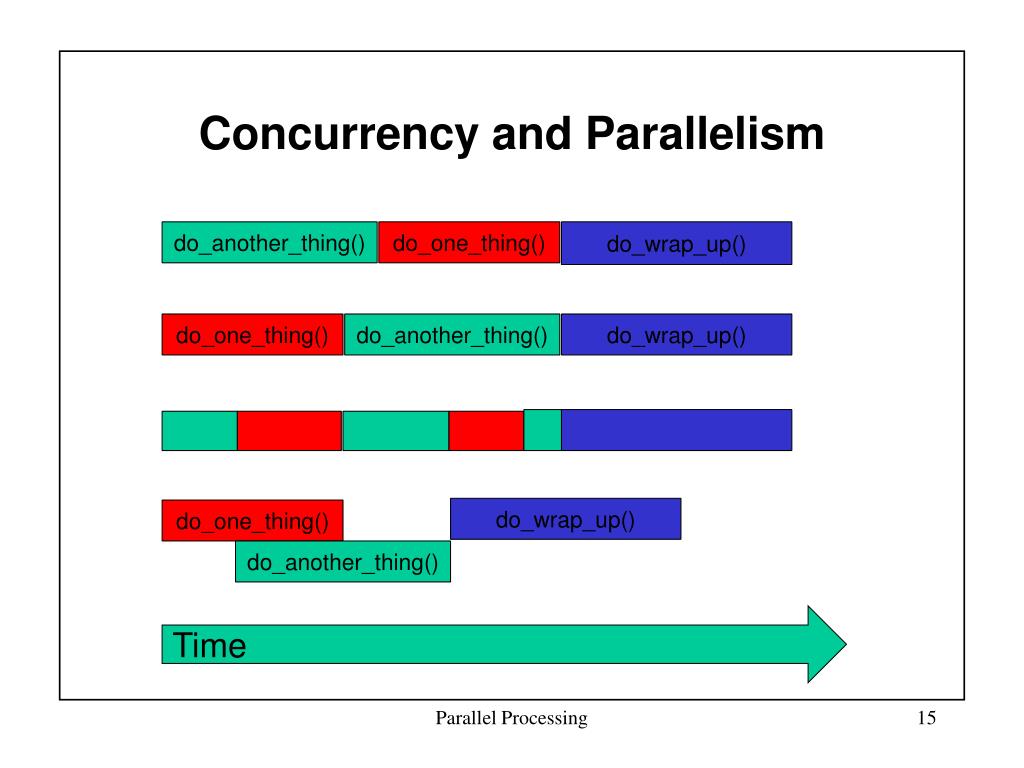

  15. Concurrency and Parallelism do_another_thing() do_one_thing() do_wrap_up() do_one_thing() do_another_thing() do_wrap_up() do_wrap_up() do_one_thing() do_another_thing() Time Parallel Processing

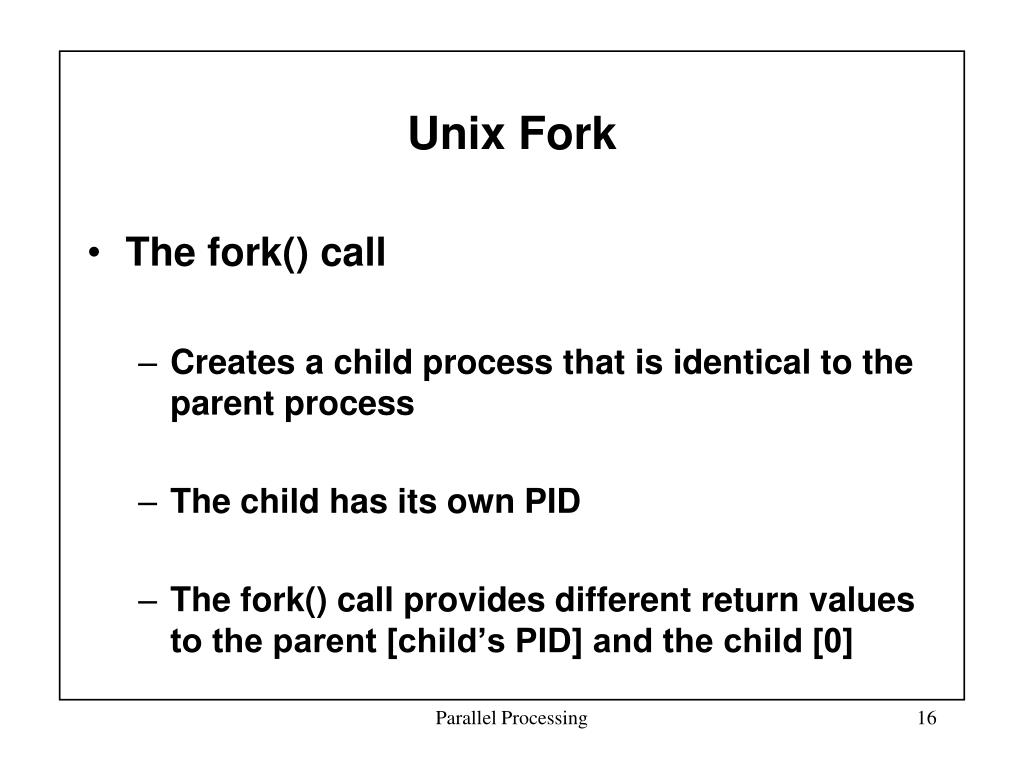

  16. Unix Fork • The fork() call • Creates a child process that is identical to the parent process • The child has its own PID • The fork() call provides different return values to the parent [child’s PID] and the child [0] Parallel Processing

  17. Parent fork -------- fork() -------- --------- -------- fork() -------- --------- -------- fork() -------- --------- PID = 7274 PID = 7274 PID = 7275 Child Parallel Processing

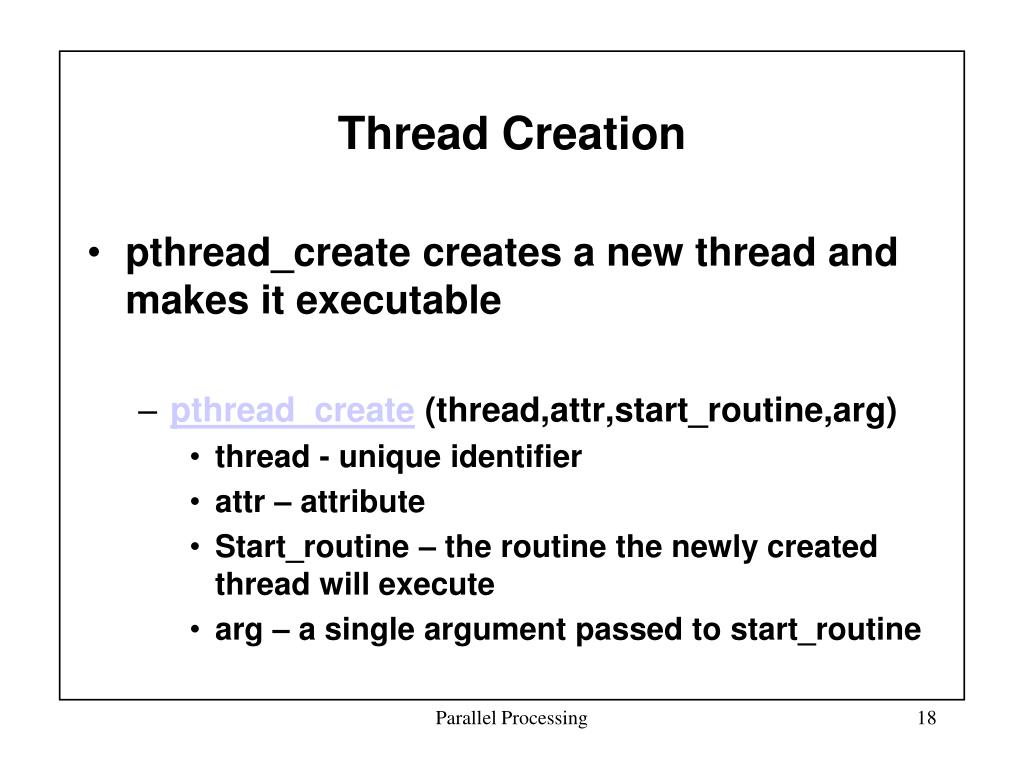

  18. Thread Creation • pthread_create creates a new thread and makes it executable • pthread_create (thread,attr,start_routine,arg) • thread - unique identifier • attr – attribute • Start_routine – the routine the newly created thread will execute • arg – a single argument passed to start_routine Parallel Processing

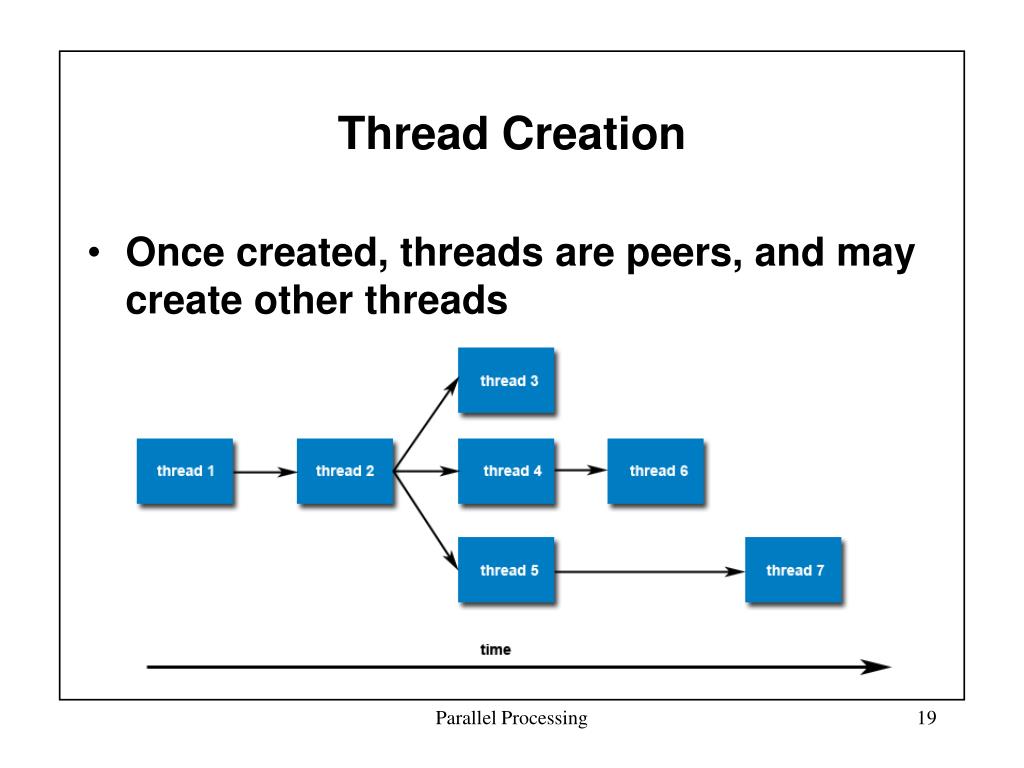

  19. Thread Creation • Once created, threads are peers, and may create other threads Parallel Processing

  20. Thread Join • "Joining" is one way to accomplish synchronization between threads. • The pthread_join() subroutine blocks the calling thread until the specified threadid thread terminates. Parallel Processing

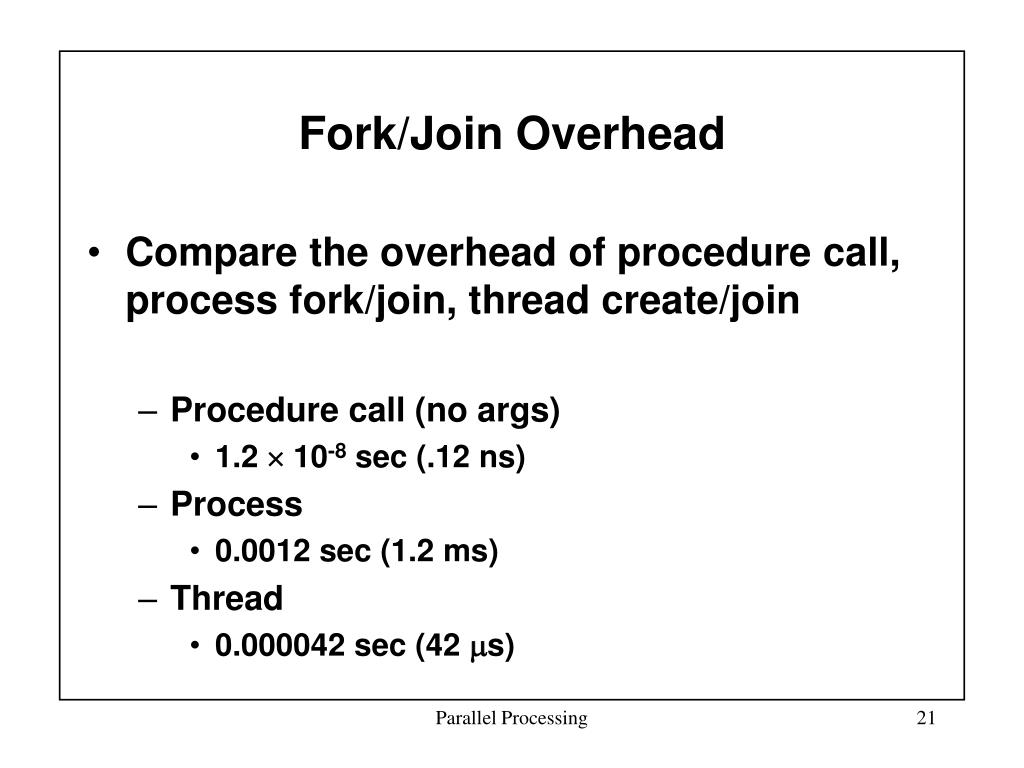

  21. Fork/Join Overhead • Compare the overhead of procedure call, process fork/join, thread create/join • Procedure call (no args) • 1.2  10-8 sec (.12 ns) • Process • 0.0012 sec (1.2 ms) • Thread • 0.000042 sec (42 s) Parallel Processing

  22. Race Conditions • When two or more threads access the same resource at the same time Thread 1 Thread 2 Balance Withdraw $50 Withdraw $50 Read Balance $125 Time Read Balance $125 Set Balance $75 Set Balance $75 Parallel Processing

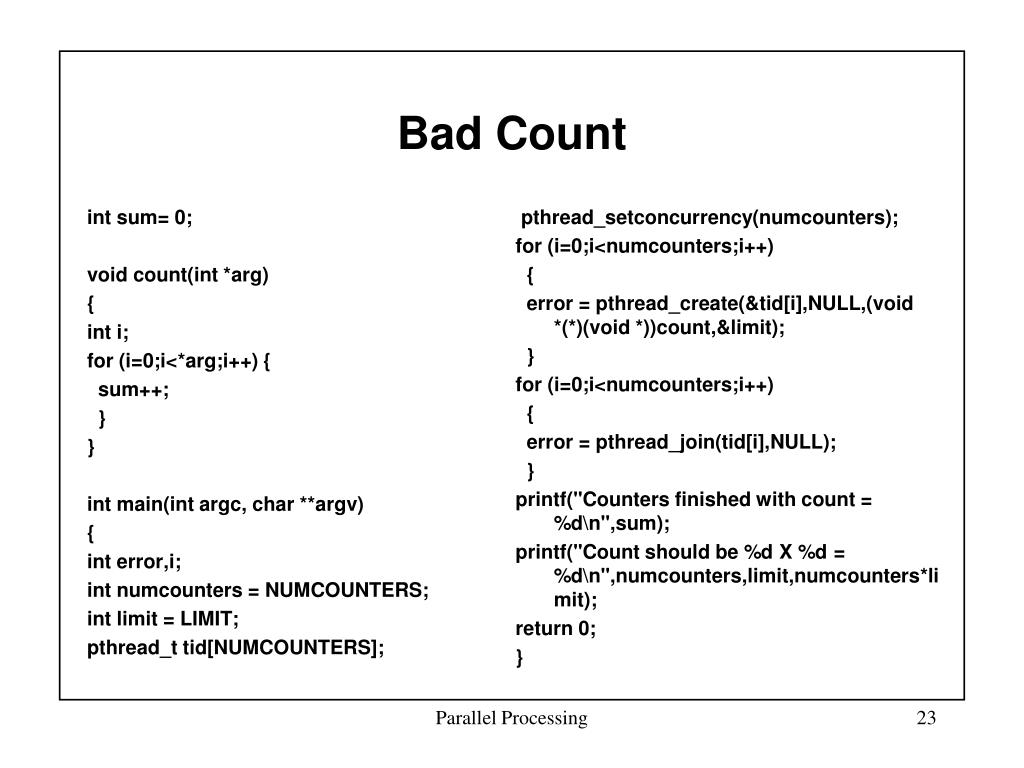

  23. Bad Count pthread_setconcurrency(numcounters); for (i=0;i<numcounters;i++) { error = pthread_create(&tid[i],NULL,(void *(*)(void *))count,&limit); } for (i=0;i<numcounters;i++) { error = pthread_join(tid[i],NULL); } printf("Counters finished with count = %d\n",sum); printf("Count should be %d X %d = %d\n",numcounters,limit,numcounters*limit); return 0; } int sum= 0; void count(int *arg) { int i; for (i=0;i<*arg;i++) { sum++; } } int main(int argc, char **argv) { int error,i; int numcounters = NUMCOUNTERS; int limit = LIMIT; pthread_t tid[NUMCOUNTERS]; Parallel Processing

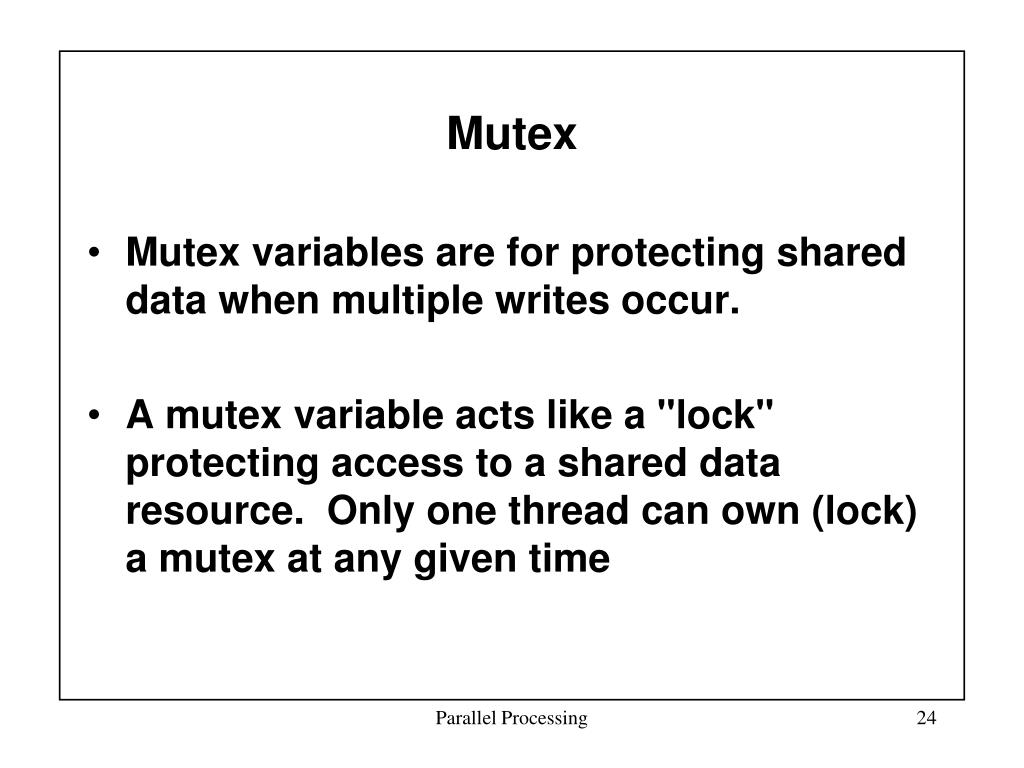

  24. Mutex • Mutex variables are for protecting shared data when multiple writes occur. • A mutex variable acts like a "lock" protecting access to a shared data resource. Only one thread can own (lock) a mutex at any given time Parallel Processing

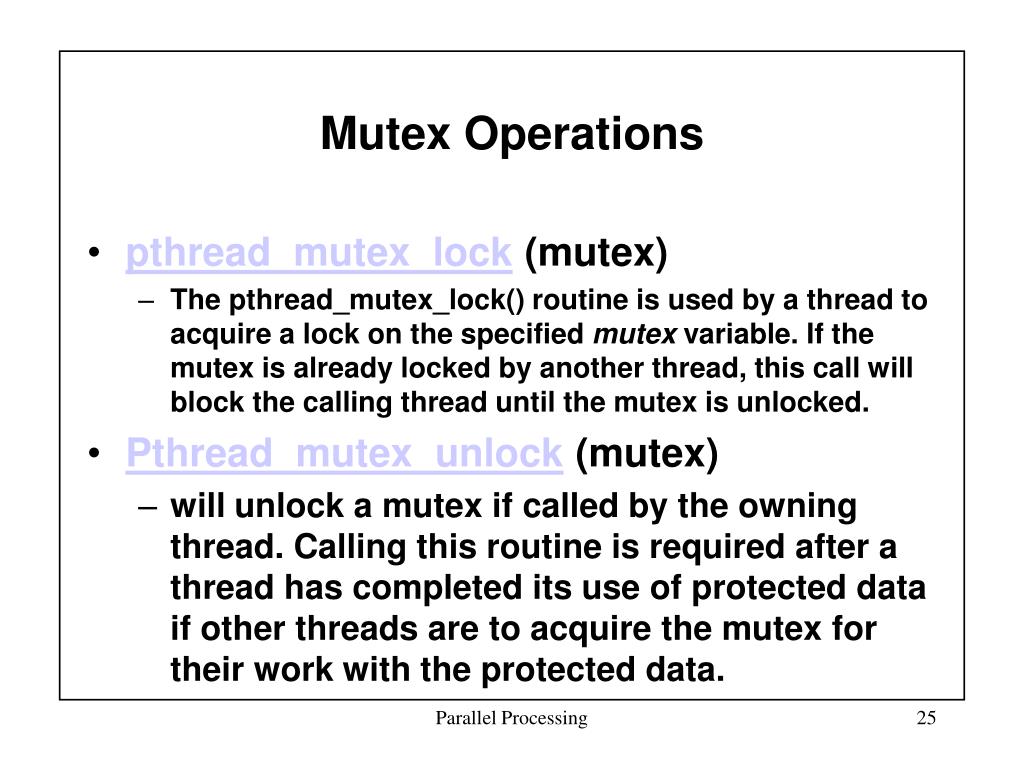

  25. Mutex Operations • pthread_mutex_lock (mutex) • The pthread_mutex_lock() routine is used by a thread to acquire a lock on the specified mutex variable. If the mutex is already locked by another thread, this call will block the calling thread until the mutex is unlocked. • Pthread_mutex_unlock (mutex) • will unlock a mutex if called by the owning thread. Calling this routine is required after a thread has completed its use of protected data if other threads are to acquire the mutex for their work with the protected data. Parallel Processing

  26. Good Count pthread_setconcurrency(numcounters); pthread_mutex_init(&lock,NULL); for (i=1;i<=numcounters;i++) { error = pthread_create(&tid[i],NULL,(void *(*)(void *))count, &limit); } for (i=1;i<=numcounters;i++) { error = pthread_join(tid[i],NULL); } printf("Counters finished with count = %d\n",sum); printf("Count should be %d X %d = %d\n",numcounters,limit,numcounters*limit); return 0; } int sum= 0; pthread_mutex_t lock; void count(int *arg) { int i; for (i=0;i<*arg;i++) { pthread_mutex_lock(&lock); sum++; pthread_mutex_unlock(&lock); } } int main(int argc, char **argv) { int error,i; int numcounters = NUMCOUNTERS; int limit = LIMIT; pthread_t mytid, tid[MAXCOUNTERS]; Parallel Processing

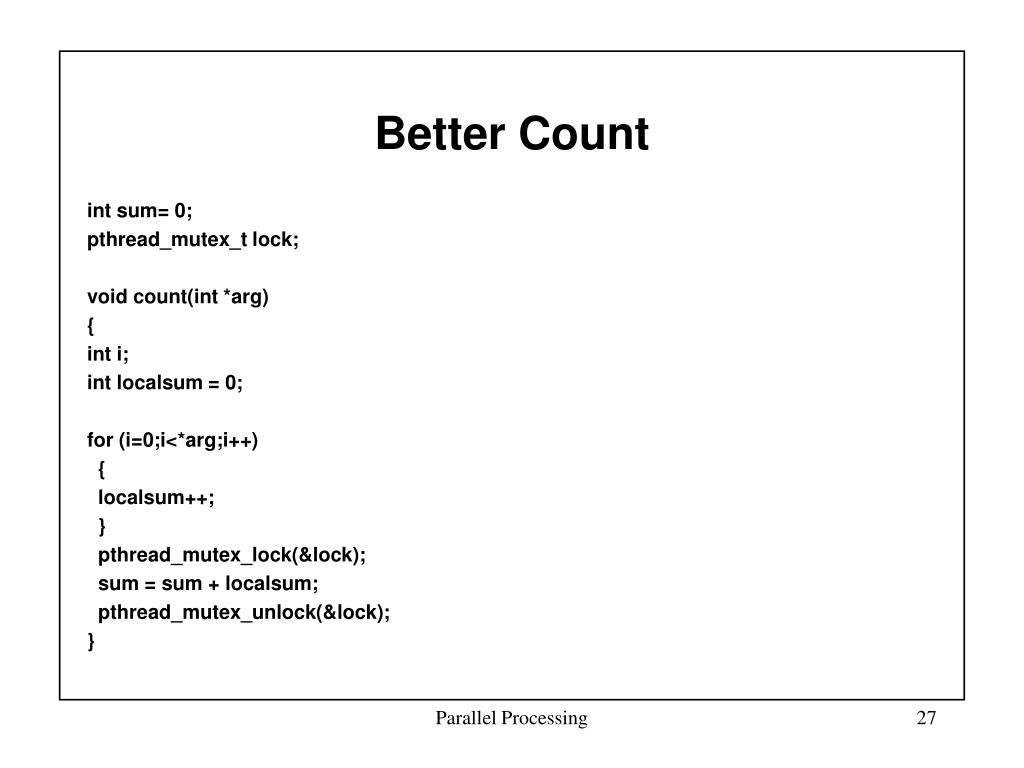

  27. Better Count int sum= 0; pthread_mutex_t lock; void count(int *arg) { int i; int localsum = 0; for (i=0;i<*arg;i++) { localsum++; } pthread_mutex_lock(&lock); sum = sum + localsum; pthread_mutex_unlock(&lock); } Parallel Processing

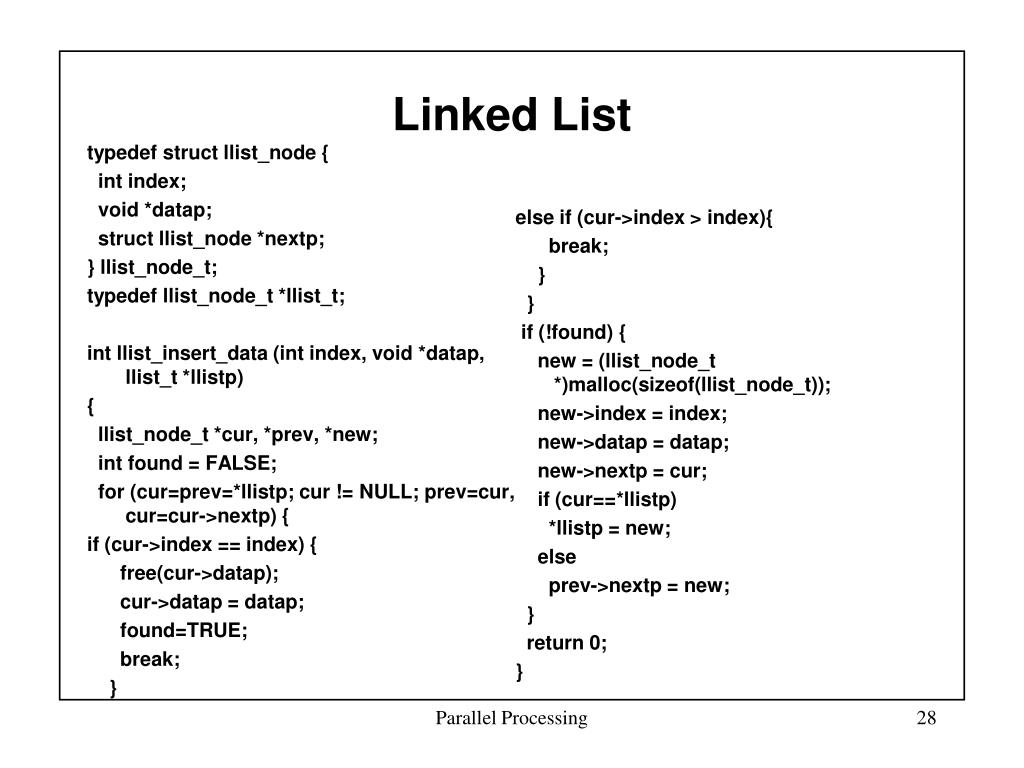

  28. Linked List else if (cur->index > index){ break; } } if (!found) { new = (llist_node_t *)malloc(sizeof(llist_node_t)); new->index = index; new->datap = datap; new->nextp = cur; if (cur==*llistp) *llistp = new; else prev->nextp = new; } return 0; } typedef struct llist_node { int index; void *datap; struct llist_node *nextp; } llist_node_t; typedef llist_node_t *llist_t; int llist_insert_data (int index, void *datap, llist_t *llistp) { llist_node_t *cur, *prev, *new; int found = FALSE; for (cur=prev=*llistp; cur != NULL; prev=cur, cur=cur->nextp) { if (cur->index == index) { free(cur->datap); cur->datap = datap; found=TRUE; break; } Parallel Processing

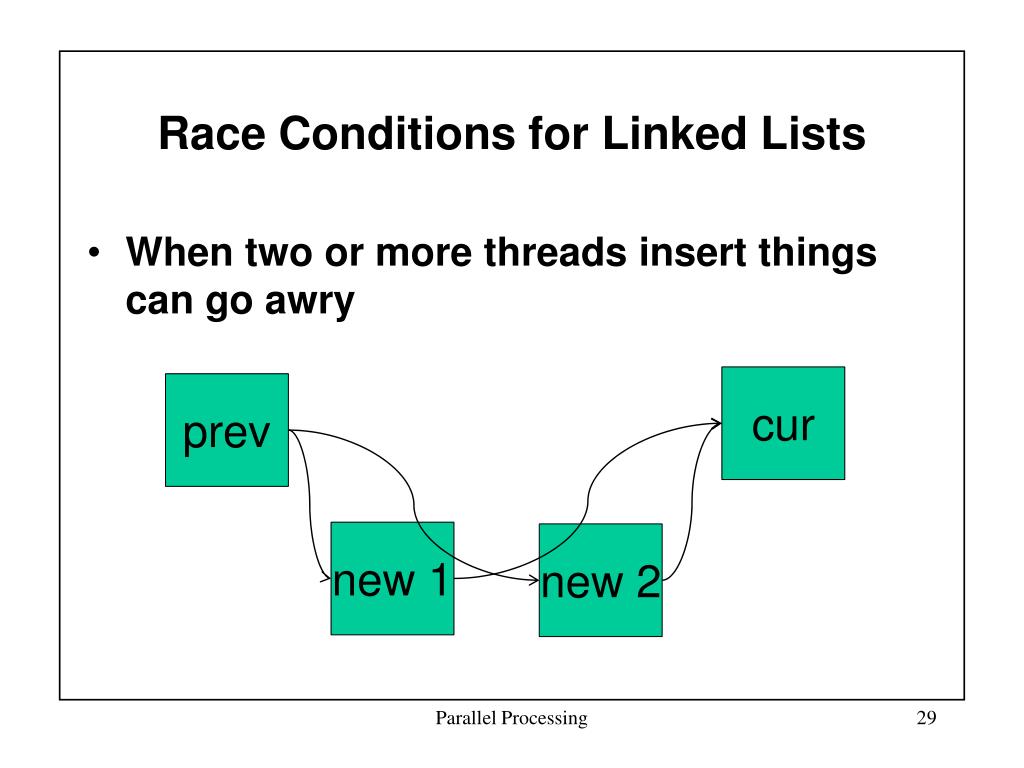

  29. Race Conditions for Linked Lists • When two or more threads insert things can go awry cur prev new 1 new 2 Parallel Processing

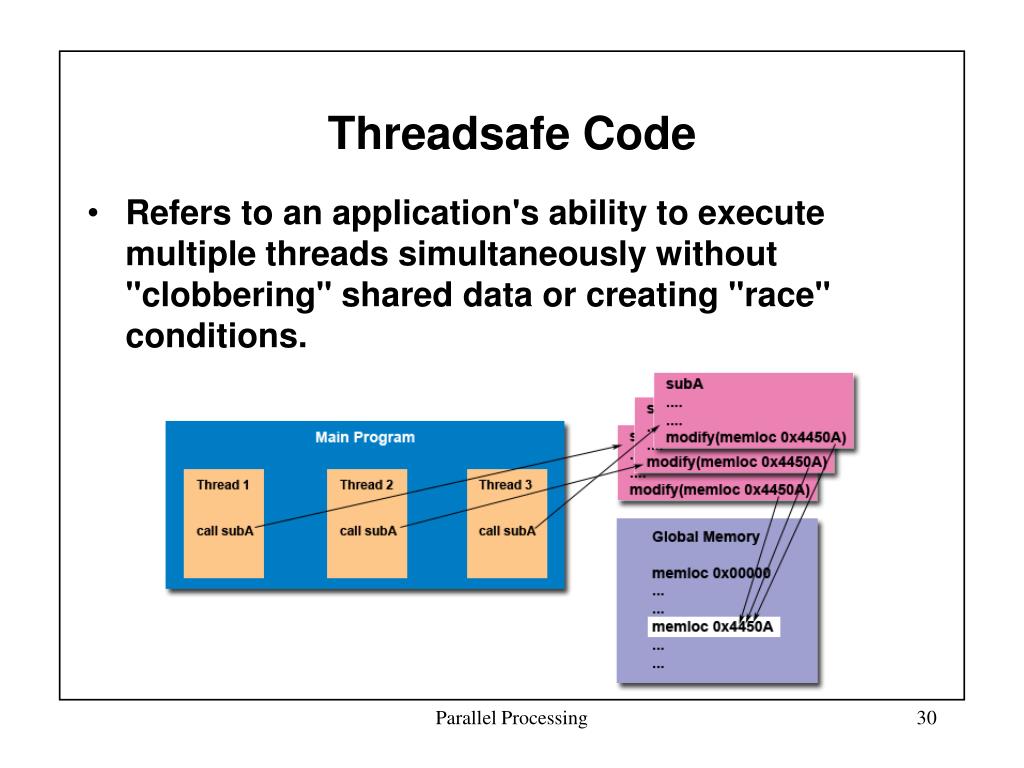

  30. Threadsafe Code • Refers to an application's ability to execute multiple threads simultaneously without "clobbering" shared data or creating "race" conditions. Parallel Processing

  31. Threadsafe Linked List intllist_insert_data (int index, void *datap, llist_t *llistp) { llist_node_t *cur, *prev, *new; int found = FALSE; pthread_mutex_lock(&(llistp->mutex)); for (cur=prev=llistp->first; cur != NULL; prev=cur, cur=cur->nextp) { … pthread_mutex_unlock(&(llistp->mutex)); return 0; } typedef struct llist { llist_node_t *first; pthread_mutex_t mutex; } llist_t; int llist_init (llist_t *llistp) { int rtn; llistp->first = NULL; if ((rtn = pthread_mutex_init(&(llistp->mutex), NULL)) !=0) fprintf(stderr, "pthread_mutex_init error %d",rtn), exit(1); return 0; } Parallel Processing

  32. Access Patterns and Granularity • Lock entire list (coarse grain) or lock individual nodes (fine grain)? • Individual nodes allows more concurrency but incurs more overhead and is more difficult to program. • Use readers/writers lock (allow multiple readers but exclusive writing) Parallel Processing

  33. Condition Variables • While mutexes implement synchronization by controlling thread access to data, condition variables allow threads to synchronize based upon the actual value of data. • Without condition variables, the programmer would need to have threads continually polling (possibly in a critical section), to check if the condition is met. • A condition variable is a way to achieve the same goal without polling • Always used with a mutex Parallel Processing

  34. Using Condition variables Thread A • Do work up to the point where a certain condition must occur (such as "count" must reach a specified value) • Lock associated mutex and check value of a global variable • Call pthread_cond_wait() to perform a blocking wait for signal from Thread-B. Note that a call to pthread_cond_wait() automatically and atomically unlocks the associated mutex variable so that it can be used by Thread-B. • When signalled, wake up. Mutex is automatically and atomically locked. • Explicitly unlock mutex • Continue Thread B • Do work • Lock associated mutex • Change the value of the global variable that Thread-A is waiting upon. • Check value of the global Thread-A wait variable. If it fulfills the desired condition, signal Thread-A. • Unlock mutex. • Continue Parallel Processing

  35. Condition Variable Example void *inc_count(void *idp) { inti=0, save_state, save_type; int *my_id = idp; for (i=0; i<TCOUNT; i++) { pthread_mutex_lock(&count_lock); count++; if (count == COUNT_THRES) { pthread_cond_signal(&count_hit_threshold); } pthread_mutex_unlock(&count_lock); } return(NULL); } void *watch_count(void *idp) { int i=0, save_state, save_type; int *my_id = idp; pthread_mutex_lock(&count_lock); while (count < COUNT_THRES) { pthread_cond_wait(&count_hit_threshold, &count_lock); } pthread_mutex_unlock(&count_lock); return(NULL); } Parallel Processing

  36. Reader/Writer Lock typedef struct rdwr_var { int readers_reading; int writer_writing; pthread_mutex_t mutex; pthread_cond_t lock_free; } pthread_rdwr_t; typedef void * pthread_rdwrattr_t; #define pthread_rdwrattr_default NULL; int pthread_rdwr_init_np(pthread_rdwr_t *rdwrp, pthread_rdwrattr_t *attrp); int pthread_rdwr_rlock_np(pthread_rdwr_t *rdwrp); int pthread_rdwr_runlock_np(pthread_rdwr_t *rdwrp); int pthread_rdwr_wlock_np(pthread_rdwr_t *rdwrp); int pthread_rdwr_wunlock_np(pthread_rdwr_t *rdwrp); Parallel Processing

  37. Reader/Writer Lock int llist_insert_data (int index, void *datap, llist_t *llistp) { … pthread_rdwr_wlock_np(&(llistp->rwlock)); … pthread_rdwr_wunlock_np(&(llistp->rwlock)); return 0; } int llist_find_data(int index, void **datapp, llist_t *llistp) { … pthread_rdwr_rlock_np(&(llistp->rwlock)); … pthread_rdwr_runlock_np(&(llistp->rwlock)); return 0; } Parallel Processing

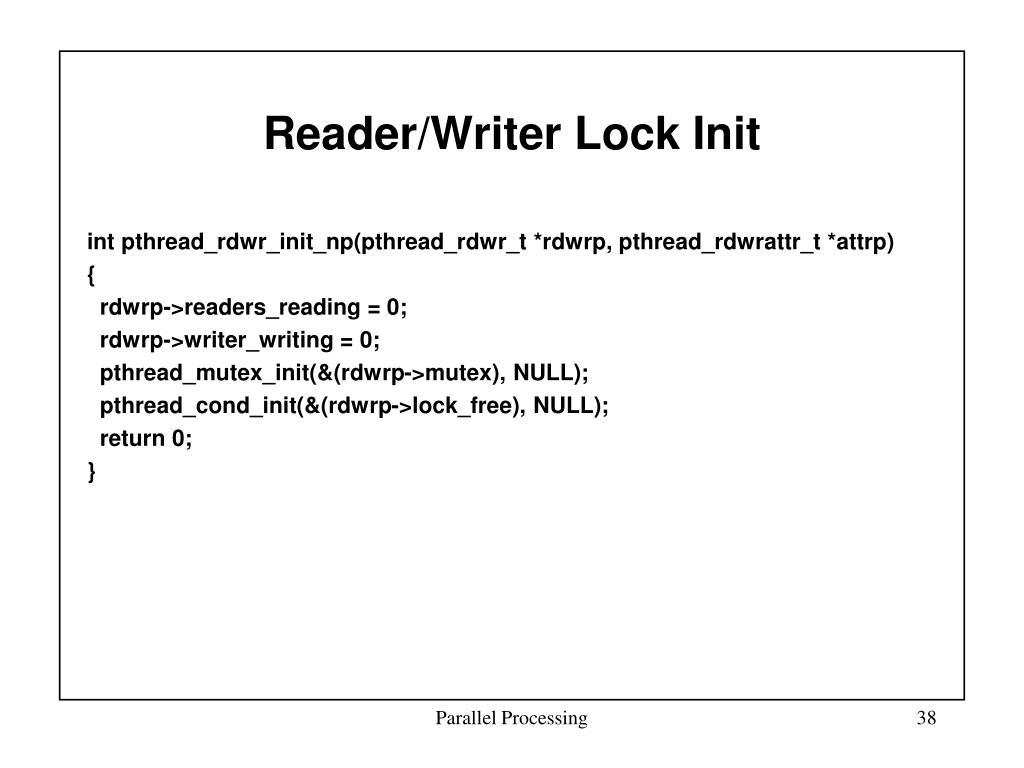

  38. Reader/Writer Lock Init int pthread_rdwr_init_np(pthread_rdwr_t *rdwrp, pthread_rdwrattr_t *attrp) { rdwrp->readers_reading = 0; rdwrp->writer_writing = 0; pthread_mutex_init(&(rdwrp->mutex), NULL); pthread_cond_init(&(rdwrp->lock_free), NULL); return 0; } Parallel Processing

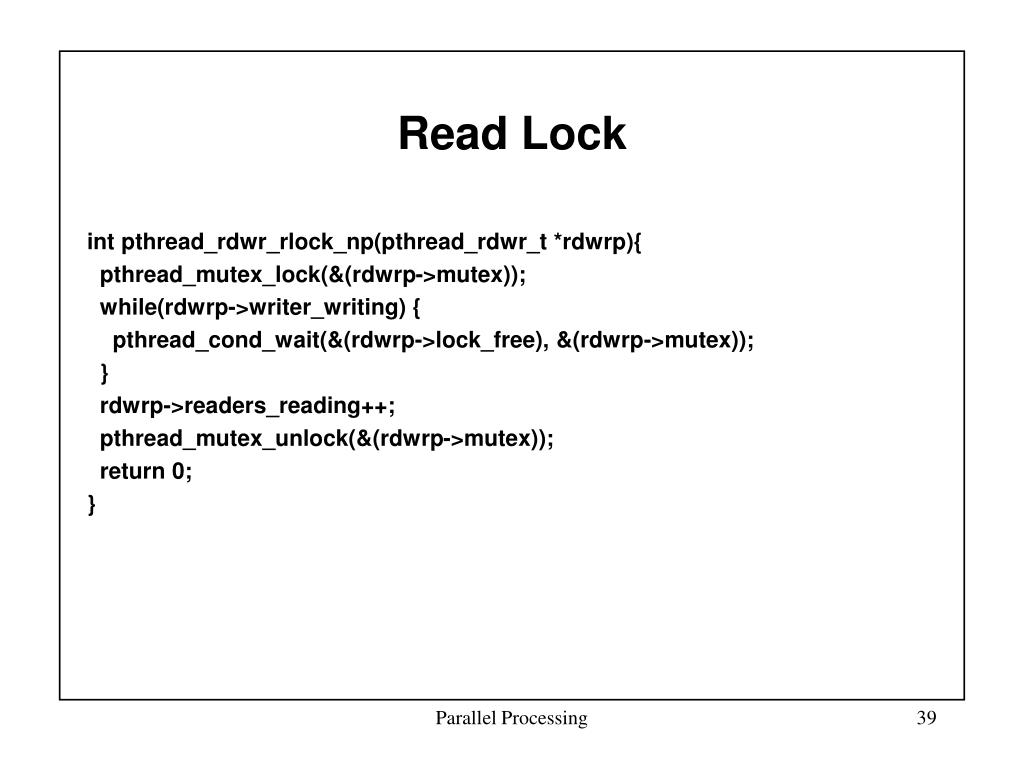

  39. Read Lock int pthread_rdwr_rlock_np(pthread_rdwr_t *rdwrp){ pthread_mutex_lock(&(rdwrp->mutex)); while(rdwrp->writer_writing) { pthread_cond_wait(&(rdwrp->lock_free), &(rdwrp->mutex)); } rdwrp->readers_reading++; pthread_mutex_unlock(&(rdwrp->mutex)); return 0; } Parallel Processing

  40. Read Unlock int pthread_rdwr_runlock_np(pthread_rdwr_t *rdwrp) { pthread_mutex_lock(&(rdwrp->mutex)); if (rdwrp->readers_reading == 0) { pthread_mutex_unlock(&(rdwrp->mutex)); return -1; } else { rdwrp->readers_reading--; if (rdwrp->readers_reading == 0) { pthread_cond_signal(&(rdwrp->lock_free)); } pthread_mutex_unlock(&(rdwrp->mutex)); return 0; } } Parallel Processing

  41. Write Lock int pthread_rdwr_wlock_np(pthread_rdwr_t *rdwrp) { pthread_mutex_lock(&(rdwrp->mutex)); while(rdwrp->writer_writing || rdwrp->readers_reading) { pthread_cond_wait(&(rdwrp->lock_free), &(rdwrp->mutex)); } rdwrp->writer_writing++; pthread_mutex_unlock(&(rdwrp->mutex)); return 0; } Parallel Processing

  42. Write Unlock int pthread_rdwr_wunlock_np(pthread_rdwr_t *rdwrp) { pthread_mutex_lock(&(rdwrp->mutex)); if (rdwrp->writer_writing == 0) { pthread_mutex_unlock(&(rdwrp->mutex)); return -1; } else { rdwrp->writer_writing = 0; pthread_cond_broadcast(&(rdwrp->lock_free)); pthread_mutex_unlock(&(rdwrp->mutex)); return 0; } } Parallel Processing

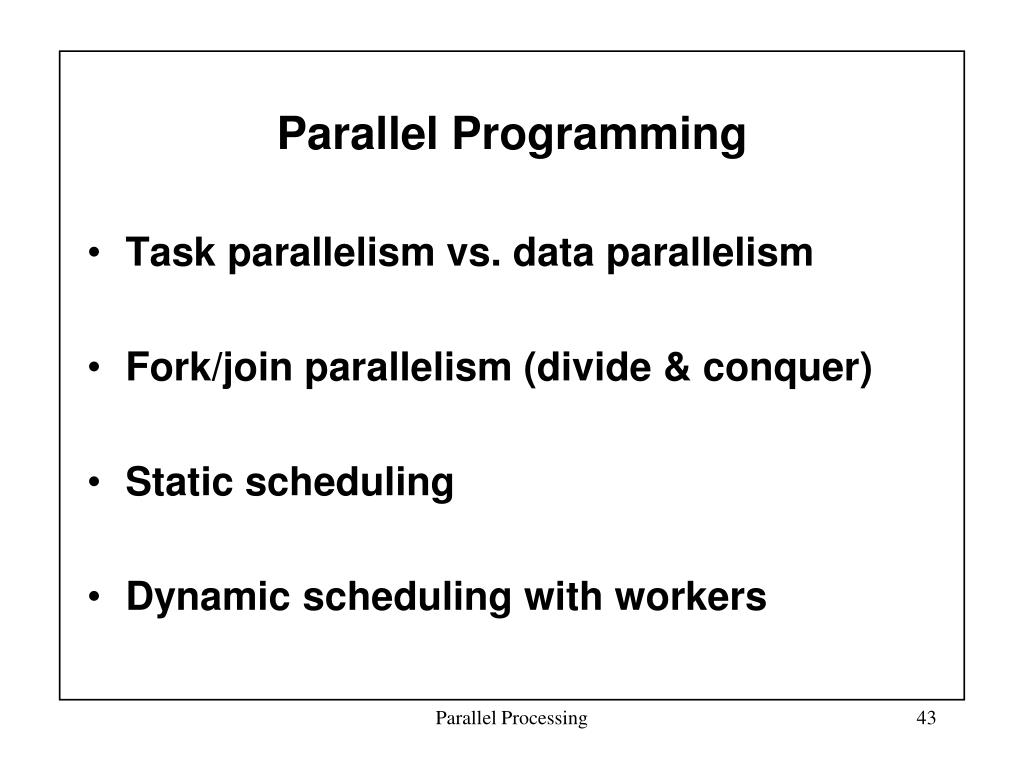

  43. Parallel Programming • Task parallelism vs. data parallelism • Fork/join parallelism (divide & conquer) • Static scheduling • Dynamic scheduling with workers Parallel Processing

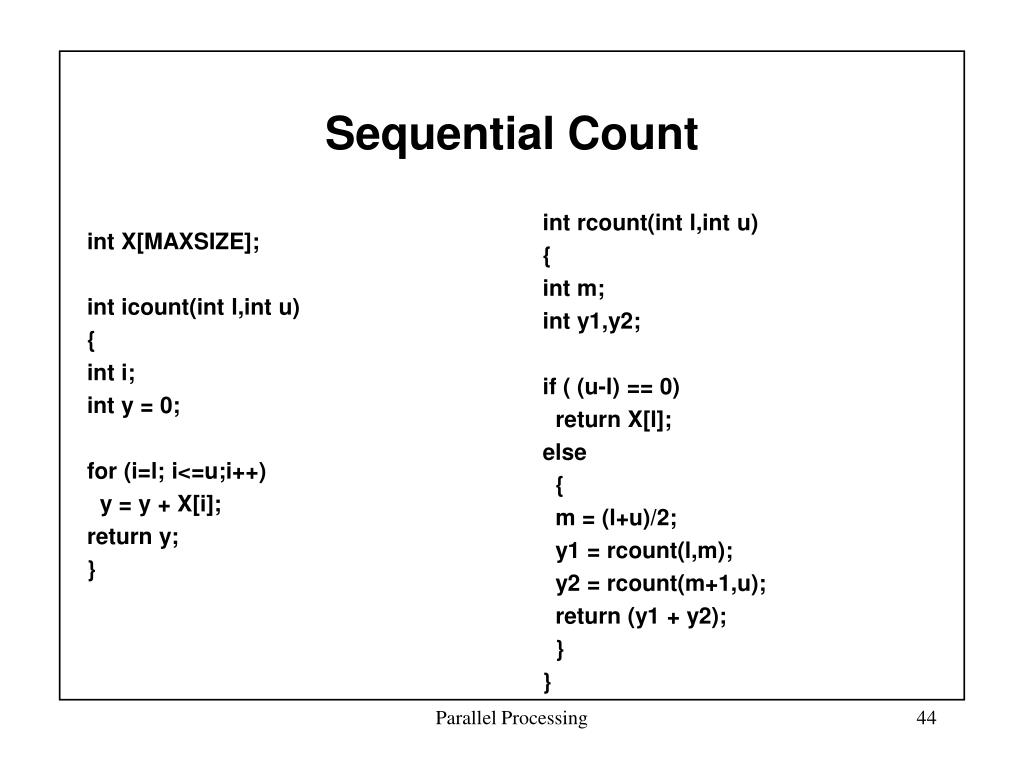

  44. Sequential Count intrcount(intl,int u) { int m; int y1,y2; if ( (u-l) == 0) return X[l]; else { m = (l+u)/2; y1 = rcount(l,m); y2 = rcount(m+1,u); return (y1 + y2); } } int X[MAXSIZE]; int icount(int l,int u) { int i; int y = 0; for (i=l; i<=u;i++) y = y + X[i]; return y; } Parallel Processing

  45. Counting with a Parallel Loop void count(int *id) { inti,lsum; lsum = 0; for (i=*id;i<size;i+=numcounters) { lsum = lsum + X[i]; } pthread_mutex_lock(&lock); sum = sum + lsum; pthread_mutex_unlock(&lock); } int sum= 0; int numcounters; int size; pthread_mutex_t lock; Parallel Processing

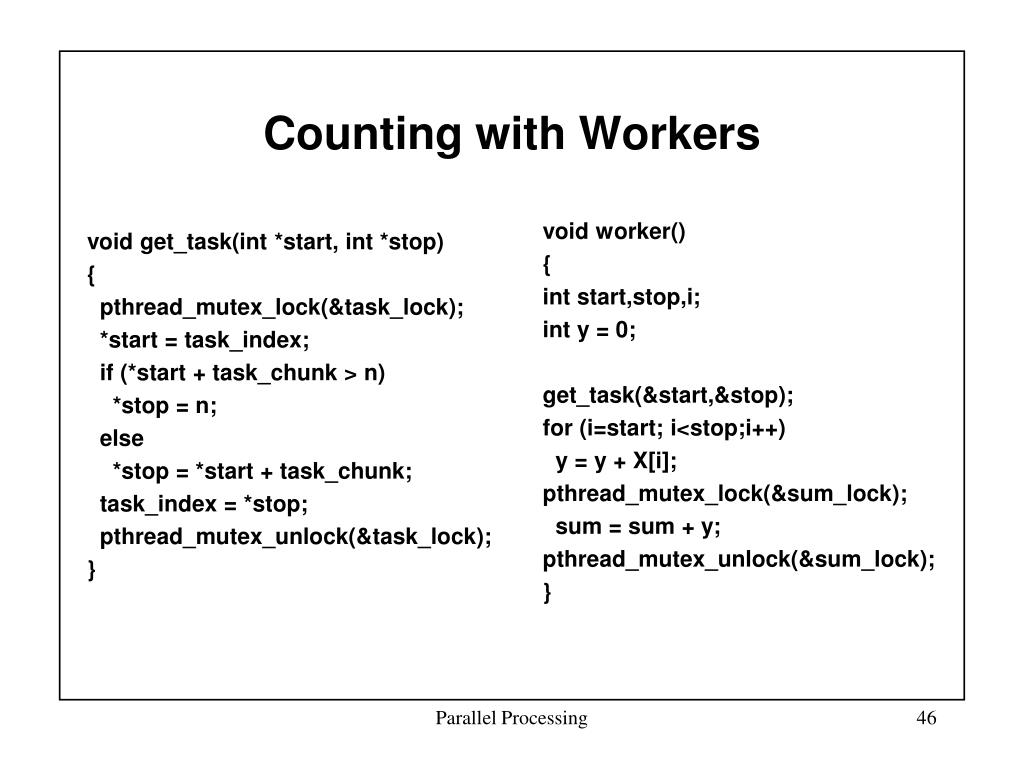

  46. Counting with Workers void worker() { intstart,stop,i; int y = 0; get_task(&start,&stop); for (i=start; i<stop;i++) y = y + X[i]; pthread_mutex_lock(&sum_lock); sum = sum + y; pthread_mutex_unlock(&sum_lock); } void get_task(int *start, int *stop) { pthread_mutex_lock(&task_lock); *start = task_index; if (*start + task_chunk > n) *stop = n; else *stop = *start + task_chunk; task_index = *stop; pthread_mutex_unlock(&task_lock); } Parallel Processing

  47. Parallel Divide & Conquer error = pthread_create(&tid1,NULL,(void *(*)(void *))pcount,arg1); /* y2 = count(m+1,u); */ arg2[0] = m+1; arg2[1] = u; error = pthread_create(&tid2,NULL,(void *(*)(void *))pcount,arg2); error = pthread_join(tid1,NULL); y1 = arg1[2]; error = pthread_join(tid2,NULL); y2 = arg2[2]; y = y1 + y2; } /* thr_exit(&y); */ arg[2] = y; } int pcount(int *arg) { int error,arg1[3],arg2[3]; int l,u,m; int y,y1,y2; pthread_t tid1,tid2; l = arg[0]; u = arg[1]; if ( (u-l) <= cutoff) y = count(l,u); else { m = (l+u)/2; arg1[0] = l; arg1[1] = m; Parallel Processing
