Presentation Transcript

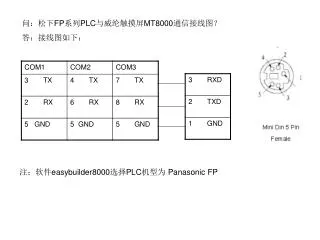

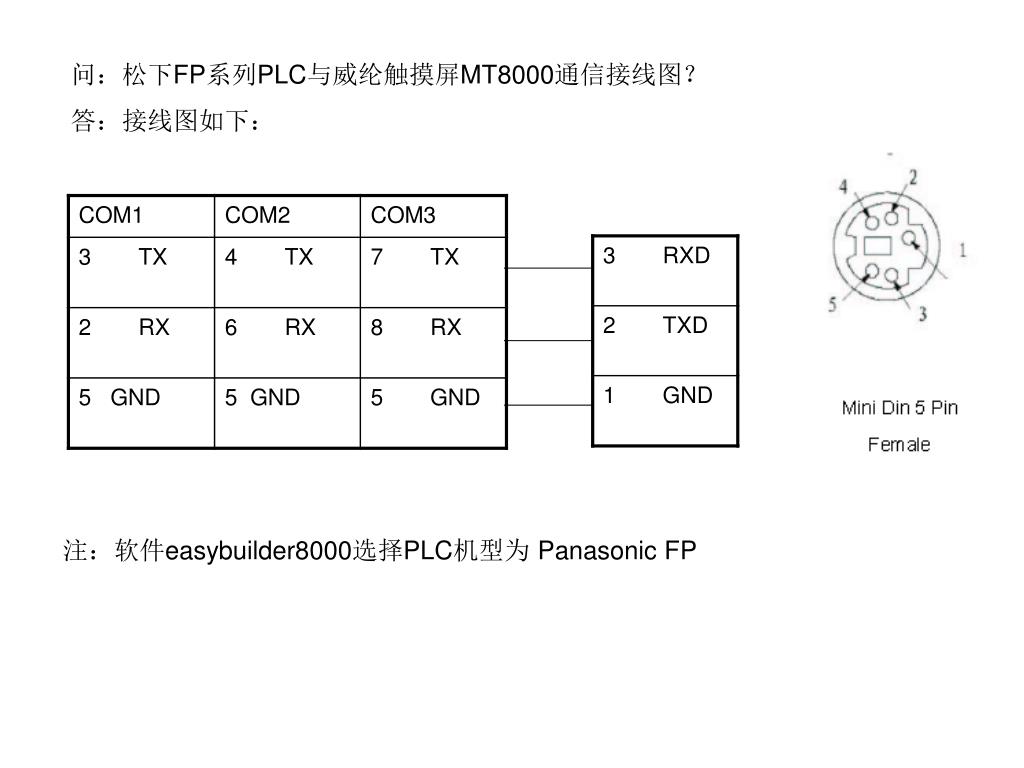

问:松下FP系列PLC与威纶触摸屏MT8000通信接线图?

答:接线图如下:

注:软件easybuilder8000选择PLC机型为 Panasonic FP
