Presentation Transcript


Slide1 l.jpg

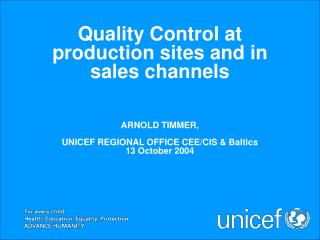

Quality Control at production sites and in sales channelsARNOLD TIMMER, UNICEF REGIONAL OFFICE CEE/CIS & Baltics13 October 2004


This presentation l.jpg

This presentation:

  • Linking quality control with overall programme aim

  • Identify main programmatic challenges

  • Identify main monitoring attention points

  • Discussion and apply lessons learned to your own monitoring system


Purpose l.jpg

Purpose

  • Establishment of a monitoring system that can

    • identify problems,

    • provide solutions,

      and

    • ensure that corrective measures are taken.


Main aim external monitoring l.jpg

Main Aim External Monitoring

  • Ensure adequate iodine levels in salt at household level

  • Ensure consumers’ access to iodized salt


Programmatic issues l.jpg

Programmatic Issues

  • Quality of iodized salt production?

  • Iodine loss in salt between factory and consumption?

  • Use of iodized salt for food processing?

  • Use of iodized salt for animal consumption?

  • Access of all population groups in all geographic areas to iodized salt?


Programmatic issues6 l.jpg

Programmatic Issues

  • Enforcement challenges?

    • Illegal salt: repackaging as iodized?

    • Sale of non-iodized salt (originally produced as technical salt or edible salt)?

    • Access of consumers to technical and/or non-iodized animal salt?

    • Capacity to implement government standards (as spelled out in legislation): technical (testing equipment, training), inadequate manpower, roles/responsibilities not defined?


Use of information l.jpg

Use of information

  • Who reports on information collected?

  • How is the information reported?

  • Does the reported information address your programmatic concerns?

  • How will monitoring information be used?

  • Who will use the information?

  • How will the collected information lead to corrective measures in the production, distribution and use of iodized salt?

  • Will the corrective measures have an effect on the final aim to ensure adequate iodine status of the consumer?


Slide8 l.jpg

Salt Iodizaton Monitoring System

Salt

Producers

Retail

Stores

Households

Target

Population

Salt

Importers

Utilization and Impact

Access

Coverage


Slide9 l.jpg

Salt Iodization Monitoring System

Certificate of quality

Locally

Produced

salt

Quality

Control

Inspection

Technical

Auditing

Quality

Assurance

Retail

Inspection

Imported

salt

Certificate of conformity

Industry (internal)

External

Commercial


Slide10 l.jpg

Salt Producers

And Distributors

Market

Household

Impact

For

House-

hold

use

Salt

Production

Wholesale

Retail

Traders

Consumer

Population

Nutrient Status

For food

Industry

Salt Iodization Monitoring System

Illegal production & trade

Iodine content in salt

min. 15 ppm

40 + 15 ppm


Slide11 l.jpg

Salt Iodization Monitoring System

Iodine content in salt

  • Factors of influence:

  • Time

  • Humidity

  • Temperature/light

  • Packaging material

  • Quality of salt

  • KIO3 or KI


Studies china l.jpg

Studies: China

  • Salt used:

    • 572 samples from 58 salt companies from 31 provinces

    • Refined (purified, crushed) and unrefined crude salt

  • Storage conditions, in kitchen:

    • Plastic container with cover

    • Closed plastic bag

    • In plastic bag but open

    • Sealed big sack in factory

  • Thoroughly mixed and samples analyzed at:

    • 3 – 6 – 9 – 12 months


Results china l.jpg

Results - China

  • Results:

    • No changes in iodine content during 1 year even in unrefined salt, even in open bags.

    • Concentration varied over time in crude salt because iodine is less homogeneous in the salt.


Studies macedonia l.jpg

Studies - Macedonia

  • Normal temperature (20 C), humidity (40%) and light

  • Normal temperature (20 C), humidity (40%) and no light

  • High temperature, normal humidity and no light

  • Normal temperature (20 C), high humidity and no light

  • Duration 5 months


Macedonia iodine content mg kg l.jpg

Macedonia: Iodine Content (mg/kg)


Macedonia iodine content mg kg16 l.jpg

Macedonia: Iodine Content (mg/kg)


Macedonia iodine content mg kg17 l.jpg

Macedonia: Iodine Content (mg/kg)


Studies micronutrient initiative salt from several countries l.jpg

Studies: Micronutrient Initiative: - salt from several countries -

  • Humidity: 60% and 100%

  • Temperature: 20 and 40 C

  • Packaging: polyethylene, woven bags

  • Analyses 1, 2, 3, 6 and 12 months

  • Results:


Slide19 l.jpg

Source: Micronutrient Initiative


Slide20 l.jpg

Source: Micronutrient Initiative


Main iodine losses l.jpg

Main iodine losses

  • Refined salt retains iodine better than unrefined salt

  • KIO3 is better retained than KI in salt

  • Polyethylene package retains iodine better than carton or jute package, and better than no package

  • In high humidity iodine retention is lower

  • In high temperature iodine retention is lower

  • Light does not influence iodine retention

  • Retention of KIO3 in salt is 70-80% after 1 year in low humidity, polyethylene packages.


Programmatic considerations l.jpg

Programmatic Considerations

  • What can be easily changed??

    • Fortificant: KI or KIO3

    • Quality of salt

    • The way and time salt is stored between factory and household

    • The way people use and store salt at the household

    • The way salt is packaged


Programmatic considerations23 l.jpg

Programmatic Considerations

  • What can be easily changed??

    • Fortificant: KI or KIO3

    • The way salt is packaged


Slide24 l.jpg

source: USI monitoring manual - 1995


External monitoring focus what where to monitor l.jpg

External monitoring:Focus: what, where to monitor?

  • Iodine level adequate?

    • Production!

    • Wholesale?

    • Retail?

    • Household?

  • Check if the monitoring you propose answers the programmatic questions that apply

    • Is iodized salt production adequate and reliable?

    • Do you need to identify areas/population groups with no availability to iodized salt?

    • Is counterfeited salt/smuggling an issue?

    • Etc.


Monitoring at retail level l.jpg

Monitoring at retail level

  • Retail shops may sell iodized salt and/or non-iodized salt. The main purpose for monitoring at retail level is to identify areas where:

    • An inadequate proportion of shops is selling iodized salt

    • Non-iodized salt is available in the market

    • Salt packaged and labelled as iodized is not adequately iodized


How to collect the information l.jpg

How to collect the information?

  • Traditionally, iodine in salt tests:

    • Test kit

    • Titration

    • WYD checker

  • Salt situation analysis

  • Salt producers: where does salt flow, clients

  • Household surveys

  • NGO and other reports

  • National coalition meetings

  • Observations


Use of information28 l.jpg

Use of information

  • Who reports to whom?

    • SES to national coalition

    • Salt producers to salt association

    • National coalition to Minister of Health

  • How is information used?

    • Define clear corrective actions to be taken:

      • Change number of samples and where samples should be taken

      • Change standards

      • Information campaigns

      • Strengthen partnerships


Consider importance of corrective action l.jpg

Consider importance of corrective action

  • Moderate climate, refined (high quality) salt in polyethylene, retention of iodine is of no concern if used within 1 year.

  • Monitor:

    • Establish QA at factory level to ensure iodized salt produced according to standard

    • Monitor iodine in salt at retail or household level;

    • If acceptable, no action required

    • If not acceptable, check and improve quality of iodized salt, or increase iodization level

    • Address other programmatic issues in your monitoring system

  • Measures to improve household storage and use are a waste of time and effort and will show little result


Discussion l.jpg

Discussion

  • Identify programmatic concerns

  • Identify weaknesses in current monitoring and reasons

  • Recommendations for further discussion in group work
