Chapter 13 i o systems

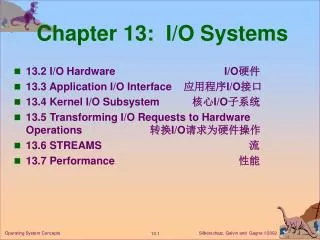

Chapter 13: I/O Systems

  • 13.2 I/O Hardware I/O硬件

  • 13.3 Application I/O Interface 应用程序I/O接口

  • 13.4 Kernel I/O Subsystem 核心I/O子系统

  • 13.5 Transforming I/O Requests to Hardware Operations 转换I/O请求为硬件操作

  • 13.6 STREAMS 流

  • 13.7 Performance 性能

Operating System Concepts


13 1 overview

13.1 Overview

  • Main job of a computer:I/O and processing

  • Role of the I/O system

    • Manage and control I/O operations and I/O devices

  • Two conflicting trends:

    • Increasing standardization of software and hardware interfaces

    • Increasingly broad variety of I/O devices

Operating System Concepts


Chapter 13 i o systems

  • 外设的特点:

    • 种类多

    • 差异大(控制和速度)

  • 外设管理目的包括:

    • 外设资源的控制

    • 外设资源的共享

    • 提高外设资源的利用率。

Operating System Concepts


Chapter 13 i o systems

外部设备类型和特征

1. 按交互对象分类

  • 人机交互设备:视频显示设备、键盘、鼠标、打印机

  • 与计算机或其他电子设备交互的设备:磁盘、磁带、传感器、控制器

  • 计算机间的通信设备:网卡、调制解调器

Operating System Concepts


Chapter 13 i o systems

2. 按交互方向分类

  • 输入(可读):键盘、扫描仪

  • 输出(可写):显示设备、打印机

  • 输入/输出(可读写):磁盘、网卡

    3. 按外设特性分类

  • 使用特征:存储、输入/输出、终端

  • 数据传输率:低速(如键盘)、中速(如打印机)、高速(如网卡、磁盘)

  • 信息组织特征:单个字符或数据块

  • 字符设备(如打印机)

  • 块设备(如磁盘)

Operating System Concepts


13 2 i o hardware

13.2 I/O Hardware

  • Incredible variety of I/O devices 难以置信的I/O设备种类

    • Storage devices

    • Transmission devices

    • Human-interface devices

  • Common concepts 基本概念

    • Port 端口 – a connection point between a device and a computer

    • Bus (daisy chain or shared direct access)

      总线:菊花链或者共享总线

    • Controller (host adapter) 控制器(主机适配器)

      • A collection of electronics that can operate a port, a bus, or a device

      • Serial-port controller, SCSI bus controller …

Operating System Concepts


Fig 13 1 a typical pc bus structure

Fig 13.1 A Typical PC Bus Structure

Operating System Concepts


13 2 i o hardware i o

13.2 I/O Hardware I/O控制技术

  • I/O instructions control devices I/O指令控制设备

  • Devices have addresses, used by 设备的寻址方式

    • Direct I/O instructions直接I/O指令

    • Memory-mapped I/O存储器映射I/O指令

      • Device-control registers are mapped into the address space of the CPU

      • Such as screen buffer of the graphic controller

  • An typical I/O port include 4 registers:

    • Status

    • Control

    • Data-in

    • Data-out

Operating System Concepts


Fig 13 2 device i o port locations on pcs partial

Fig 13.2 Device I/O Port Locations on PCs (partial)

Operating System Concepts


Chapter 13 i o systems

I/O控制技术

1. 程序控制I/O(programmed I/O)

  • I/O操作由程序发起,并等待操作完成。数据的每次读写通过CPU。常用的技术:轮询(polling)

  • 缺点:在外设进行数据处理时,CPU只能等待。

    2. 中断驱动方式(interrupt-driven I/O)

  • I/O操作由程序发起,在操作完成时(如数据可读或已经写入)由外设向CPU发出中断,通知该程序。数据的每次读写通过CPU。

  • 优点:在外设进行数据处理时,CPU不必等待,可以继续执行该程序或其他程序。

  • 缺点:CPU每次处理的数据量少(通常不超过几个字节),只适于数据传输率较低的设备。

Operating System Concepts


3 dma direct memory access

3. 直接存储访问方式(DMA, Direct Memory Access)

  • 由程序设置DMA控制器中的若干寄存器值(如内存始址,传送字节数),然后发起I/O操作。而后者完成内存与外设的成批数据交换,在操作完成时由DMA控制器向CPU发出中断。

  • 优点:CPU只需干预I/O操作的开始和结束,而其中的一批数据读写无需CPU控制,适于高速设备。

Operating System Concepts


4 channel control

4. 通道控制方式(channel control)

  • 通道控制器(Channel Processor)有自己的专用存储器,可以执行由通道指令组成的通道程序,因此可以进行较为复杂的I/O控制,如网卡上信道访问控制。通道程序通常由操作系统所构造,放在内存里。

  • 优点:执行一个通道程序可以完成几批I/O操作。

    • 选择通道(selector channel):可以连接多个外设,而一次只能访问其中一个外设

    • 多路通道(multiplexor channel):可以并发访问多个外设。分为字节多路(byte)和数组多路(block)通道。

Operating System Concepts


13 2 1 polling

13.2.1 Polling 轮询

  • Determines state of device 决定设备的状态

    • command-ready(等待命令)

    • Busy(忙)

    • Error(错误)

  • Busy-wait cycle to wait for I/O from device

    忙等待循环等待设备的I/O操作

  • I/O操作由程序发起,并等待操作完成。数据的每次读写通过CPU。

  • 缺点:在外设进行数据处理时,CPU只能等待。

Operating System Concepts


13 2 2 interrupts

13.2.2 Interrupts 中断

  • CPU Interrupt request line triggered by I/O device CPU的中断需要有I/O设备的触发

  • Interrupt handler receives interrupts中断处理例程接收中断

  • Maskable to ignore or delay some interrupts通过屏蔽来忽略或者延迟某些中断

    • Some un-maskable 某些中断不可屏蔽

      • Maskable

      • nonmaskable

Operating System Concepts


Interrupts

Interrupts 中断

  • Interrupt vector to dispatch interrupt to correct handler

    中断向量给中断分配正确的中断处理例程

    • Based on priority 以优先级为基础

      • Interrupt priority levels

  • Interrupt mechanism also used for exceptions

    中断机制也用于异常处理, 如:除零,访问不存在的内存地址等

  • Software interrupt (or a trap)

Operating System Concepts


Fig 13 3 interrupt driven i o cycle i o

Fig 13.3 Interrupt-Driven I/O Cycle中断驱动的I/O循环

Operating System Concepts


Fig 13 4 intel pentium processor event vector table

Fig 13.4 Intel Pentium Processor Event-Vector Table

Operating System Concepts


13 2 3 direct memory access

13.2.3 Direct Memory Access直接内存存取

  • Used to avoid programmed I/O for large data movement 用来避免编程I/O来传输大量的数据

  • Requires DMA controller需要DMA控制器

  • Bypasses CPU to transfer data directly between I/O device and memory

    绕过CPU在I/O设备和内存之间直接传输数据

  • Cycle stealing

  • Memory access

    • Physical memory addresses for DMA

    • Direct virtual-memory access (DVMA), using virtual address

Operating System Concepts


Fig 13 6 six step process to perform dma transfer dma

Fig 13.6 Six Step Process to Perform DMA Transfer通过六步来完成DMA传输

Operating System Concepts


Dma direct memory access

直接存储访问方式(DMA, Direct Memory Access)

  • 由程序设置DMA控制器中的若干寄存器值(如内存始址,传送字节数),然后发起I/O操作。而后者完成内存与外设的成批数据交换,在操作完成时由DMA控制器向CPU发出中断。

  • 优点:CPU只需干预I/O操作的开始和结束,而其中的一批数据读写无需CPU控制,适用于高速设备。

Operating System Concepts


Chapter 13 i o systems

DMA方式下的I/O控制器结构


13 2 4 channel control

13.2.4 通道控制方式(channel control)

  • 通道控制器(Channel Processor)有自己的专用存储器,可以执行由通道指令组成的通道程序,因此可以进行较为复杂的I/O控制,如网卡上信道访问控制。通道程序通常由操作系统所构造,放在内存里。

  • 优点:执行一个通道程序可以完成几批I/O操作。

    • 选择通道(selector channel):可以连接多个外设,而一次只能访问其中一个外设

    • 多路通道(multiplexor channel):可以并发访问多个外设。分为字节多路(byte)和数组多路(block)通道。

Operating System Concepts


13 3 application i o interface i o

13.3 Application I/O Interface应用程序I/O接口

  • I/O system calls encapsulate device behaviors in generic classes 将I/O子系统设备分为几个常用的类别

  • Device-driver layer hides differences among I/O controllers from kernel

    设备驱动层对OS核心隐藏了I/O控制器的不同细节

  • Devices vary in many dimensions 设备变化范围非常大

    • Character-stream or block 字符流或者块设备

    • Sequential or random-access 顺序或随机设备

    • Sharable or dedicated 共享或独占设备

    • Speed of operation 操作速度的不同

    • read-write, read only, or write only 读写,只读,只写

Operating System Concepts


Fig 13 6 a kernel i o structure

Fig 13.6 A Kernel I/O Structure

Operating System Concepts


Fig 13 7 characteristics of i o devices

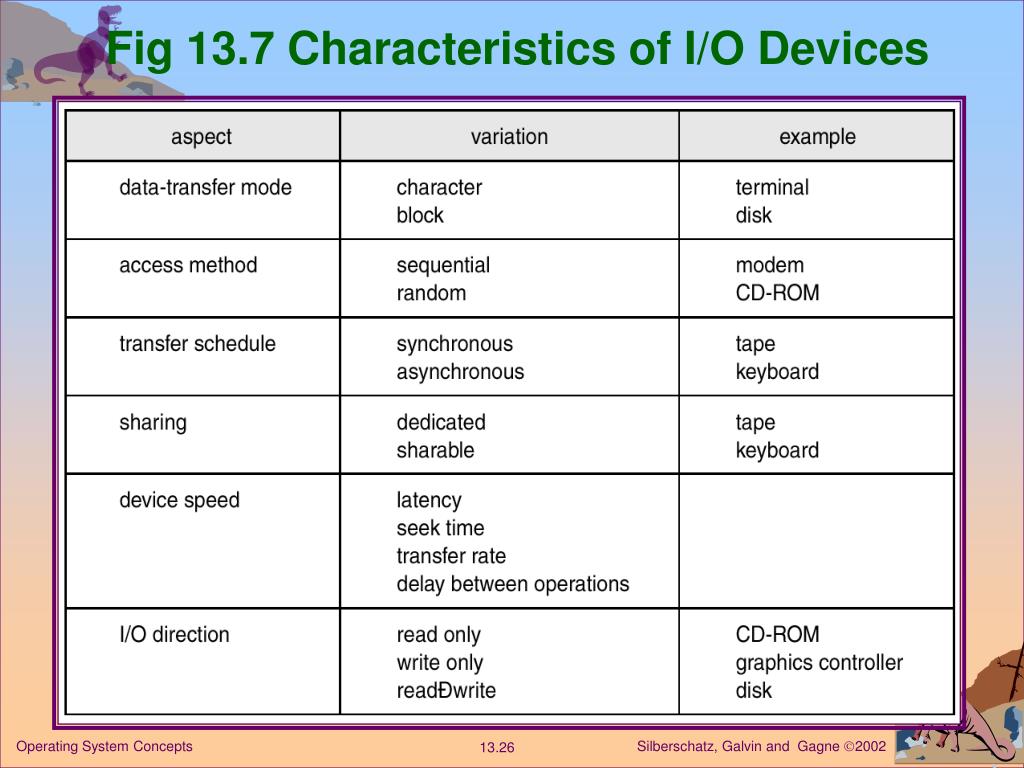

Fig 13.7 Characteristics of I/O Devices

Operating System Concepts


13 3 1 block and character devices

13.3.1 Block and Character Devices块或字符设备

  • Block devices include disk drives 块设备包括磁盘

    • Commands include read, write, seek

      命令包括读,写,搜寻

    • Raw I/O or file-system access

      原始的I/O或文件系统存取

    • Memory-mapped file access possible存储器映射文件访问的可能性

  • Character devices include keyboards, mice, serial ports字符设备包括键盘,鼠标, Modem和串口设备

    • Commands include get, put 命令有get,put

    • Libraries layered on top allow line editing

      顶层的函数库允许行编辑

Operating System Concepts


13 3 2 network devices

13.3.2 Network Devices网络设备

  • Varying enough from block and character to have own interface从块设备和字符设备变化而来,有独自的接口

  • Unix and Windows NT/9i/2000 include socket interface Unix和Windows/NT包括socket接口

    • Separates network protocol from network operation

      分离网络协议于网络操作

    • Includes select functionality包括select功能—manage a set of sockets

  • Approaches vary widely (half-duplex pipes, full-duplex FIFOs, full-duplex streams, queues, mailboxes, socket)

    方式广泛:管道,FIFOs,流,队列,邮箱

Operating System Concepts


13 3 3 clocks and timers

13.3.3 Clocks and Timers时钟和记时器

  • Provide current time, elapsed time, timer提供当前的时间,经过的时间,定时器

  • If programmable interval time used for timings, periodic interrupts如果把可编程的时间间隔用于计时,那么定期中断

  • programmable interval timer -- the hardware to measure elapsed time and to trigger operations

  • ioctl (on UNIX) covers odd aspects of I/O such as clocks and timers

    在UNIX中,ioct1掩盖了I/O设备(象时钟和计时器)之间区别

Operating System Concepts


13 3 4 blocking and nonblocking i o i o

13.3.4 Blocking and Nonblocking I/O阻塞和非阻塞I/O

  • Blocking - process suspended until I/O completed

    阻塞—当执行可阻塞I/O系统调用时,进程挂起直到I/O完成

    • Easy to use and understand 容易使用和理解

    • Insufficient for some needs 在某些场合没有效率

  • Nonblocking - I/O call returns as much as available

    非阻塞—I/O调用返回一个代表是否成功的值

    • User interface, data copy (buffered I/O)

      用户界面(键盘、鼠标输入)的同时显示视频、数据拷贝(对I/O缓冲)

    • Implemented via multi-threading 通过多线程来实现

    • Returns quickly with count of bytes read or written

      迅速的返回读写的字节数

  • Asynchronous - process runs while I/O executes

    异步:在I/O处理的时候进程同时运行

    • Difficult to use 难以使用

    • I/O subsystem signals process when I/O completed

      当I/O操作完成的时候,I/O子系统向进程发信号

Operating System Concepts


13 4 kernel i o subsystem i o

13.4 Kernel I/O Subsystem核心I/O子系统

  • Kernel provide many services related to I/O:

    • Scheduling

    • Buffering

    • Caching

    • Spooling

    • Device reservation

    • Error handling

Operating System Concepts


13 4 1 i o scheduling

13.4.1 I/O Scheduling

  • Improve overall system performance

  • Share device access fairly among processes

  • Reduce the average waiting time for I/O to complete

  • Example: disk arm serves for many processes at same time

  • Rearrange: some I/O request ordering via per-device queue to improve the overall system efficiency。为改善系统性能,某些I/O需要按设备队列的进行排序

  • Some OSs try fairness 某些操作系统尝试着公平

Operating System Concepts


13 4 2 i o buffering

13.4.2 I/O Buffering

  • Buffering - store data in memory while transferring between devices

    缓冲—当设备间传输数据的时候,暂时存放在内存中

  • 引入缓冲的理由:

    • To cope with device speed mismatch

      解决设备速度不匹配。例如:Modem/Disk

    • To cope with device transfer size mismatch

      解决设备传输块的大小不匹配。例如:网络的拆包和装包

    • To maintain “copy semantics”

      为了维持拷贝语句的语义要求。确保数据的一致性

Operating System Concepts


Fig 13 8 sun enterprise 6000 device transfer rates

Fig 13.8 Sun Enterprise 6000 Device-Transfer Rates

Operating System Concepts


Chapter 13 i o systems

缓冲技术

缓冲技术可提高外设利用率,尽可能使外设处于忙状态;但有一个限制:进程的I/O请求不能超过外设的处理能力。

1. 引入缓冲技术的目的

  • 匹配CPU或用户应用进程与外设的不同处理速度

  • 减少对CPU的中断次数,提高CPU和I/O设备之间以及各个I/O设备之间的处理并行性。因此,缓冲区所在的位置:内存,控制器或外设。这些在不同位置的缓冲区组合在一起,构成多级缓冲机制。

Operating System Concepts


Chapter 13 i o systems

2. 单方向缓冲

  • 单缓冲(single buffer):一个缓冲区,CPU和外设轮流使用,一方处理完之后接着等待对方处理。

  • 双缓冲(double buffer):两个缓冲区,CPU和外设都可以连续处理而无需等待对方。要求CPU和外设的速度相近。

  • 环形缓冲(circular buffer):多个缓冲区,CPU和外设的处理速度可以相差较大。

Operating System Concepts


3 buffer pool

3. 缓冲池(buffer pool)

  • 这是一种双方向缓冲技术;缓冲区整体利用率高。

  • 缓冲区队列:三种:空闲缓冲区,输入缓冲区,输出缓冲区

  • 操作:四种:设备输入,CPU读入,设备输出,CPU写出。上述操作访问各个缓冲区队列时,需要进行相应的互斥操作。

Operating System Concepts


13 4 3 caching

13.4.3 Caching

  • Caching – a region of fast memory holding copies of data

    高速缓存—存放数据的快速存储器

    • Always just a copy 总是数据的拷贝

    • Key purpose: to improve I/O performance and efficiency

    • Caching and buffering are distinct(截然不同的) functions ,but sometimes a region of memory can be used for both purposes

      • Caching: to improve performance

      • Buffering: to cope with device transfer speed and size mismatch 解决设备传输块的速度与大小的不匹配

Operating System Concepts


13 4 4 spooling

13.4.4 Spooling(假脱机技术)

  • A spool is a buffer that holds output for a device, such as a printer, that cannot accept interleaved data streams

  • Spooling - hold output for a device

    spooling—保存设备的输出

    • If device can serve only one request at a time

      如果设备一次只能服务于一个请求

    • i.e., Printing 比如,打印机

  • Device reservation - provides exclusive access to a device设备预定—提供对设备的独占访问

    • System calls for allocation and deallocation

      分配和再分配的系统调用

    • Watch out for deadlock 小心死锁

Operating System Concepts


Chapter 13 i o systems

假脱机技术

  • 利用假脱机技术(SPOOLing, Simultaneous Peripheral Operation On Line, 也称为虚拟设备技术)可把独享设备转变成具有共享特征的虚拟设备,从而提高设备利用率。

  • 引入:在多道批处理系统中,专门利用一道程序(SPOOLing程序)来完成对设备的I/O操作。无需使用外围I/O处理机。

Operating System Concepts


Chapter 13 i o systems

假脱机技术

  • 假脱机的原理:

    • SPOOLing程序和外设进行数据交换,可以称为“实际I/O”。一方面,SPOOLing程序预先从外设输入数据并加以缓冲,在以后需要的时候输入到应用程序;另一方面,SPOOLing程序接受应用程序的输出数据并加以缓冲,在以后适当的时候输出到外设。

    • 在SPOOLing程序中,需要管理两级缓冲区:内存缓冲区和快速外存上的缓冲池,后者可以暂存多批I/O操作的较多数据。

    • 应用程序进行I/O操作时,只是和SPOOLing程序交换数据,可以称为"虚拟I/O"。这时虚拟I/O实际上是从SPOOLing程序的缓冲池中读出数据或把数据送入缓冲池,而不是跟实际的外设进行I/O操作。

Operating System Concepts


Chapter 13 i o systems

假脱机技术

  • 优点:

    • 高速虚拟I/O操作:应用程序的虚拟I/O比实际I/O速度提高,缩短应用程序的执行时间。另一方面,程序的虚拟I/O操作时间和实际I/O操作时间分离开来。

    • 实现对独享设备的共享:由SPOOLing程序提供虚拟设备,可以对独享设备依次共享使用。

  • 举例:打印机设备和可由打印机管理器管理的打印作业队列。

    • 如:Windows NT中,应用程序直接向针式打印机输出需要15分钟,而向打印作业队列输出只需要1分钟,此后用户可以关闭应用程序而转入其他工作,在以后适当的时候由打印机管理器完成15分钟的打印输出而无需用户干预。

Operating System Concepts


13 4 5 error handling

13.4.5 Error Handling错误处理

  • OS can recover from disk read, device unavailable, transient write failures操作系统可以从有些磁盘读、设备无效等暂时的(transient)失败中恢复过来(例如通过read retry, resend等)。

    有些则是不可恢复的(permanent),如硬盘控制器坏。

  • Most return an error number or code when I/O request fails I/O系统调用时,如果I/O失败,大多数返回一个错误码

    • Unix 中,用errno来描述

    • 或者用更为详细信息描述出错信息。例如 在SCSI中,用下列信息描述各种状态:

      • Sense key

      • Additional sense code

      • Additional sense-code qualifier

  • System error logs hold problem reports

    系统日志记录了出错报告

Operating System Concepts


13 4 6 kernel data structures

13.4.6 Kernel Data Structures核心数据结构

  • Kernel keeps state info for I/O components, including open file tables, network connections, character device state 核心保存着I/O组件的状态,包括打开文件表,网络连接,字符设备状态

  • Many, many complex data structures to track buffers, memory allocation, “dirty” blocks许多的数据结构是为了记录缓冲、内存分配和“脏”块

  • Some use object-oriented methods and message passing to implement I/O

    有些OS用面向对象的方法和消息机制来实现I/O

Operating System Concepts


Fig 13 9 unix i o kernel structure

Fig 13.9 UNIX I/O Kernel Structure

Operating System Concepts


Chapter 13 i o systems

  • In summary, I/O subsystem supervises:

    • The management of the name space for files and devices

    • Access control to files and devices

    • Operation control (for example, a modem can’t seek())

    • File system space allocation

    • Device allocation

    • Buffering, caching and spooling

    • I/O scheduling

    • Device status monitoring, error handling and failure recovery

    • Device driver configuration and initialization

Operating System Concepts


13 5 transforming i o to hardware operations i o

13.5 Transforming I/O to Hardware Operations转换I/O请求为硬件操作

I/O Requests to Hardware Operations I/O请求到硬件操作

  • Consider reading a file from disk for a process:考虑一个进程从磁盘中读取一个文件

    • Determine device holding file 确定保存文件的设备

    • Translate name to device representation

      将设备名转换到具体的设备

    • Physically read data from disk into buffer

      把数据从磁盘读到缓冲区中

    • Make data available to requesting process

      通知进程数据现在是有效的

    • Return control to process 把控制权返回给进程

Operating System Concepts


Fig 13 10 life cycle of an i o request i o

Fig 13.10 Life Cycle of An I/O Request I/O请求的周期

Operating System Concepts


13 6 streams

13.6 STREAMS 流

  • STREAM – a full-duplex communication channel between a user-level process and a device

    • Stream (char, no record file) block, record file in file system

  • A STREAM consists of:

    - STREAM head interfaces with the user process

    - driver end interfaces with the device- zero or more STREAM modules between them.

  • Stream modules

  • Support flow control

  • Each module contains a read queue and a write queue

    • Read(), getmsg() -- when a user process reads data from the streams

    • Write(), putmsg() -- when a user process writes to a device

  • Message passing is used to communicate between queues

  • Benefits of using STREAMS:

    • Provide a framework to a modular and incremental approach to writing device drivers and network protocols

Operating System Concepts


Fig 13 11 the streams structure

Fig 13.11 The STREAMS Structure

Operating System Concepts


13 7 performance

13.7 Performance 性能

  • I/O is a major factor in system performance:I/O是系统性能的主要因素

    • Demands CPU to execute device driver, kernel I/O code需要CPU执行设备驱动,核心I/O代码

    • Context switches due to interrupts

      因为中断而导致的上下文转换

    • Data copying 数据拷贝

    • Network traffic especially stressful

      网络状况尤其重要

Operating System Concepts


Fig 13 12 intercomputer communications

Fig 13.12 Intercomputer Communications

Operating System Concepts


Chapter 13 i o systems

  • Other system use separate front-end processors for terminal I/O, to reduce the interrupt burden on the main CPU, for example:

    • A terminal concentrator

    • An I/O channel

Operating System Concepts


Several principles to improve performance

Several principles to improve performance改进性能几个原则

  • Reduce number of context switches 减少上下文转换数

  • Reduce data copying 减少数据的拷贝量

  • Reduce interrupts by using large transfers, smart controllers, polling 通过使用一次大量数据传输,智能控制器和轮换来减少中断

  • Use DMA 使用DMA

  • Balance CPU, memory, bus, and I/O performance for highest throughput 平衡CPU,内存,总线和I/O性能以达到高吞吐率

Operating System Concepts


Fig 13 13 device functionality progression

Fig 13.13 Device-Functionality Progression

Operating System Concepts


  • Login
