2d scan line conversion

2D Scan-line Conversion

University of Missouri at Columbia


2d scan line conversion1

2D Scan-line Conversion

  • DDA algorithm

  • Bresenham’s algorithm

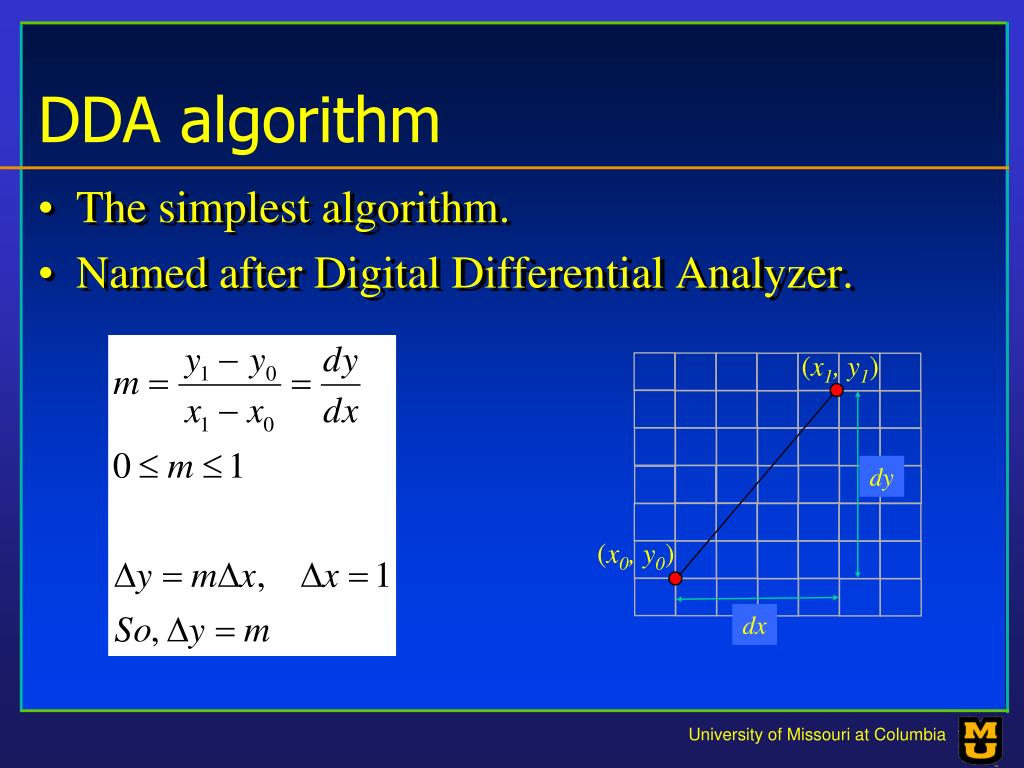

Dda algorithm

DDA algorithm

  • The simplest algorithm.

  • Named after Digital Differential Analyzer.

(x1, y1)

dy

(x0, y0)

dx

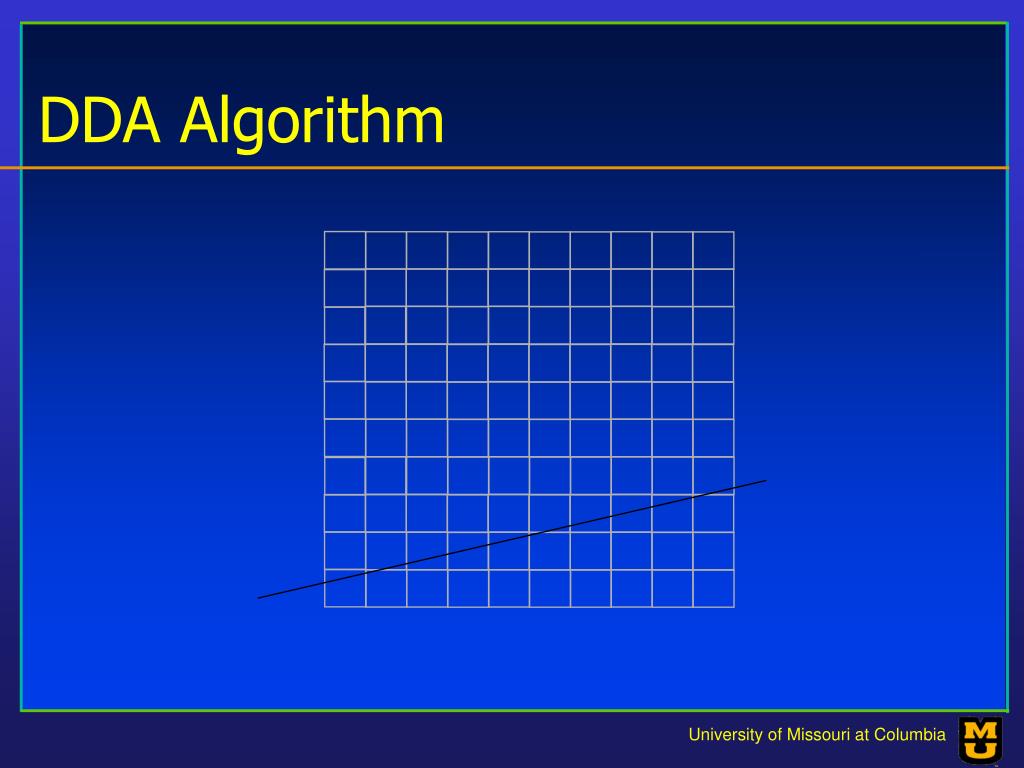

Dda algorithm1

DDA Algorithm


Dda algorithm2

DDA Algorithm


Dda algorithm3

DDA Algorithm


Dda algorithm4

DDA Algorithm

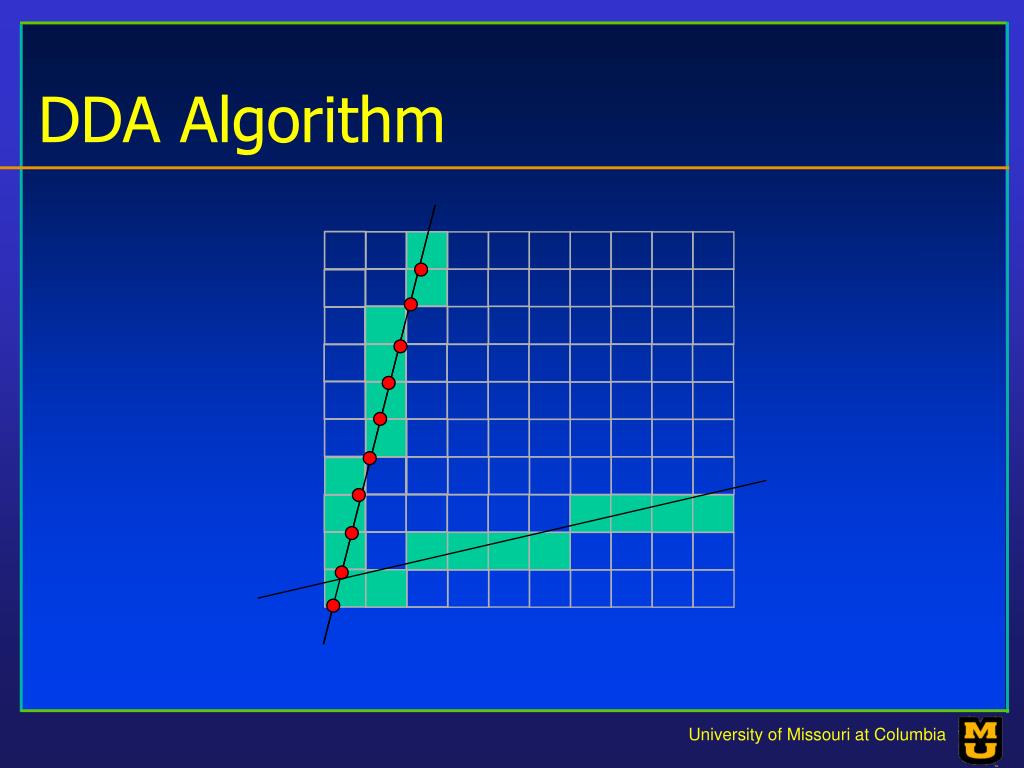

Dda algorithm5

DDA Algorithm


Dda algorithm6

DDA Algorithm


2d scan line conversion2

2D Scan-line Conversion

  • DDA algorithm

  • Bresenham’s algorithm


Bresenham s midpoint algorithm

Bresenham’s Midpoint Algorithm

  • DDA is simple, efficient, but needs floating points.

  • Bresenham’s use integer addition only.

(x1, y1)

dy

(x0, y0)

dx


Bresenham s midpoint algorithm1

Bresenham’s Midpoint Algorithm

  • To choose from the two pixels NE or E depending on the relative position of the midpoint Mand the line.

  • Choose E if M is above the line,

  • Choose NE if M is below the line.

NE

M

E

(x0, y0)


Bresenham s midpoint algorithm2

Bresenham’s Midpoint Algorithm

  • Choose E if d is positive,

  • Choose NE if d is negative.

NE

M

E

(x0, y0)

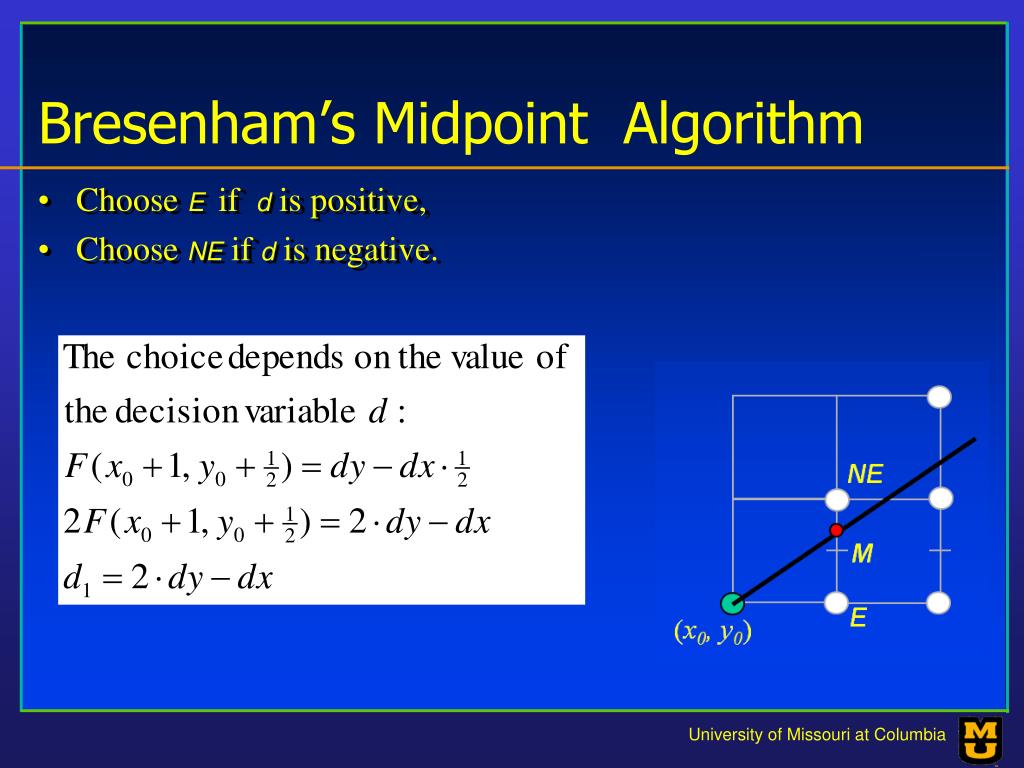

Bresenham s midpoint algorithm3

Bresenham’s Midpoint Algorithm

  • Choose E if d is positive,

  • Choose NE if d is negative.

NE

M

E

(x0, y0)

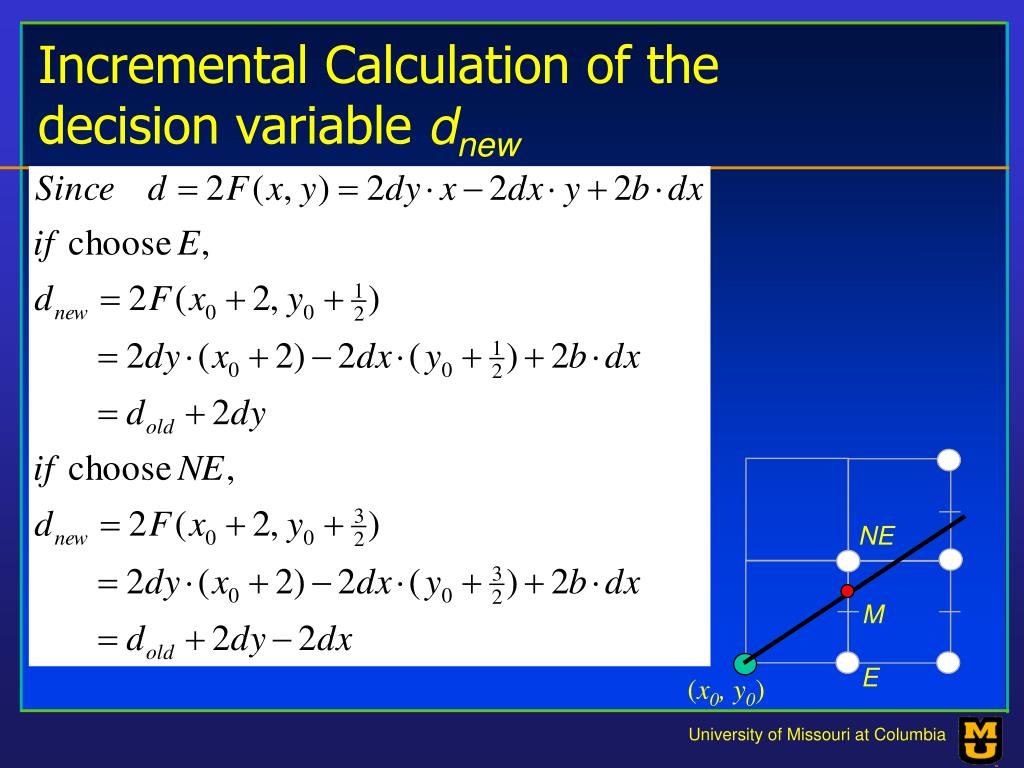

Incremental calculation of the decision variable d new

Incremental Calculation of the decision variable dnew

NE

M

E

(x0, y0)


Bresenham s midpoint algorithm4

Bresenham’s Midpoint Algorithm

NE

M

E

(x0, y0)
