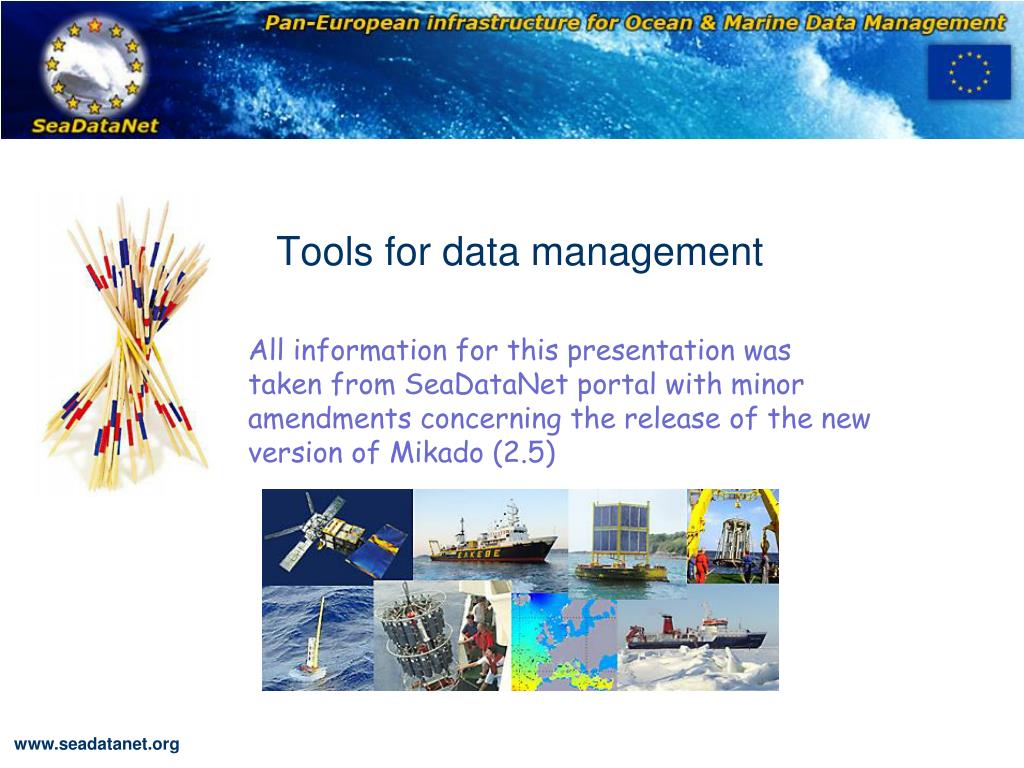

  1. Tools for data management All information for this presentation was taken from SeaDataNet portal with minor amendments concerning the release of the new version of Mikado (2.5)

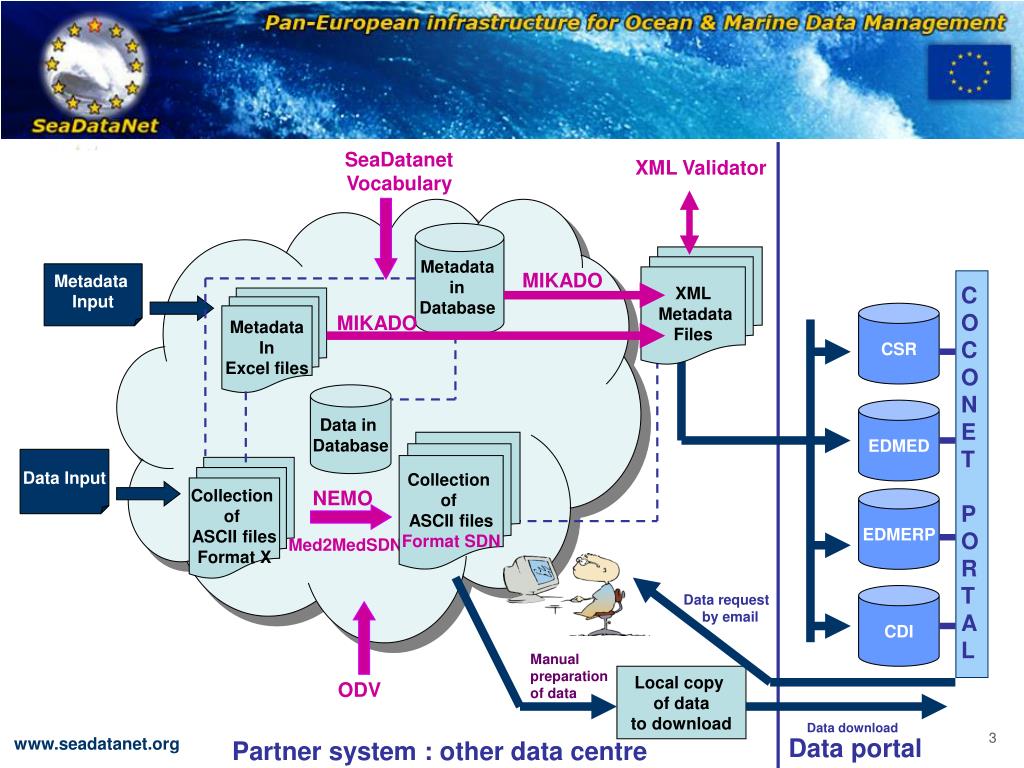

  2. SeaDatanet Vocabulary XML Validator Metadata in Database XML Metadata Files Metadata Input MIKADO Metadata In Excel files CSR MIKADO Coupling table Data in Database EDMED Collection of ASCII files Format SDN Data Input Collection of ASCII files Format X COCONET PORTAL NEMO EDMERP Med2MedSDN CDI Download Manager Local copy of data to download Data request ODV Data download Partner system : pilot data centre Data portal

  3. SeaDatanet Vocabulary XML Validator Metadata in Database Metadata Input MIKADO Metadata In Excel files CSR MIKADO Data in Database EDMED Data Input Collection of ASCII files Format X COCONET PORTAL NEMO EDMERP Med2MedSDN Data request by email CDI Manual preparation of data Local copy of data to download ODV Data download Partner system : other data centre Data portal XML Metadata Files Collection of ASCII files Format SDN

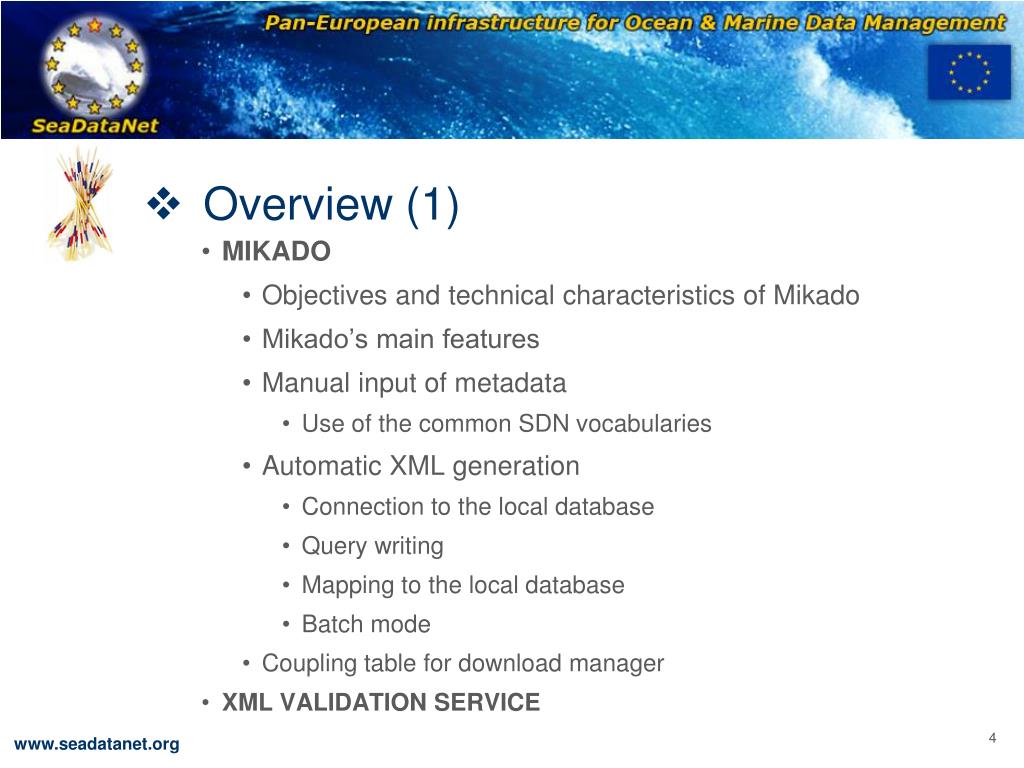

  4. Overview (1) • MIKADO • Objectives and technical characteristics of Mikado • Mikado’s main features • Manual input of metadata • Use of the common SDN vocabularies • Automatic XML generation • Connection to the local database • Query writing • Mapping to the local database • Batch mode • Coupling table for download manager • XML VALIDATION SERVICE

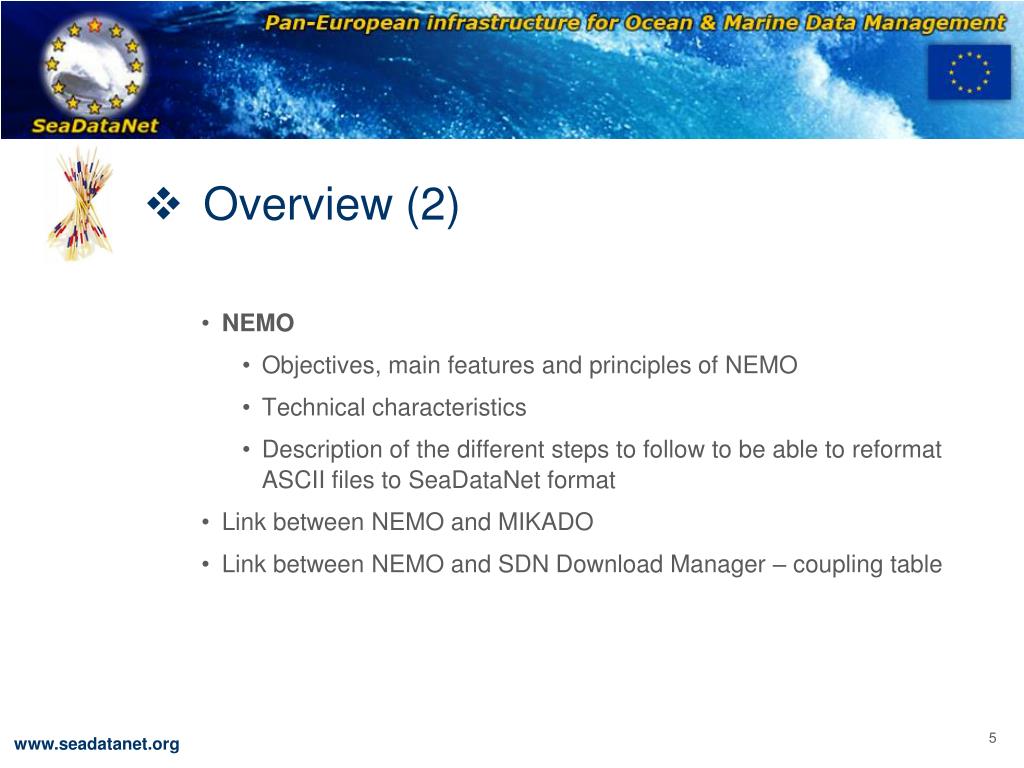

  5. Overview (2) • NEMO • Objectives, main features and principles of NEMO • Technical characteristics • Description of the different steps to follow to be able to reformat ASCII files to SeaDataNet format • Link between NEMO and MIKADO • Link between NEMO and SDN Download Manager – coupling table

  6. 3rd SeaDataNet training course – Ostende – 16-19 June 2008 MIKADO Tool for the generation of XML descriptions of SeaDanaNet catalogue records

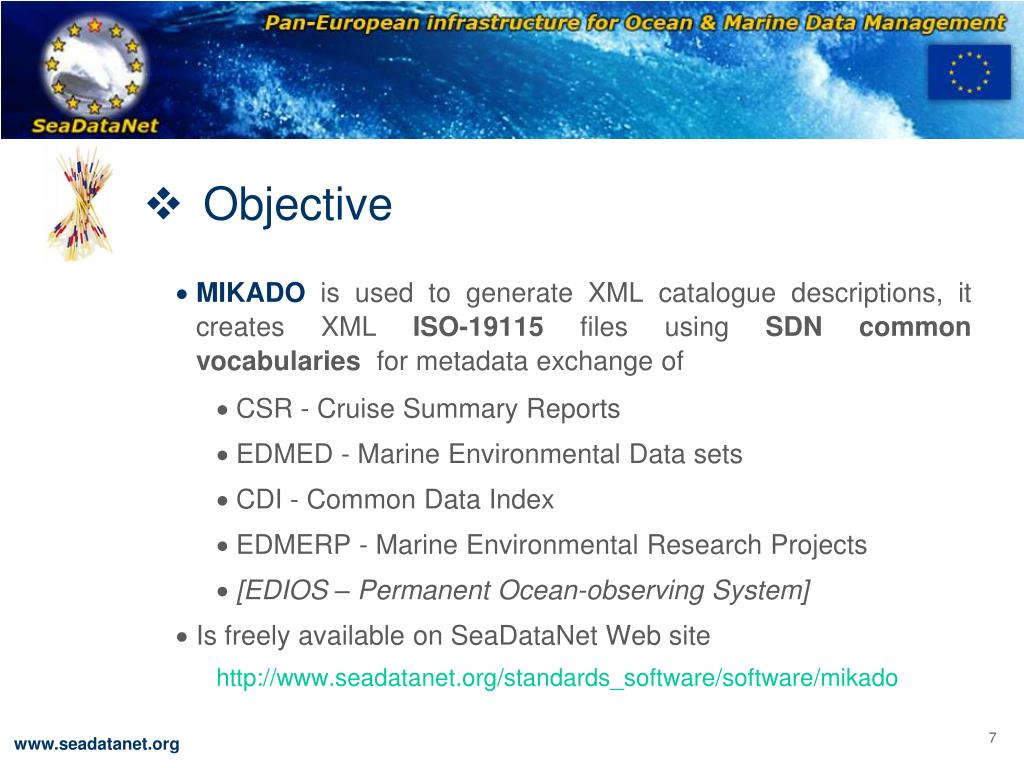

  7. Objective • MIKADO is used to generate XML catalogue descriptions, it creates XML ISO-19115 files using SDN common vocabularies for metadata exchange of • CSR - Cruise Summary Reports • EDMED - Marine Environmental Data sets • CDI - Common Data Index • EDMERP - Marine Environmental Research Projects • [EDIOS – Permanent Ocean-observing System] • Is freely available on SeaDataNet Web site http://www.seadatanet.org/standards_software/software/mikado

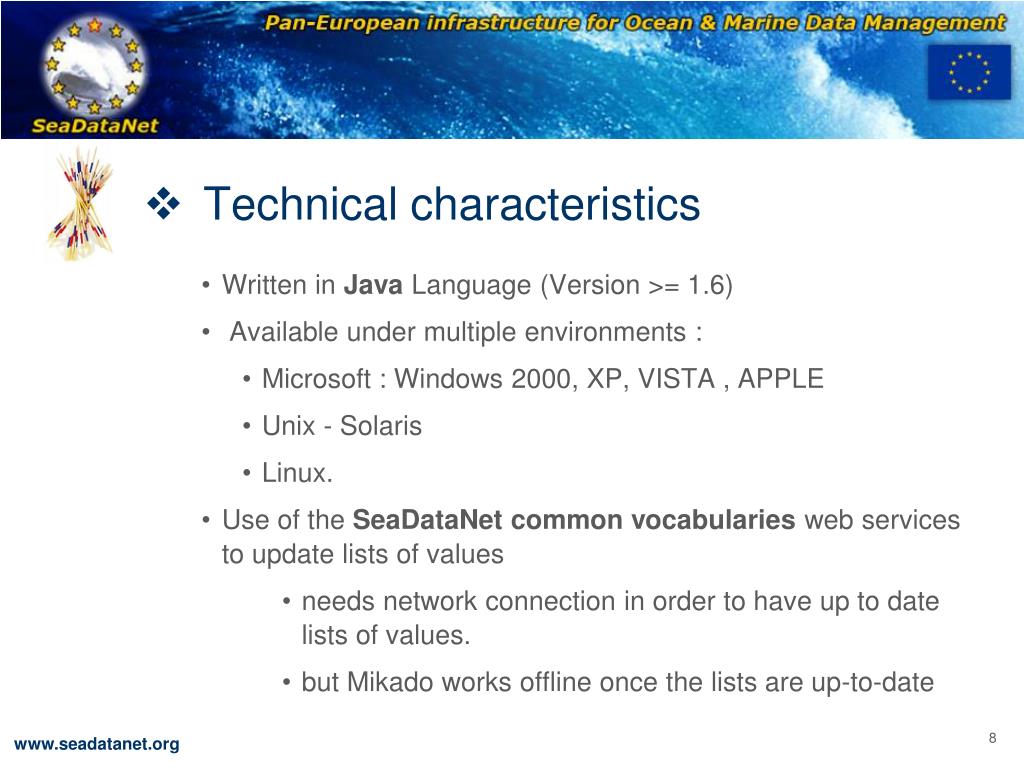

  8. Technical characteristics • Written in Java Language (Version >= 1.6) • Available under multiple environments : • Microsoft : Windows 2000, XP, VISTA , APPLE • Unix - Solaris • Linux. • Use of the SeaDataNet common vocabularies web services to update lists of values • needs network connection in order to have up to date lists of values. • but Mikado works offline once the listsare up-to-date

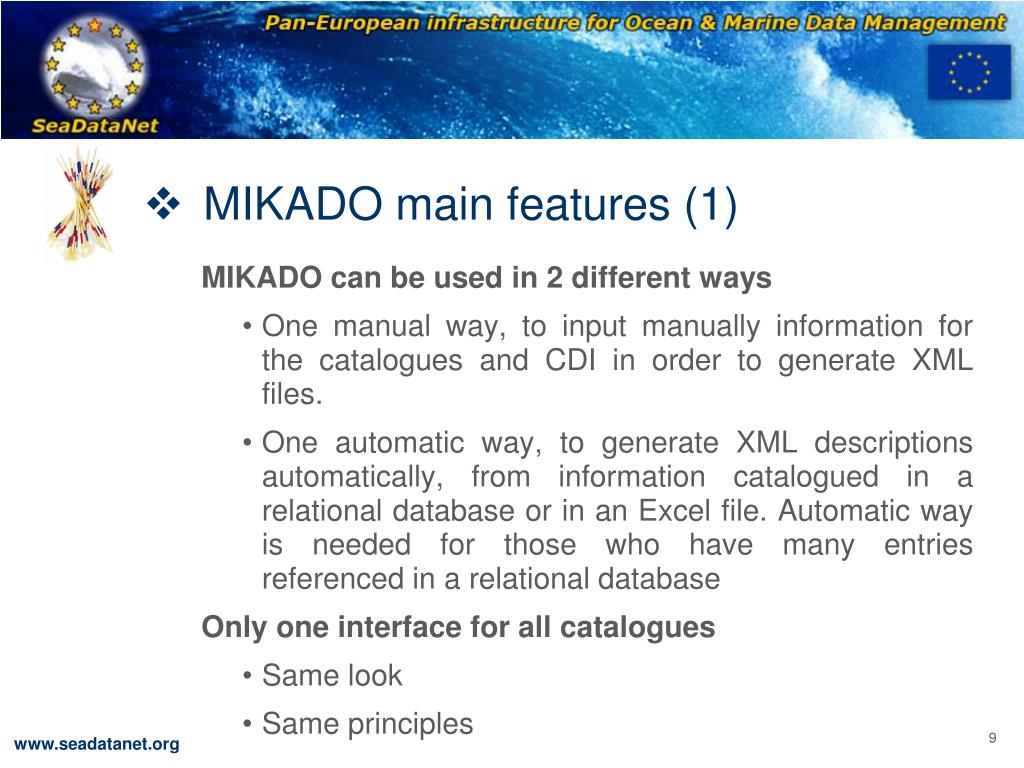

  9. MIKADO main features (1) • MIKADO can be used in 2 different ways • One manual way, to input manually information for the catalogues and CDI in order to generate XML files. • One automatic way, to generate XML descriptions automatically, from information catalogued in a relational database or in an Excel file. Automatic way is needed for those who have many entries referenced in a relational database • Only one interface for all catalogues • Same look • Same principles

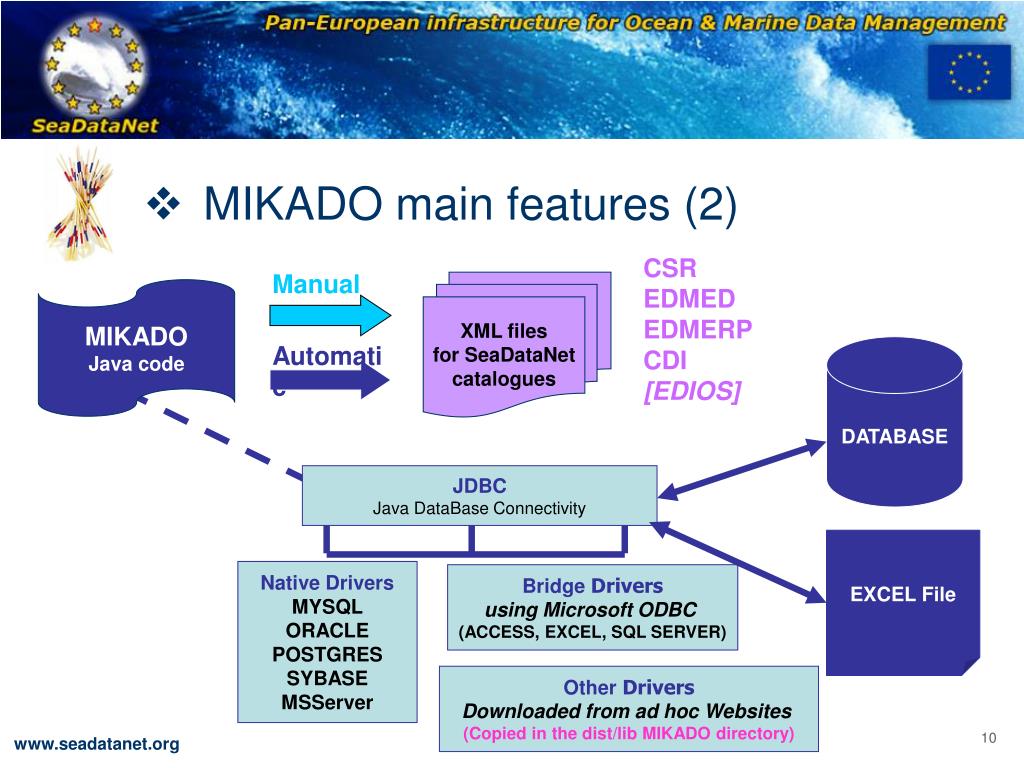

  10. MIKADO main features (2) CSR EDMED EDMERP CDI [EDIOS] Manual XML files for SeaDataNet catalogues MIKADO Java code Automatic DATABASE JDBC Java DataBase Connectivity EXCEL File Native Drivers MYSQL ORACLE POSTGRES SYBASE MSServer Bridge Drivers using Microsoft ODBC (ACCESS, EXCEL, SQL SERVER) Other Drivers Downloaded from ad hoc Websites (Copied in the dist/lib MIKADO directory)

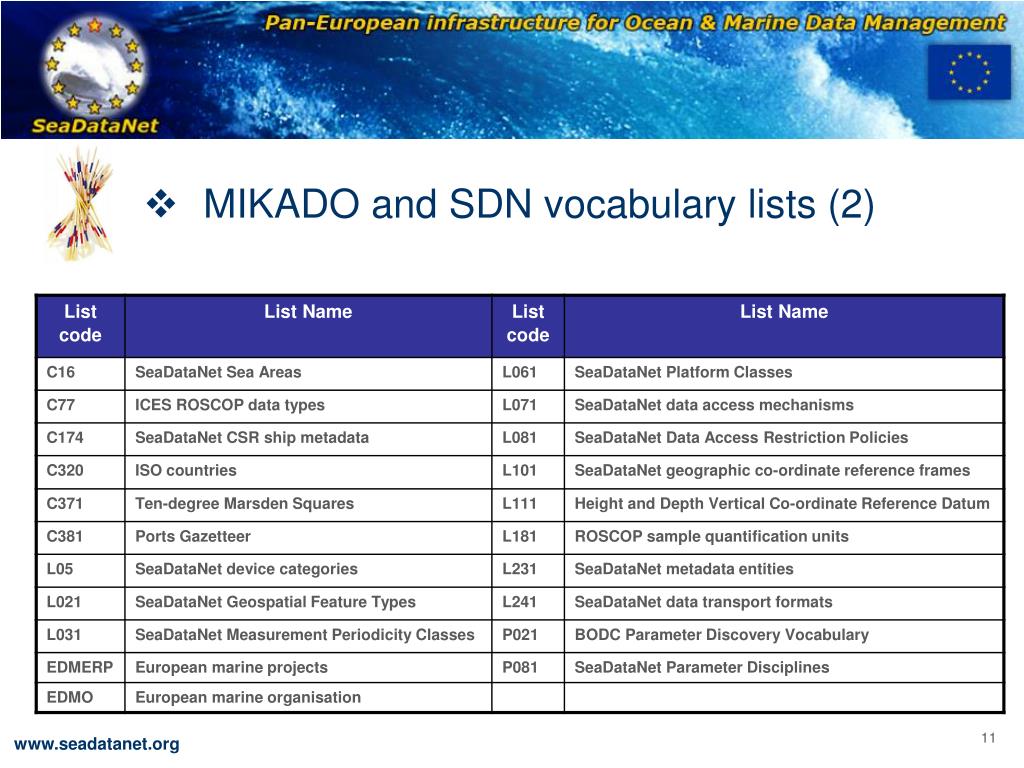

  11. MIKADO and SDN vocabulary lists (2)

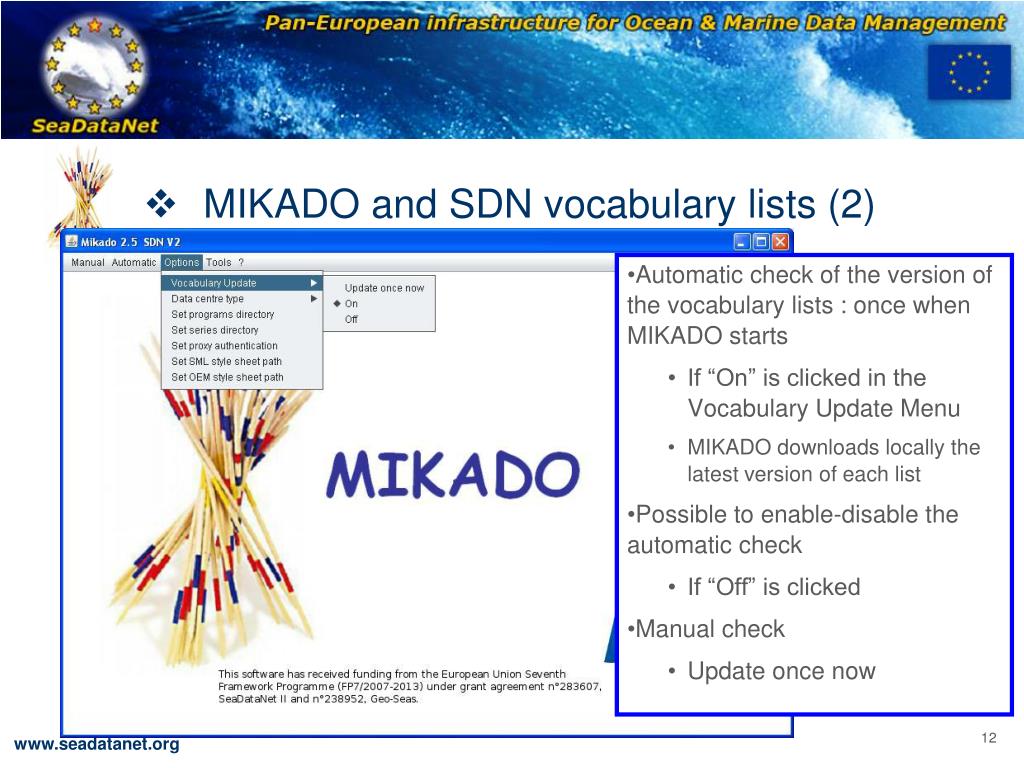

  12. Automatic check of the version of the vocabulary lists : once when MIKADO starts If “On” is clicked in the Vocabulary Update Menu MIKADO downloads locally the latest version of each list Possible to enable-disable the automatic check If “Off” is clicked Manual check Update once now MIKADO and SDN vocabulary lists (2)

  13. MIKADO – Manual input • Available for 4 catalogues : EDMED, CSR, CDI, EDMERP • Each input generates an XML file that can be sent to the central catalogue • For EDMERP and CSR : EDMERP CMS and CSR online can also be used, but MIKADO is useful • if you have problems with the NETWORK connection • if you want to keep locally an XML description of your catalogues • For EDMED and CDI, there is no online input tools.

  14. MIKADO – Manual input

  15. MIKADO manual : LOCAL Identifier • The LOCAL Identifier is vital because it is kept in the central catalogue and is the entry point to know if the record is new or if it is an update. • This LOCAL ID exists for all the catalogues and is under the responsibility of the data centre who generates the XLM descriptions

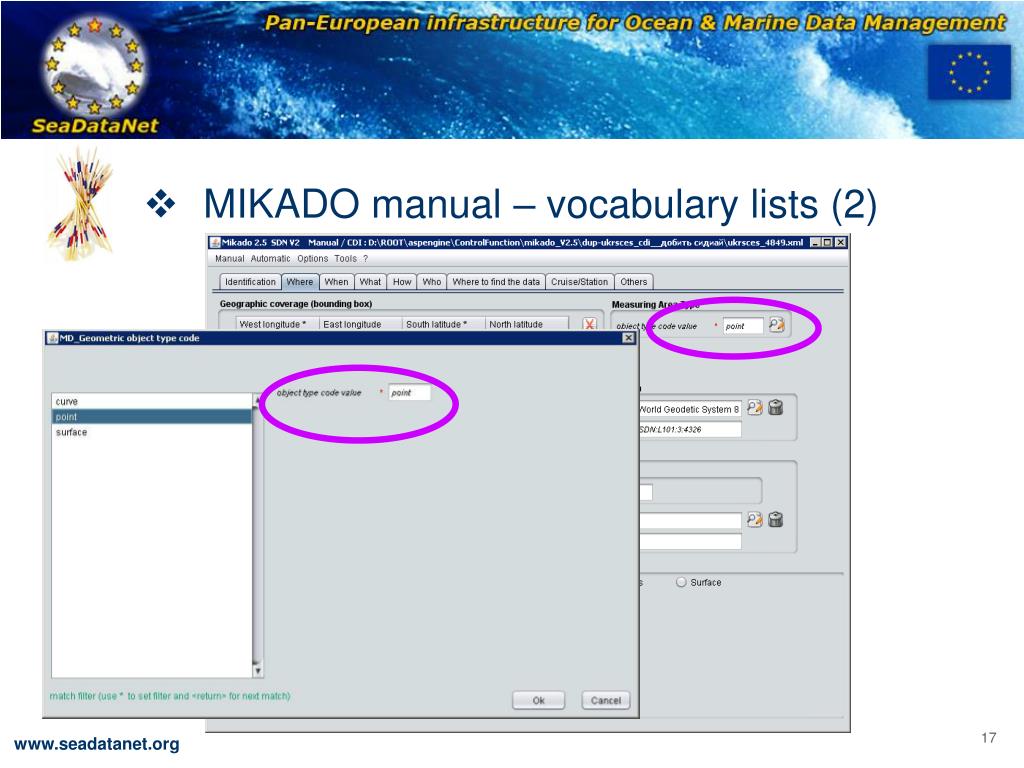

  16. MIKADO manual – vocabulary lists (1)

  17. MIKADO manual – vocabulary lists (2)

  18. MIKADO – Automatic XML generation • Principle • Read the information about CSR, EDMED, EDMERP or CDI in a database or in an Excel file • MIKADO has predefined variables which correspond to the XML tags definition for each catalogues • MIKADO helps user to write the SQL orders to fulfill these variables with the information available in the database or in the Excel file

  19. MIKADO – Automatic XML generation • 4 STEPS • Connect to a database or an Excel file and test the connection • Write the queries to retrieve information in the database or in the Excel file, test the queries • Save the queries in a “Configuration file” • Generate the XML files using the “Configuration file”

  20. MIKADO – Automatic XML generation

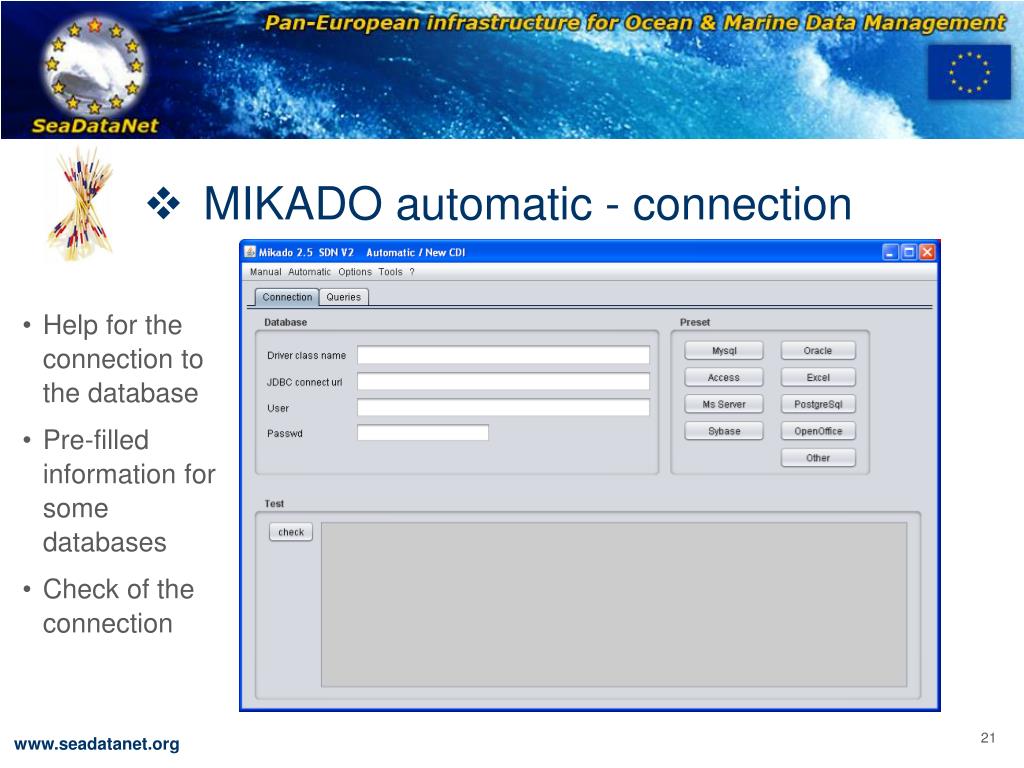

  21. MIKADO automatic - connection • Help for the connection to the database • Pre-filled information for some databases • Check of the connection

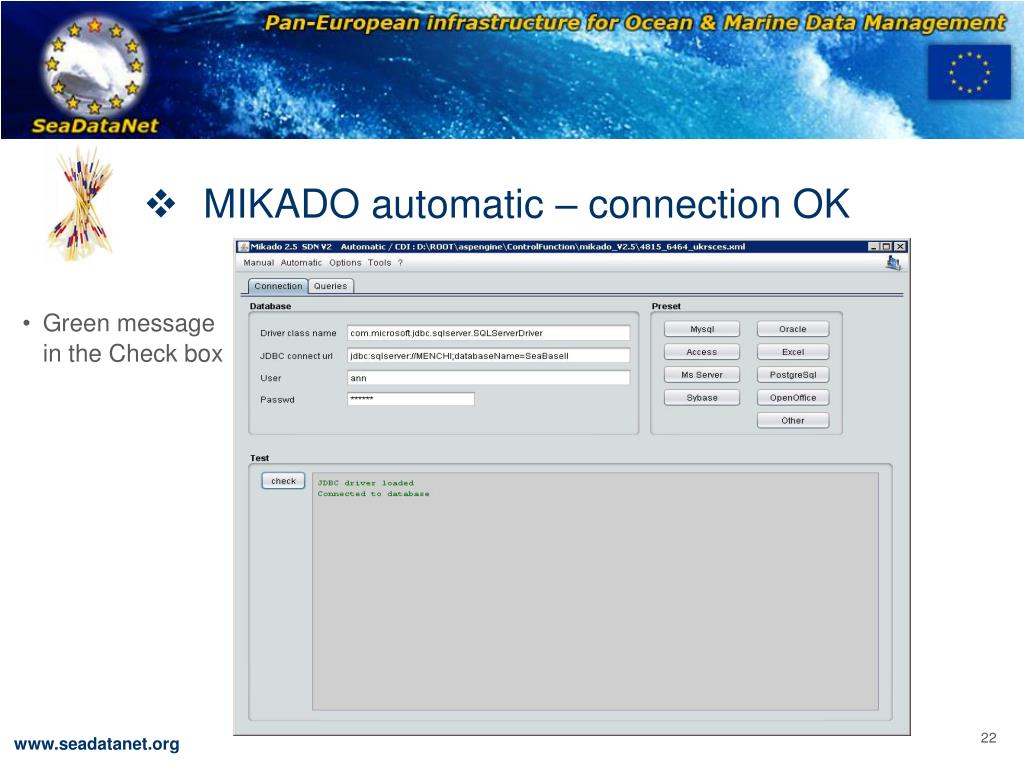

  22. MIKADO automatic – connection OK • Green message in the Check box

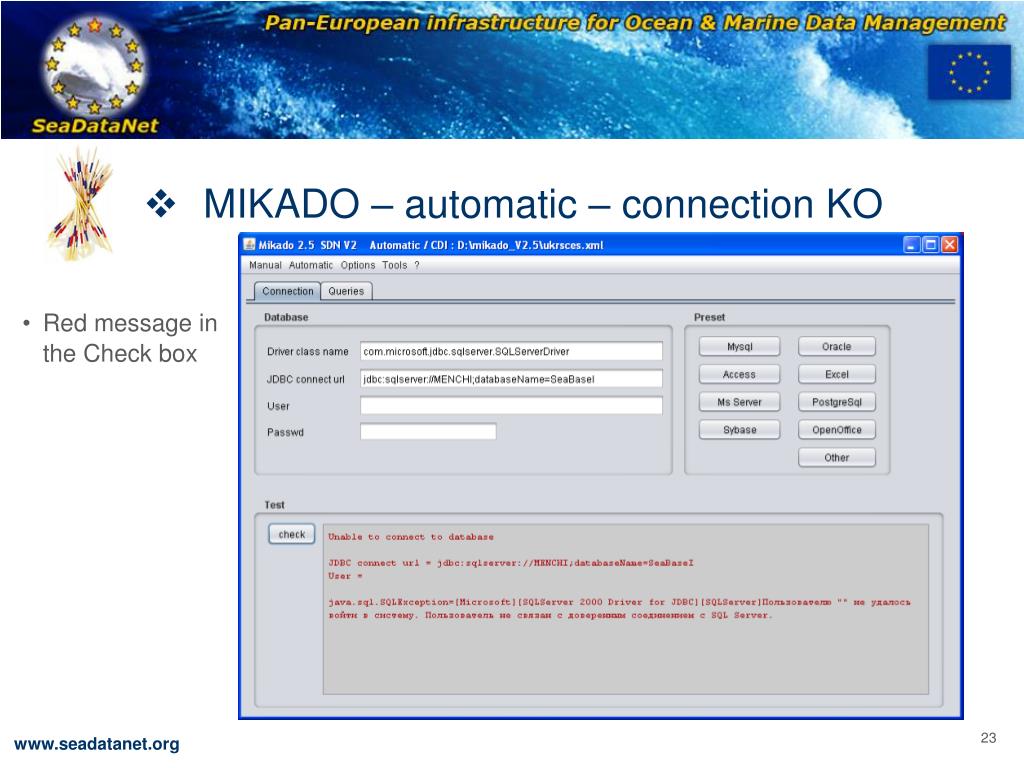

  23. MIKADO – automatic – connection KO • Red message in the Check box

  24. MIKADO automatic – queries • Expendable trees • Main query Return the LOCAL ID • Single queries Return 1 row • Multiple queries Return 1 to n rows • Single an multiple queries related to each LOCAL ID returned by the main query.

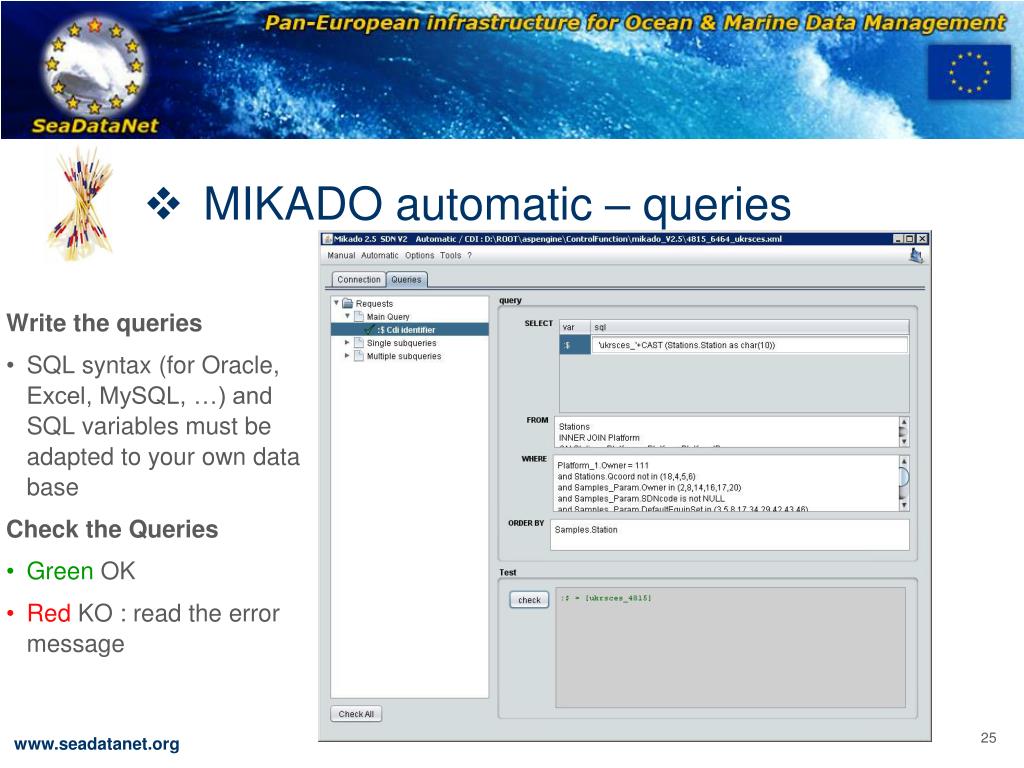

  25. MIKADO automatic – queries • Write the queries • SQL syntax (for Oracle, Excel, MySQL, …) and SQL variables must be adapted to your own data base • Check the Queries • Green OK • Red KO : read the error message

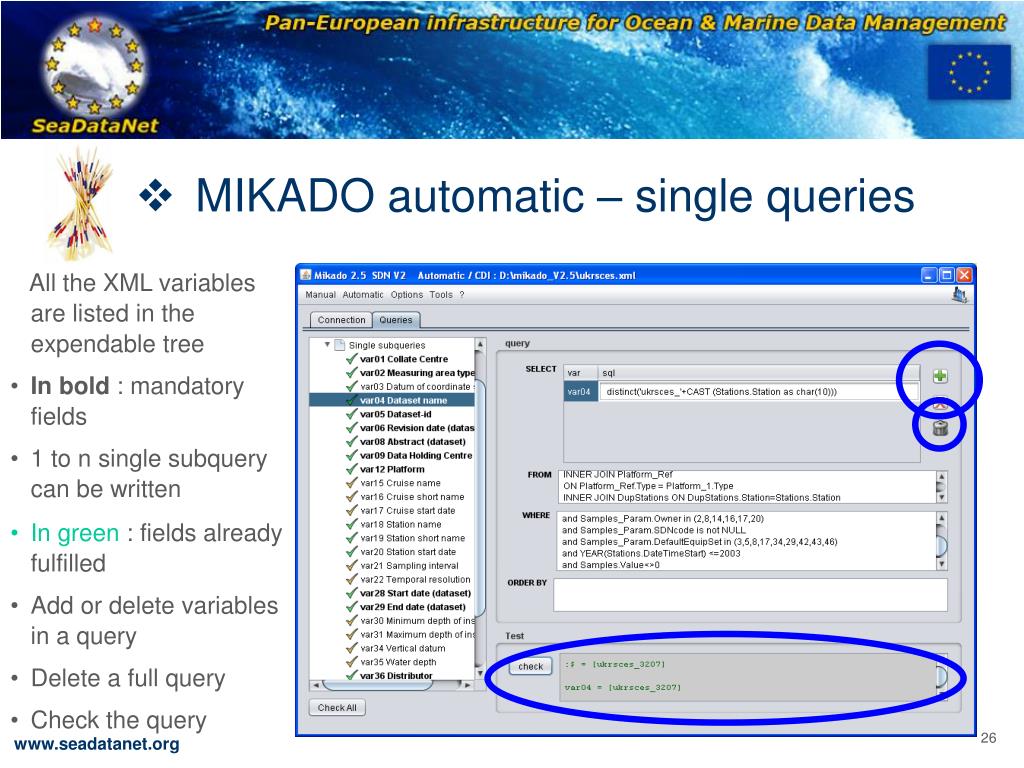

  26. MIKADO automatic – single queries • All the XML variables are listed in the expendable tree • In bold : mandatory fields • 1 to n single subquery can be written • In green : fields already fulfilled • Add or delete variables in a query • Delete a full query • Check the query

  27. MIKADO automatic – multiple queries • All the XML variables are listed in the expendable tree • Number of queries is pre-defined • The list of variables for each of these multiple queries is also pre-defined • In bold : mandatory field • In green : fields already fulfilled

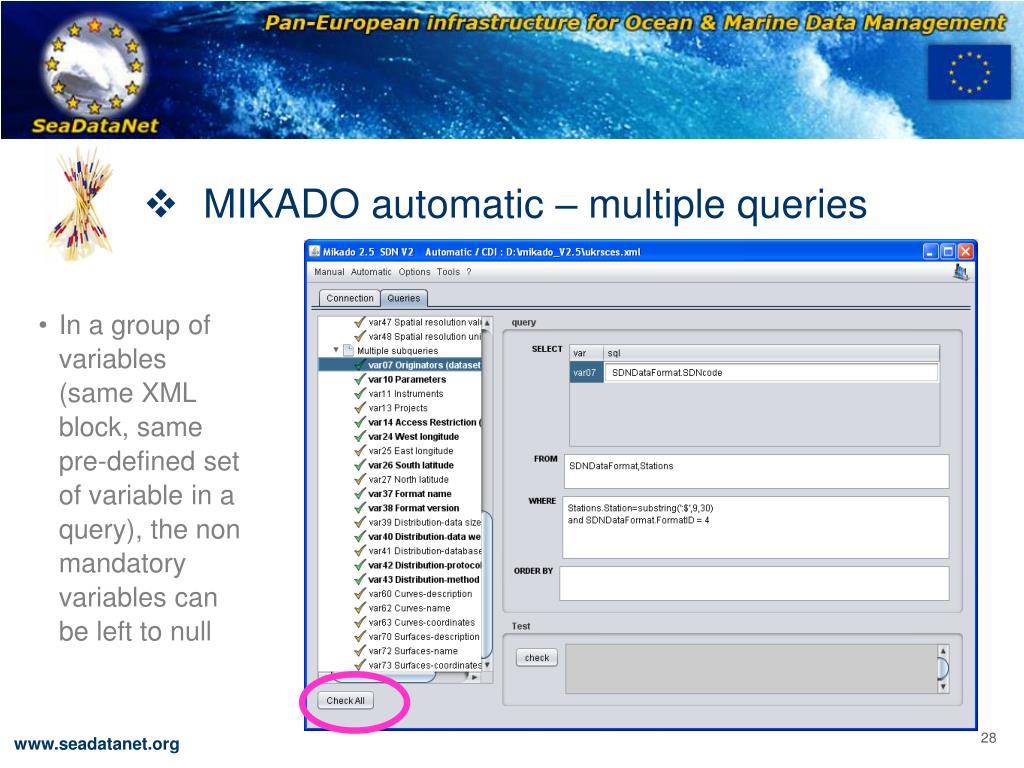

  28. MIKADO automatic – multiple queries • In a group of variables (same XML block, same pre-defined set of variable in a query), the non mandatory variables can be left to null

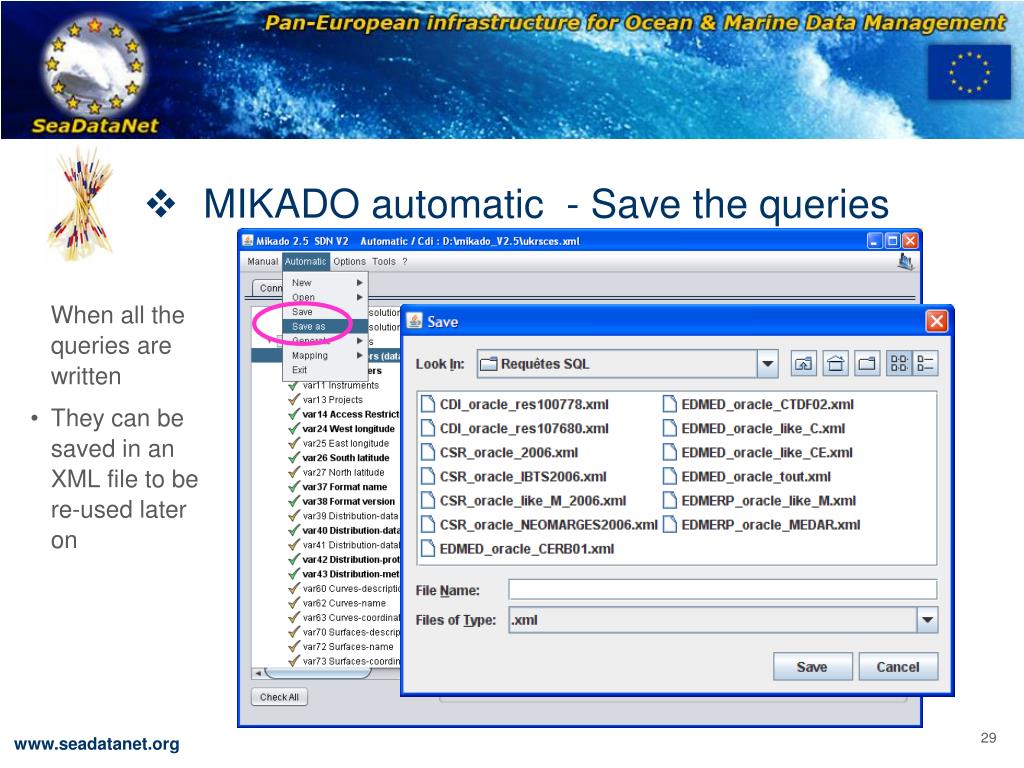

  29. MIKADO automatic - Save the queries • When all the queries are written • They can be saved in an XML file to be re-used later on

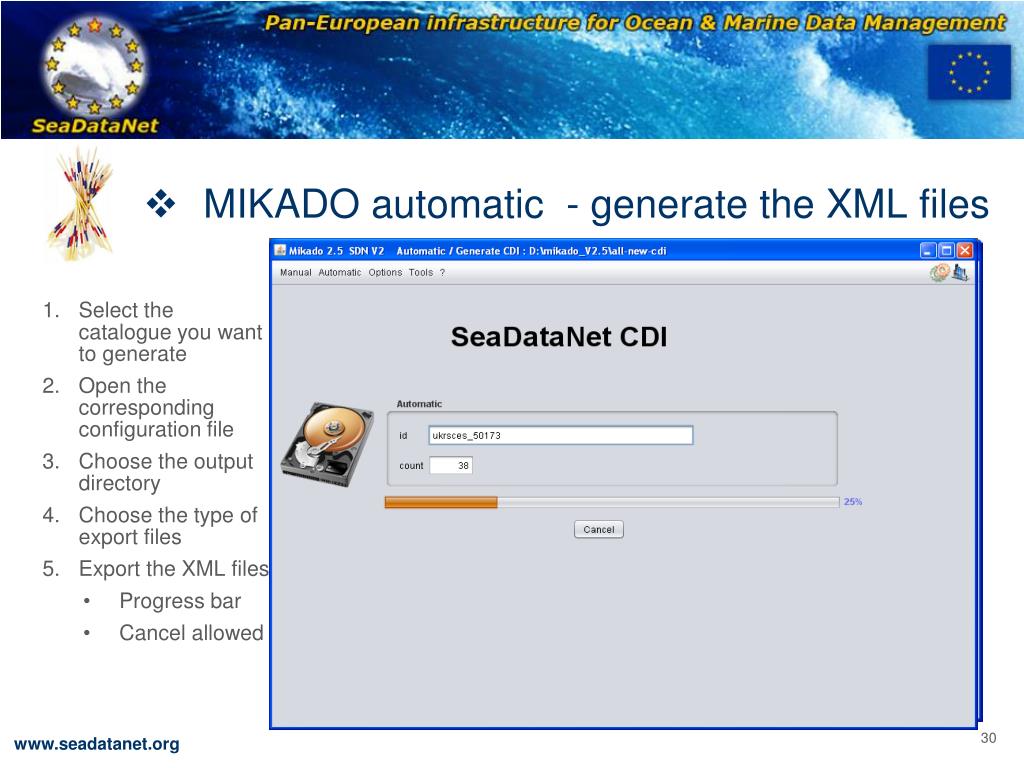

  30. MIKADO automatic - generate the XML files • Select the catalogue you want to generate • Open the corresponding configuration file • Choose the output directory • Choose the type of export files • Export the XML files • Progress bar • Cancel allowed

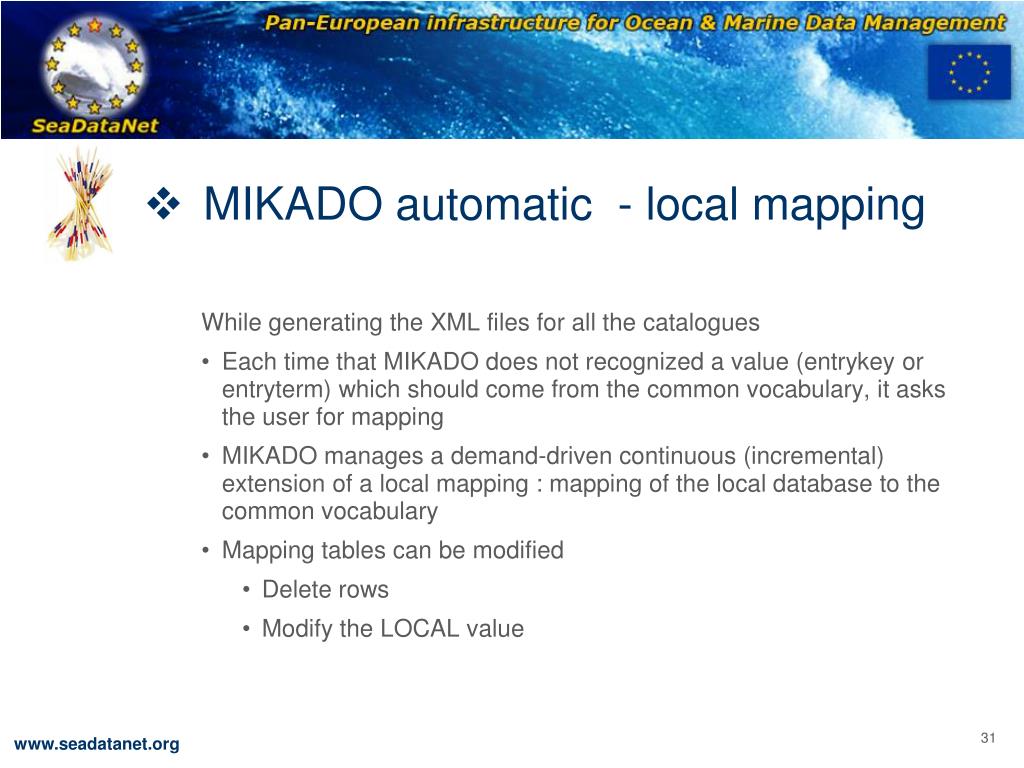

  31. MIKADO automatic - local mapping • While generating the XML files for all the catalogues • Each time that MIKADO does not recognized a value (entrykey or entryterm) which should come from the common vocabulary, it asks the user for mapping • MIKADO manages a demand-driven continuous (incremental) extension of a local mapping : mapping of the local database to the common vocabulary • Mapping tables can be modified • Delete rows • Modify the LOCAL value

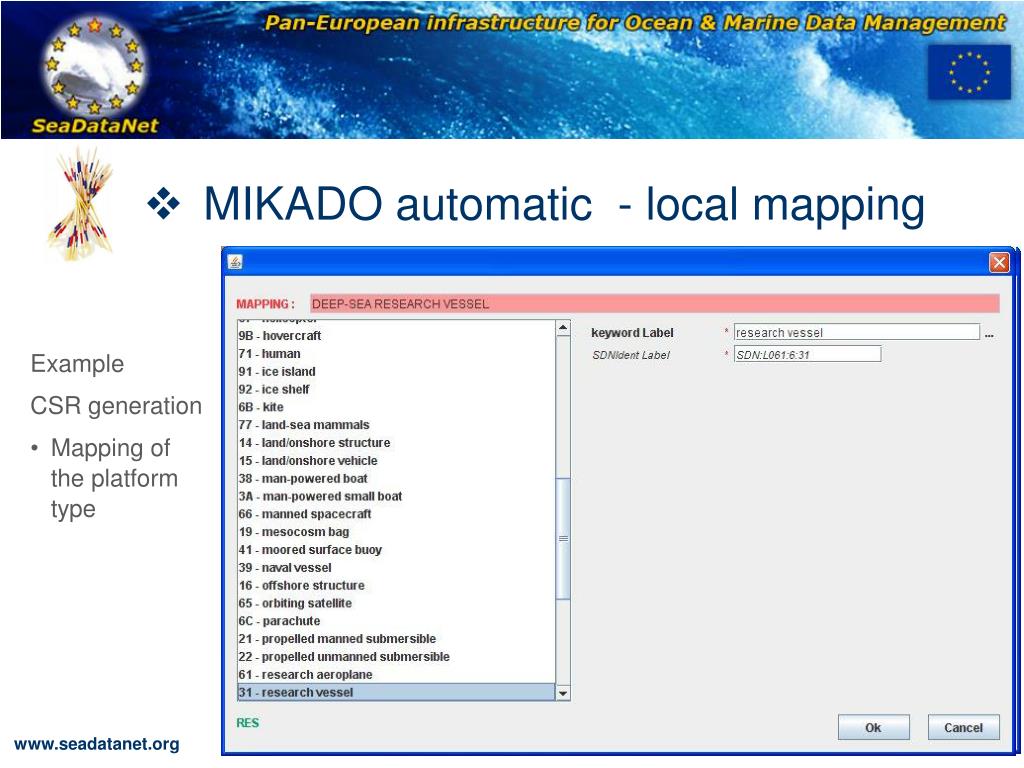

  32. MIKADO automatic - local mapping • Example • CSR generation • Mapping of the platform type

  33. MIKADO automatic - local mapping Modification of the local mapping If wrong entries have been input, it is possible to: • Delete one entry • Delete all the entries • Change the local code

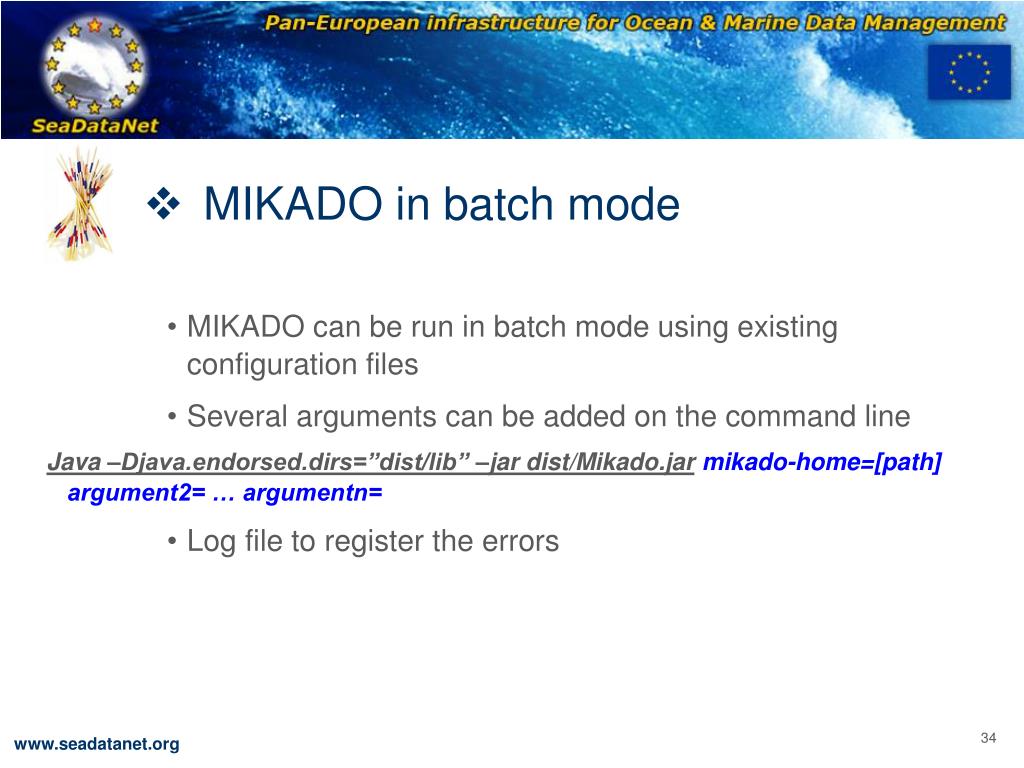

  34. MIKADO in batch mode • MIKADO can be run in batch mode using existing configuration files • Several arguments can be added on the command line • Java –Djava.endorsed.dirs=”dist/lib” –jar dist/Mikado.jarmikado-home=[path] argument2= … argumentn= • Log file to register the errors

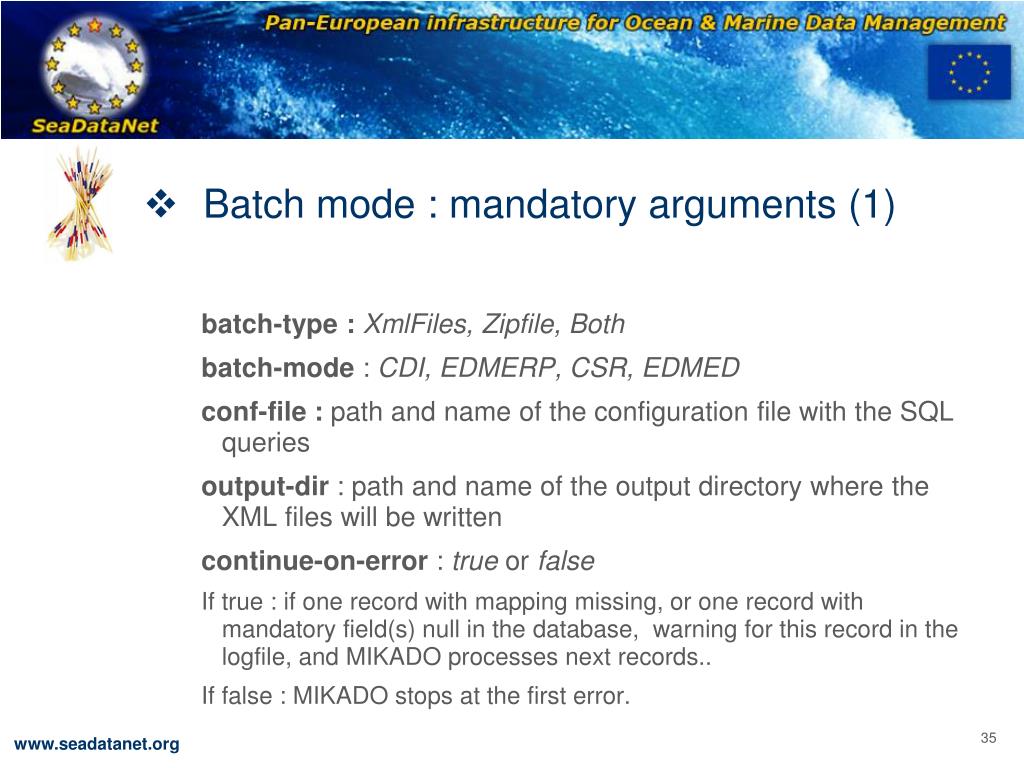

  35. Batch mode : mandatory arguments (1) • batch-type : XmlFiles, Zipfile, Both • batch-mode : CDI, EDMERP, CSR, EDMED • conf-file : path and name of the configuration file with the SQL queries • output-dir : path and name of the output directory where the XML files will be written • continue-on-error : true or false • If true : if one record with mapping missing, or one record with mandatory field(s) null in the database, warning for this record in the logfile, and MIKADO processes next records.. • If false : MIKADO stops at the first error.

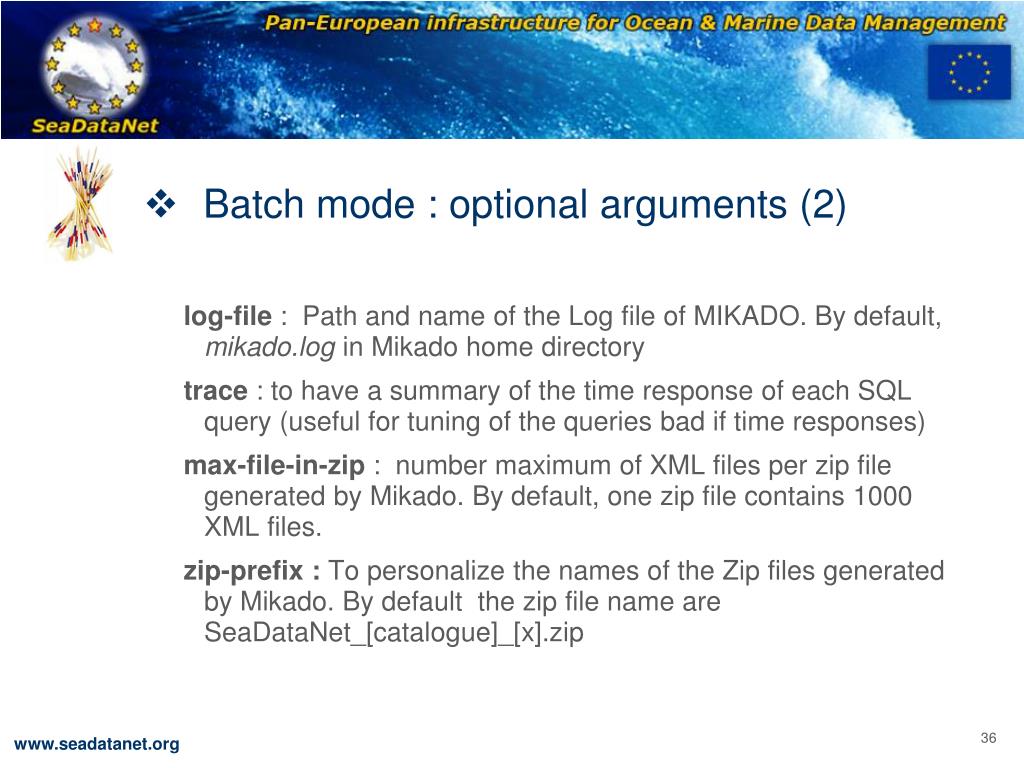

  36. Batch mode : optional arguments (2) • log-file : Path and name of the Log file of MIKADO. By default, mikado.log in Mikado home directory • trace : to have a summary of the time response of each SQL query (useful for tuning of the queries bad if time responses) • max-file-in-zip : number maximum of XML files per zip file generated by Mikado. By default, one zip file contains 1000 XML files. • zip-prefix : To personalize the names of the Zip files generated by Mikado. By default the zip file name are SeaDataNet_[catalogue]_[x].zip

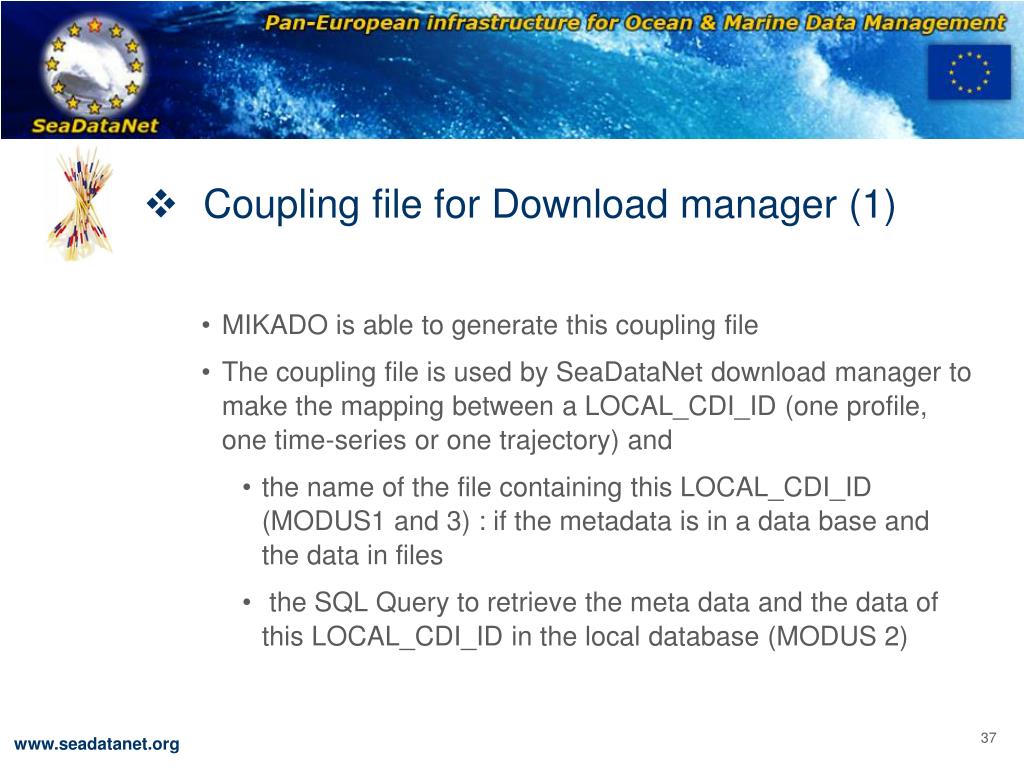

  37. Coupling file for Download manager (1) • MIKADO is able to generate this coupling file • The coupling file is used by SeaDataNet download manager to make the mapping between a LOCAL_CDI_ID (one profile, one time-series or one trajectory) and • the name of the file containing this LOCAL_CDI_ID (MODUS1 and 3) : if the metadata is in a data base and the data in files • the SQL Query to retrieve the meta data and the data of this LOCAL_CDI_ID in the local database (MODUS 2)

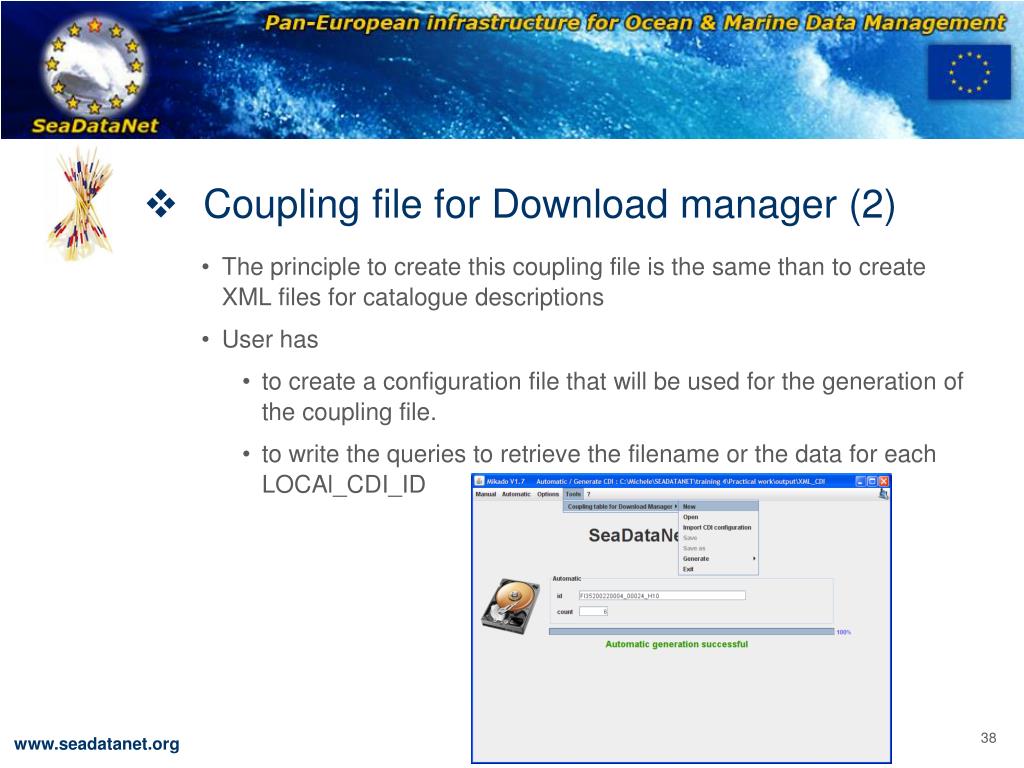

  38. Coupling file for Download manager (2) • The principle to create this coupling file is the same than to create XML files for catalogue descriptions • User has • to create a configuration file that will be used for the generation of the coupling file. • to write the queries to retrieve the filename or the data for each LOCAl_CDI_ID

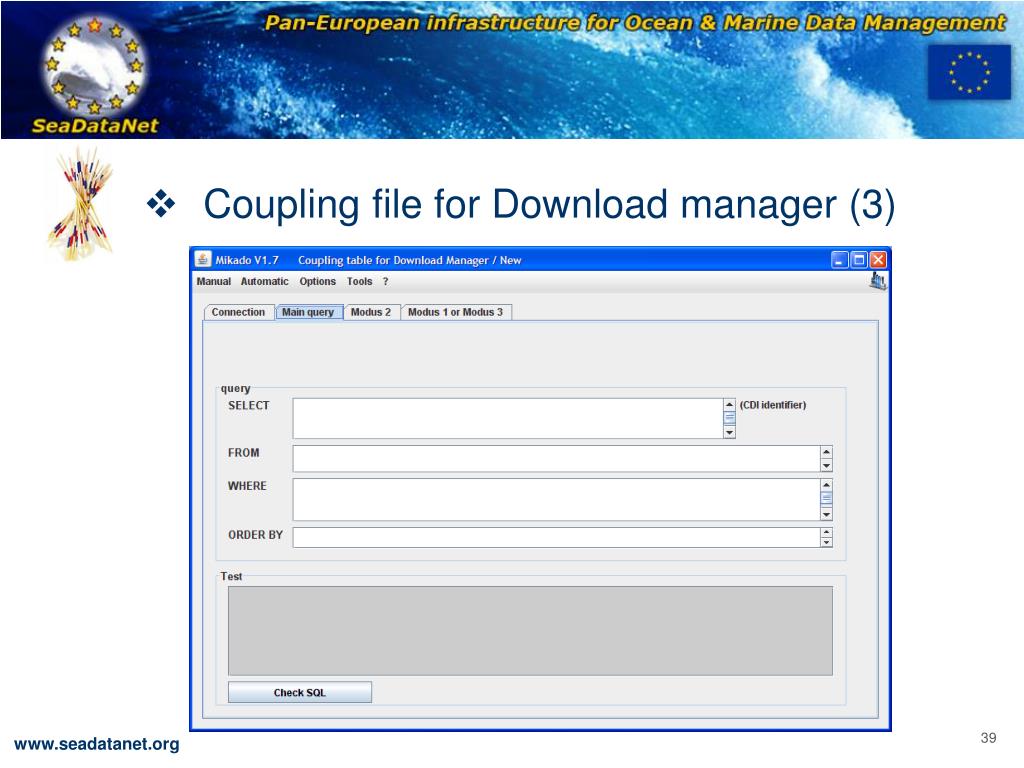

  39. Coupling file for Download manager (3)

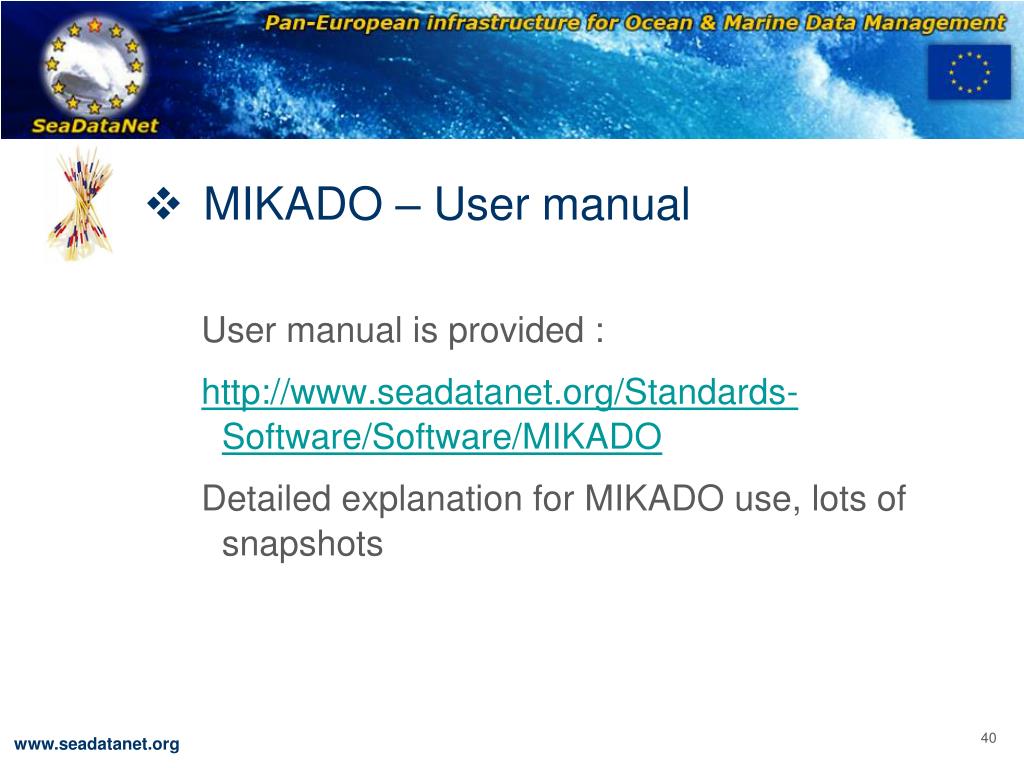

  40. MIKADO – User manual • User manual is provided : • http://www.seadatanet.org/Standards-Software/Software/MIKADO • Detailed explanation for MIKADO use, lots of snapshots

  41. ANY QUESTION?

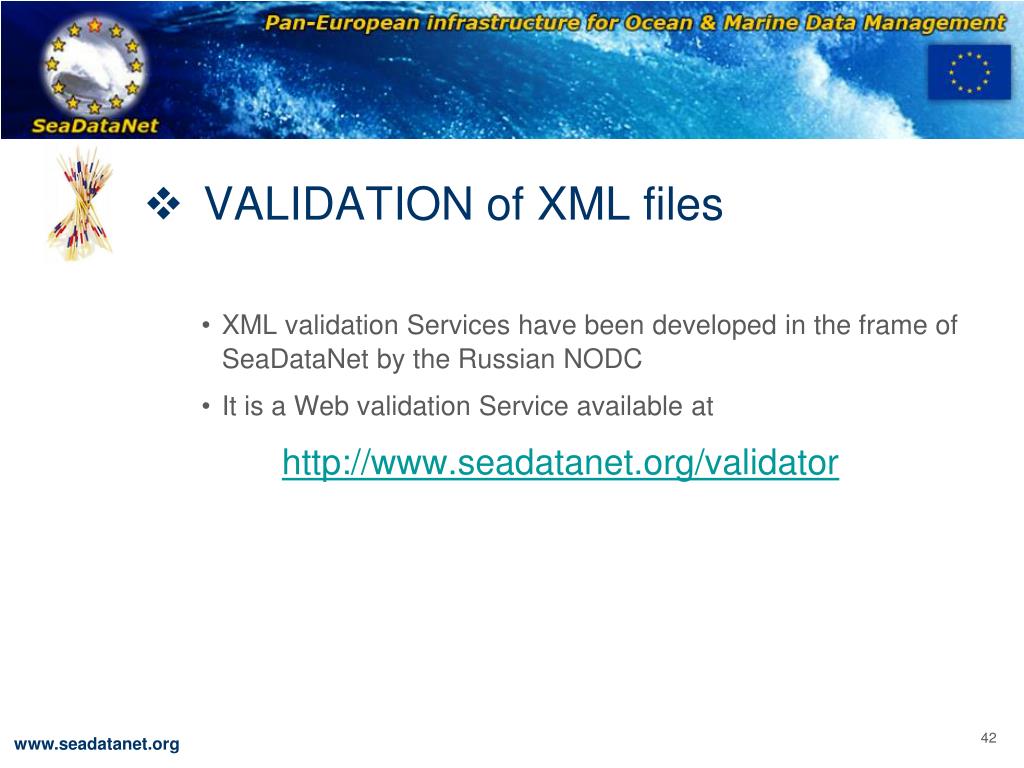

  42. VALIDATION of XML files • XML validation Services have been developed in the frame of SeaDataNet by the Russian NODC • It is a Web validation Service available at http://www.seadatanet.org/validator

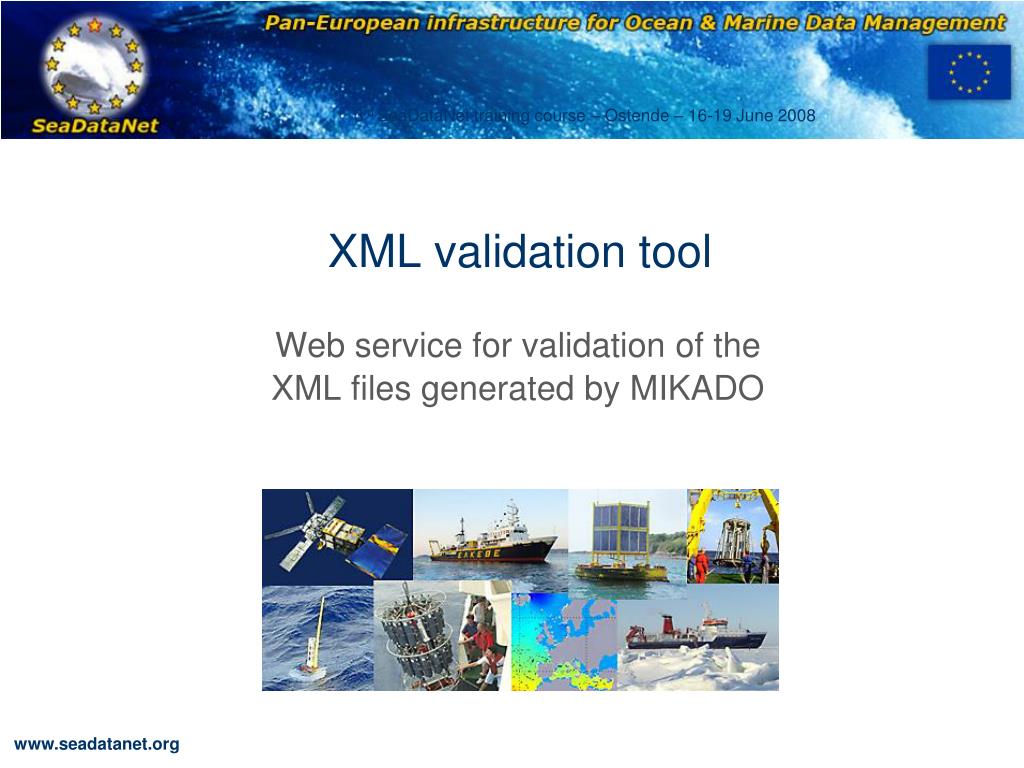

  43. 3rd SeaDataNet training course – Ostende – 16-19 June 2008 XML validation tool Web service for validation of the XML files generated by MIKADO

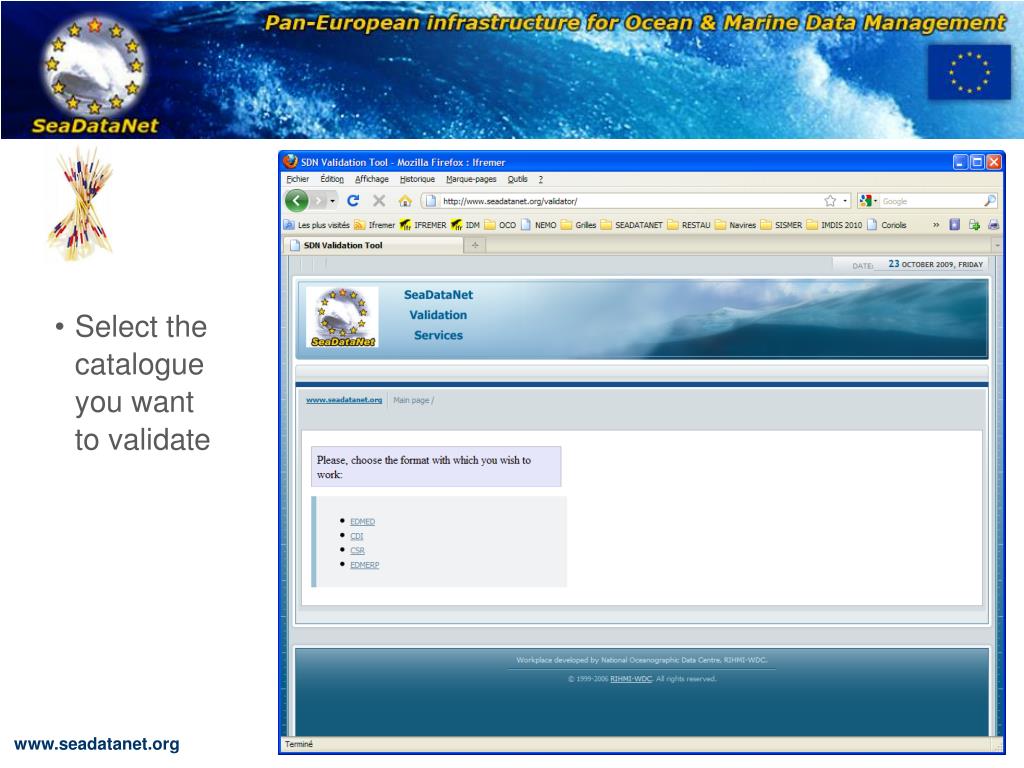

  44. Select the catalogue you want to validate

  45. View all CDI schema versions • View statistics about detected errors • Run the validation with the last version of XML schema

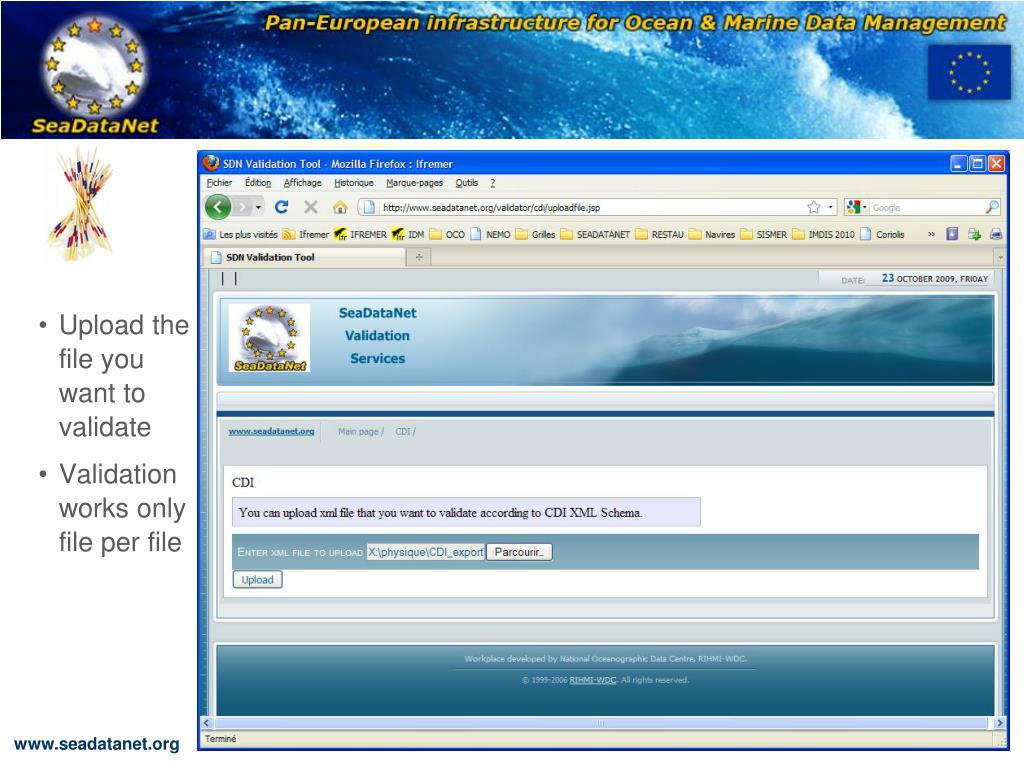

  46. Upload the file you want to validate • Validation works only file per file

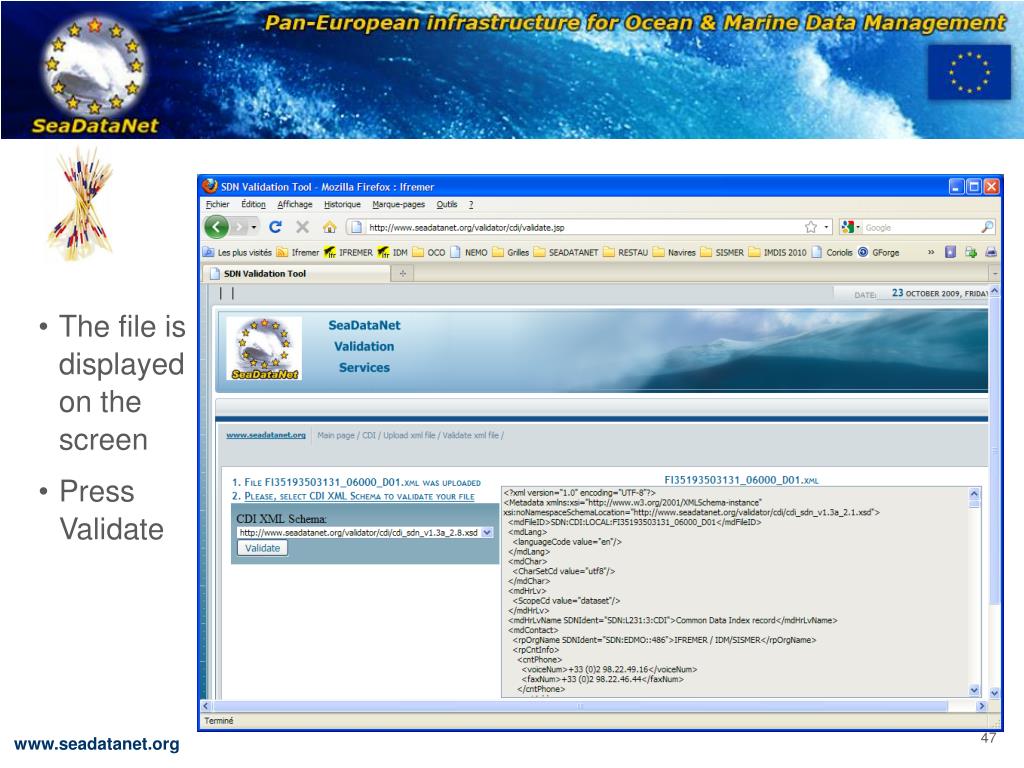

  47. The file is displayed on the screen • Press Validate

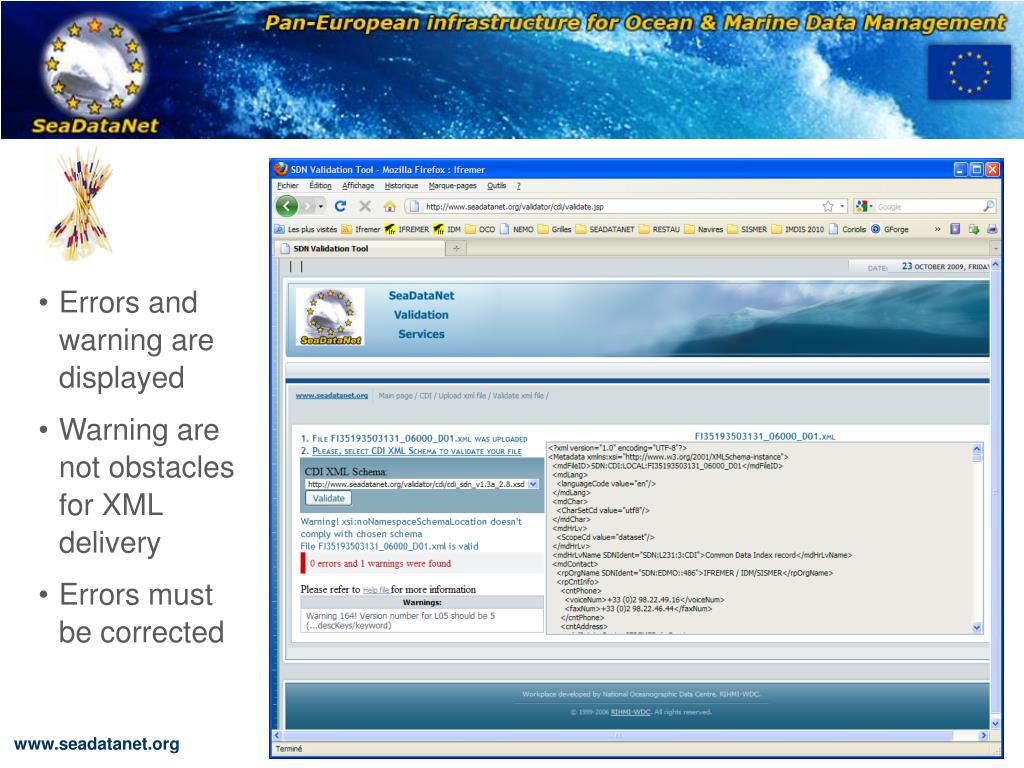

  48. Errors and warning are displayed • Warning are not obstacles for XML delivery • Errors must be corrected

  49. ANY QUESTION?
