  1. Nikhil Udhyog Office @ DLF Tower 31st Jan 2009

  2. Reception area (backdrop feature wall)

  3. Reception area (backdrop wall)

  4. Reception area Company name and Logo suspended from the Ceiling Beige Paint finish on the side wall Undulated Irregular Reception backdrop with pop punning and White Painted finish and direct Lighting from the above to distinguish the irregularities on the surface with their shadows. Reception Table (Description)

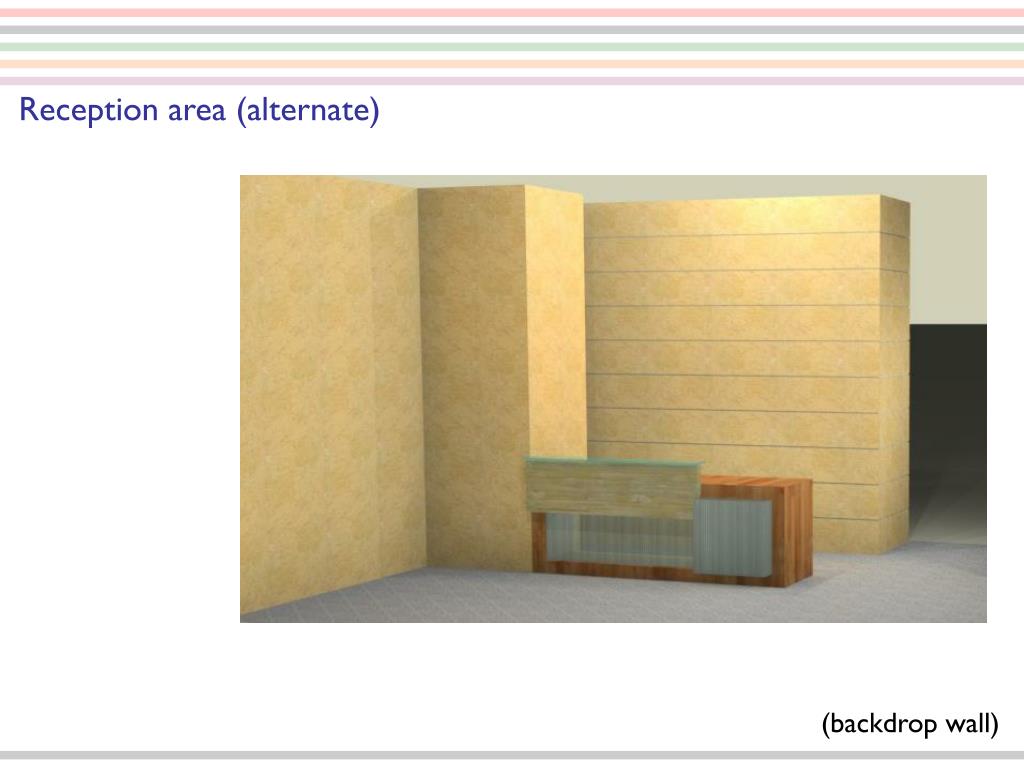

  5. Reception area (alternate) (backdrop wall)

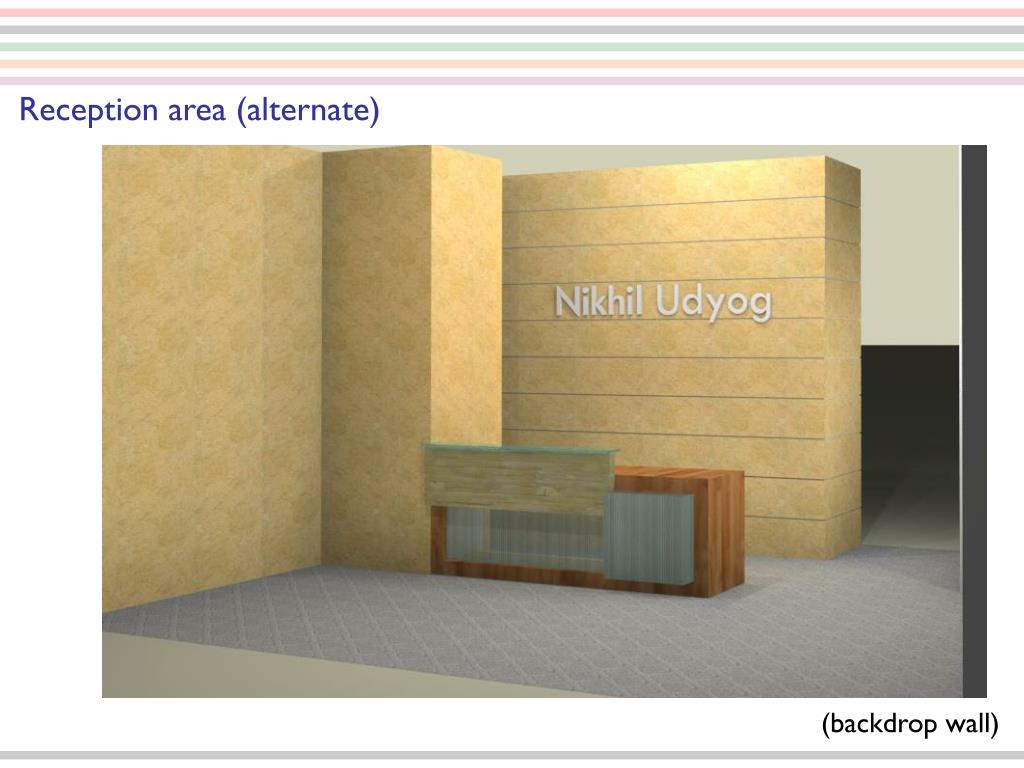

  6. Reception area (alternate) (backdrop wall)

  7. Reception area (alternate) Beige Paint finish on the side wall Company name and Logo fixed on the stone cladding Regular Polished Sandstone finish of 300mm slits and 20mm grooves in between Reception Table (Description)

  8. Conference Room (view from corridor)

  9. Conference Room (view from corridor)

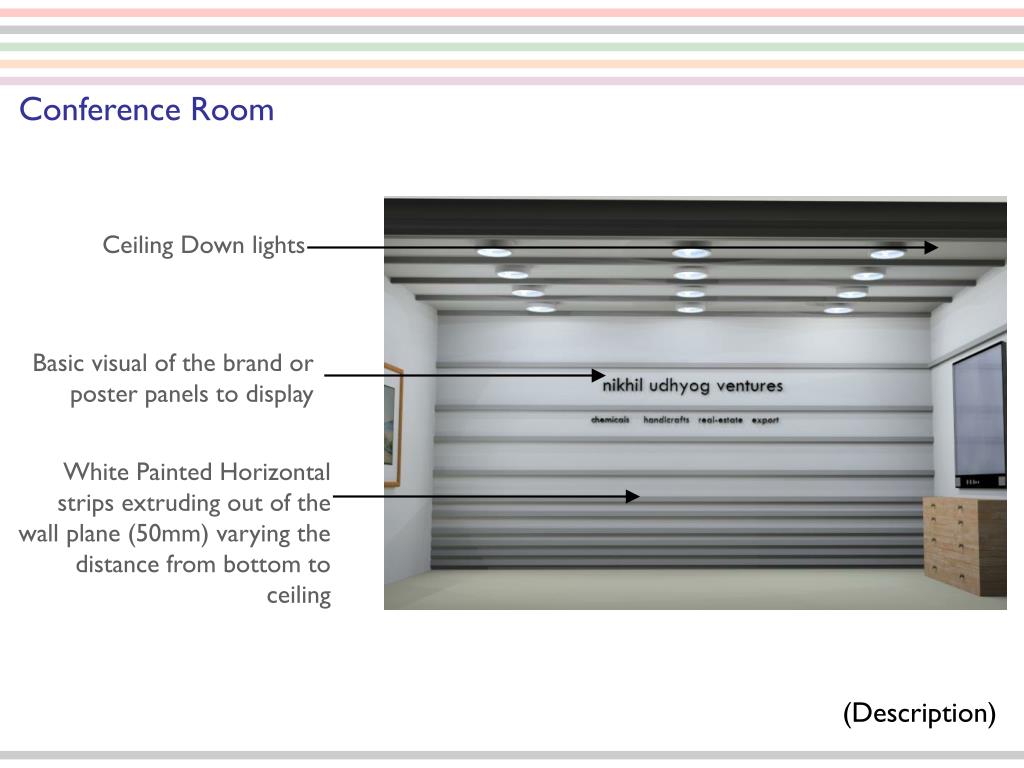

  10. Conference Room Ceiling Down lights Basic visual of the brand or poster panels to display White Painted Horizontal strips extruding out of the wall plane (50mm) varying the distance from bottom to ceiling (Description)

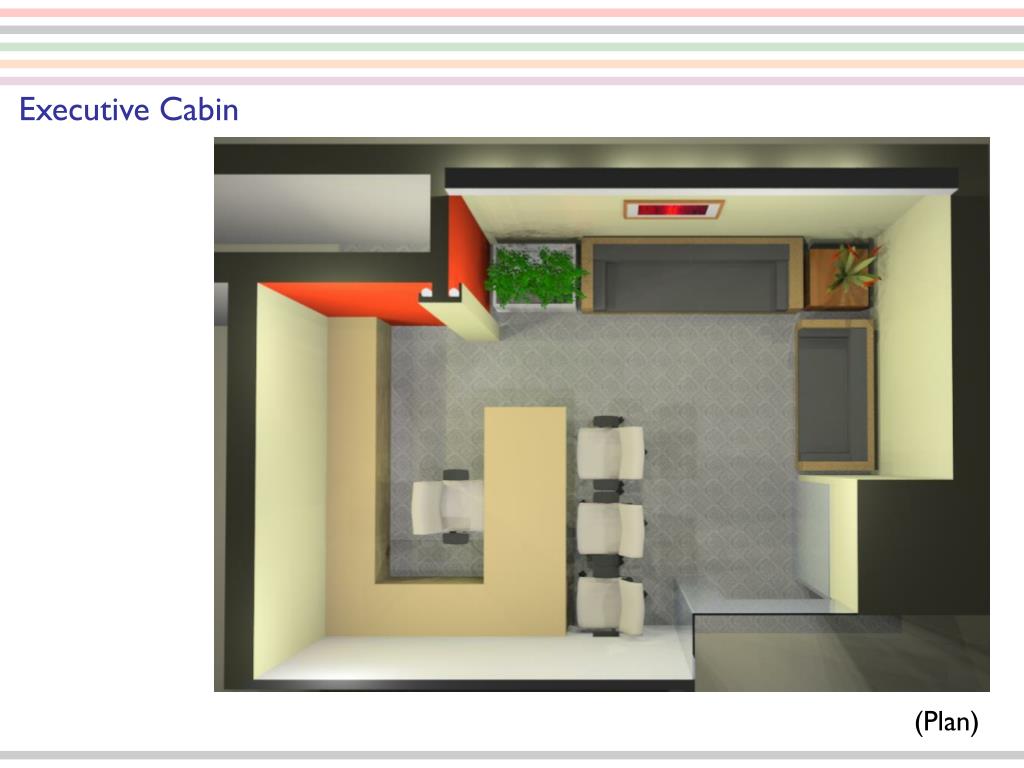

  11. Executive Cabin (Plan)

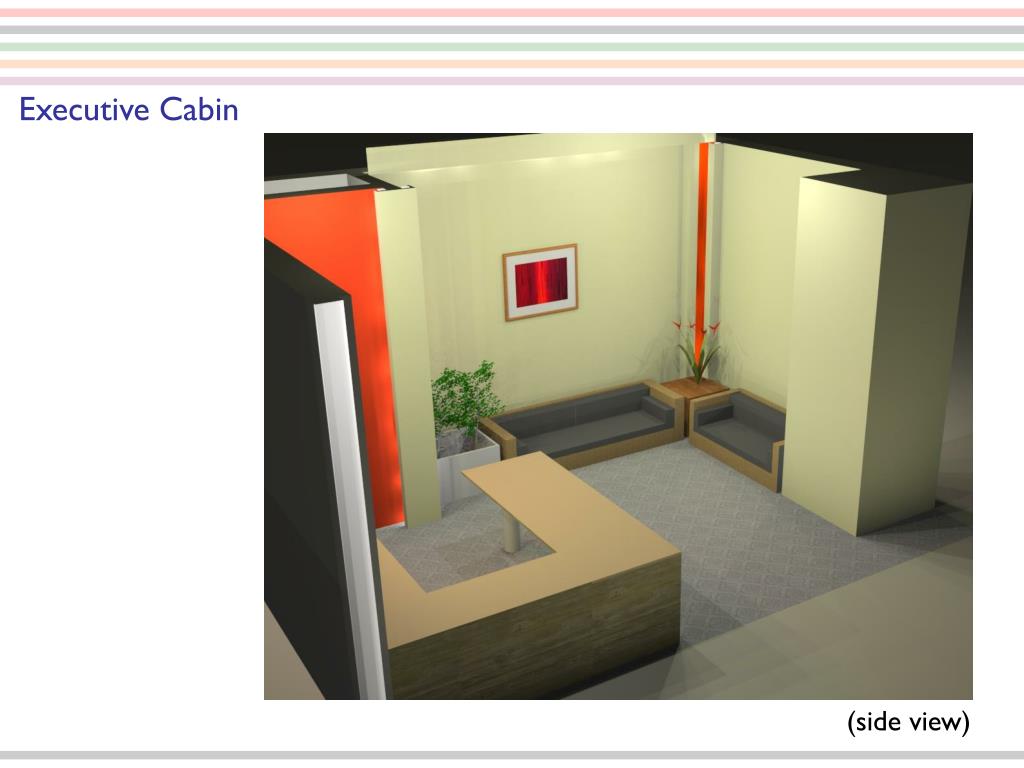

  12. Executive Cabin (side view)

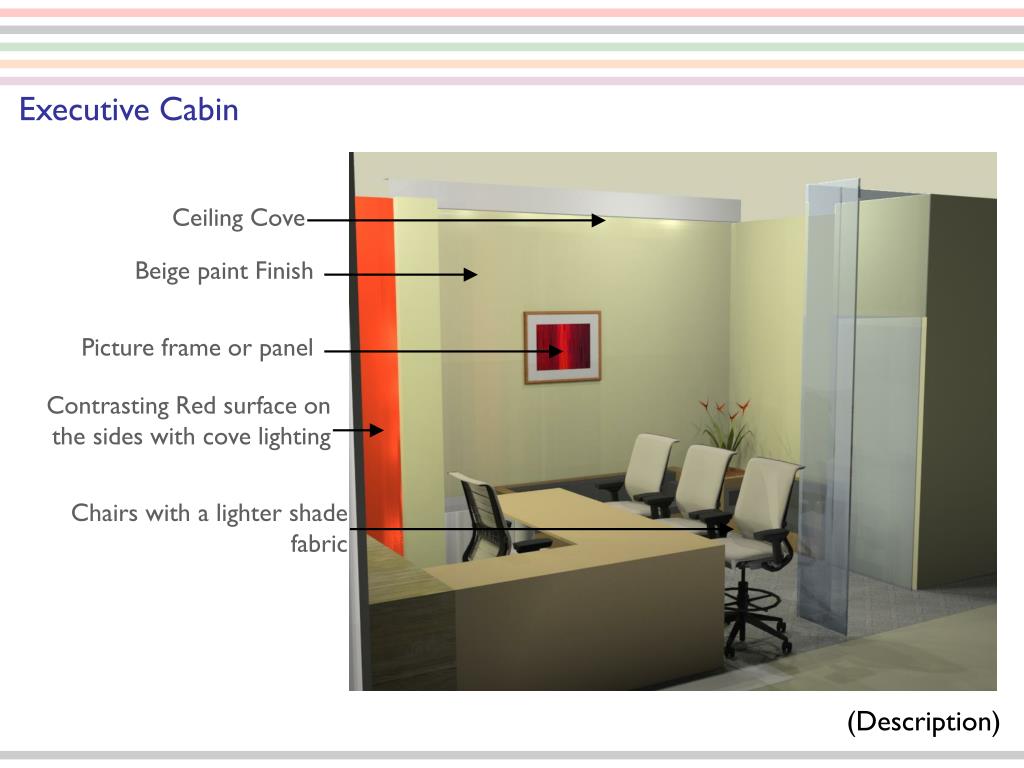

  13. Executive Cabin Ceiling Cove Beige paint Finish Picture frame or panel Contrasting Red surface on the sides with cove lighting Chairs with a lighter shade fabric (Description)

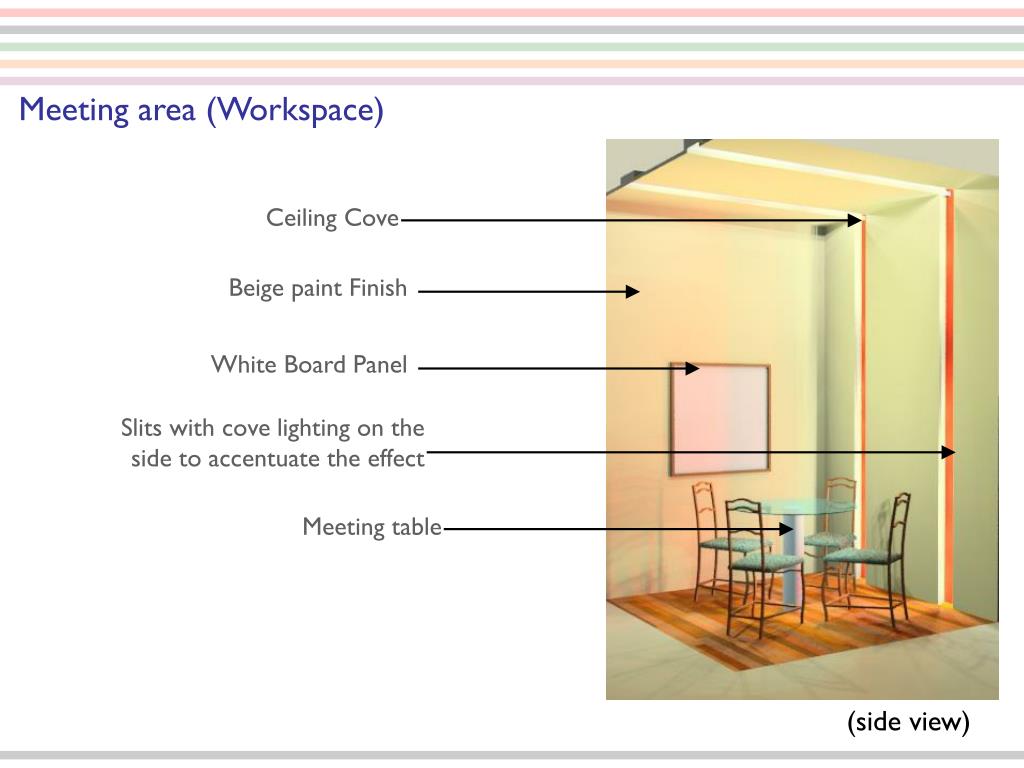

  14. Meeting area (Workspace) Ceiling Cove Beige paint Finish White Board Panel Slits with cove lighting on the side to accentuate the effect Meeting table (side view)

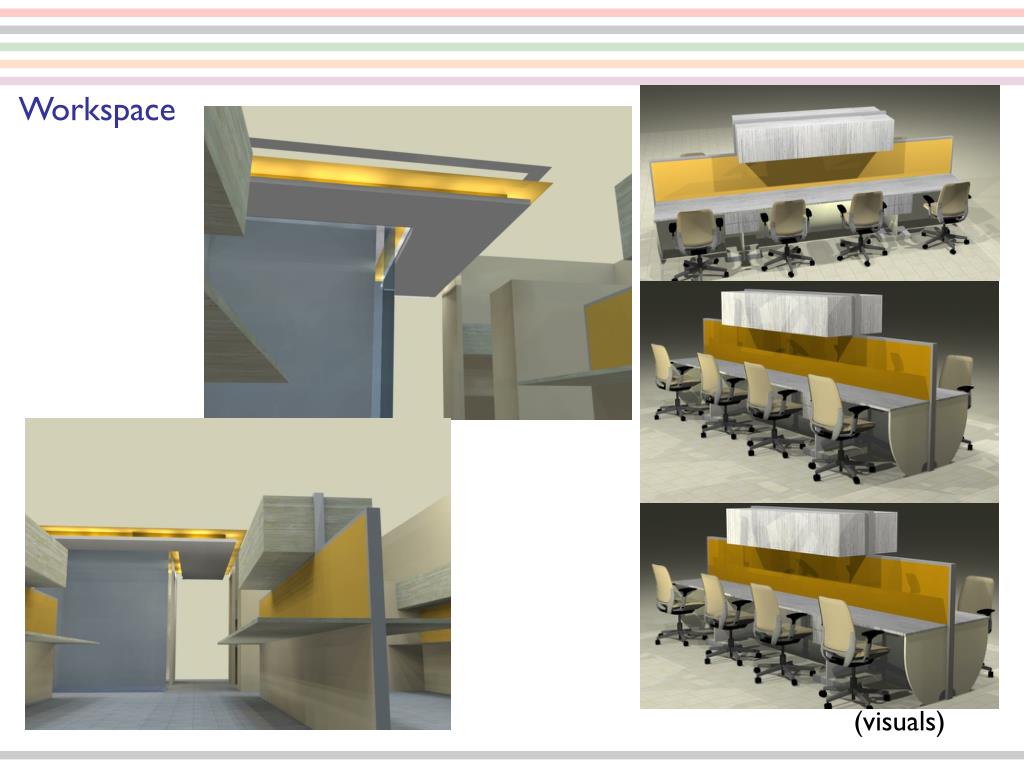

  15. Workspace (visuals)

  16. Workspace (typical workstations)

  17. Workspace (typical workstations)

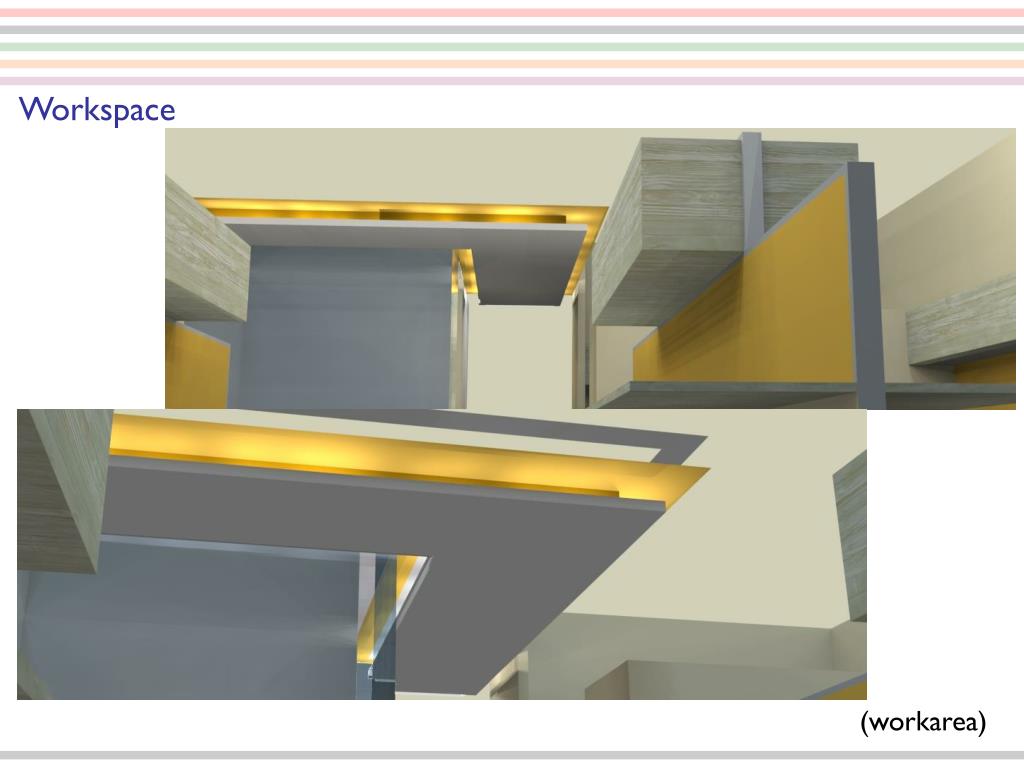

  18. Workspace (workarea)

  19. Toilet Fixtures Washbasin Roca diverta

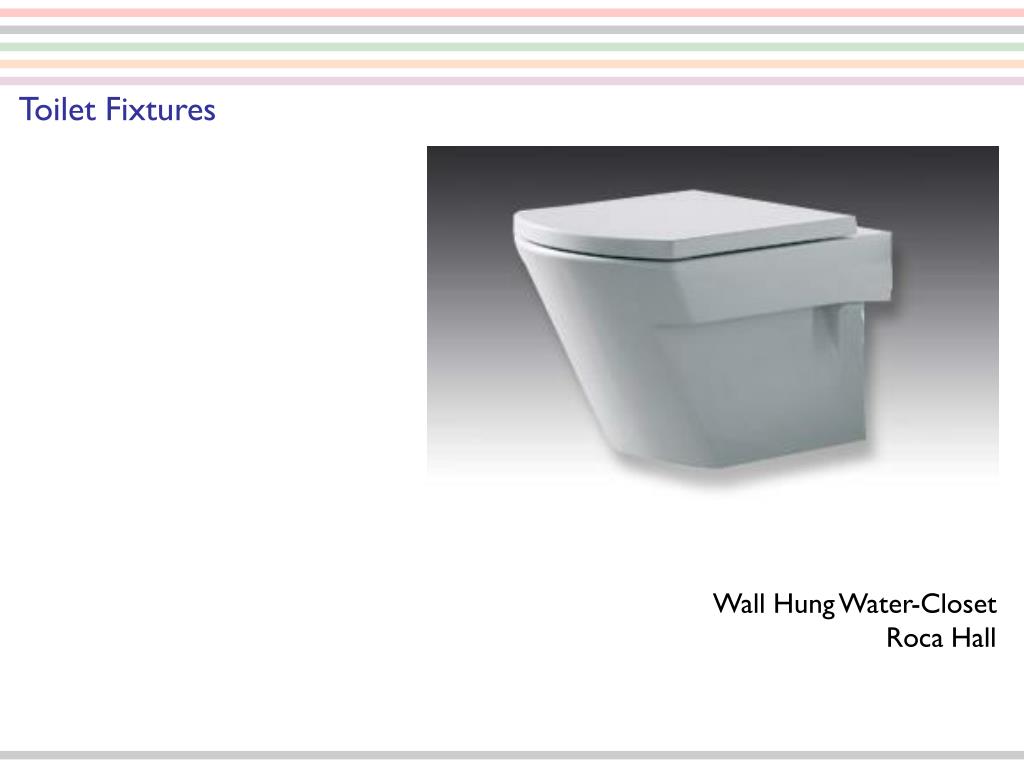

  20. Toilet Fixtures Wall Hung Water-Closet Roca Hall
