Presentation Transcript


May 2013

SUM410

Getting the Best Performance with Citrix NetScaler

Edward Targonski

May 2013


Agenda

Agenda

  • Netscaler Model and Network Deployment Options

  • Performance Enhancing Features

  • Commonly Used Troubleshooting Tools and Commands

  • Questions?

  • Conclusion


May 2013

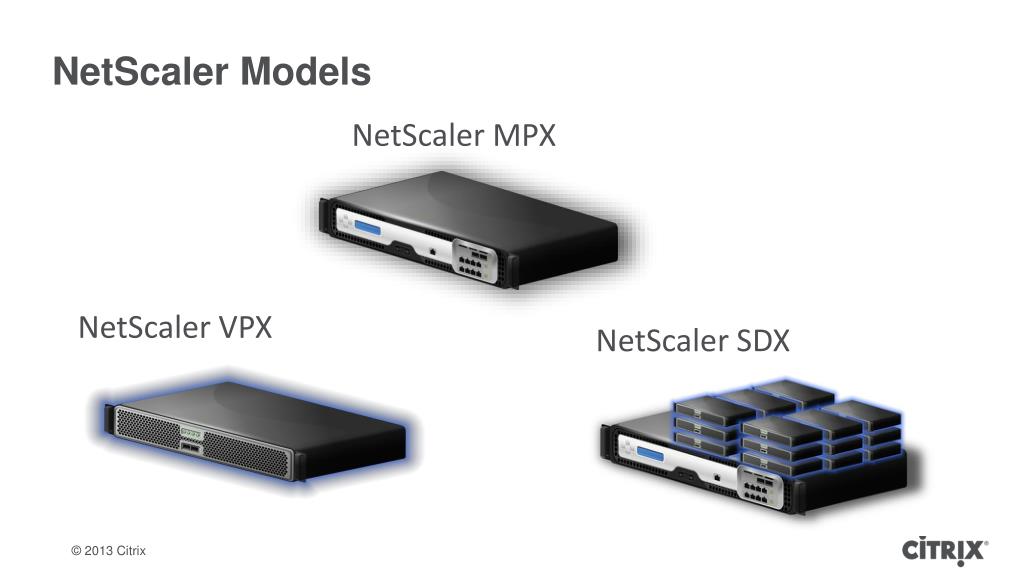

Netscaler Models


Netscaler models

NetScaler Models

NetScaler MPX

NetScaler VPX

NetScaler SDX


Differences between mpx and vpx

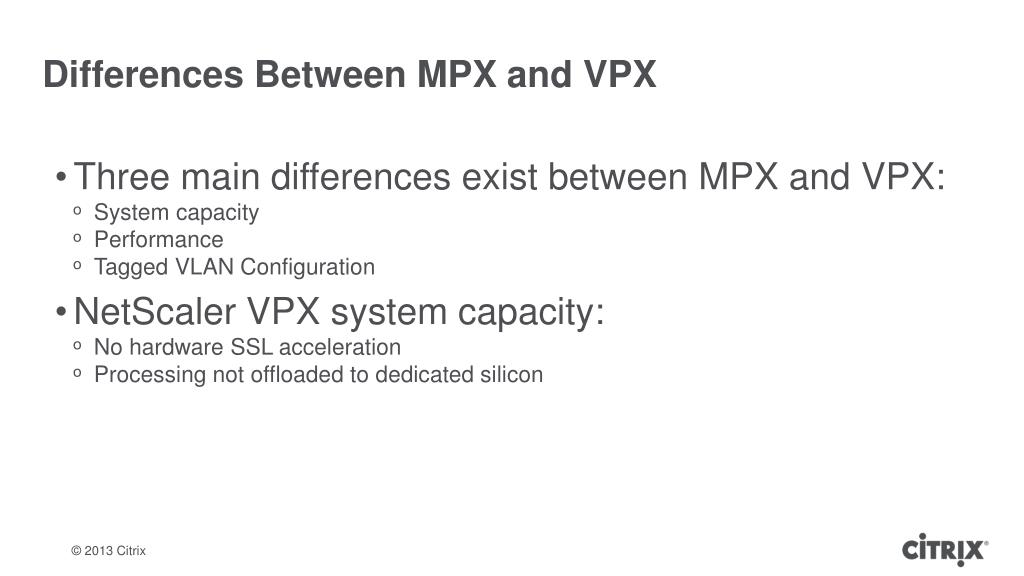

Differences Between MPX and VPX

  • Three main differences exist between MPX and VPX:

    • System capacity

    • Performance

    • Tagged VLAN Configuration

  • NetScaler VPX system capacity:

    • No hardware SSL acceleration

    • Processing not offloaded to dedicated silicon


When to use which

When to Use Which?

NetScalerAppliances

NetScalerVPX

  • Gig+ performance

  • High volume SSL Offload

  • >100 SSL VPN CCUs

  • FIPS requirements

  • Physical device security

  • Labs/test environments

  • Development environments

  • “Datacenter-in-a-box”

  • CPU-intensive workloads

  • Frequently moved apps

  • Fast/remote deployment


Netscaler sdx

NetScaler SDX

Instances, not partitions

Complete CPU isolation

Complete memory isolation

Version independence

High availability independence

Lifecycle independence


Network topologies one armed

Network TopologiesOne-Armed

If you are able to, one-armed topologies are the preferred method of deploying NetScaler in most environments.


Network topologies two armed

Network TopologiesTwo-Armed

The most common implementation of two-armed topologies are when a NetScaler is replacing another legacy two-armed device in a network


May 2013

Performance Enhancing Features and Settings


Tcp connection without netscaler

Client

Server

FIN

SYN+ACK

SYN

ACK

ACK

ACK

FIN

GET

Data

Data

Data

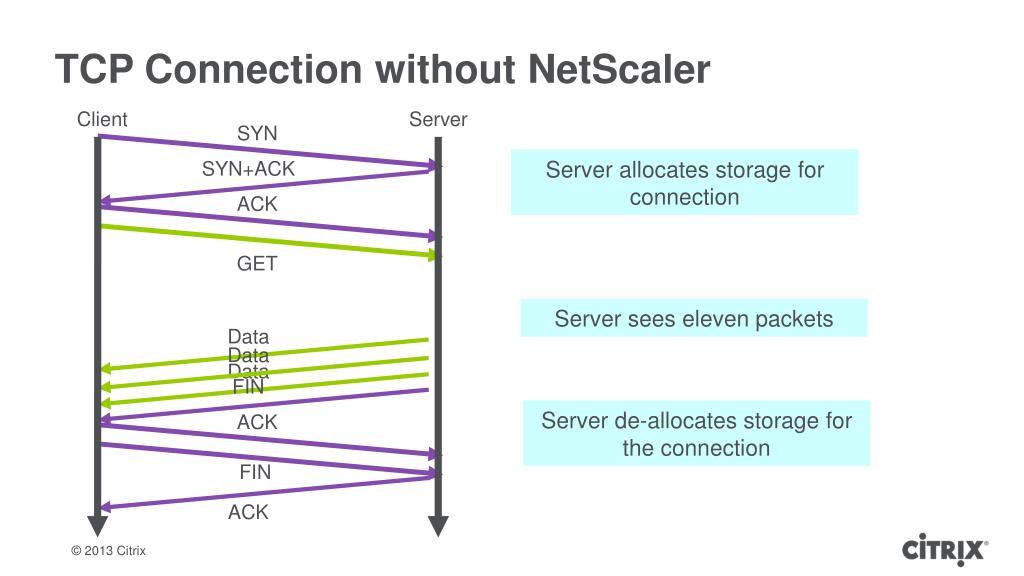

TCP Connection without NetScaler

Server allocates storage for connection

Server sees eleven packets

Server de-allocates storage for the connection


Transaction with netscaler

Client

NetScaler

Server

ACK

SYN+ACK

SYN

ACK

FIN

ACK

GET

GET

Data

Data

Data

Data

Data

Data

FIN

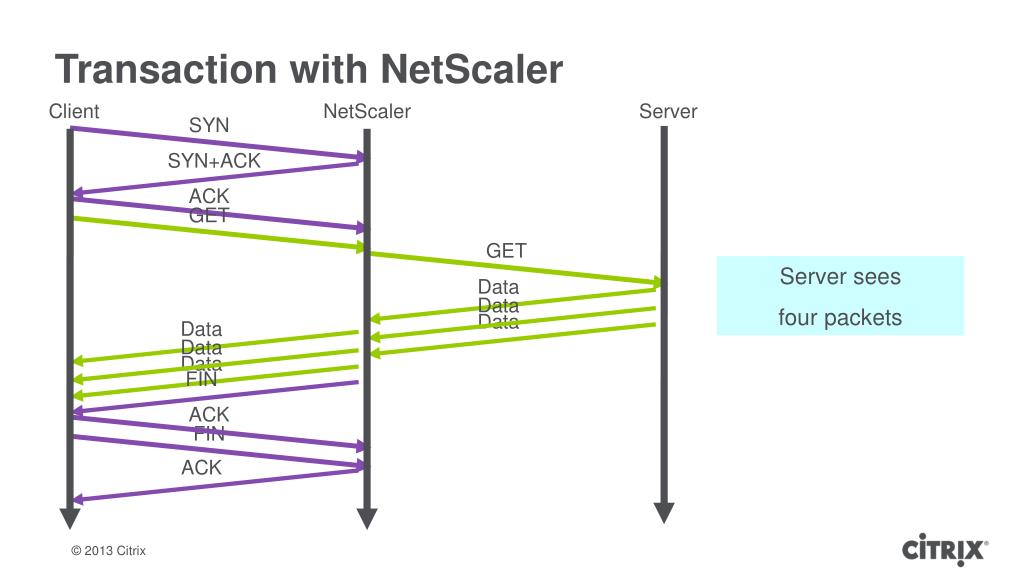

Transaction with NetScaler

Server sees

four packets


May 2013

Global Performance Settings


Global settings

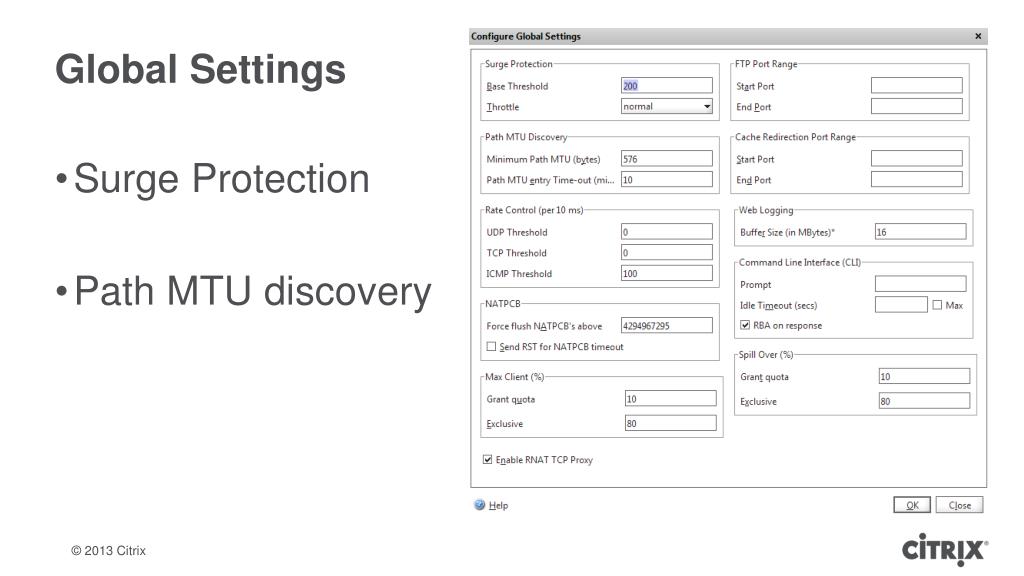

Global Settings

  • Surge Protection

  • Path MTU discovery


Http parameters

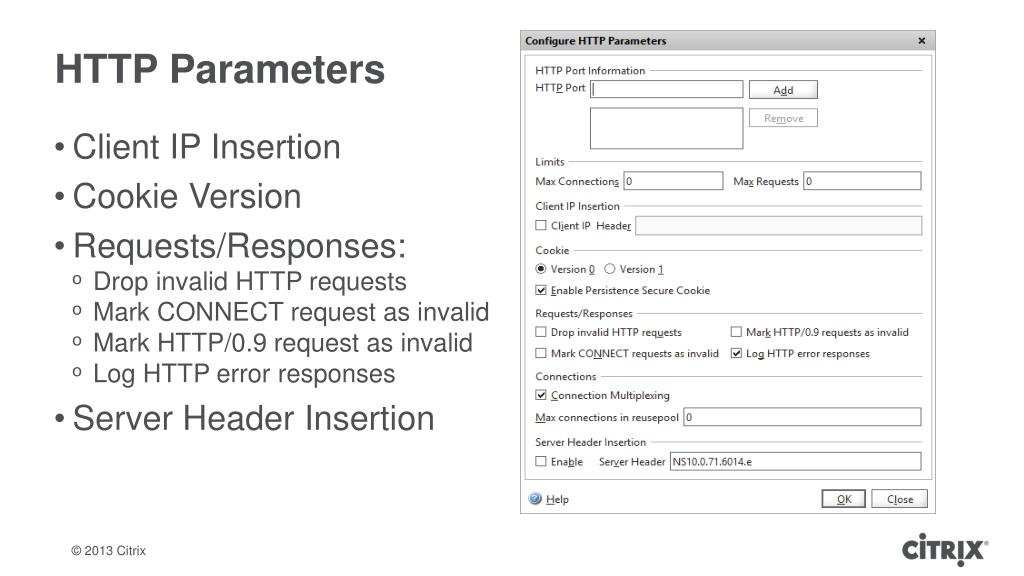

HTTP Parameters

  • Client IP Insertion

  • Cookie Version

  • Requests/Responses:

    • Drop invalid HTTP requests

    • Mark CONNECT request as invalid

    • Mark HTTP/0.9 request as invalid

    • Log HTTP error responses

  • Server Header Insertion


Tcp parameters

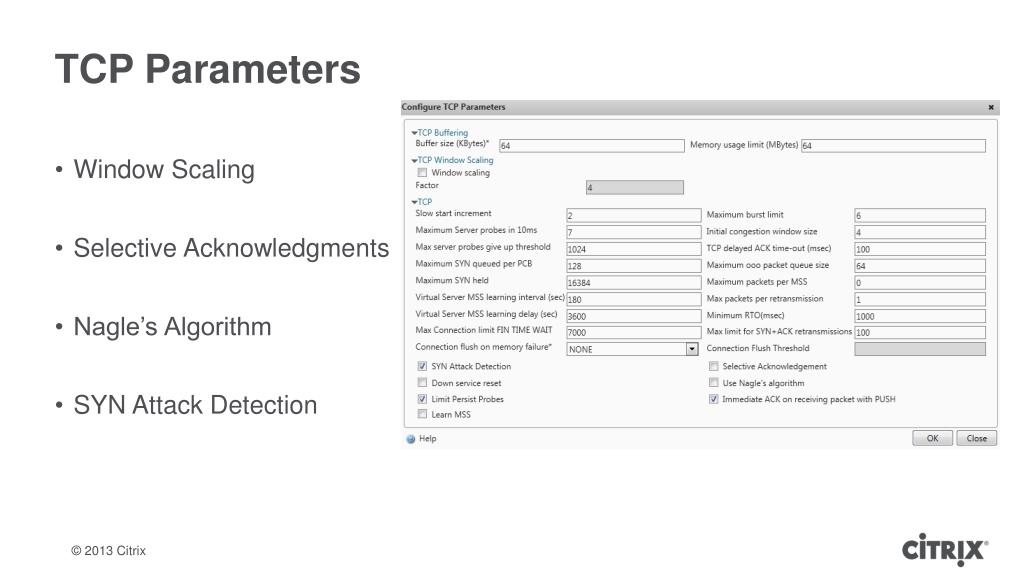

TCP Parameters

  • Window Scaling

  • Selective Acknowledgments

  • Nagle’s Algorithm

  • SYN Attack Detection


Performance enhancing features

Performance Enhancing Features

Compression

SSL Offload

Caching

TCP Session

Management

Citrix Confidential - Do Not Distribute


Performance enhancing features ssl offload

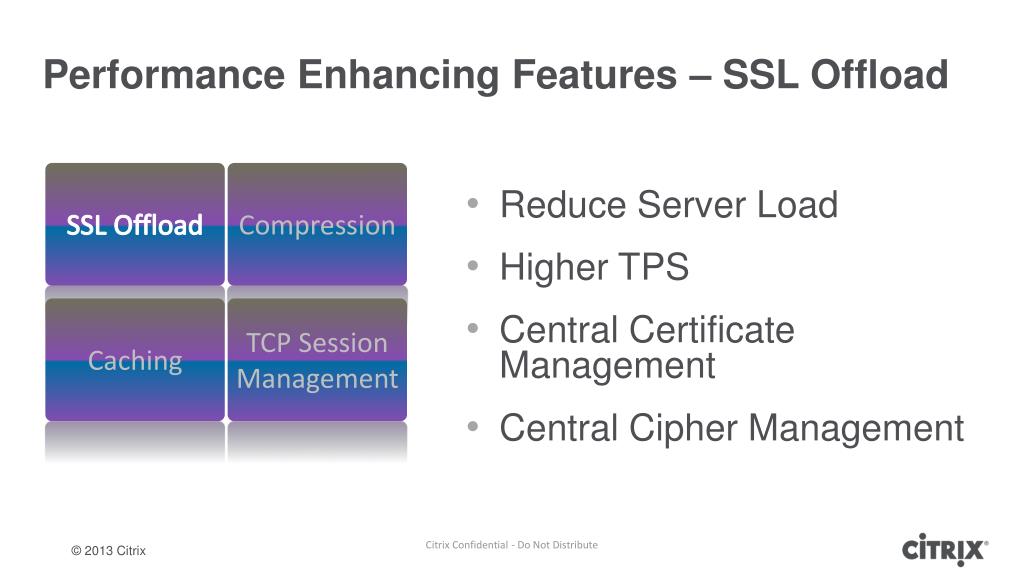

Performance Enhancing Features – SSL Offload

SSL Offload

Compression

  • Reduce Server Load

  • Higher TPS

  • Central Certificate Management

  • Central Cipher Management

Caching

TCP Session

Management

Citrix Confidential - Do Not Distribute


Advanced optimization ssl offload

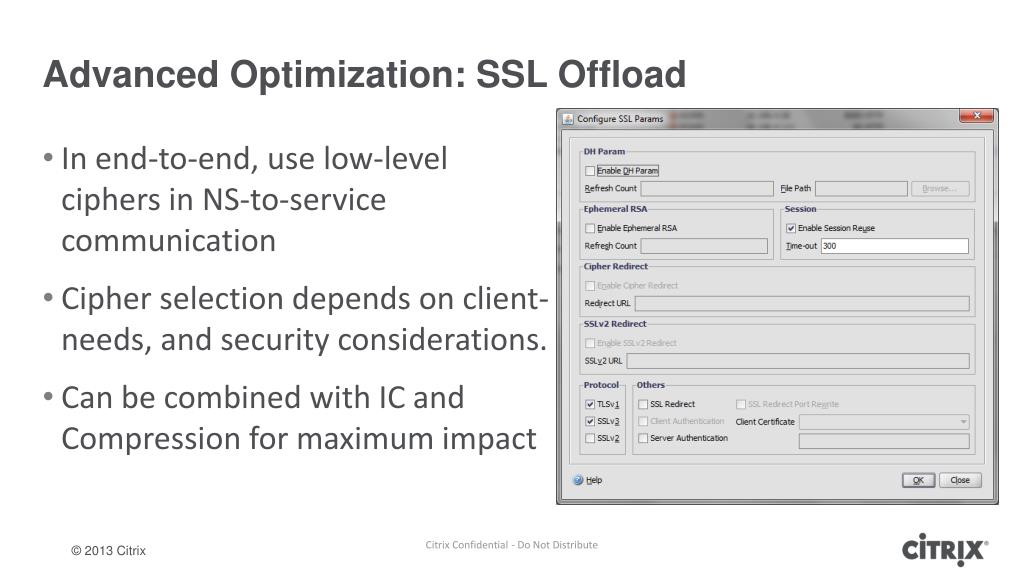

Advanced Optimization: SSL Offload

  • In end-to-end, use low-level ciphers in NS-to-service communication

  • Cipher selection depends on client-needs, and security considerations.

  • Can be combined with IC and Compression for maximum impact

Citrix Confidential - Do Not Distribute


Performance enhancing features compression

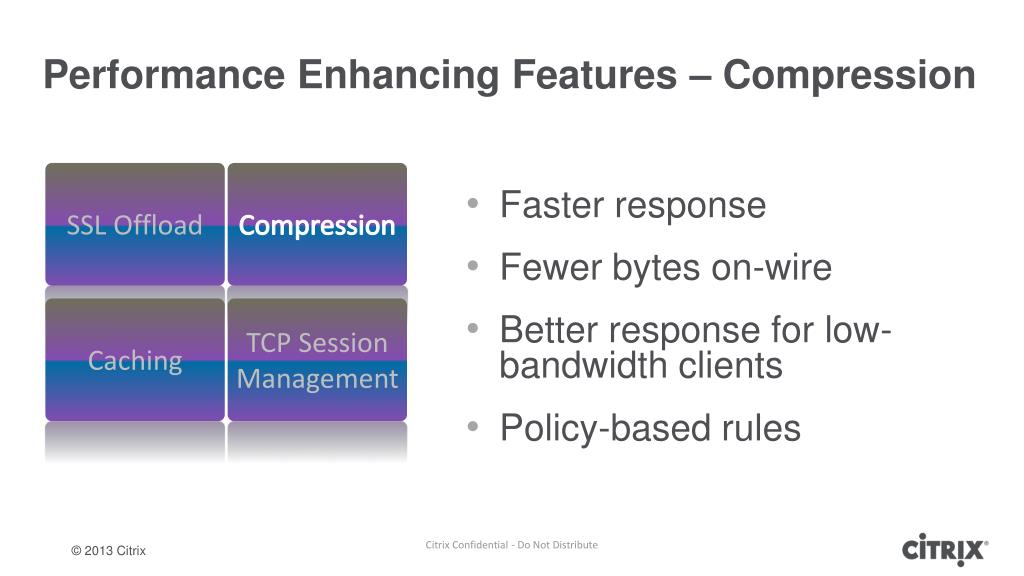

Performance Enhancing Features – Compression

SSL Offload

Compression

  • Faster response

  • Fewer bytes on-wire

  • Better response for low-bandwidth clients

  • Policy-based rules

Caching

TCP Session

Management

Citrix Confidential - Do Not Distribute


Compression

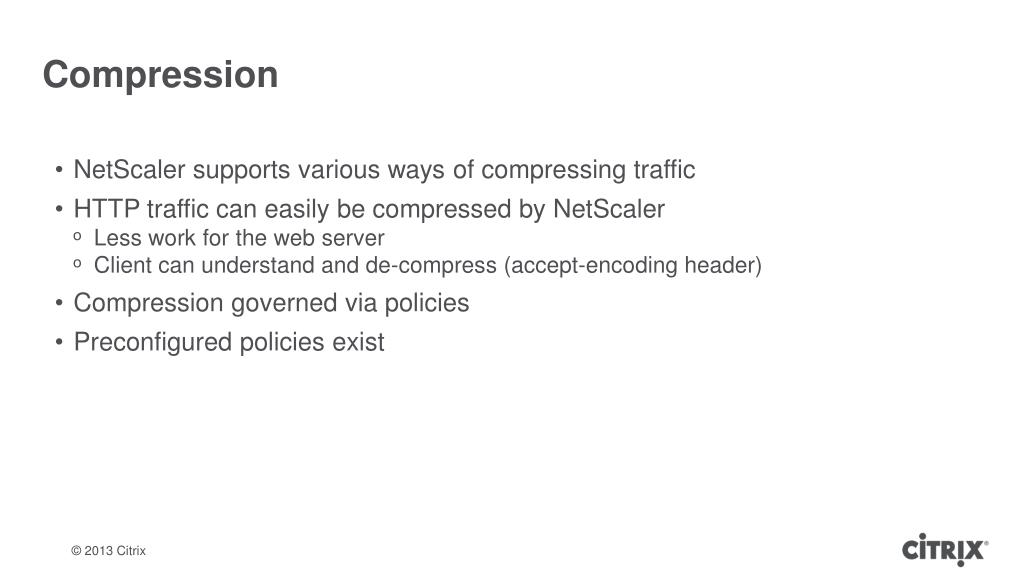

Compression

  • NetScaler supports various ways of compressing traffic

  • HTTP traffic can easily be compressed by NetScaler

    • Less work for the web server

    • Client can understand and de-compress (accept-encoding header)

  • Compression governed via policies

  • Preconfigured policies exist


Performance enhancing features caching

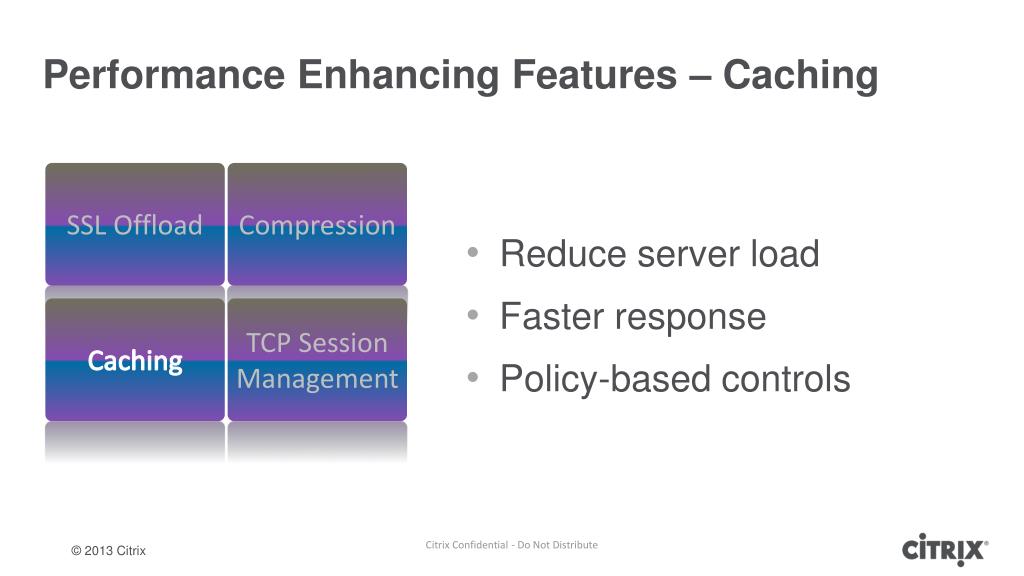

Performance Enhancing Features – Caching

SSL Offload

Compression

  • Reduce server load

  • Faster response

  • Policy-based controls

Caching

TCP Session

Management

Citrix Confidential - Do Not Distribute


Advanced optimization caching

Advanced Optimization: Caching

  • Use Content-Group settings to optimizefor min/max content size, or overallnumber of hits.

  • Use parameterization to optimize cache retrieval or invalidation.

  • Prioritize NO_CACHE policies before CACHE policies

  • Use multiple Content-Groups to allow for specific cache-clearing

Citrix Confidential - Do Not Distribute


Performance enhancing features tcp session mangement

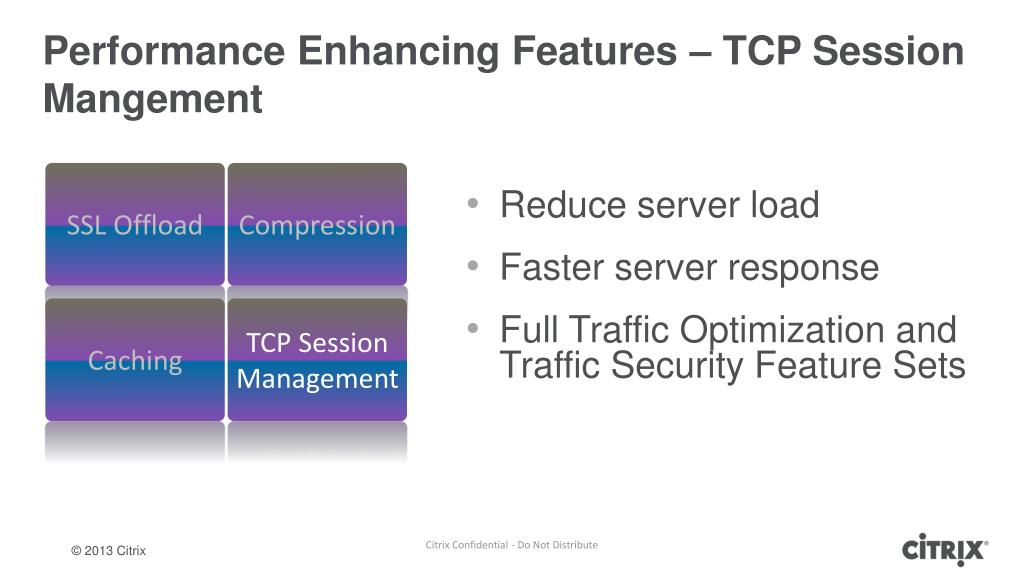

Performance Enhancing Features – TCP Session Mangement

SSL Offload

Compression

  • Reduce server load

  • Faster server response

  • Full Traffic Optimization and Traffic Security Feature Sets

Caching

TCP Session

Management

Citrix Confidential - Do Not Distribute


May 2013

Results of Performance Enhancing Feature Configuration

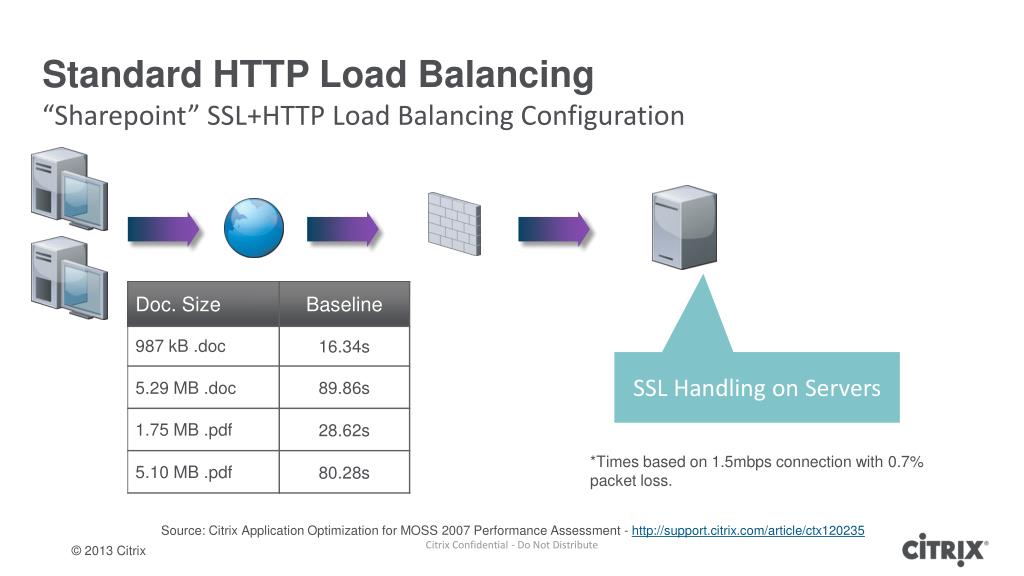

Standard http load balancing

Standard HTTP Load Balancing

“Sharepoint” SSL+HTTP Load Balancing Configuration

SSL Handling on Servers

*Times based on 1.5mbps connection with 0.7%

packet loss.

Source: Citrix Application Optimization for MOSS 2007 Performance Assessment - http://support.citrix.com/article/ctx120235

Citrix Confidential - Do Not Distribute


Ssl offloaded http load balancing

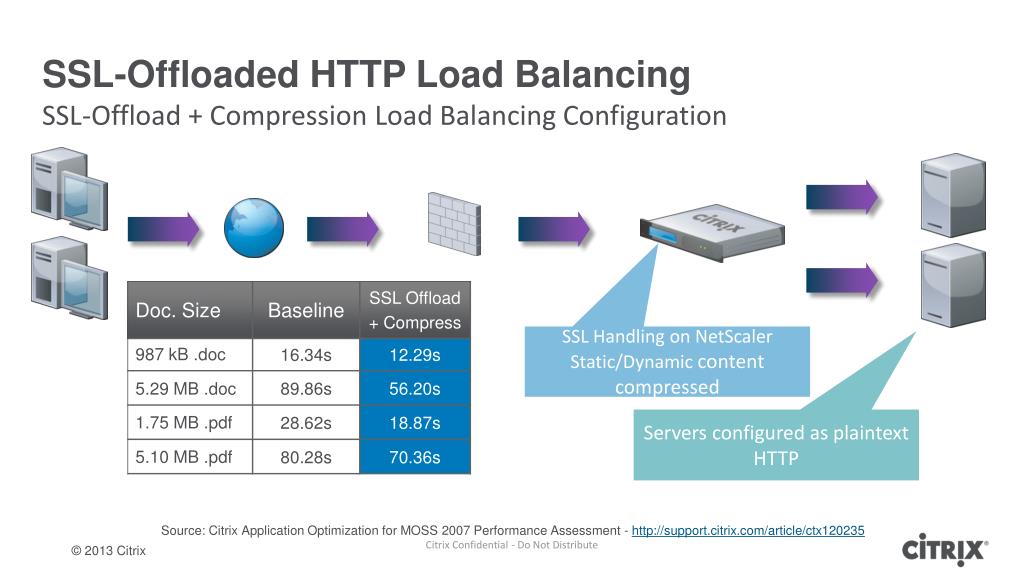

SSL-Offloaded HTTP Load Balancing

SSL-Offload + Compression Load Balancing Configuration

SSL Handling on NetScalerStatic/Dynamic content compressed

Servers configured as plaintext HTTP

Source: Citrix Application Optimization for MOSS 2007 Performance Assessment - http://support.citrix.com/article/ctx120235

Citrix Confidential - Do Not Distribute


Ssl offload cmp caching http load balancing

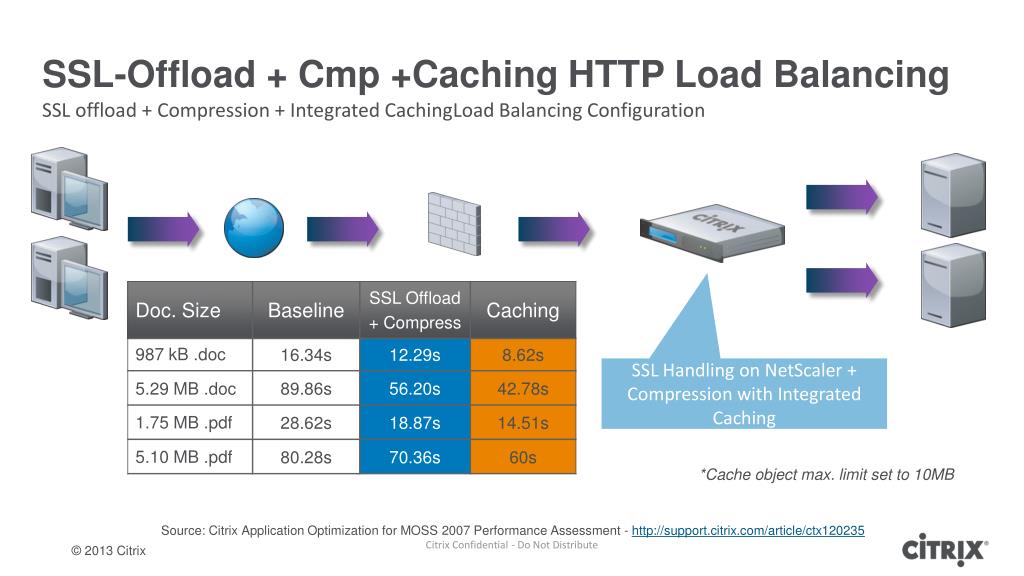

SSL-Offload + Cmp +Caching HTTP Load Balancing

SSL offload + Compression + Integrated CachingLoad Balancing Configuration

SSL Handling on NetScaler + Compression with Integrated Caching

*Cache object max. limit set to 10MB

Source: Citrix Application Optimization for MOSS 2007 Performance Assessment - http://support.citrix.com/article/ctx120235

Citrix Confidential - Do Not Distribute


May 2013

Troubleshooting Tools and Commands


Nsconmsg

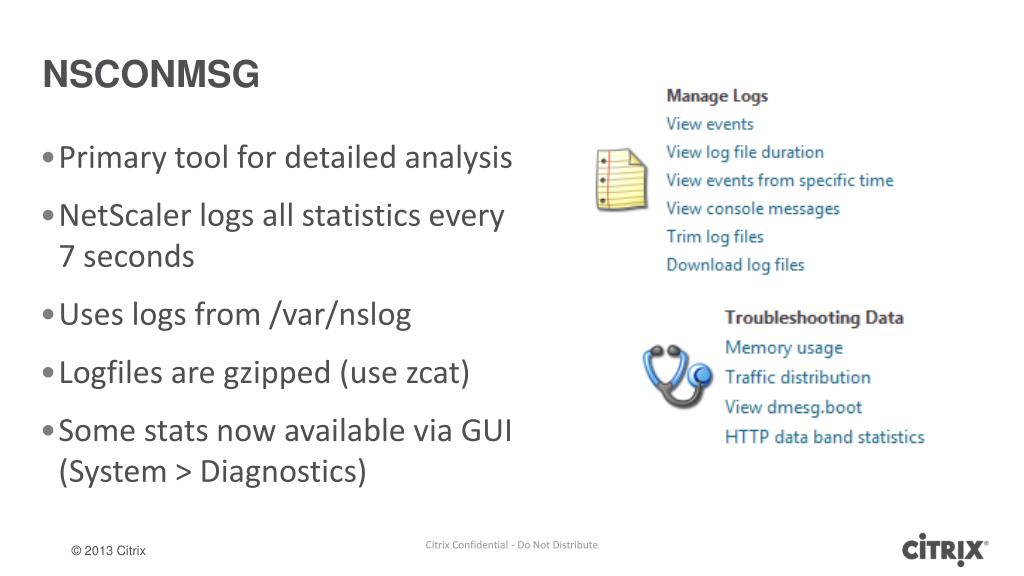

NSCONMSG

  • Primary tool for detailed analysis

  • NetScaler logs all statistics every 7 seconds

  • Uses logs from /var/nslog

  • Logfiles are gzipped (use zcat)

  • Some stats now available via GUI(System > Diagnostics)

Citrix Confidential - Do Not Distribute


Nsconmsg examples

NSCONMSG – Examples

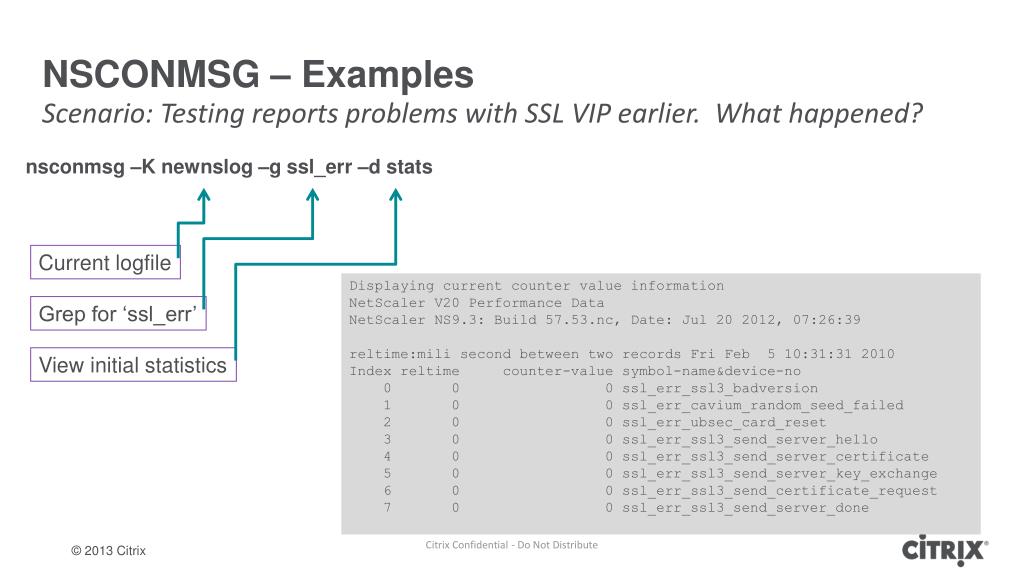

Scenario: Testing reports problems with SSL VIP earlier. What happened?

nsconmsg –K newnslog –g ssl_err –d stats

Current logfile

Displaying current counter value information

NetScaler V20 Performance Data

NetScaler NS9.3: Build 57.53.nc, Date: Jul 20 2012, 07:26:39

reltime:mili second between two records Fri Feb 5 10:31:31 2010

Index reltime counter-value symbol-name&device-no

0 0 0 ssl_err_ssl3_badversion

1 0 0 ssl_err_cavium_random_seed_failed

2 0 0 ssl_err_ubsec_card_reset

3 0 0 ssl_err_ssl3_send_server_hello

4 0 0 ssl_err_ssl3_send_server_certificate

5 0 0 ssl_err_ssl3_send_server_key_exchange

6 0 0 ssl_err_ssl3_send_certificate_request

7 0 0 ssl_err_ssl3_send_server_done

Grep for ‘ssl_err’

View initial statistics

Citrix Confidential - Do Not Distribute


Nsconmsg examples1

NSCONMSG – Examples

Scenario: Testing reports problems with SSL VIP earlier. What happened?

View timestamps

nsconmsg –K newnslog –s disptime=1 –g ssl_err_ssl3 –d current

View historic statistics

Index rtimetotalcount-val delta rate/sec symbol-name&device-no&time

108 0 78 1 0 ssl_err_ssl3_get_client_hello Fri Feb 5 12:01:06 2010

109 14000 11 2 0 ssl_error_cvm_bad_record Fri Feb 5 12:01:20 2010

110 7000 79 1 0 ssl_err_ssl3_badversion Fri Feb 5 12:01:27 2010

111 0 79 1 0 ssl_err_ssl3_get_client_hello Fri Feb 5 12:01:27 2010

112 28000 81 2 0 ssl_err_ssl3_badversion Fri Feb 5 12:01:55 2010

113 0 81 2 0 ssl_err_ssl3_get_client_hello Fri Feb 5 12:01:55 2010

114 7000 83 2 0 ssl_err_ssl3_badversion Fri Feb 5 12:02:02 2010

Citrix Confidential - Do Not Distribute


Nsconmsg examples2

NSCONMSG – Examples

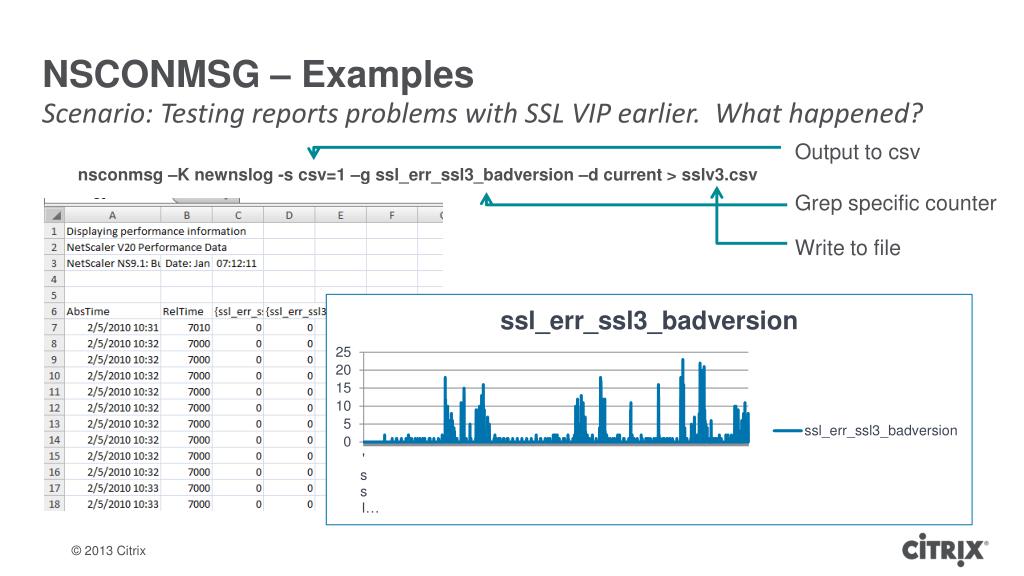

Scenario: Testing reports problems with SSL VIP earlier. What happened?

Output to csv

nsconmsg –K newnslog -s csv=1 –g ssl_err_ssl3_badversion –d current > sslv3.csv

Grep specific counter

Write to file


Nsconmsg examples3

NSCONMSG – Examples

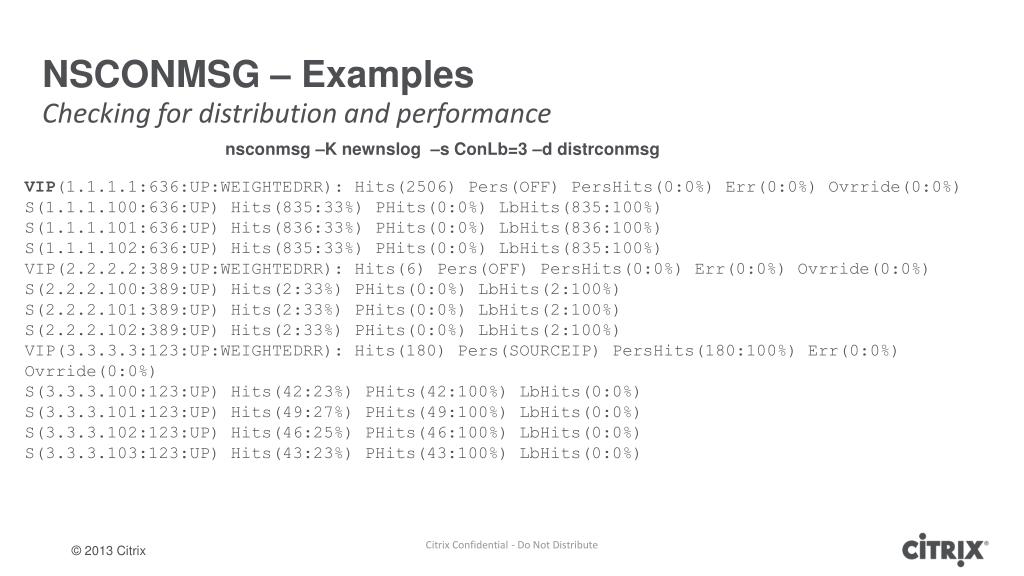

Checking for distribution and performance

nsconmsg –K newnslog –s ConLb=3 –d distrconmsg

VIP(1.1.1.1:636:UP:WEIGHTEDRR): Hits(2506) Pers(OFF) PersHits(0:0%) Err(0:0%) Ovrride(0:0%)

S(1.1.1.100:636:UP) Hits(835:33%) PHits(0:0%) LbHits(835:100%)

S(1.1.1.101:636:UP) Hits(836:33%) PHits(0:0%) LbHits(836:100%)

S(1.1.1.102:636:UP) Hits(835:33%) PHits(0:0%) LbHits(835:100%)

VIP(2.2.2.2:389:UP:WEIGHTEDRR): Hits(6) Pers(OFF) PersHits(0:0%) Err(0:0%) Ovrride(0:0%)

S(2.2.2.100:389:UP) Hits(2:33%) PHits(0:0%) LbHits(2:100%)

S(2.2.2.101:389:UP) Hits(2:33%) PHits(0:0%) LbHits(2:100%)

S(2.2.2.102:389:UP) Hits(2:33%) PHits(0:0%) LbHits(2:100%)

VIP(3.3.3.3:123:UP:WEIGHTEDRR): Hits(180) Pers(SOURCEIP) PersHits(180:100%) Err(0:0%) Ovrride(0:0%)

S(3.3.3.100:123:UP) Hits(42:23%) PHits(42:100%) LbHits(0:0%)

S(3.3.3.101:123:UP) Hits(49:27%) PHits(49:100%) LbHits(0:0%)

S(3.3.3.102:123:UP) Hits(46:25%) PHits(46:100%) LbHits(0:0%)

S(3.3.3.103:123:UP) Hits(43:23%) PHits(43:100%) LbHits(0:0%)

Citrix Confidential - Do Not Distribute


Nsconmsg examples4

NSCONMSG – Examples

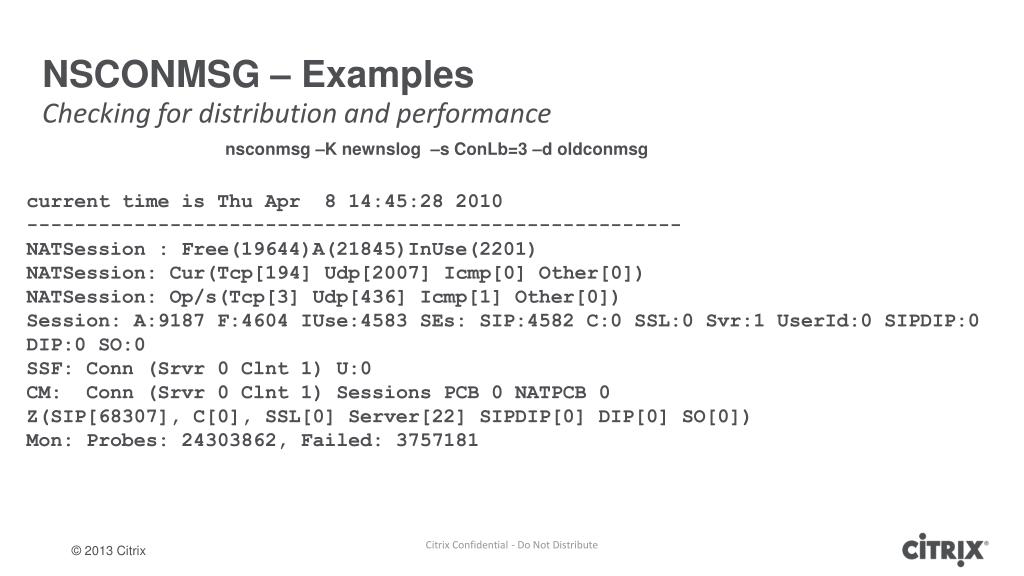

Checking for distribution and performance

nsconmsg –K newnslog –s ConLb=3 –d oldconmsg

current time is Thu Apr 8 14:45:28 2010

-------------------------------------------------------

NATSession : Free(19644)A(21845)InUse(2201)

NATSession: Cur(Tcp[194] Udp[2007] Icmp[0] Other[0])

NATSession: Op/s(Tcp[3] Udp[436] Icmp[1] Other[0])

Session: A:9187 F:4604 IUse:4583 SEs: SIP:4582 C:0 SSL:0 Svr:1 UserId:0 SIPDIP:0 DIP:0 SO:0

SSF: Conn (Srvr 0 Clnt 1) U:0

CM: Conn (Srvr 0 Clnt 1) Sessions PCB 0 NATPCB 0

Z(SIP[68307], C[0], SSL[0] Server[22] SIPDIP[0] DIP[0] SO[0])

Mon: Probes: 24303862, Failed: 3757181

Citrix Confidential - Do Not Distribute


Nsconmsg examples5

NSCONMSG – Examples

Checking for distribution and performance

nsconmsg –K newnslog –s Con???=3 –d oldconmsg

ConDebug - Debugging

ConLb - Load Balancing

ConMon - Monitoring Probes

ConMEM - Memory Management

ConCSW - Content Switching

ConSSL - SSL Offload

ConCMP - Compression

ConIC - Integrated Caching

Citrix Confidential - Do Not Distribute


Nstrace sh

nstrace.sh

  • Nstrace supports filtering beginning in 9.x

nstrace -size 0 -filter "SOURCEIP == 10.1.2.3 && SOURCEPORT == 8080" -link ENABLE

Packet-size limit

Booleans supported!

Filters in standard NS policy format

Automatically capture linkedclient/server connections

Filter on:

SOURCEIPSOURCEPORTDESTIPDESTPORTSVCNAMEVSVRNAMESTATE

http://support.citrix.com/article/ctx121166

Citrix Confidential - Do Not Distribute


Wireshark

Wireshark

  • nstrace files now officially supported in Wireshark!

  • Available in latest Stable release

  • Includes ns.pdevno and ns.l_pdevno filtering

Citrix Confidential - Do Not Distribute


May 2013

Citrix AutoSupport Introduction


Citrix autosupport analysis

Citrix AutoSupport Analysis


Graph generated by autosupport tools

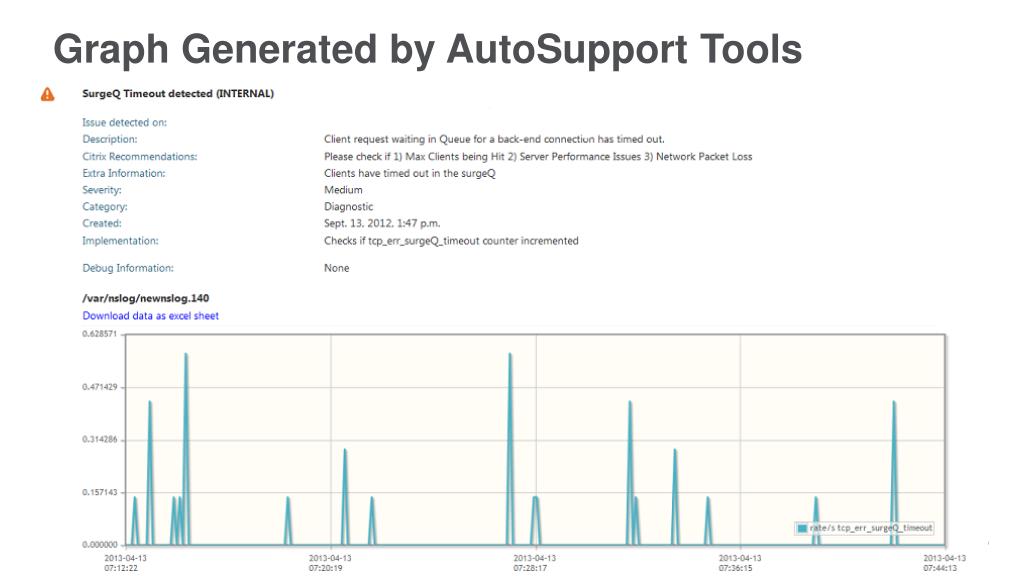

Graph Generated by AutoSupport Tools


May 2013

Resources

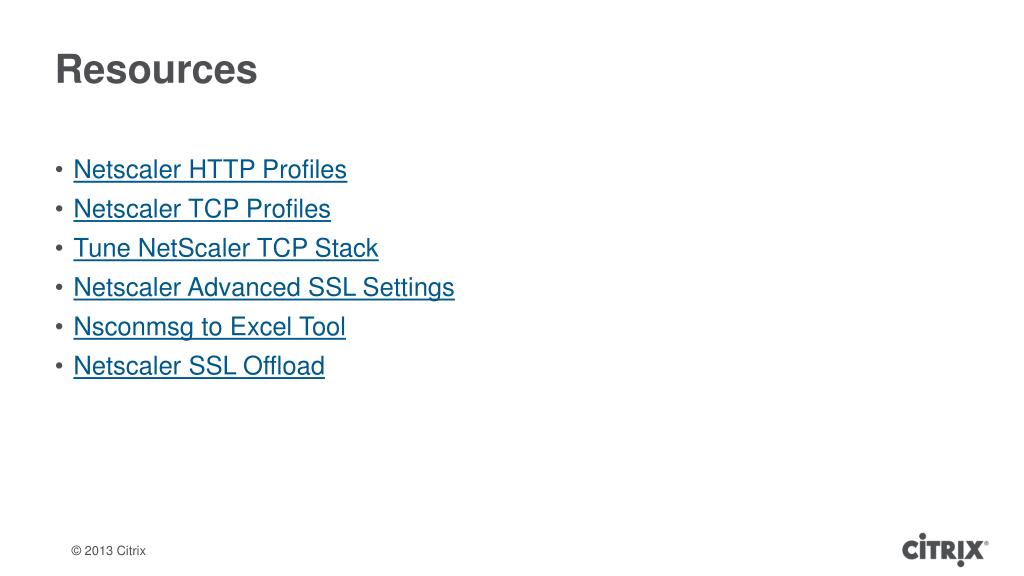

Resources

Resources

  • Netscaler HTTP Profiles

  • Netscaler TCP Profiles

  • Tune NetScaler TCP Stack

  • Netscaler Advanced SSL Settings

  • Nsconmsg to Excel Tool

  • Netscaler SSL Offload


Resource 2

Resource – 2

  • Netscaler Integrated Caching

  • Netscaler Compression

  • Netscaler CPU Profiling

  • Citrix AutoSupport (TaaS)

  • Netscaler Datasheet - Models and Specs

  • Citrix Application Optimization for MOSS 2007 Performance Assessment


Conclusion

Conclusion


Question

Question


Before you leave

Before you leave…

  • Conference surveys are available online at www.citrixsynergy.com starting Friday, May 24 at 9:00 a.m. PT

    • Provide your feedback by 4:00 p.m. PT that day and you’ll receive a $30 Amazon.com gift card via email

  • Download presentations starting Monday, June 3, from your My Conference Planning tool located within the My Account section


  • Login
