Verification of hybrid simulation

Verification of Hybrid Simulation

by

Ali. Ozdagli, Wang Xi, GeOu, Bo Li, GuoshanXu

Shirley Dyke, Jian Zhang and Bin Wu

Project funded by

National Science Foundation - CMMI Grant #1011534

National Science Foundation of China – Project #90715036


Presentation outline

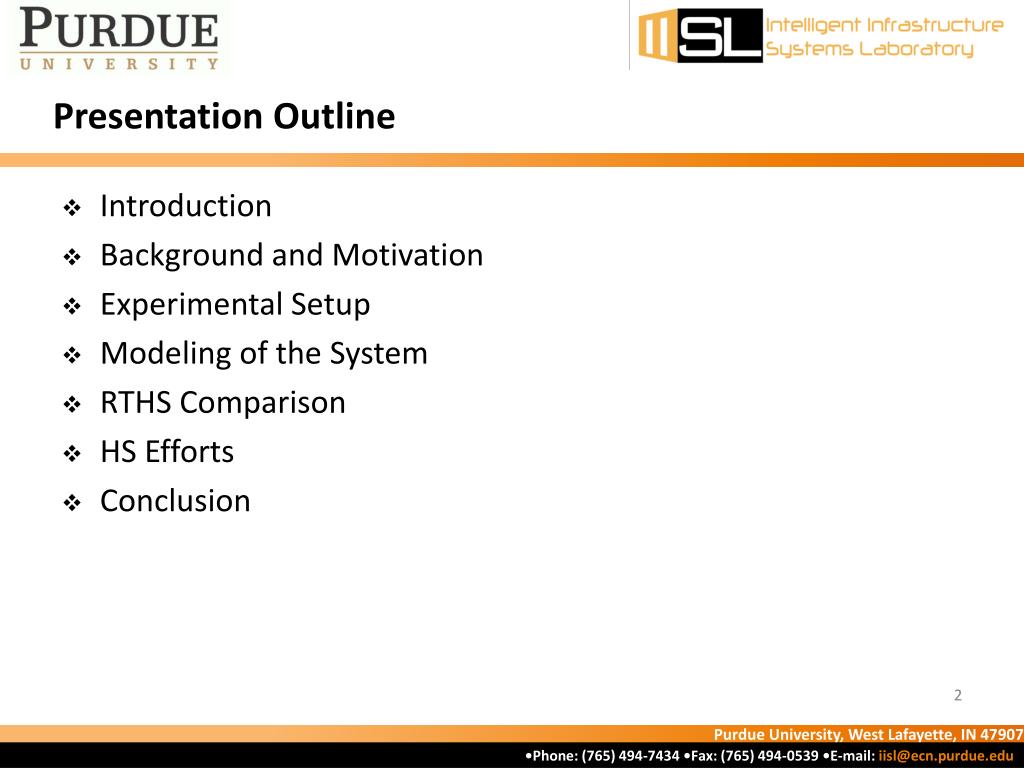

Presentation Outline

  • Introduction

  • Background and Motivation

  • Experimental Setup

  • Modeling of the System

  • RTHS Comparison

  • HS Efforts

  • Conclusion


Introduction

Introduction

Need for Testing

  • Global performance of new systems

  • Nonlinear response

Options

  • Shake-table: Scaled Structural Testing

  • Hybrid Simulation (HS)


Background

Background

“Comparison of Real-Time Hybrid Testing with Shake Table Tests for an MR Damper Controlled Structure” by Lin et al. (2009)

  • “The results show a close correlation between the shake table tests and the real-time hybrid simulation.”

  • “There is clearly a difference between the hybrid tests and shake table tests.”


Background1

Background

“Development of a Versatile Hybrid Testing System for Seismic Experimentation” by Shao et al. (2012)


Motivation

Motivation

  • How do we know?

    • RTHS and Numerical Simulations represent the real structural behavior?

  • Gain acceptance in community

    • Compare the RTHS to the real structure responses

Numerical Simulation

?

RTHS

Shake Table


Challenges

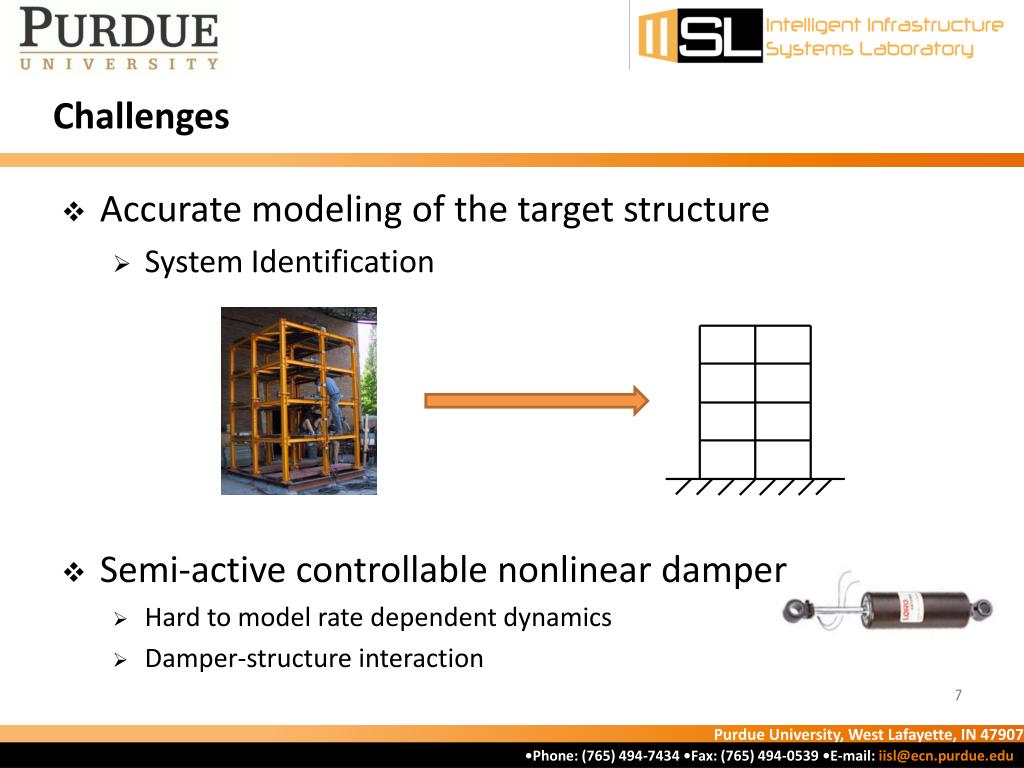

Challenges

  • Accurate modeling of the target structure

    • System Identification

  • Semi-active controllable nonlinear damper

    • Hard to model rate dependent dynamics

    • Damper-structure interaction


Objective

Objective

  • Verification of RTHS methodology using shake table tests on mid-scale structure

    Research Program

  • Phase 1: Numerical Modeling and Simulation

  • Phase 2: Shake Table Tests

  • Phase 3: RTHS Testing

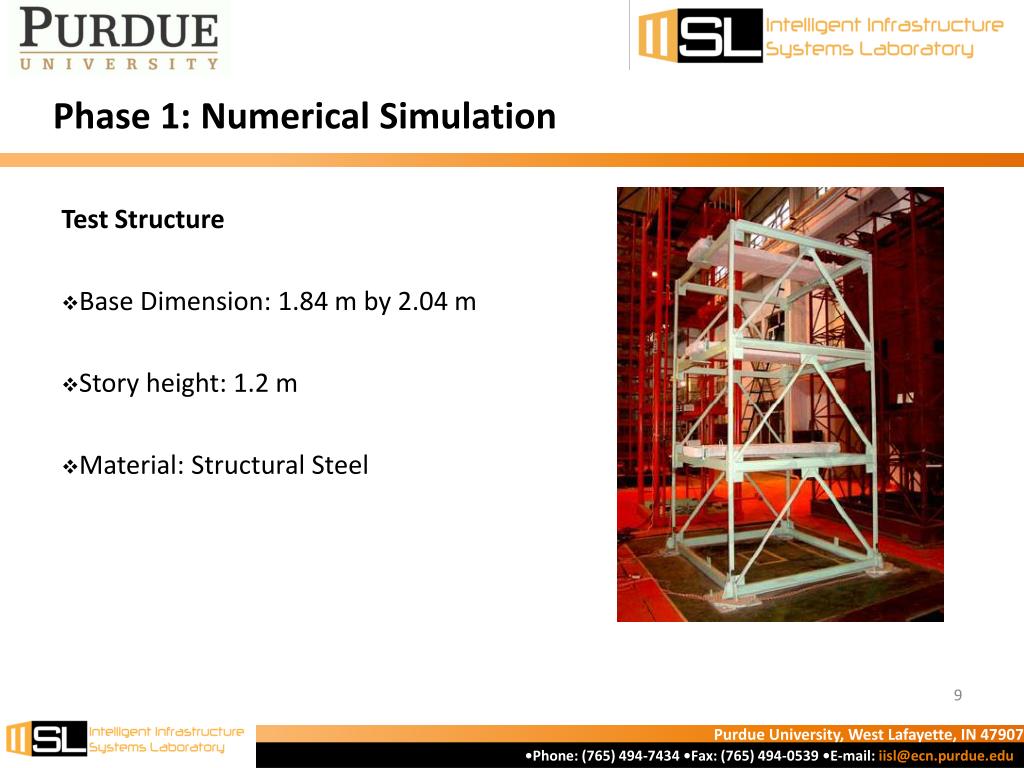

Phase 1 numerical simulation

Phase 1: Numerical Simulation

Test Structure

  • Base Dimension: 1.84 m by 2.04 m

  • Story height: 1.2 m

  • Material: Structural Steel


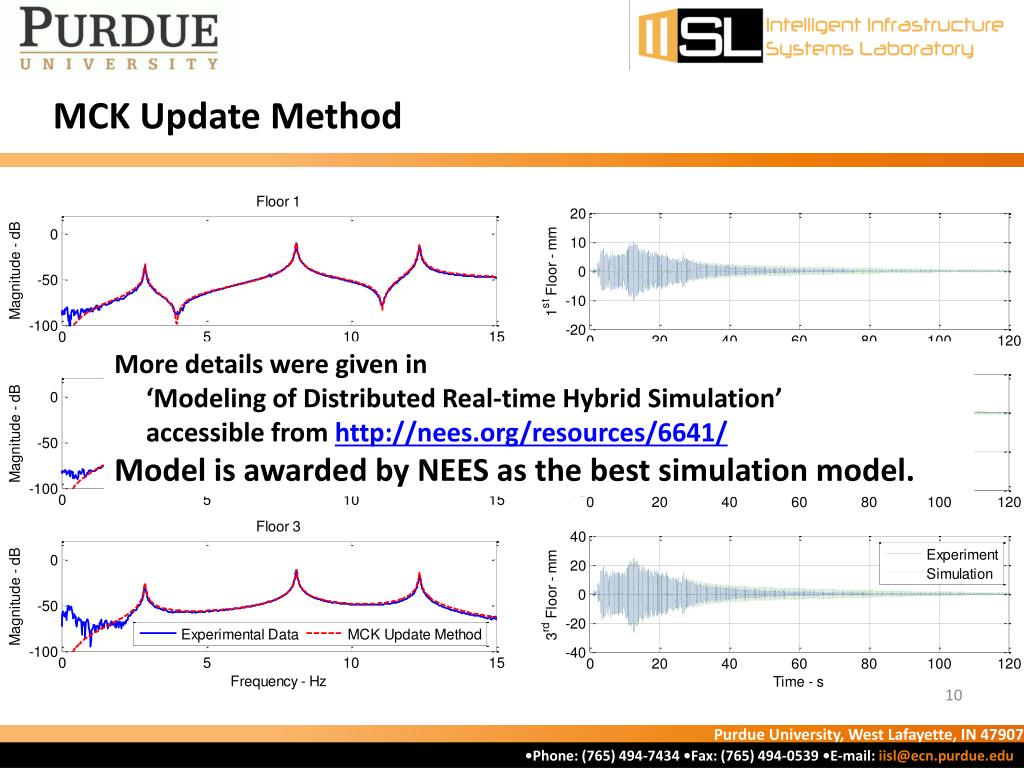

Mck update method

MCK Update Method

More details were given in

‘Modeling of Distributed Real-time Hybrid Simulation’

accessible from http://nees.org/resources/6641/

Model is awarded by NEES as the best simulation model.


Mr damper numerical model

MR damper numerical model

  • Lord MR damper RD-1005-03


Phase 2 shake table tests

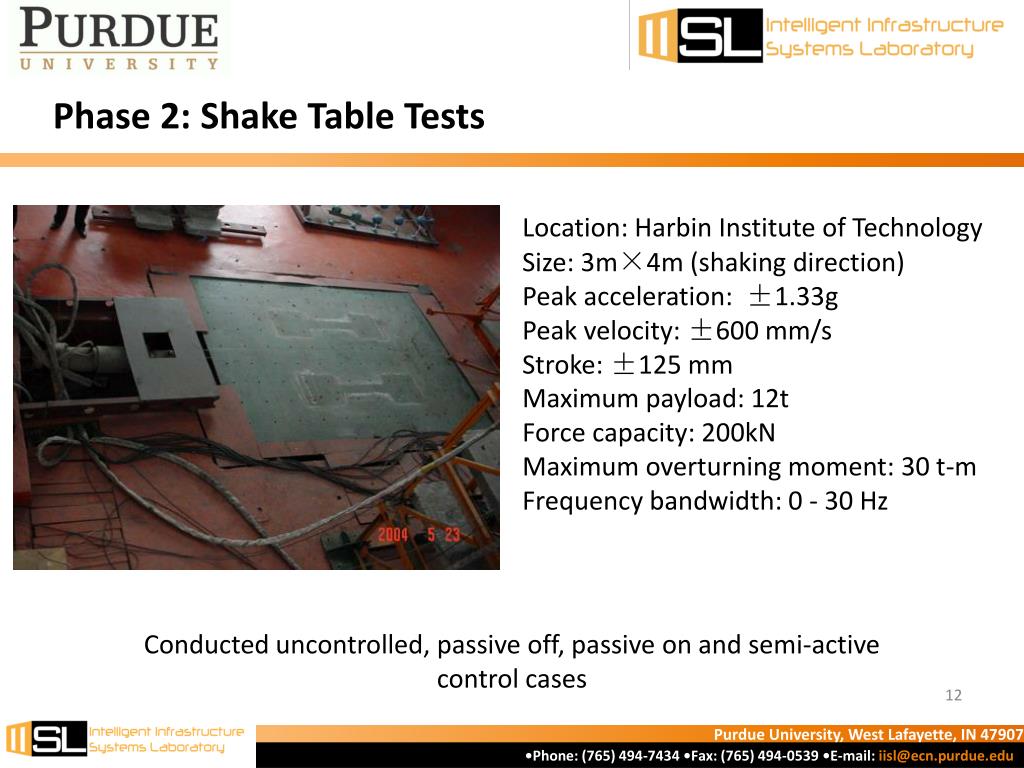

Phase 2: Shake Table Tests

Location: Harbin Institute of Technology

Size: 3m×4m (shaking direction)

Peak acceleration: ±1.33g

Peak velocity: ±600 mm/s

Stroke: ±125 mm

Maximum payload: 12t

Force capacity: 200kN

Maximum overturning moment: 30 t-m

Frequency bandwidth: 0 - 30 Hz

Conducted uncontrolled, passive off, passive on and semi-active control cases

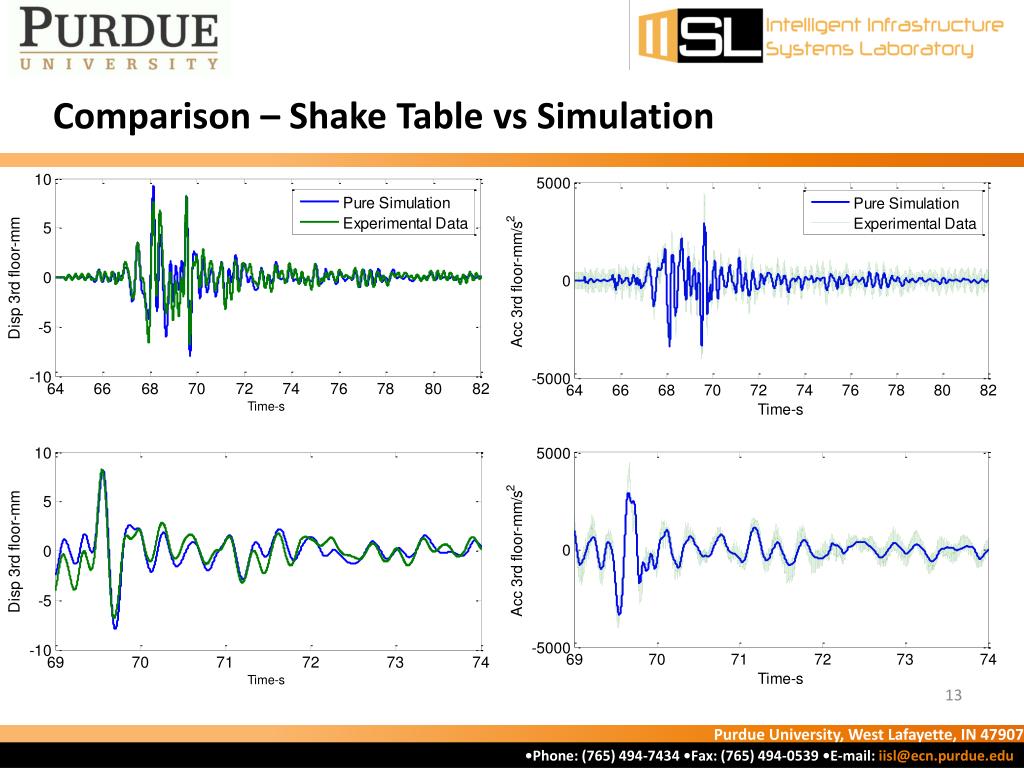

Comparison shake table vs simulation

Comparison – Shake Table vs Simulation


Phase 3 rths

Phase 3: RTHS

MTS loading Frame @ HIT

MTS Loading Frame, 2500kN,

Internal LVDT

Load cell, 15kN

Lord MR damper, 2kN

MTS Flex GT Controller

Inner Loop Control

Clamp for vertical loading

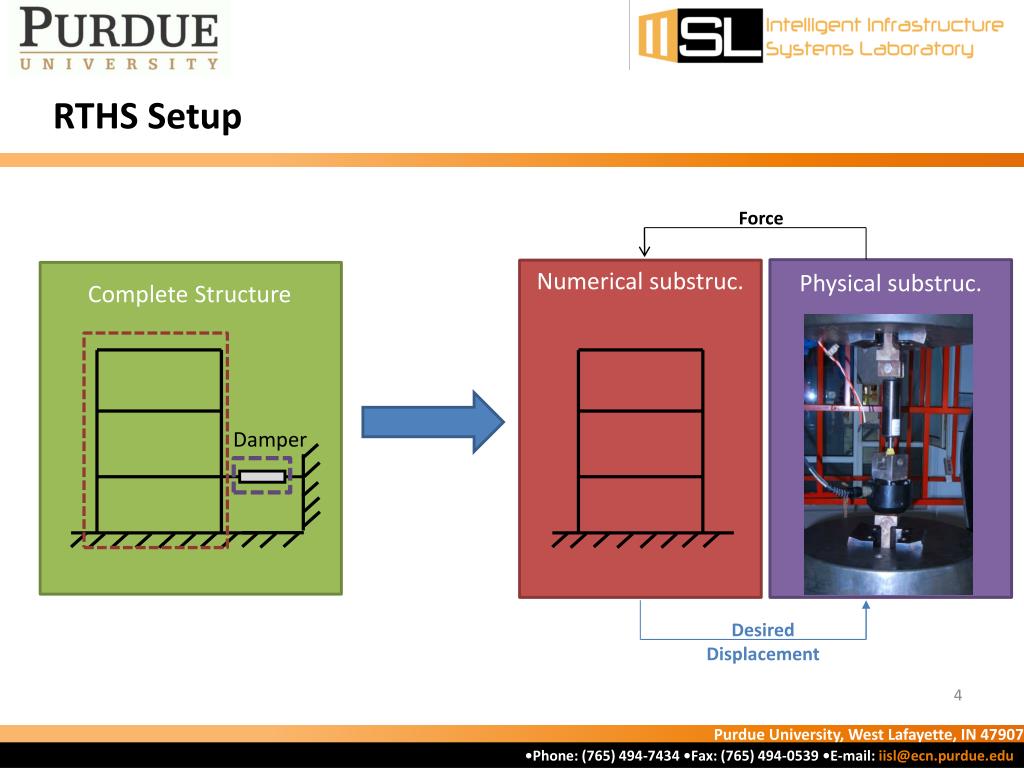

Rths setup

RTHS Setup

Force

Numerical substruc.

Physical substruc.

Complete Structure

Damper

Desired Displacement


Rths result kobe

RTHS Result: Kobe

Due to the limitation of Pump Velocity Limitation, Piston maximum moving speed 50mm/s


Rths result morgan

RTHS Result: Morgan


Phase 3 rths replace pics with iisl actuator

Phase 3: RTHS (Replace pics with IISL Actuator)

Shore Western loading Frame @ IISL

2 kip Actuator

Loading Frame

  • High performance programmable DSP system plus high precision servo-hydraulic motion control system.

Servo Valve

Lord

MR Damper

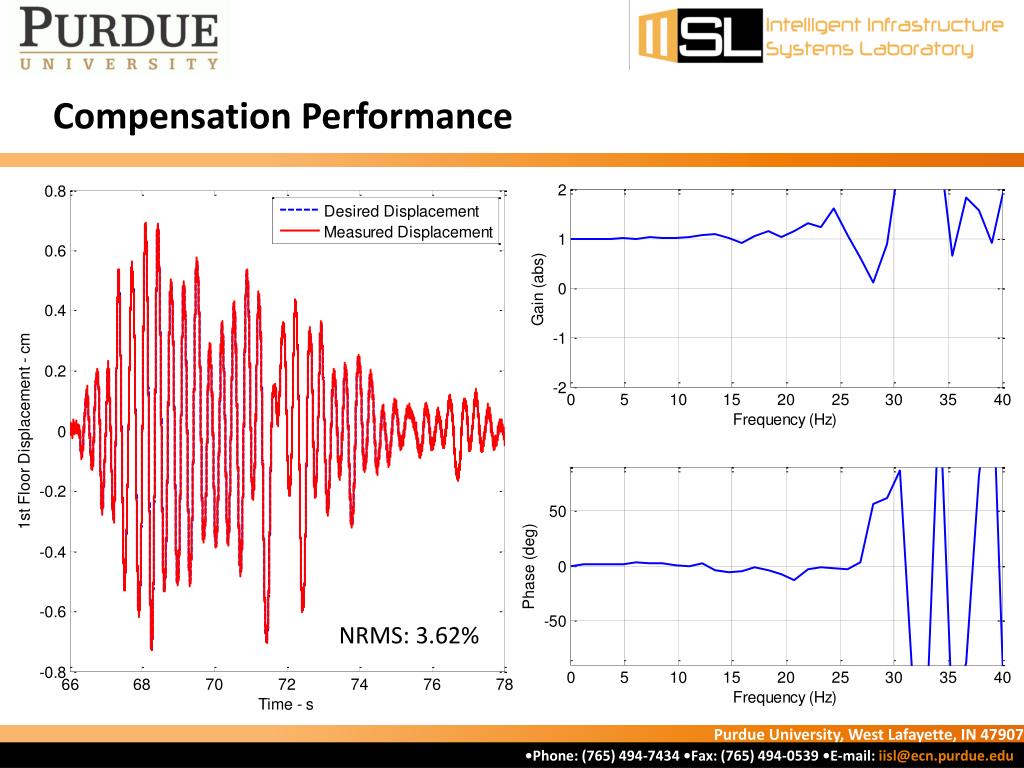

Compensation performance

Compensation Performance

NRMS: 3.62%


Comparison st vs rths

Comparison – ST vsRTHS


Remarks on rths

Remarks on RTHS

  • To verify the RTHS methodology, shake table responses at HIT are compared to RTHS results at IISL.

  • A new control oriented model updating method is implemented using mode shapes to derive MCK.

    • MCK model based on fully identified results

    • Accurate zero tracking

  • A new compensation scheme, RIAC is implemented.

    • High performance even in large noise/signal ratio condition

    • Flexible to choose loop shaping function

    • Experimental tuning is easy to perform


Verification of hybrid simulation

Model updating with UKF

Numerical BRB

Constrained Kalman filter

Physical BRB


Verification of hybrid simulation

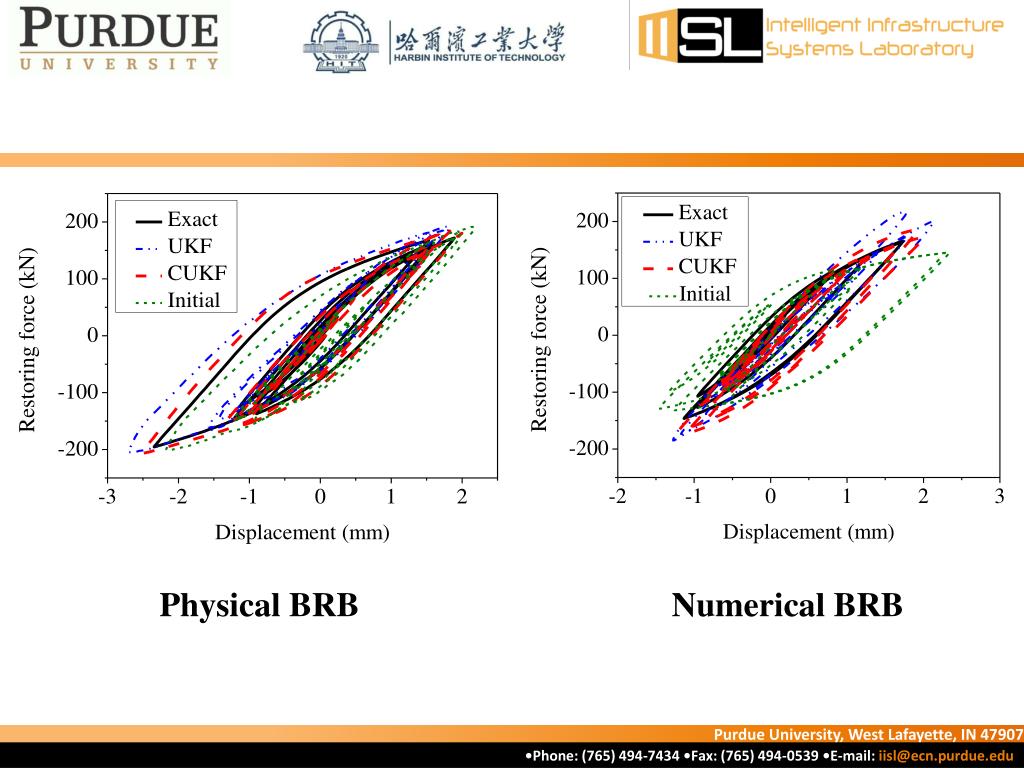

Physical BRB

Numerical BRB


Verification of hybrid simulation

Physical BRB

Numerical BRB

Real-time hybrid test validations


Verification of hybrid simulation

Initial

CUKF

UKF


Verification of hybrid simulation

Finite element based sectional constitutive model

  • Section Yield Function

  • Section Restoring Force Model (RFM)

When , Section- elastic

When , Section- plastic

where


Verification of hybrid simulation

Numerical example

  • Identification results

  • Model updating results


Verification of hybrid simulation

Experiment plan

  • Test scheme

  • Test setup and three cases of HS

Traditional HS (Linear/Nonlinear)

FE Model updating by HS

Distributed Hybrid Simulation


Verification of hybrid simulation

Delay over-prediction

Delay compensation based on over-prediction

①Calculate di+1

②Predict with c

③Load with prediction

④Find force measure-ment

Delay Compensation:

Compensated Delay > System Delay

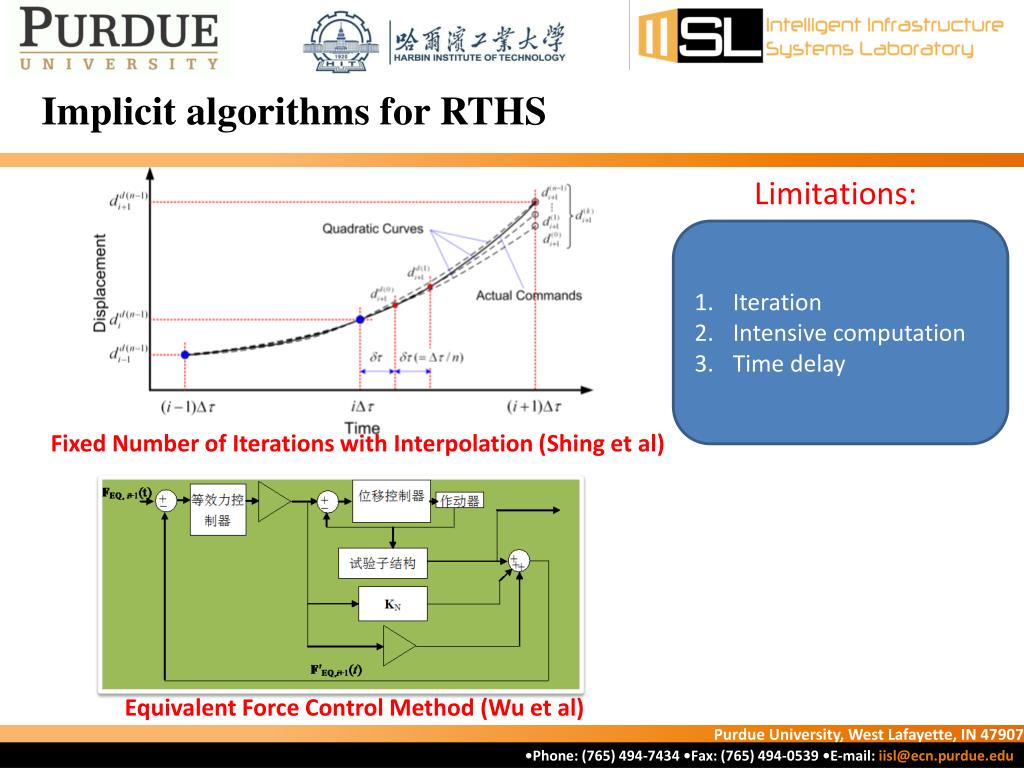

Fixed number of iterations with interpolation shing et al

Fixed Number of Iterations with Interpolation (Shing et al)

Implicit algorithms for RTHS

Limitations:

Iteration

Intensive computation

Time delay

Equivalent Force Control Method (Wu et al)


Verification of hybrid simulation

New implicit algorithm based on over-prediction

Process 1

Process 2

1、Modified Newton’s Method applied results in good iteration performance.

2、System delay is compensated for based on over-prediction method.


Verification of hybrid simulation

  • Test validation

  • Single time step

  • 10 seconds

  • Delay comptn error


Trans pacific test between ucb and hit

Trans-pacific test between UCB and HIT


Verification of hybrid simulation

HIT,CHINA

UCB, USA

Data available @ http://peer.berkeley.edu/~aschell/DHS%20with%20HIT/


Acknowledgements

Acknowledgements

  • National Science Foundation - CMMI Grant #1011534

  • National Science Foundation of China – Project #90715036

  • HIT Lab

  • Steve Mahin & Andreas Schellenberg@ UCB

  • Tao Wang @ IEM

    Project data will be available @ NEES.org #1076


China us collaborative project on hybrid simulation

China-US collaborative project on hybrid simulation

Bin Wu, Professor

Harbin Institute of Technology

YurongGuo, Professor

Hunan University

Tao Wang , Assoc Professor

Institute of Eng. Mechanics

Shirley Dyke, Professor

Purdue University

Jian Zhang , Associate Professor

UCLA


Verification of hybrid simulation

THANK YOU!
