Presentation Transcript
Law of cosines

Law of Cosines

Lesson 4.2


Who s law is it anyway
Who's Law Is It, Anyway?

  • Murphy's Law:

    • Anything that can possibly go wrong, will go wrong (at the worst possible moment).

  • Cole's Law ??

    • Finely chopped cabbage


Solving an sas triangle

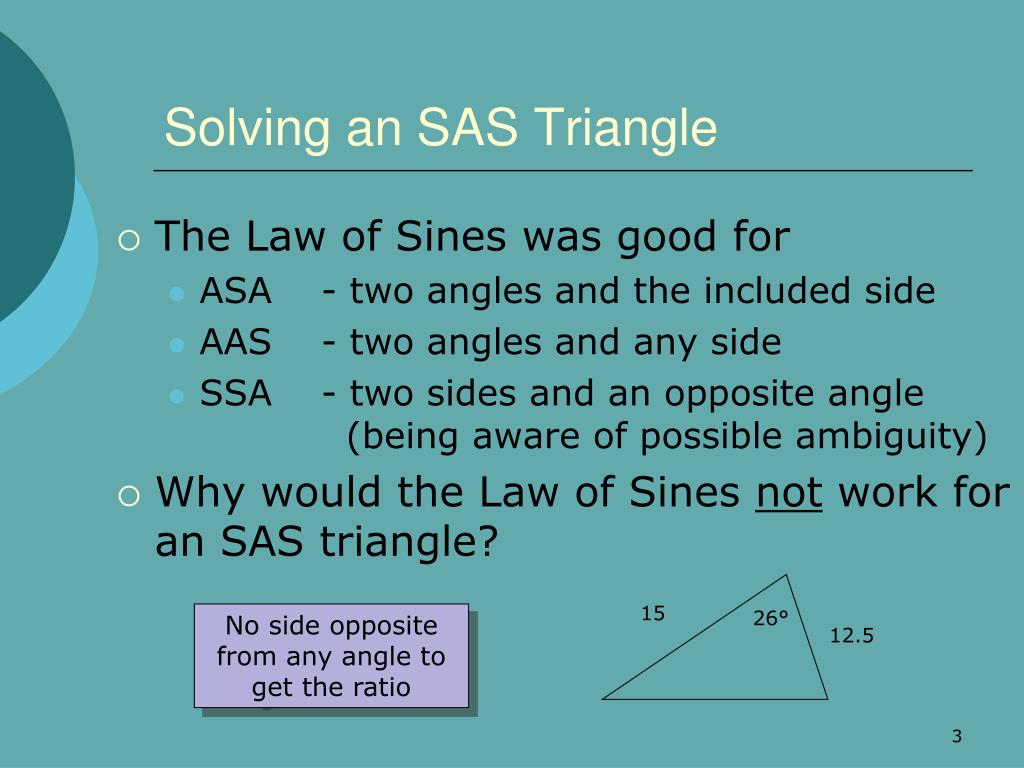

Solving an SAS Triangle

  • The Law of Sines was good for

    • ASA - two angles and the included side

    • AAS - two angles and any side

    • SSA - two sides and an opposite angle (being aware of possible ambiguity)

  • Why would the Law of Sines not work for an SAS triangle?

15

26°

No side opposite from any angle to get the ratio

12.5


Deriving the law of cosines
Deriving the Law of Cosines

C

  • Write an equationusing Pythagorean theorem for shaded triangle.

b h a

k c - k

A B

c


Law of cosines1
Law of Cosines

  • Similarly

  • Note the pattern


Applying the cosine law
Applying the Cosine Law

  • Now use it to solve the triangle we started with

  • Label sidesand angles

    • Side c first

C

15

26°

12.5

A B

c


Applying the cosine law1
Applying the Cosine Law

  • Now calculate the angles

    • useand solve for B

C

15

26°

12.5

A B

c = 6.65


Applying the cosine law2
Applying the Cosine Law

  • The remaining angledetermined by subtraction

    • 180 – 93.75 – 26 = 60.25

C

15

26°

12.5

A B

c = 6.65

Experiment with Cosine Law Spreadsheet


Wing span
Wing Span

C

  • The leading edge ofeach wing of theB-2 Stealth Bombermeasures 105.6 feetin length. The angle between the wing's leading edges is 109.05°. What is the wing span (the distance from A to C)?

  • Hint … use the law of cosines!

A


Assignment a
Assignment A

  • Lesson 4.2A

  • Page 308

  • Exercises 1 – 27 odd, and 41 - 51 odd


Using the cosine law to find area
Using the Cosine Law to Find Area

  • Recall that

  • We can use the value for hto determinethe area

C

b h a

A B

c


Using the cosine law to find area1
Using the Cosine Law to Find Area

  • We can find the area knowing two sides and the included angle

  • Note the pattern

C

b a

A B

c


Try it out
Try It Out

  • Determine the area of these triangles

42.8°

17.9

127°

24

12

76.3°


Cost of a lot
Cost of a Lot

  • An industrial piece of real estate is priced at $4.15 per square foot. Find, to the nearest $1000, the cost of a triangular lot measuring 324 feet by 516 feet by 412 feet.

324

412

516


Assignment b
Assignment B

  • Lesson 4.2B

  • Page 309

  • Exercises 29 – 39 oddand 53 – 61 odd
