Cellular respiration

Cellular Respiration

Pp 69 – 73 & 217 - 237


Define cell respiration
Define cell respiration

  • Cell respiration is the controlled release of energy from organic compounds in cells to form ATP

  • Glucose is the major substrate for respiration

  • Adenosine triphosphates (ATP) is the molecule which directly fuels the majority of biological reactions.


Why cell respiration
Why cell respiration?

  • Cells require a constant source of energy to perform various tasks e.g.

    • Movement

    • Transport

    • Division

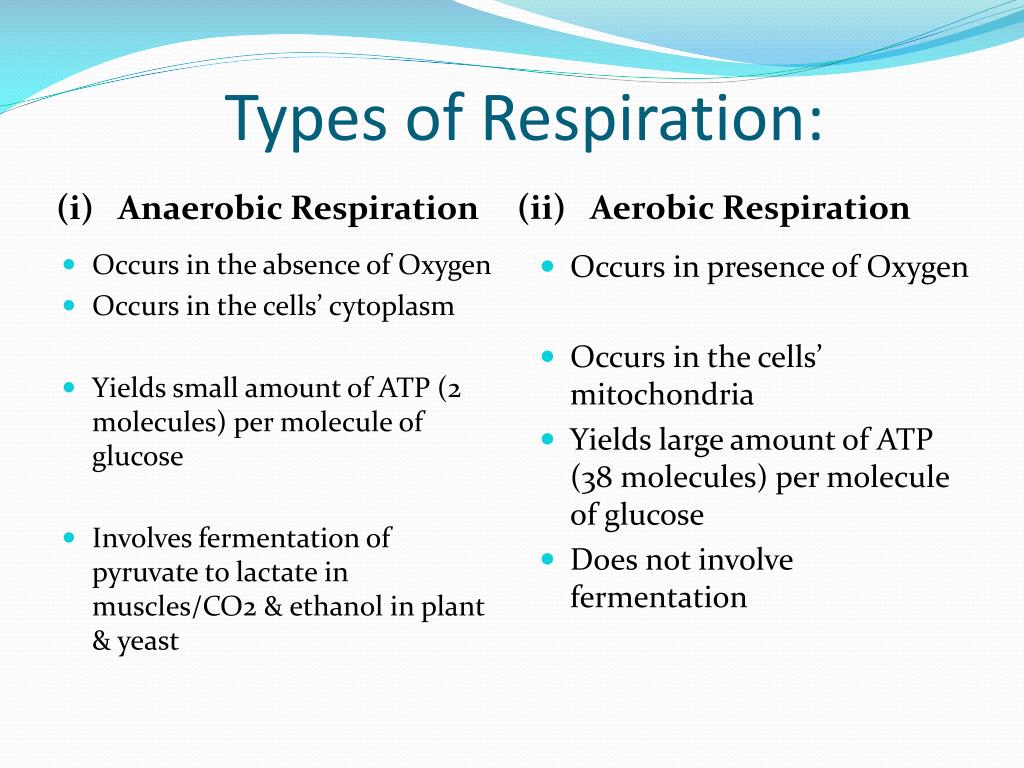

Types of respiration
Types of Respiration:

(i) Anaerobic Respiration

(ii) Aerobic Respiration

  • Occurs in the absence of Oxygen

  • Occurs in the cells’ cytoplasm

  • Yields small amount of ATP (2 molecules) per molecule of glucose

  • Involves fermentation of pyruvate to lactate in muscles/CO2 & ethanol in plant & yeast

  • Occurs in presence of Oxygen

  • Occurs in the cells’ mitochondria

  • Yields large amount of ATP (38 molecules) per molecule of glucose

  • Does not involve fermentation

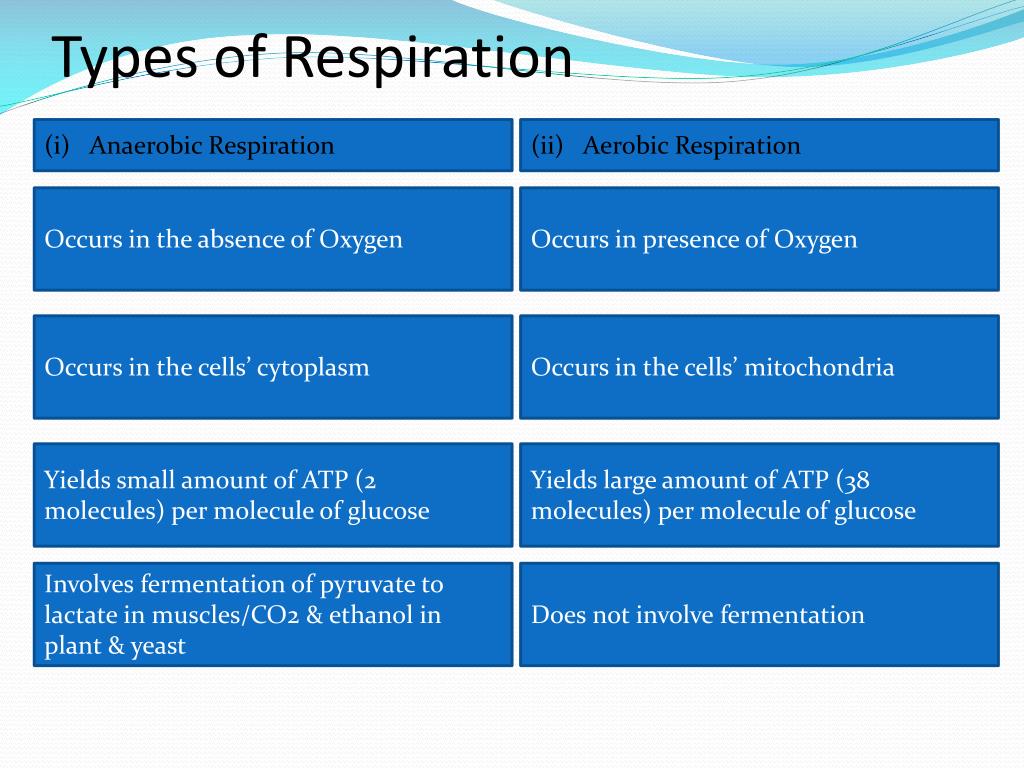

Types of respiration1
Types of Respiration

(i) Anaerobic Respiration

(ii) Aerobic Respiration

Occurs in the absence of Oxygen

Occurs in presence of Oxygen

Occurs in the cells’ cytoplasm

Occurs in the cells’ mitochondria

Yields small amount of ATP (2 molecules) per molecule of glucose

Yields large amount of ATP (38 molecules) per molecule of glucose

Involves fermentation of pyruvate to lactate in muscles/CO2 & ethanol in plant & yeast

Does not involve fermentation


Comparison between aerobic anaerobic respiration
Comparison between Aerobic & Anaerobic Respiration

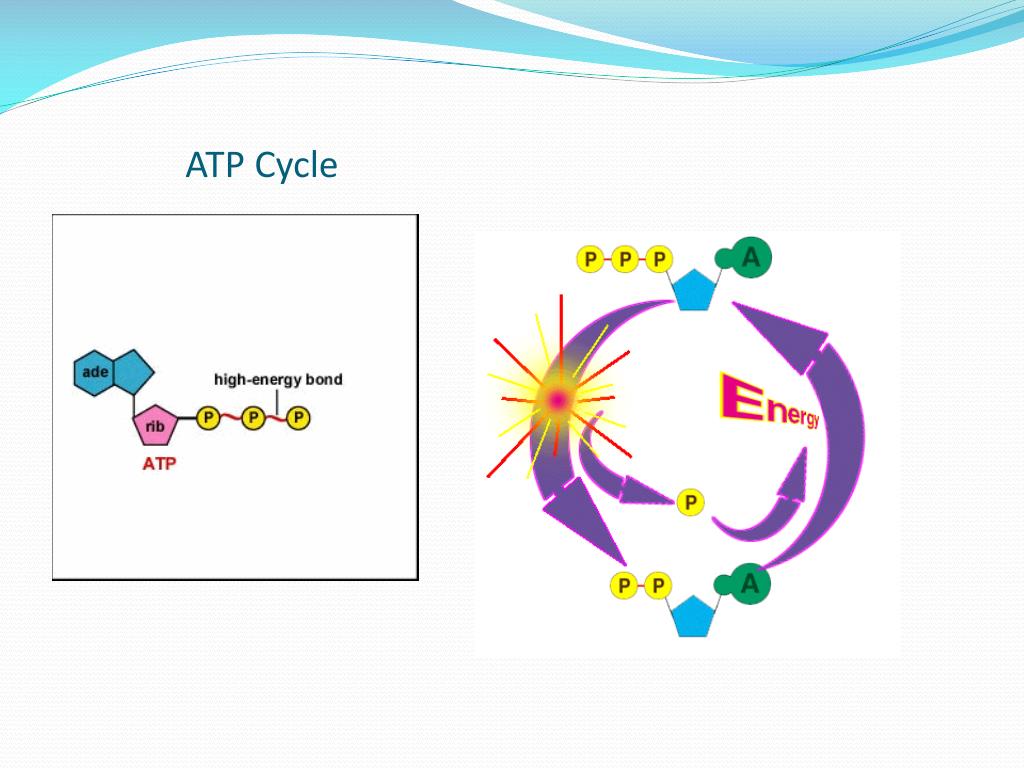

Adenosine triphosphate atp
Adenosine triphosphate (ATP):

  • ATP the molecule which directly fuels the majority of biological reactions

  • About 1025 ATP molecules are hydrolysed to ADP and Pi daily

  • ADP is reduced back to ATP using the free energy from the oxidation of organic molecules




Glycolysis and cell respiration
Glycolysis and Cell Respiration by glycolysis into pyruvate, with a small yield of ATP:

  • Glycolysis occurs in the cytoplasm of the cell

  • 1 glucose molecules is broken down into 2 pyruvate molecules

  • There is a net production of 2 ATP molecules

  • Glycolysis does not require oxygen

  • Fate of pyruvate depends on presence or absence of oxygen


Anaerobic cell respiration
Anaerobic Cell Respiration: by glycolysis into pyruvate, with a small yield of ATP


Summary equation
Summary Equation by glycolysis into pyruvate, with a small yield of ATP

  • The summary equation for cellular respiration is:

    C6H12O6 + O2 CO2 + H2O +

    Glucose + oxygen  carbon dioxide + water + ATP

ATP


Key players in this process
Key players in this process by glycolysis into pyruvate, with a small yield of ATP

  • Glucose: source of fuel

  • NAD+: electron carrier

  • Enzymes: mediate entire process

  • Mitochondria: site of aerobic respiration

  • ATP: principal end product

  • Protons/Electrons: sources of potential energy

  • Oxygen: final electron acceptor


Redox reactions
Redox reactions by glycolysis into pyruvate, with a small yield of ATP

  • Reduction: reducing overall positive charge by gaining electrons

  • Oxidation: loss of electrons


Nad an electron carrier
NAD+: an electron carrier by glycolysis into pyruvate, with a small yield of ATP

  • In order for electrons to be passed from one compound to another, an electron carrier is needed

  • NAD+ is reduced to NADH when picking up electrons

  • It is oxidized back to NAD+ when losing them


Where do the electrons come from
Where do the electrons come from? by glycolysis into pyruvate, with a small yield of ATP

  • Remember all those hydrogen atoms that make up glucose?

  • Hydrogens are a part of fats, too.

  • Hydrogen = 1e-, so here, H = e-

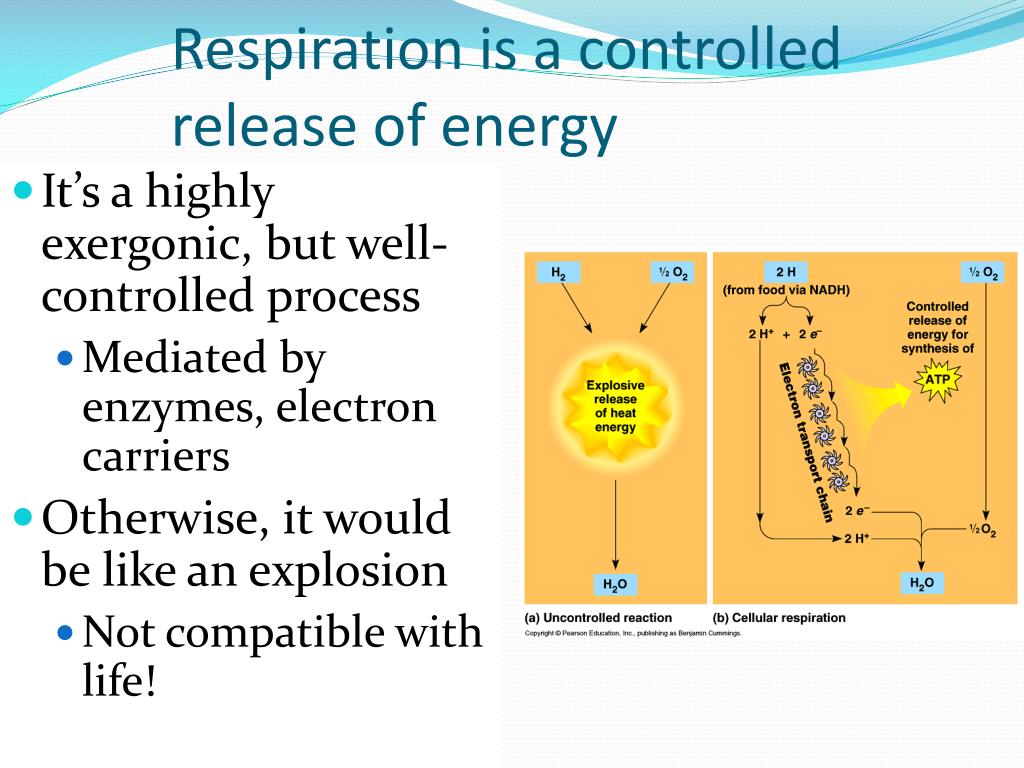

Respiration is a controlled release of energy
Respiration is a controlled release of energy by glycolysis into pyruvate, with a small yield of ATP

  • It’s a highly exergonic, but well-controlled process

    • Mediated by enzymes, electron carriers

  • Otherwise, it would be like an explosion

    • Not compatible with life!

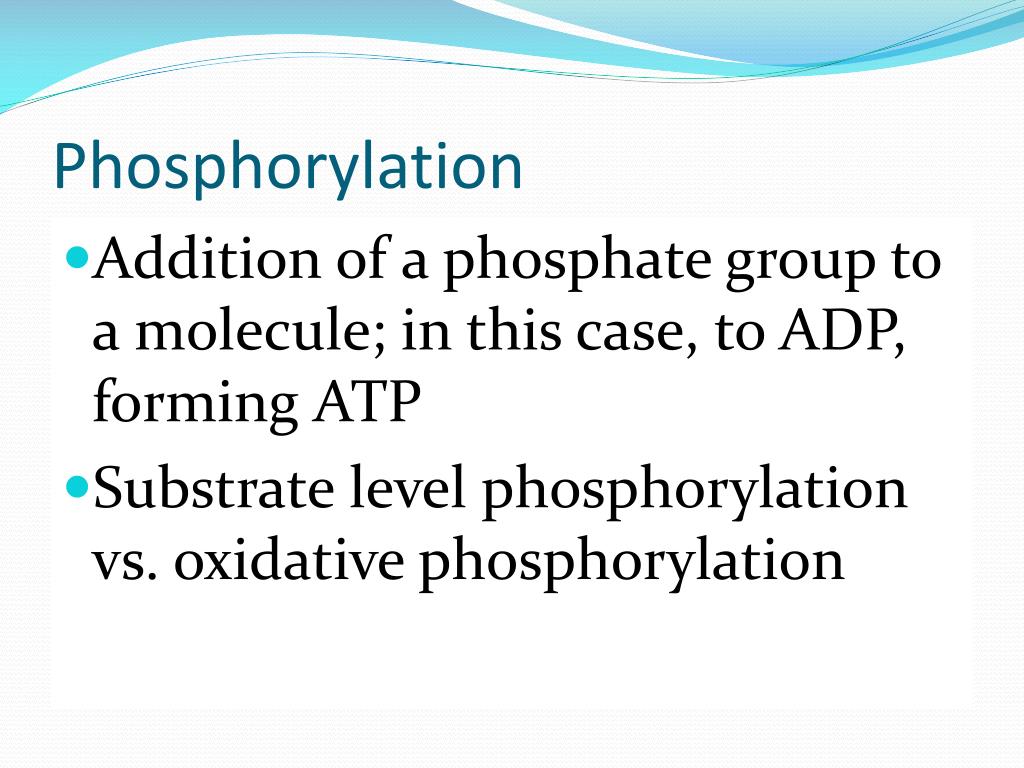

Phosphorylation
Phosphorylation by glycolysis into pyruvate, with a small yield of ATP

  • Addition of a phosphate group to a molecule; in this case, to ADP, forming ATP

  • Substrate level phosphorylation vs. oxidative phosphorylation

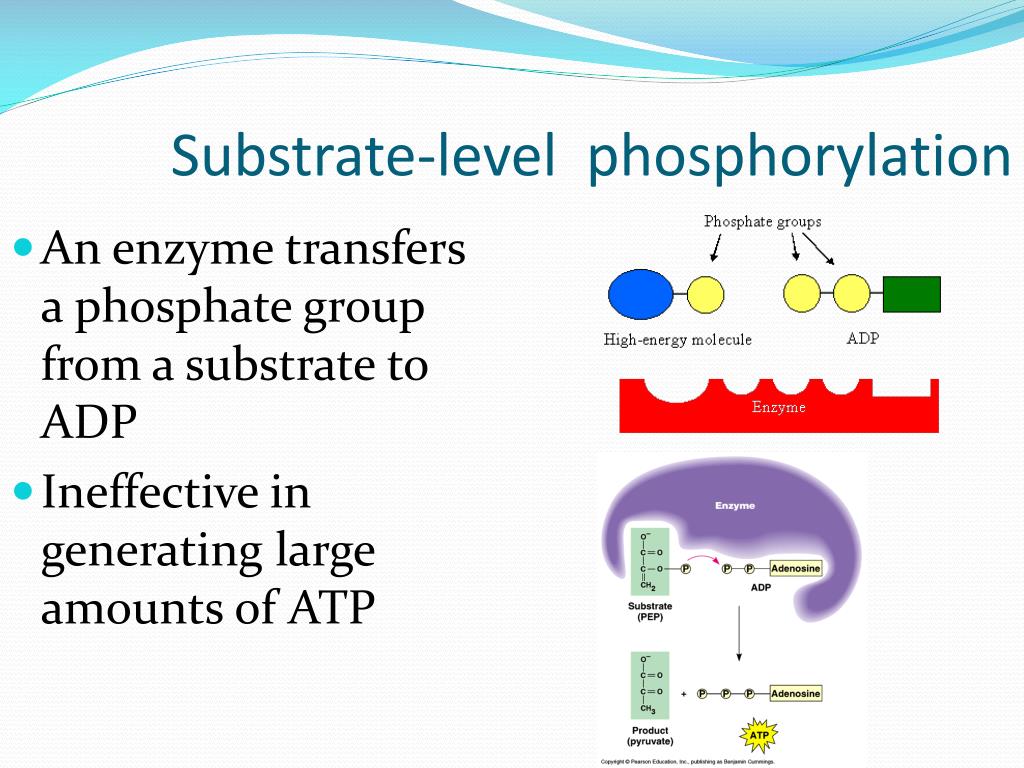

Substrate level phosphorylation
Substrate-level phosphorylation by glycolysis into pyruvate, with a small yield of ATP

  • An enzyme transfers a phosphate group from a substrate to ADP

  • Ineffective in generating large amounts of ATP

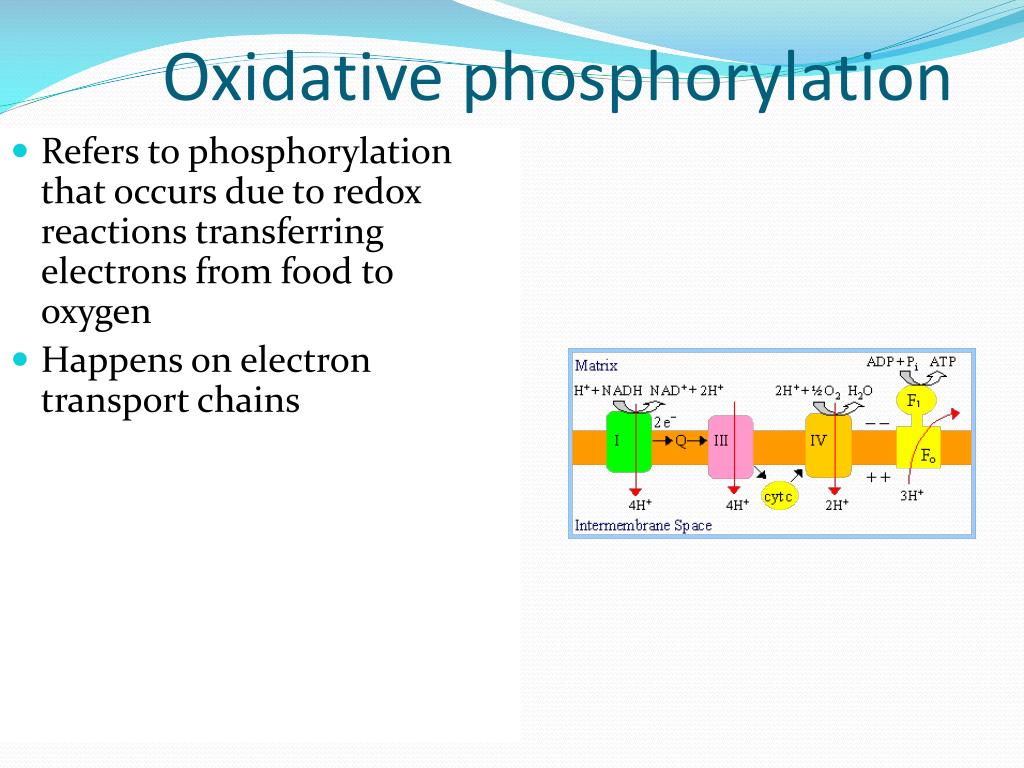

Oxidative phosphorylation
Oxidative phosphorylation by glycolysis into pyruvate, with a small yield of ATP

  • Refers to phosphorylation that occurs due to redox reactions transferring electrons from food to oxygen

  • Happens on electron transport chains

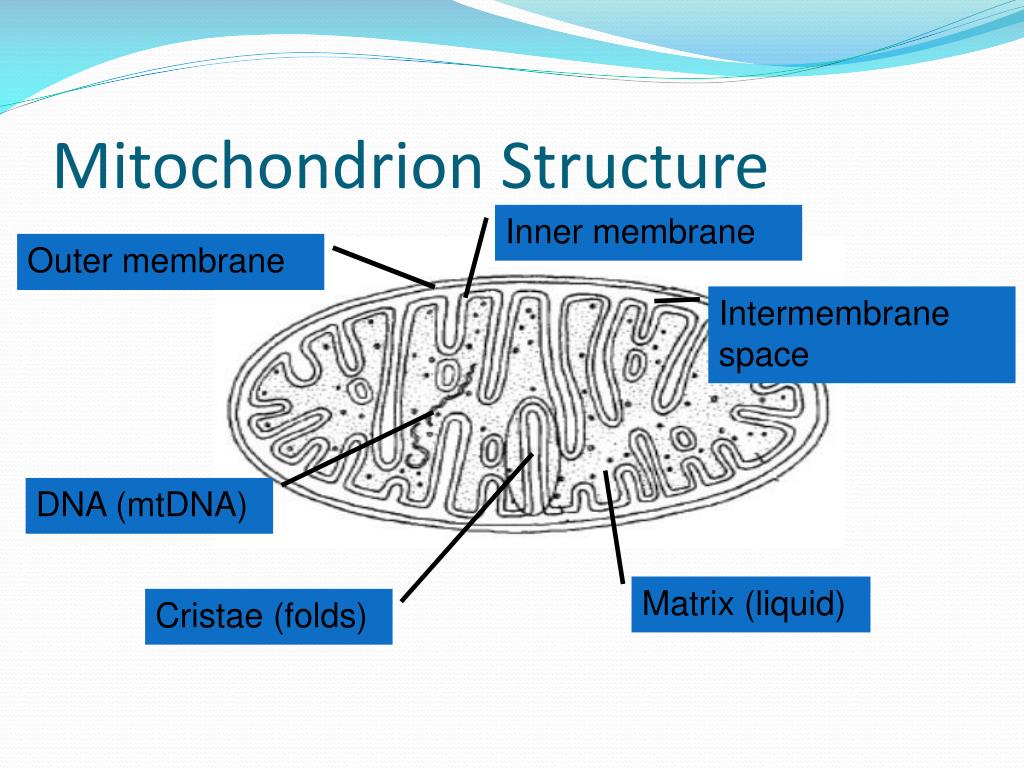

Mitochondrion structure
Mitochondrion Structure by glycolysis into pyruvate, with a small yield of ATP

Inner membrane

Outer membrane

Intermembrane space

DNA (mtDNA)

Matrix (liquid)

Cristae (folds)


Three stages of respiration
Three stages of respiration by glycolysis into pyruvate, with a small yield of ATP

  • Stage 1: Glycolysis (energy investment)

    • Some ATP is made, some is used

  • Stage 2: Krebs Cycle (oxidation of pyruvate)

    • Generation of CO2

  • Stage 3: Oxidative Phosphorylation

    • Generation of most ATP


Three stages of respiration1
Three stages of respiration by glycolysis into pyruvate, with a small yield of ATP


Stage 1 glycolysis
Stage 1: Glycolysis by glycolysis into pyruvate, with a small yield of ATP

  • Where

    • Cell’s cytoplasm

  • Why

    • To break glucose down into pyruvate, which feeds into the Krebs Cycle

    • To regenerate NAD, an electron carrier


Glycolysis how
Glycolysis: How by glycolysis into pyruvate, with a small yield of ATP

Glucose is phosphorylated.

-1 ATP

A series of enzymes produces intermediate products.

An intermediate is phosphorylated.

-1 ATP

NAD is reduced to NADH, 1 each per PGAL

+2 NADH + H+

This diphosphate compound is unstable and breaks into 2 PGAL.

The PGAL molecules generate ATP through substrate-level phosphorylation.

+4 ATP

Summary:

2 pyruvate produced

2 NADH + H+ produced

Net 2 ATP produced

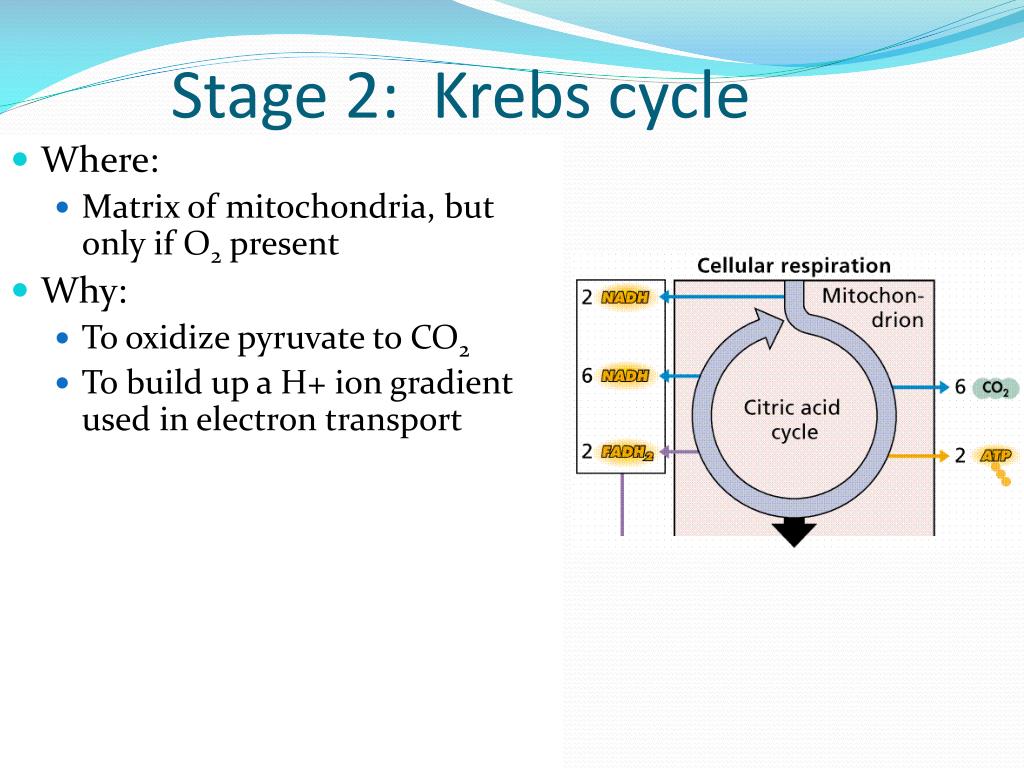

Stage 2 krebs cycle
Stage 2: Krebs cycle by glycolysis into pyruvate, with a small yield of ATP

  • Where:

    • Matrix of mitochondria, but only if O2 present

  • Why:

    • To oxidize pyruvate to CO2

    • To build up a H+ ion gradient used in electron transport


Krebs cycle how
Krebs Cycle: How by glycolysis into pyruvate, with a small yield of ATP

Pyruvate is decarboxylated.

-1 CO2

Resulting acetic acid (2C) is oxidized by NAD.

+1 NADH + H+

Acetyl group (2C) has Coenzyme A added

1 Acetyl co-A: link reaction

Acetyl co-A (2C) is added to a 4C base molecule, forming a 6C intermediate

NAD oxidizes a 4C to form original 4C molecule: +1 NADH + H+

NAD oxidizes these intermediates

CO2 is given off as a byproduct

+2 NADH + H+

-1 CO2

To regenerate the original 4C base, ATP is generated and FAD oxidizes an intermediate

+1 ATP

+1 FADH2

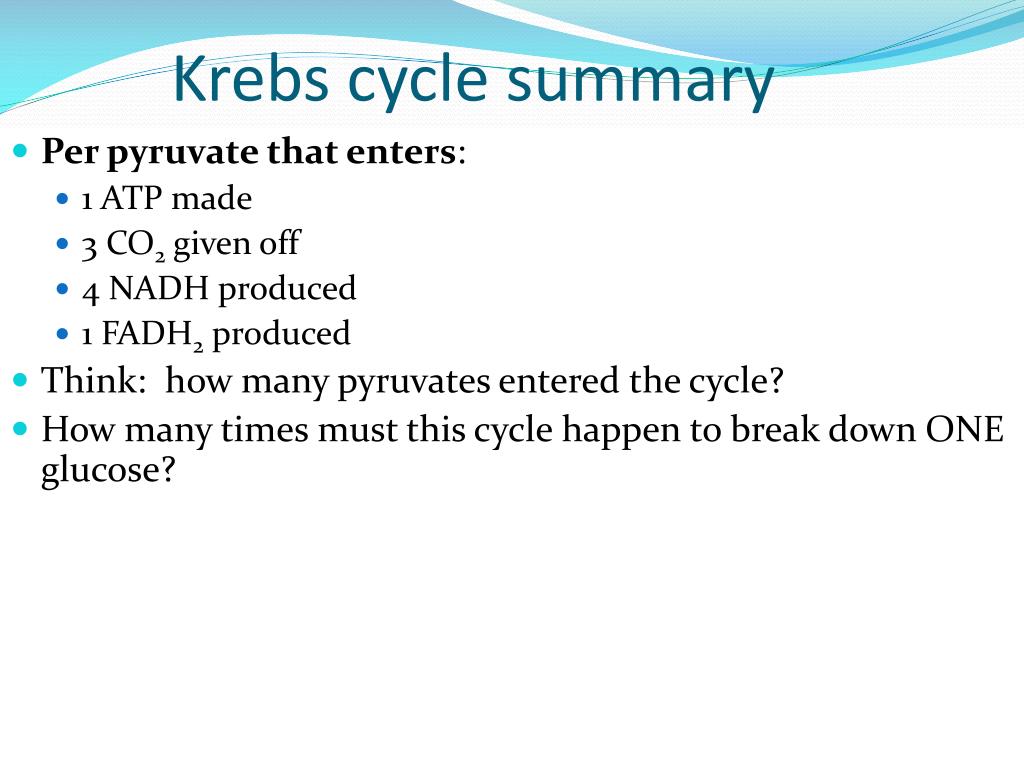

Krebs cycle summary
Krebs cycle summary by glycolysis into pyruvate, with a small yield of ATP

  • Per pyruvate that enters:

    • 1 ATP made

    • 3 CO2 given off

    • 4 NADH produced

    • 1 FADH2 produced

  • Think: how many pyruvates entered the cycle?

  • How many times must this cycle happen to break down ONE glucose?


Stage 3 oxidative phosphorylation
Stage 3: Oxidative phosphorylation by glycolysis into pyruvate, with a small yield of ATP

  • Where:

    • Inner membrane of mitochondria (on cristae)

  • Why:

    • To produce ATP from H+ ion gradient generated during Krebs cycle

  • Requires oxygen!

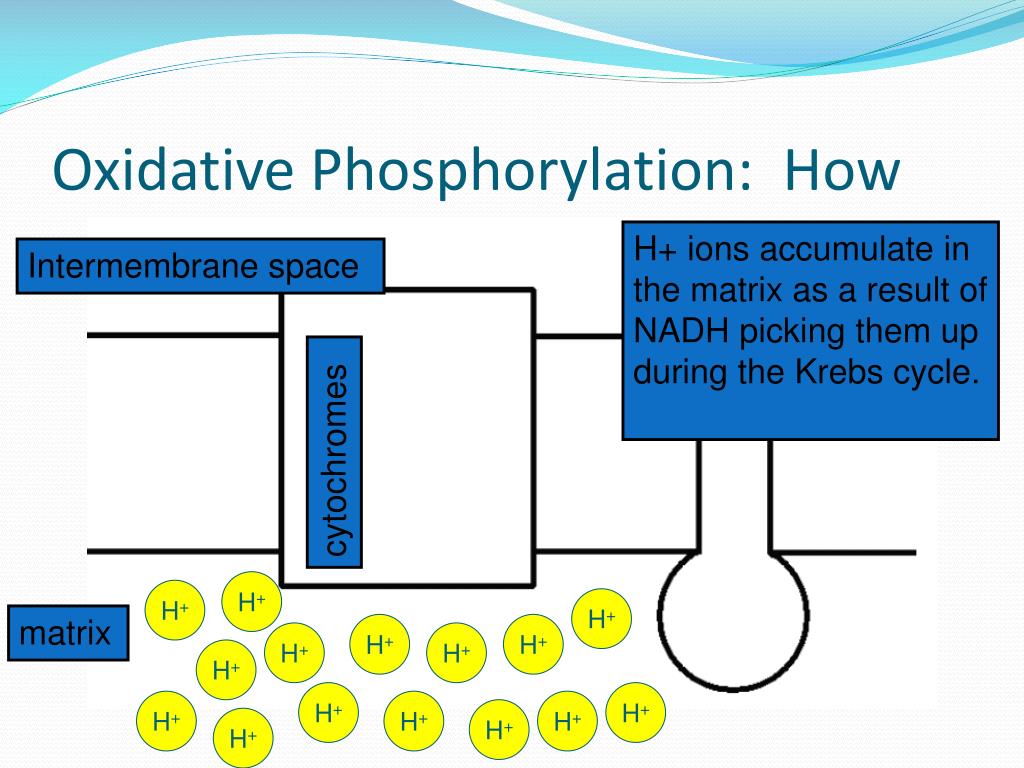

Oxidative phosphorylation how
Oxidative Phosphorylation: How by glycolysis into pyruvate, with a small yield of ATP

H+ ions accumulate in the matrix as a result of NADH picking them up during the Krebs cycle.

Intermembrane space

cytochromes

H+

H+

H+

matrix

H+

H+

H+

H+

H+

H+

H+

H+

H+

H+

H+

H+

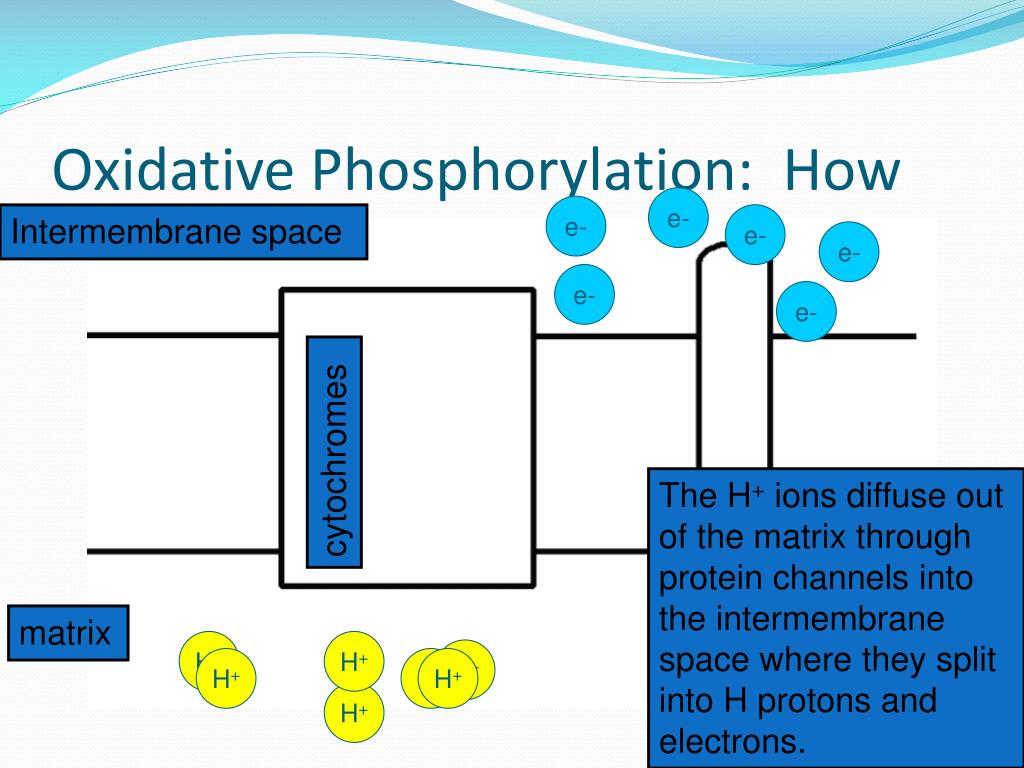

Oxidative phosphorylation how1
Oxidative Phosphorylation: How by glycolysis into pyruvate, with a small yield of ATP

e-

e-

Intermembrane space

e-

e-

e-

e-

cytochromes

The H+ ions diffuse out of the matrix through protein channels into the intermembrane space where they split into H protons and electrons.

matrix

H+

H+

H+

H+

H+

H+

H+


Oxidative phosphorylation how2
Oxidative Phosphorylation: How by glycolysis into pyruvate, with a small yield of ATP

e-

e-

Intermembrane space

H+

e-

H+

H+

e-

H+

e-

H+

H+

e-

The accumulated H+ ions then move through a pump called ATP synthase to produce ATP. What powers the pump is the electrochemical gradient produced.

cytochromes

matrix

ATP

ADP

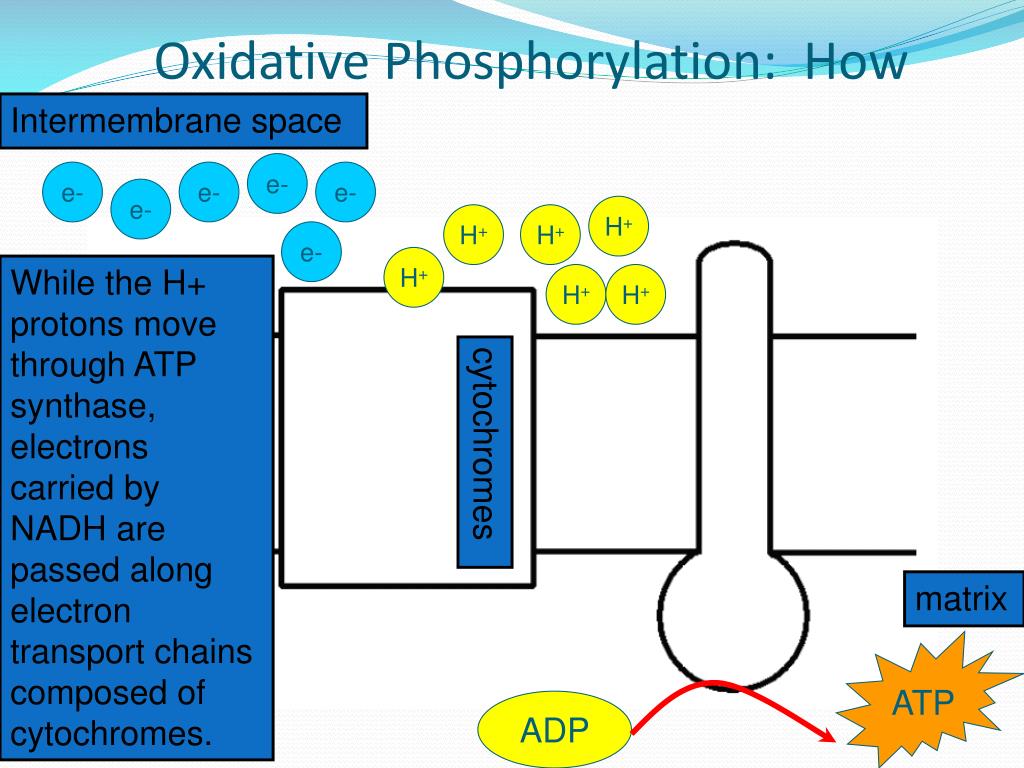

Oxidative phosphorylation how3
Oxidative Phosphorylation: How by glycolysis into pyruvate, with a small yield of ATP

Intermembrane space

e-

e-

e-

e-

e-

H+

H+

H+

e-

H+

While the H+ protons move through ATP synthase, electrons carried by NADH are passed along electron transport chains composed of cytochromes.

H+

H+

cytochromes

matrix

ATP

ADP

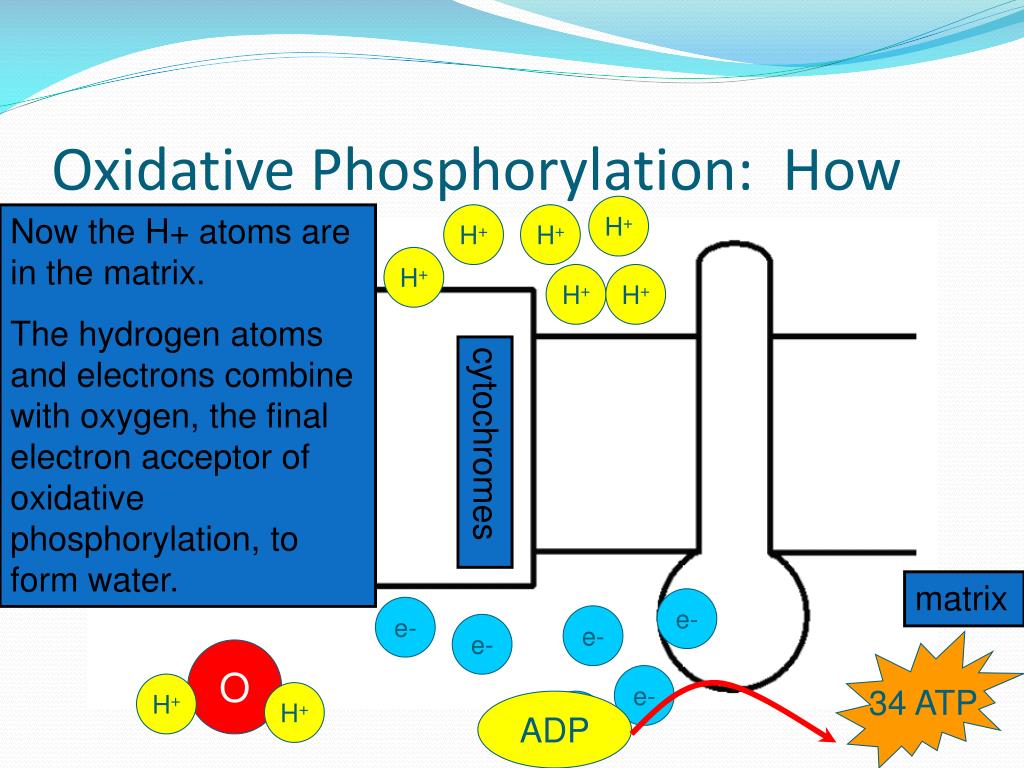

Oxidative phosphorylation how4

O by glycolysis into pyruvate, with a small yield of ATP

H+

H+

Oxidative Phosphorylation: How

H+

Now the H+ atoms are in the matrix.

The hydrogen atoms and electrons combine with oxygen, the final electron acceptor of oxidative phosphorylation, to form water.

H+

H+

H+

H+

H+

cytochromes

matrix

e-

e-

e-

e-

34 ATP

e-

ADP

e-


Summary oxidative phosphorylation
Summary: Oxidative Phosphorylation by glycolysis into pyruvate, with a small yield of ATP

  • 34 ATP made

  • H2O generated

  • NADH oxidized back to NAD

  • Very efficient process! Produces a lot of energy.

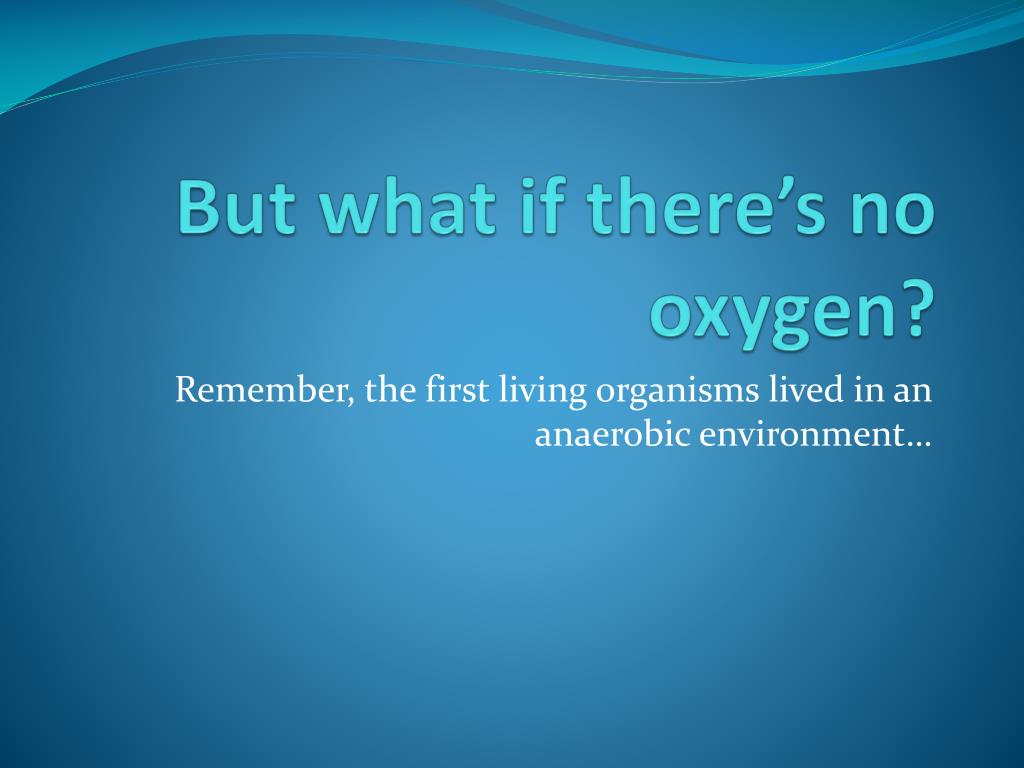

But what if there s no oxygen

But what if there’s no oxygen? by glycolysis into pyruvate, with a small yield of ATP

Remember, the first living organisms lived in an anaerobic environment…

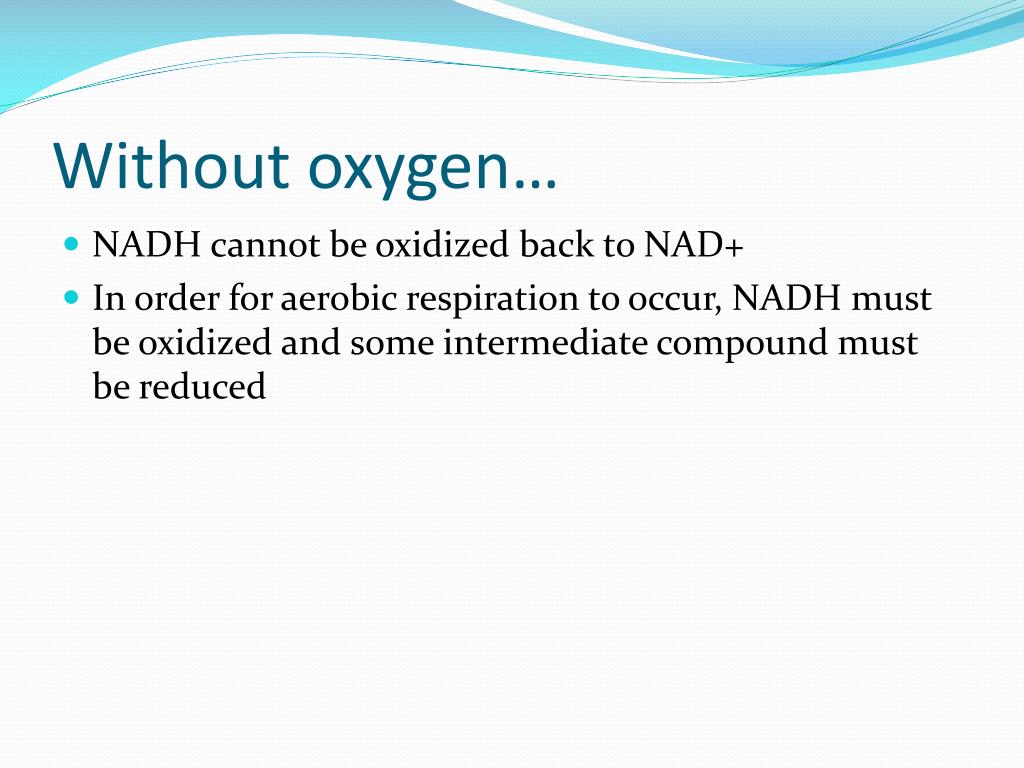

Without oxygen
Without oxygen… by glycolysis into pyruvate, with a small yield of ATP

  • NADH cannot be oxidized back to NAD+

  • In order for aerobic respiration to occur, NADH must be oxidized and some intermediate compound must be reduced

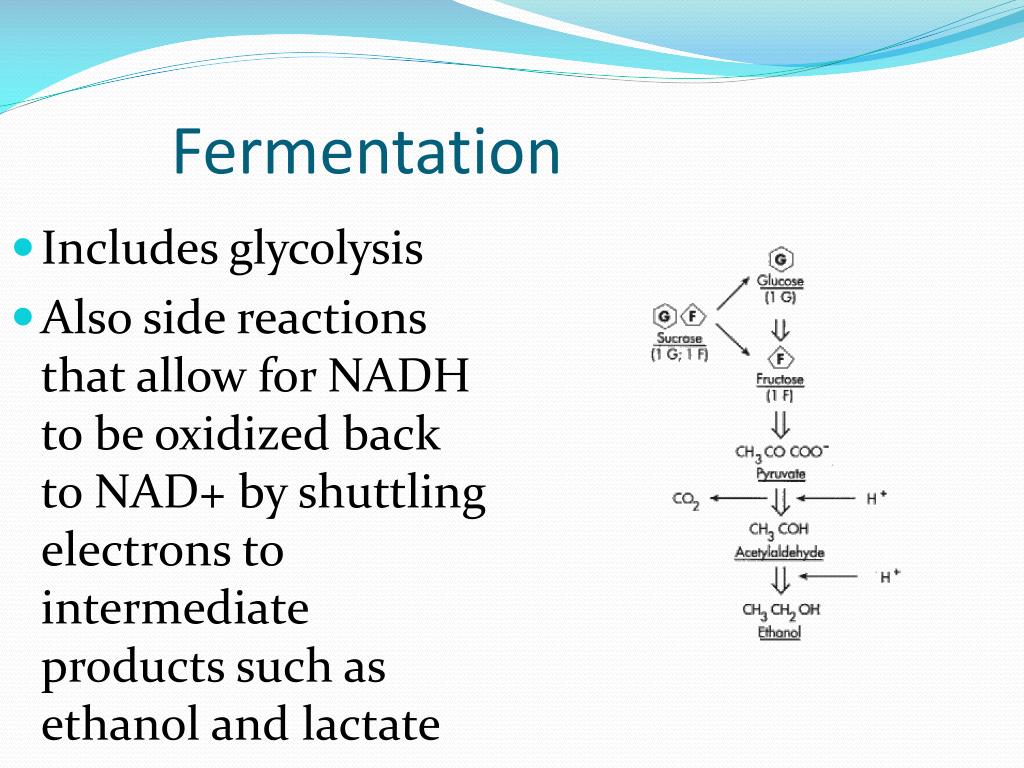

Fermentation
Fermentation by glycolysis into pyruvate, with a small yield of ATP

  • Includes glycolysis

  • Also side reactions that allow for NADH to be oxidized back to NAD+ by shuttling electrons to intermediate products such as ethanol and lactate


Alcoholic fermentation
Alcoholic Fermentation by glycolysis into pyruvate, with a small yield of ATP

  • Glycolysis happens

  • Pyruvate is then converted to acetaldehyde, CO2 is released

  • Acetaldehyde is reduced by NADH to ethanol

  • No additional ATP is made

  • Occurs in yeasts, some bacteria


Lactic acid fermentation
Lactic acid fermentation by glycolysis into pyruvate, with a small yield of ATP

  • Glycolysis happens

  • Pyruvate is reduced by NADH and forms lactate (lactic acid)

  • No CO2 is released

  • No additional ATP is formed

  • Done by bacteria, muscle cells
