Critical infrastructure protection

CRITICAL INFRASTRUCTURE PROTECTION

CRITICAL INFRASTRUCTURE PROTECTION

NERC 1200 CIP 002 - 009

NERC 1200 CIP 002 - 009

gcpud


Once upon a time

Shared rights and responsibilities for transmission planning and operations, transmission service

Payments in kind

Loose coordination agreements

No third-party transmission access

Costs of service allocated broadly

Federal and state rate regulation

North American Electric Reliability Council (NERC) sets voluntary operating policies

Membership comprised of eight regional reliability councils

Regional councils set broad range of requirements to implement operating policies

Once Upon a Time

Once Upon a Time

gcpud

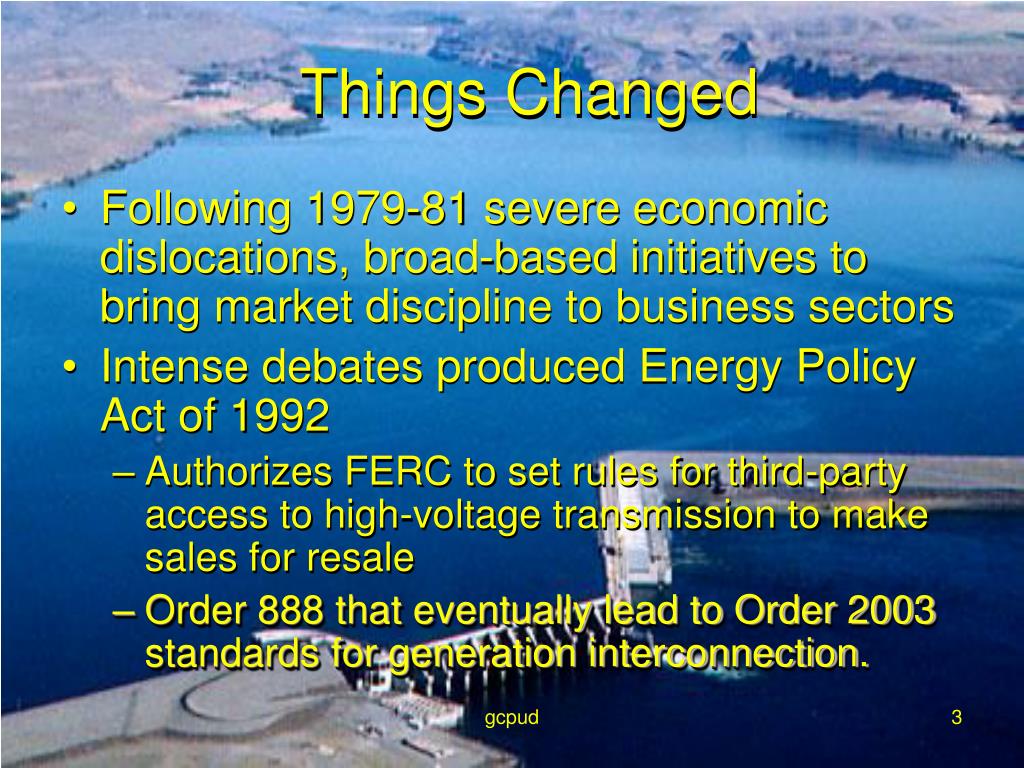

Things changed

Following 1979-81 severe economic dislocations, broad-based initiatives to bring market discipline to business sectors

Intense debates produced Energy Policy Act of 1992

Authorizes FERC to set rules for third-party access to high-voltage transmission to make sales for resale

Order 888 that eventually lead to Order 2003 standards for generation interconnection.

Things Changed

Things Changed

gcpud

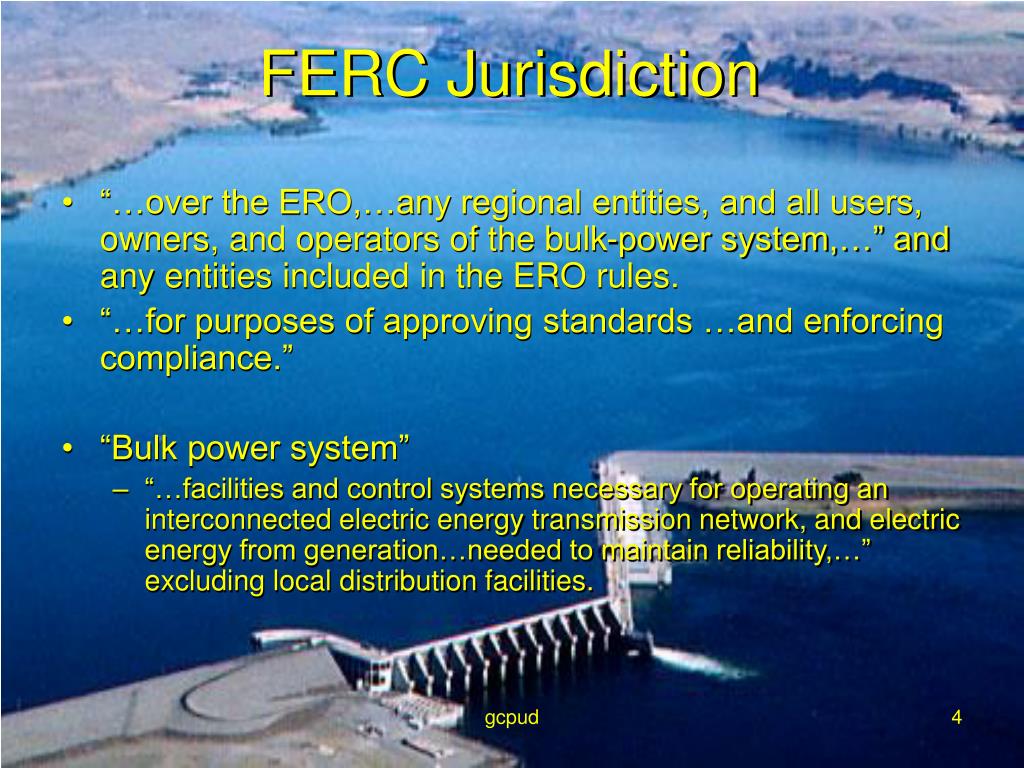

Ferc jurisdiction

“…over the ERO,…any regional entities, and all users, owners, and operators of the bulk-power system,…” and any entities included in the ERO rules.

“…for purposes of approving standards …and enforcing compliance.”

“Bulk power system”

“…facilities and control systems necessary for operating an interconnected electric energy transmission network, and electric energy from generation…needed to maintain reliability,…” excluding local distribution facilities.

FERC Jurisdiction

FERC Jurisdiction

gcpud


E r o

Natural evolution to seek clarification of roles, rights, and responsibilities for physical system planning and operations

1998

Call begins for federal legislation requiring creation of organization to set and enforce mandatory standards

2005

Energy Policy Act of 2005 (EPAct) creates Section 215 of the Federal Power Act

Expands FERC regulatory authority to reliability

Defines Electric Reliability Organization (ERO)

E R O

E R O

gcpud


Energy policy act of 2005

Assigns ownership of the issue of bulk power system reliability to FERC in the US

Applies to all users, owners, and operators of the bulk power system

Create an Electric Reliability Organization

NERC named ERO in July 2006

Creates reliability standards

Sets reliability standards for bulk power system

Monitors & enforces compliance with standards

Energy Policy Act of 2005

gcpud


Critical infrastructure protection

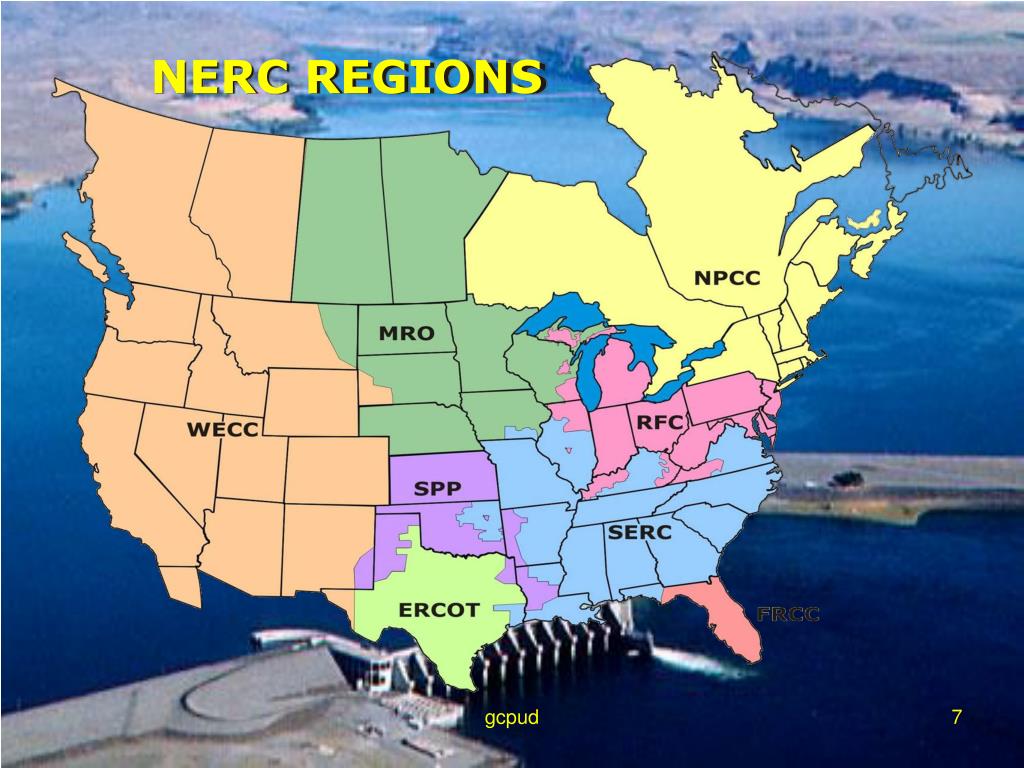

NERC REGIONS

gcpud


Who does what

RO - Reliability Coordinator

TO -Transmission Owner

GO - Generation Owner

LSE - Load Serving Entity

BA -Balancing Authority

TSP -Transmission Service Provider

TO -Transmission Operator

GO - Generation Operator

RRO - Regional Reliability Organization

Who Does What?

Who Does What?

gcpud

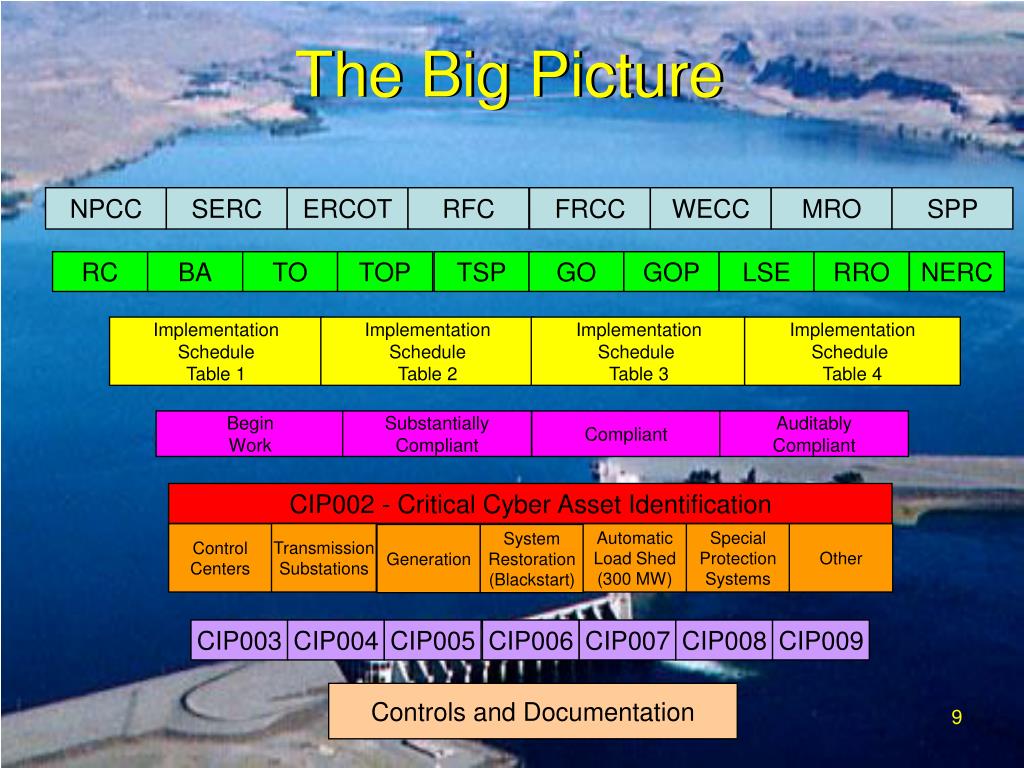

The big picture

NPCC

SERC

ERCOT

RFC

FRCC

WECC

MRO

SPP

RC

BA

TO

TOP

TSP

GO

GOP

LSE

RRO

NERC

Implementation

Schedule

Table 3

Implementation

Schedule

Table 4

Implementation

Schedule

Table 1

Implementation

Schedule

Table 2

Begin

Work

Substantially

Compliant

Compliant

Auditably

Compliant

CIP002 - Critical Cyber Asset Identification

Automatic

Load Shed

(300 MW)

Special

Protection

Systems

Other

Generation

System

Restoration

(Blackstart)

Transmission

Substations

Control

Centers

CIP003

CIP004

CIP005

CIP006

CIP007

CIP008

CIP009

Controls and Documentation

The Big Picture

The Big Picture

gcpud


Scope of cip 002 009

Applies to these bulk power system entities:

IOUs

Coops

Federal

Municipals

State agencies

Others

Within the entities

Operations

Substations

IT

Generating Plants

Scope of CIP 002-009

gcpud


Cyber security standards

CIP002: Critical Cyber Asset Identification

CIP003: Security Management Controls

CIP004: Personnel and Training

CIP005: Electronic Security Perimeter(s)

CIP006: Physical Security

CIP007: Systems Security Management

CIP008: Incident Reporting and Response Planning

CIP009: Recovery Plans for Critical Cyber Assets

Cyber Security Standards

Cyber Security Standards

gcpud

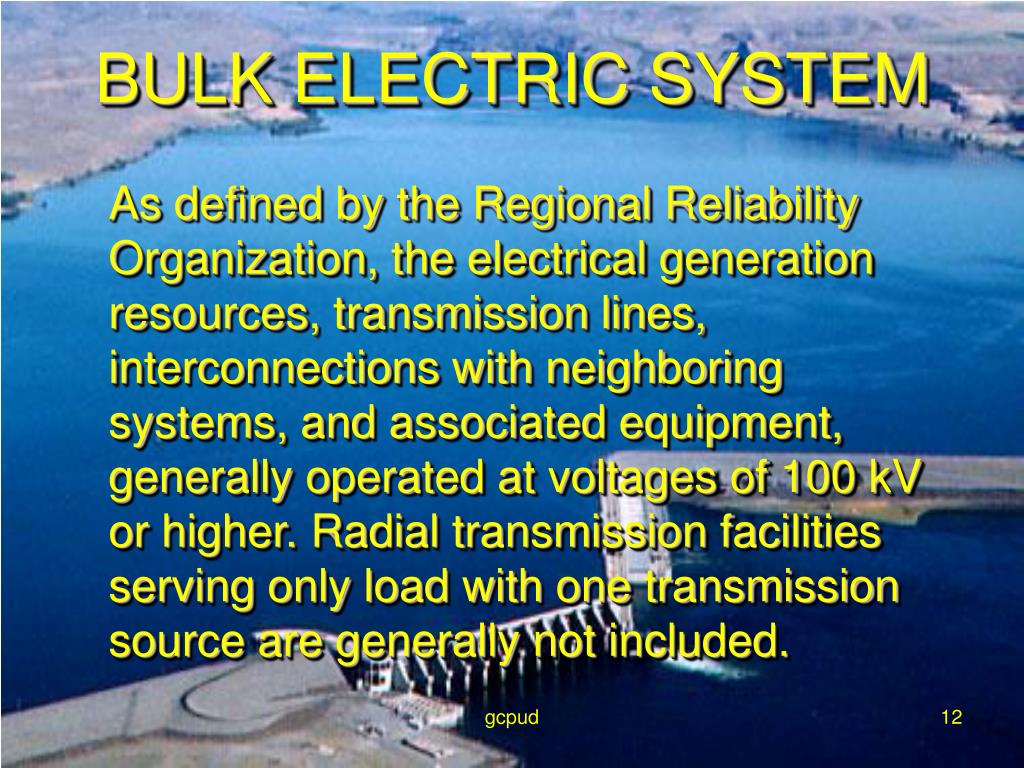

Bulk electric system

BULK ELECTRIC SYSTEM

As defined by the Regional Reliability Organization, the electrical generation resources, transmission lines, interconnections with neighboring systems, and associated equipment, generally operated at voltages of 100 kV or higher. Radial transmission facilities serving only load with one transmission source are generally not included.

gcpud


Cip 002 critical cyber asset identification 1

CIP 002Critical Cyber Asset Identification 1

Bulk Electric

Assets

Filtering

Identifying Critical Assets

Critical Electric

Assets

Output

list of CCAs

gcpud


Risk basis

If the asset were to be compromised or removed from service, what would be the impact, either direct or indirect to transmission grid reliability or operatability.’

Risk Basis

gcpud


Methodology

A four (4) step process.

Task 1: Assemble team of SMEs (Subject Mater Experts) to list electric assets by both physical and calculated means using power flow models and system simulations.

Task 2: Eliminate non critical assets and list in ‘Null List’; remaining are Critical Electrical Assets.

Task 3: Select Cyber Assets supporting Critical Electric Assets.

Task 4: Determine Critical Cyber Assets.

Methodology

gcpud


Cip 002 critical cyber asset identification 2

CIP 002Critical Cyber Asset Identification 2

Critical Electric

Assets

CRITICAL

CYBER

ASSETS

Filtering

Essential to operation

of critical asset

and

meets CIP002-R3

Cyber

Assets

gcpud


Cyber asset definiation

Critical cyber assets are assets that meet at least one of the following requirements:

the cyber asset uses a routable protocol to communicate outside the electronic security perimeter; or,

the cyber asset uses a routable protocol within a control center; or,

the cyber asset is dial-up accessible.

Cyber Asset Definiation

gcpud


Ram t

RAM - T

RAM-DSM was the first RAM developed at Sandia for critical infrastructures. Bonneville Power Administration commissioned Sandia National Laboratories to develop the Risk Assessment Methodology for Transmissions (RAM-TSM) based on RAM-DSM.

RAM-TSM is a way to analyze the current security risks and systematically characterize and assess the security requirements of the nation's electrical transmission system facilities to deter, prevent, and mitigate malevolent attacks.

The methodology and training has been made available to owners, operators, managers, and others responsible for transmitting electrical power.

gcpud


What to do next

Attend one of the NERC regional workshops on cyber security standards

ftp://www.nerc.com/pub/sys/all_updl/cip/CSS_Workshop_Announcement.pdf

Get involved in NERC standards process

Registered Ballot Body

Standards drafting teams

Comment of proposed standards

Get involved in your regions standards process

Find out about compliance assurance within your organization

Some companies building formal internal compliance programs

What to do next?

gcpud


Nerc workshop

How to make an Asset Inventory

Set up Change Management

Physical and Electronic Access Control and Monitoring

Governance

Incident Response

Documentation, Classification & Control

Network Management

Personnel Risk Assessment

Physical Security

Recovery Operations

Systems Management

Testing procedures

Employee Training

Performing Vulnerability Assessments

Prepare for a Compliance Audit.

NERC WORKSHOP

gcpud

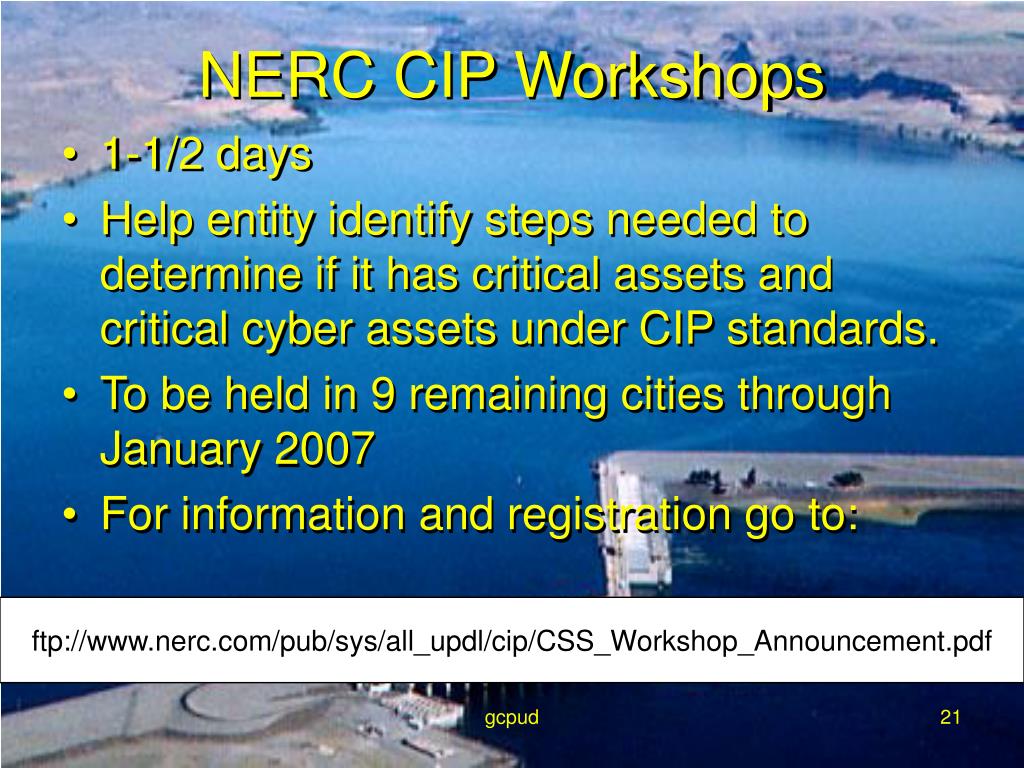

Nerc cip workshops

1-1/2 days

Help entity identify steps needed to determine if it has critical assets and critical cyber assets under CIP standards.

To be held in 9 remaining cities through January 2007

For information and registration go to:

NERC CIP Workshops

ftp://www.nerc.com/pub/sys/all_updl/cip/CSS_Workshop_Announcement.pdf

gcpud


Acknowledgements

Marty Sidor – NERC Director of Education

Mark Kuras – NERC – Standards Education Team

Dave Dworzak – Edison Electric Institute

Acknowledgements
