Presentation Transcript


The clinical value of diagnostic tests a well explored but underdeveloped continent

The clinical value of diagnostic testsA well-explored but underdeveloped continent

J. Hilden : March 2006


The clinical value of diagnostic tests a well explored but underdeveloped continent

The clinical value of diagnostic testsThe diagnostic test and some neglected aspects of its statistical evaluation.

Some aspects were covered in my seminar spring 2003


Plan of my talk

Plan of my talk

Historical & ”sociological” observations

Clinicometric framework

Displays and measures of diagnostic power

Appendix: math. peculiarities

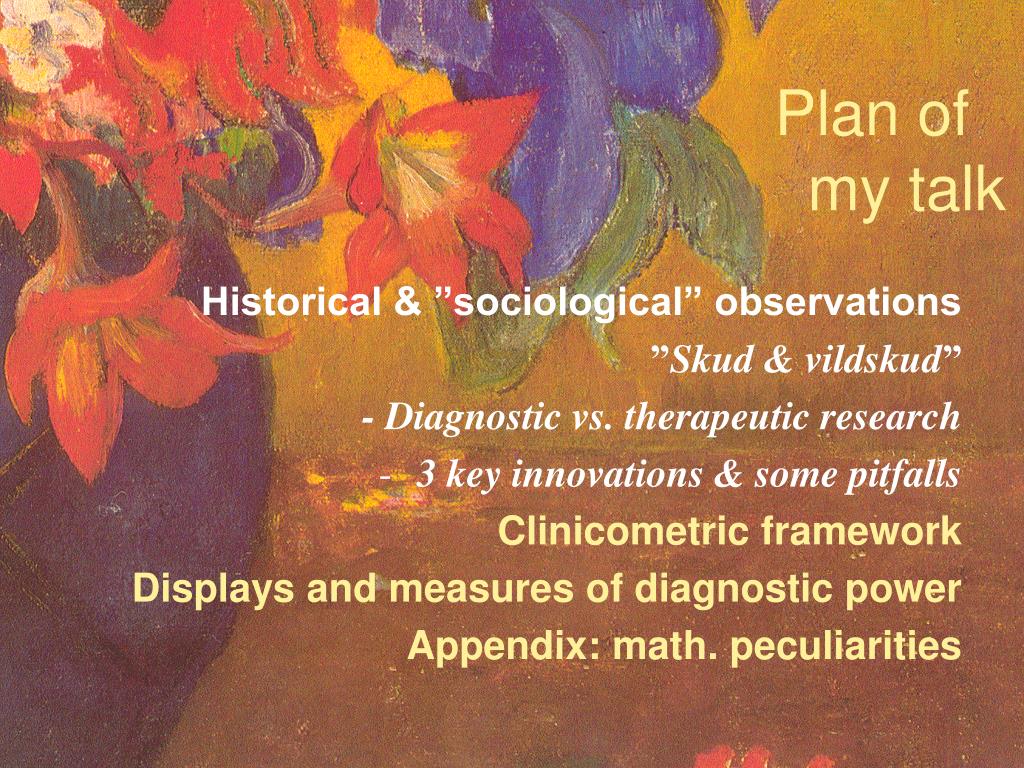

Plan of my talk1

Plan of my talk

Historical & ”sociological” observations

”Skud & vildskud”

- Diagnostic vs. therapeutic research

  • 3 key innovations & some pitfalls

    Clinicometric framework

    Displays and measures of diagnostic power

    Appendix: math. peculiarities

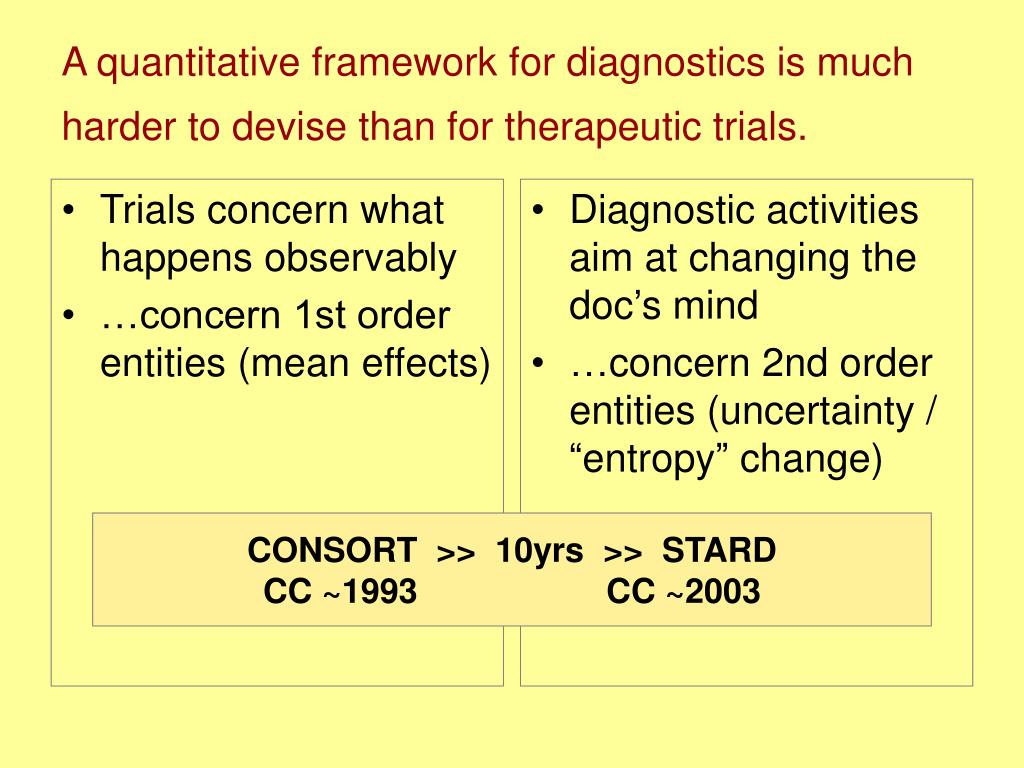

A quantitative framework for diagnostics is much harder to devise than for therapeutic trials

Trials concern what happens observably

…concern 1st order entities (mean effects)

Diagnostic activities aim at changing the doc’s mind

…concern 2nd order entities (uncertainty / “entropy” change)

A quantitative framework for diagnostics is much harder to devise than for therapeutic trials.

CONSORT >> 10yrs >> STARD

CC ~1993 CC ~2003


The clinical value of diagnostic tests a well explored but underdeveloped continent

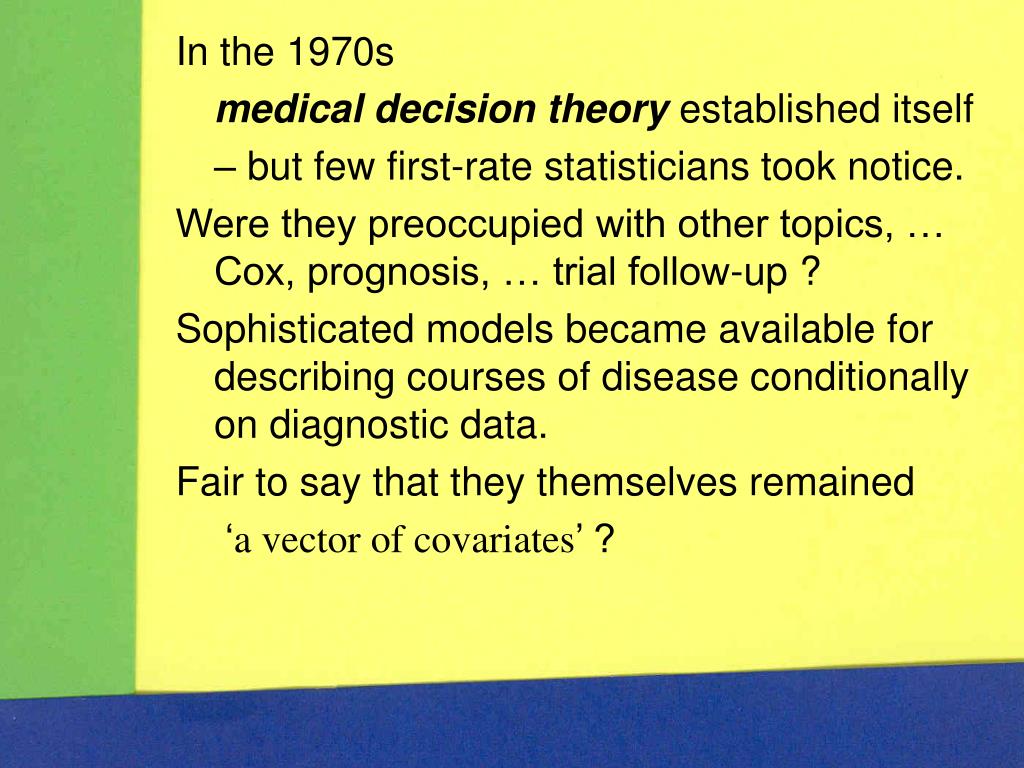

In the 1970s

medical decision theory established itself

– but few first-rate statisticians took notice.

Were they preoccupied with other topics, … Cox, prognosis, … trial follow-up ?

Sophisticated models became available for describing courses of disease conditionally on diagnostic data.

Fair to say that they themselves remained

‘a vector of covariates’ ?

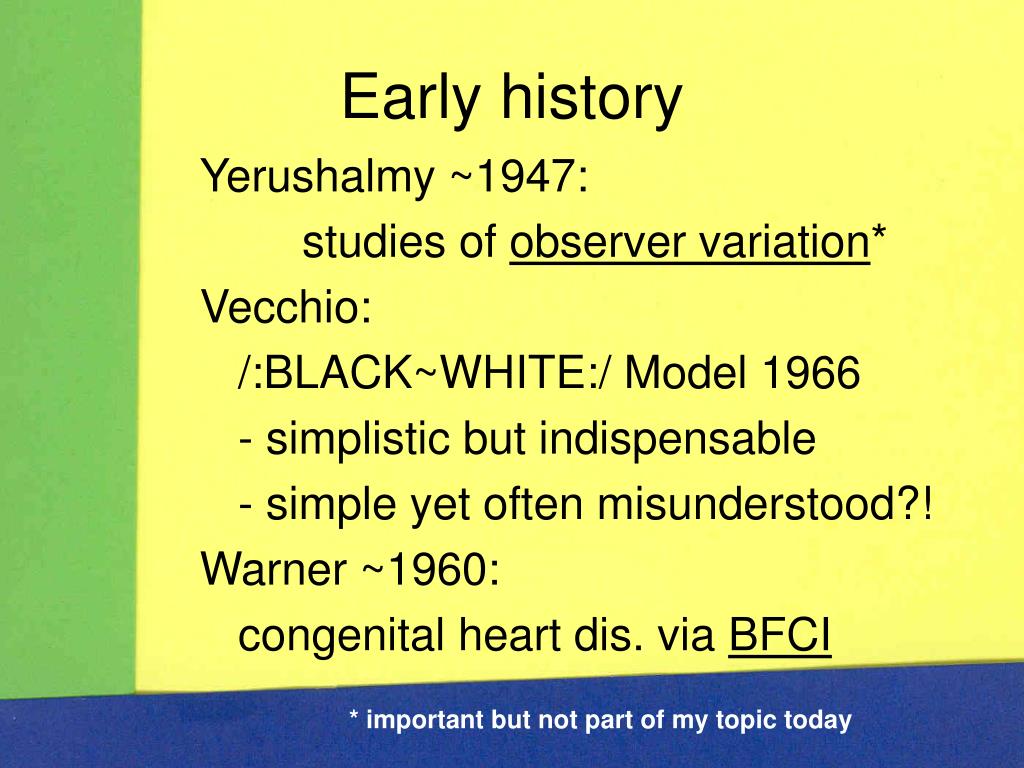

Early history

Early history

Yerushalmy ~1947:

studies of observer variation*

Vecchio:

/:BLACK~WHITE:/ Model 1966

- simplistic but indispensable

- simple yet often misunderstood?!

Warner ~1960:

congenital heart dis. via BFCI

* important but not part of my topic today


Other topics not mentioned

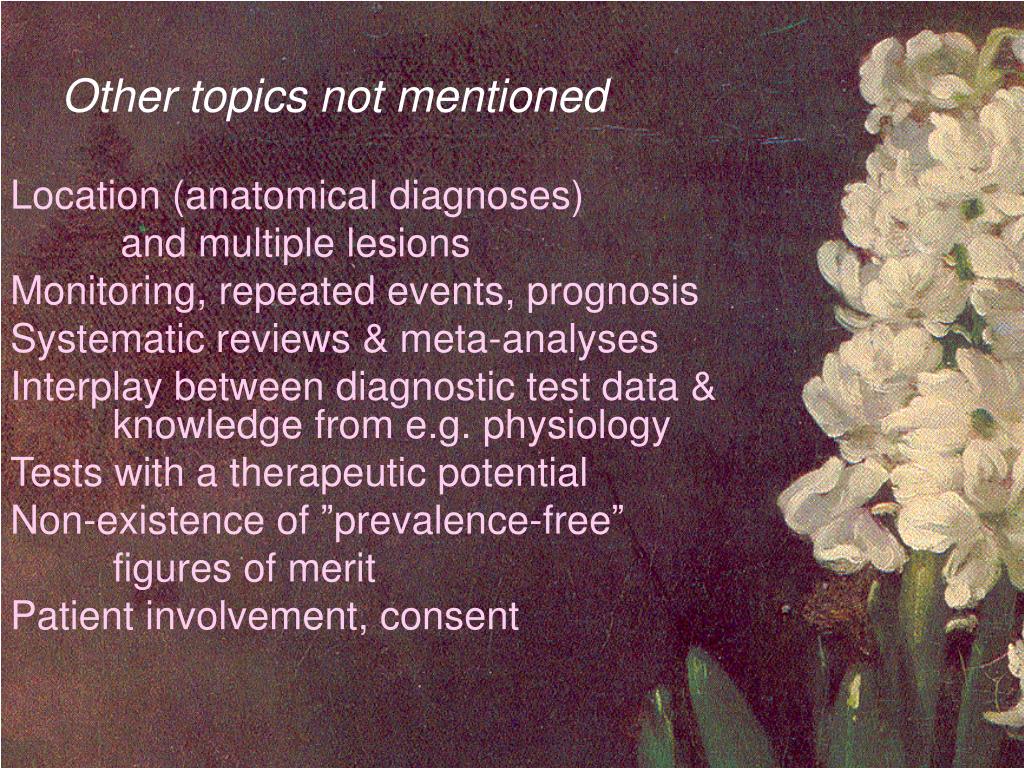

Other topics not mentioned

Location (anatomical diagnoses)

and multiple lesions

Monitoring, repeated events, prognosis

Systematic reviews & meta-analyses

Interplay between diagnostic test data & knowledge from e.g. physiology

Tests with a therapeutic potential

Non-existence of ”prevalence-free”

figures of merit

Patient involvement, consent


Bfci bayes formula w conditional independence

BFCI (Bayes’ Formula w. Conditional Independence**)

”based on the assumption of CI”:

what does that mean?

Do you see why it was misunderstood?

** Indicant variables independent cond’lly on pt’s true condition

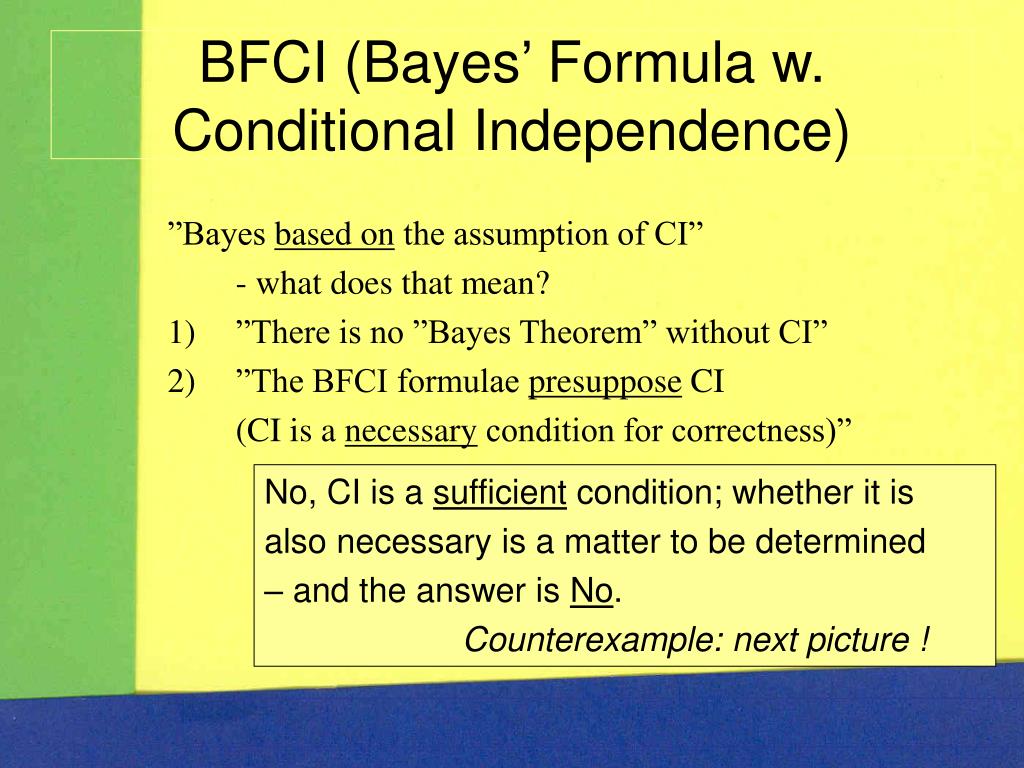

Bfci bayes formula w conditional independence1

BFCI (Bayes’ Formula w. Conditional Independence)

”Bayes based on the assumption of CI”

- what does that mean?

  • ”There is no ”Bayes Theorem” without CI”

  • ”The BFCI formulae presuppose CI

    (CI is a necessary condition for correctness)”

No, CI is a sufficient condition; whether it is

also necessary is a matter to be determined

– and the answer is No.

Counterexample: next picture !

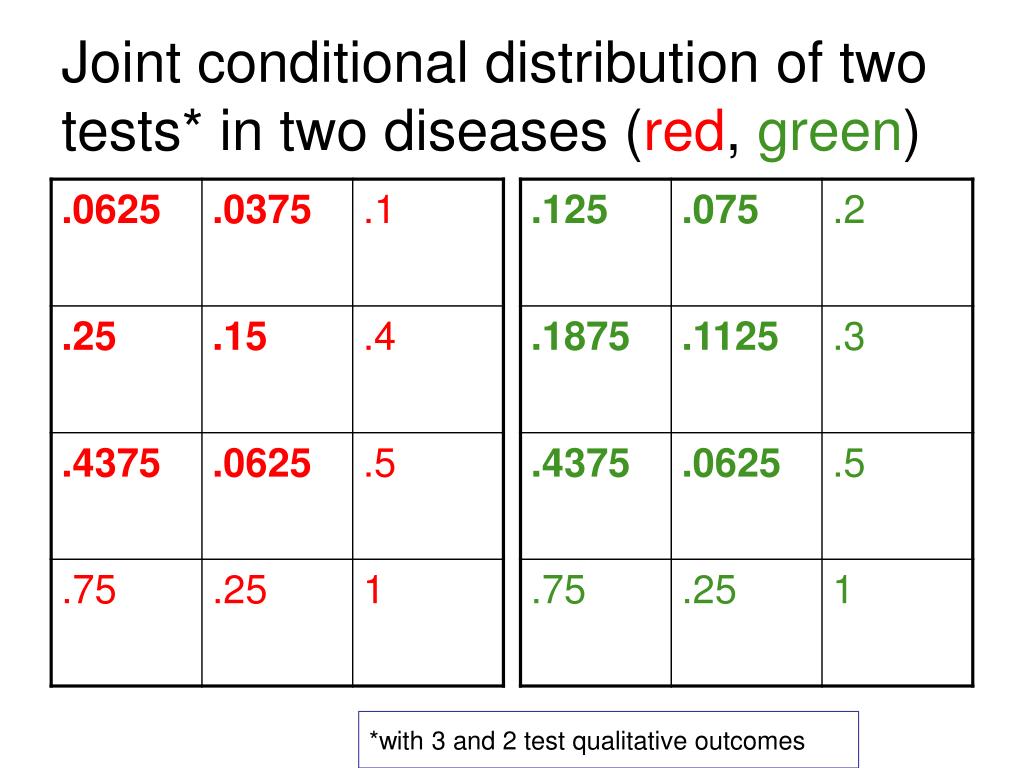

Joint conditional distribution of two tests in two diseases red green

Joint conditional distribution of two tests* in two diseases (red, green)

*with 3 and 2 test qualitative outcomes

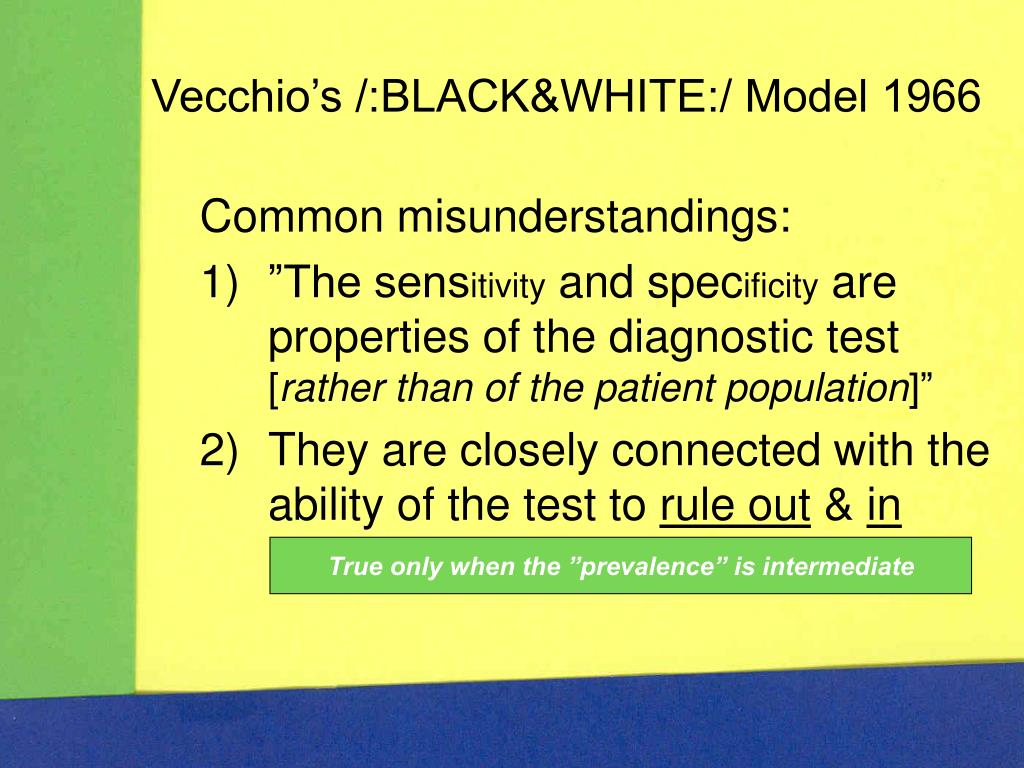

Vecchio s black white model 1966

Vecchio’s /:BLACK&WHITE:/ Model 1966

Common misunderstandings:

  • ”The sensitivity and specificity are properties of the diagnostic test [rather than of the patient population]”

  • They are closely connected with the ability of the test to rule out & in

True only when the ”prevalence” is intermediate


Plan of my talk2

Plan of my talk

Historical & ”sociological” observations

Clinicometric framework

Displays and measures of diagnostic power

Appendix: math. peculiarities


You cannot discuss diagnostic tests without some conceptual framework

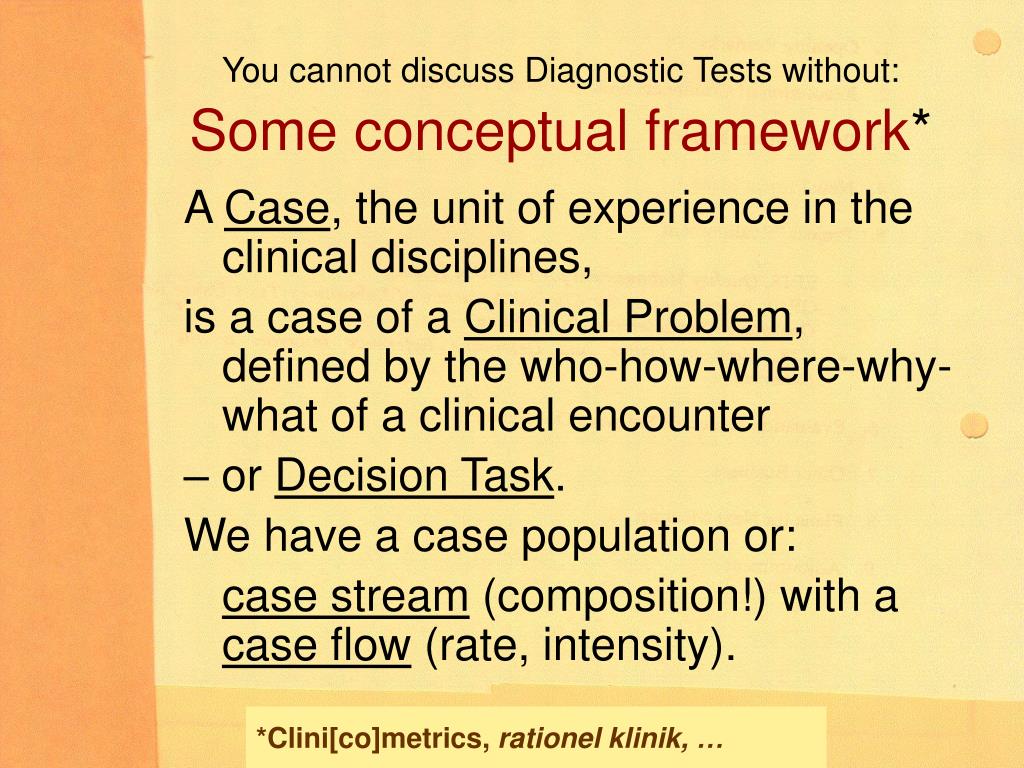

You cannot discuss Diagnostic Tests without:Some conceptual framework*

A Case, the unit of experience in the clinical disciplines,

is a case of a Clinical Problem, defined by the who-how-where-why-what of a clinical encounter

– or Decision Task.

We have a case population or:

case stream (composition!) with a case flow (rate, intensity).

*Clini[co]metrics, rationel klinik, …

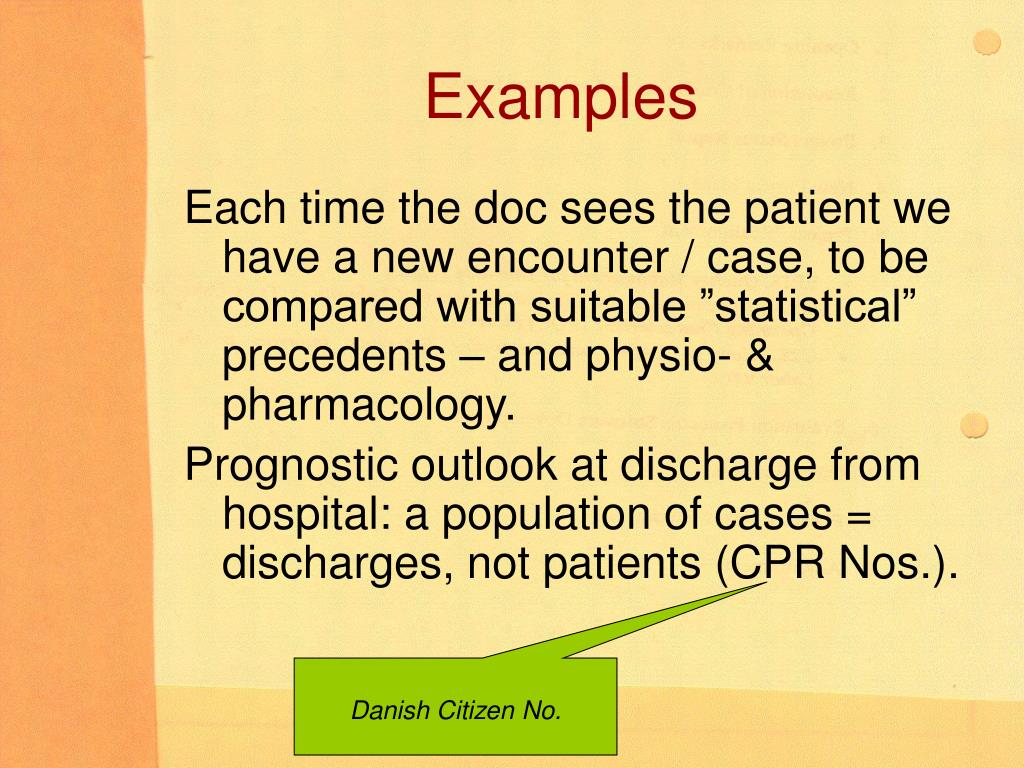

Examples

Examples

Each time the doc sees the patient we have a new encounter / case, to be compared with suitable ”statistical” precedents – and physio- & pharmacology.

Prognostic outlook at discharge from hospital: a population of cases = discharges, not patients (CPR Nos.).

Danish Citizen No.

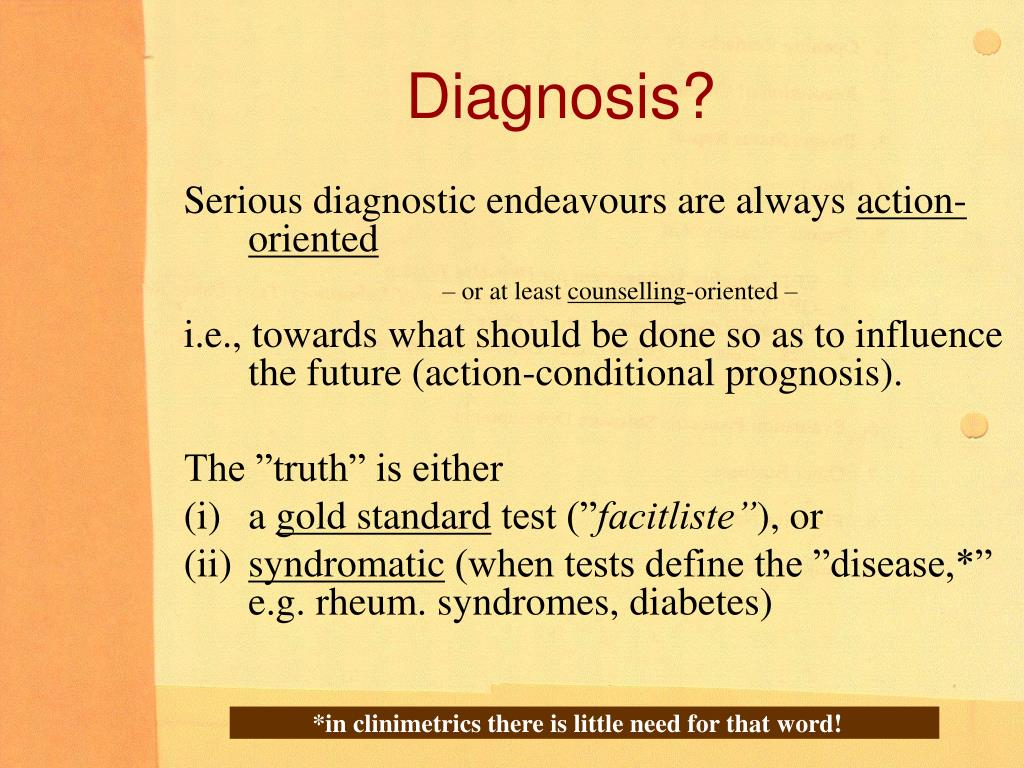

Diagnosis

Diagnosis?

Serious diagnostic endeavours are always action-oriented

– or at least counselling-oriented –

i.e., towards what should be done so as to influence the future (action-conditional prognosis).

The ”truth” is either

  • a gold standard test (”facitliste”), or

  • syndromatic (when tests define the ”disease,*” e.g. rheum. syndromes, diabetes)

*in clinimetrics there is little need for that word!

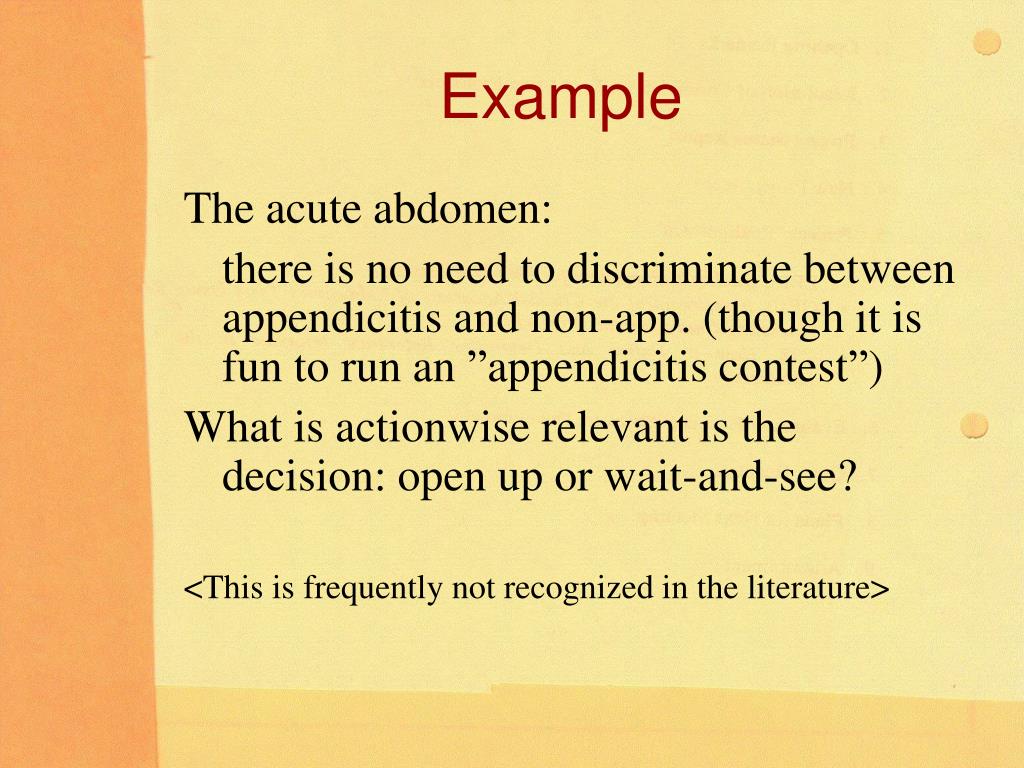

Example

Example

The acute abdomen:

there is no need to discriminate between appendicitis and non-app. (though it is fun to run an ”appendicitis contest”)

What is actionwise relevant is the decision: open up or wait-and-see?

<This is frequently not recognized in the literature>


The clinical value of diagnostic tests a well explored but underdeveloped continent

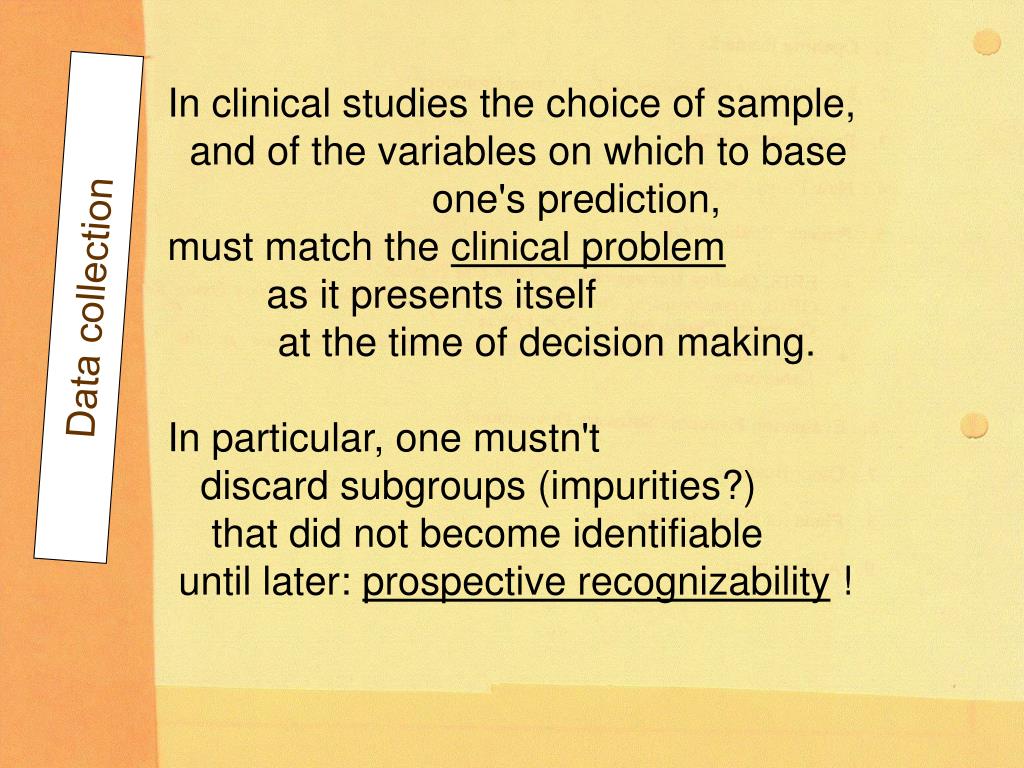

In clinical studies the choice of sample, and of the variables on which to base one's prediction, must match the clinical problem as it presents itself at the time of decision making. In particular, one mustn't discard subgroups (impurities?) that did not become identifiable until later: prospective recognizability !

Data collection


The clinical value of diagnostic tests a well explored but underdeveloped continent

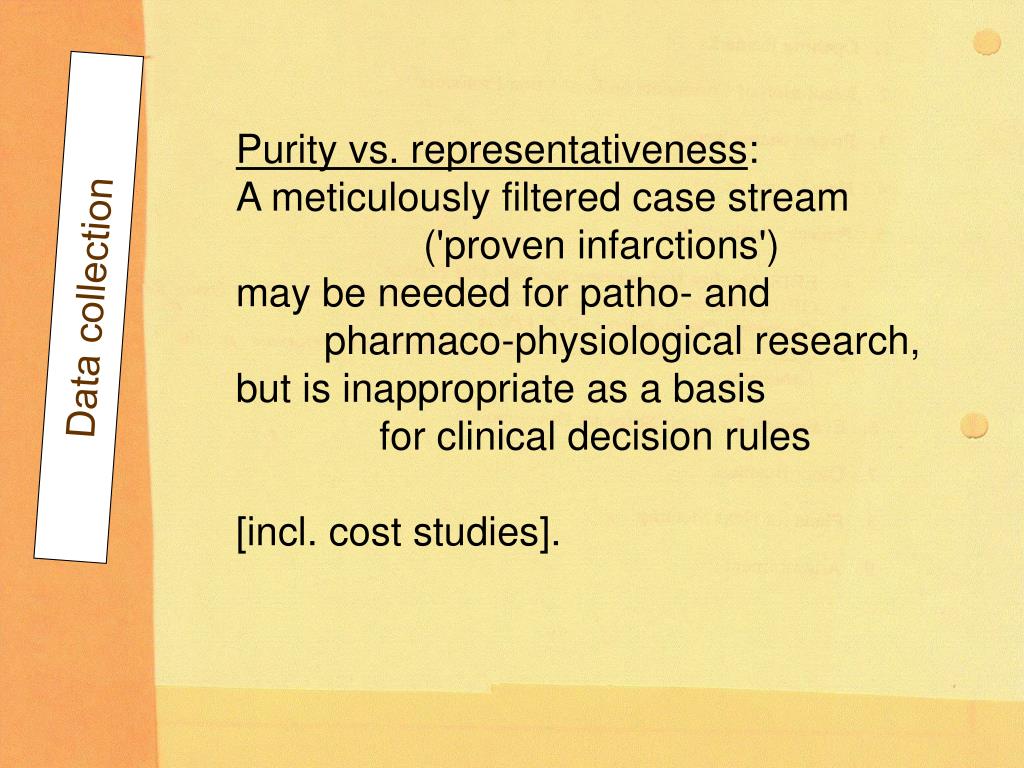

Purity vs. representativeness:A meticulously filtered case stream ('proven infarctions') may be needed for patho- and pharmaco-physiological research, but is inappropriate as a basis for clinical decision rules [incl. cost studies].

Data collection


The clinical value of diagnostic tests a well explored but underdeveloped continent

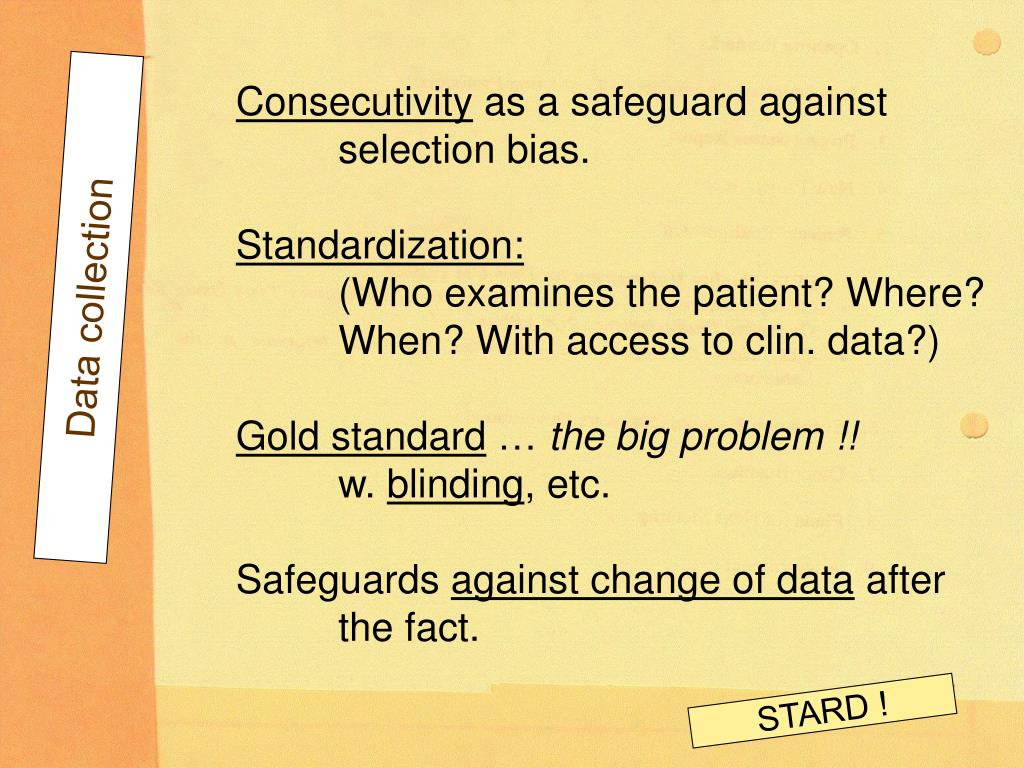

Consecutivity as a safeguard against selection bias.Standardization: (Who examines the patient? Where? When? With access to clin. data?)Gold standard … the big problem !! w. blinding, etc.Safeguards against change of data after the fact.

Data collection

STARD !


The clinical value of diagnostic tests a well explored but underdeveloped continent

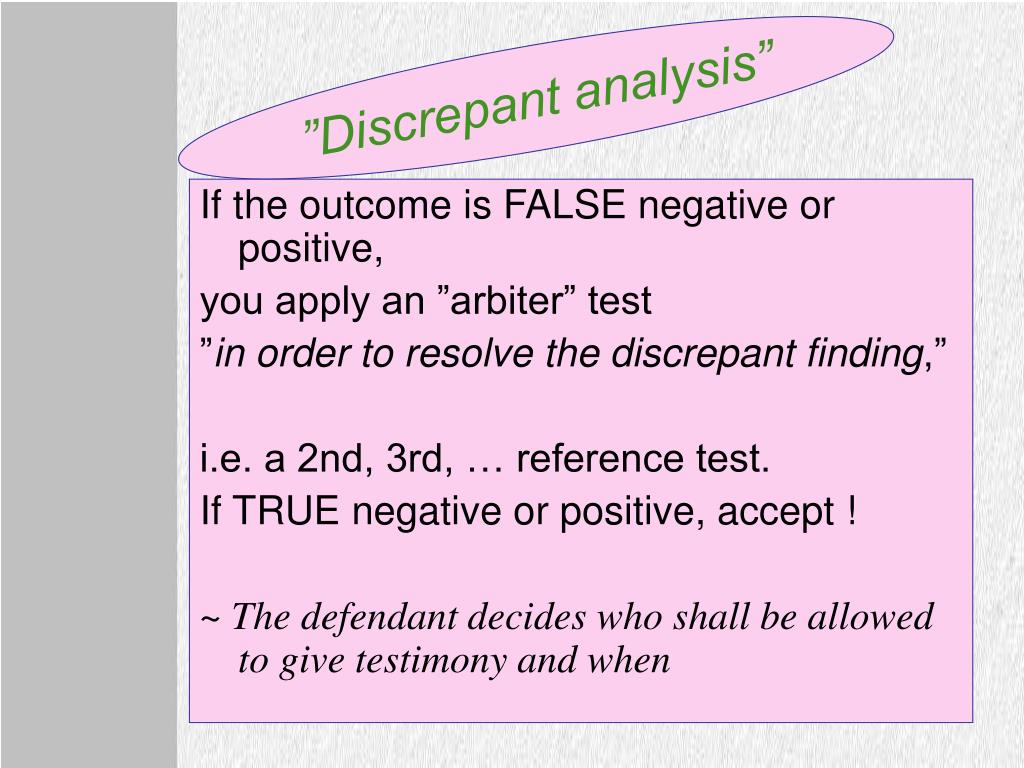

”Discrepant analysis”

If the outcome is FALSE negative or positive,

you apply an ”arbiter” test

”in order to resolve the discrepant finding,”

i.e. a 2nd, 3rd, … reference test.

If TRUE negative or positive, accept !

~ The defendant decides who shall be allowed to give testimony and when


Randomized trials of diagn tests

Digression…

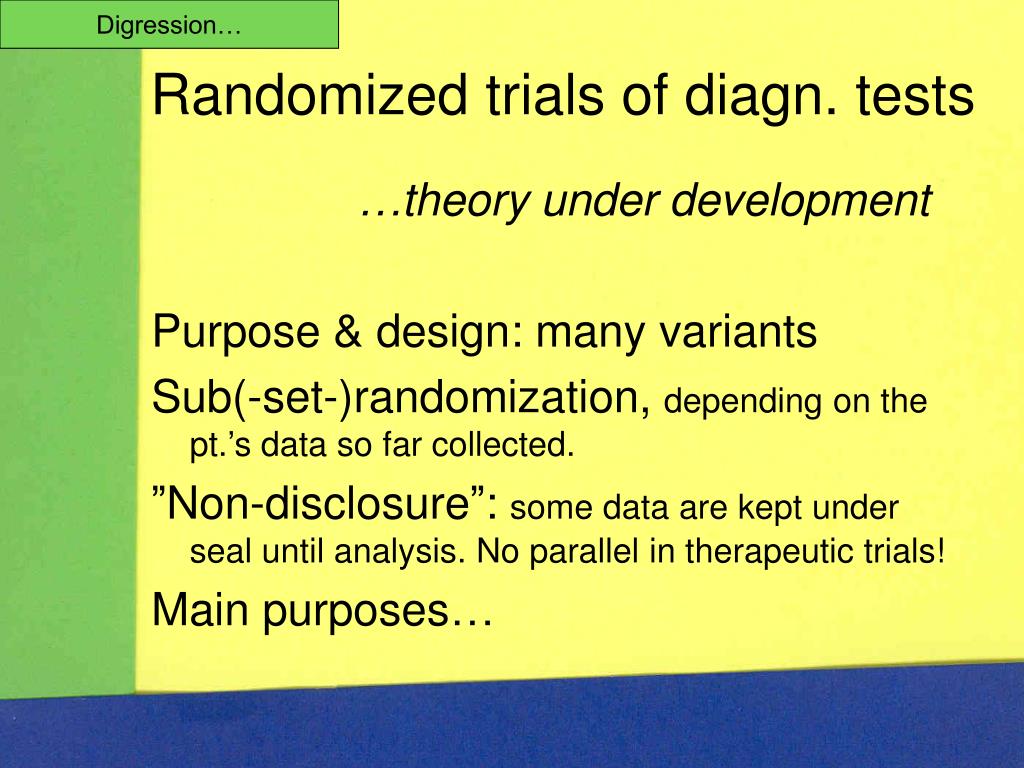

Randomized trials of diagn. tests

…theory under development

Purpose & design: many variants

Sub(-set-)randomization, depending on the pt.’s data so far collected.

”Non-disclosure”: some data are kept under seal until analysis. No parallel in therapeutic trials!

Main purposes…

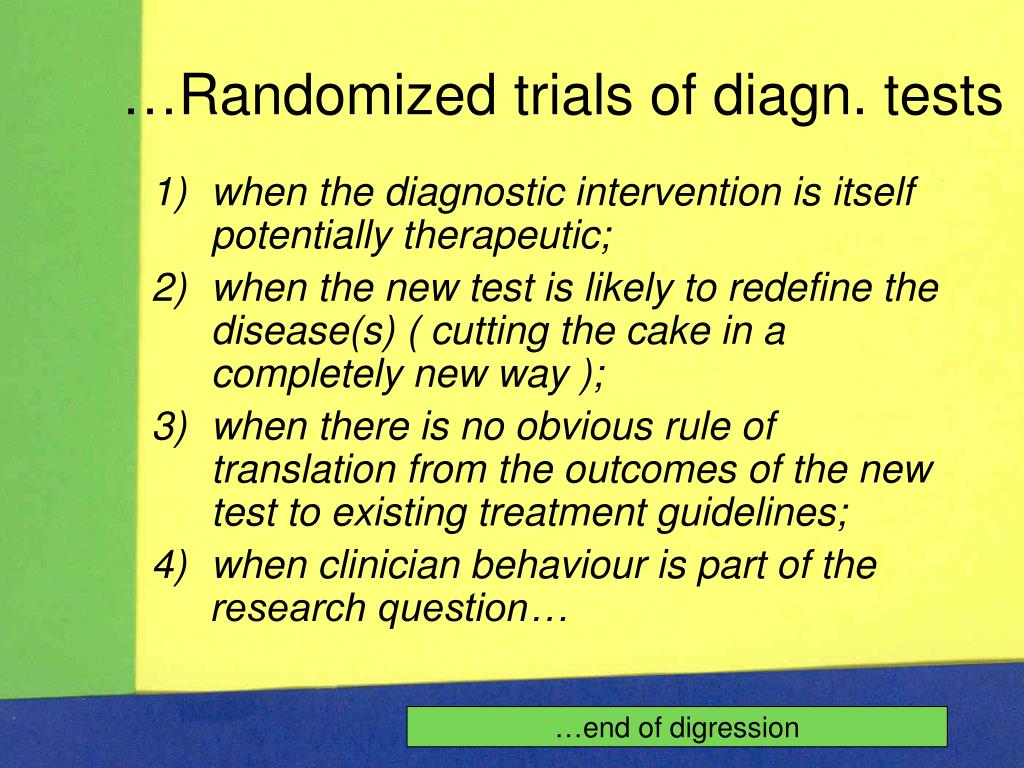

Randomized trials of diagn tests1

…Randomized trials of diagn. tests

  • when the diagnostic intervention is itself potentially therapeutic;

  • when the new test is likely to redefine the disease(s) ( cutting the cake in a completely new way );

  • when there is no obvious rule of translation from the outcomes of the new test to existing treatment guidelines;

    4)when clinician behaviour is part of the research question…

…end of digression


Plan of my talk3

Plan of my talk

Historical & ”sociological” observations

Clinicometric framework

Displays and measures of diagnostic power

Appendix: math. peculiarities

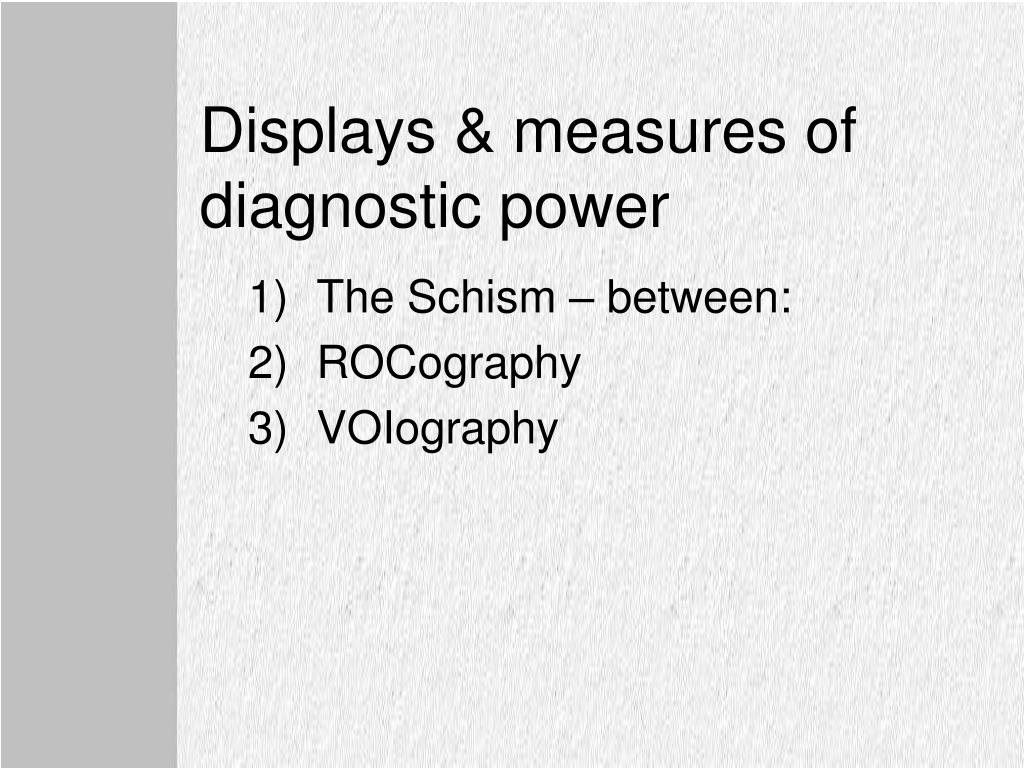

Displays measures of diagnostic power

Displays & measures of diagnostic power

  • The Schism – between:

  • ROCography

  • VOIography

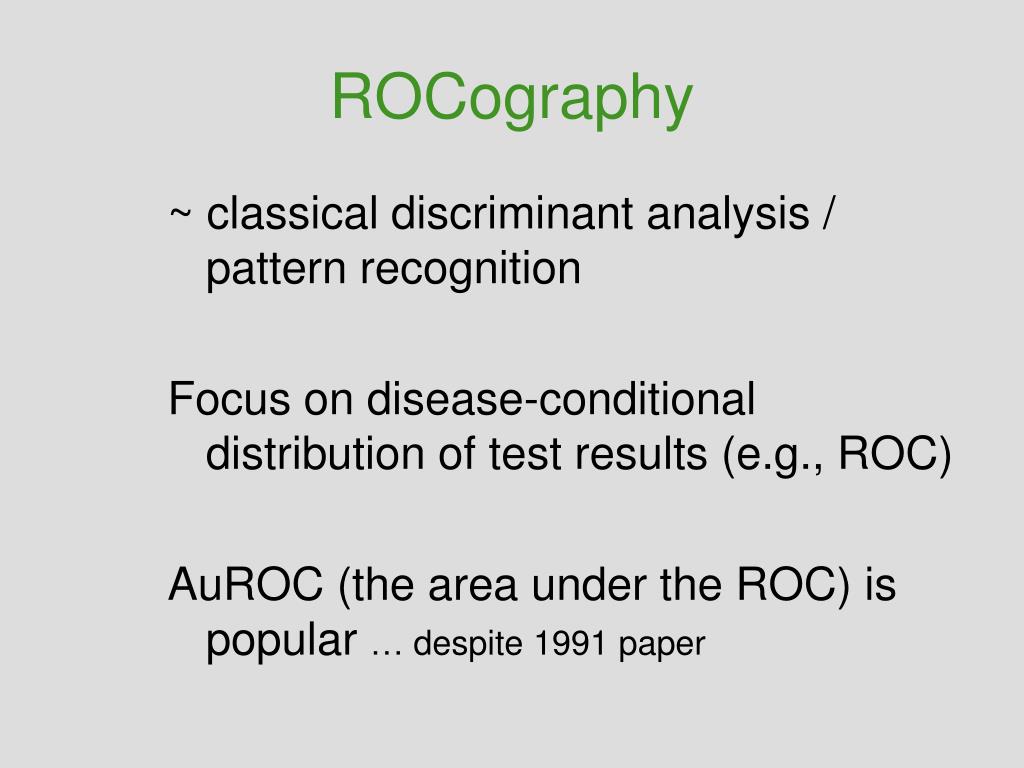

Rocography

ROCography

~ classical discriminant analysis / pattern recognition

Focus on disease-conditional distribution of test results (e.g., ROC)

AuROC (the area under the ROC) is popular … despite 1991 paper


Voi value of information

VOI (value of information)

~ decision theory.

VOI = increase in expected utility afforded by an information source such as a diagnostic test

Focus on posttest conditional distribution of disorders, range of actions and the associated expected utility – and

– its preposterior quantification.

Less concerned with math structure, more with medical realism.


The clinical value of diagnostic tests a well explored but underdeveloped continent

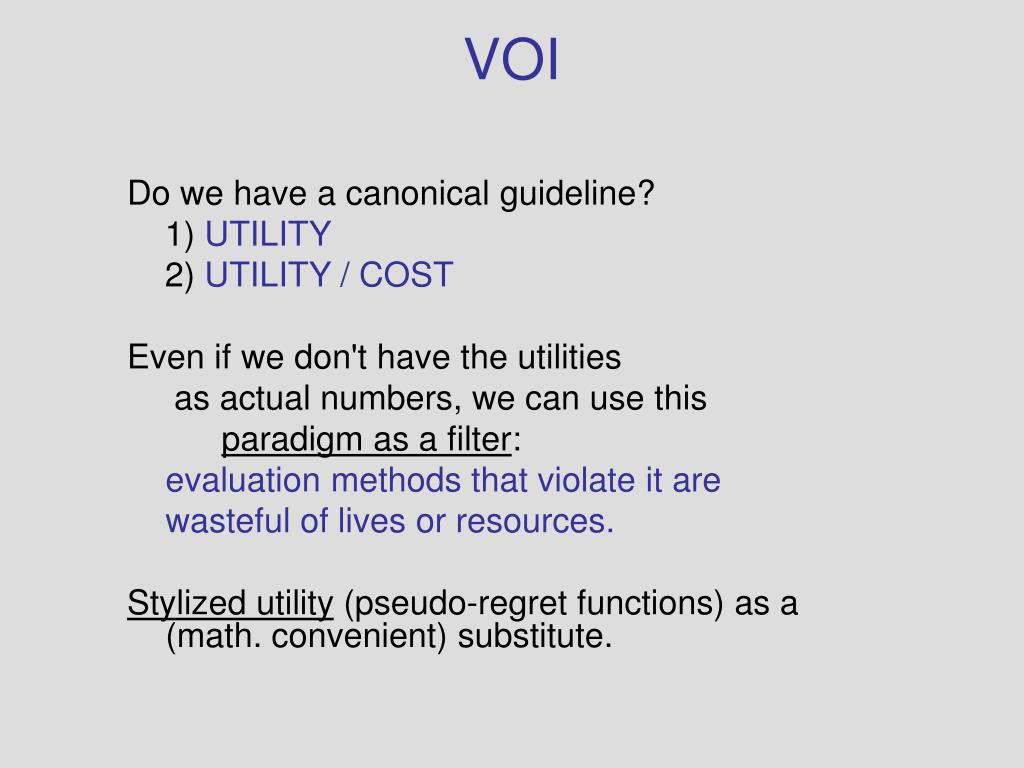

VOI

Do we have a canonical guideline?

1) UTILITY

2) UTILITY / COST

Even if we don't have the utilities

as actual numbers, we can use this

paradigm as a filter:

evaluation methods that violate it are

wasteful of lives or resources.

Stylized utility (pseudo-regret functions) as a (math. convenient) substitute.

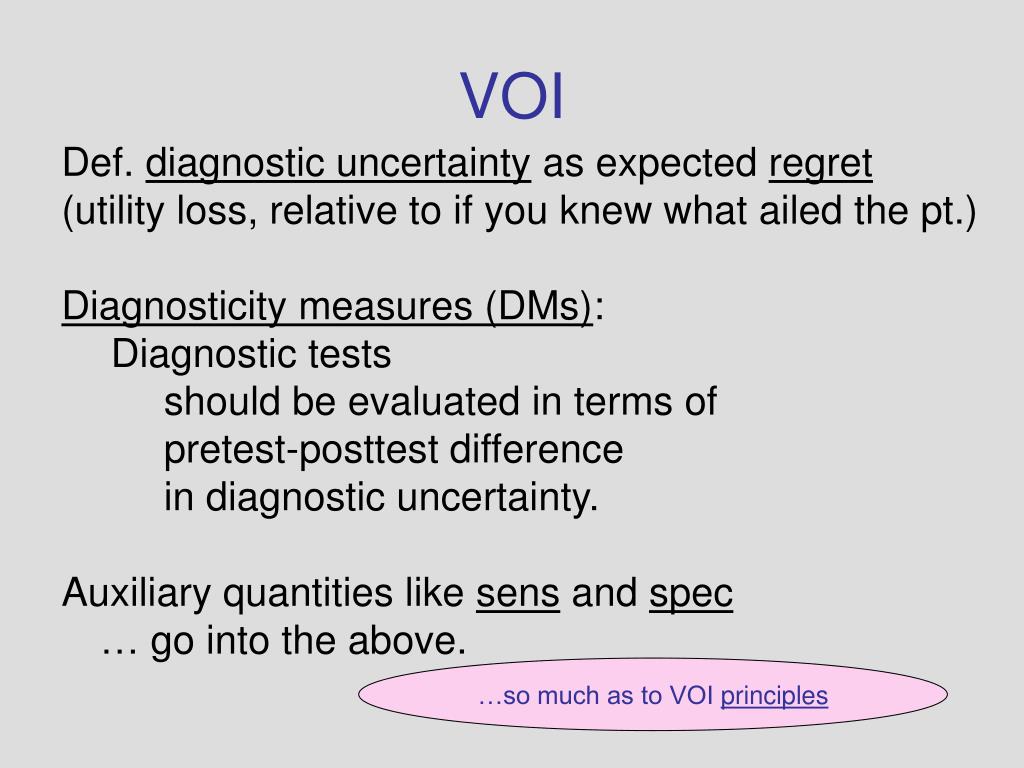

The clinical value of diagnostic tests a well explored but underdeveloped continent

VOI

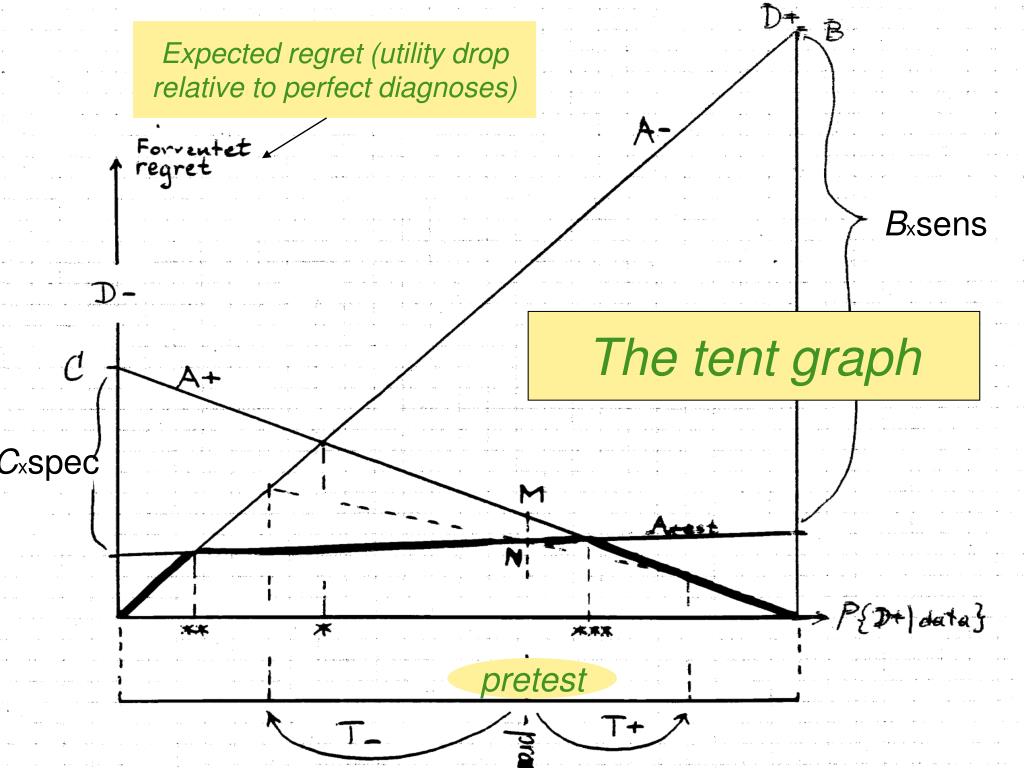

Def. diagnostic uncertainty as expected regret

(utility loss, relative to if you knew what ailed the pt.)

Diagnosticity measures (DMs):

Diagnostic tests

should be evaluated in terms of

pretest-posttest difference

in diagnostic uncertainty.

Auxiliary quantities like sens and spec

… go into the above.

…so much as to VOIprinciples

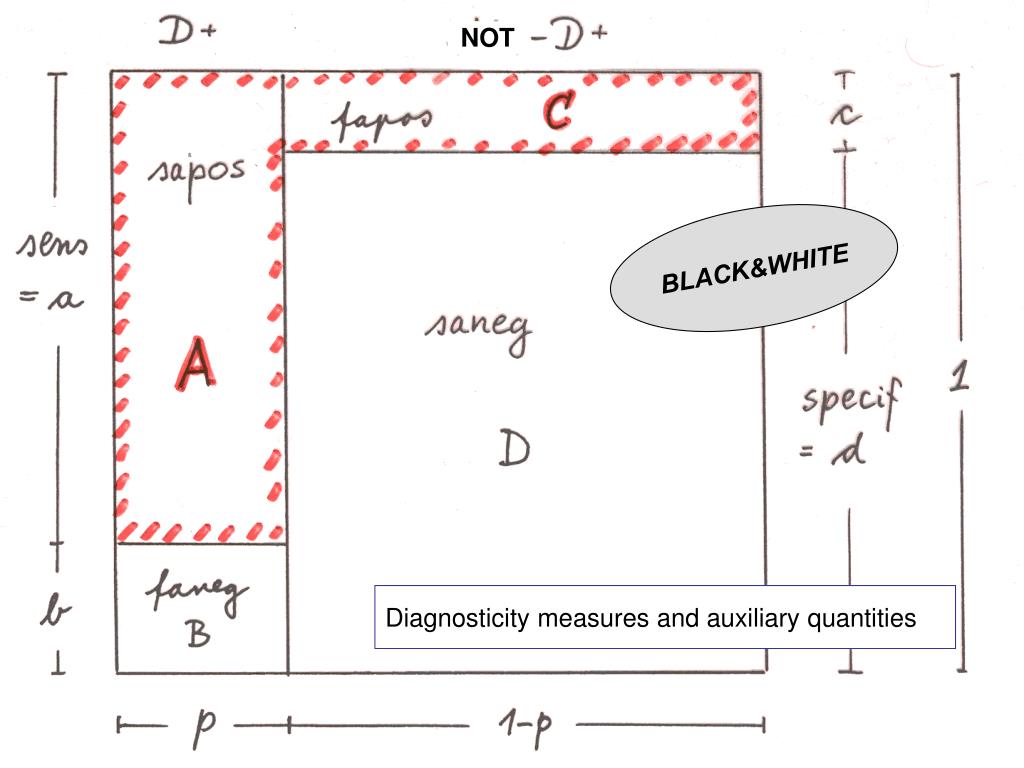

Diagnosticity measures and auxiliary quantities

NOT

Diagnosticity measures and auxiliary quantities

BLACK&WHITE


Diagnosticity measures and auxiliary quantities1

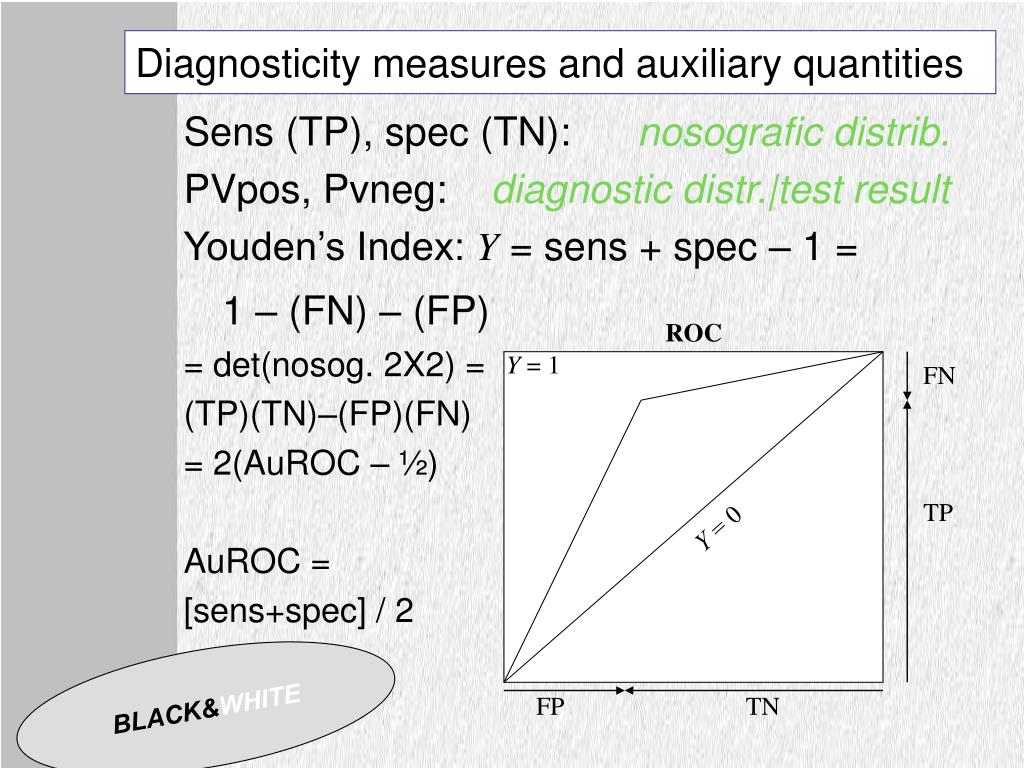

Diagnosticity measures and auxiliary quantities

Sens (TP), spec (TN): nosografic distrib.

PVpos, Pvneg: diagnostic distr.|test result

Youden’s Index: Y = sens + spec – 1 =

1 – (FN) – (FP)

= det(nosog. 2X2) =

(TP)(TN)–(FP)(FN)

= 2(AuROC – ½)

AuROC =

[sens+spec] / 2

ROC

Y = 1

FN

TP

Y = 0

BLACK&WHITE

FP

TN


Diagnosticity measures and auxiliary quantities2

Diagnosticity measures and auxiliary quantities

Sens, spec nosografic distribution

LRpos, LRneg = slopes of segments

The ”Likelihood ratio” term is o.k. when diagnostic

hypotheses are likened to scientific hypotheses

ROC

Y = 1

FN

neg

pos

TP

Y = 0

BLACK&WHITE

FP

TN

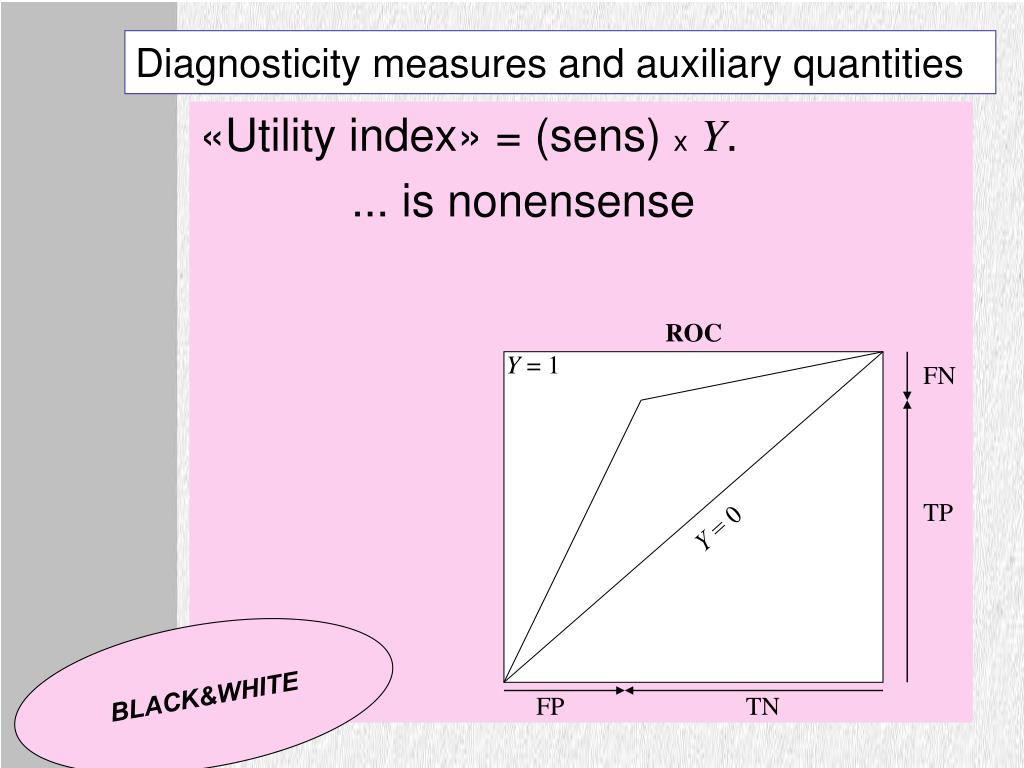

Diagnosticity measures and auxiliary quantities3

Diagnosticity measures and auxiliary quantities

«Utility index» = (sens) xY.

... is nonensense

ROC

Y = 1

FN

TP

Y = 0

BLACK&WHITE

FP

TN

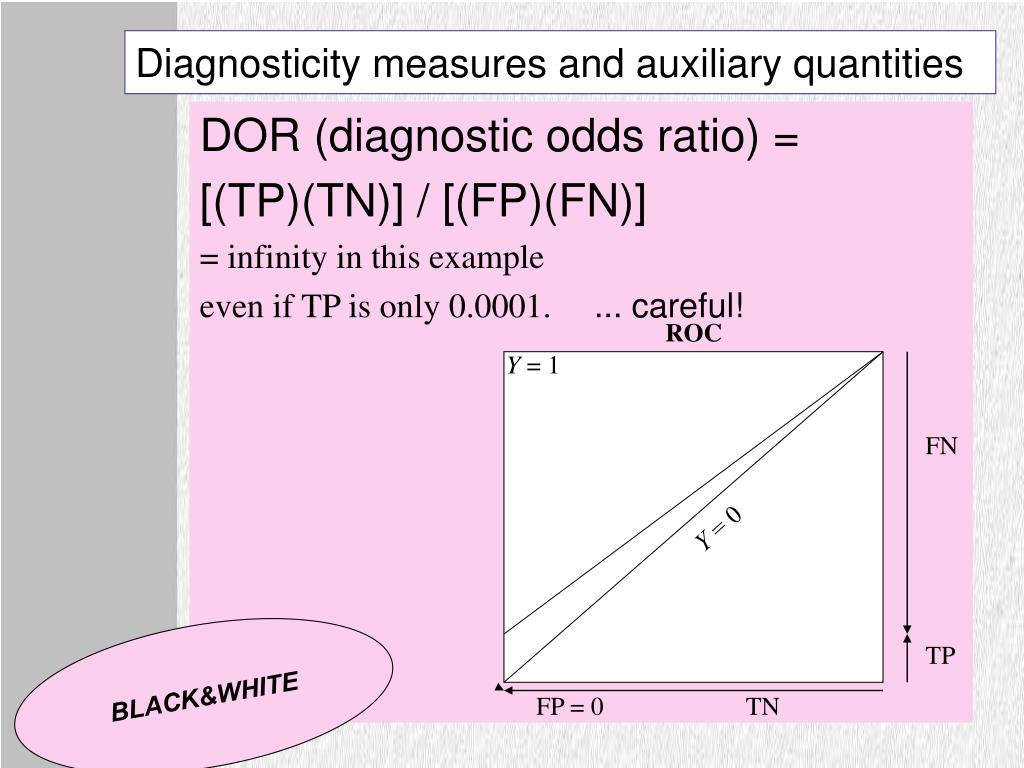

Diagnosticity measures and auxiliary quantities4

Diagnosticity measures and auxiliary quantities

DOR (diagnostic odds ratio) =

[(TP)(TN)] / [(FP)(FN)]

= infinity in this example

even if TP is only 0.0001. ... careful!

ROC

Y = 1

FN

Y = 0

BLACK&WHITE

TP

FP = 0

TN


The clinical value of diagnostic tests a well explored but underdeveloped continent

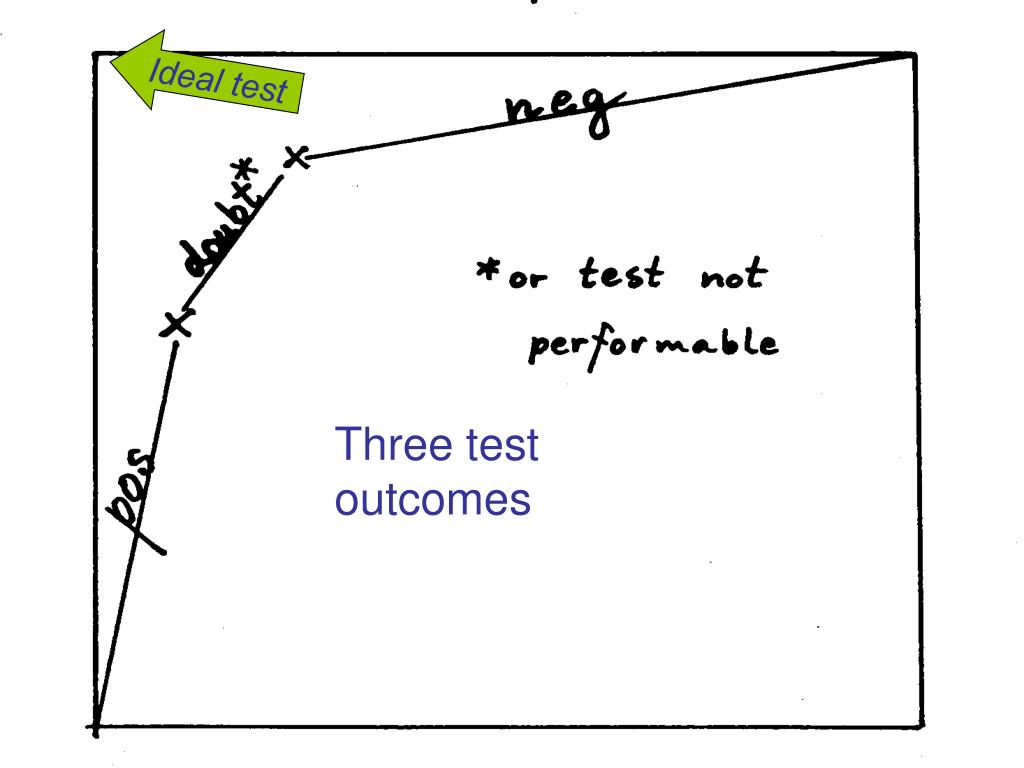

Idealtest

Three test

outcomes


The clinical value of diagnostic tests a well explored but underdeveloped continent

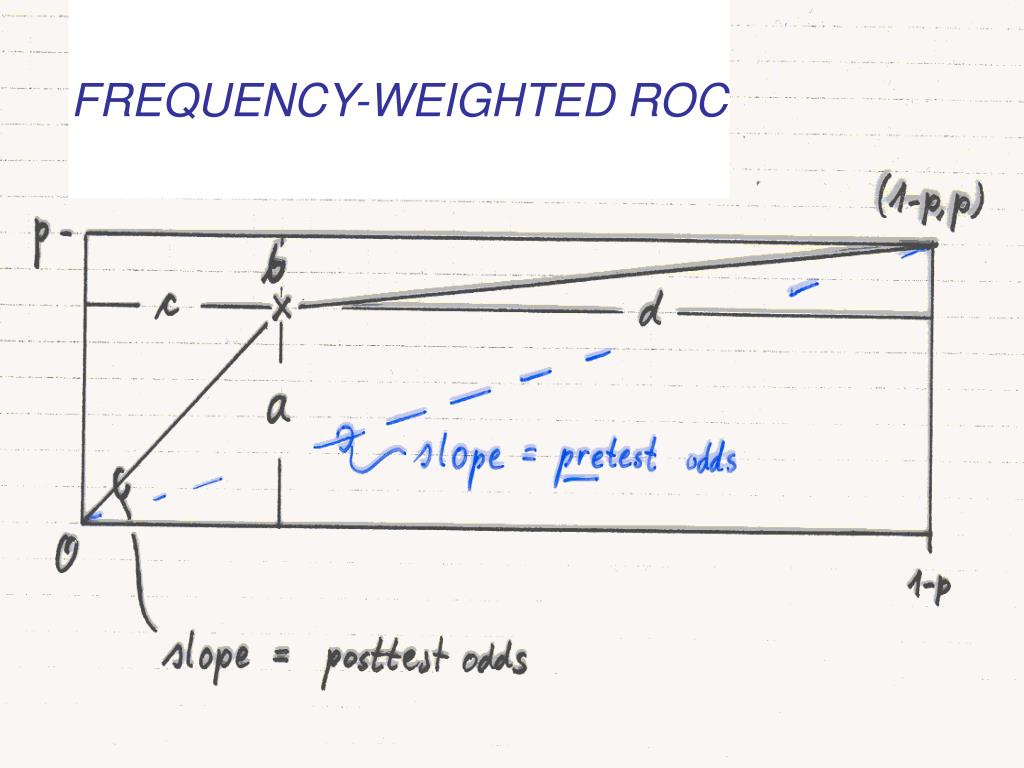

FREQUENCY-WEIGHTED ROC


The clinical value of diagnostic tests a well explored but underdeveloped continent

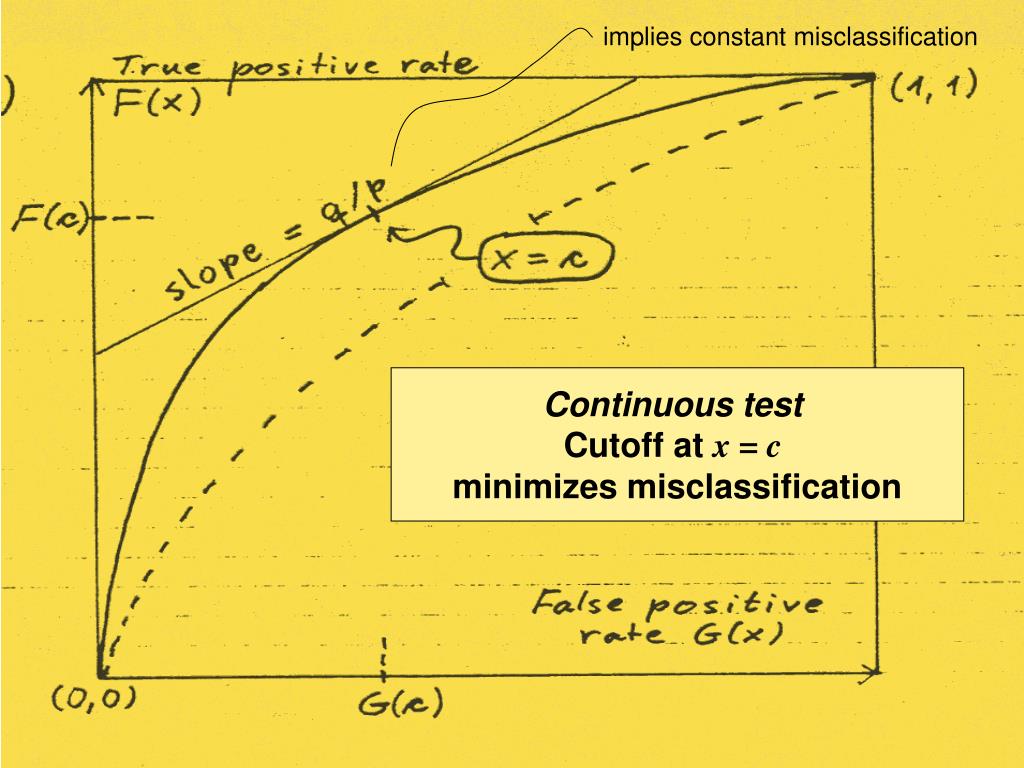

implies constant misclassification

Continuous test

Cutoff at x = c

minimizes misclassification


The clinical value of diagnostic tests a well explored but underdeveloped continent

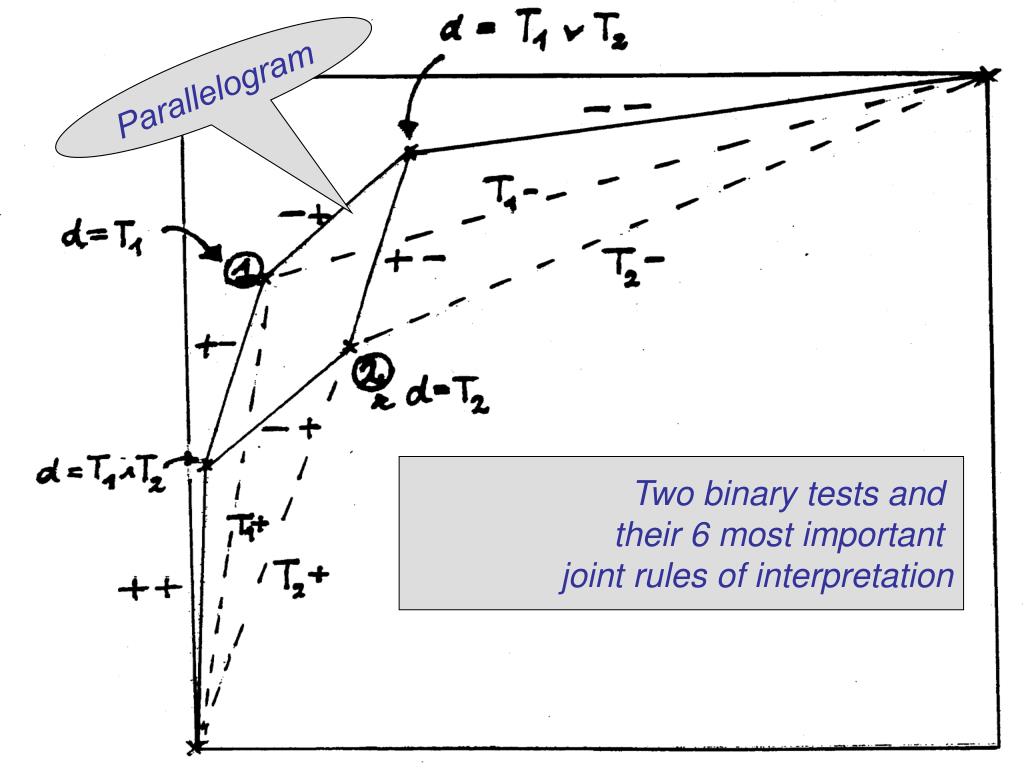

Parallelogram

Two binary tests and

their 6 most important

joint rules of interpretation

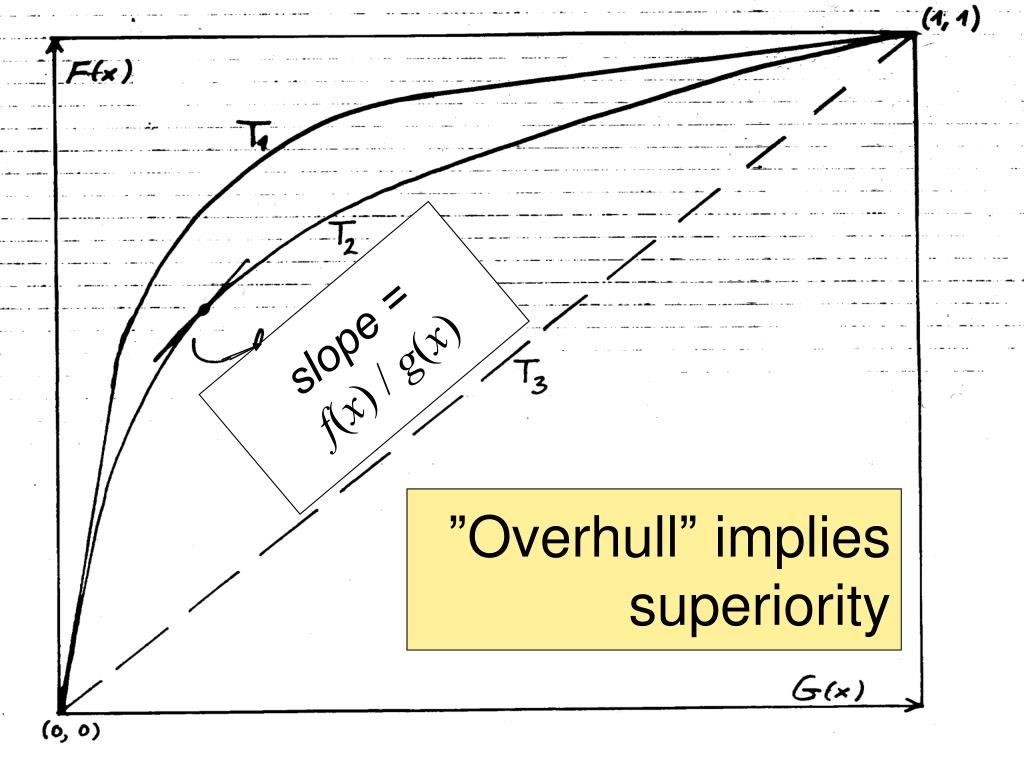

Overhull implies superiority

”Overhull” implies superiority

slope =

f(x) / g(x)


The clinical value of diagnostic tests a well explored but underdeveloped continent

**

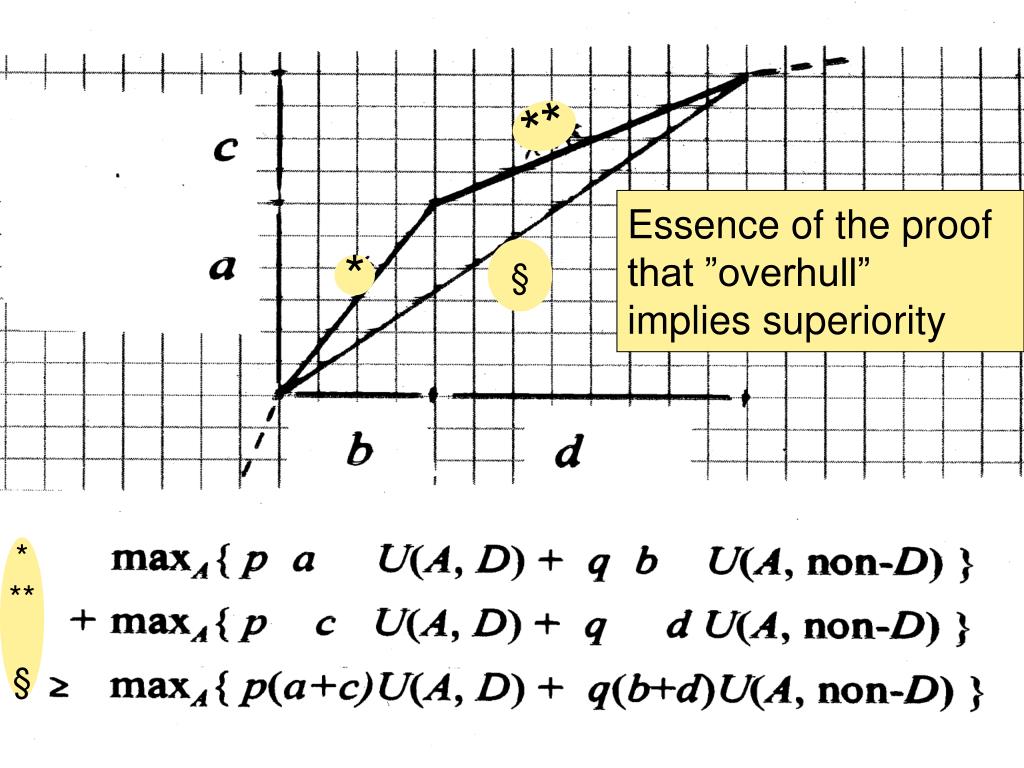

Essence of the proof

that ”overhull”

implies superiority

§

*

*

**

§

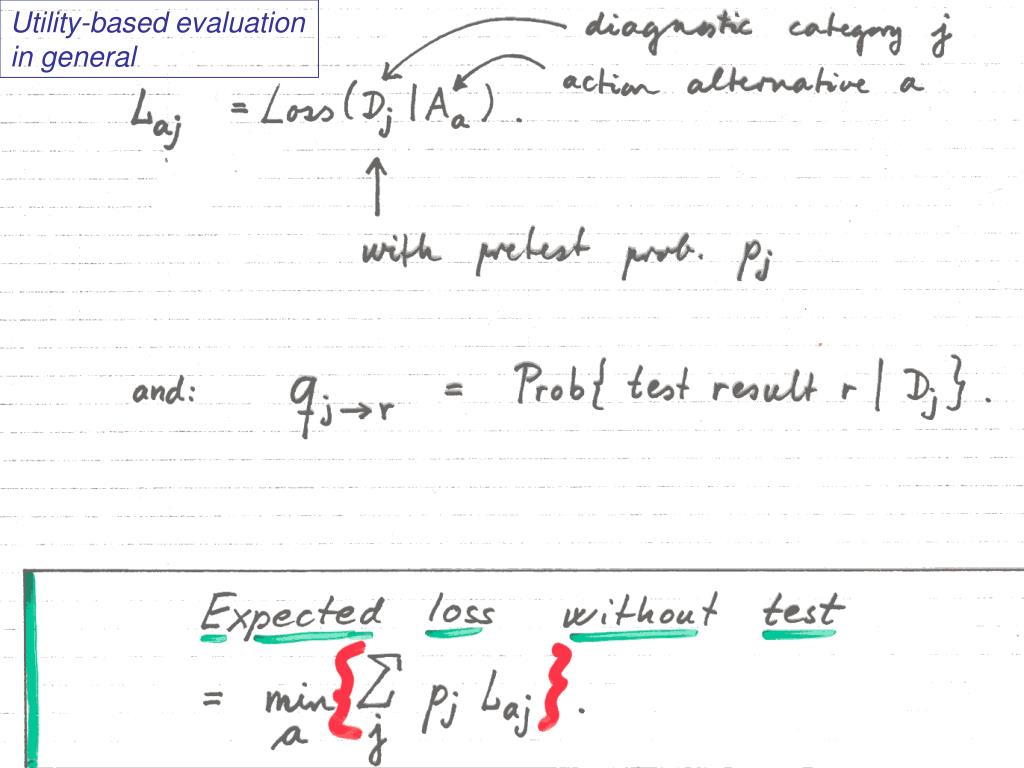

Utility based evaluation in general

Utility-based evaluation in general

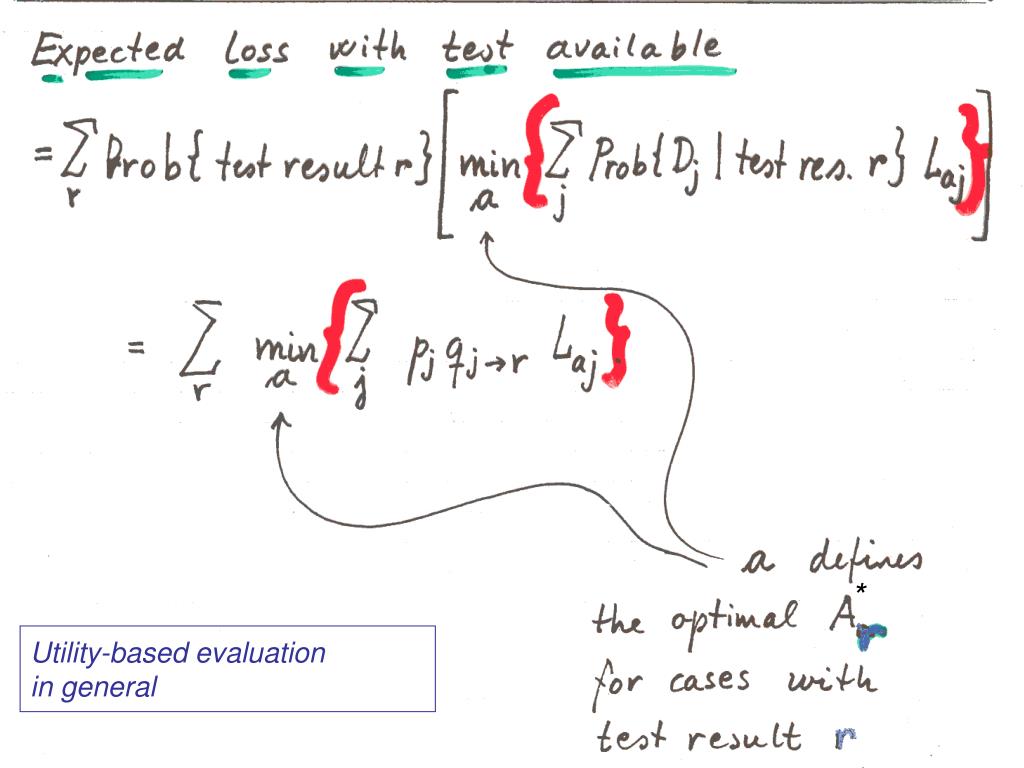

Utility based evaluation in general1

Utility-based evaluation in general

*

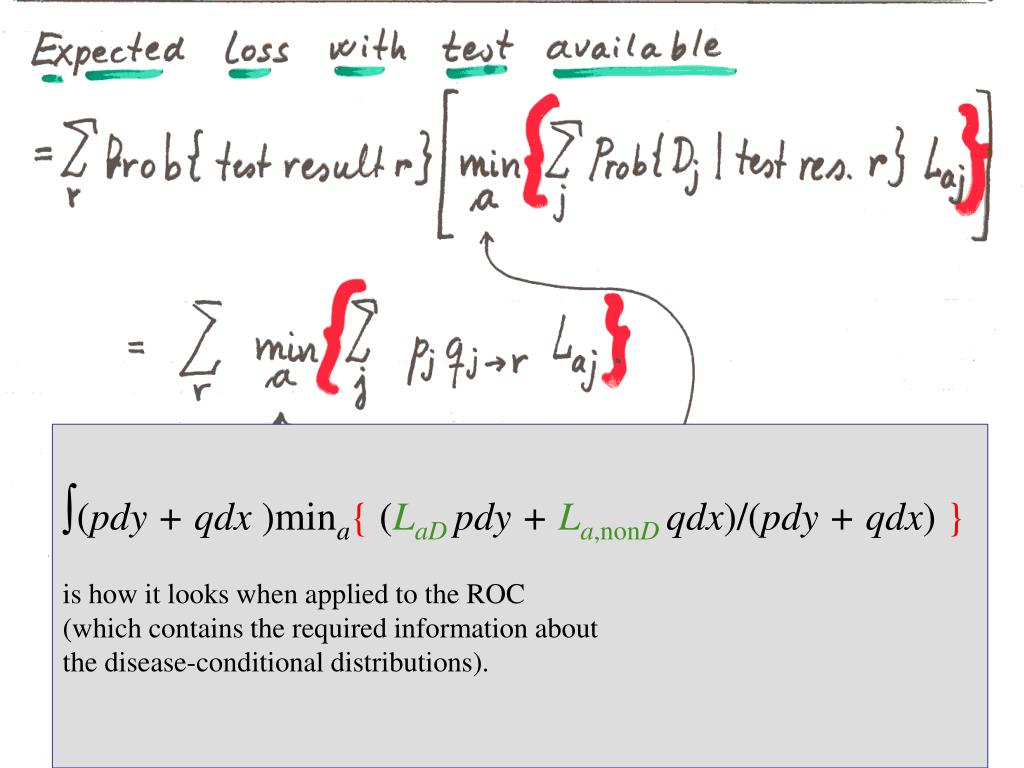

Utility based evaluation in general2

Utility-based evaluation in general

∫(pdy + qdx )mina{ (LaDpdy +La,nonDqdx)/(pdy + qdx) }

is how it looks when applied to the ROC

(which contains the required information about

the disease-conditional distributions).

*

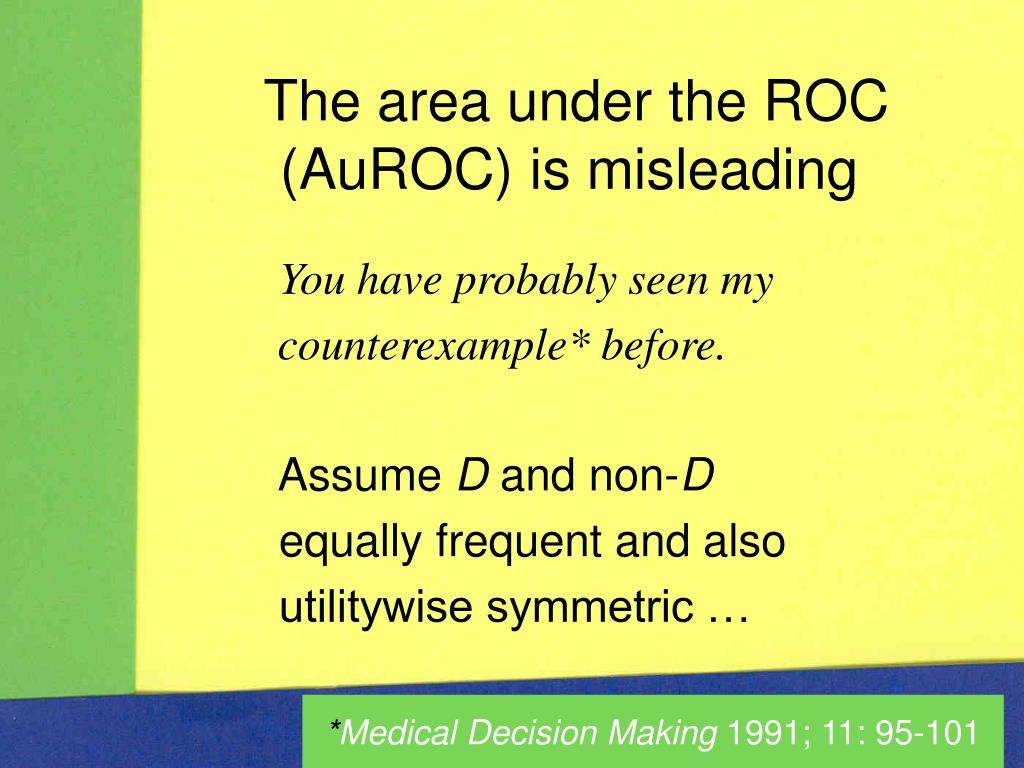

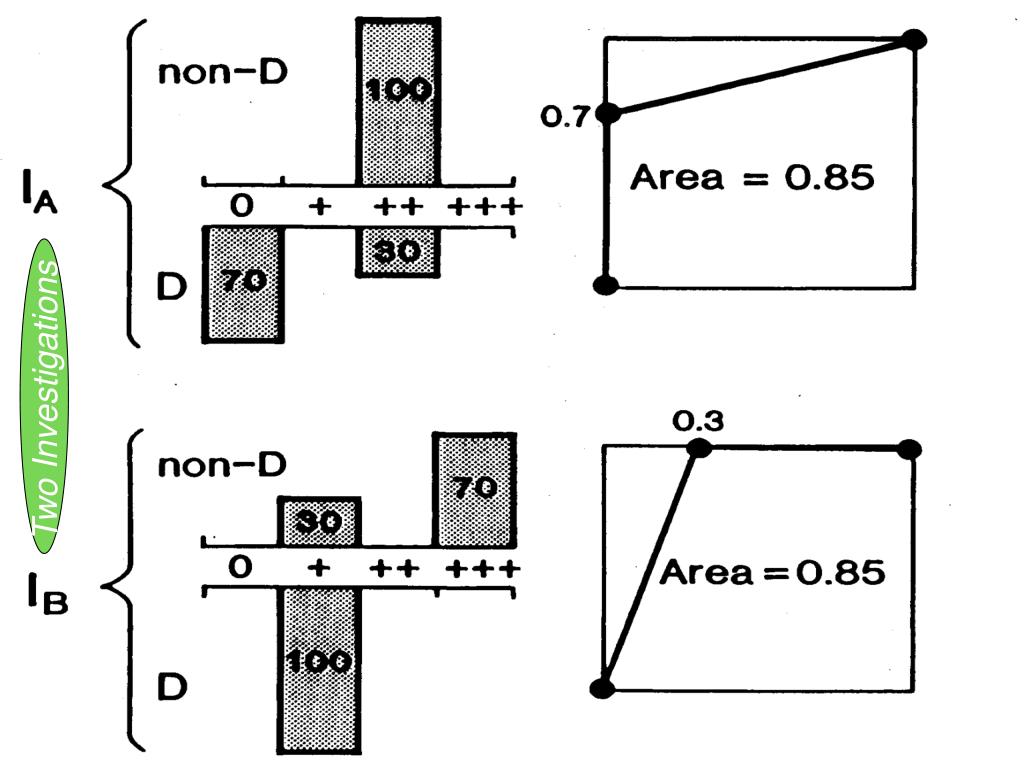

The area under the roc auroc is misleading

The area under the ROC (AuROC) is misleading

You have probably seen my

counterexample* before.

Assume D and non-D

equally frequent and also

utilitywise symmetric …

*Medical Decision Making 1991; 11: 95-101


The clinical value of diagnostic tests a well explored but underdeveloped continent

Two Investigations


The clinical value of diagnostic tests a well explored but underdeveloped continent

Expected regret (utility drop

relative to perfect diagnoses)

Bxsens

The tent graph

Cxspec

pretest


The clinical value of diagnostic tests a well explored but underdeveloped continent

Good & bad pseudoregret functions

Shannon-like

Brier-like


Plan of my talk4

Plan of my talk

Historical & ”sociological” observations

Clinicometric framework

Displays and measures of diagnostic power

Appendix: math. peculiarities


The clinical value of diagnostic tests a well explored but underdeveloped continent

LRpos = LRneg = 1


End of my talk

End of my talk

Thank you !

Tak for i dag !


  • Login
